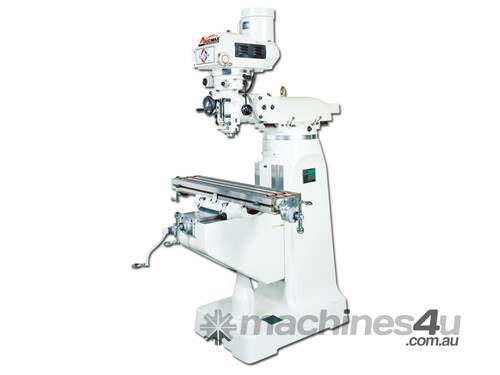

5HP Super Precision Milling Machine - SP-520VS, Manford Avemax, Made in Taiwan

Introducing Manford Avemax Machine, a renowned brand from Taiwan, known for its exceptional quality and high sales worldwide. With over 150 satisfied customers in Australia, our milling machines have proven to be reliable and efficient. We take pride in offering ready stock availability and top-notch after-sales service to ensure customer satisfaction. Choose Manford Avemax Machine for unparalleled performance and reliability.

# MODEL: SP-520VS, VARIABLE SPEED MILLING
TABLE SIZE- 1370mm x 245mm, X/Y/Z AXIS- 1080/775/440MM
SPINDLE- NST#40, 3PH/380V/50hZ, SPINDLE MOTOR- 5HP, QUILL TRAVEL- 127MM,
T-SLOT- 3X16MM
EASSON 3 AXIS DIGITAL READOUT
POWER FEED AL500 X AXIS & Y AXIS
CLUTCH HANDLE ON X & Y AXIS
TILTING HEAD
STANDARD ACCESSORIES INCLUDED WITH THE MACHINE-
1. TOOLS & BOX
2. LEVELLING SCREWS
3. AUTO LUBRICATION
4. RUBBER CHIP CONVEYOR FRONT AND REAR
5. LIFTING MOTOR
6. ELECTRICAL CONTROL BOX
7. LED WORK LIGHT

STANDARD ACCESSORIES INCLUDED WITH THE MACHINE (for current stock, new machine order can be customized as per the customer requirements): -
1. TOOLS & BOX
2. LEVELLING SCREWS
3. AUTO LUBRICATION
4. RUBBER CHIP CONVEYOR FRONT AND REAR
5. LED WORK LIGHT
6. Machine is packed in wooden box and securely transport across Australia

Please note general machine specifications as follows:-

#10”X 54” table

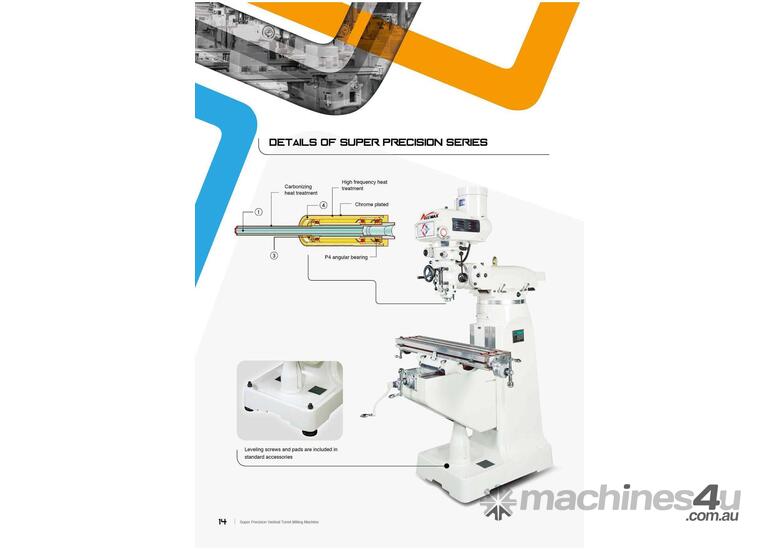

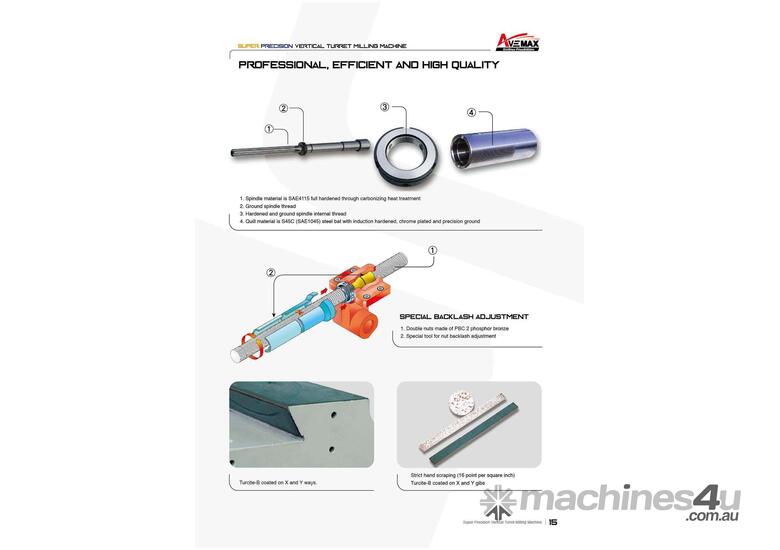

#NST#40 spindle material SAE4115 (SCM415) full piece by hardened and ground
#Turcite-B on X Y ways, slidways and X Y gibs
#Hardened and ground on X Y Z slidways and table
#Electroless nickel-phosphorus plating process on X and Y leadscrews
#Grinding on table T-slot
#Square ways on Y and column ways
#Patented FA381 keys are used for vari-speed head
#Diameter 1 1/2” (38mm) lifting screw
#Lifting motor and electric box
#Strict with hand scraping for high precise accuracy.


General Specification of the Machine, Model SP-460VS:-

Specification:- SP-520VS
Table size:- 254x1370mm (10”x54”)
T-slot of table (Q’ty x size):- 3x16mm (3x0.63”)
Longitudinal travel (X axis):- Manual 870mm (34.3”), Auto 775mm (30.5”)
Cross travel (Y axis):- 390mm (15”)
Vertical travel of knee (Z axis):- 450mm (18”)
Ram travel:- 560mm (22”)
Quill travel:- 127mm (5”)
Spindle taper:- NST#40
Spindle to table nose:- 85~535mm (3.3”~21”)
Spindle center to column:- 178~738mm (7”~29”)
Over swivel on turret:- 360degrees
Head swivel (R&L):- +/-45 degrees
Head tilt (up & down):- Option
Spindle motor:- 5HP
X axis motor Option: Power feed
Lifting motor:- 1HP gear type motor
Quill feed:- 0.04~0.08~0.14 mm / rpm (0.0015” ~ 0.003” ~ 0.006”)
Spindle speed:- Step head 50Hz: 54~2875rpm, 60Hz: 65~3450rpm

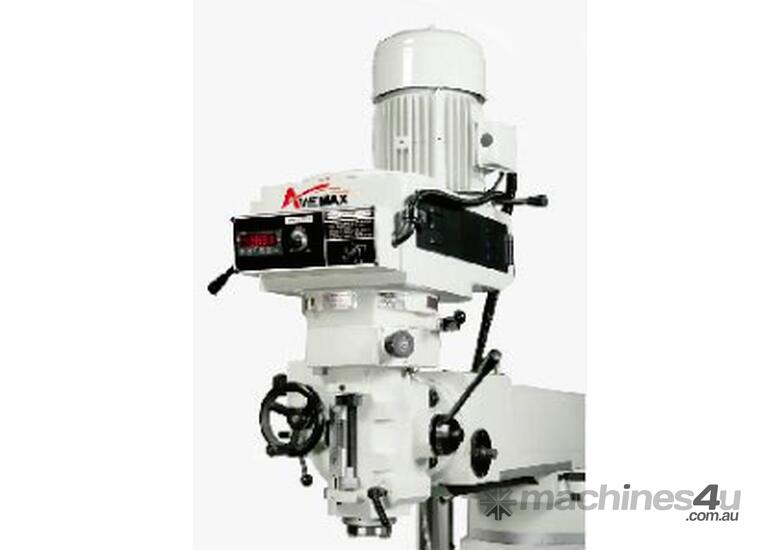

Variable speed head:- 50Hz: 50~3600rpm, 60Hz: 60~4300rpm
Overall height:- 2375mm (93.5”)
Overall depth:- 2120mm (83.5”)
Overall width:- 1840mm (72.4”)
Net weight:- 1600Kgs (3500lbs)

One machine is only left in stock; call and reserve this machine for your production today.

In the attachment some photos are for reference purpose only. Please contact for more information.

All our machines come with strict quality control checks, and certificates issued to the machines come along with the machine despatch.
A one-year standard warranty is applicable to all our machines and models. We offer additional warranty and services upon request, so please contact us for further information.
