5MT Live Centre Taiwanese Precision Quality 2000rpm, 1065kg Load Capacity

TOOLMASTER 5MT Live Centre Taiwanese Precision Quality 2000rpm, 1065kg Load Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C060

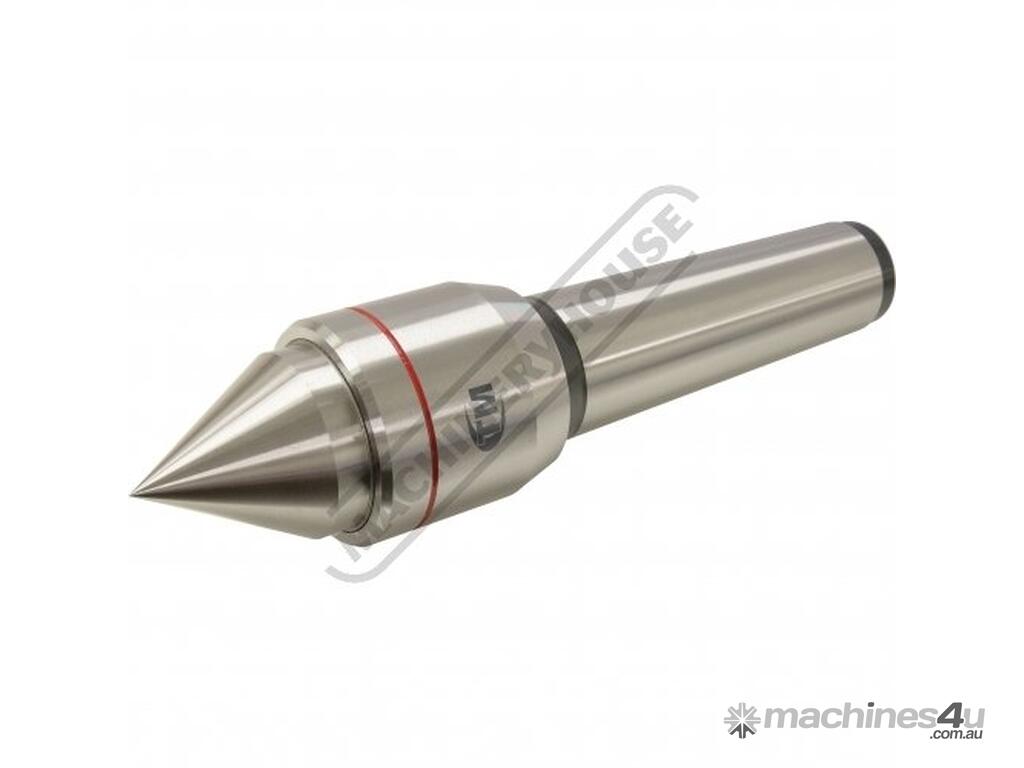

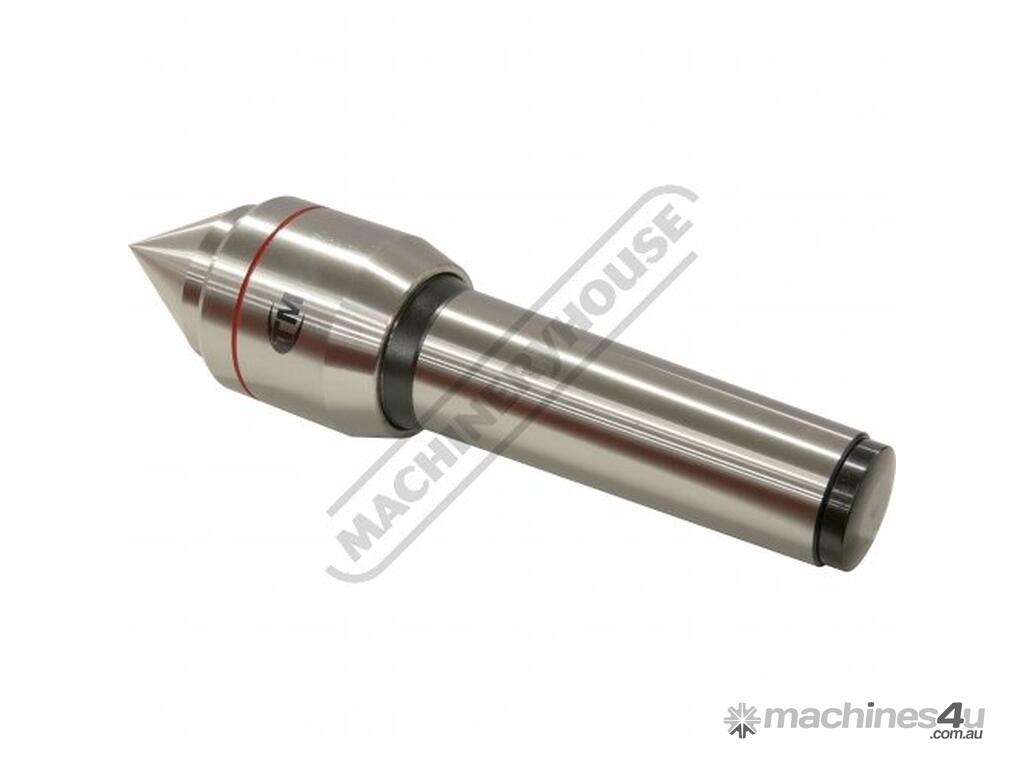

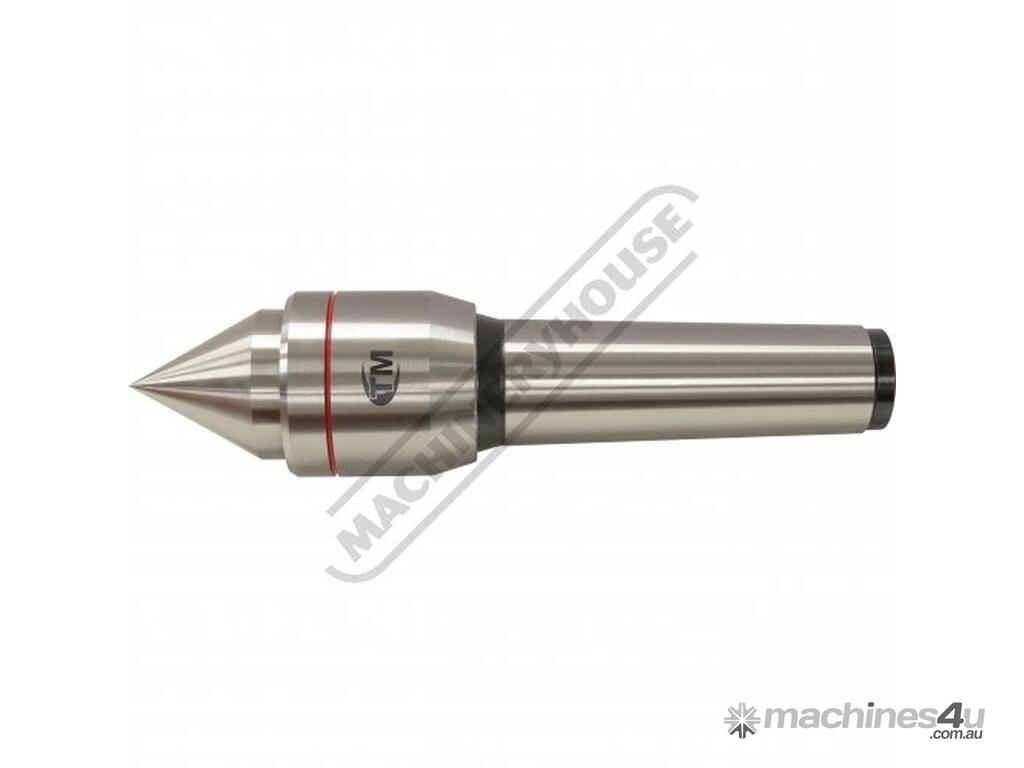

Toolmaster live centre's are fitted with needle, thrust and ball bearings suitable for medium to high speed lathes with heavy loads.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.

Features:

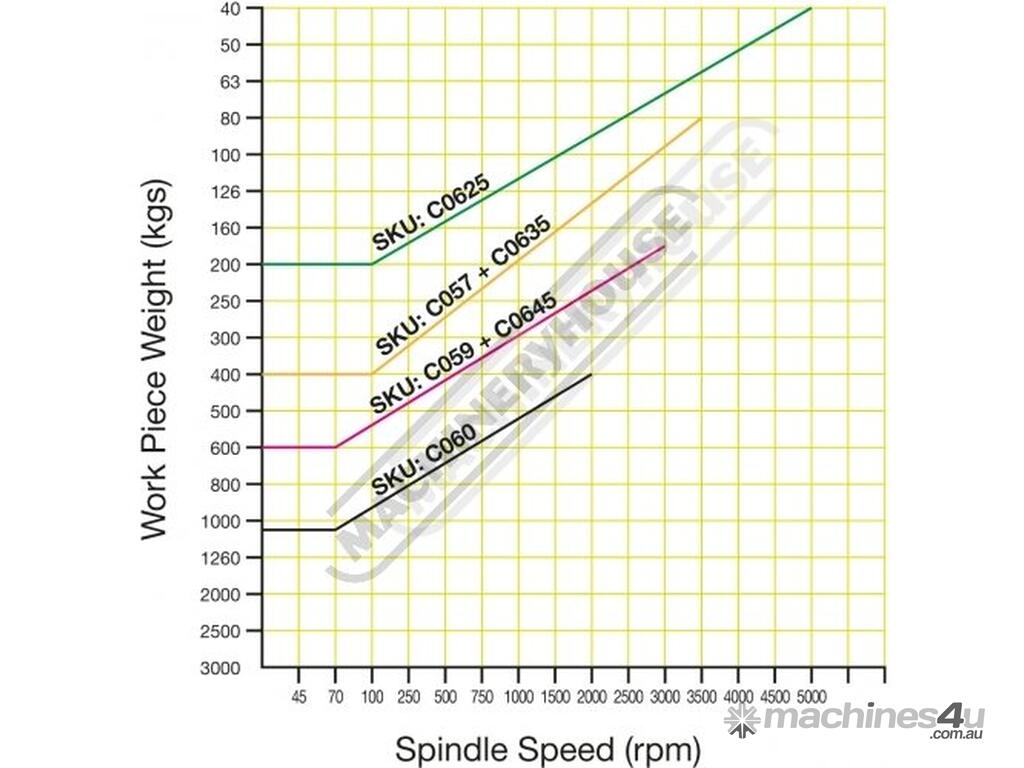

Maximum speed 2000rpm 400kg
Maximum load 1065kg 70rpm
Hardened to HRC 60º
Made from alloy steel
Assembled with thrust needle & ball bearings


Specifications:
ORDER CODE: C060
Taper (MT): 5MT
Point Type: Standard
Maximum Speed (rpm): 2000
Maximum Load Capacity (kg): 1065
Angle ? (deg): 60
A (mm): 54
B (mm): 72
C: 136
D: 65
D1: 52
d: ~
E (mm): ~
F (mm): ~
G (mm): ~
L (mm): 262
Nett Weight (kg): 3.7
