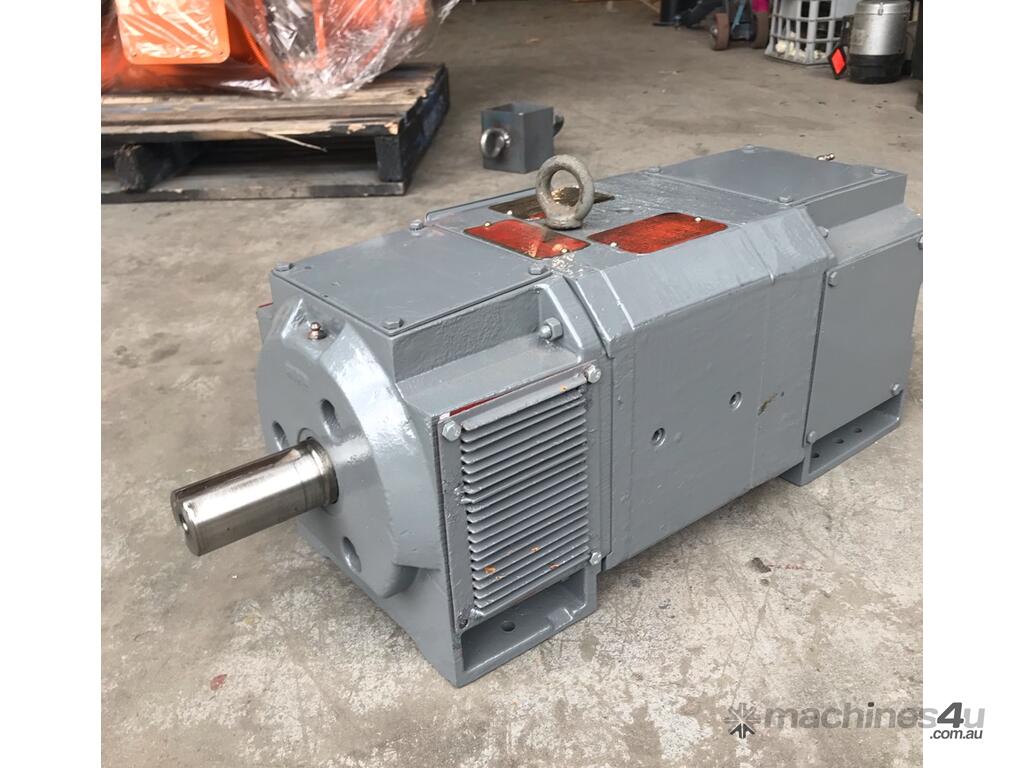

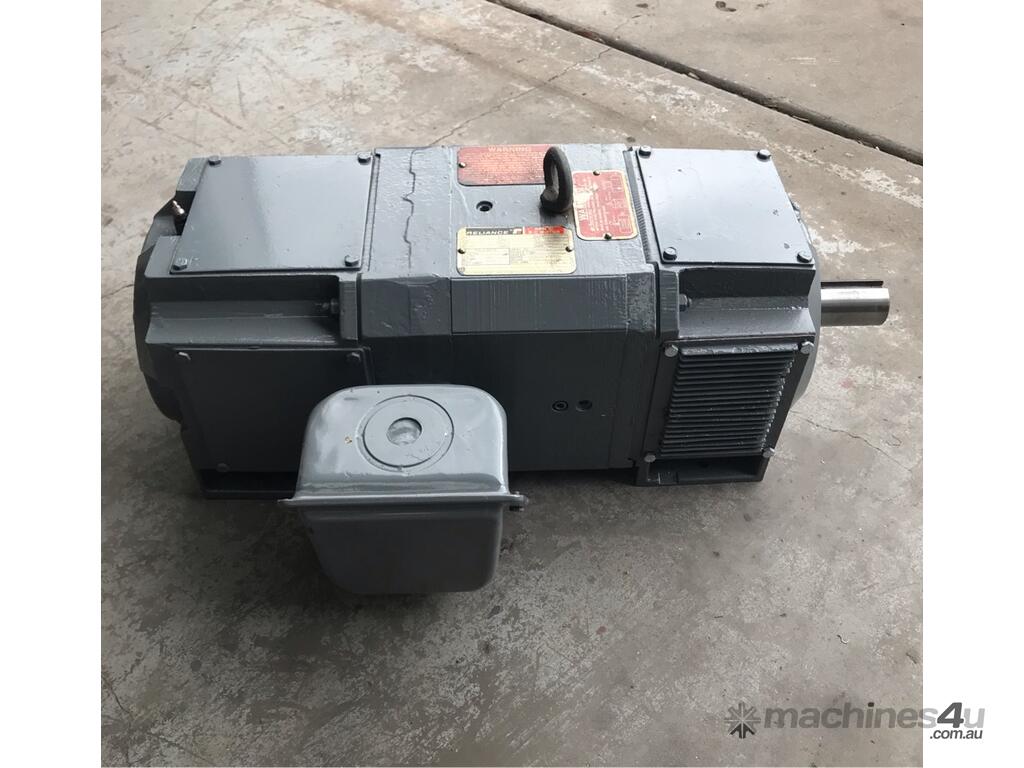

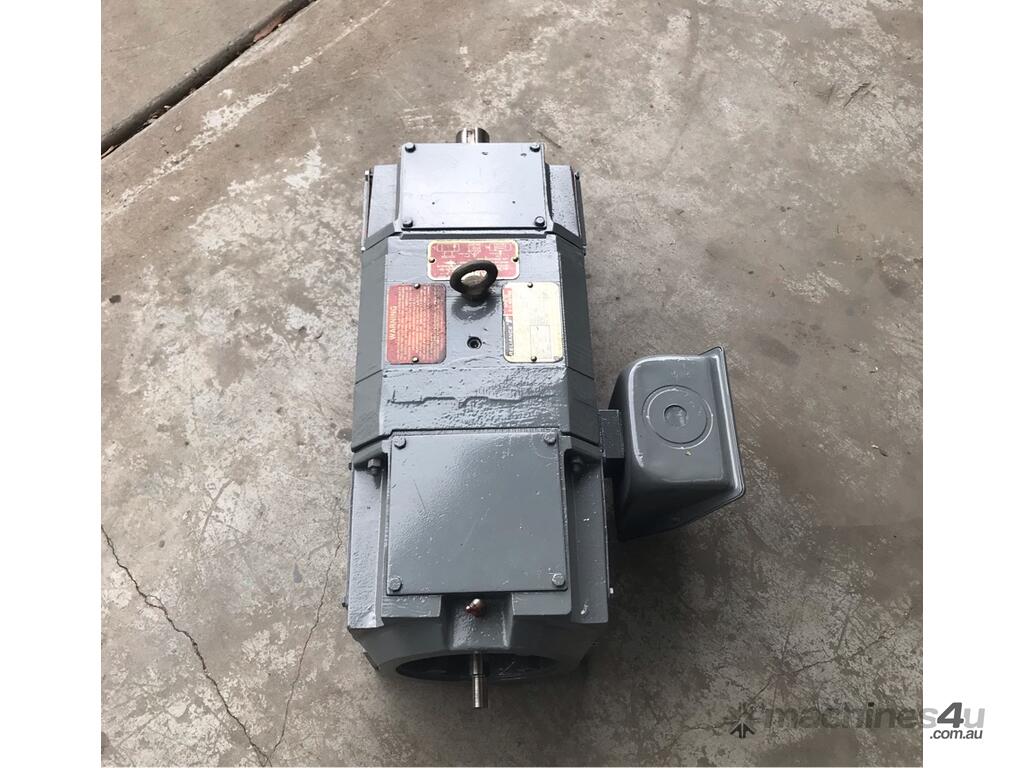

6.5 kw 9 hp 1750 rpm DC Electric Motor

6.5 kw 9 hp 1750 rpm DC Electric Motor

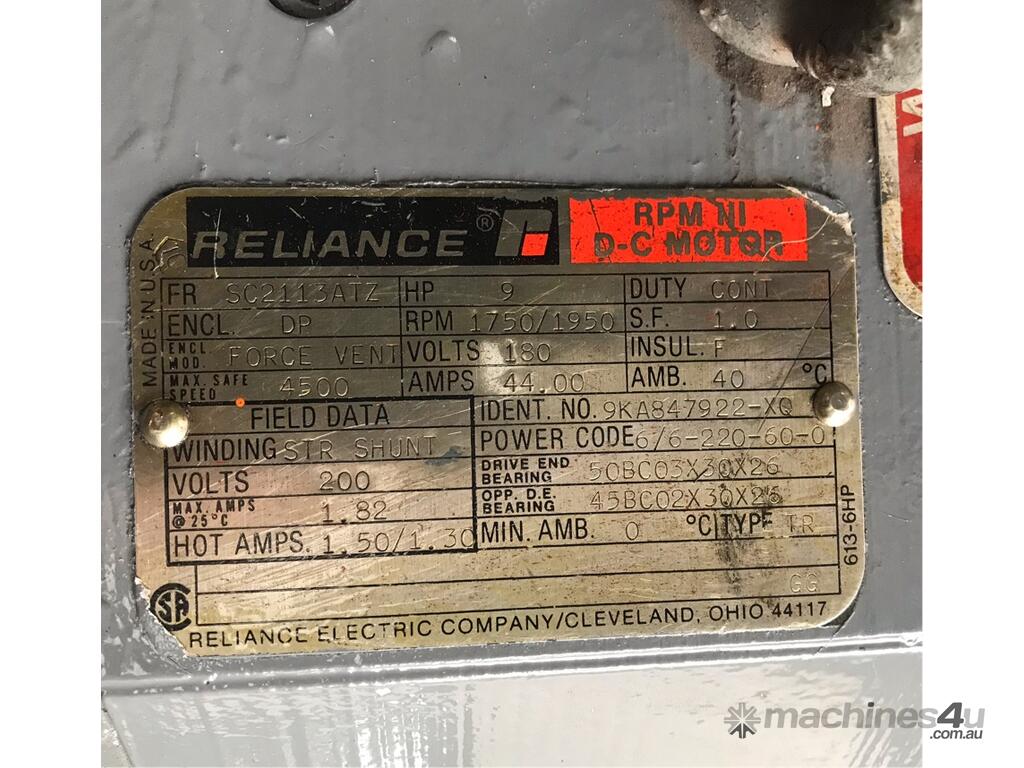

Type: DC Shunt Motor
Make: Reliance
Model: SC2113ATZ
Power: 6.5 kw (9 hp)
Base Speed: 1750 rpm
Armature Volts: 180 v
Armature Amps: 44.00
Field Volts: 200
Field Amps: 1.82
Shaft: 1 & 7/8 inches Dia (47.5 mm) , 3 & 11/16 Long (91.5 mm)
Centre shaft height: 134 mm
Total motor length: 760 mm inc. shaft & tacho provision
Total motor width: 425 mm inc. box
Total motor height: 270 mm
Feet measurements: 15'' front to back (Hole 1), 16" & 5/8 (Hole 2), 17'' & 7/8 (Hole 3 Back). And 8 & 1/2'' across.
Qty: 1
Condition: Reconditioned
Available now
