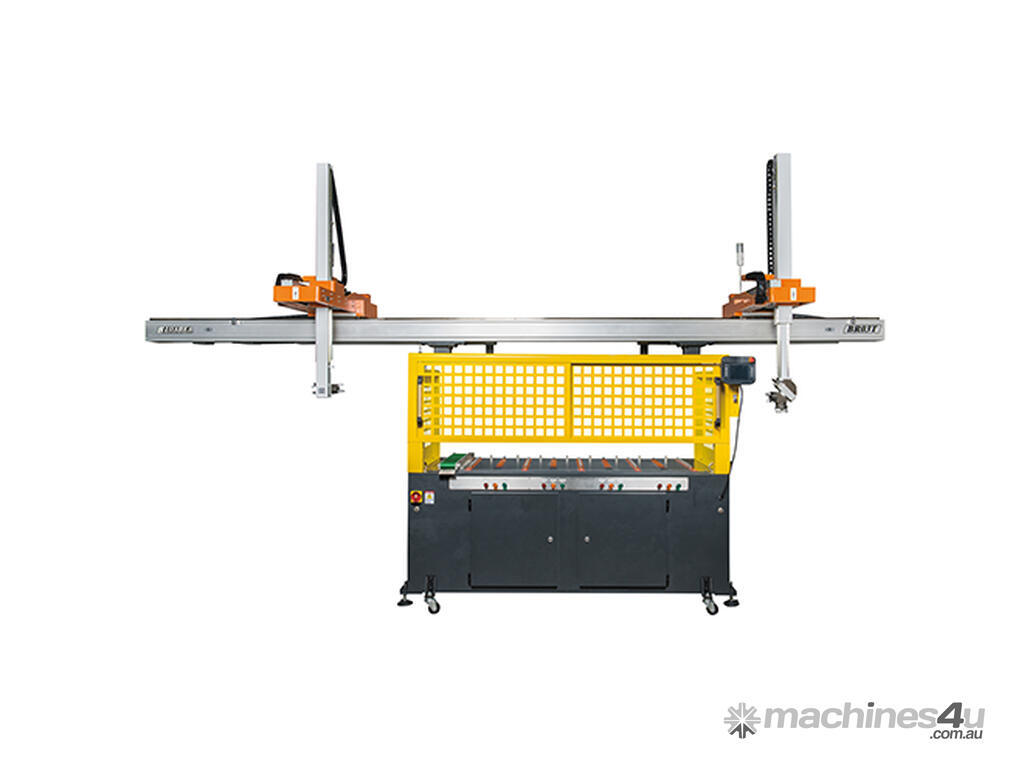

6-8 Axis Controlled Gantry Loader, No Vibration at High Speed Level

The 6-8 Axis Controlled Gantry Loader provides advanced automation for precise, multi-axis material handling. Its flexible control system enhances productivity, reduces downtime, and ensures efficient, reliable operation.

Features
Twin Arm / Double Side Configuration
6-8 Axis Controlled Gantry Loader
Equipped with SP Extraction Matrix Trays
Servo Rotary ‘B’ Axes (Optional)
Servo Rotary ‘B’ Axes (Optional)
2-Stage Telescopic Z-axis is designed for low height workshops.(Optional)
The software of gantry loader is compatible with any controller of CNC lathe.
X-axis travel speed reaches 90 ~ 120 m/min.
Z-axis travel speed is 60 m/min.
Gripper design meets customers requirements.
Rigid structure features maximum stability without vibration at high speed travel.
Installed independently, no interference with operation of lathe.
Machine height is adjustable to suit lathe.
Loading area is guarded with safety light curtains or doors.
Multi-patents.
Parts conveyor. (Optional)
Turn-Over Devices (Optional)
Also available in Single Arm / Double Side Configuration
One loader can load two machines

Available on request
- Dimensions & Specifications
- eBrouchures

Barload Australia focuses in innovative design plus powerful control that will change the way things are done. Contact us to improve your efficiency & your future.
