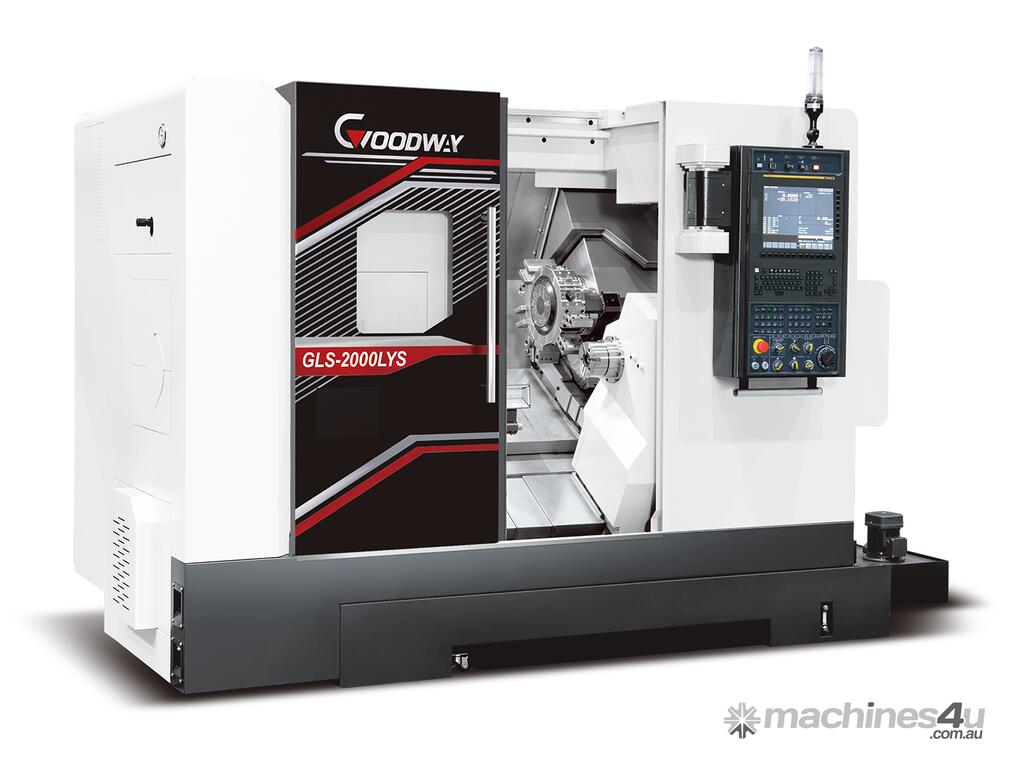

6" & 8" Chuck - GLS Turn/Mill Centre

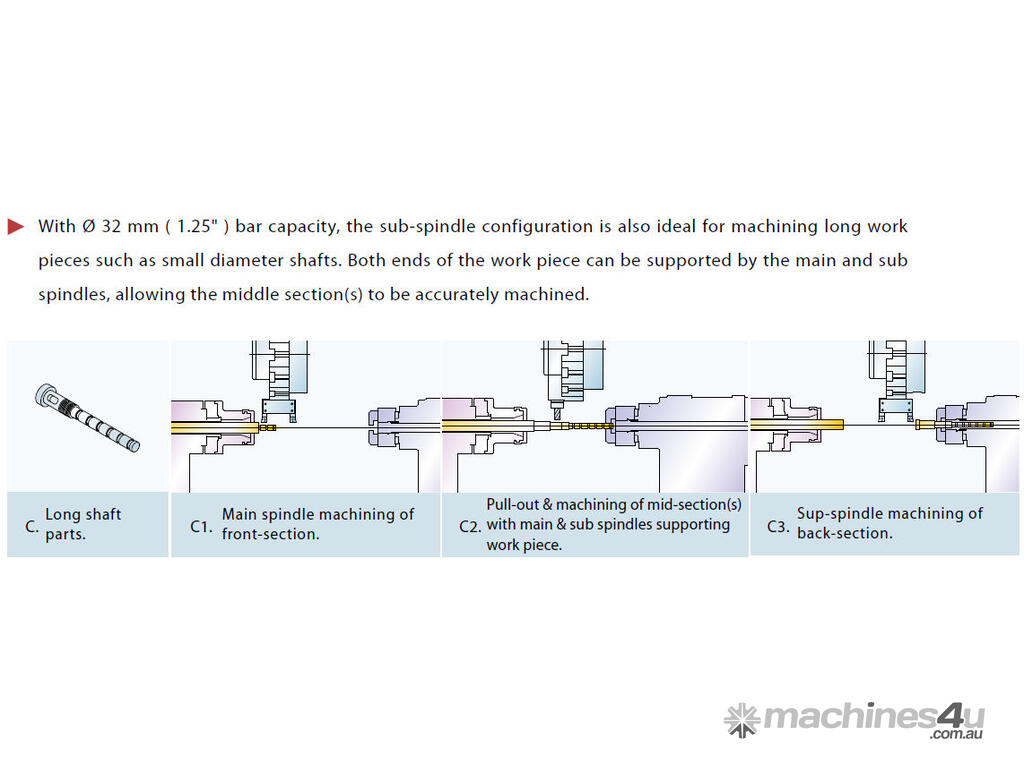

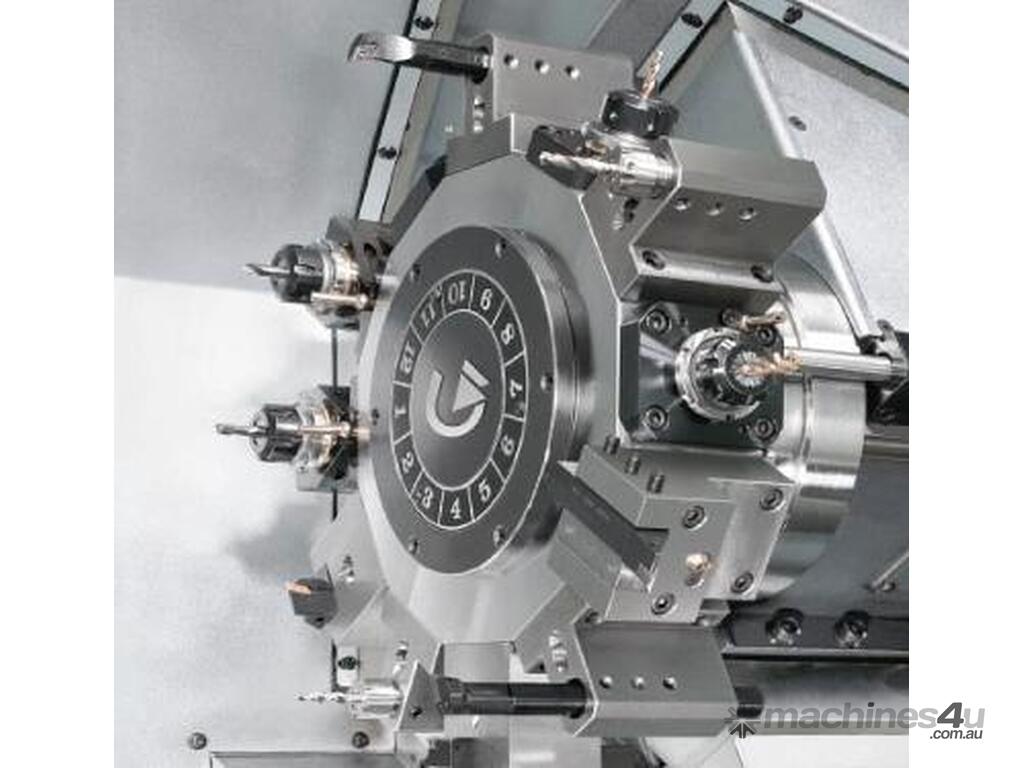

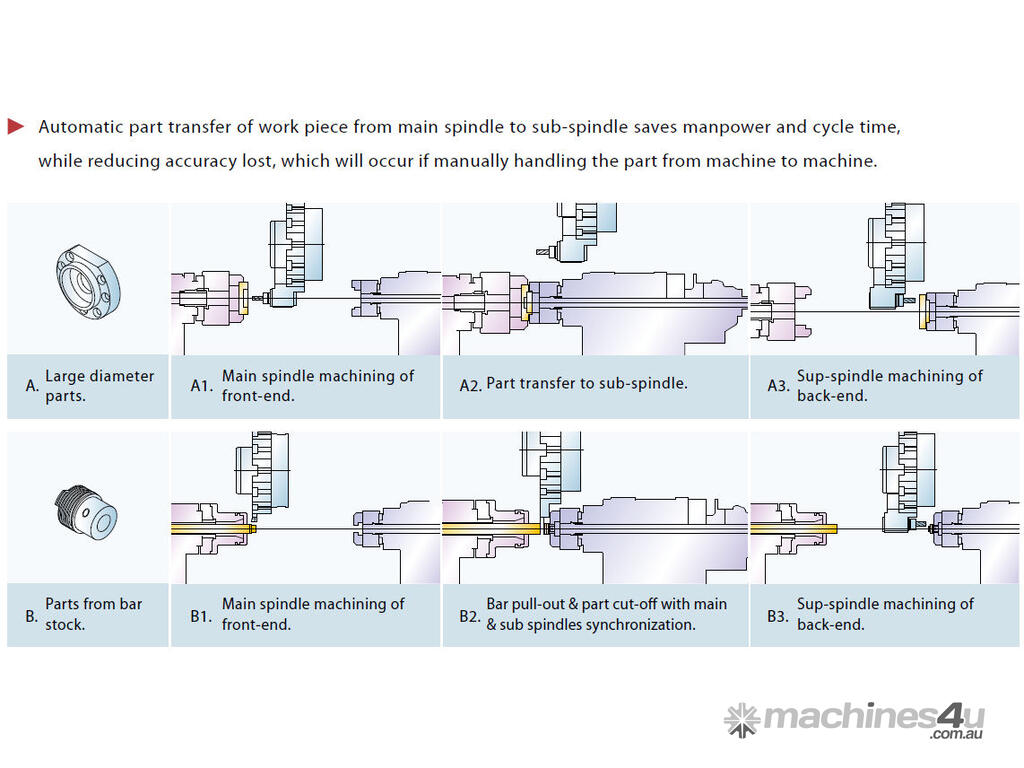

With the latest machine tools technology and precision turning performance, Goodway brings you the new GLS-1500 series high speed CNC turning centre. Using 2 types of bed combined with high rigidity, high speed turning capability and compact size provides you with high efficiency cutting power. The GLS-1500 series equipped with a live tooling turret, the optional Y-axis and sub-spindle can work on turning, milling, drilling tasks at the same time to increase the output capacity with high end value to meet your needs of today and tomorrow.

Model:GLS-1500M / 2000M
Chuck size: 6” / 8"
Max bar capacity (mm): 51 / 65
Max turning diameter (mm): 390
Swing over bed (mm): 560
Max turning length (mm): 240 / 540

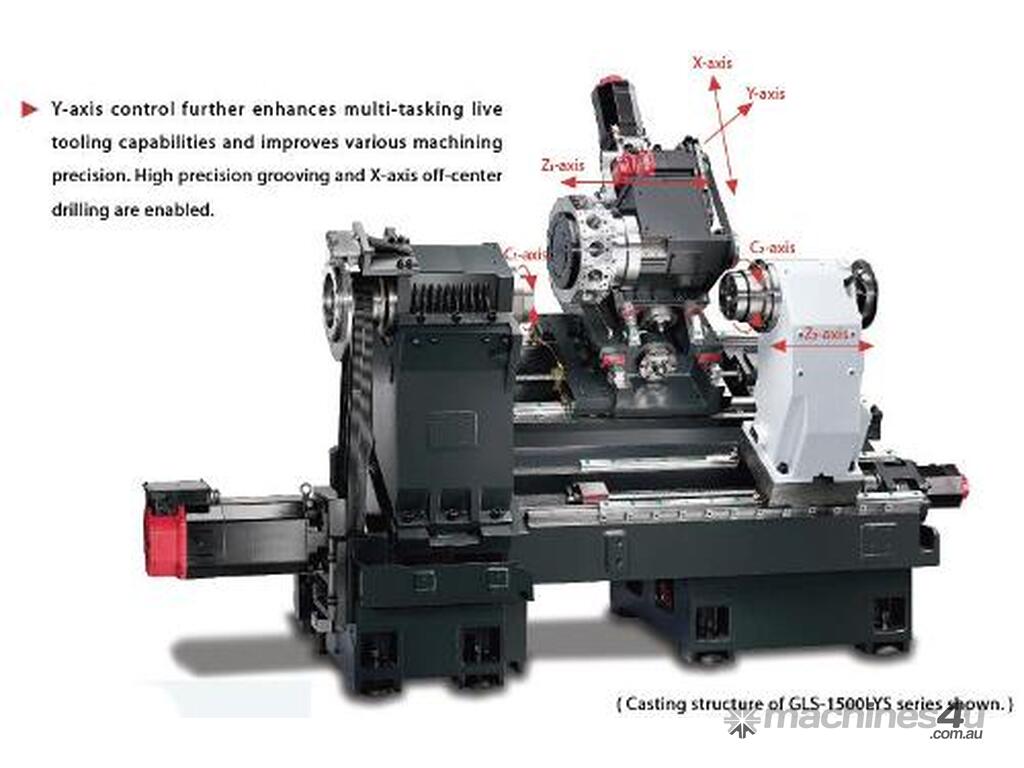

Optional Y axis travel (mm): 70 (±35)

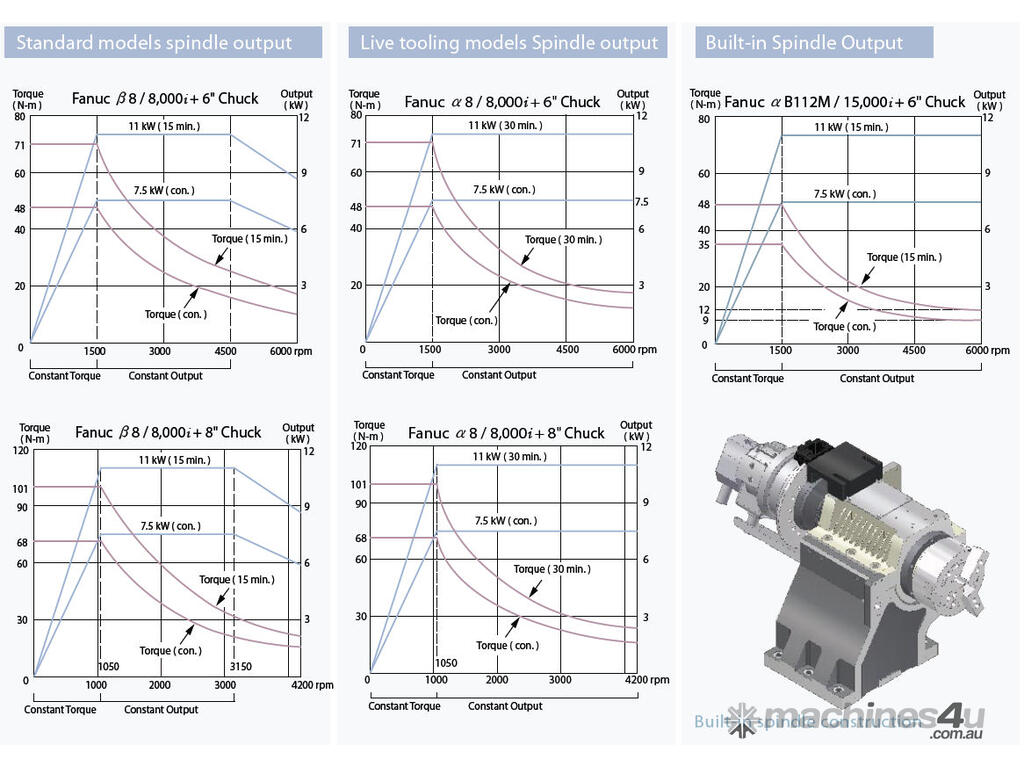

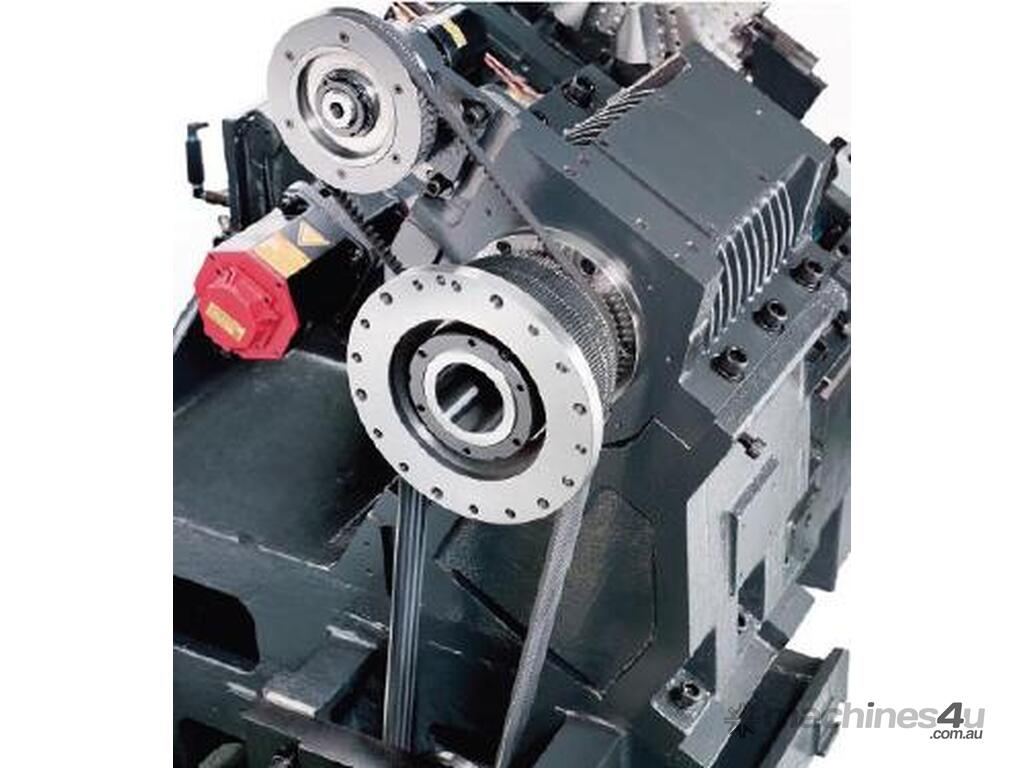

Spindle speed (rpm): 6000 / 4200
Rapid traverse (X/Z m/min): 24 / 30
Motor (kW): 15 / 11

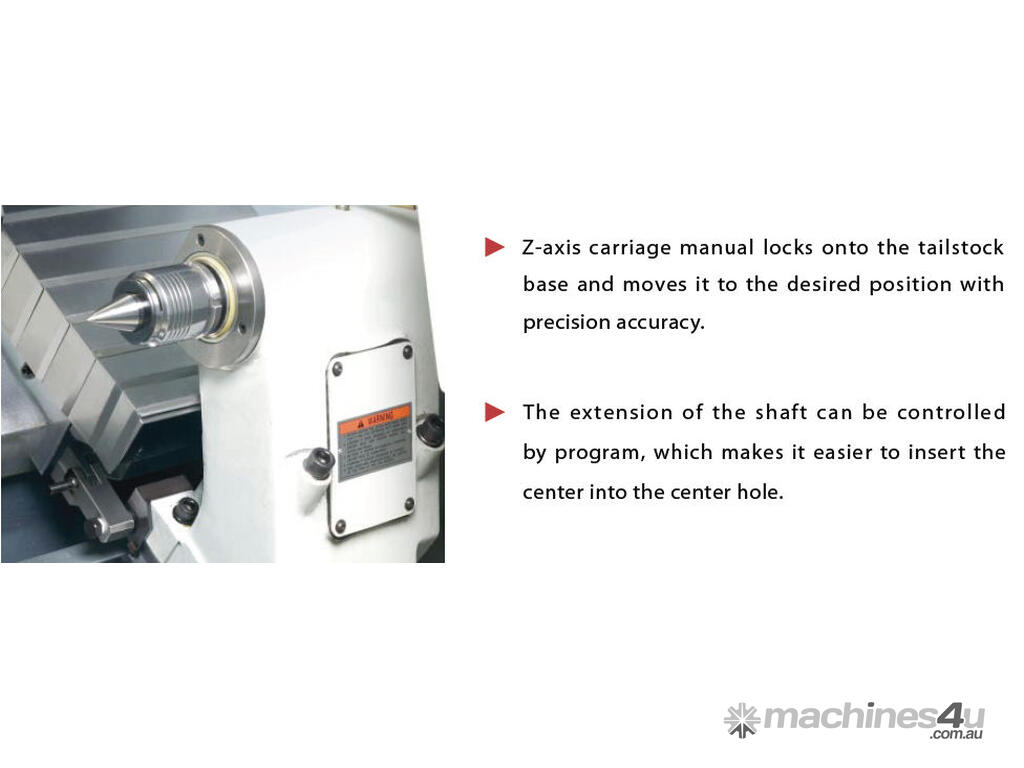

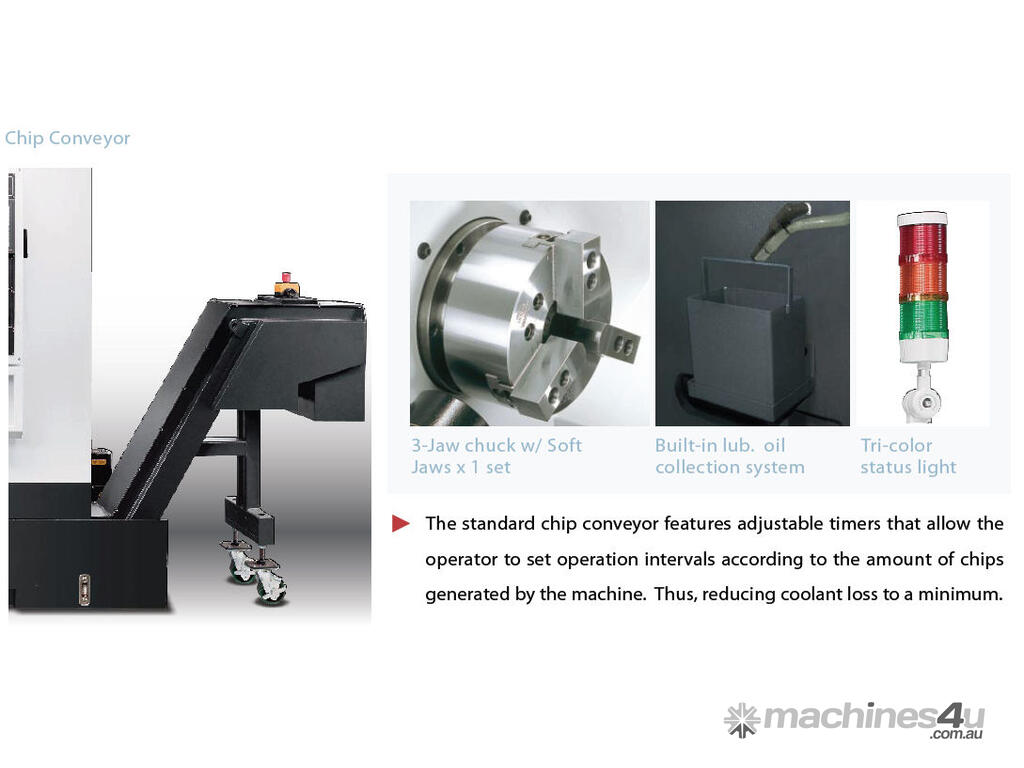

C/w Fanuc or Siemens Conversational Control, Chip Conveyor, Renishaw Tool Setter, Live Tools, C Axis, 4 x Milling Holders & Tailstock.

Large range of models available, would suit Mazak, Okuma, Mori Seiki & Doosan buyer!

Goodway’s are now one of the largest CNC Lathe manufacturers in the world and their recently opened state of the art manufacturing facility enables them to produce their range of CNC turning Centres in one the most modern plants in Taiwan, they are also one of the few Taiwanese machine tool manufacturers with their own sophisticated machine shop to produce critical components
Goodway’s massive investment in new development areas over recent years has seen their range grow into new areas such as: Multi Tasking Machines, Swiss Type Lathes, Large Slant Bed Lathes up to Ø980mm turning diameter, CNC Vertical Lathes including a Ø5000mm vertical lathe currently in development and the soon to be released CNC Flat Bed Lathes with swings up to Ø2000mm.
Since 1975 Goodway Machine Corp has specialised in the development and manufacture of high precision turning centres, currently Goodway produce in excess of 2,000 CNC Lathes each year and have grown to be one of the largest CNC lathe manufacturers in the world. Their machines are now well known in over 50 countries for their exceptional performance, quality and value and with over 75 model variants ranging from Ø32 ~ Ø205mm bar capacity, Ø6” ~ Ø24” chuck size, turning lengths up to 4000mm and 2 ~ 9 axis configurations, Goodway has the capability to meet virtually any turn / mill application. There really is a solution for every turning requirement in the Goodway range of Turning Centres!
