6-Axis Milling Machining Centre

Main Characteristics:

Possibility to execute milling operations on up to 5 simultaneous axis
• Cast iron construction providing high rigidity and vibration free operation
• Rotating axis with direct-drive technology offer extremely high precision and accuracy as well as clearance-free operation
• Re-taking gripper for milling operations on the sixth side
• Possibility to use an automatic bar loader or a pushing-bar device

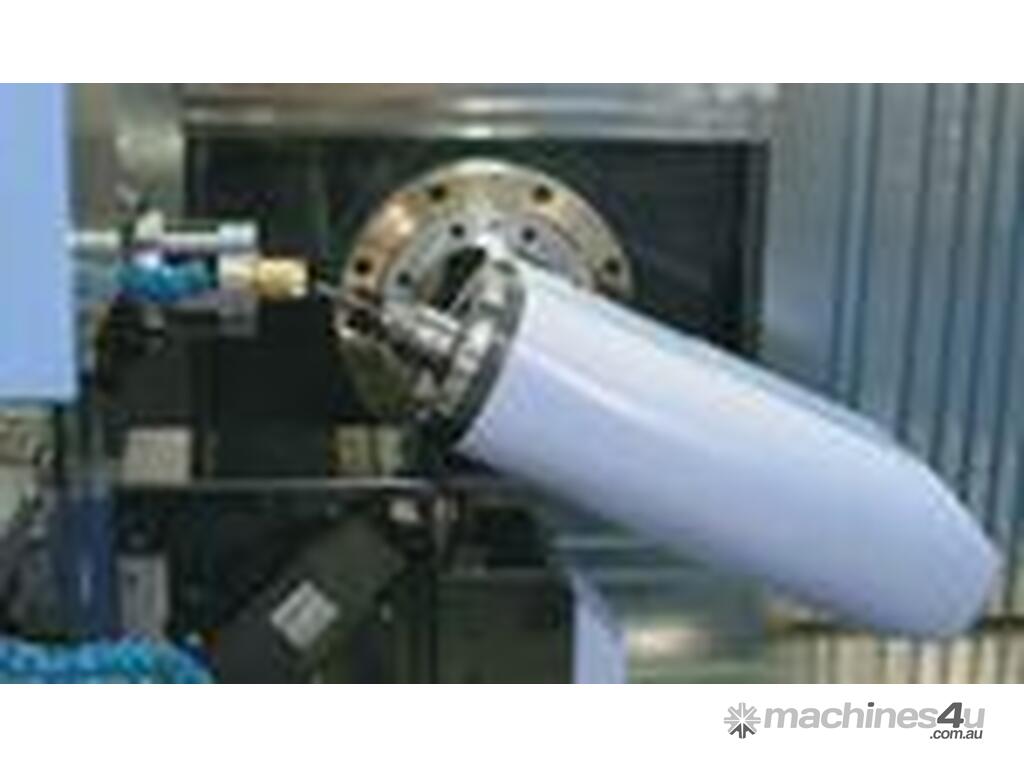

Main Spindle:

Main spindle with integrated motor, bar passage
32 mm, working either from bar or billet.
This device ensures the rotation of the parts.

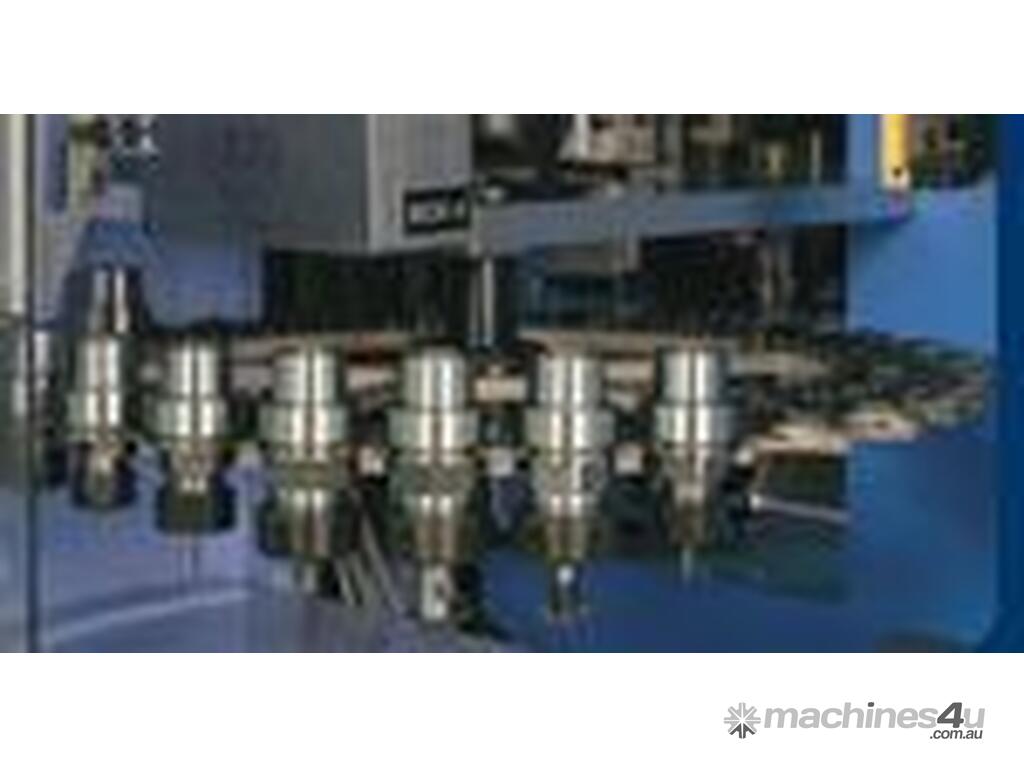

• Different locking tools, such as chuck and collet holders enable the user to adapt the system to his specific requirements.
• High-level power and torque provide optimum swarf evacuation as well as an excellent regulation in axis-mode

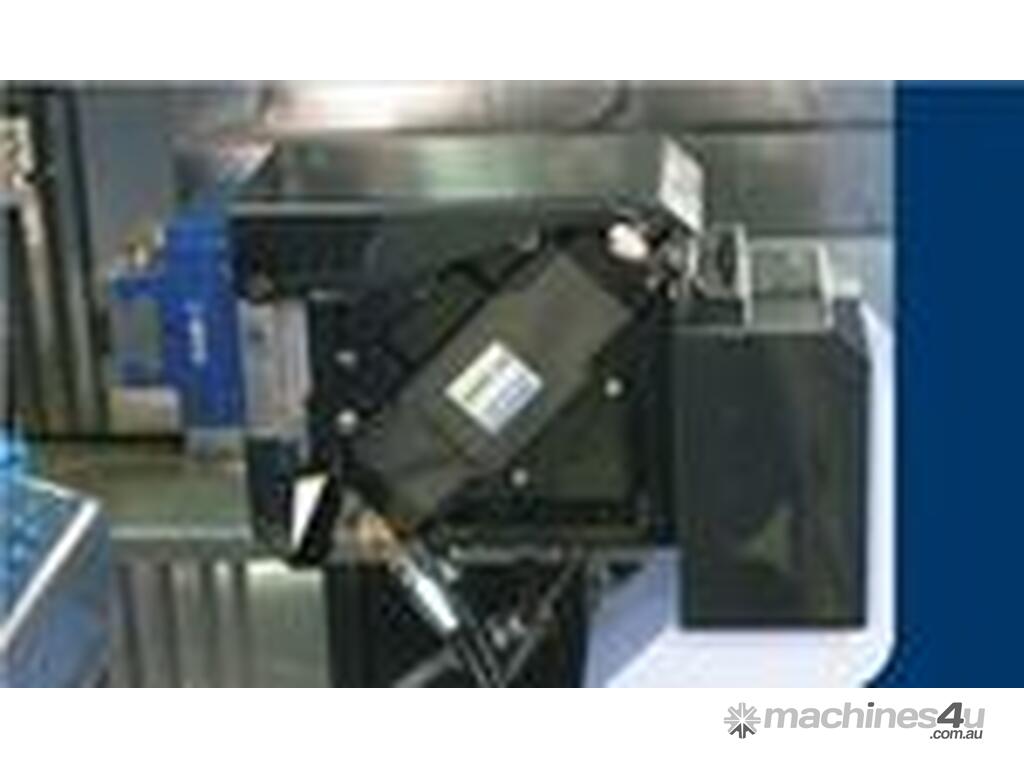

Re-taking unit

Re-taking unit situated next to the main spindle for re-taking after cut-off or simple re-taking.
• As on the main spindle, all milling operations may be executed, as well as automatic machining of the parts on all sides.
