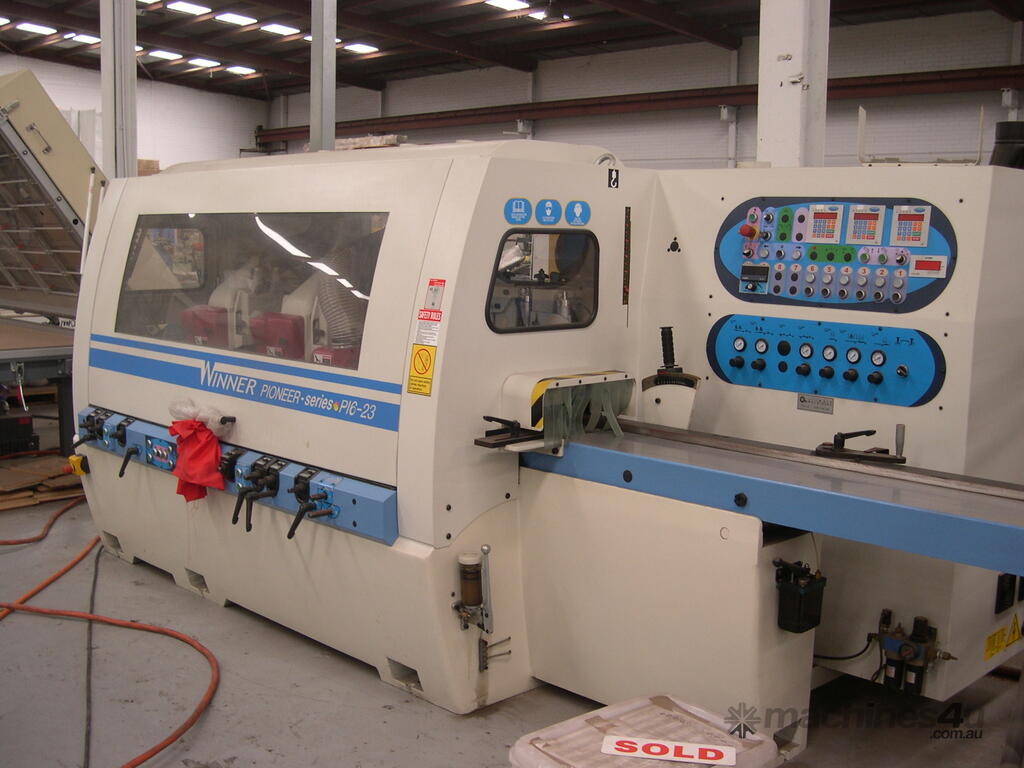

6 HEAD 4 SIDE PLANER MOULDER

To increas moulding productivity and profits, the Pioneer PI-623 is for you. The advanced design concepts and superior quality,makes the Winner moulder extremely good value.The machine frame is made in one piece high quality cast iron (FC-25) for maximum stability.

FEATURES:

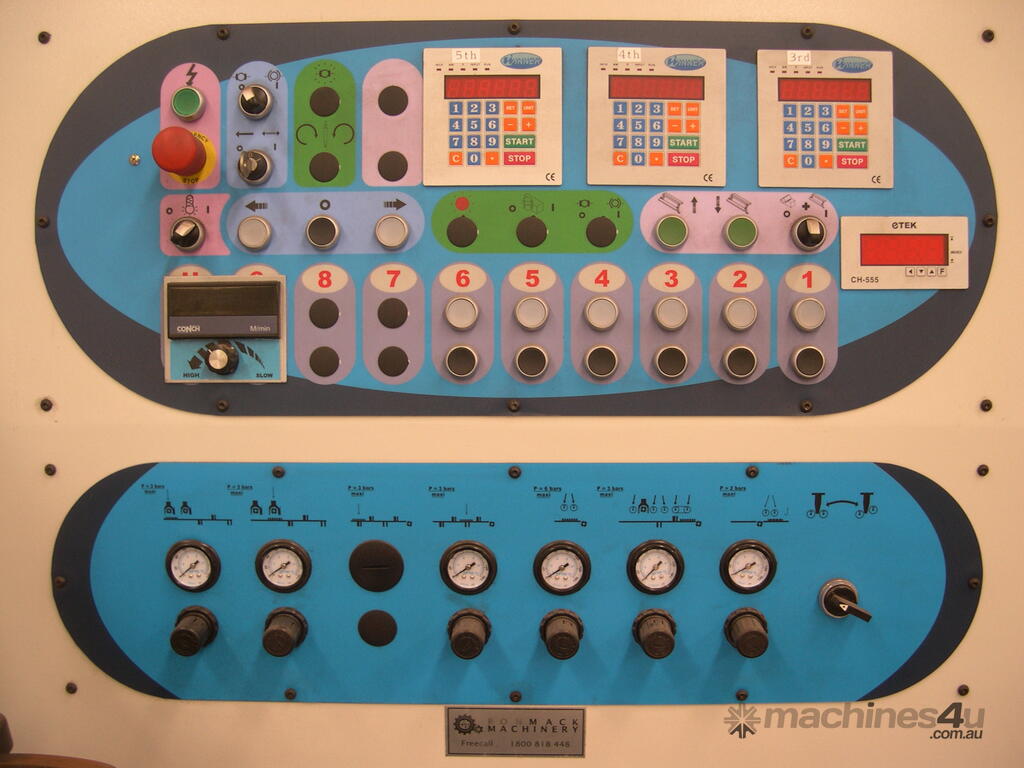

- The control panel provides easy, convenient, safe and efficient operations
-3 x electrical digital position controller fro read out width & height (2 tops,4th ,5th spindle & 3rd left vertical)
- The table is hard chromed to high hardness and has central lubrication
- The totally enclosed guarding ensures maximum safety and high standard.

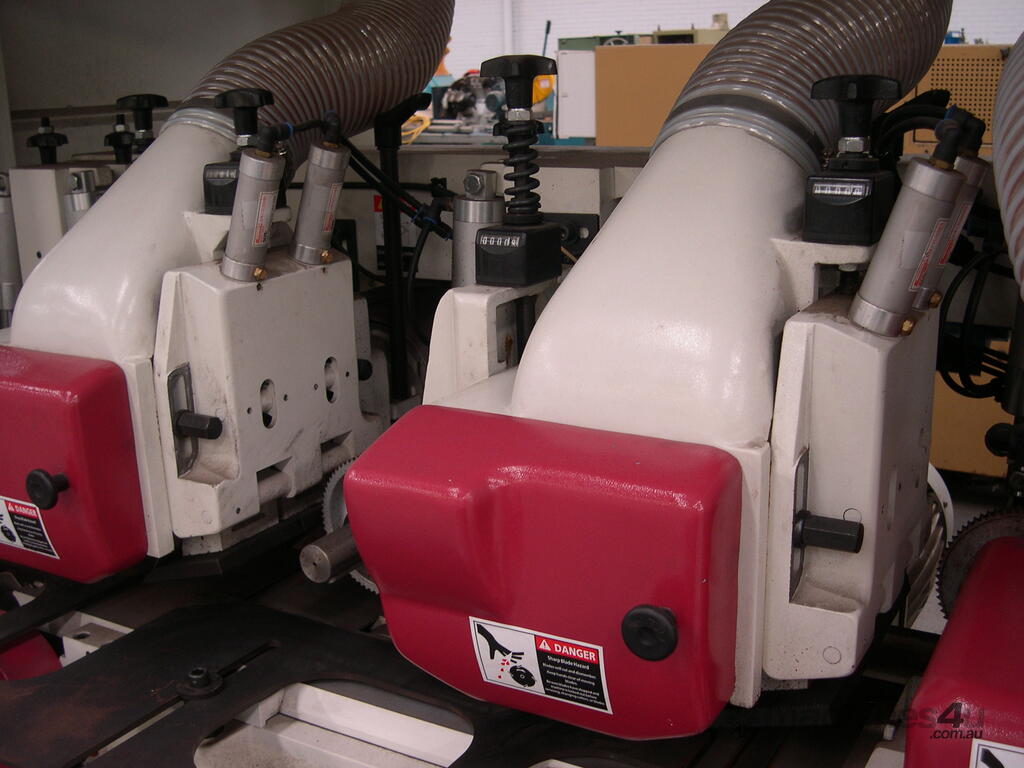

-pneumatic chipbreakers on top heads

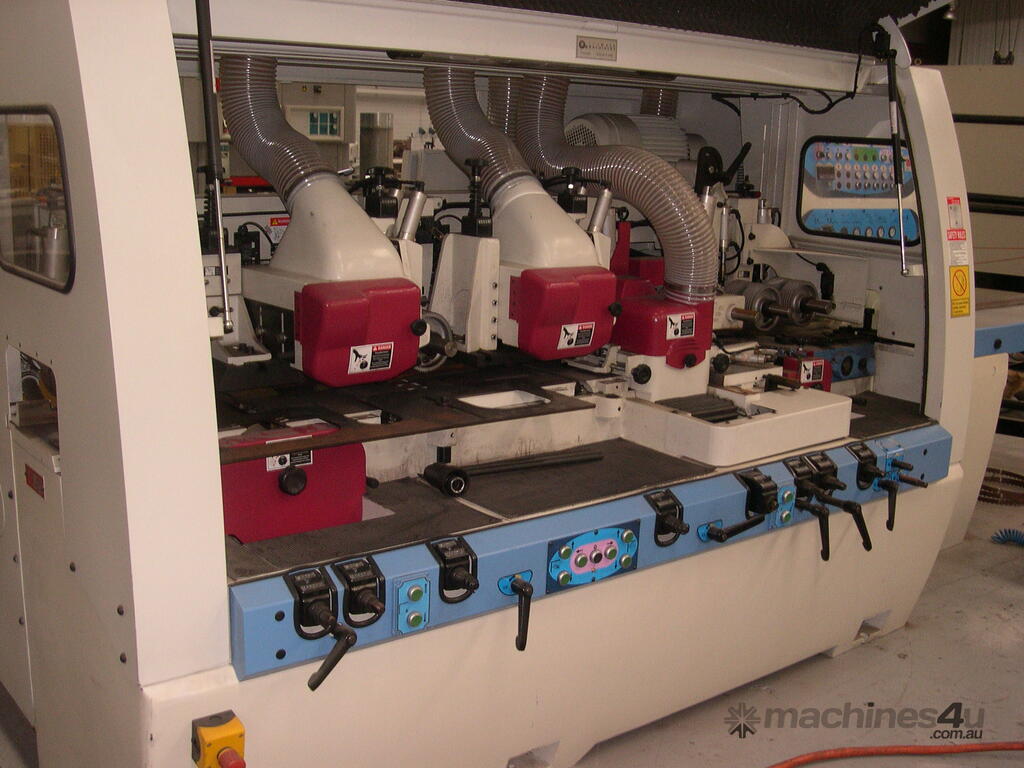

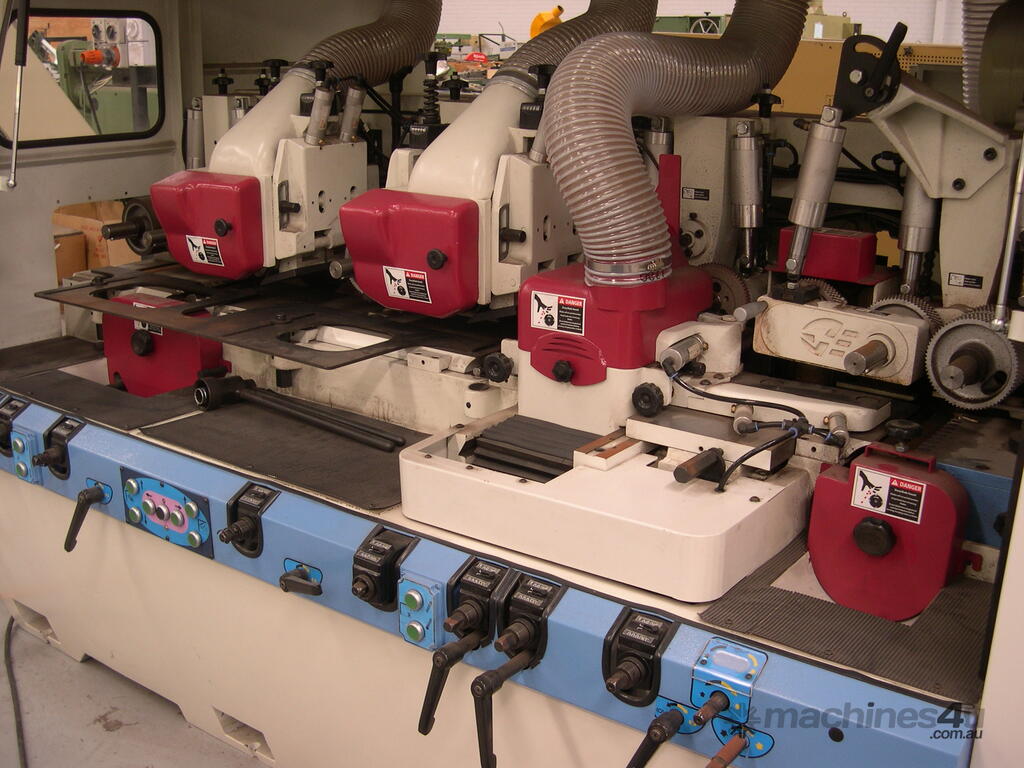

- 5 sets of bottom driven rollers and driven top rollers enhance excellent feeding performance

SPECIFICATIONS:
Planning width 18-230mm
Planing thickness 6-125mm
Feed speed 6-28m/min
Spindle motor 10Hp, 15Hp
Feed motor, Inverter 7.5Hp
Min. board length 200mm
Spindle speed 6000RPM
Spindle diameter 40mm
Adjustment of vertical spindle 60mm
Adjustment of horizontal spindle 20mm
New 6 Head 4 sided Planer & Moulder, ***CLEARANCE***
