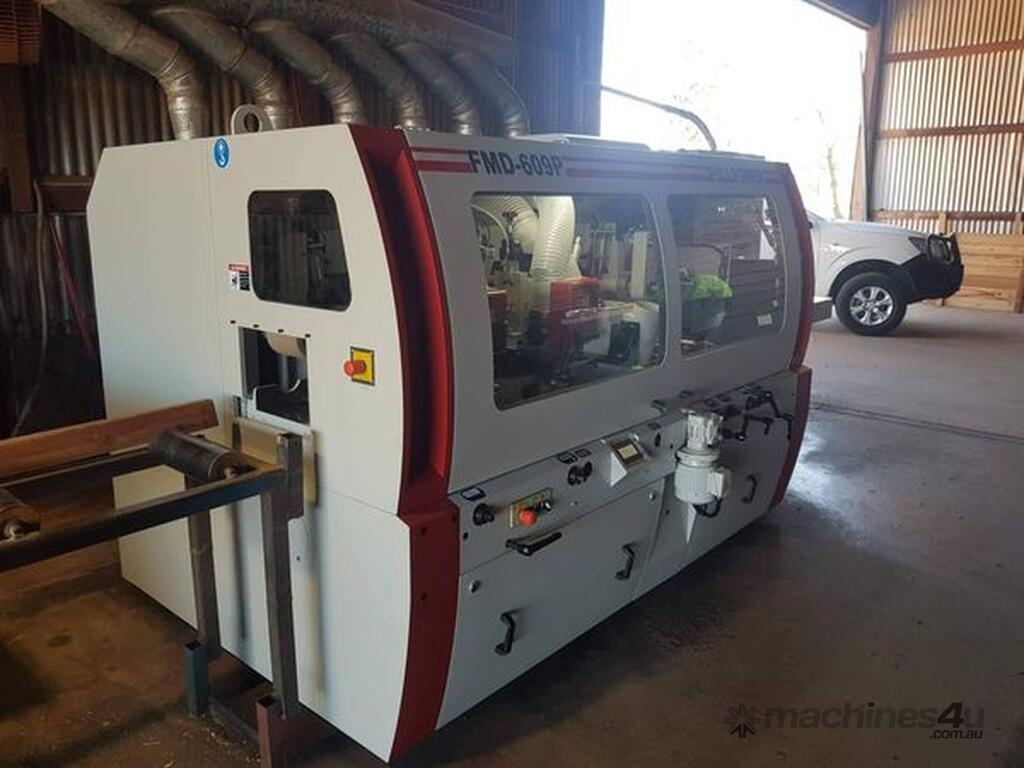

6 HEAD MOULDER (MODEL: FMD-609P)

New Fullpower 6 head moulder

The FMD-609P is a solid machine suitable for heavy joinery or medium sawmilling applications in both soft and hardwoods. With hardchromed table plates and driven table rollers the FMD-609P will handle even the most difficult timbers.

Standard features:
• 2m Infeed Table with driven table roller

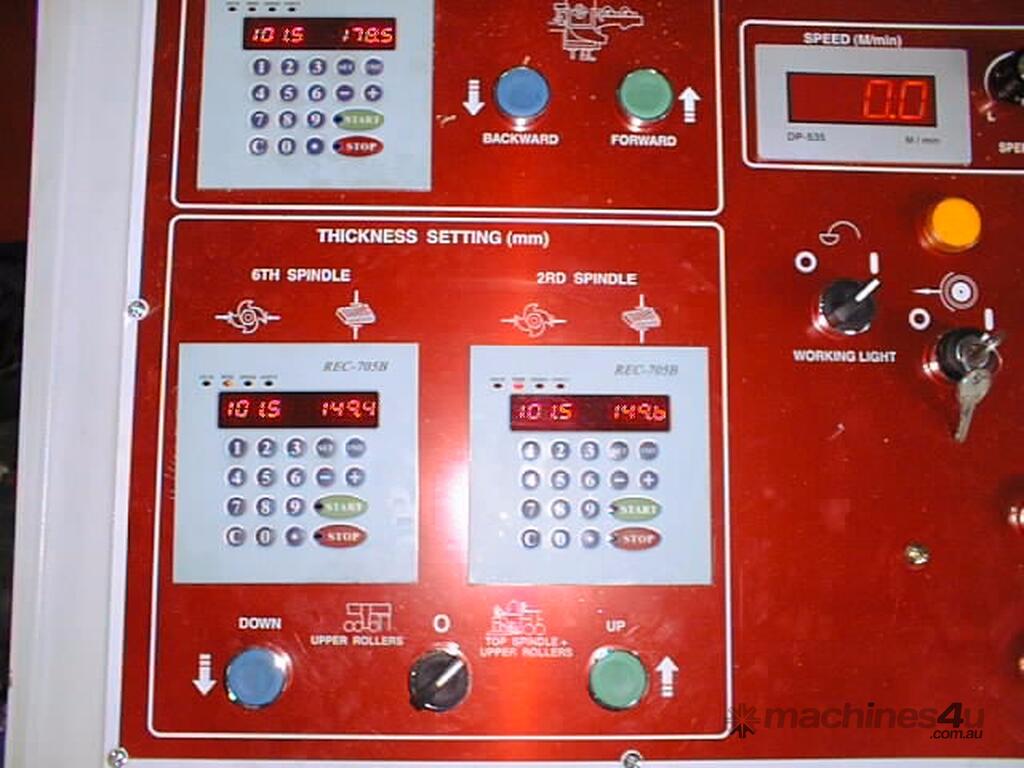

• Mechanical Digital Readouts to all vertical and horizontal spindle adjustments
• Mechanical Digital Readouts to top head chipbreakers and pressure pads
• Safety sound enclosure cover with electrical interlock
• Driven Table Rollers
• Heavy duty chipbreakers and pressure pads for better timber control
• Pneumatic loading to side pressure & hold down rollers
• Machine adjustments externally mounted for faster set-ups

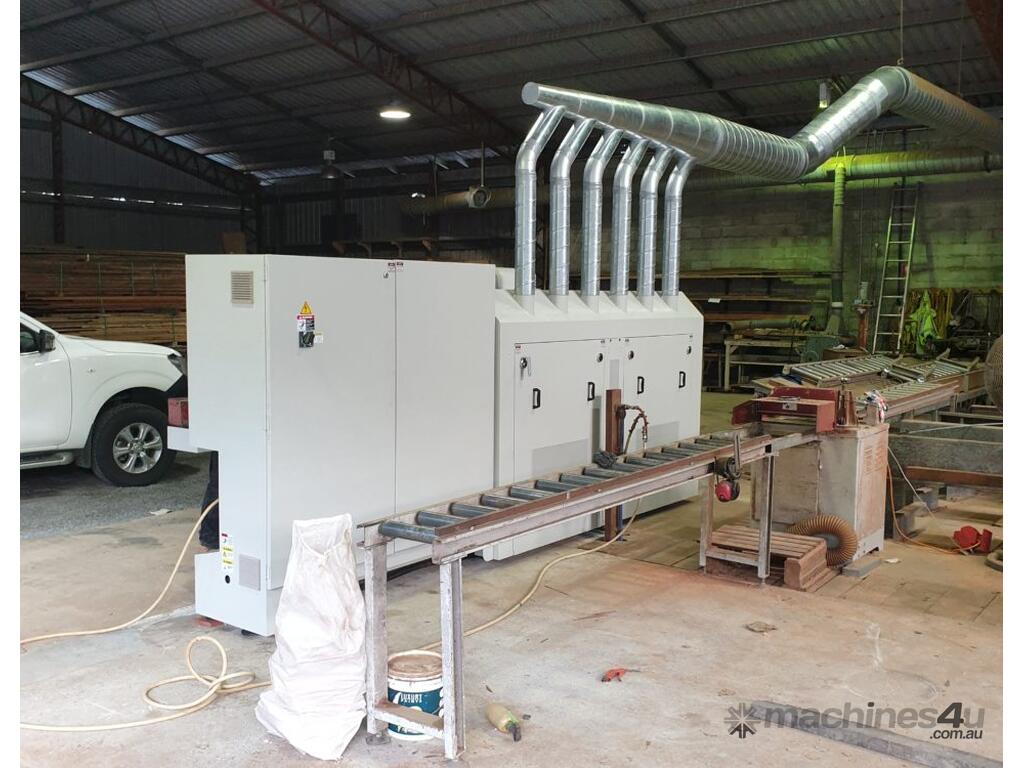

• Dust extraction internally ducted
• Pneumatic loading to feedrolls
• Pneumatic loading to receding chipbreakers
• Automatic bed lubrication
• Hard chromed bedplates (0.3mm thick)

Specifications:
Maximum timber size 230mm x 150mm
Feed speed 6 - 36m/min
Head configuration Bottom, Right, Left, Top, Top, Bottom
Motor powers (kw) 7.5, 7.5, 7.5, 11, 11, 11

Includes standard set of tooling

*Disclaimer*
Note: All photos and pricing are indicative only and have been prepared in good faith and with due care. Photos provided may include some optional features. Please contact us for an accurate quotation.
