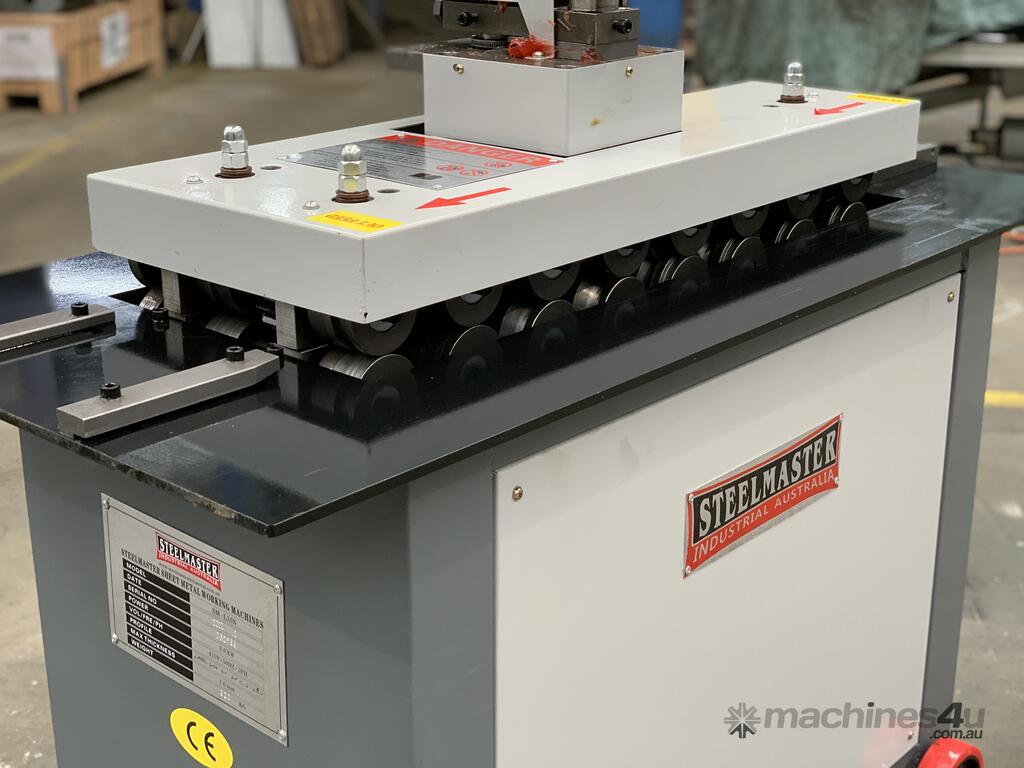

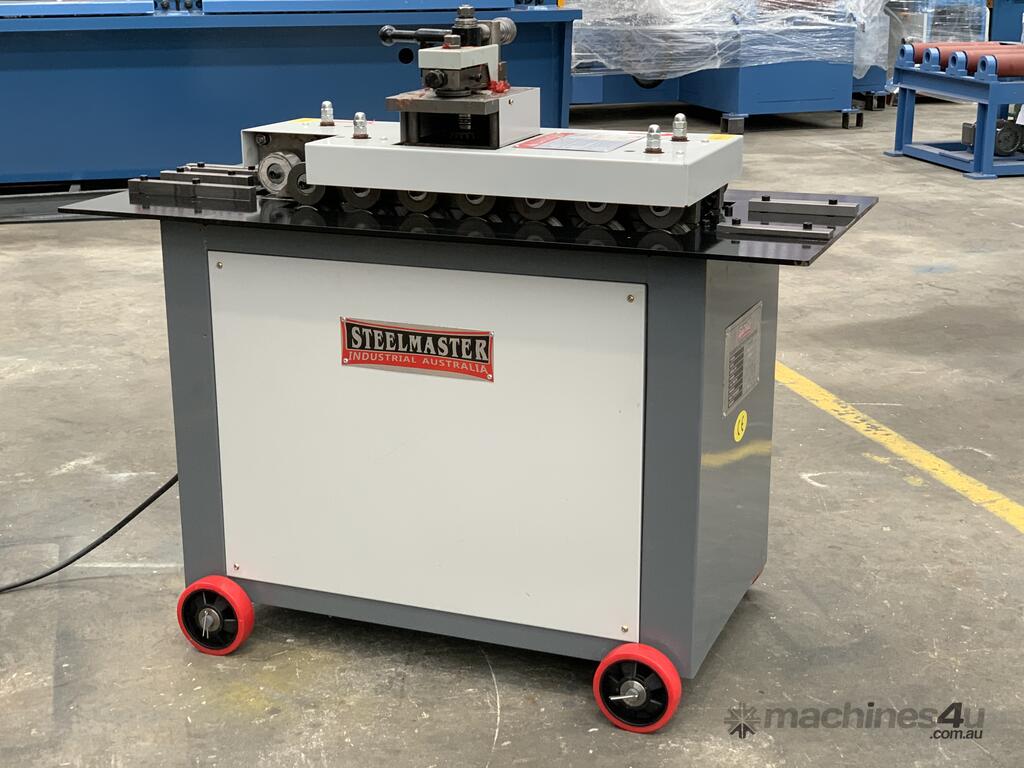

SM-L16. Lockseamer 16# Capacity. Steelmaster, V - 6 Profiles in 1
3.0KW, max.thickness 1.6mm, six profiles
Description
The all-in-one sheetmetal shop - Must Have! 6 x Profiles In One - This sturdy Volt Lockseamer is a vital partner in any Sheetmetal, ducting & fabrication shop.
With pittsburgh, drive cleat, C cleat, step form, double seam profiles all on one machine
No need for additional costly rollers for extra profiles.
Features
?a must for all sheetmetal, ducting and climate control fabricating workshops
?6 x profiles in one machine
?hardened and ground shafts with case hardened formers
?hardened sheet guides
?Steelmaster SM-L16N complete
?5 m/min. forming speed
?large in-feed table
Technical Data
?8 stage roll configuration
?0.6mm ~ 1.6mm capacity.
?work table height - 1100mm
?Volt - 1 Phase Power.
?1140mm x 520mm x 1120mm x 180Kg Dimensions

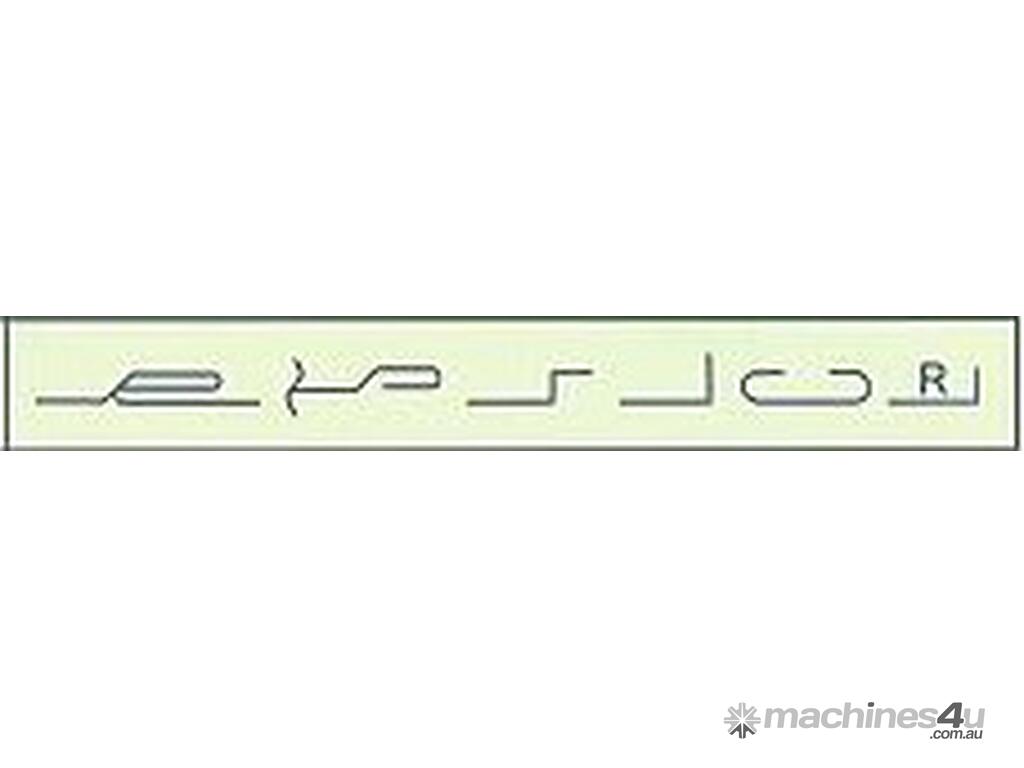

Profiles Formed On This Machine
?Pittsburgh
?Drive Cleat
?Double Seam
?Right Angle Turn Up
?c cleat
?stepped form
?please note: power flanger no longer offered on this model.
