60 LITRE VERTICAL AIR COMPRESSOR RECEIVER TANK

SALE PRICE... SUPER HIGH QUALITY, 60 LITRE VERTICAL AIR COMPRESSOR RECEIVER TANK... OTHER SIZES ALSO AVAILABLE, PLEASE CALL FOR DETAILS


AIR COMPRESSOR PRODUCTS & SERVICES PTY LTD

We provide a tax invoice for all of our sales...

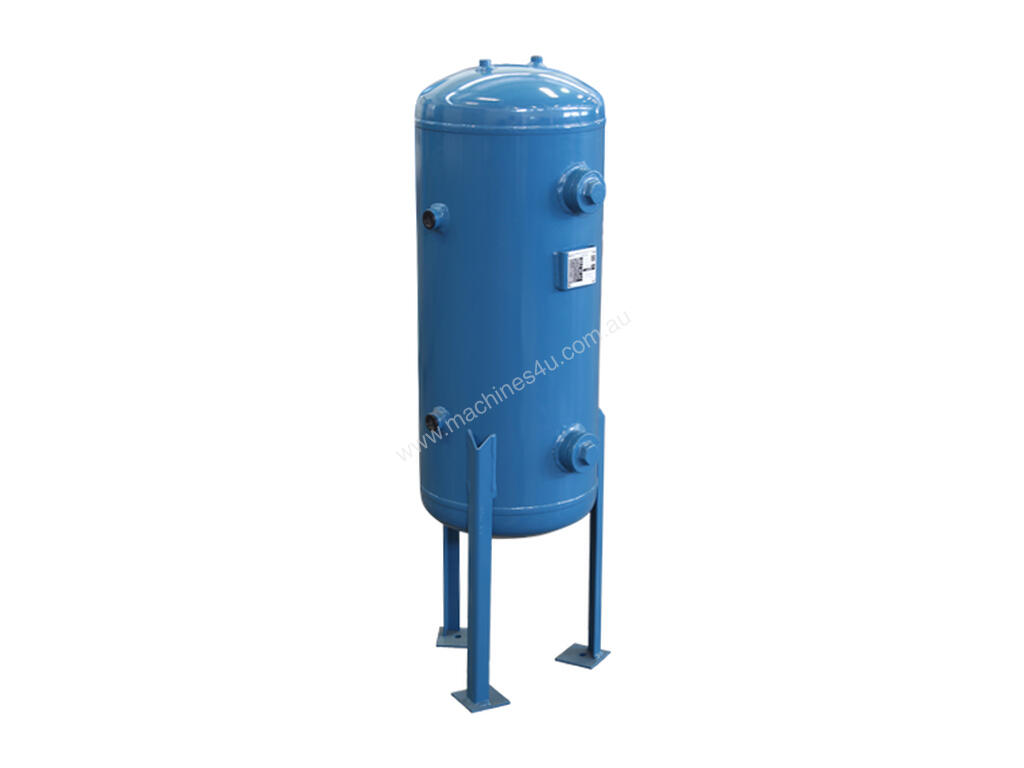

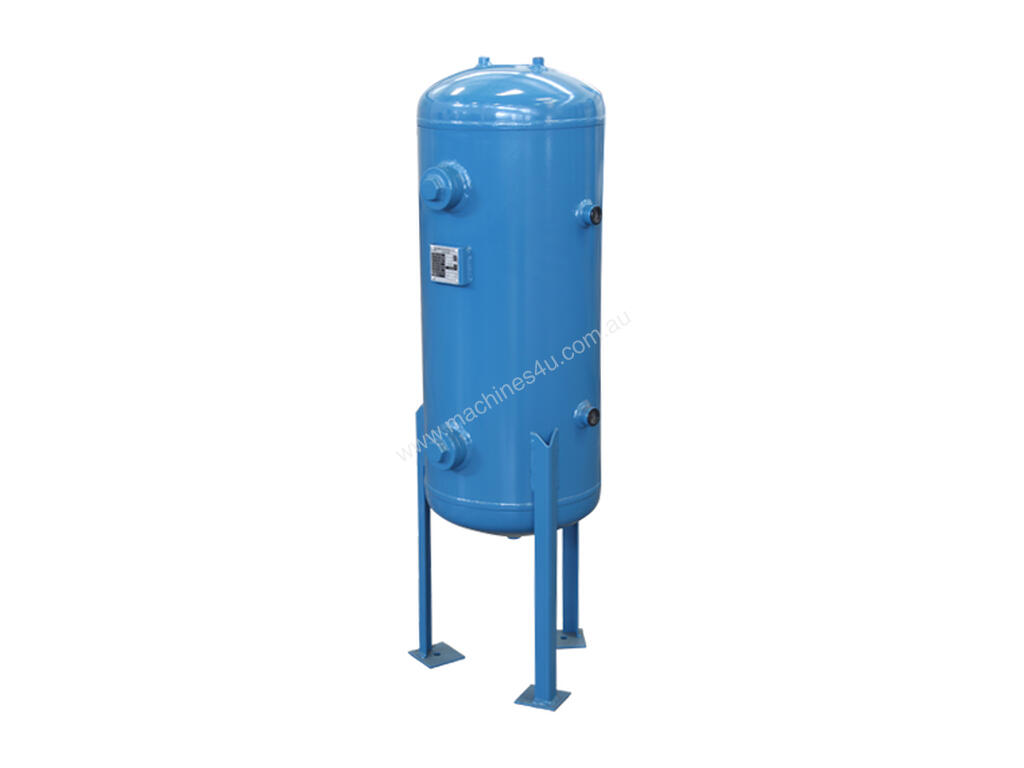

We have for sale a brand new 60 litre vertical air receiver for storing compressed air. Included is the Manufacturers Data Report (MDR) in accordance with Australian Standard AS4458-1997 and the air receiver is manufactured and designed to Australian Standard AS1210-2010. WH&S Registered Design approved for workplace use in all Australian States and Territories.

The design pressure rating for this air receiver is 1,485 kPa.

This air receiver is packed in a crate and can be picked-up with a forklift. We have a forklift at this end for loading onto a truck or trailer. If you need delivery... please let us know and we can provide a price.

This air receiver comes with our 12 month warranty.

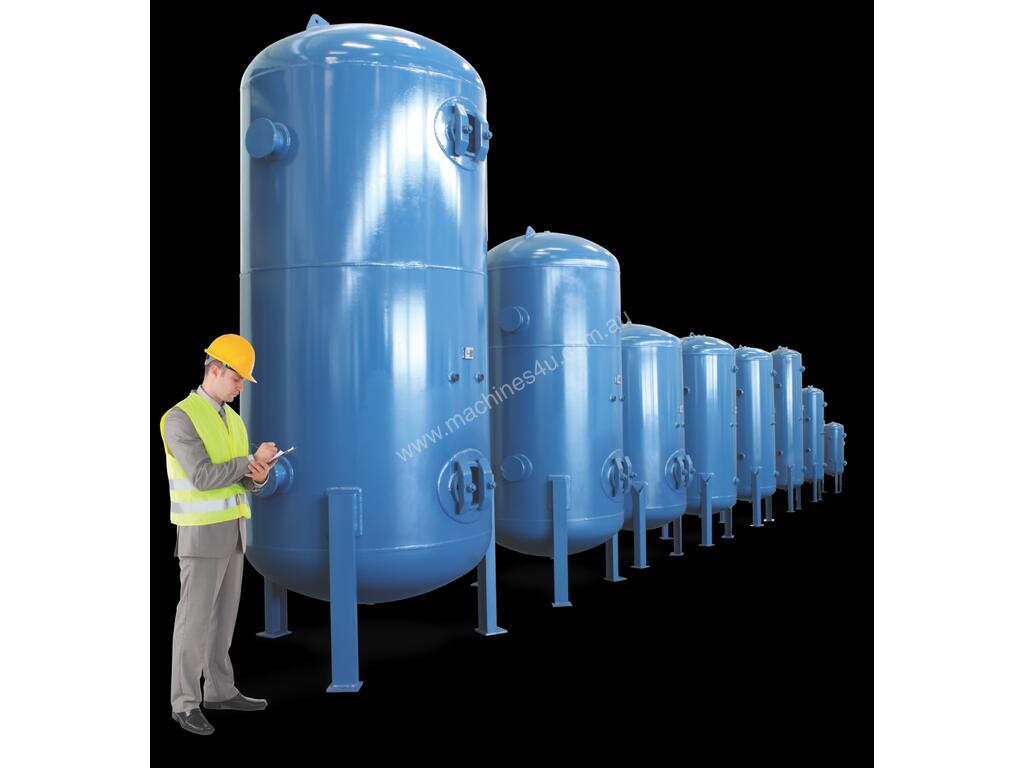

Following are other vertical air receiver models currently available…

VOLUME DESIGN PRESSURE DIAMETER OVERALL HEIGHT
60 LITRES 1,485 kPa 325 mm 1,115 mm
150 LITRES 1,235 kPa 390 mm 1,700 mm
150 LITRES 1,620 kPa 390 mm 1,700 mm
300 LITRES 1,215 kPa 490 mm 2,040 mm
300 LITRES 1,505 kPa 490 mm 2,040 mm
530 LITRES 1,215 kPa 640 mm 2,215 mm
820 LITRES 1,220 kPa 780 mm 2,215 mm
820 LITRES 1,560 kPa 780 mm 2,215 mm
1,240 LITRES 1,100 kPa 975 mm 2,213 mm
1,240 LITRES 1,395 kPa 975 mm 2,213 mm
2,400 LITRES 1,080 kPa 1,160 mm 2,870 mm
5,000 LITRES 1,145 kPa 1,145 mm 3,705 mm

Note: Please refer to the brochure for all details.

We can also provide a kit of fittings which may be needed by the person installing the air receiver. Following is a typical range of fittings which can be supplied for an additional price. If you need a price for installation fittings for your particular application, please call for a price. See the typical list below...

Optional air receiver fittings and hoses potentially required by the installer
a. 1 x 1 metre long 1 inch diameter quick connect connecting hose - $95.00 each
b. 2 x 1 inch hose connecting nipples (needed for the above hose) - $37.50 each
c. 2 x 1 ½ inch to 1 inch 316 stainless steel reducing bushes - $7.50 each
d. 2 x 1 ½ inch 316 stainless steel plugs – $7.20 each
e. 2 x 1 inch 316 stainless steel m&f elbows – $8.50 each
f. 2 x 1 inch m&f isolating ball valves – $24.50 each
g. 1 x ½ inch pressure relief valve with 316 stainless steel reducing bush – $30.00 each
h. 1 x 80mm diameter pressure gauge with 316 stainless steel reducing bush – $30.00 each
i. 1 x ½ 316 stainless steel plug - $1.75 each
j. 1 x ½ inch 316 stainless steel m&f elbow - $3.25 each
k. 1 x ½ inch m&f manual drain valve – $11.50 each
l. 1 x 240 volt or mechanical automatic condensate drain with ½ inch 316 stainless steel connecting union – $125.00 each


If you need a rotary screw air compressor, an air receiver, a piston air compressor a refrigerated compressed air dryer, oil removal filters, piping or fittings etc. or if you want lower prices... call .


A 100 PERCENT REFUND APPLIES UPON RETURN (IN GOOD CONDITION AND WITHIN 30 DAYS) IF YOU'RE NOT 100 PERCENT HAPPY WITH THE MACHINE


PICK UP FROM OUR WORKSHOP AT PEAKHURST, SYDNEY OR WE CAN ORGANISE TRANSPORT AT A SMALL ADDITIONAL COST

-------------------------------------------------------------------------------------------------------------------------------------

Please note… we are a quality air compressor sales, hire, rental, spare parts and servicing business and we have other air compressors, air receivers, refrigerated dryers, filters and spare parts available

Technical support, servicing and spare parts are available 24 hours / 7 days.

A refund will be provided upon return (in good condition and within 30 days) if you're not 100 percent happy with the machine.

Pick up from our workshop at Peakhurst, Sydney or we can organise transport at a small additional cost.

We can assist with installation advice if required or if you require any other information including sizing, technical, warranty or our standard terms and conditions… please call our office on the number provided.

Other new and used models are available… please call if you require a new or used compressor.

LEASING, HIRE AND RENTAL ARE ALSO AVAILABLE… PLEASE CALL FOR MORE INFORMATION


New Silenced Piston Compressors Currently In Stock (slow revving)...

4kW / 5hp - 18cfm
5.5kW / 7.5hp - 25cfm
7.5kW / 10hp - 35cfm


New Rotary Screw Compressors Normally In Stock...

7.5kW - 40cfm
11kW - 60cfm
15kW - 80cfm
18.5kW - 109cfm
22kW - 129cfm
30kW - 185cfm
37kW - 226cfm


Second Hand Equipment
We also currently have the following second hand equipment available…

1 x 40cfm screw compressor
1 x 60cfm screw compressor
1 x 80cfm screw compressor
1 x 100cfm screw compressor
Air receivers
2 x small refrigerated dryers (only 12 months old)
Other refrigerated dryers
