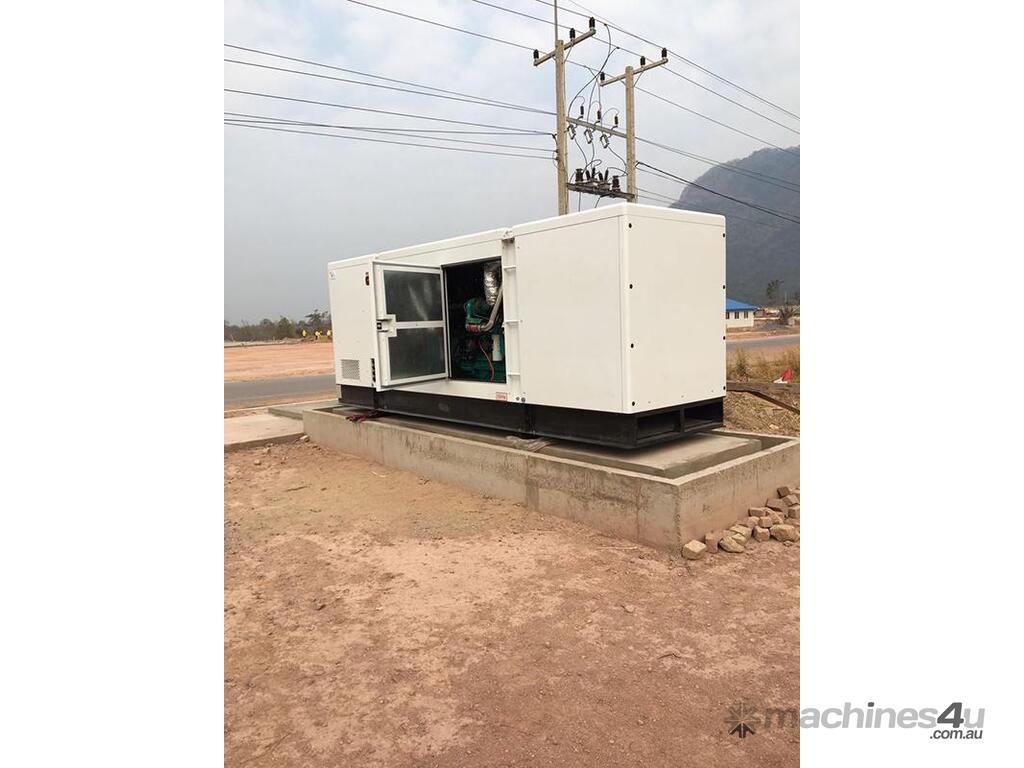

600KVA Deutz Silenced Diesel Generator 3 Phase 415V

***Pre-order for a 10-12 week delivery time***

Specialised in the sales and after-sales service of generator sets, construction machines, auto parts and garden machines, we are a professional sales and service company facing the South Pacific region and Australia. Kusing Generators have been sold around the world for more than 15 years with more than 100 million U.S. dollars annual sales. Their products are deeply praised and appreciated by customers all over the world.
To better serve customers in Australia, a sales and service centre called WELLKU POWER PTY LTD is now set up in Brisbane, Queensland. In accordance with the ISO9000 quality management system, we provide products that meet the safety CE certification and continue to solve problems for customers. In addition, we also provide reliable, excellent, high-quality, punctual, and competitive products.

All generator sets have gone through rigorous testing before being released to the market place. Including 50% load, 75% load, 100% load, 110% load and all protection functions tested eg, overspeed stop, high water temperature, low oil pressure, battery charging fail & emergency stop.

*** Wellku Power Pty Ltd offer wholesale pricing for bulk orders. If you wish to purchase multiple generators for your own company needs or to on-sell, please call us and we will discuss a pricing category. Special orders welcome – 10-12 weeks turnaround time. ***

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Genset Model DK34800
Engine Brand Deutz
Engine Model BF8M1015CP-LA G4
Alternator Moedel S354G480D5
Controller Comap/Deep sea
Switch CHNT 1000A
Internal protection IP22
Rate current(A) 864
Specific Fuel Consumption(G/KW.H)100% Load 196
Engine Model BF8M1015CP-LA G4
NO. of Cylinder 8
Cylinder Type L
RPM 1500
Bore (mm) 132
Stroke(mm) 145
Speed Governor Electronic
Start system(VDC) 24
Lub Oil Specification CF/15W40
Displacement(Ltrs) 15.9
Lub Oil Sump Capacity(Ltrs) 48
Coolant Capacity(Ltrs) 21(only engine)
Air inspiration Turbocharged
Alternator Phase 3
Brand Kusing
Model S354G480D5
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 4250
Silent(KG) 5100
Size OPen(L*W*H)mm 3450*1500*2100
Silent(L*W*H)mm 5400*2100*2500
Noise(DBA) Open NA
Noise( 7M at the Genset) 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS

Optional – Inquire for pricing on optional items.

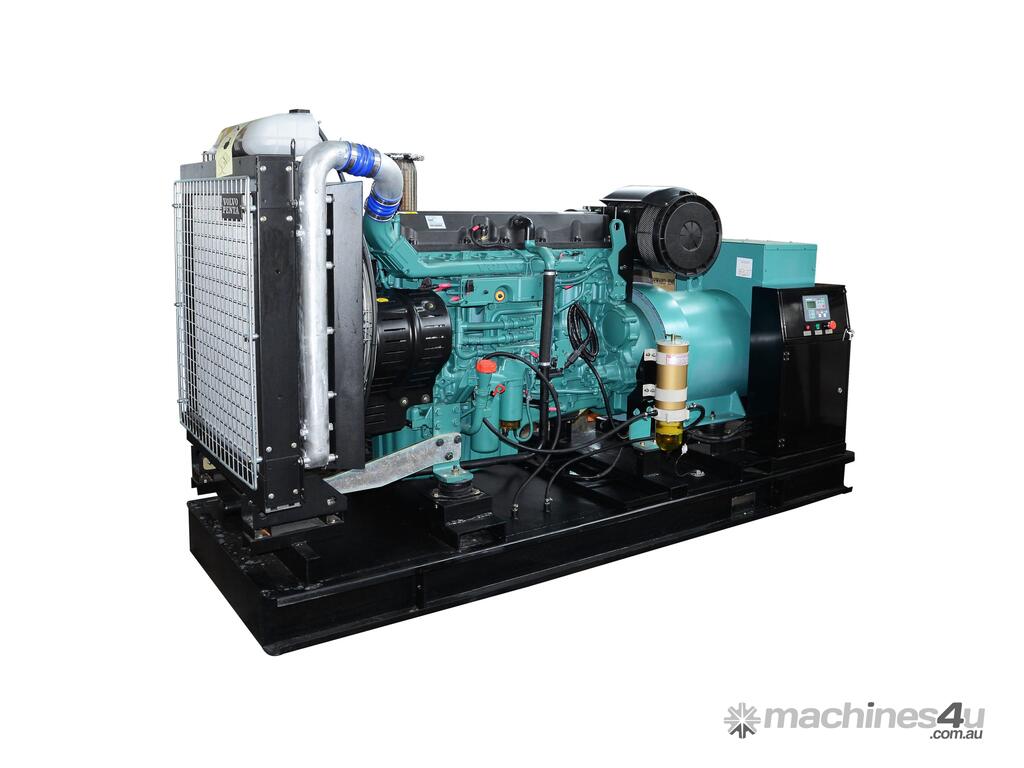

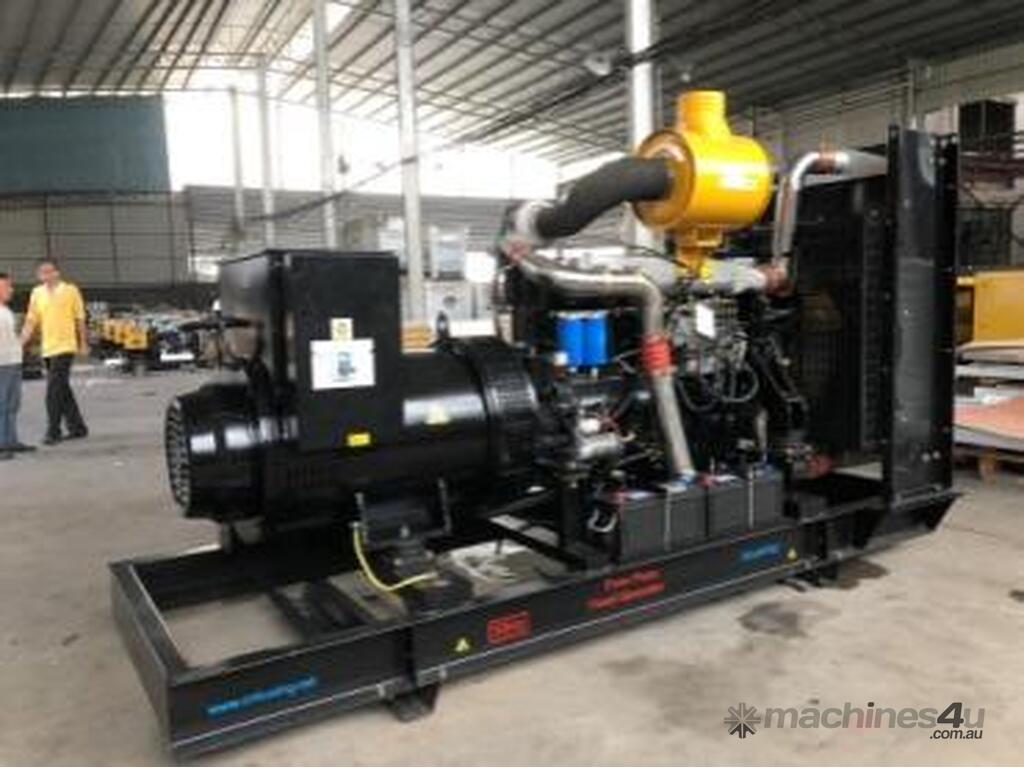

Open frame non silenced
Weichai WP4.1D100E200 engine
Kusing 6132 Controller
Stamford/Leroy Somer alternator
Inbuilt ATS
3 Phase 32A – 50A outlets
Single phase 240V 15A outlets
Padlockable battery isolator
Mine Spec

Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.

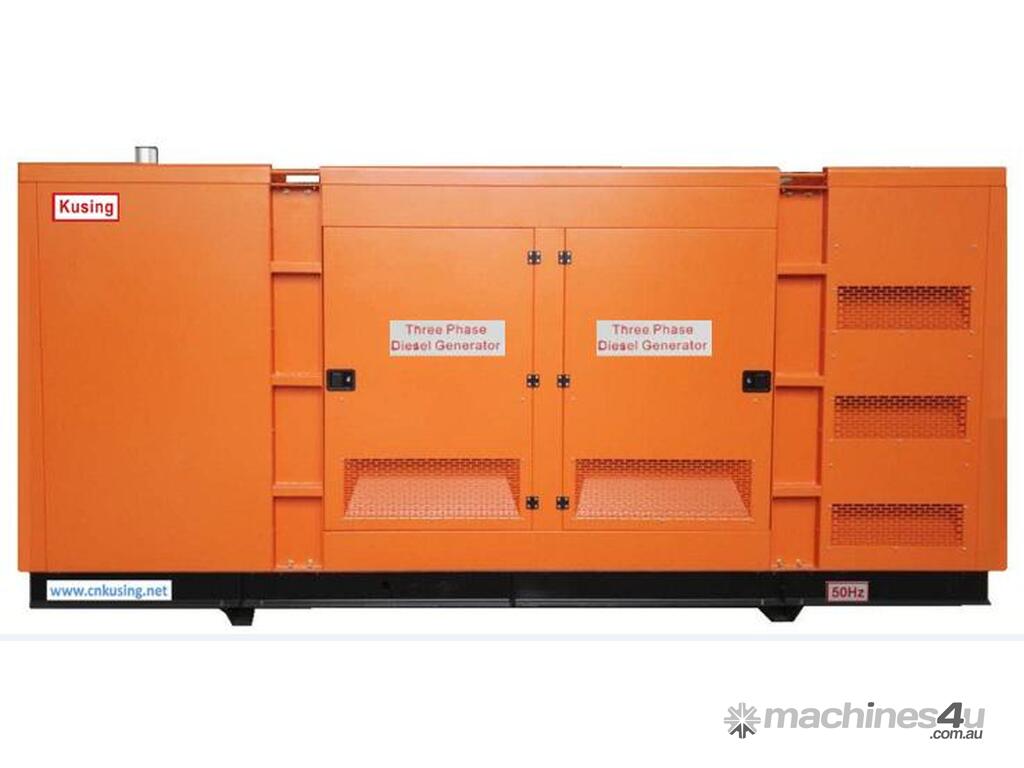

• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your
electrician for advice).
• Compatible for stationary and transportable use.

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)


Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.

Why you should buy from Wellku Power

Wellku Power Pty Ltd have been manufacturing diesel generators worldwide for over 15 years. Our factory currently produces industrial diesel water-cooled machines from as small as 8KVA up to 3000KVA or more.

Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

All generator sets have gone through rigorous testing before being released to the marketplace, including 50% load, 75% load, 100% load, 110% load.

If you require a custom build to meet specific requirements, we are your supplier who can provide exactly what you want.

Wellku Power offer attractive wholesale pricing discounts for bulk orders & and discounted prices for repeat customers.

Shipping

For a shipping price to deliver to your location, please contact us on or sales1wellku
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.


****PRE-ORDER TODAY 10-12 WEEK TURN AROUND ****
DELIVERY TIMES ARE JUST A GUIDE AS SHIPPING DELAYS CAN BE EXPECTED

We are located in the suburb of Darra in Brisbane which offer trade quality products with after sales technical support and spare parts service.
Please call us today on or us at sales1g
Pick up available from our Darra warehouse or we can ship to you either local or interstate at a competitive rate.
Trading hours are 9am-5pm Monday to Friday.
