62.5KVA Cummins/Stamford Silenced Diesel Generator 415V + ATS

Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• ATS Inbuilt
• Compliant with Australian safety standards.

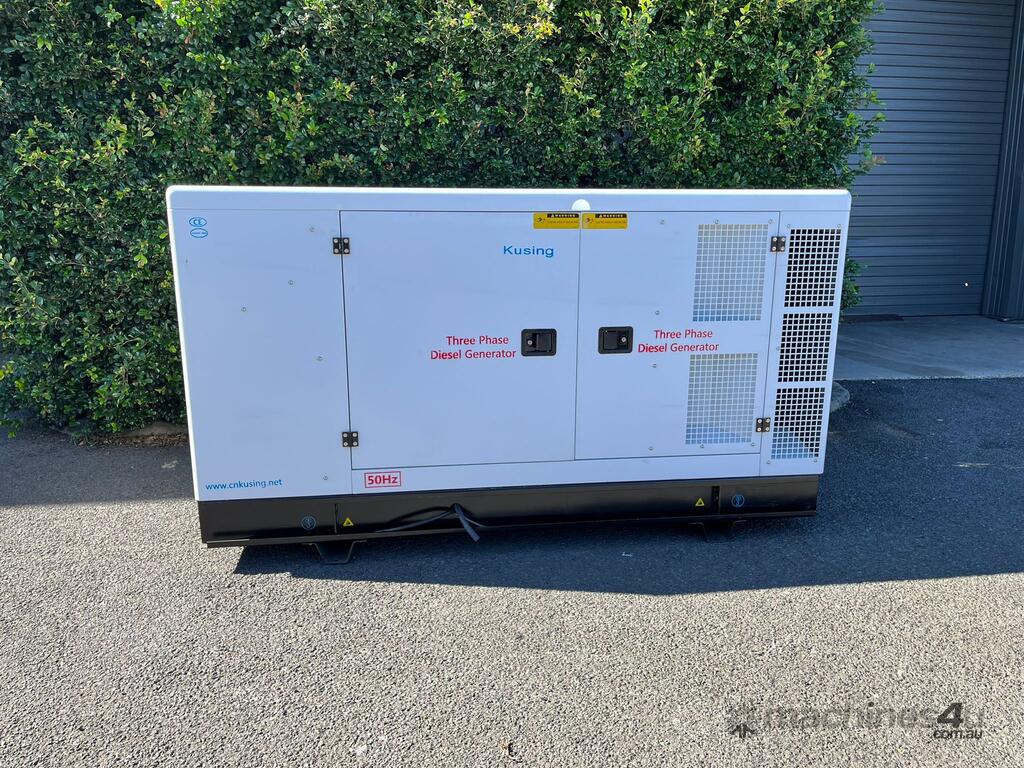

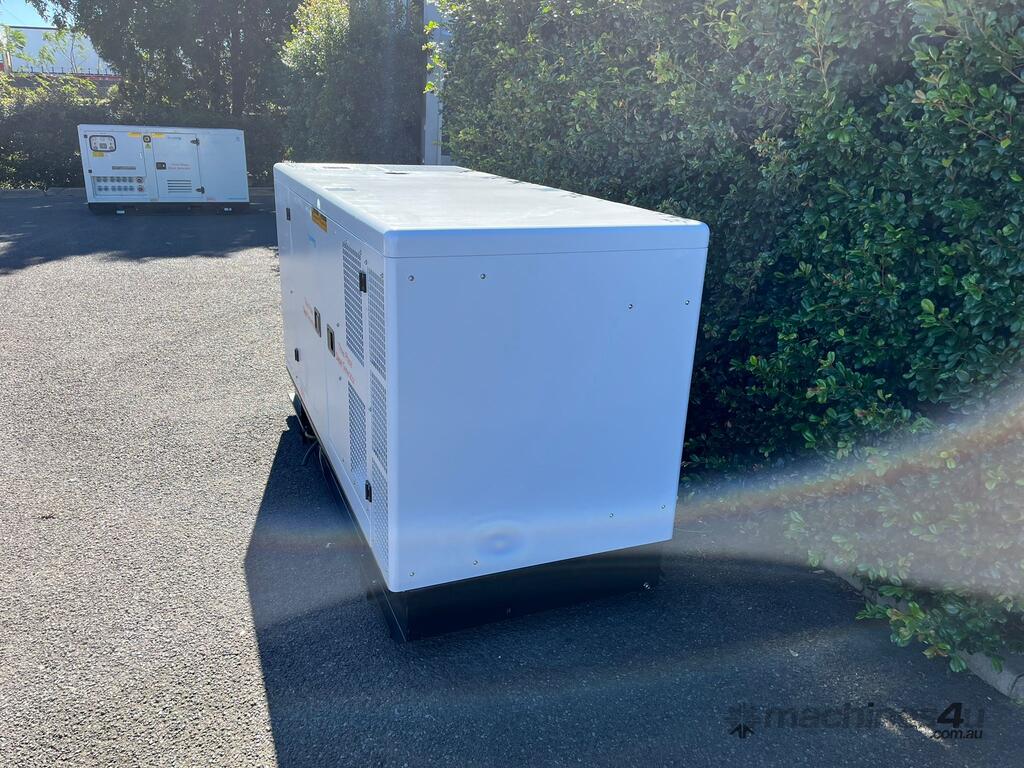

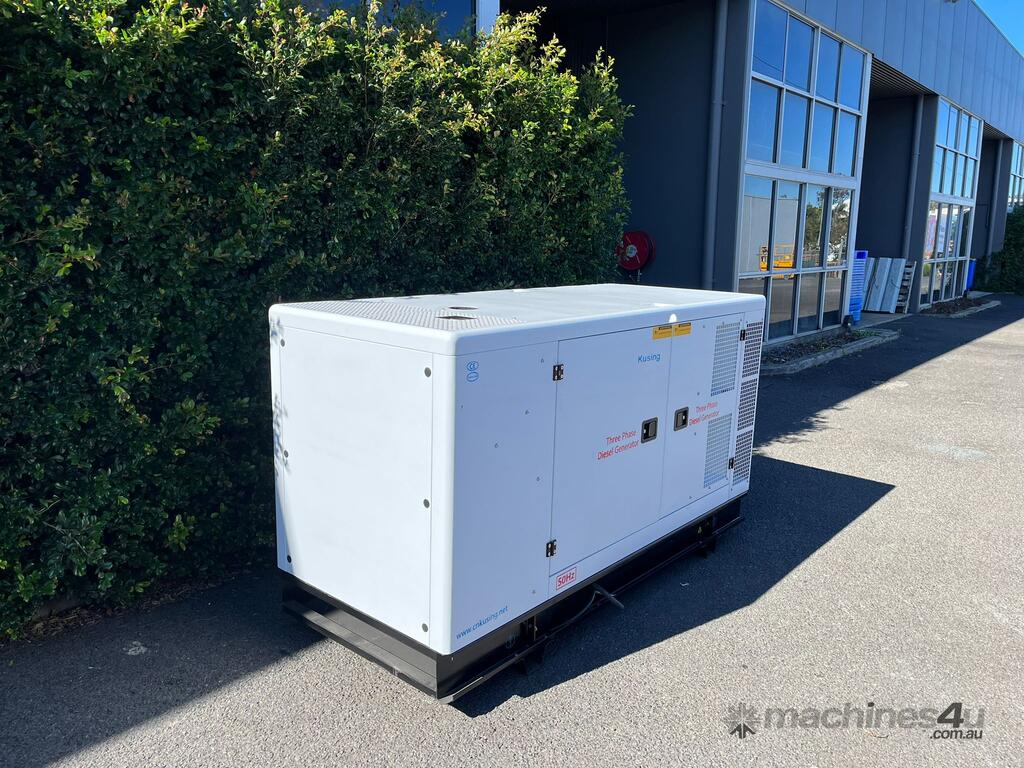

• Strong weatherproof silent canopy with various lifting locations

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance parameter setting at 30%
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

Specifications:

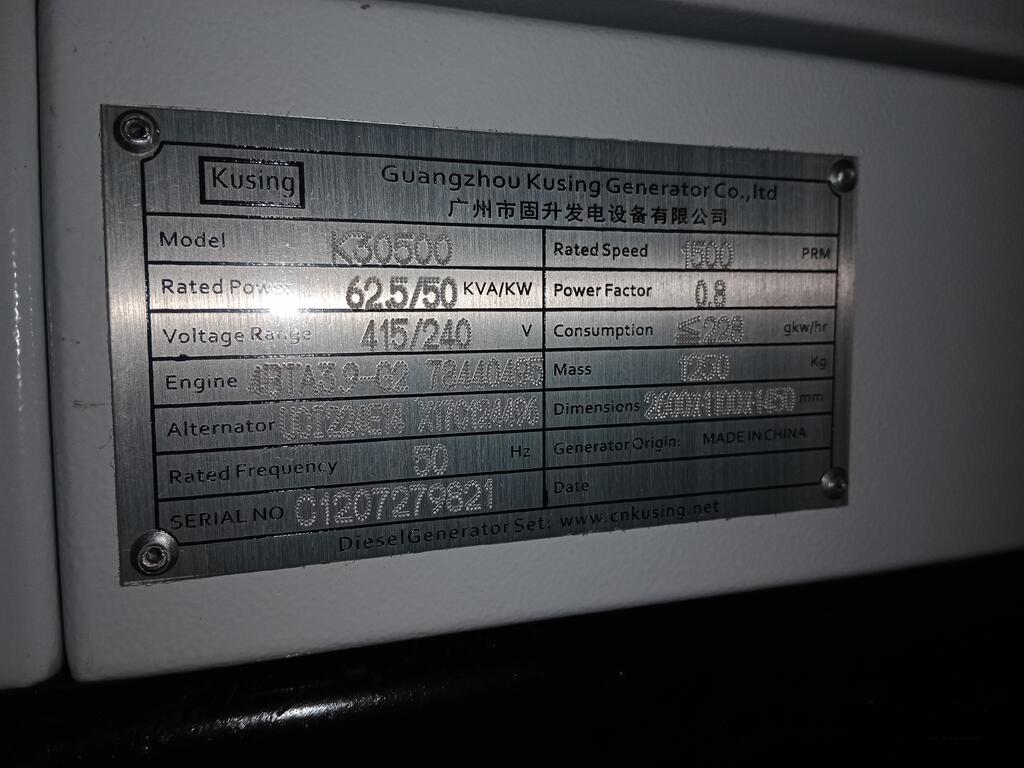

Generator Model CK30500
Prime Power 62.5KVA
Standby Power 68.8KVA
Rated Current 86.3 Amps per phase
Canopy Silenced

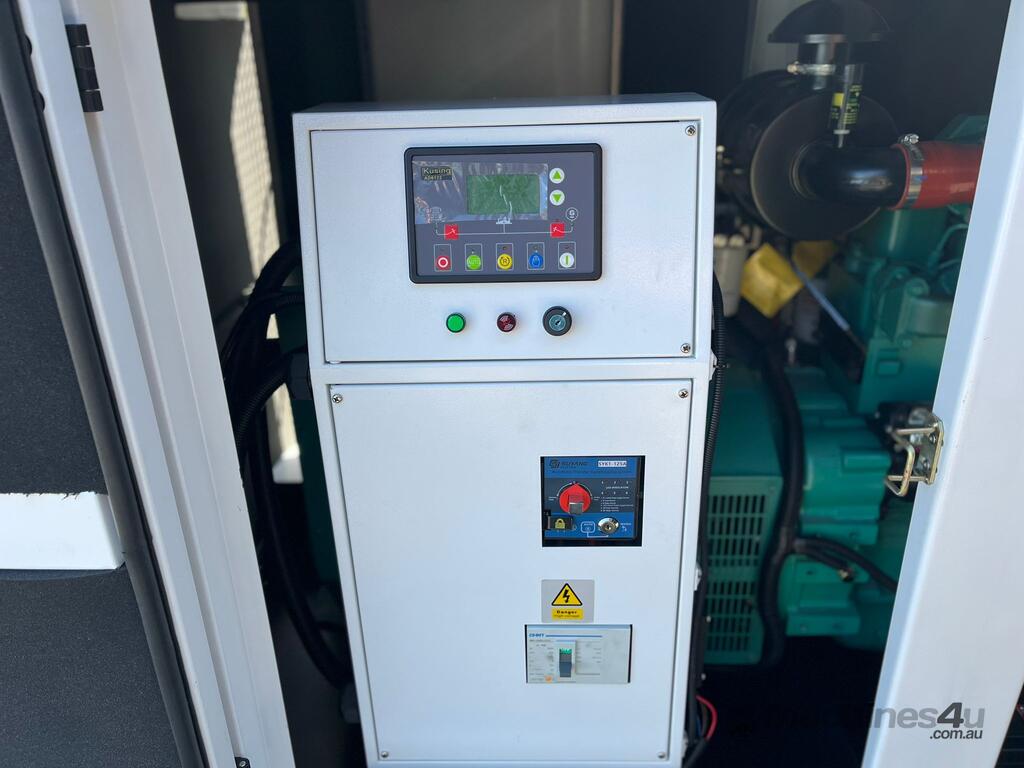

ATS (Auto Transfer Switch) Yes (Inbuilt)
Fuel Tank Capacity Est. 160 Litres
Noise Level 75dB 7m

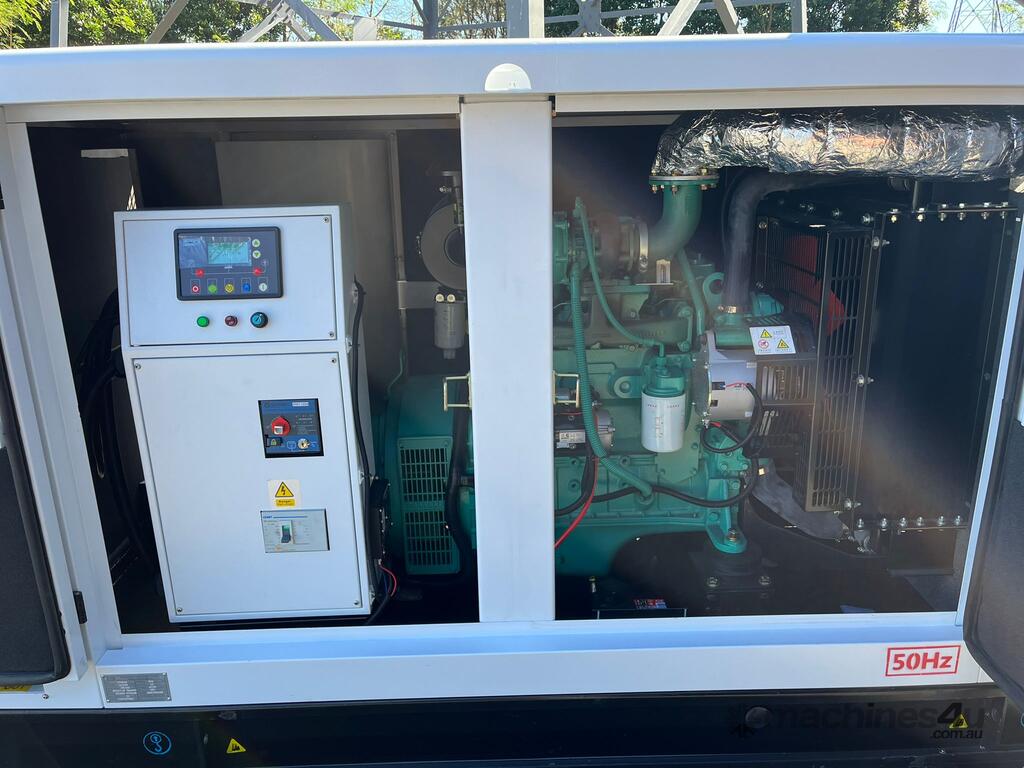

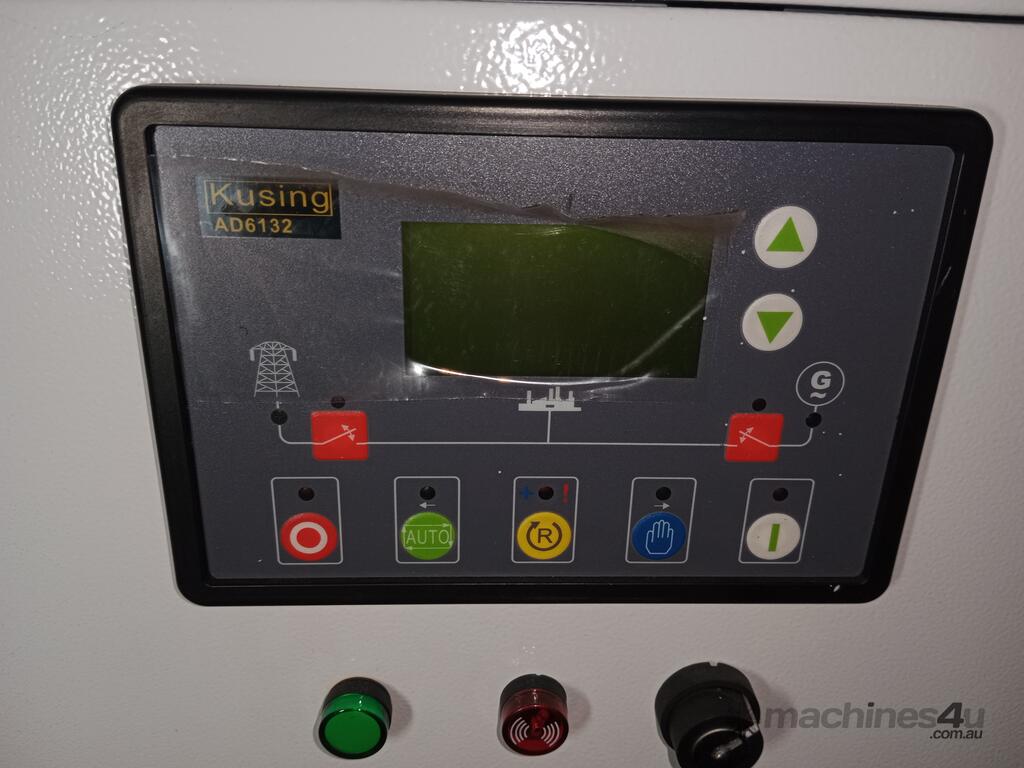

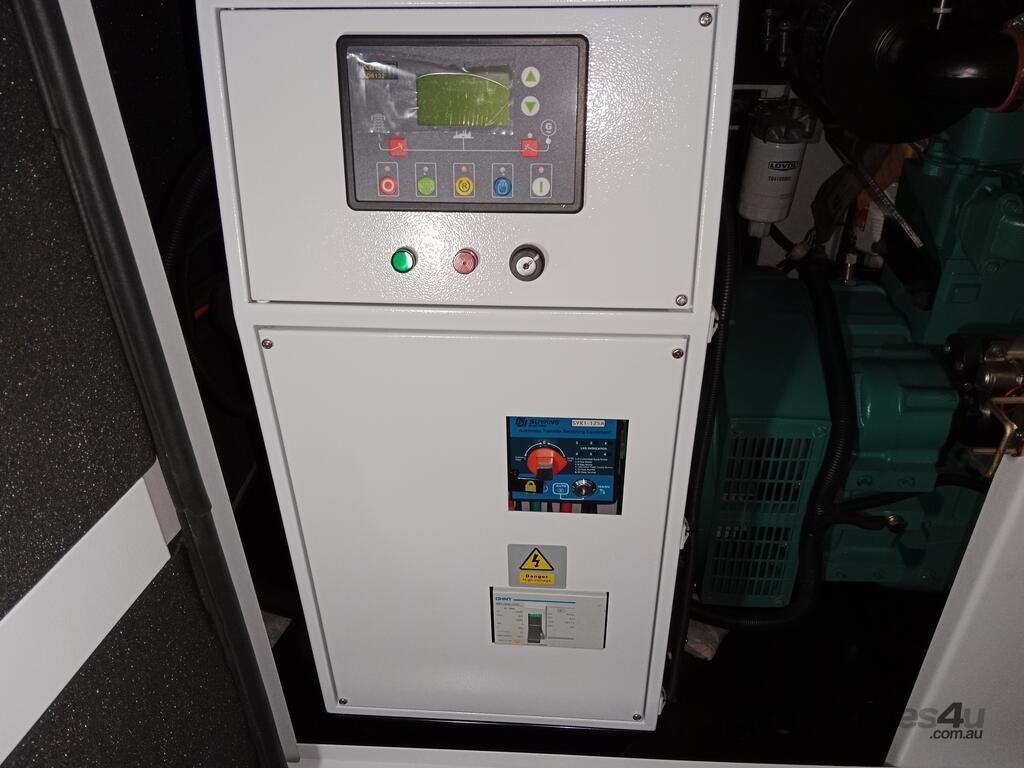

Controller Kusing AD6132

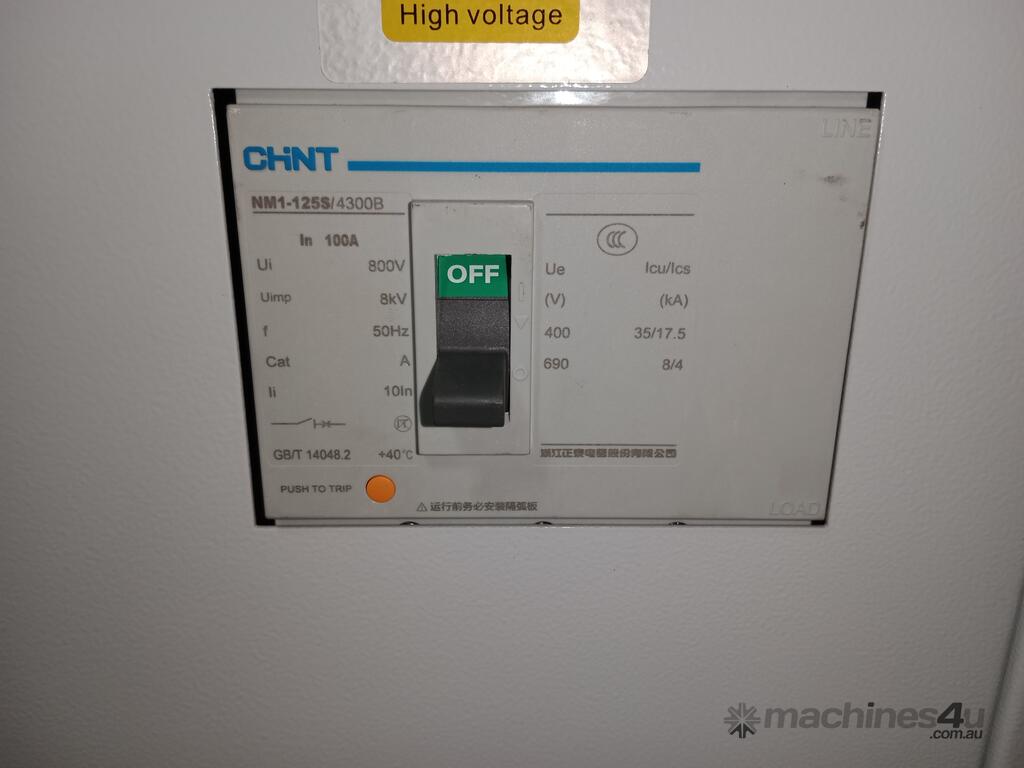

Main Breaker Switch 100A
Internal Protection IP23
Dimensions 2600 x 1100 x 1450
Weight 1250kg

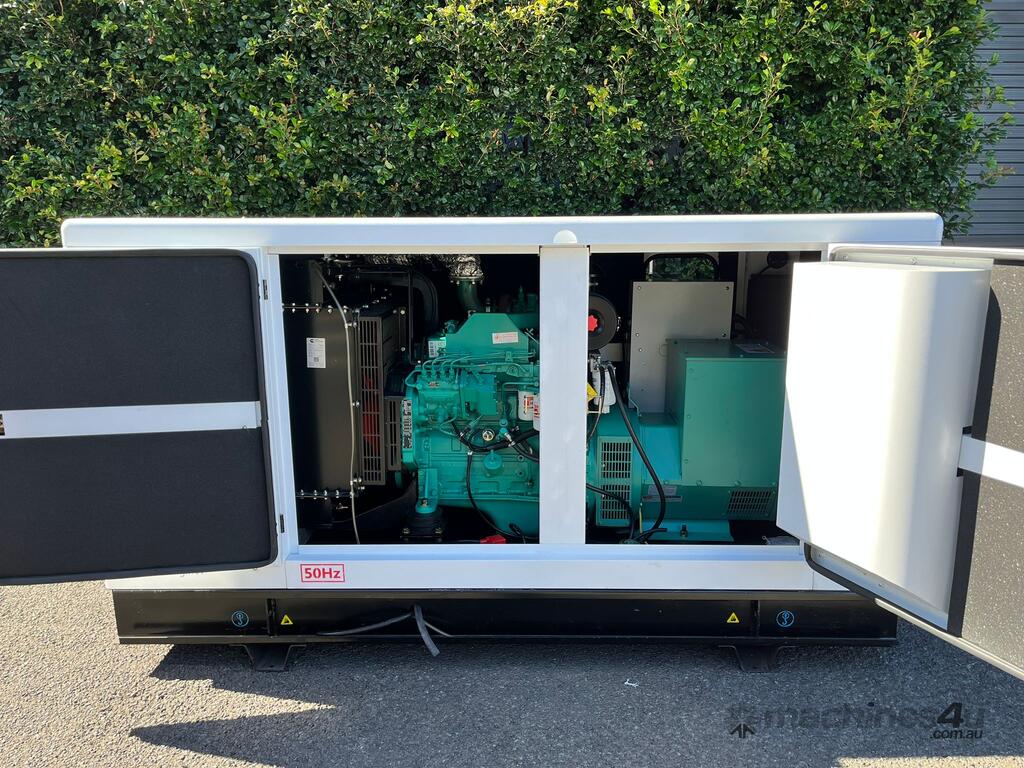

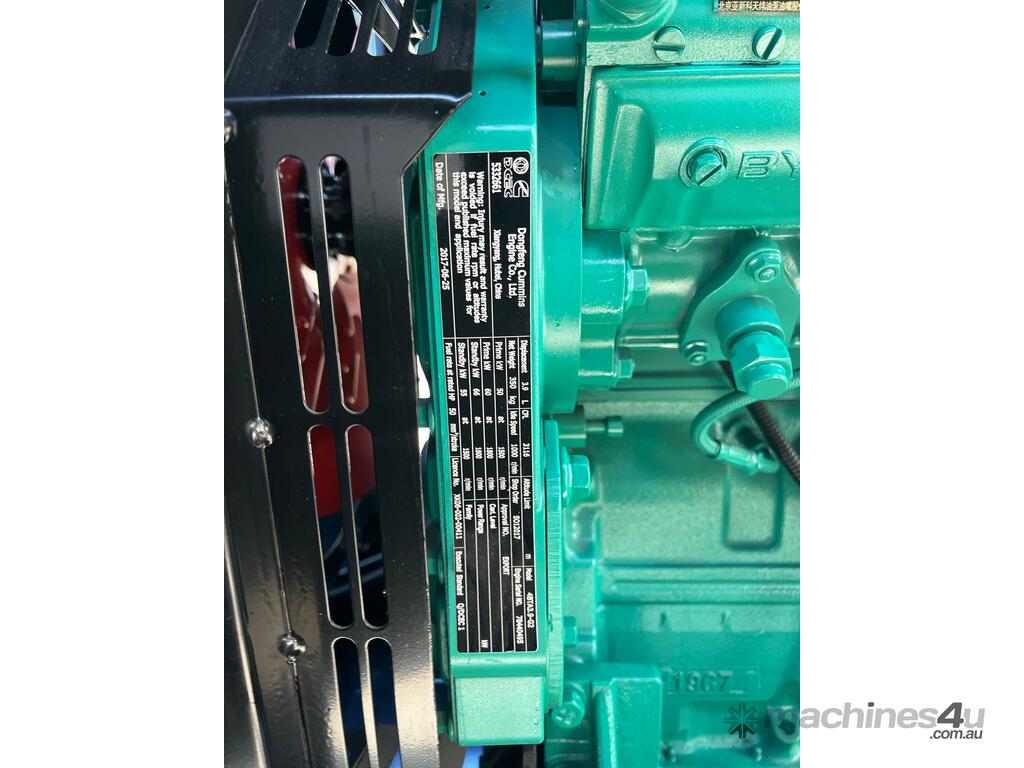

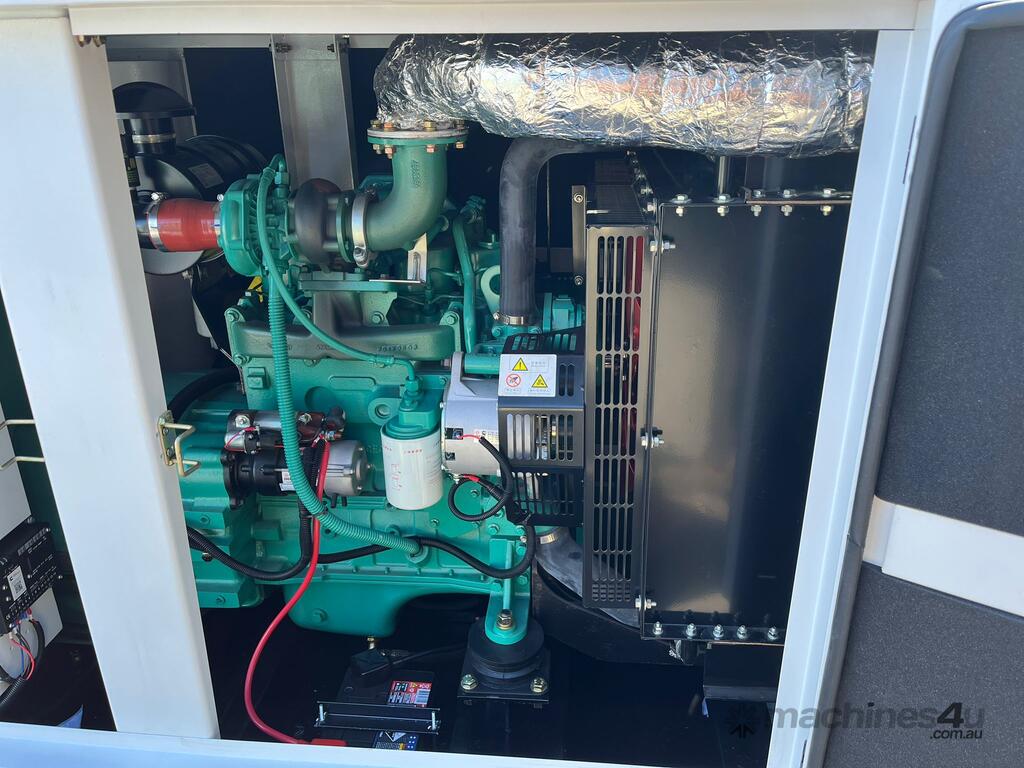

Engine Make Cummins
Engine Model 4BTA3.9-G2
Bore 102mm
Stroke 120mm
Air Aspiration Turbo Charged
RPM 1500
Speed Governor Electronic
Start System 12V
Fuel Consumption 14 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 14 Litres
Coolant Capacity 15 Litres

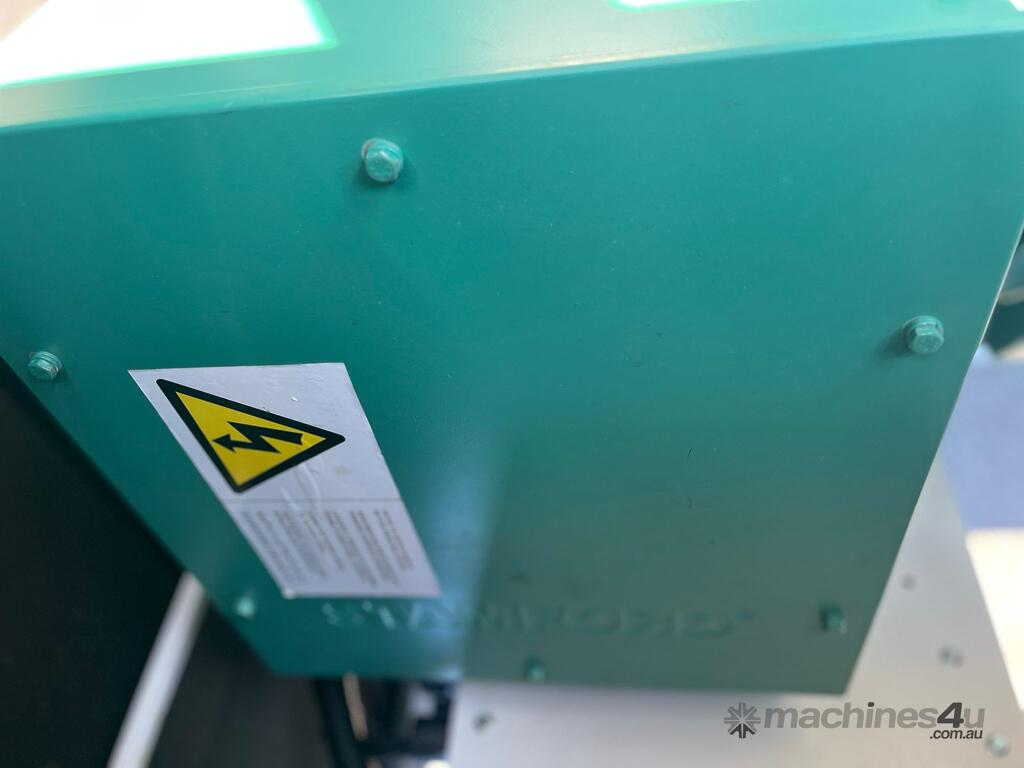

Alternator Make Stamford
Alternator Model UCI224E14
Voltage 415V
Phase 3 phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance [+/- 0.5% - 1%]
Insulation Class H

Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.

Shipping

For a shipping price to deliver to your location, please contact us on or sales1wellku
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.
