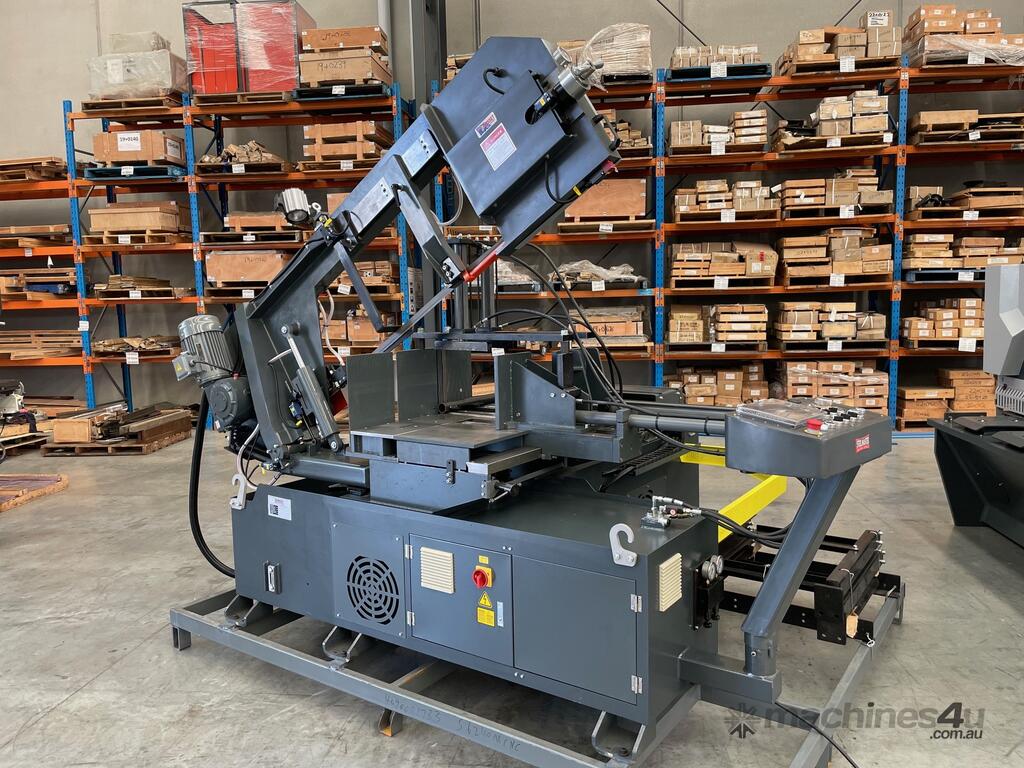

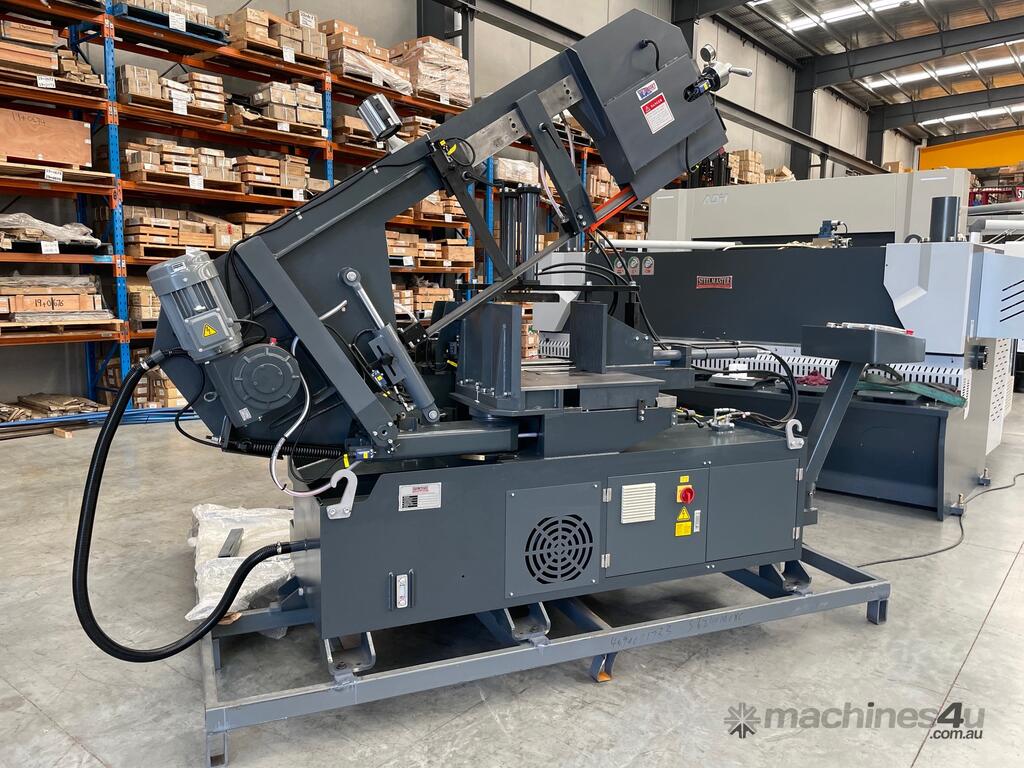

620mm Wide Full Auto Feed Mitre Cutting Bandsaw - Euro Model - NC Programmable

SAVE $3,000 of list price!

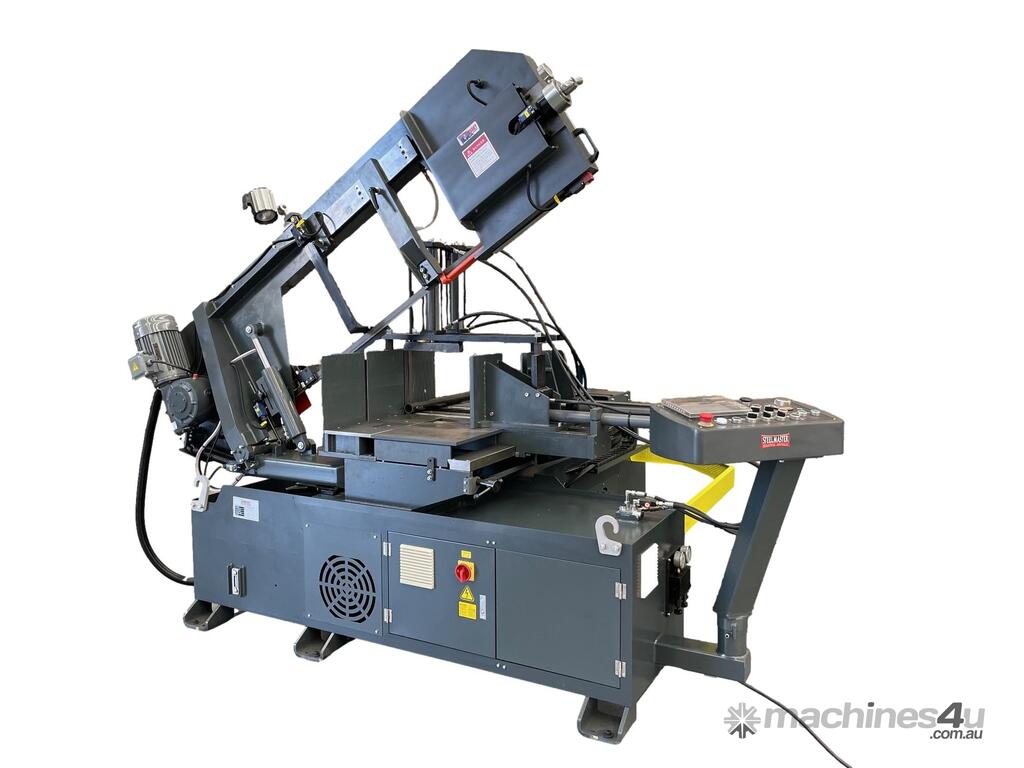

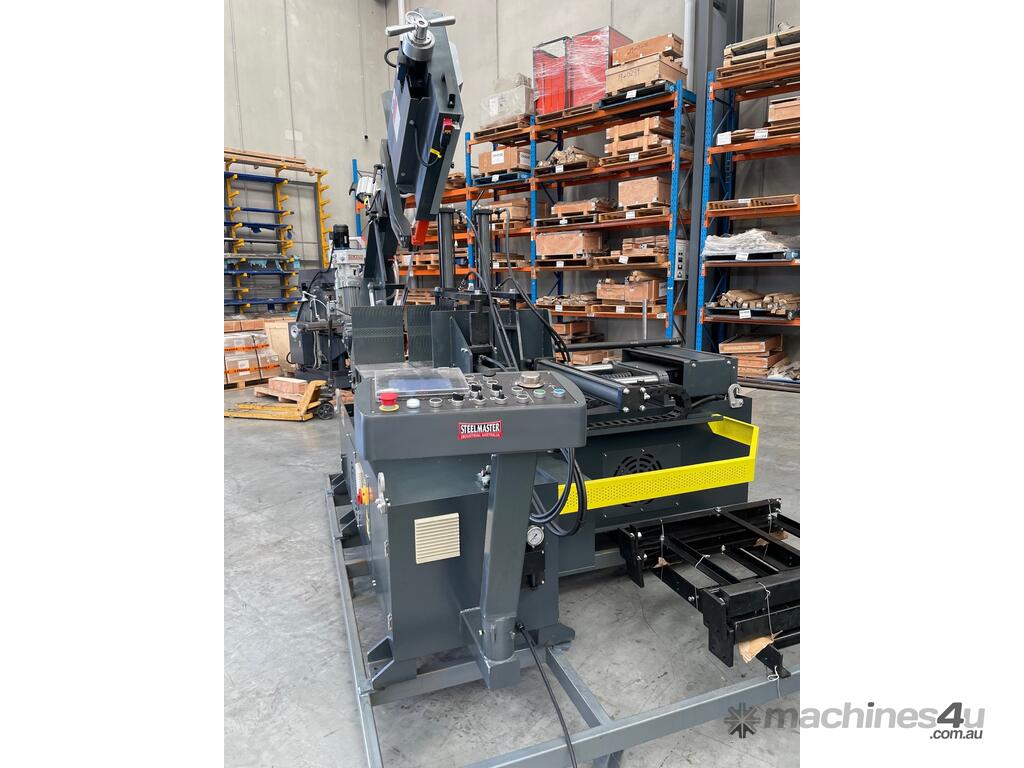

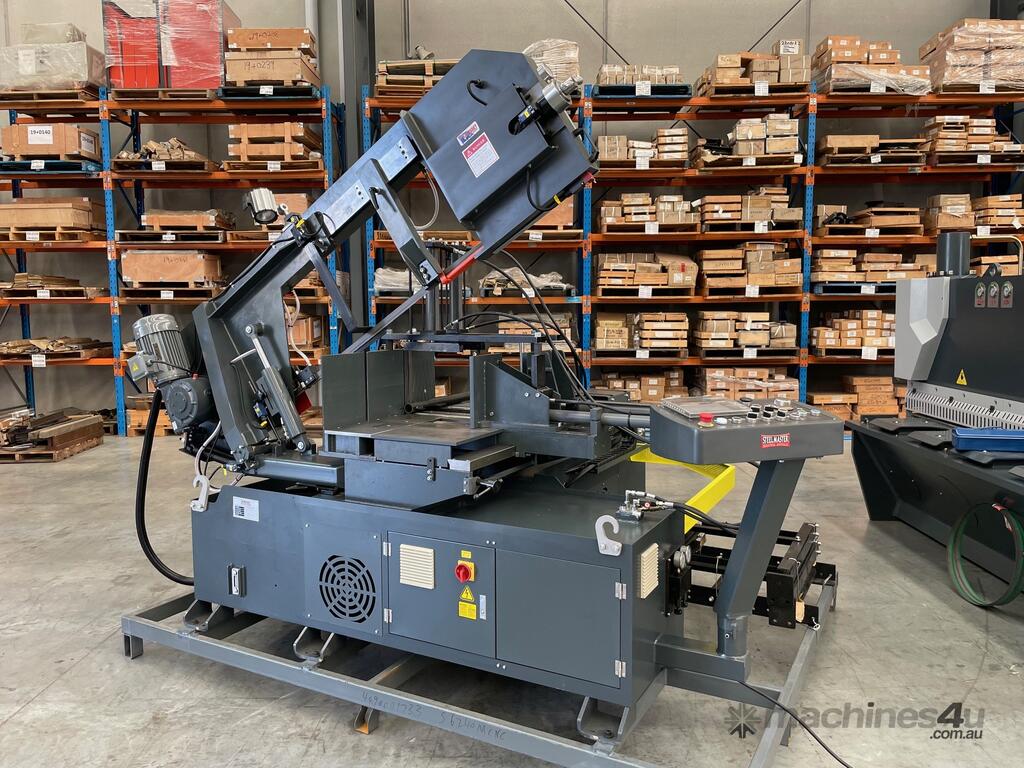

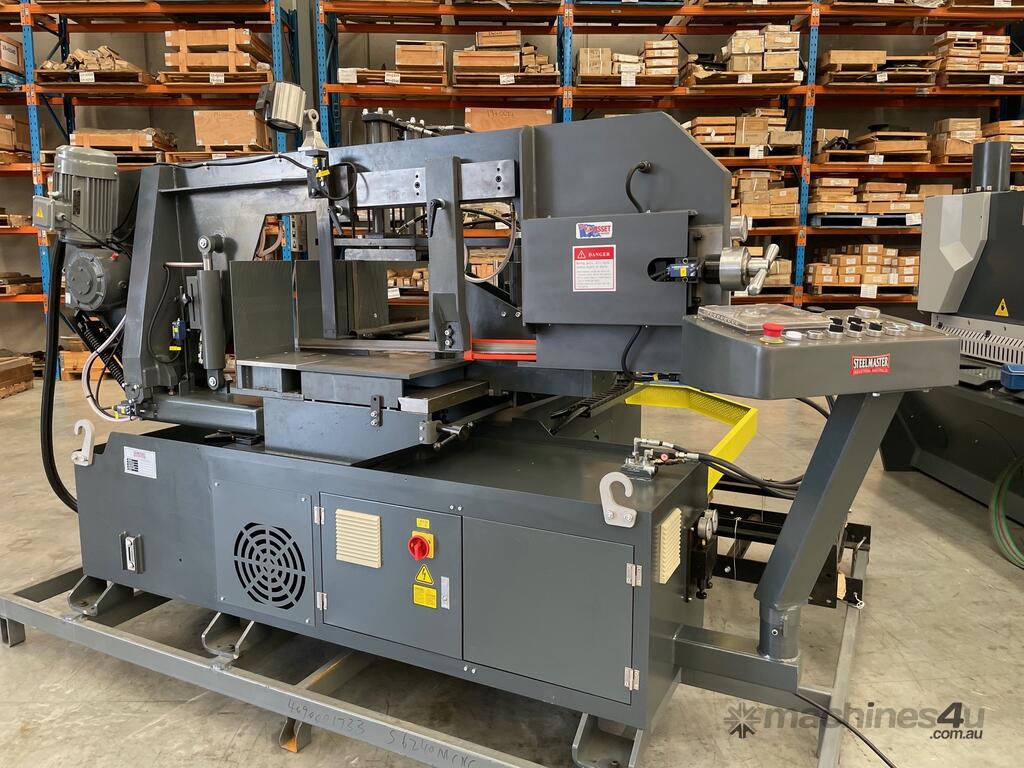

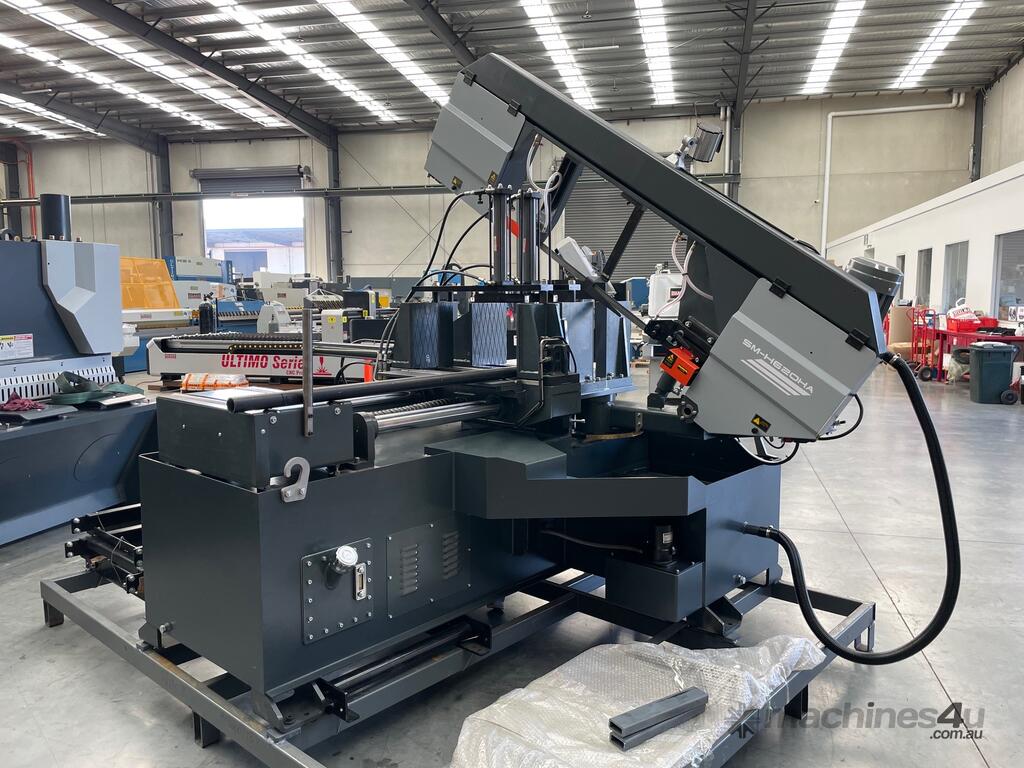

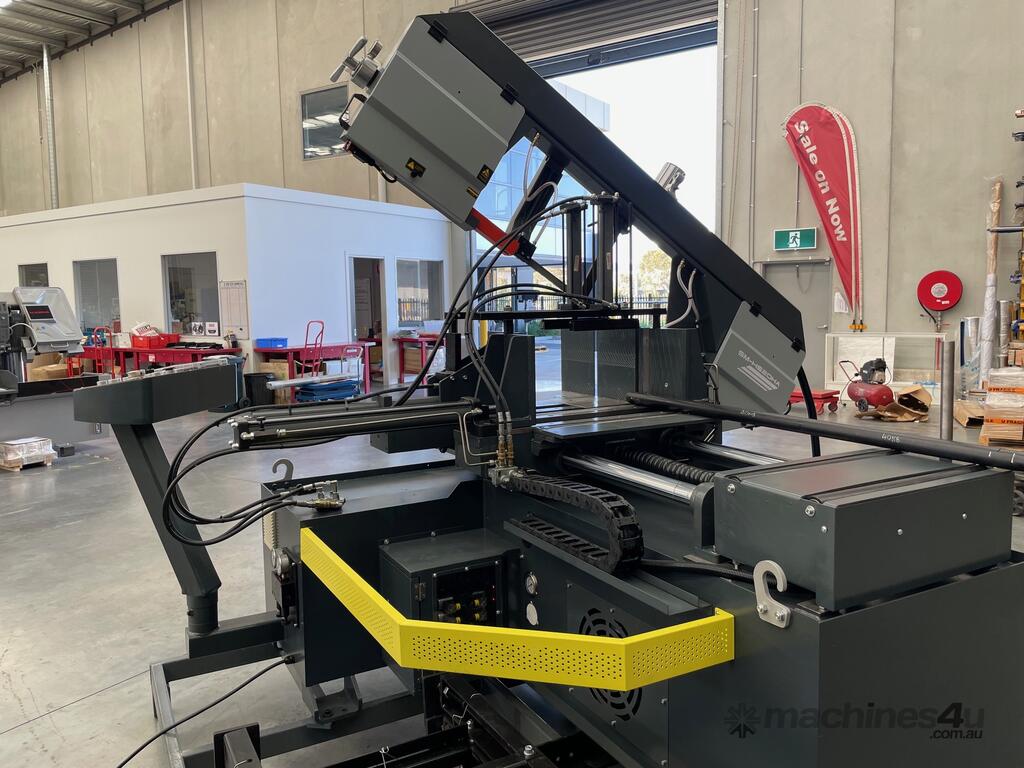

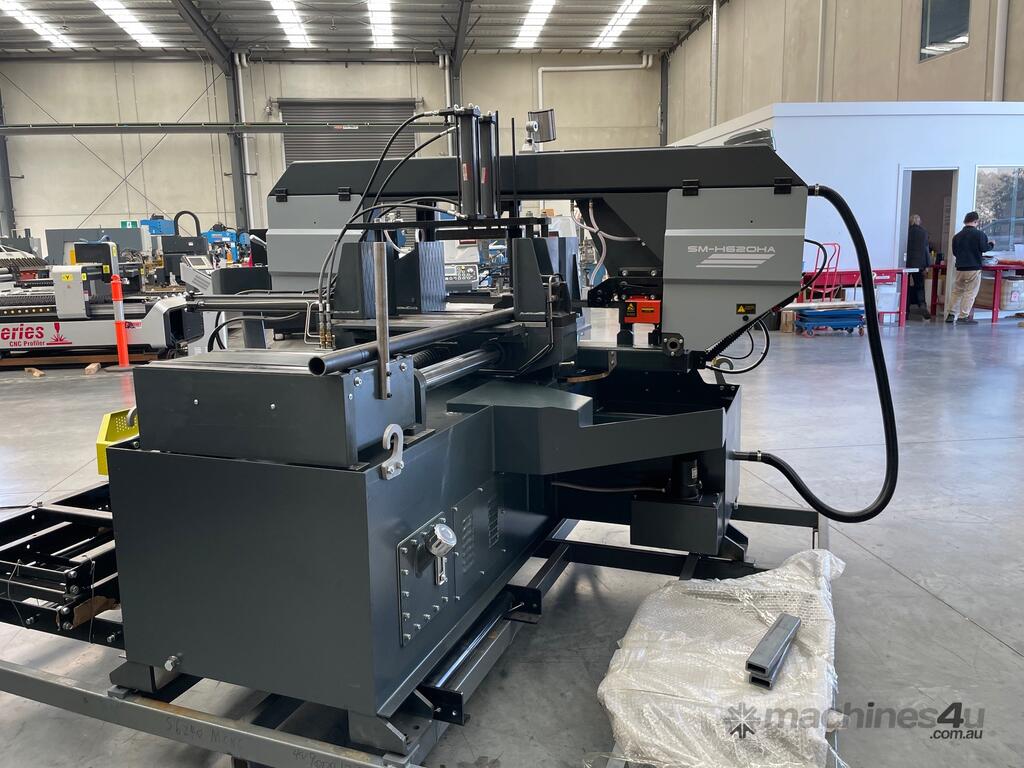

SM-H620HA, Steelmaster Automatic NC Mitre Bandsaw. 620mm x 440mm RHS, 450mm Round, Bundle Clamp Auto Feed CNC Controller, Mitre Cutting From 0~60 Degrees, 2000mm In-Feed Roller Table. Volt

Description
This Large Capacity Heavy Duty full featured automatic Mitre-Cutting Bandsaw is so feature packed, we dont know where to start! Offering precision auto feed cutting capacity via linear guides, twin hydraulic vice, tungsten guides, NC controller, mitre cutting to 60°, duarable 34mm blade, variable speed control and built-in coolant system. If you're looking for something in this size range, you'll have a tough time finding a better metal-cutting band saw with these features and at this price anywhere else.
Set and forget! Metalworking production shops should take a good look at this!

Features
our STEELMASTER mitre cutting auto series offers you the all-in-one solution
- heavy duty capacity capable of processing all types of material including packs at full automatic speed
- mitre cutting from 0° -60° provides the operator with total flexibility

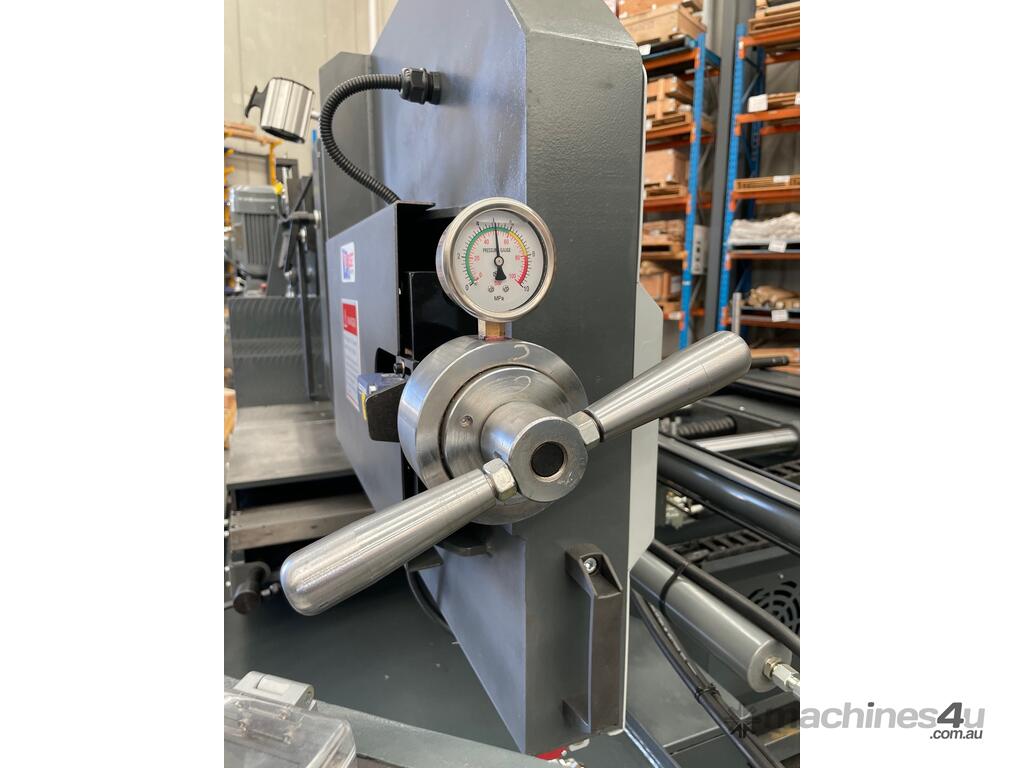

- vice pressure regulator and variable speed blade control system

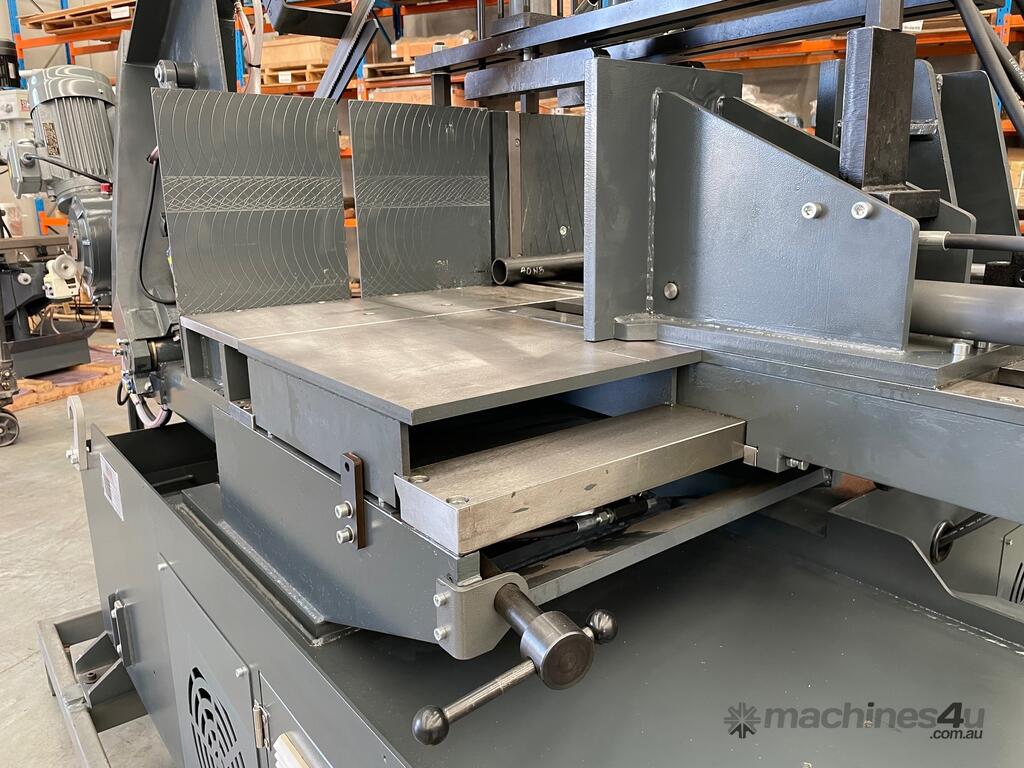

- twin hydraulic vice operation standard
- strong construction design
- heavy duty motors
- tungsten carbide blade guides
- coolant system for increased efficiency
- auto cut-off switch
- centralised control panel
- CE compliant

Specifications:

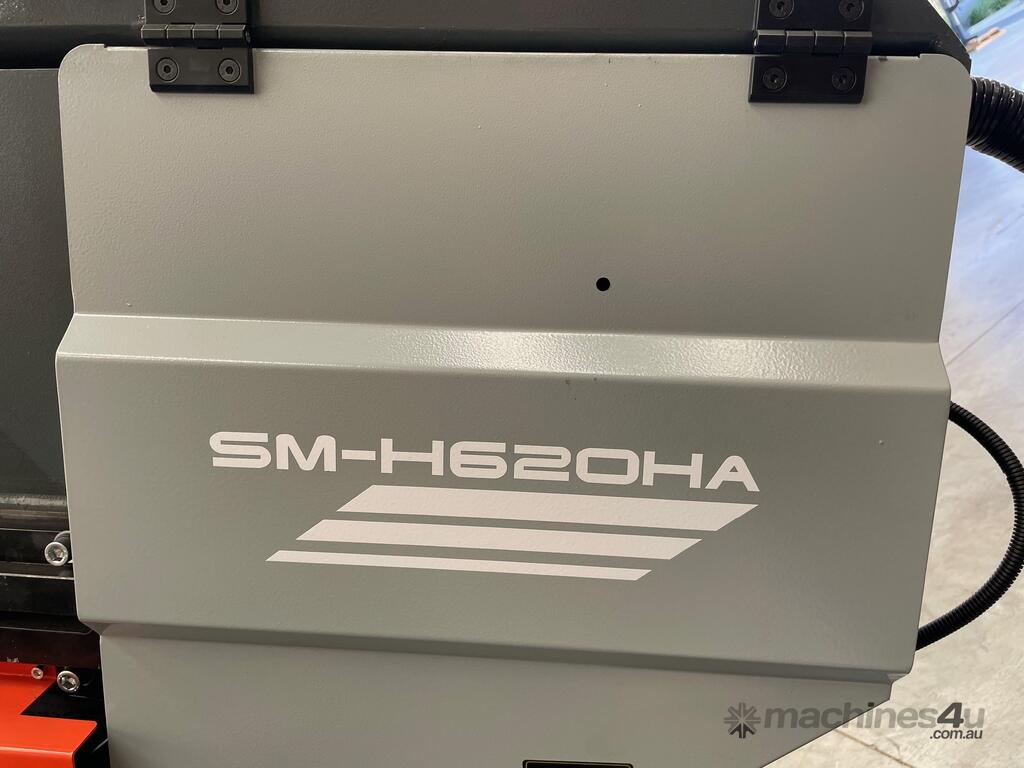

- Model: SM-H620HA-NC
- Voltage Volt 3 Phase
- Notes & Accessories:
- Equipment & Accessories Supplied:
- Fitted blade, tool kit, operation manual.

Features
- Mitre cutting to 60 degrees

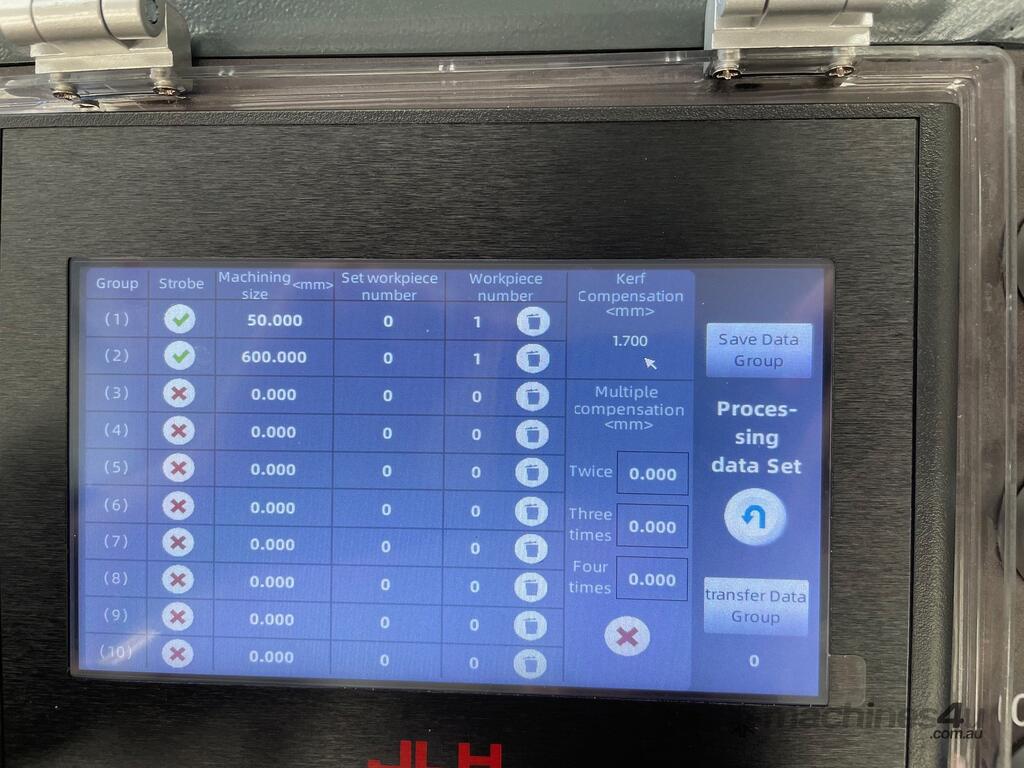

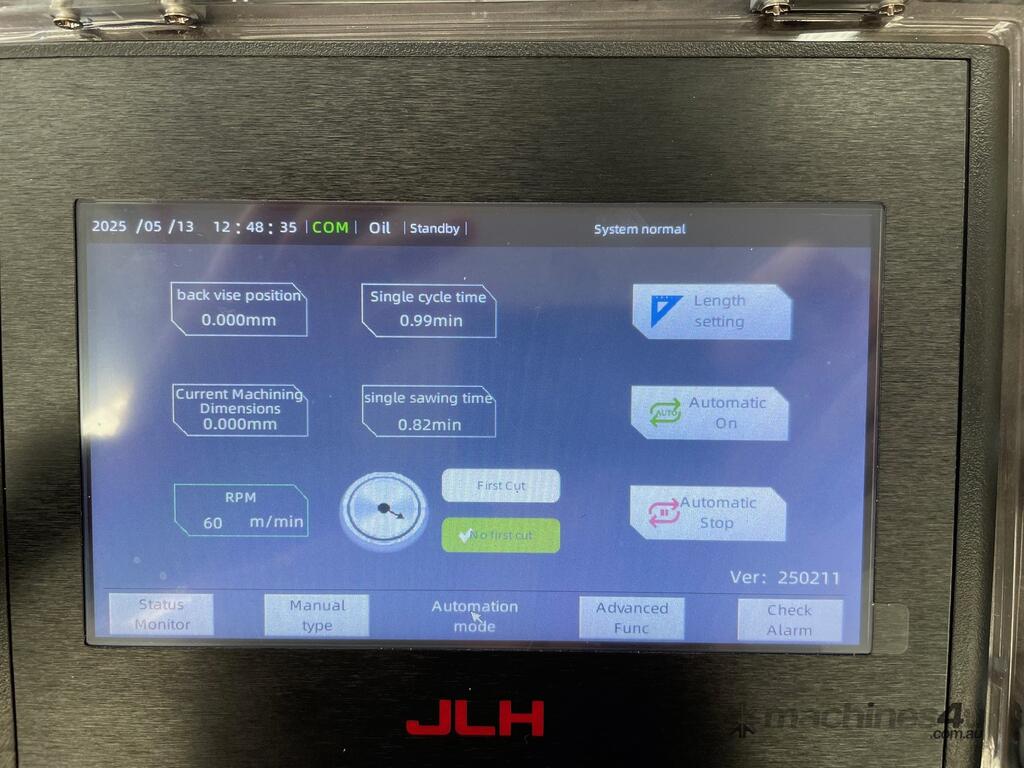

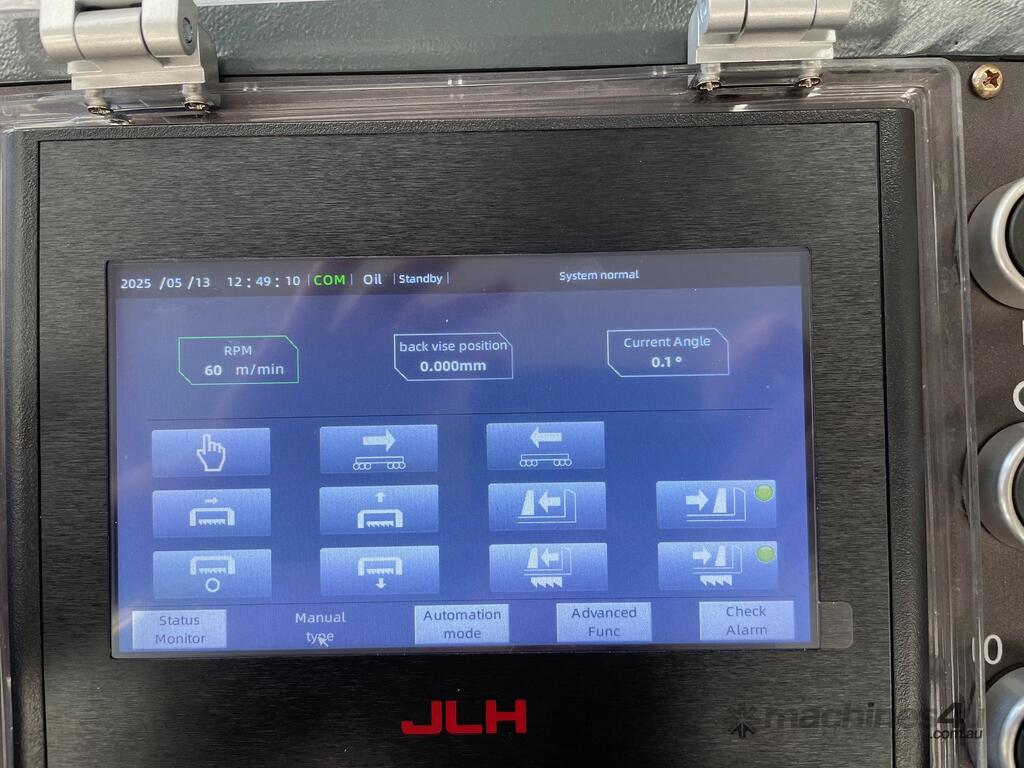

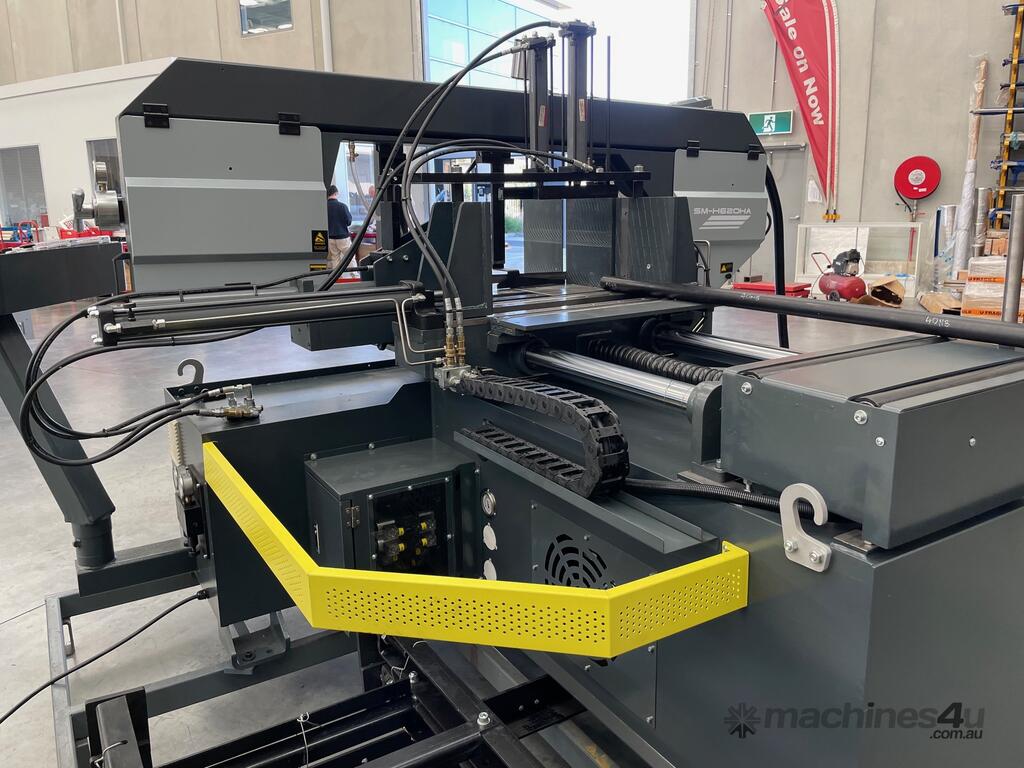

- Delta NC Auto Feed

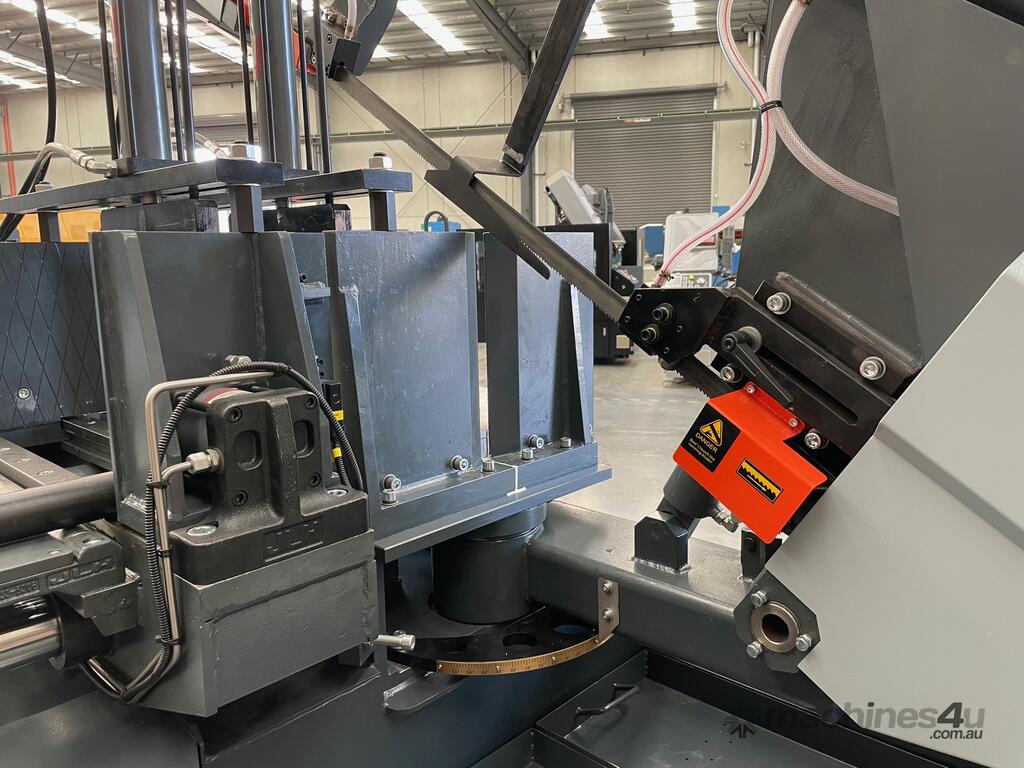

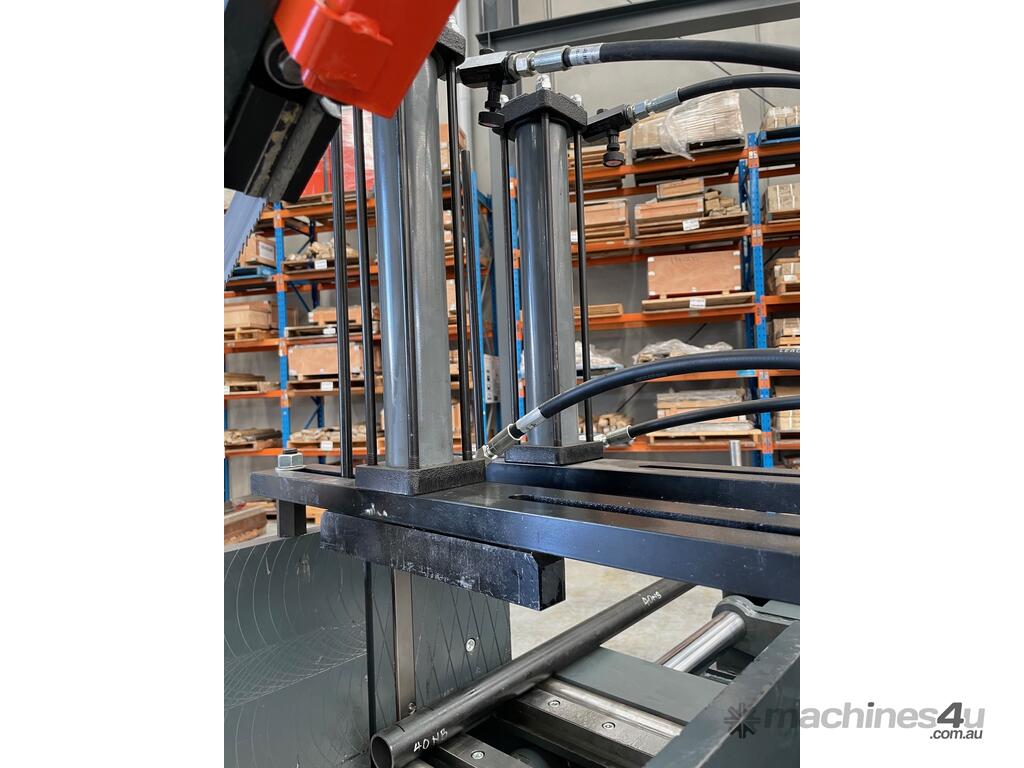

- Hydraulic Friont & Rear Vice Clamping
- Blade Breakage Detector

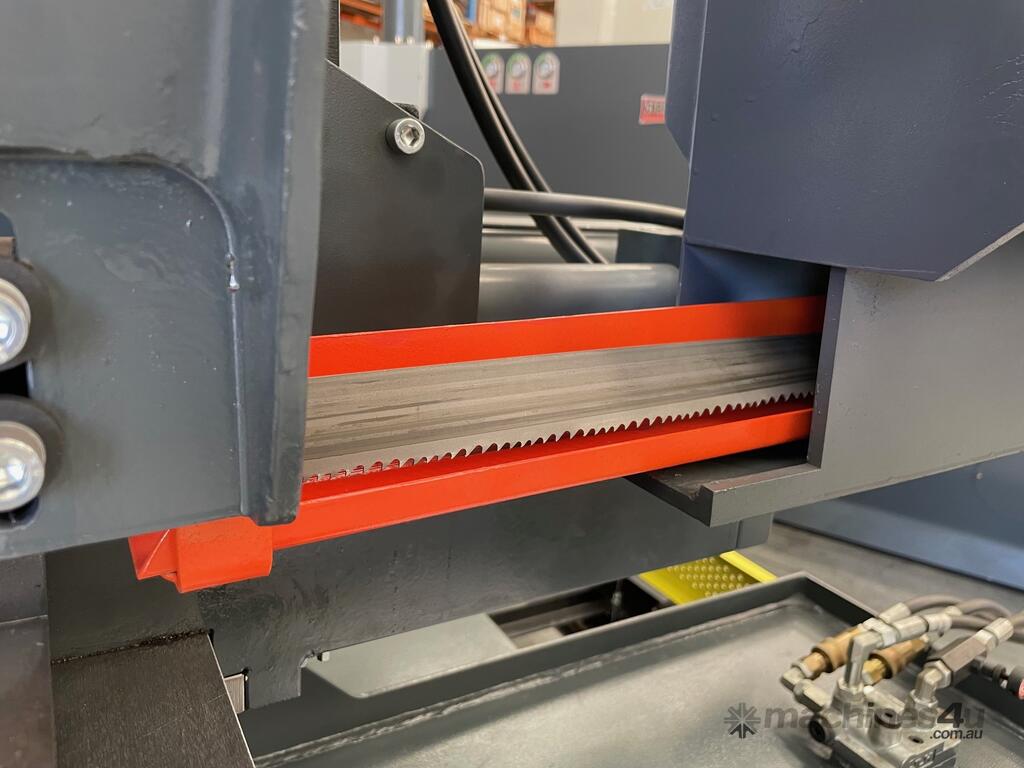

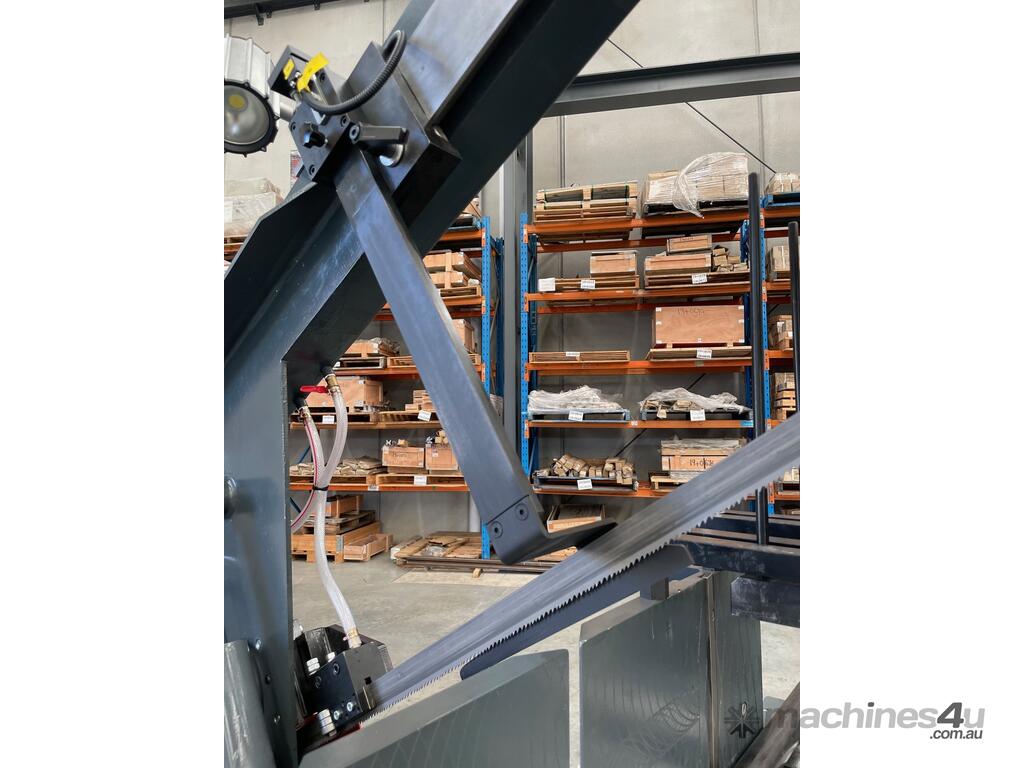

- Durable 34mm wide blade.

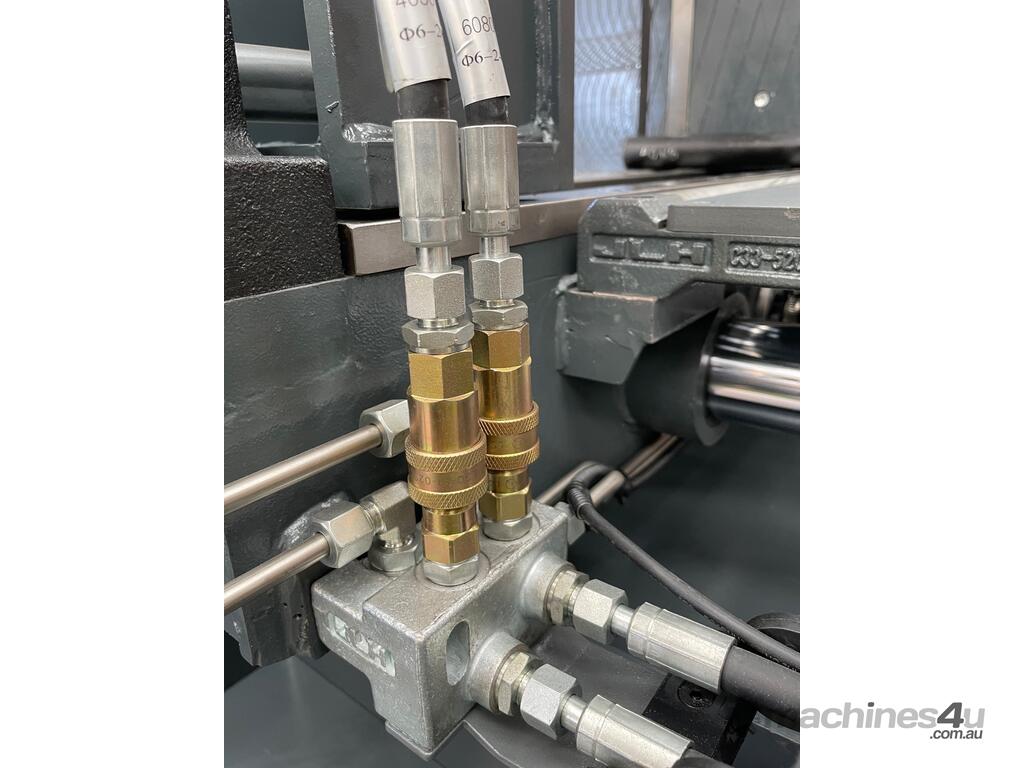

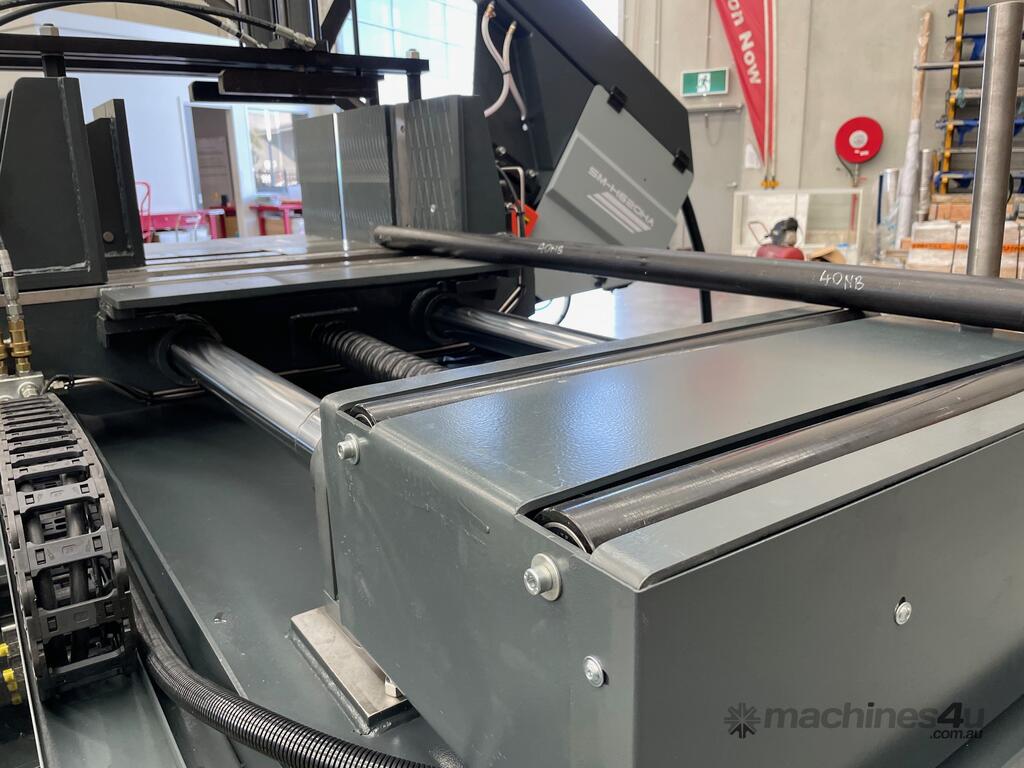

- Variable hydraulic down feed system for the automatic
- continuous lowering of the saw frame
- Automatic beam return
- Variable blade speed enables cutting on a variety of materials

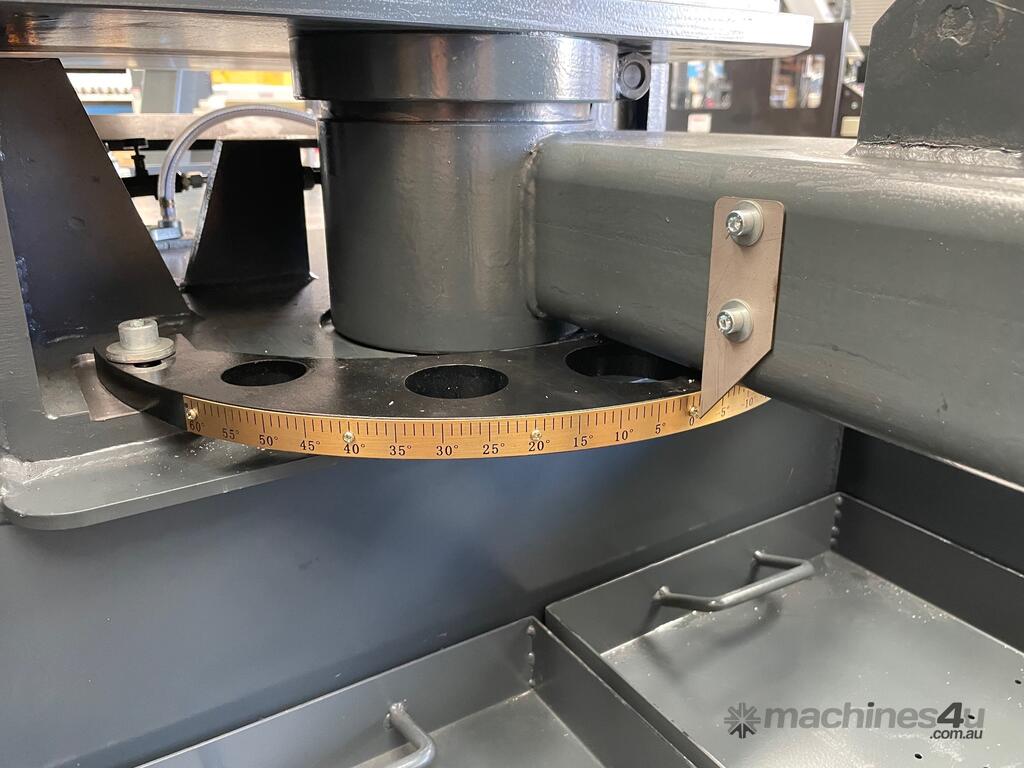

- Mitre Angle setting and display
- Hydraulic vide clamping standard
- Vibration free, low noise operation ensures clean cutting and
- high accuracy maintained
- Tunsten carbide blade guides.
- Stand and coolant system included
- Quick action mitre adjustment
- CE compliant

Technical Data
Cutting capacities ø (w x h)
Round 90° 450mm
60° 350mm (L) 350mm (R)
45° 400mm (L) 400mm (R)
Square 90° 450mm x 450mm
60° 280mm (L) 300mm (R)
45° 400mm (L) 450mm (R)
Rectangle 90° 620mm x 440mm
60° 300mm x 250mm
45° 510mm x 300mm
Solid rnd/sq 90° 450mm
Beam return auto
Blade size 5200mm x 34mm x 1.1mm
Speed range: 20 -90m/min
Table working height650mm

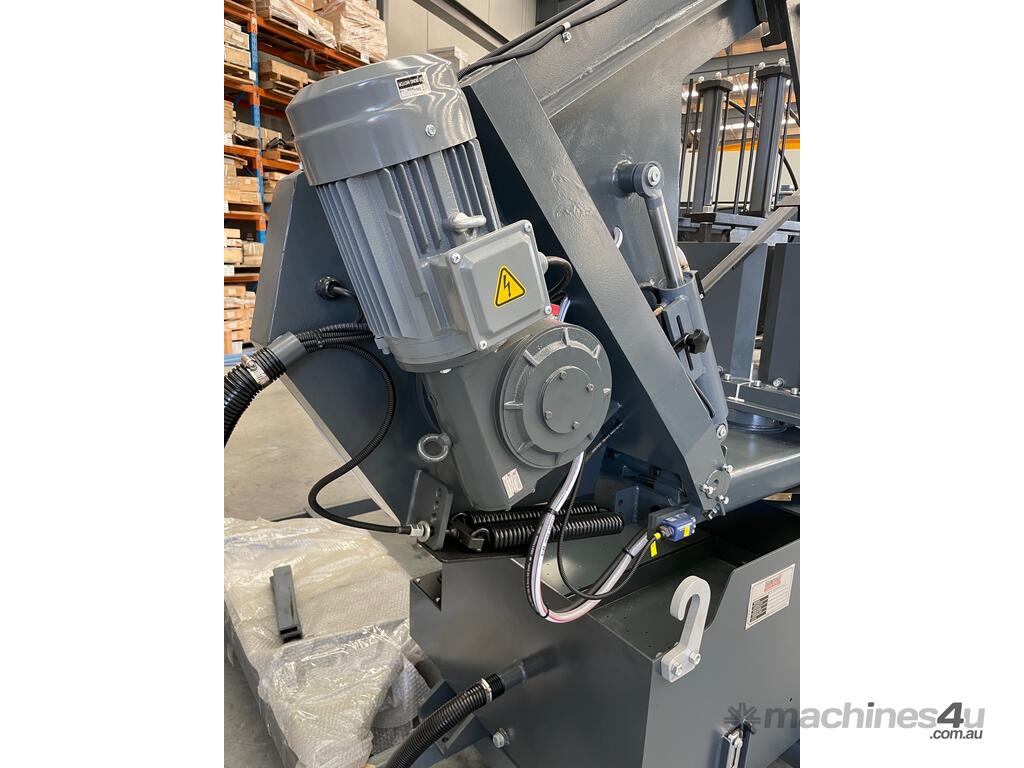

Motor power 3.75 / kw/V

Dimensions:
- Length: 2500 (mm)
- Width: 1900 (mm)
- Height: 1450 (mm)

- Weight: 1450 (kg)
- SKU: 15-0372

Optional Accessories
- Motorized conveyors
- Rontgen BI-METAL BANDSAW Blades
- Model to Suit Length x Width x Thickness Pitch
- Please quote Stock Code SKU: 15-0372
