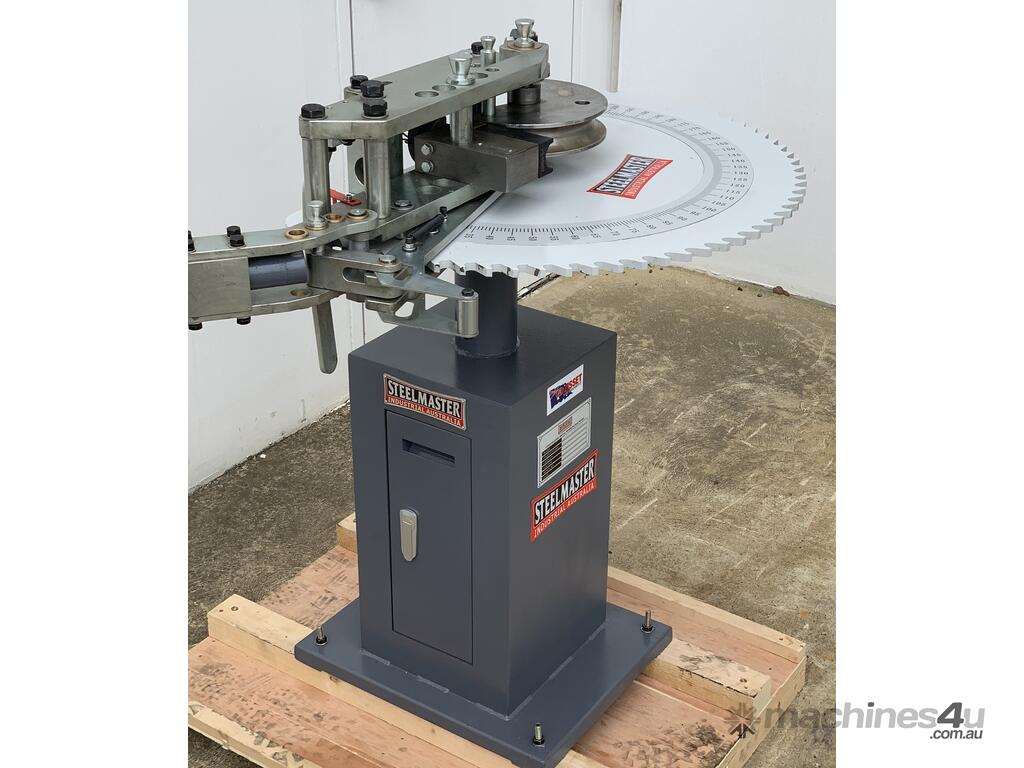

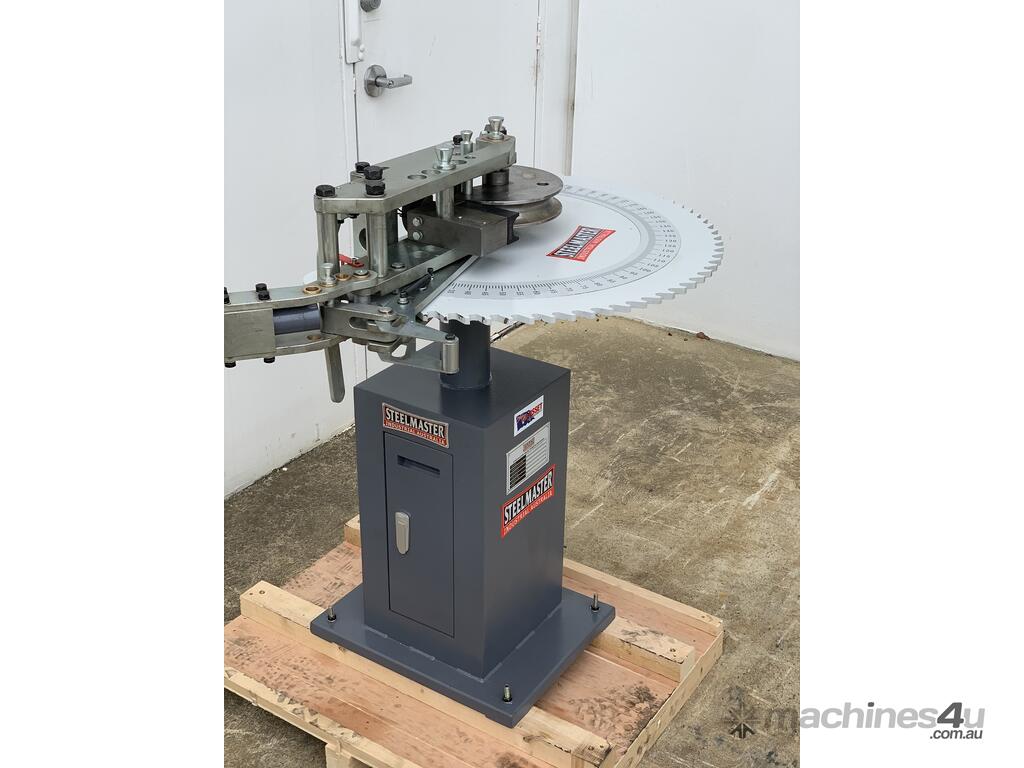

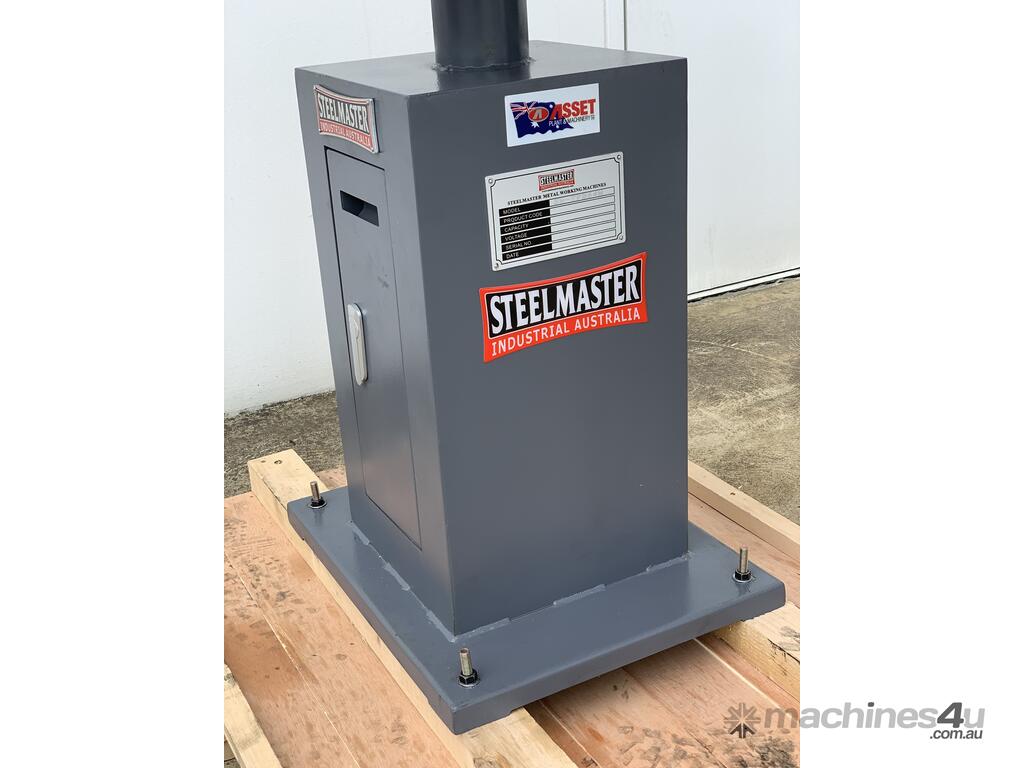

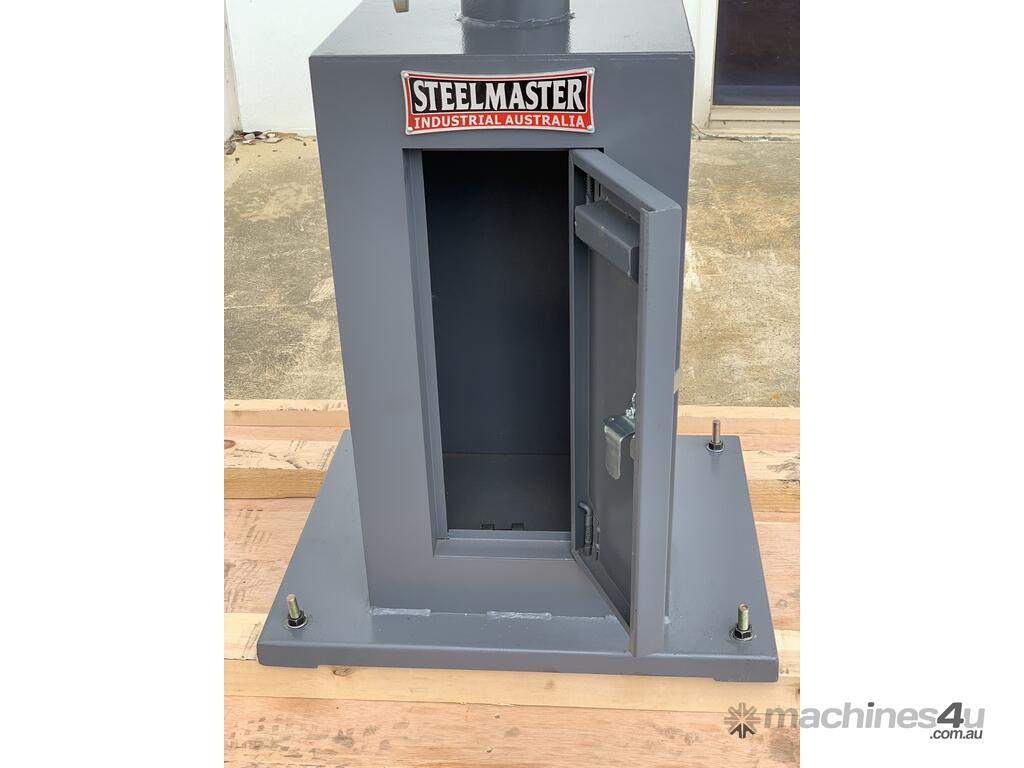

64mm Heavy Duty Tube & Pipe Bender, 3 Speed Ratchet Control - Integrated Storage Cabinet

SM-TPB64M Tube & Pipe Bender. STEELMASTER Industrial 45mm x 2mm, Pipe Capacity, 33.4mm x 3.4mm Pipe Hand Operation, Integrated Degree Dial, Drop On Fast Change Tooling.
Description:

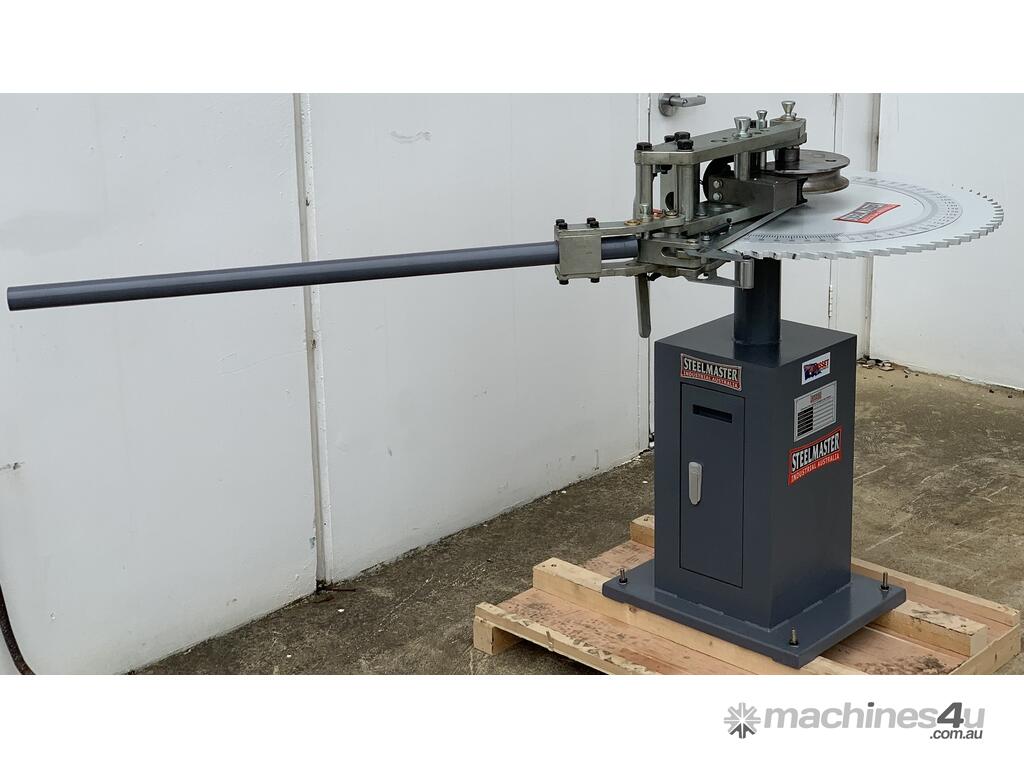

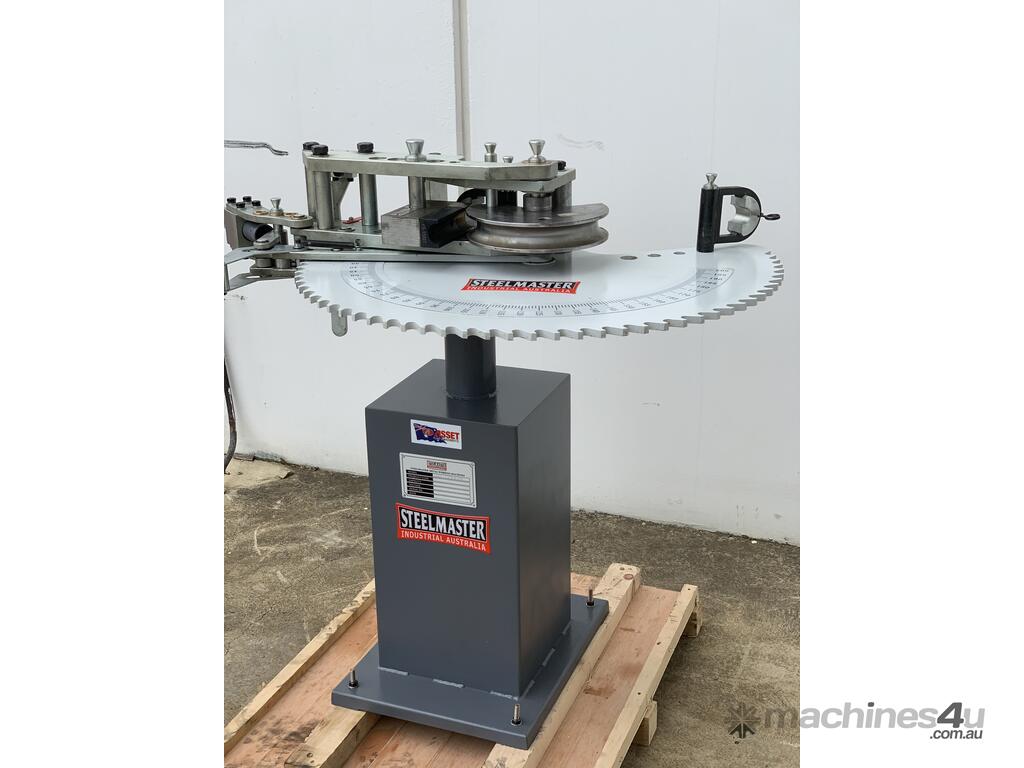

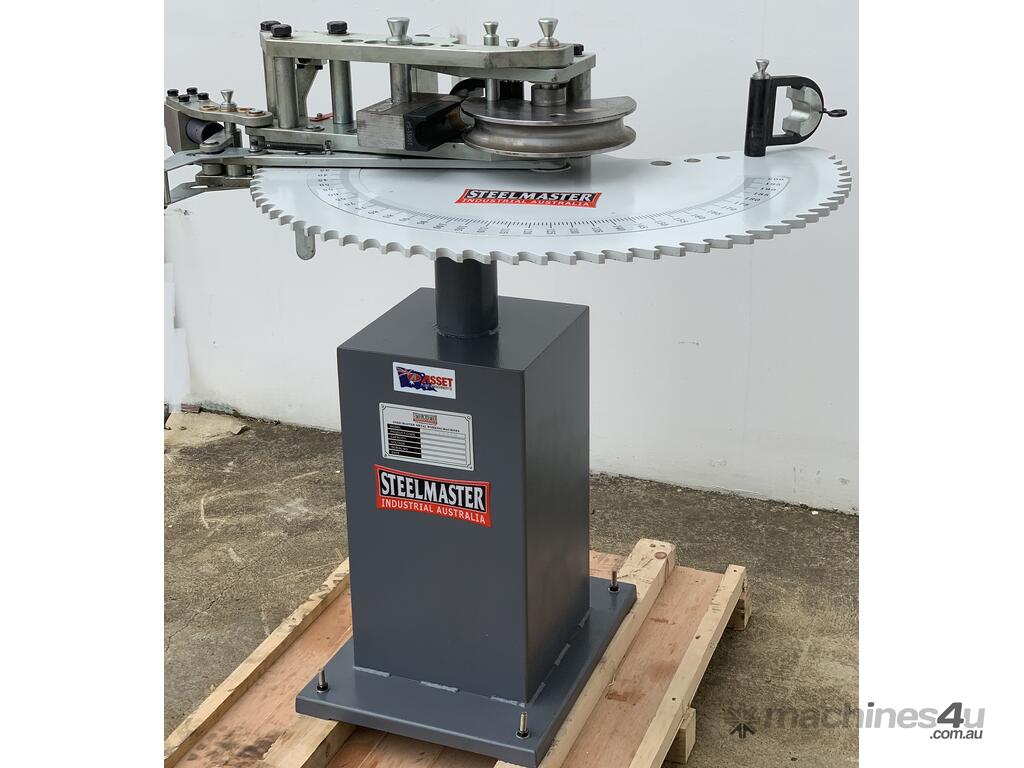

Looking for a top quality manual tube & pipe bender to help out with production in your shop? The SM-TPB64M Tube & Pipe Bender by STEELMASTER Industrial is perfect for the industrial fabricator that needs to bend lower production runs with very professional looking bends. Constructed of steel plate the SM-TPB64M is made to accept hundreds of round and square tubing die sets as well as round pipe dies sets. The SM-TPB64M is capable of bending up to 45mm OD tubing & NB pipe.

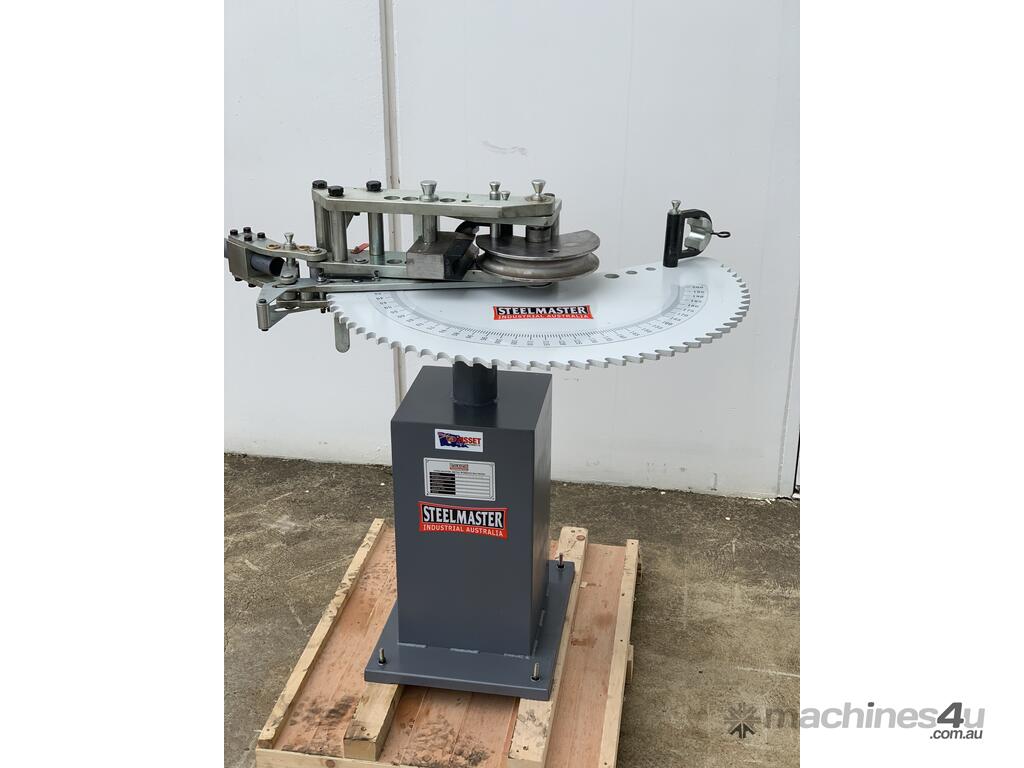

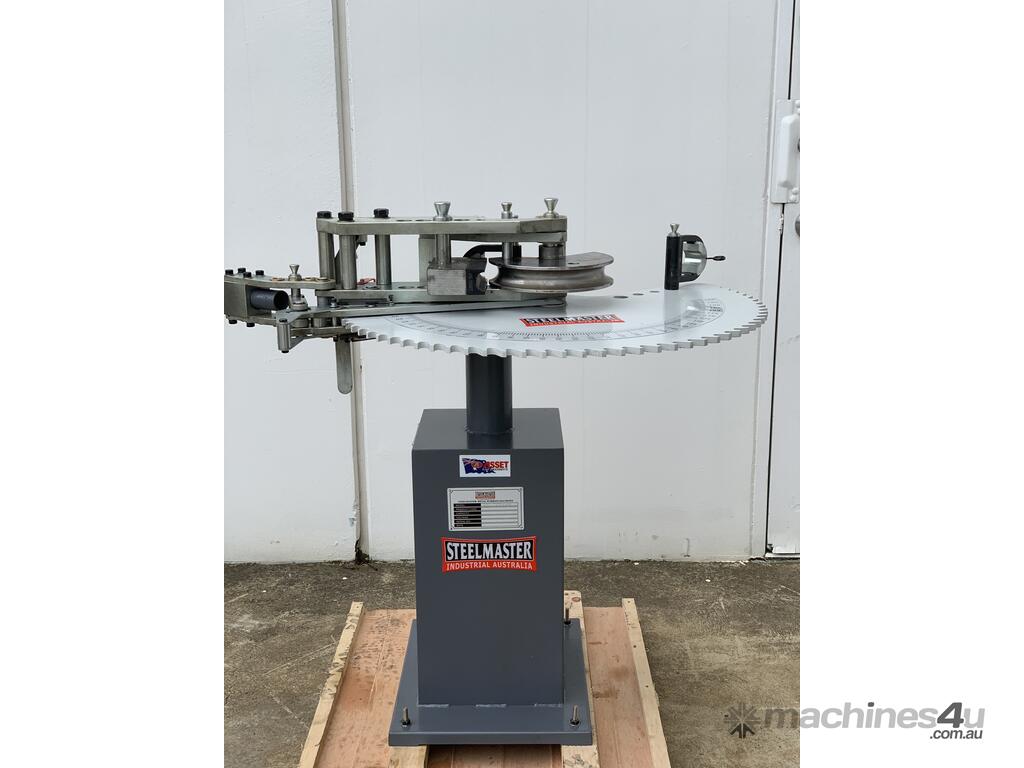

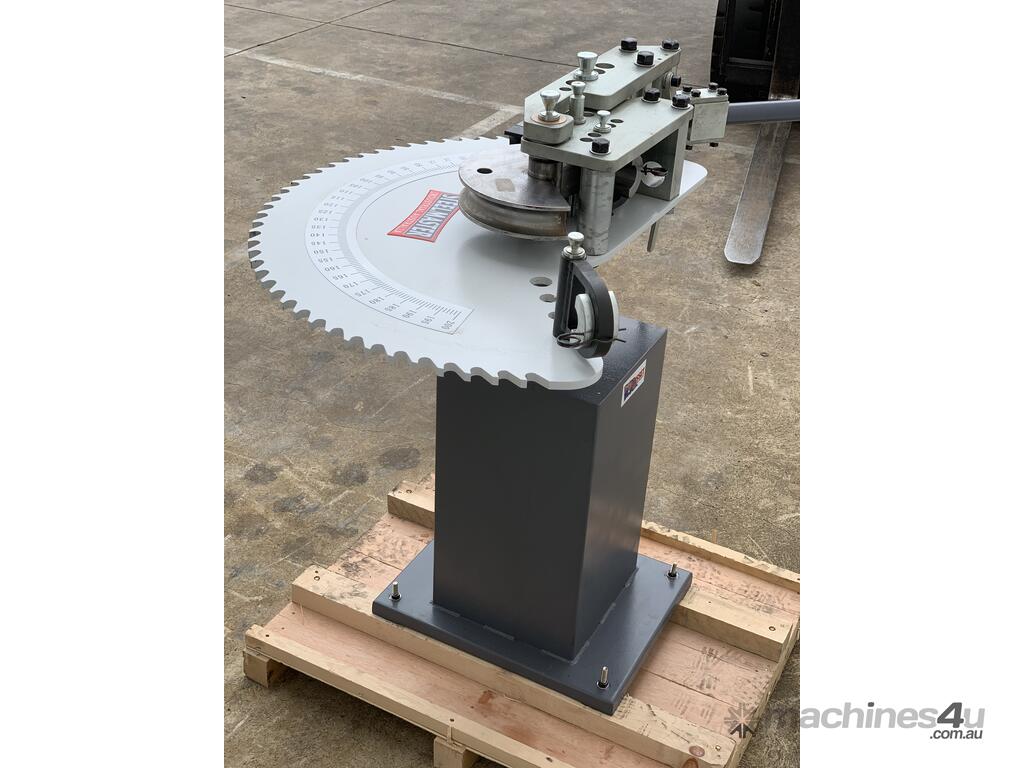

The SM-TPB64M manual tubing bender from STEELMASTER Industrial uses a large diameter indexing plate that allows the operator to bend up to 206 degrees (180 degrees plus spring back) without having to re-index and re-pin common on most other manual tube benders on the market. A tension spring back mechanism holds the position as the bend mechanism grabs the next tooth on the index wheel. When requirements are for lighter gauge materials the TPB64M ratcheting bend system can be shut off and the handle can be put into a manual override housing that allows the operator to simply walk around the manual bender and bend without the power of the indexing unit.

Features
?Suitable for production work.
?Ratchet operation.

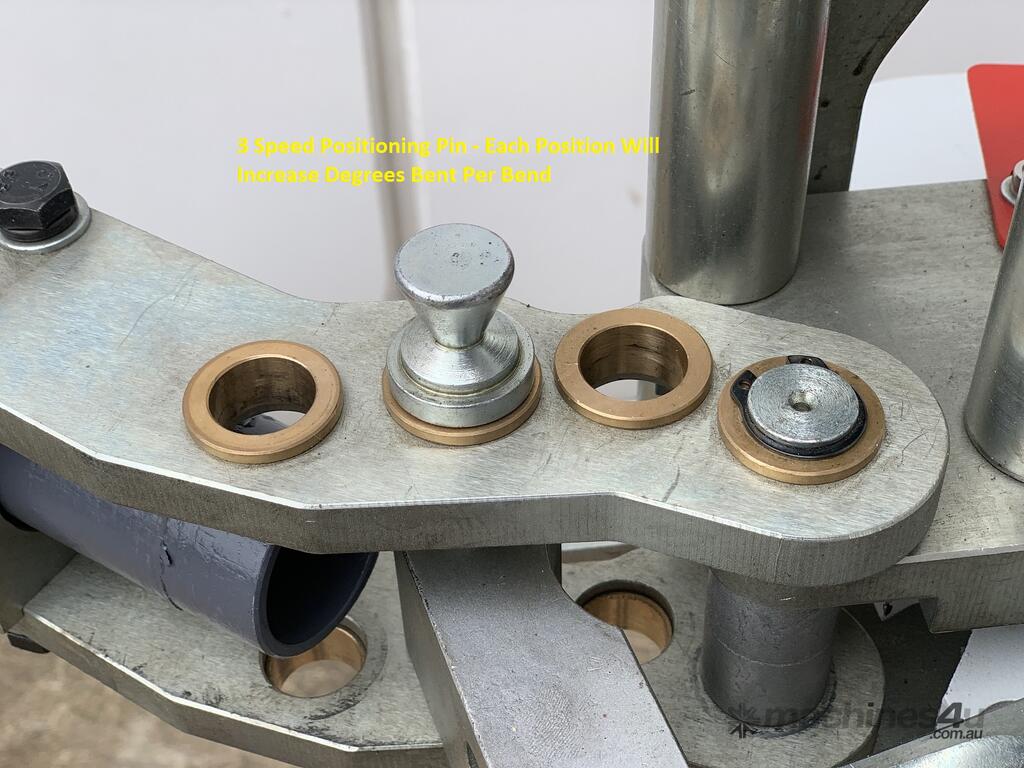

?Two speeds
?Bends 180 degrees in one shot
?Uses standard Baileigh drop on die sets for fast tooling changes
?Replaceable bronze bushings at all pivot points with grease nipples.

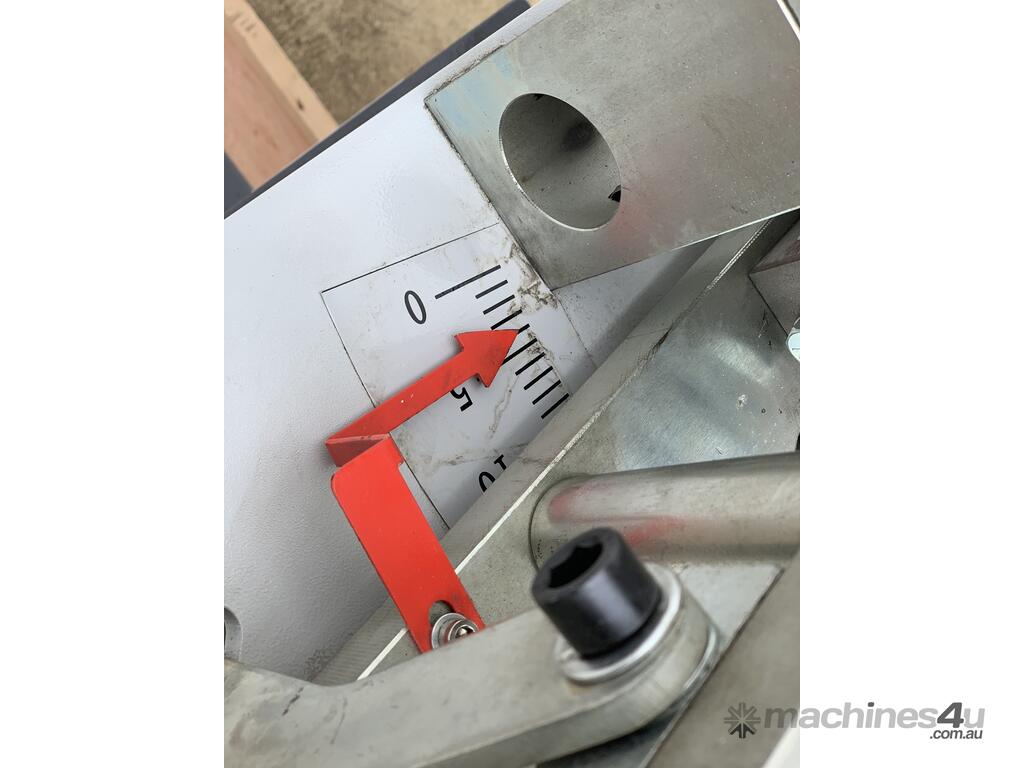

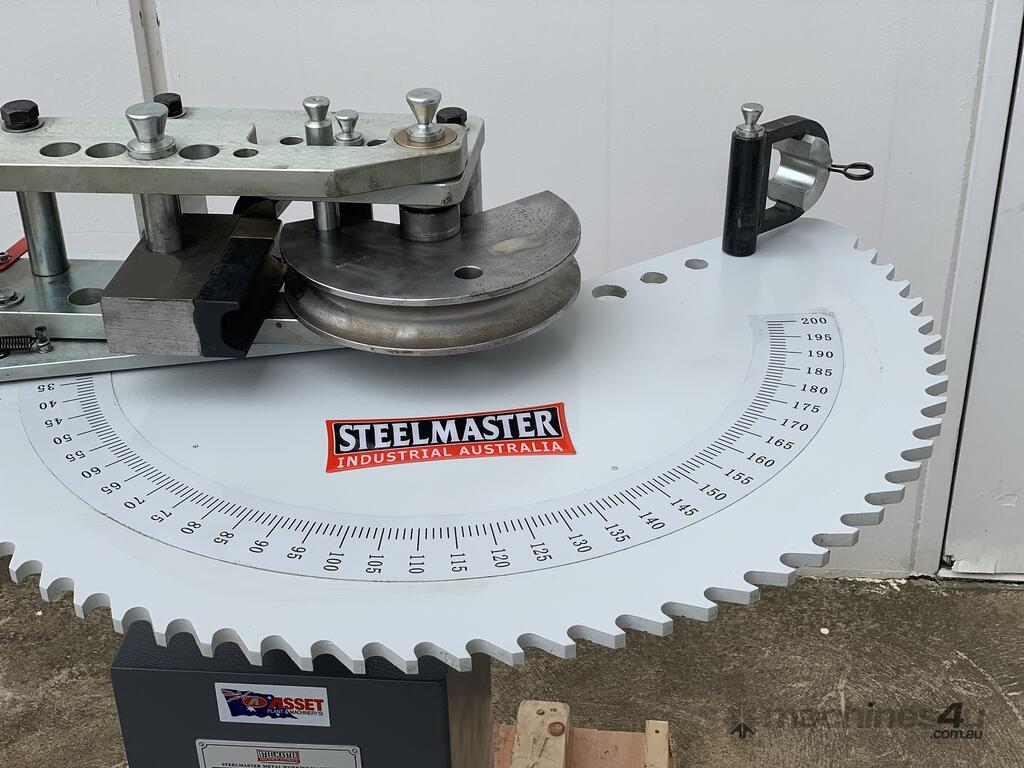

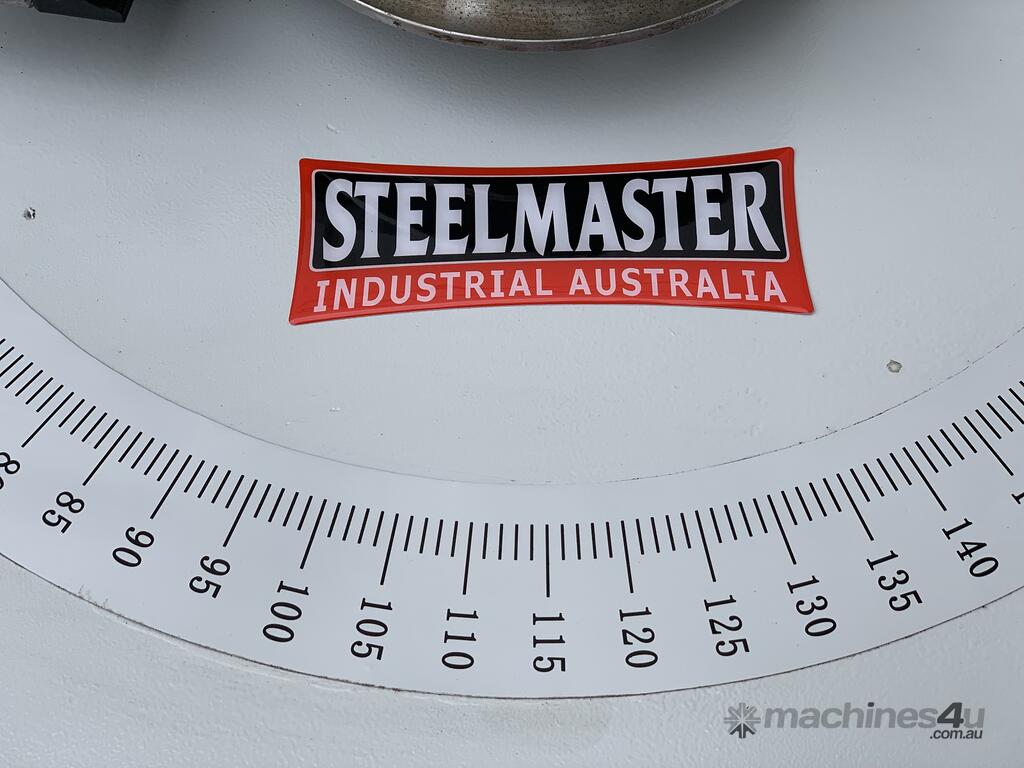

?Degree setting for ease of operation

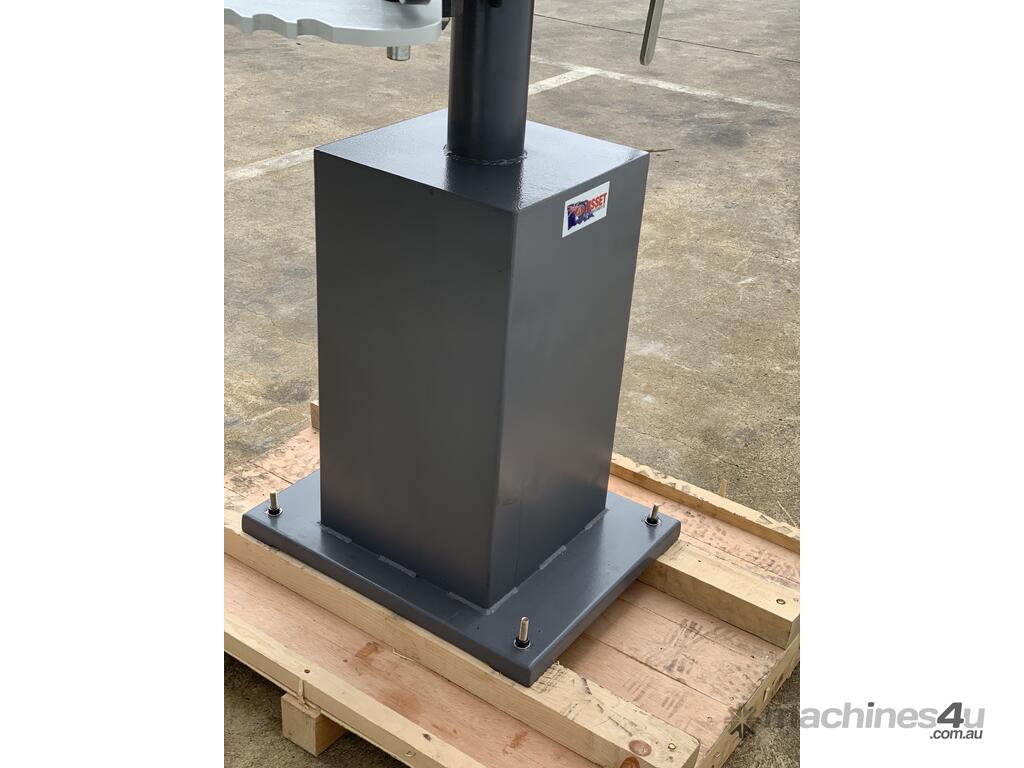

?Stand & handle included
?Infinite tooling possibilities.

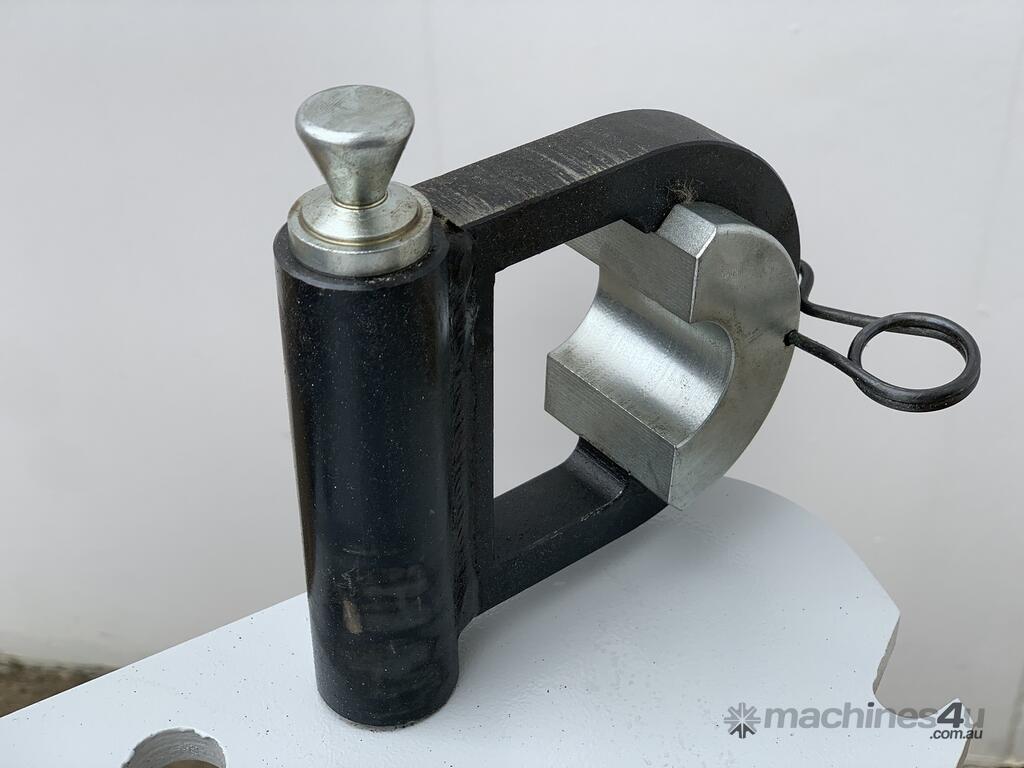

?1 Set of Round Tooling up to 48.3mm O.D. Included.

Technical Features:
?Mild Steel Pipe – 33.4mm x 3.4mm (Schedule 40)
?Aluminium Pipe – 33.4mm x 4mm (Schedule 40)
?Stainless Steel Pipe – 27mm (Schedule 40)
?Mild Steel Round Tube – 45mm x 2mm
?Aluminium Round Tube – 50mm x 3mm
?Stainless Round Tube – 38mm x 2mm
?Chromalloy Round Tube – 38mm x 2mm
?Mild Steel Solid Rod – 25mm
?Mild Steel Square Tube – 25mm x 25mm x 3mm
?Maximum Speed To 180 Degrees – N/A
?Maximum Centre Line Radius – 267mm
?Minimum Centre Line Radius – 13mm
?Weight – 180Kg
?Dimensions – 1080mm x 600mm x 1080mm (H)

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
