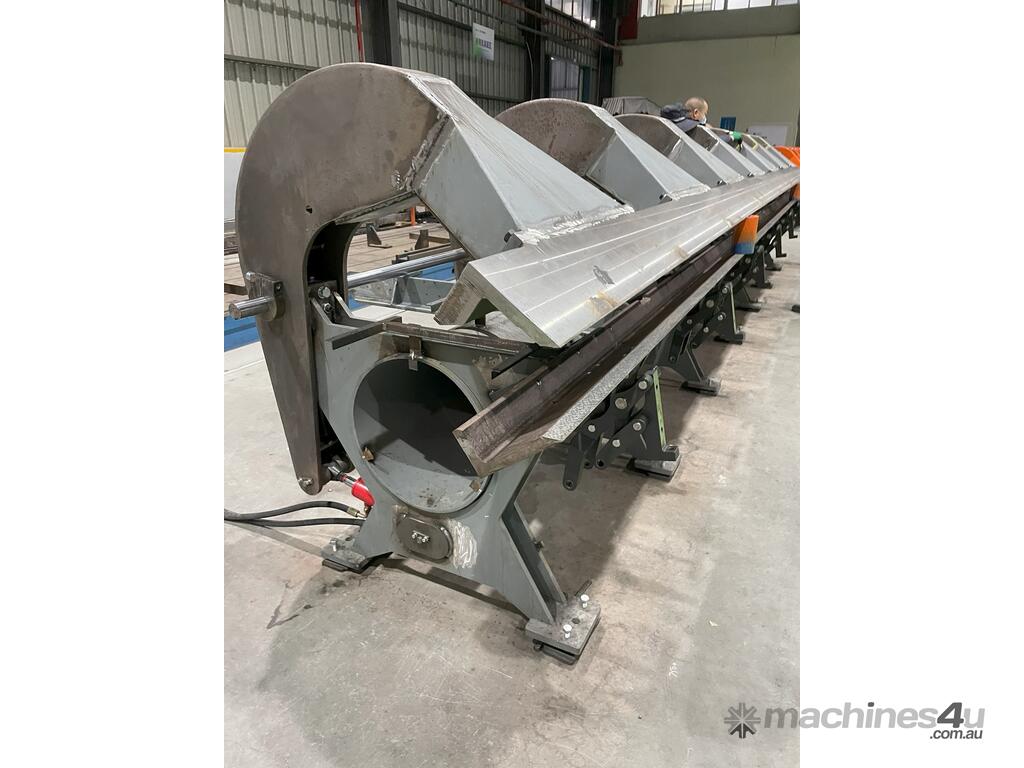

6500mm x 1.2mm CNC Slitter Folder, 1000mm Throat, CNC Controller

MM6512CNC. Slitter Folder: Machine Makers 6500mm x 1.2mm Slitter Folder, 1000mm Throat,
6 - 9 Frames, CNC Graphical Controller and Associated Equipment. Volt

Machine
Type Long bed 6512 ACS apron folder
Working length 6500mm
Number of Heads 7
Fold Cylinders 7
Clamp Cylinders 7
Bending range 0 to 135 degrees
Throat depth to Slitter 1000mm
Jaw face width 34mm
Hinge 7 points Parallelogram linkage
Jaw/apron operatio Hydraulic double acting cylinder
Cycle time approx. 8 seconds for maximum fold variable
Gauging method Variable 0.40mm to 1.60mm by adjustment

Folding Capacity
Material yield Strength G550
Thickness 1.2mm

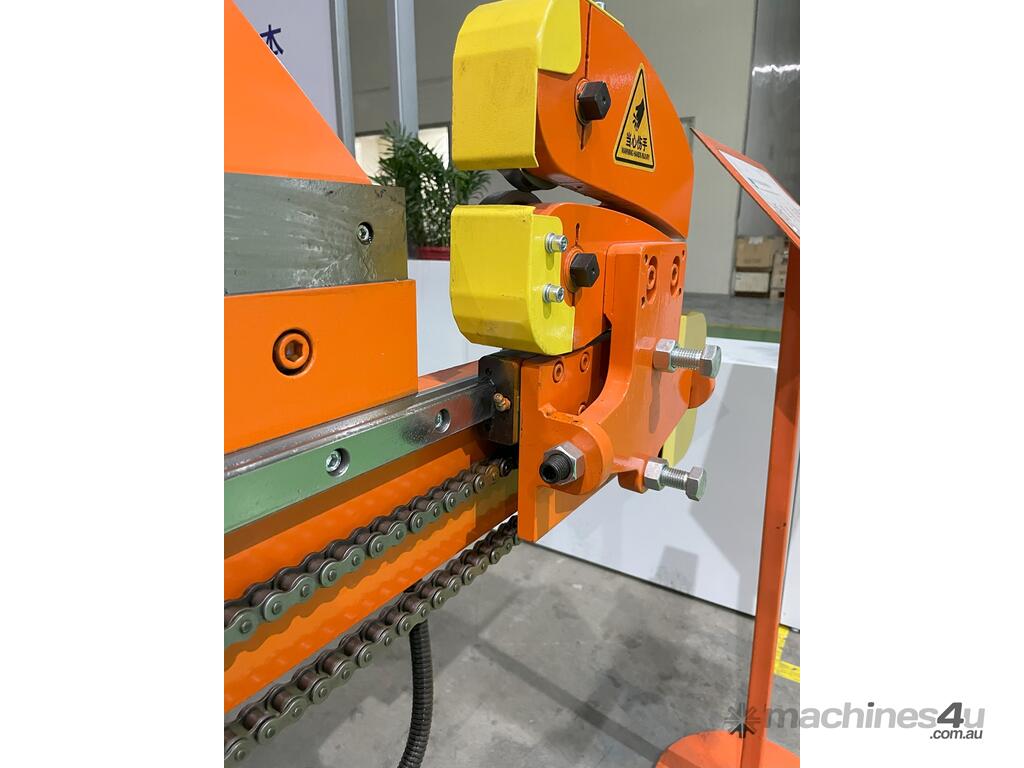

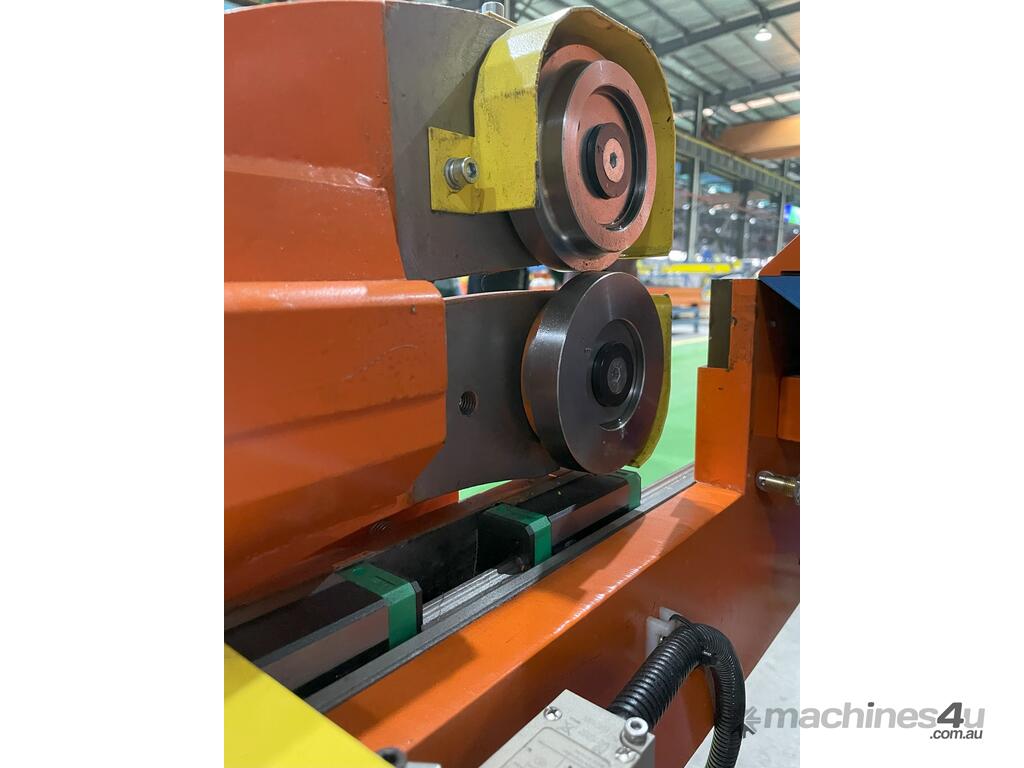

Slitter Unit
Type Overarm Mounted
Knife Diameter 80mm
Material D2 Hardened and Ground to 60 – 62Rc
Drive System Electric motor and wire rope
Guiding System Large section linear guide
Cutting speed 720mm per second
Cycle time approx 23 seconds for full 6.5 meter slit

Control Feature
Automatic Functions Angle Range of 0 to 135 degrees
Safety Features: E-stop circuit,
Full Length Kick rail
Electric interlock
Two stage clamping
Emergency stop

We can offer 6500mm ~ 8200mm Lengths - 1.2mm & 1.6mm
Throats upto 1200mm Deep, NC and Full CNC - Call us with your requirements


Automatic Control System (ACS)
The Automatic Control System is a fully integrated control that allows the operator to pre-program and store up to 1000 profiles.
The operation of the control is simple and reliable. All the backguage positions and fold angles are easily programmed and stored.
After the machine finishes each bend, the backgauge moves to the next required position in the sequence. The backgauge can
be set for slitting operations also. The HMI is a flat screen, touch panel to display all information in a graphical format which is very
user friendly. The graphical interface allows the operator to up load programs from drawings of commonly used profiles. This control
also has network capability.

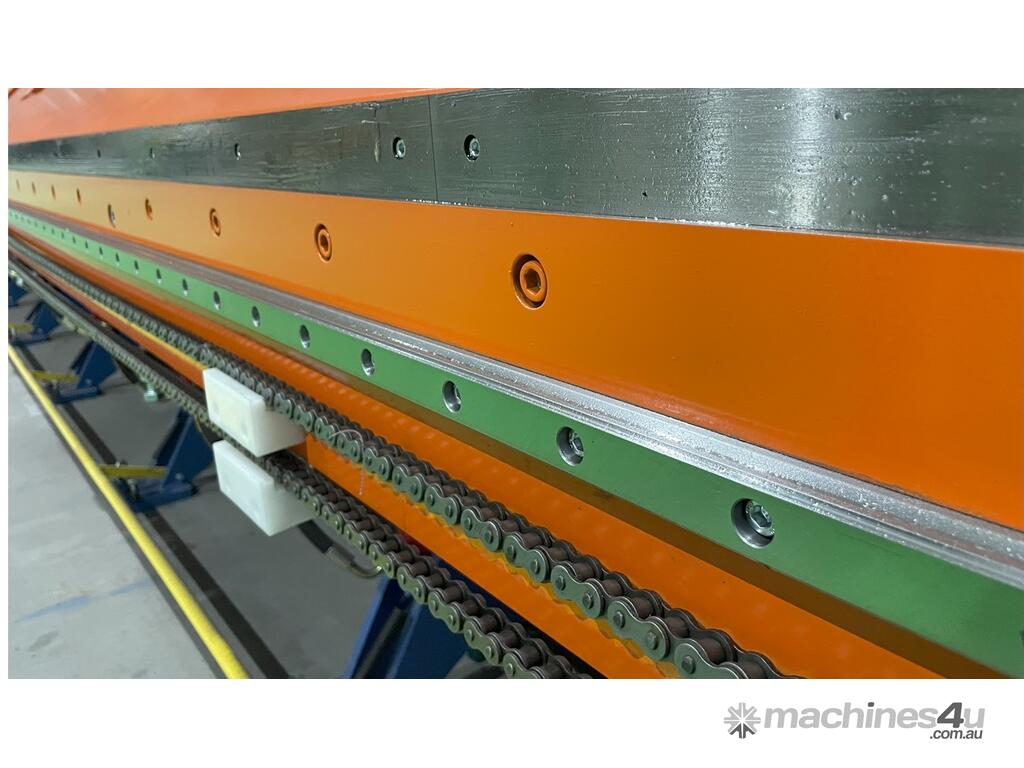

Backgauge Systems
The Backgauge systems utilize fully integrated control components providing accurate material positioning, and eliminate the
requirement to mark the fold and slit positions on the material.

The Backgauge control systems use purpose built linear guide rail assemblies, featuring steel reinforced timing belts and aluminium pulleys,
transferring drive from a geared motor with flux-vector drive, giving highly accurate positioning. The Backgauge assembly features multiple
fingers per station to ensure the material is straight when pushed into the machine. The Backgauge operates across the full width of the
machine and is able to measure material sizes down to 10mm. Most profiles can be produced using the material positioning system
without any manual measurement of material.

Hydraulic Speed Control
Clamp and apron speed control allows the operator to fine tune the speed of the folder. Using parameters on the ACS software, the operator
can adjust the Clamp approach speed, Clamp speed, Clamp raise speed, and the speed up and down of the folding apron. The idle speed of
the pump is also adjustable to give quiet and efficient operation.
