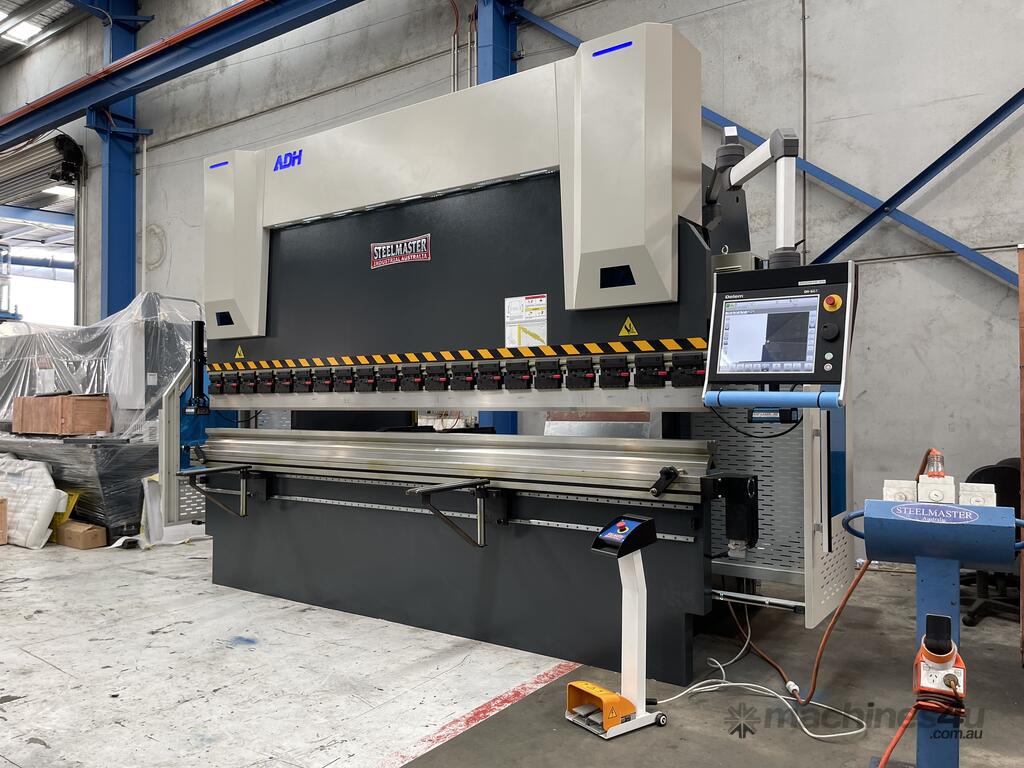

7 Axis CNC Pressbrake - Fully Optioned Energy Efficient Pressbrake. 4000mm x 175Ton, 7 Axis Delem DA

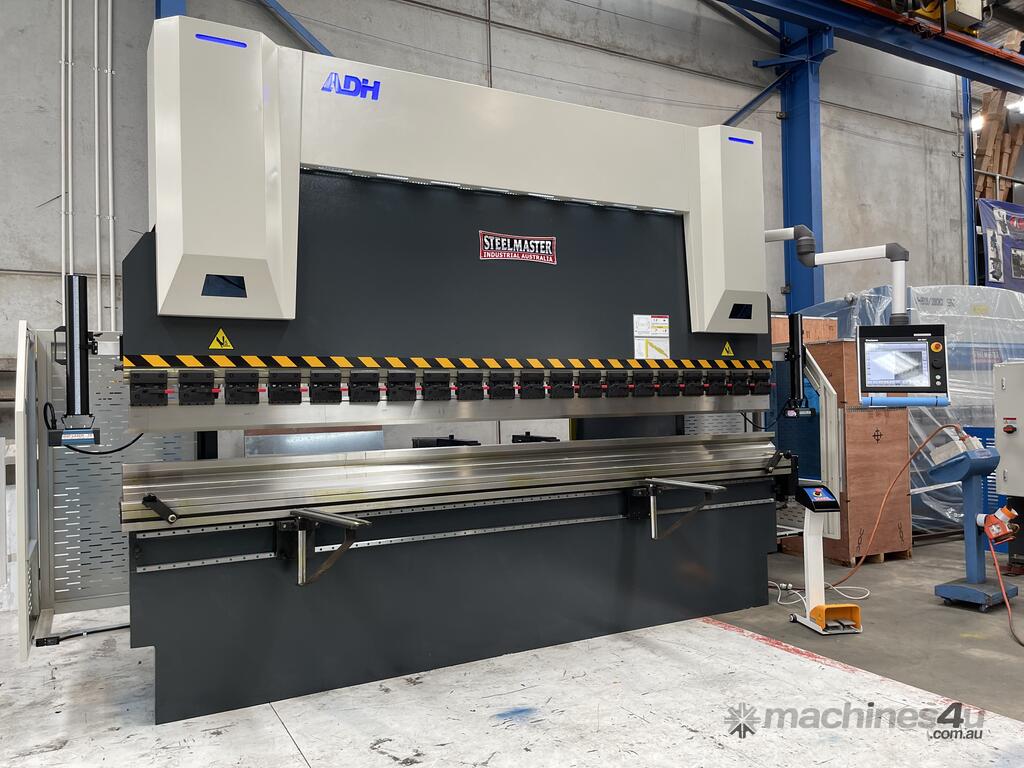

ADH Euro Pro B40175 CNC7 Energy Efficient Pressbrake. 4000mm x 175Ton, 7 Axis Delem DA66T Controller
Y1,Y2,X,Z1,Z2,R & CNC Table Crowning Control. Italian DSP Laser Guards

STEELMASTER - ADH Euro Pro B Series CNC Pressbrakes offer unbeatable quality & competitive pricing!
Our New Siemens High Efficiency Stand By Inverter Motor – Offers low cost operation followed up by all but silent machine operation.

Features
?Siemens energy efficient “Stand-By” inverter motor.
?precise and accurate 4 ~ 8 axis CNC press brakes.
?STEELMASTER - ADH machine frames consist of a monolithic structure with hot rolled high quality steel.
?CNC7 Controlled Axis (Y1, Y2, X, R, Z1, Z2 & Crowning) as standard.
?full electronic Synchronisation with proportional valve technology. Guaranteed beam positioning of +/- 0.01mm (Y1 and Y2 Axis)
?German Hoerbiger hydraulic system
?cylinders made from high quality forged steel, precision honed

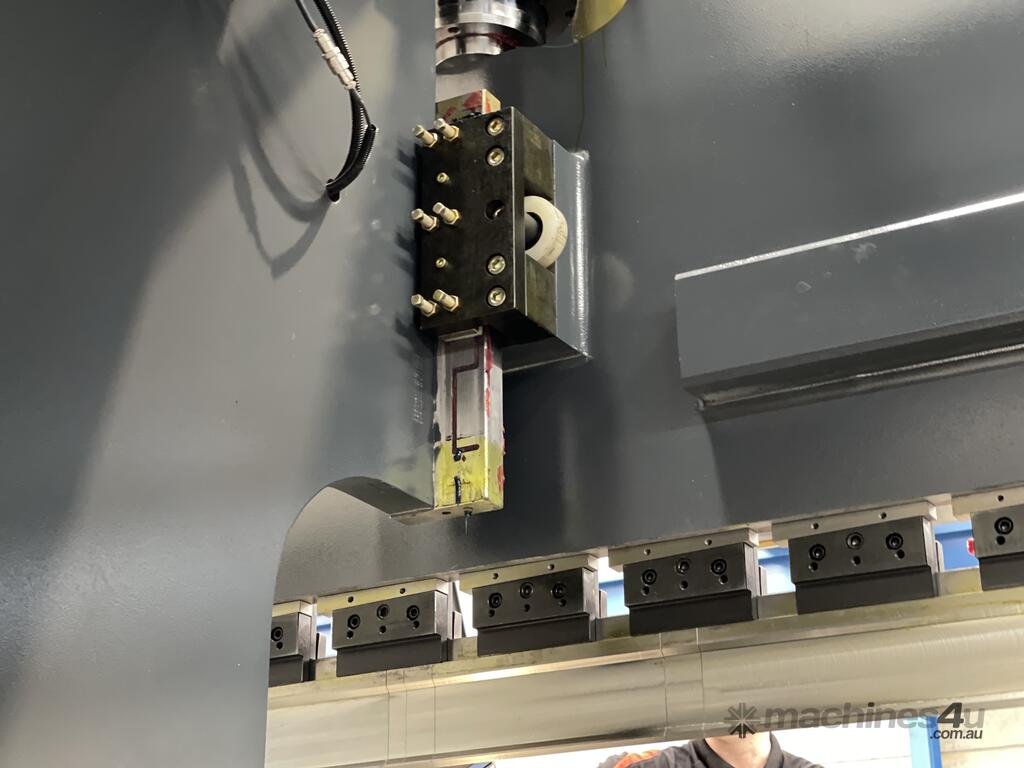

?accurate positioning and repeat ability of synchronised cnc press brakes, achieved by synchronising the hydraulic cylinders with advanced CNC control of proportional valves and use of optic linear scales

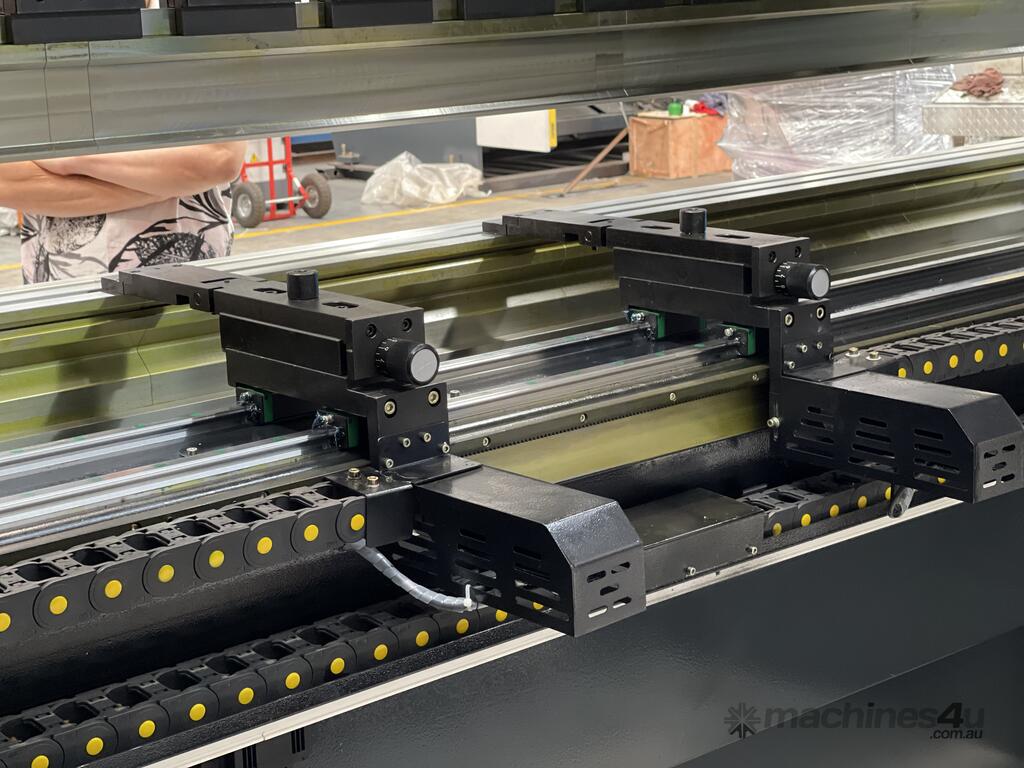

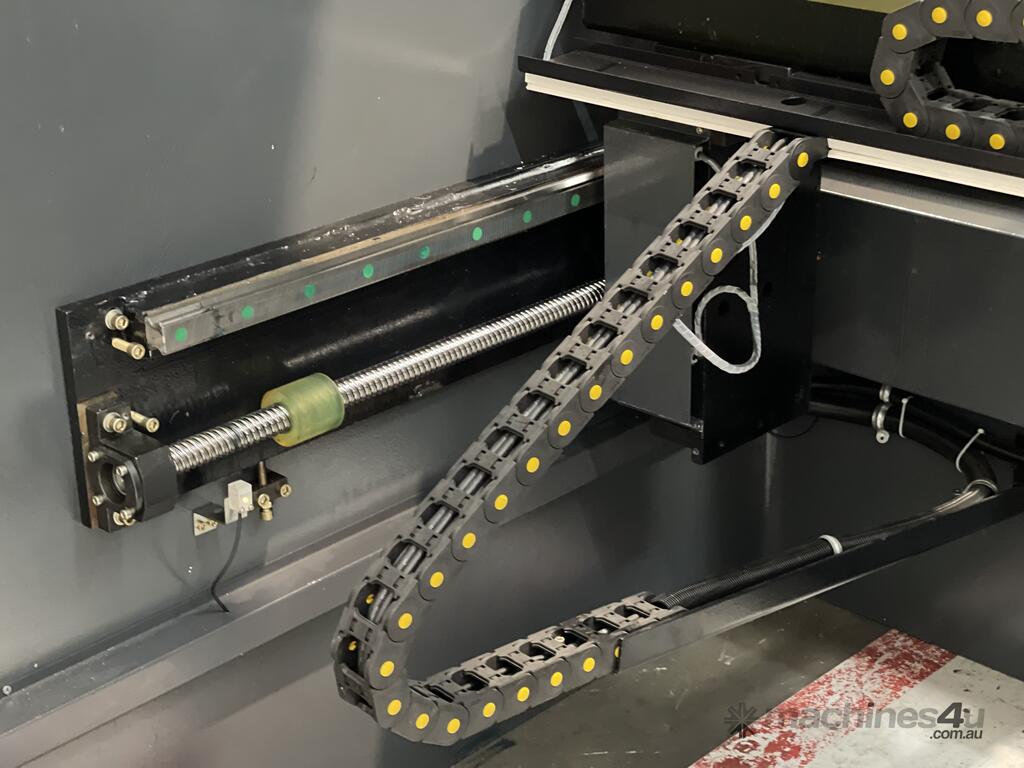

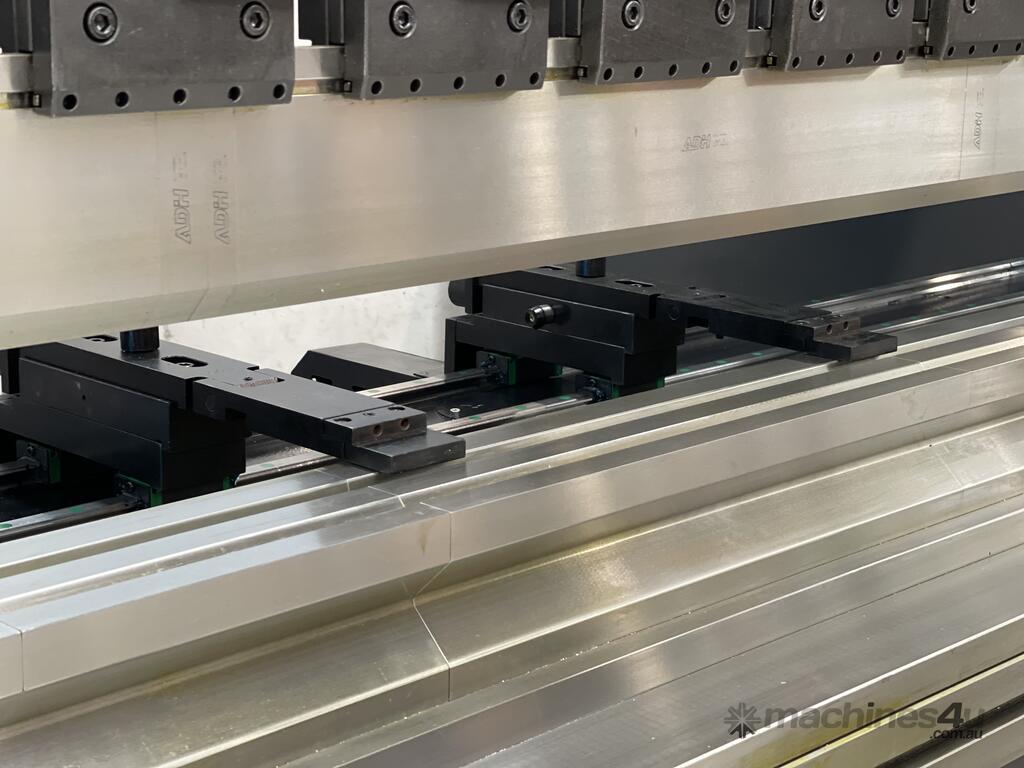

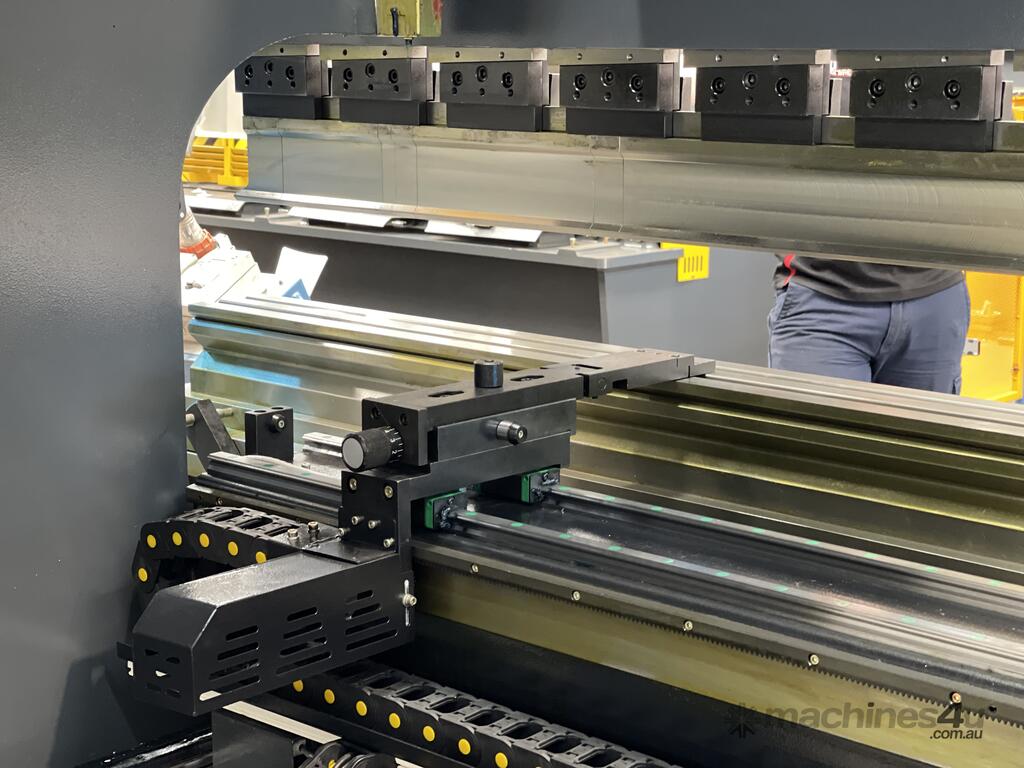

?CNC controlled back gauge with ball screw spindles, ball guides and AC or DC servo motors

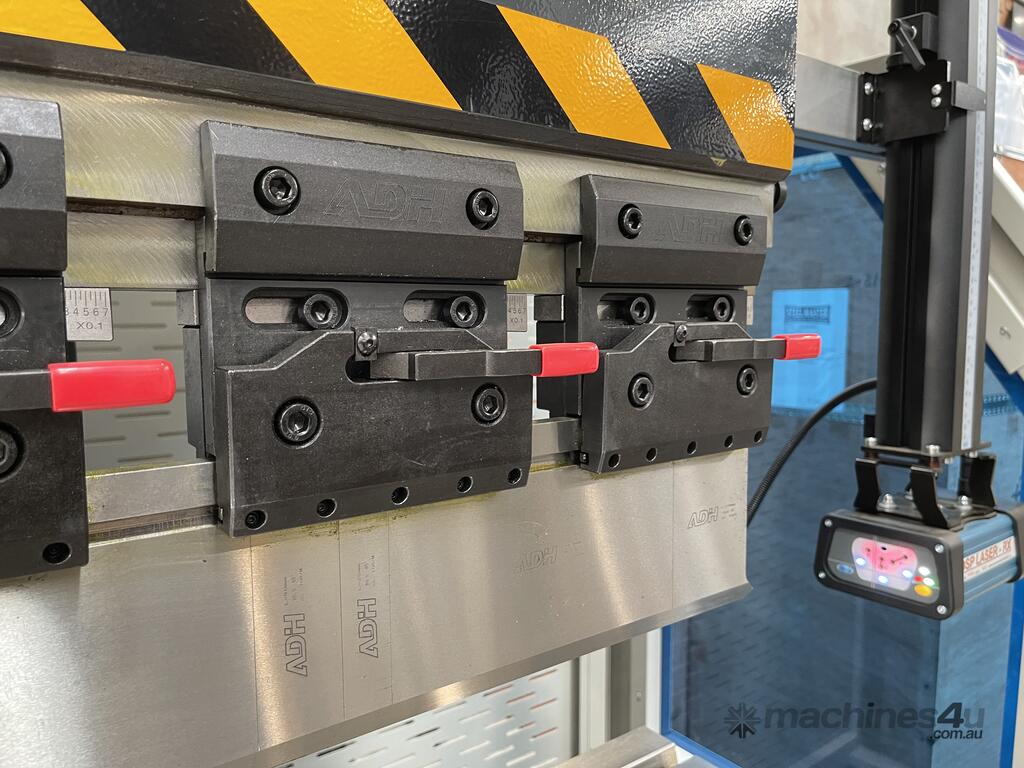

?Euro quick action tool holders.

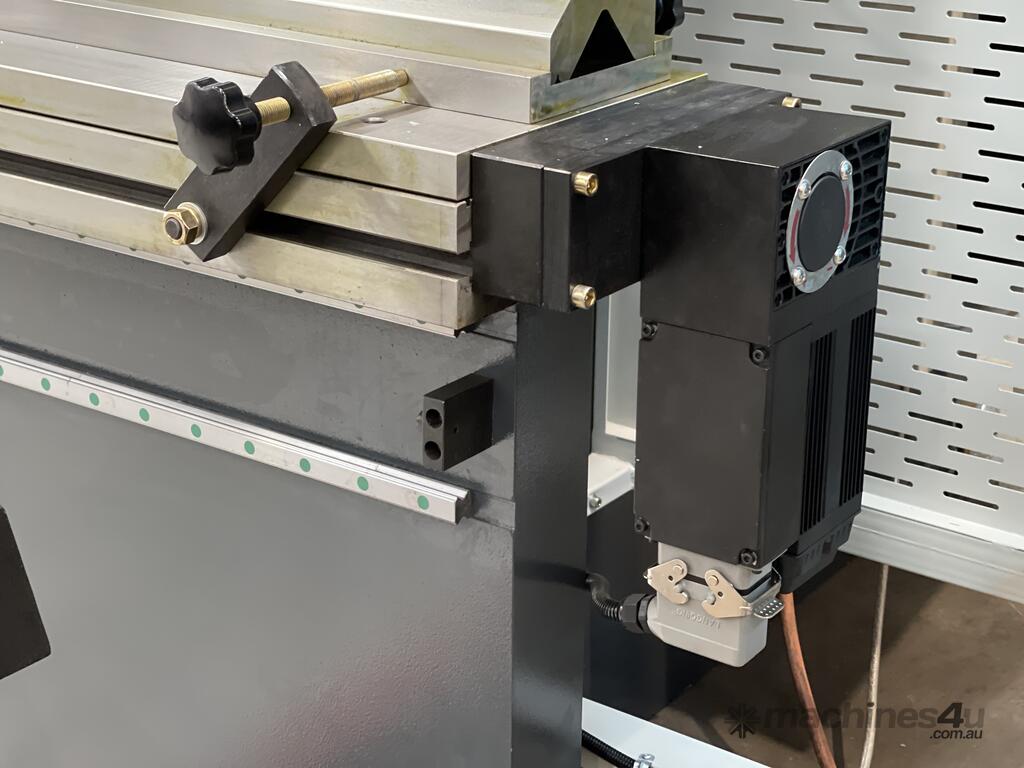

?linear guided sliding front sheet supports.
?ergonomic swing-away control panel

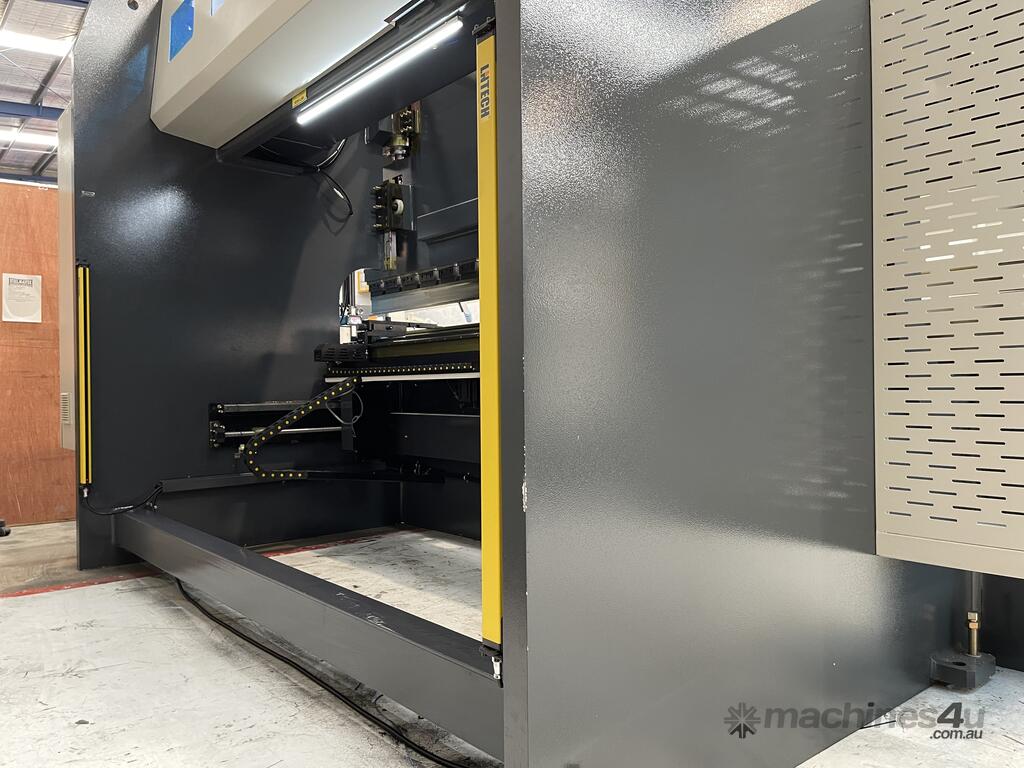

?side and rear safety guards with safety interlocks

Technical Data Snap-Shot
?Quality European Engineered Build Quality
?175 Ton Bending Capacity
?4000mm Bending Length
?7 axis cnc control, (Y1, Y2, X, R, Z1, Z2 & Crowning)

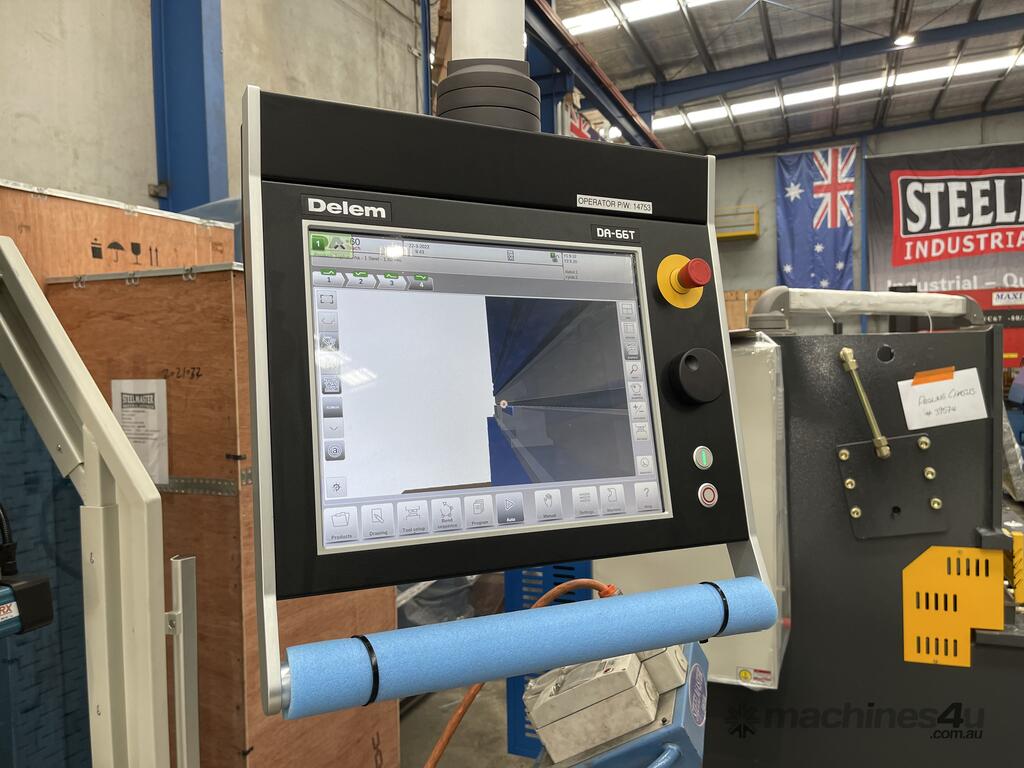

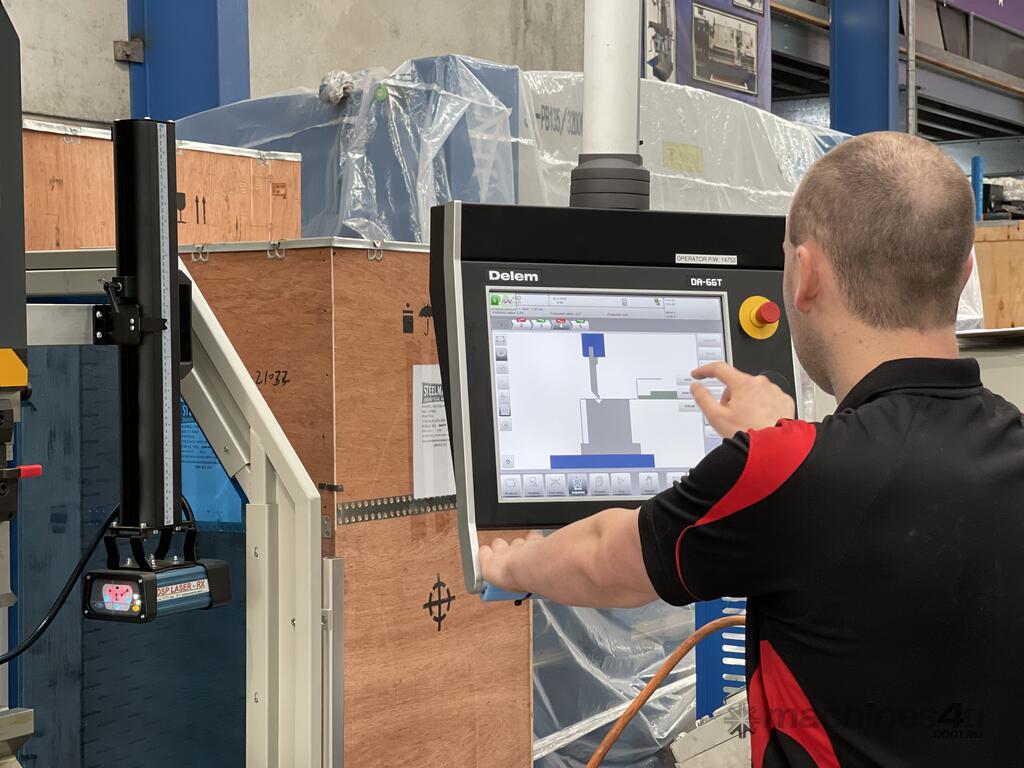

?Delem DA66T Controller
?High Speed Servo Operation
?3100mm Distance Between Frames
?450mm Side Throat Depth
?880mm Table Height
?200mm Ram Stroke
?490mm Open Height
?160mm / sec approach speed
?10mm / sec bending speed
?100mm / sec return speed
?600mm precision back gauge stroke

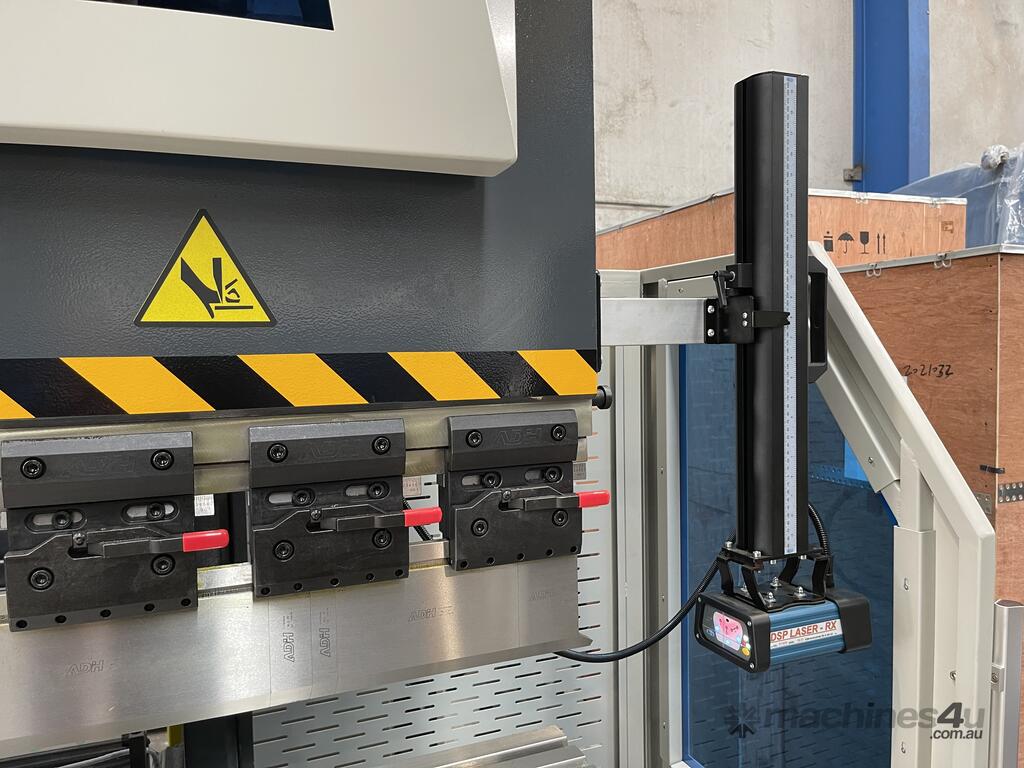

?Italian DSP laser guards included.
?230Ltr Hydraulic Oil Tank
?13.2Kw / V Motor Power
?4900mm x 2000mm x 2900mm Footprint
?13000Kg Weight

Pressbrake Tooling Supplied
?60mm x 60mm x 4 Vee Bottom Block / Other configurations can be offered.
?Segmented Offset (Gooseneck) Tooling

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
