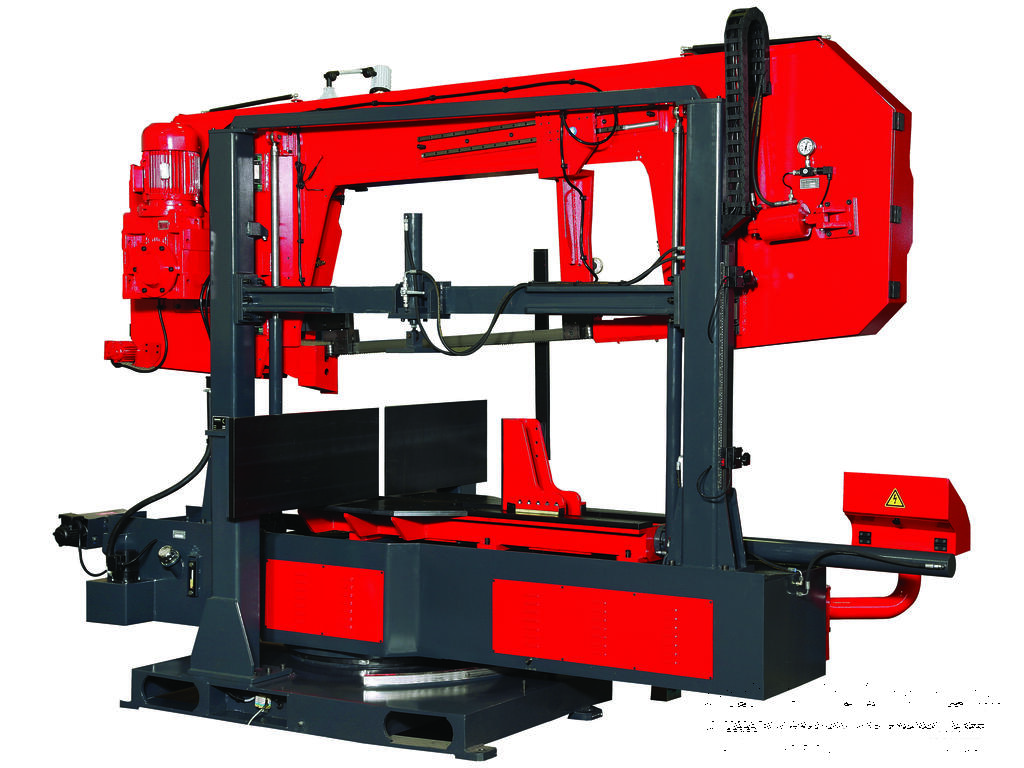

Ø 700mm Capacity Semi Automatic Bandsaw, 700x1050mm

Introducing the new range of high quality European Semi-Automatic Bandsaws with 540mm Capacity, Mitre left and right up to 60°.

MACHINE FEATURES:
• Large double columns precision ground for additional support
• Saw head with dual direction positioning up to 45° R & 60° L
• Powerful 7.5kW blade drive motor
• Bow descends on hardened linear bearing rails
• Infinitely variable feed rate for optimal cutting performance in any material
• Inclined blade for optimum cutting
• Hydraulic blade tensioning system
• Variable vice pressure regulation for clamping of thin wall material
• Synchronised power driven blade cleaning brush removes swarf from blade
• Motorised swarf conveyor
• Idle wheel motion proximity switches shuts off machine if blade breaks or slips
• Coolant system incorporating a wash down hose with trigger gun
• Inverter controlled infinitely variable blade speed 20-90mpm with digital display
• Carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life
• Full stroke hydraulic cylinder vice provides quicker set-up of jobs
• Hydraulic top clamp for bundle cutting

SPECIFICATION:
Cutting capacity:
(Round Material) …700mm
(Square Material) …700x700mm
(Rectangular Material) …700x1050mm
Blade size: …54x8200mm
Blade speed: …18-75m/min
Main motor: …7.5kW
Table height: 870mm
Machine weight: …5500kg
