A real 'value-for-money' wide belt sander! It comes from a new generation factory established in China, using design and quality control from Europe and is suitable for sanding solid timber (not veneered panels).
Download the Feature: Benefit Report for full details
LEDA 700 SINGLE BELT WIDE BELT SANDING MACHINE equipped as follows –

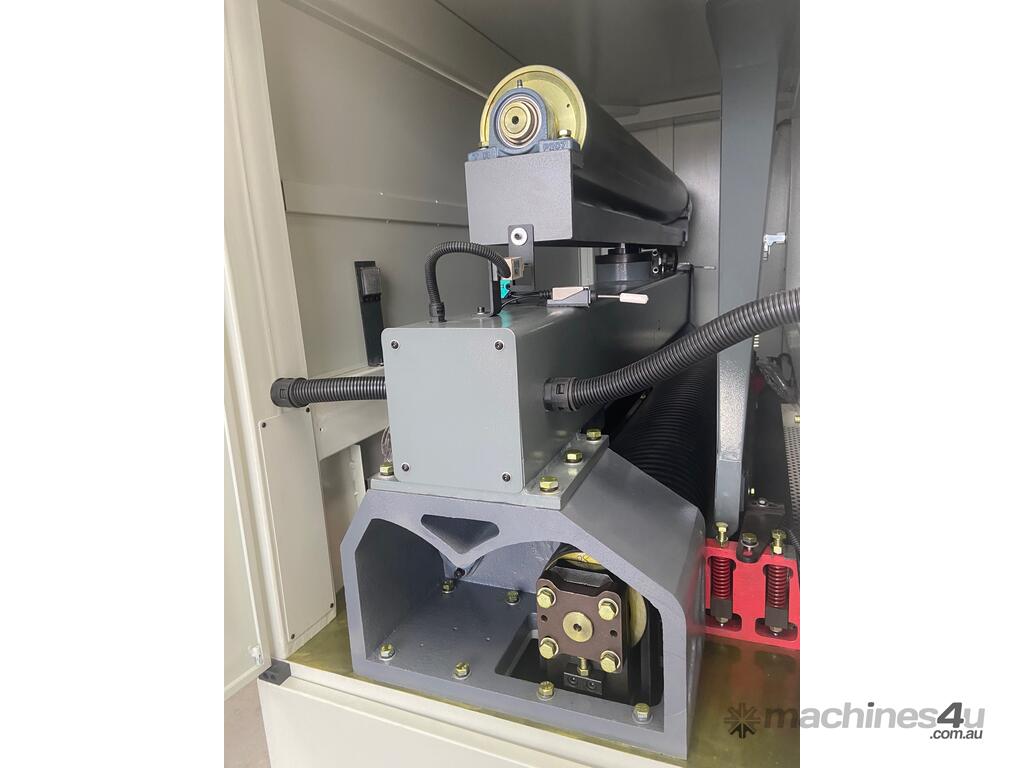

Sanding Unit - 60 Shore rubber covered contact roller and rigid platen
combination for fine finishing.
Disc brake for emergency stop.
Electric rise and fall of work table with programmable automatic height setting of the feed
table using an electronic controller and digital readout.
Long 1900mm sanding belts for extended life.
Efficient dust extraction cowlings inside machine.
Variable speed feed drive to 22 m/min.
Rotary bristle workpiece cleaning brush at rear.
Safety flap with limit switch at infeed position, to stop machine and lower the feed
conveyor in an emergency.
7.5KW sanding motor
Specifications
Maximum working width 700 mm
Full range of working height 2 - 160 mm
Minimum workpiece length 520 mm
Feed drive motor 1.5 kw
Table rise and fall motor 0.37 kw
Dimensions of sanding belts 730 mm x 1900 mm
Nett weight of this machine 1400 kgs
Pricing is ex the LEDA Warehouse / stock location and excludes delivery from there to your factory, Commissioning costs and GST
TRADE INS WELCOME and COMPETITIVE Finance options available T.A.P.
Contact us for detail
