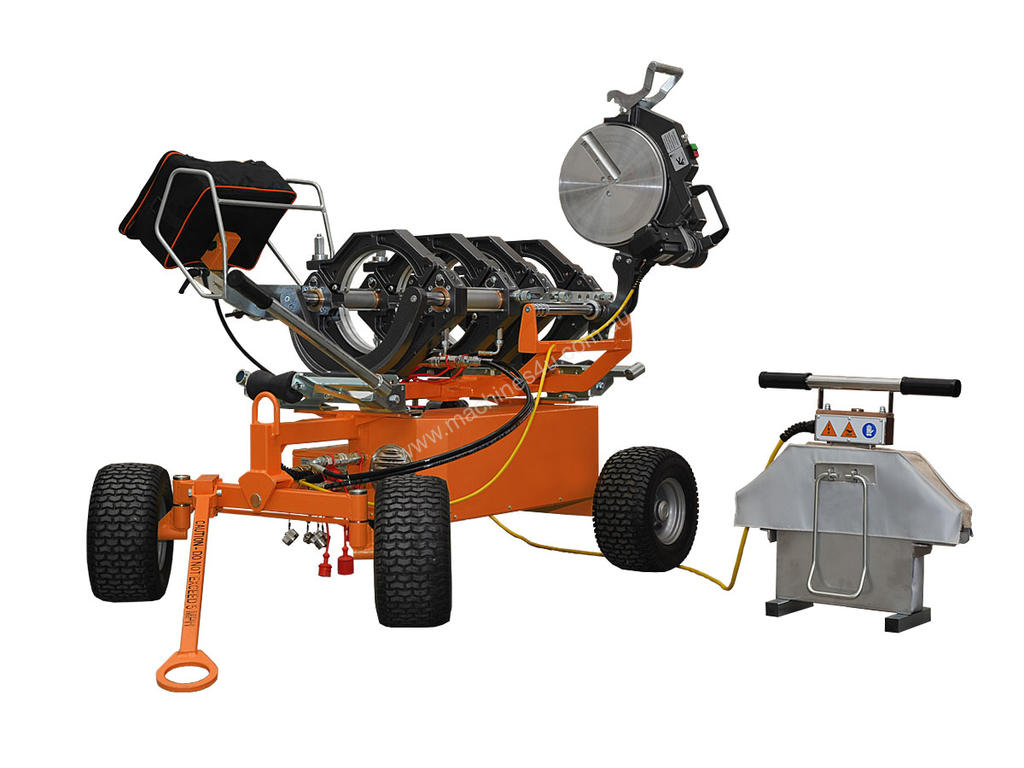

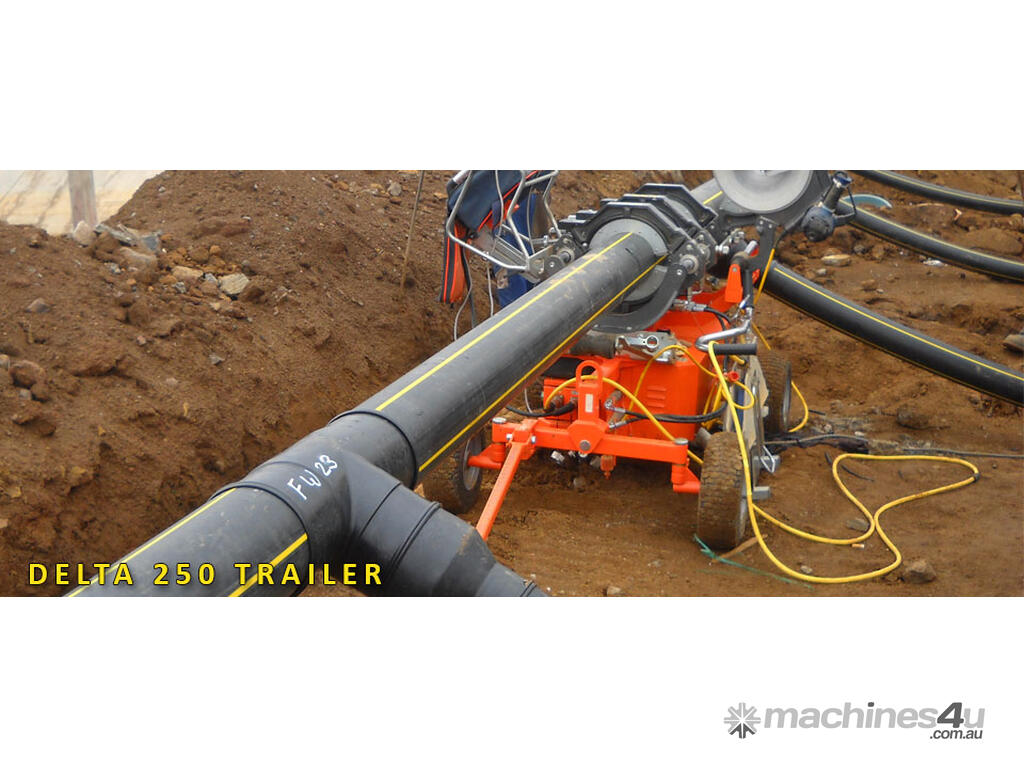

75-250mm Automatic Butt Fusion Welding Trailer - Ritmo Delta 250

The Italian-Made Ritmo Delta 250 Trailer Butt Welder is a self-aligning hydraulic butt fusion machine, suitable for welding pressure pipes for water, gas and other fluids up to Ø 250 mm. The Delta 250 Trailer also has the ability to weld fittings like elbows, tees, Y-branches and flanges necks. This welding machine is built according to the International standards ISO 21307 HIGH PRESSURE.

Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!

This welder includes:

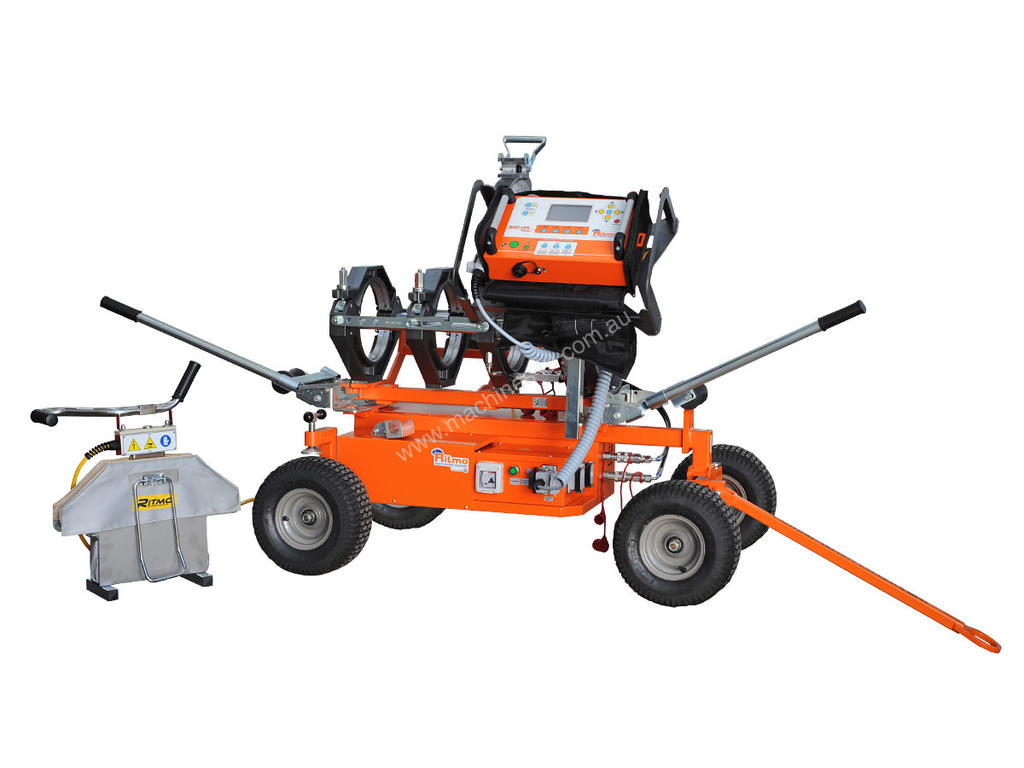

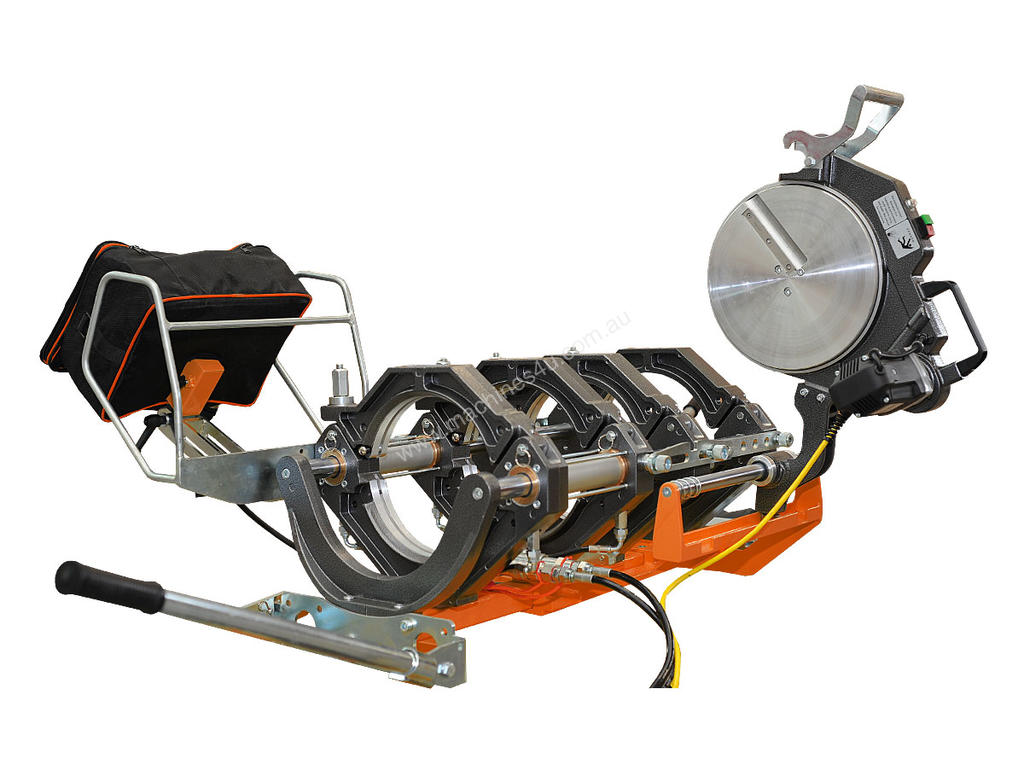

- A trailer-mounted machine body, easily removable from the trolley
- Fast-locking adapters system SMARTLocK RITMO Patented, thanks to which is possible to change adapters in few seconds
- An on-board electric milling cutter with a safety microswitch
- An extractable heating plate Teflon-coated (PTFE) equipped with an independent thermometer
- Two rollers

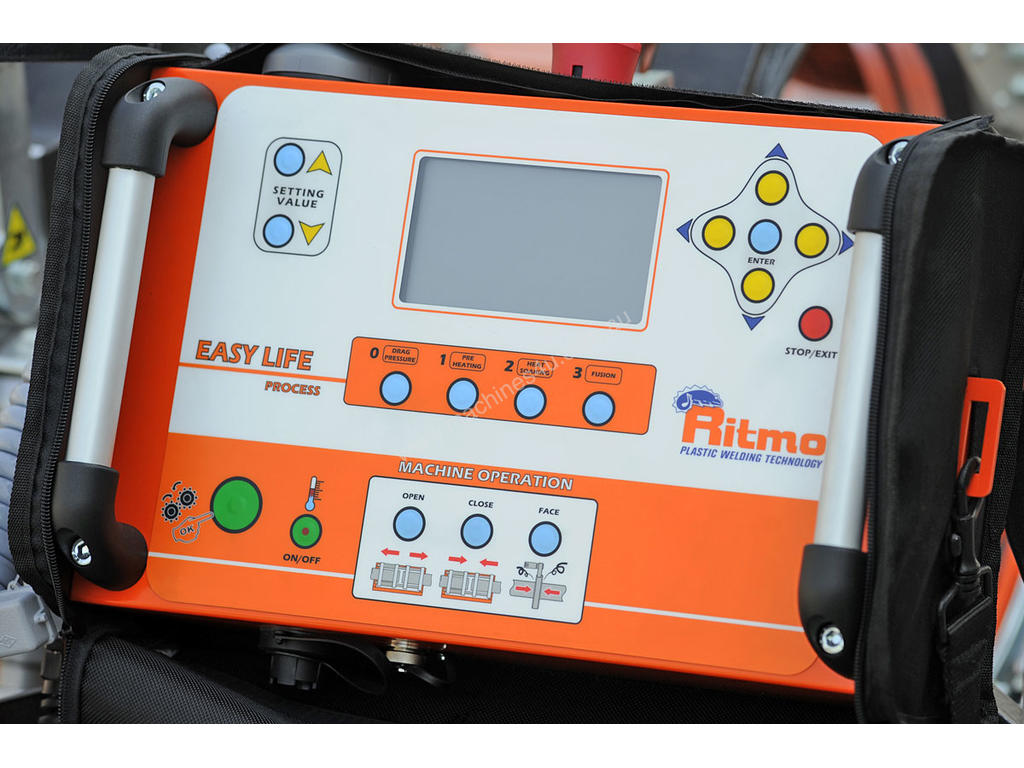

- An EASY LIFE control panel. It allows the operator to program and pilot all the welding duty cycle in an easy, fast and very intuitive way. It includes a data-logging system to store the welding data; report PDF file format.
Possibility to pre-set 20 customised. The EASY LIFE system can store up to 4000 joint reports
- A heating plate support which comes with a high-temperature-proof bag, which also avoid the heating element from being scratched

Accessories available on request:

- Clamps’ inserts from Ø 75 to 225 mm.
- Tool to weld flanges’ necks/ Stub-end holder
- Software for data download (data-logging) with serial/USB cable

Technical features:

Materials: HDPE/PP/PB/PVDF
Working range: Ø 75 ÷ 250 mm; 2" IPS ÷ 8" DIPS
Power supply: 110 V or 230 s-phase 50/60 Hz
Total absorbed power: 4400 W (110 V) 4200 W (230 v)
Working temperature: 180° ÷ 280° C
Outside temperature range: -10° ÷ 40° C
Weight: 200 Kg
Dimension: 1080 x 1380 x 1330 mm
