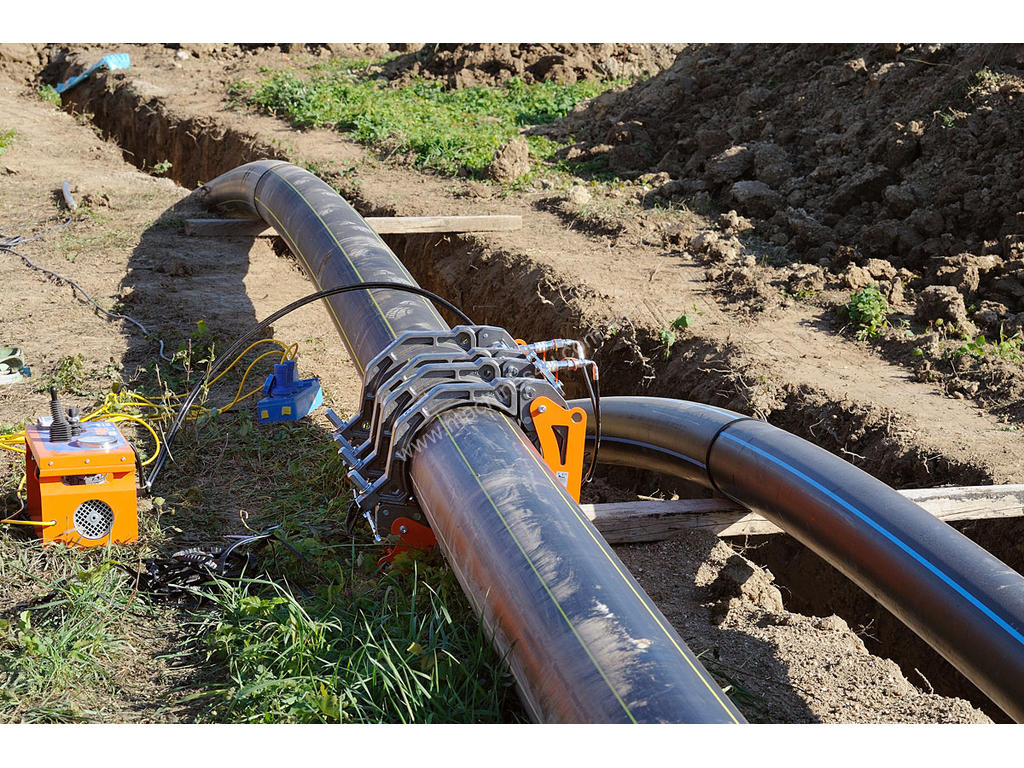

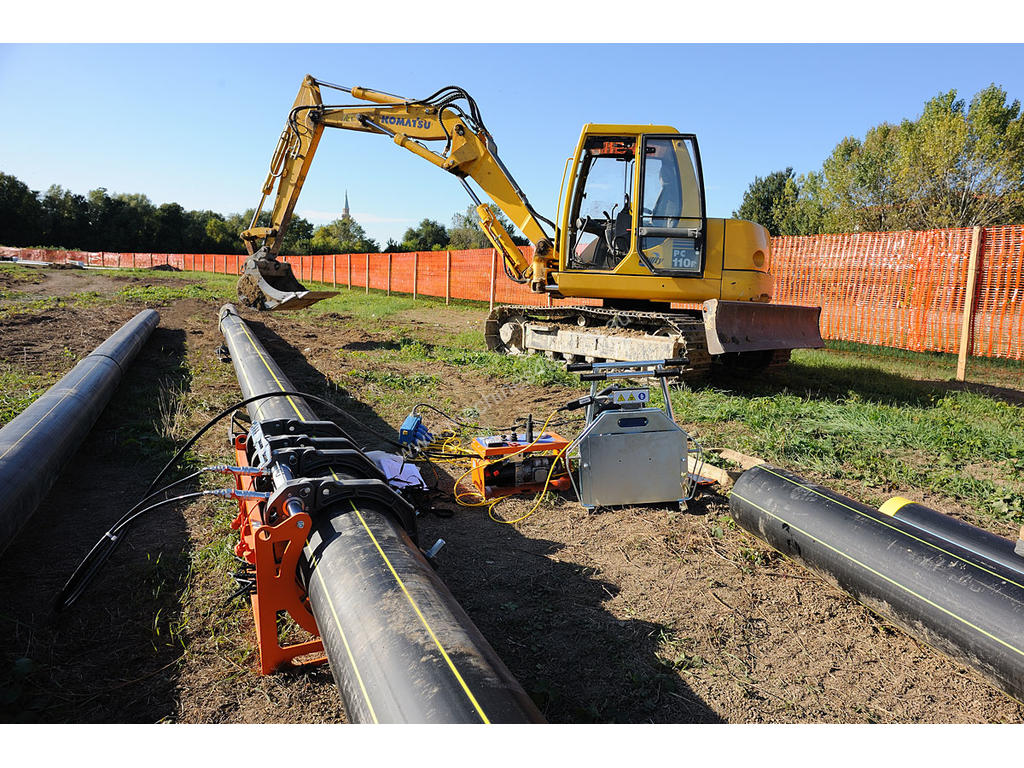

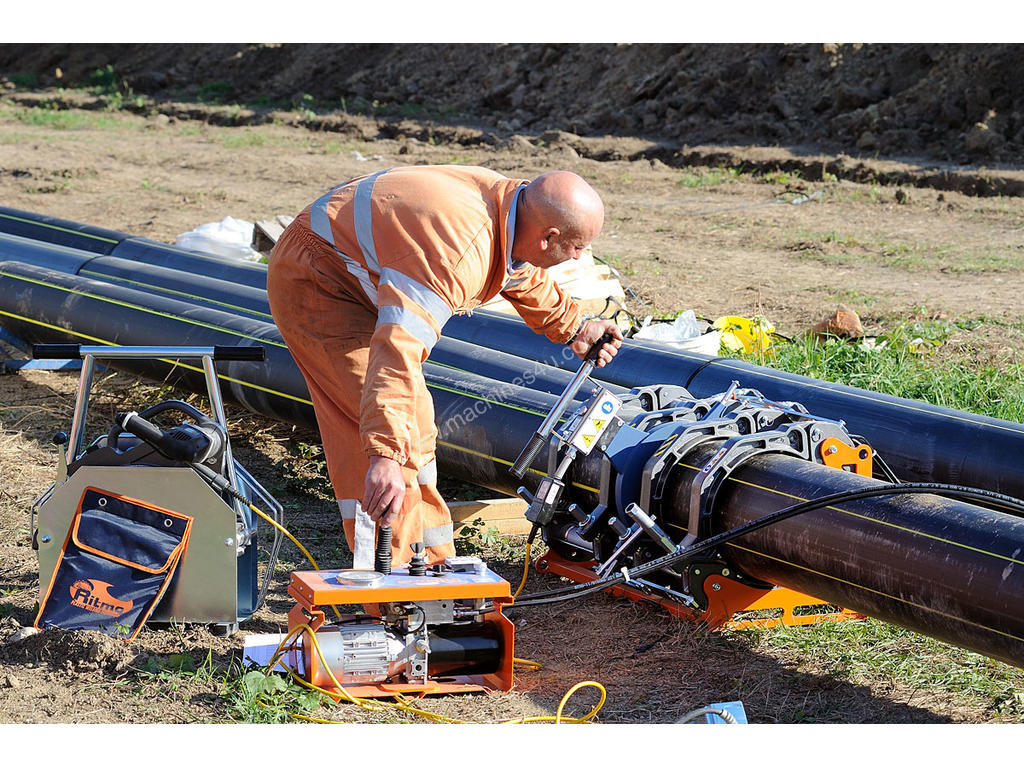

75-250mm CNC Butt Fusion Welder - Ritmo 250 Dragon

The Ritmo Delta Dragon 250 B is an Italian-Made Automated CNC Butt Fusion welding machine. Butt Fusion welding can be managed automatically, eliminating the risk of operator error.

The gearcase it is equipped with a compact and innovative plastic casing, which can resist to the most extreme job site working conditions; particular attention was paid to the connections as well, by applying military type plugs. An easy to use software and control panel allow to view the most widely used welding standards (ISO, GIS, DVS and other).

By selecting any one of the standard and pipe diameter/SDR, all the welding parameters (pressure, time, temperature) would be automatically calculated according to the standard itself. If the chosen welding cycle is not included in the standards listed above, it is possible to manually input the welding parameters (diameter, SDR, type of material, welding time and pressure…) by simply entering the “out of standard” mode. In both cases, the machine is able to automatically manage all the phases of the welding cycle, including milling and heating control.

At the end of the welding cycle, all data are stored in the in-built memory, up to 4000 records.
Serial ports enable the operator to connect the gearcase to a portable serial printer (to obtain an immediate report) or to a PC. The gearcase is equipped with a USB port for welding report in PDF and to firmware upgrade.

Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!

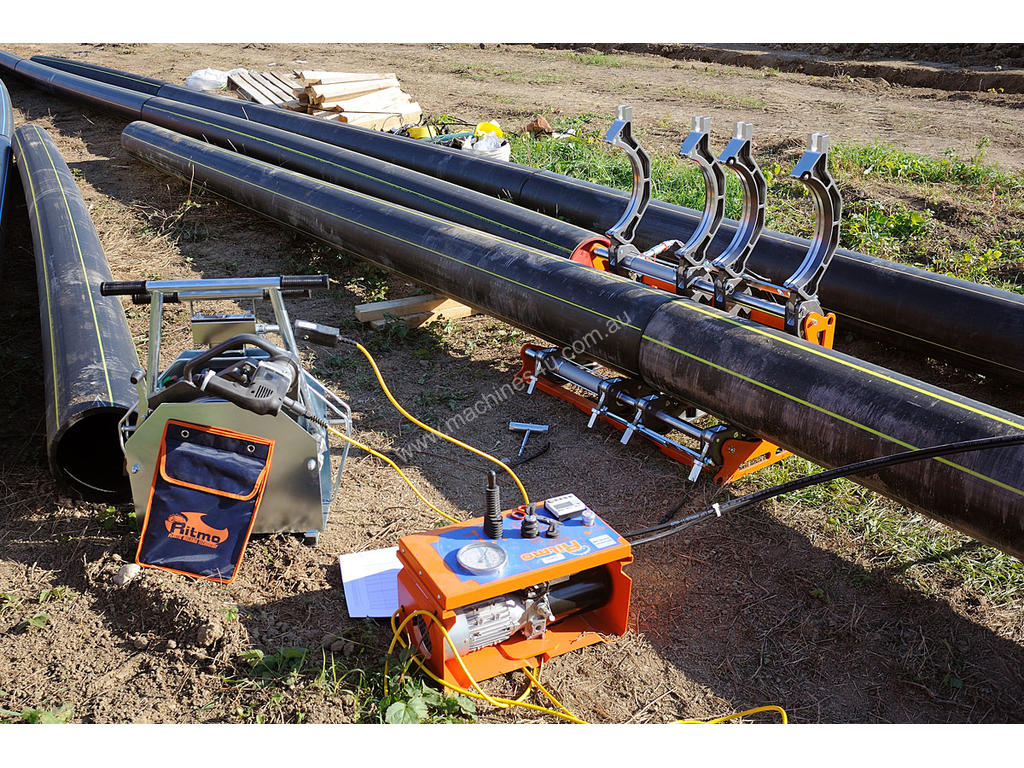

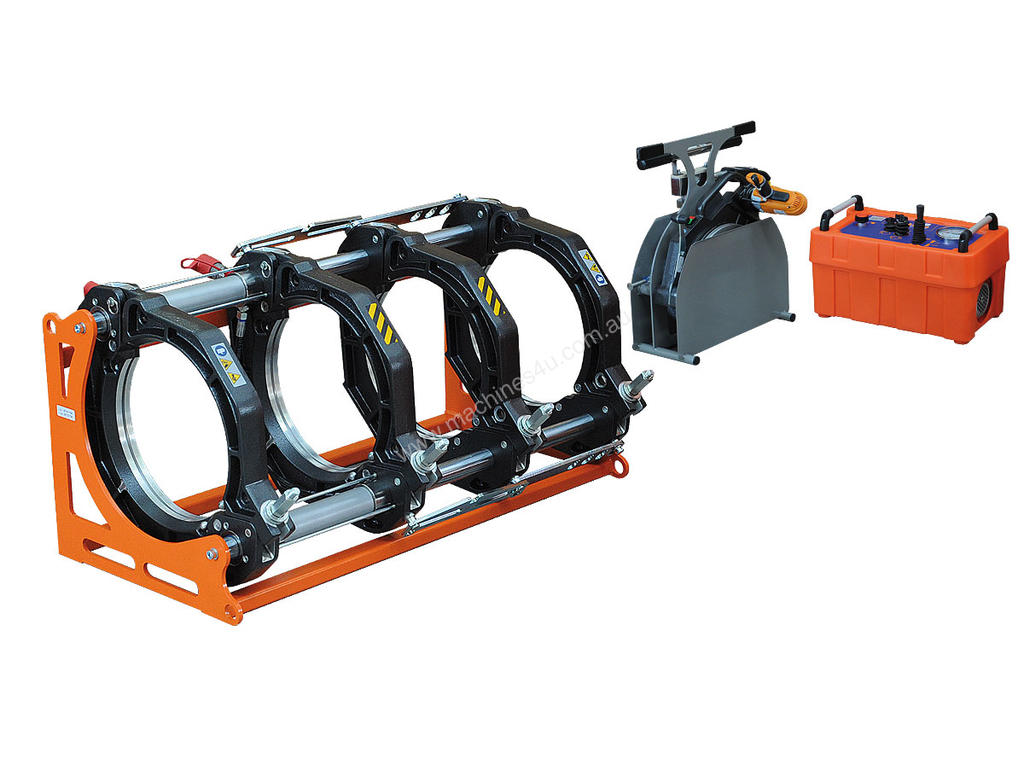

The complete configuration includes:

- a linear transducer applied to the machine body
- a extractable heating element SA or FA
- hydraulic hoses with non-drip quick couplings for connecting the gearcase to the machine body
- a milling cutter
- a transducer cable for connecting the gearcase to the machine body
- a milling cutter/heating plate support

Accessories Available on Request:

- Clamps’ inserts from Ø 75 to 225 mm (DELTA DRAGON 250 B)
- Tool to weld flange necks/stub-end holder
- Clamps’ wooden transportation box

Technical features:

Materials: HDPE/PP/PB/PVDF
Working range: Ø 75 ÷ 250 mm
Power supply: 110 or 230 VAC 50/60 Hz
Total absorbed power: 4000 W (110 V) - 4150 W (230 V)
Working temperature: 180° ÷ 280° C
Memory records: 4000
Weight machine body: 90 Kg
Weight gearcase: 39 Kg
Dimensions machine body: 1000 x 820 x 1000 mm
Dimensions gearcase: 585 x 384 x 463 mm
