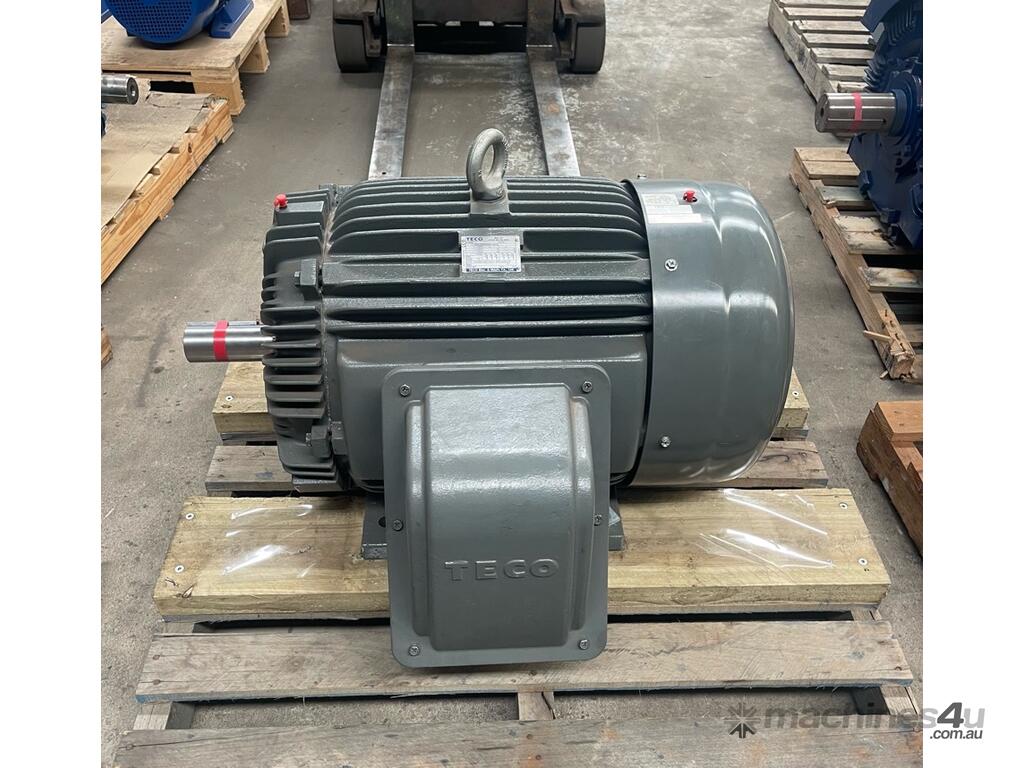

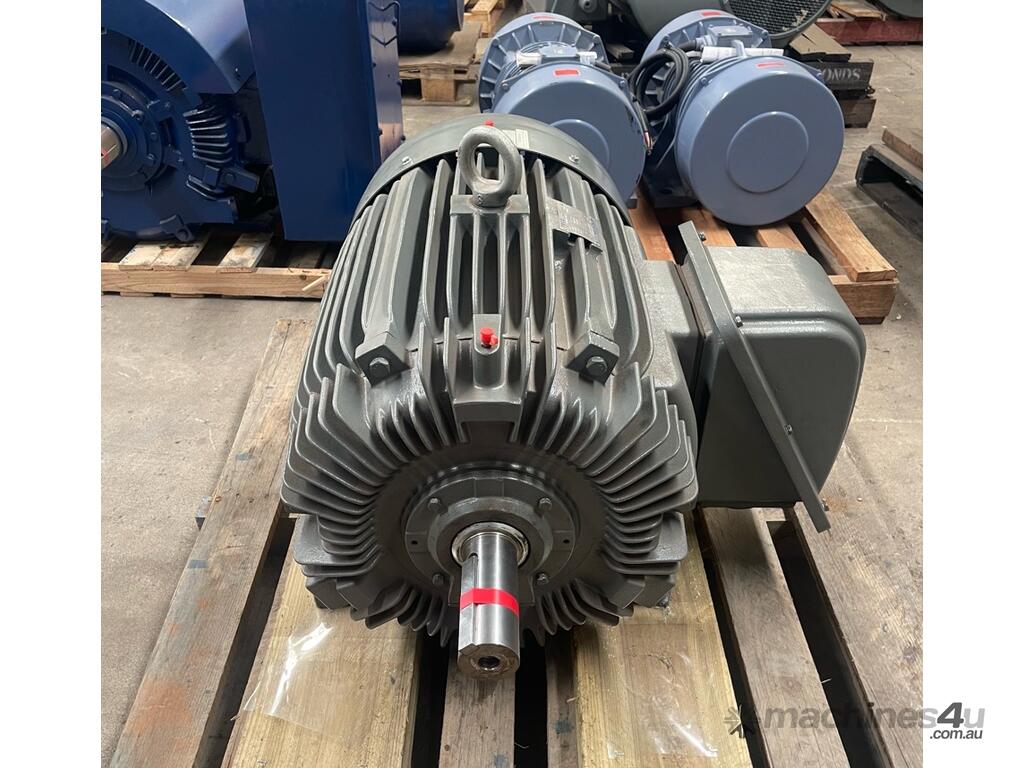

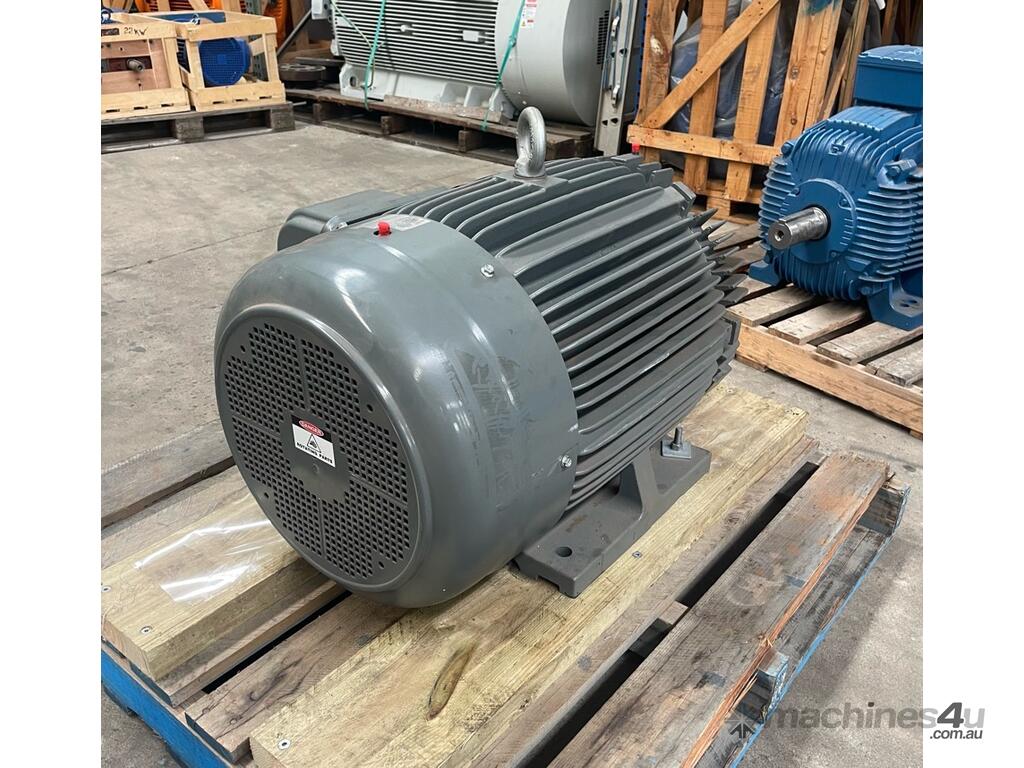

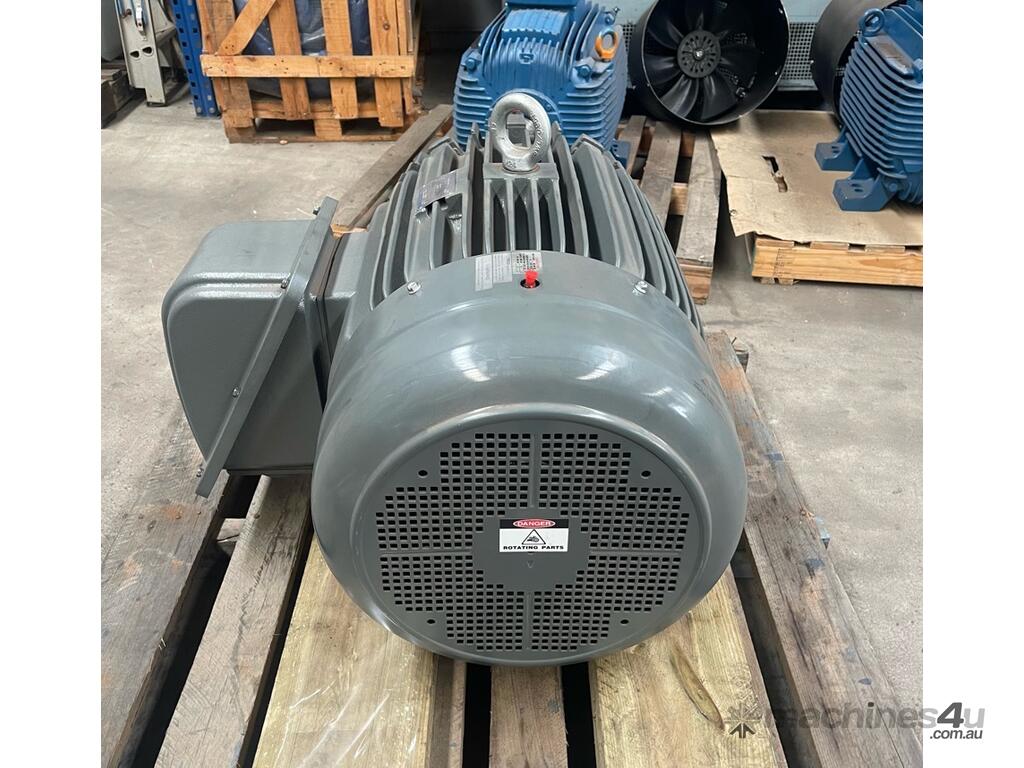

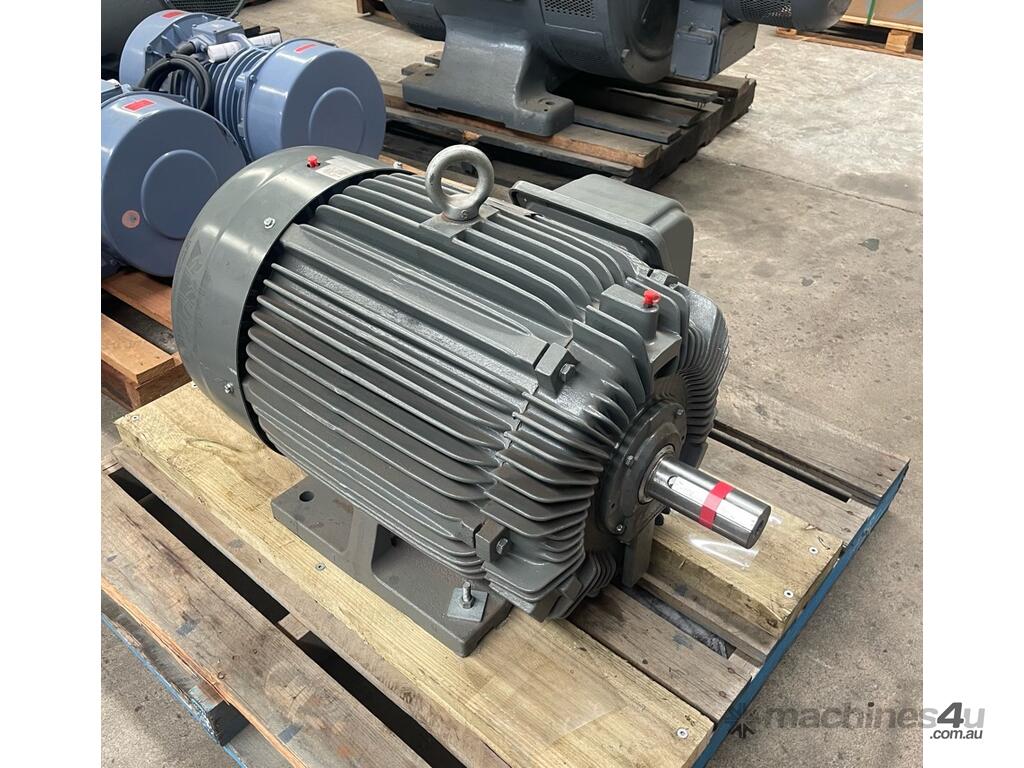

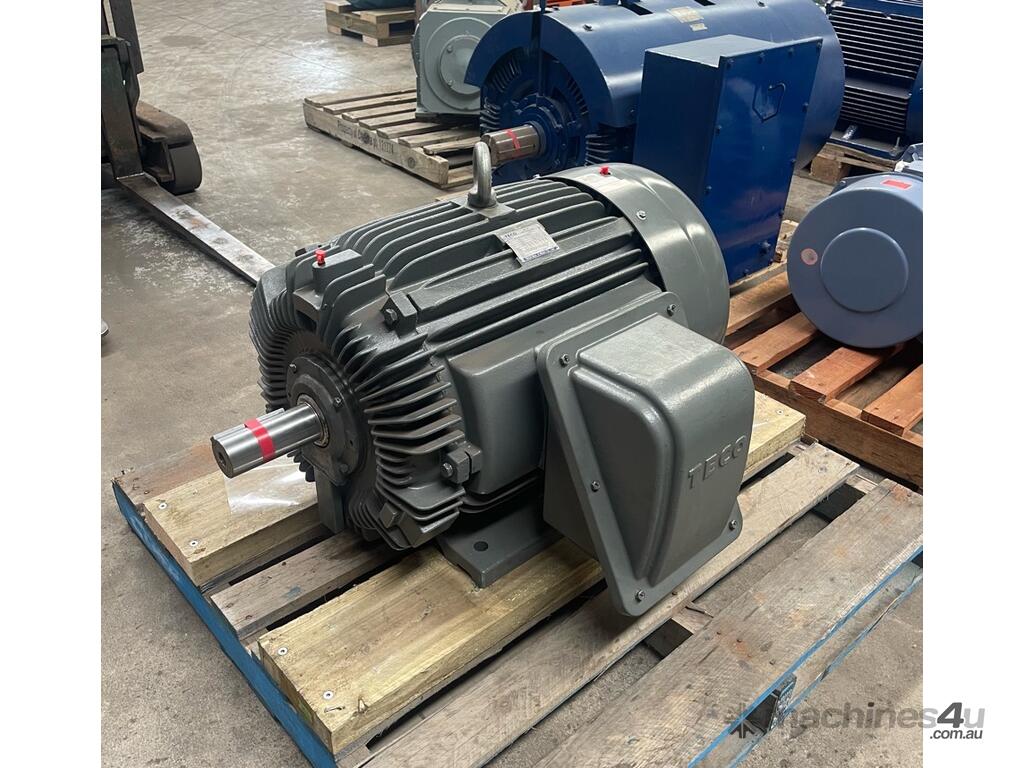

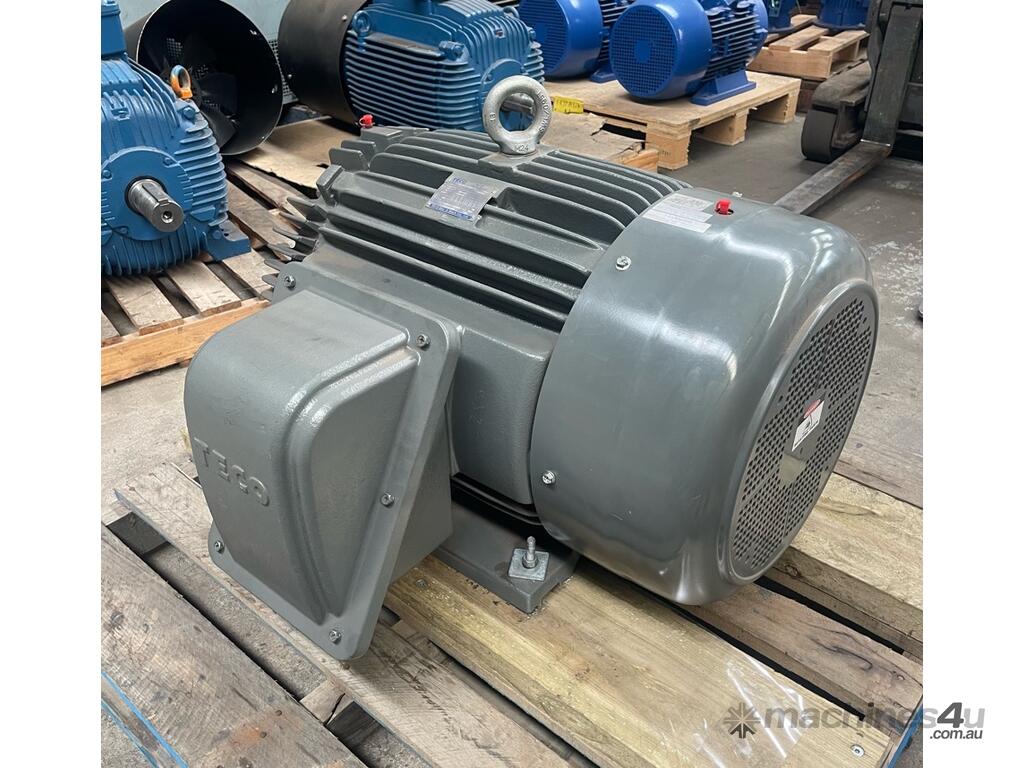

75 kw 100 hp 2-pole 2960 rpm 415 volt Foot Mount D250MA frame IP66 AC Electric Motor TECO Type AEHBUC-DCC
Category: AC squirrel cage Electric Motor
3-phase induction motor

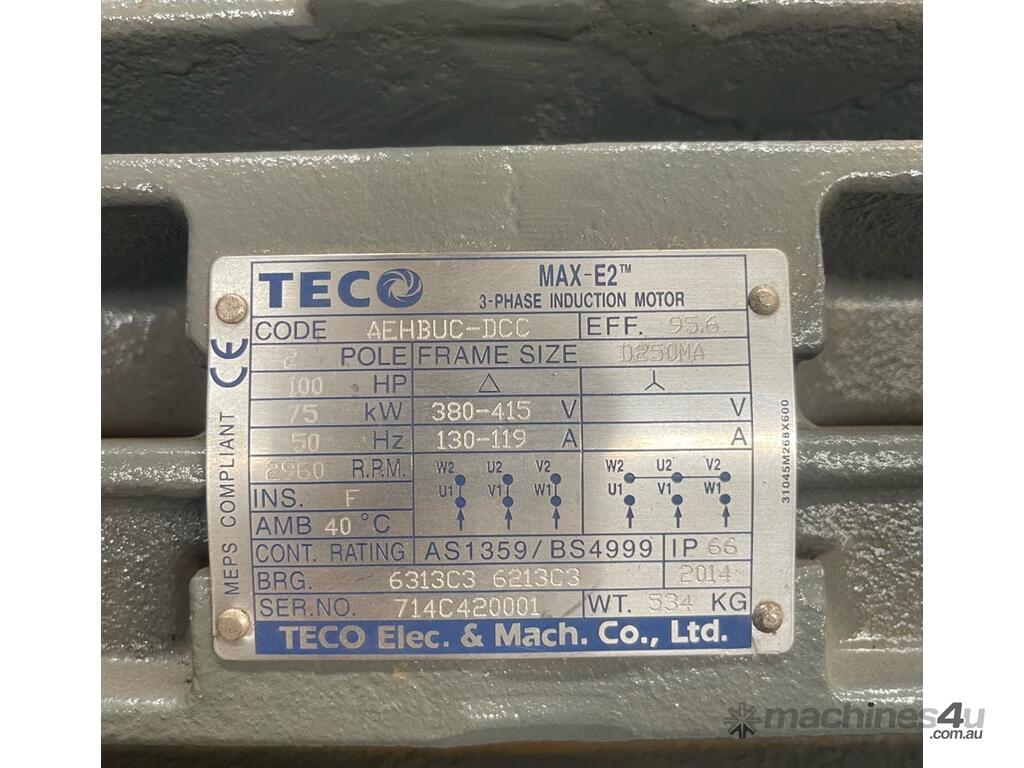

Make: TECO
Type: MAX-E2 AEHBUC-DCC
Power: 75 KW (100 HP)
Speed: 2-pole (2960 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415 v
Full Load Amperage: 119 A
Protection rating: IP66
Mount: B3 Foot
Frame: D250MA
Weight: 534 kg
Critical Dimensions:
Centre shaft height: 250 mm
Shaft DIA: 60mm
Shaft length: 140 mm
Total length: 920 mm (incl. shaft)
Total width: 748 mm (incl. RHS to D.E. box)
Total height: 595 mm
Feet Measurements: Across 'A' - 406 mm, Front to Back 'B' - 349 mm
Front hole to shaft 'C' - 168 mm
Available QTY: 1
Condition: Fully reconditioned in motor workshop. Warehouse storage
exStock Seaford VIC 3198 Australia
Available for immediate despatch - freight services available Australia wide
