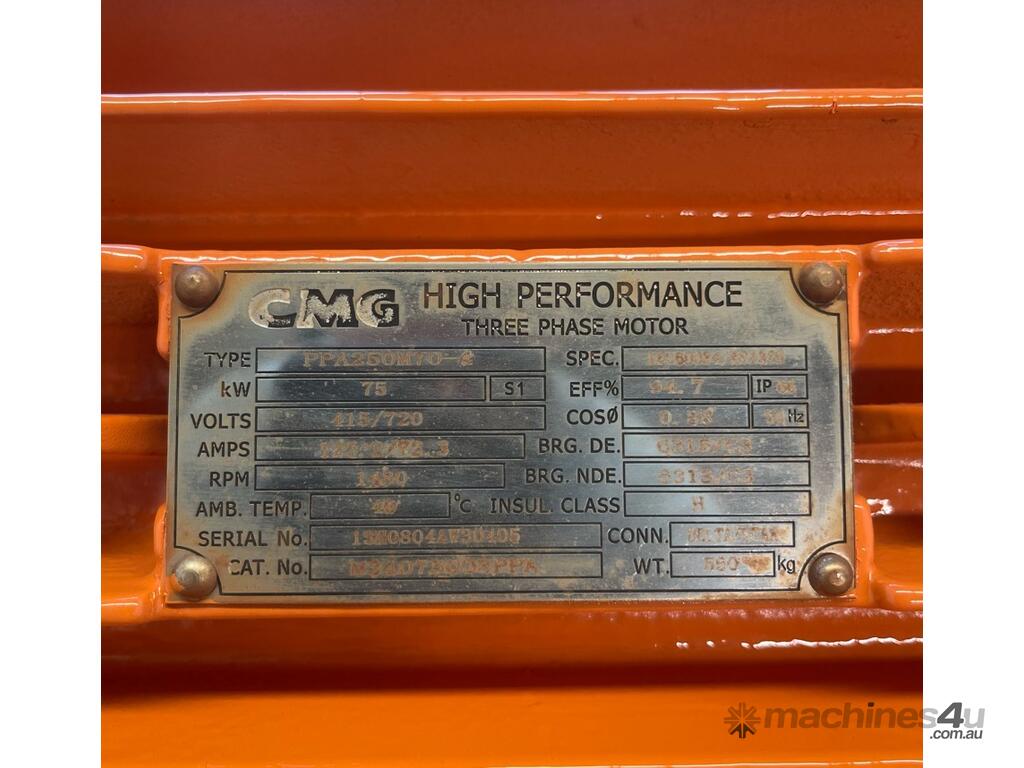

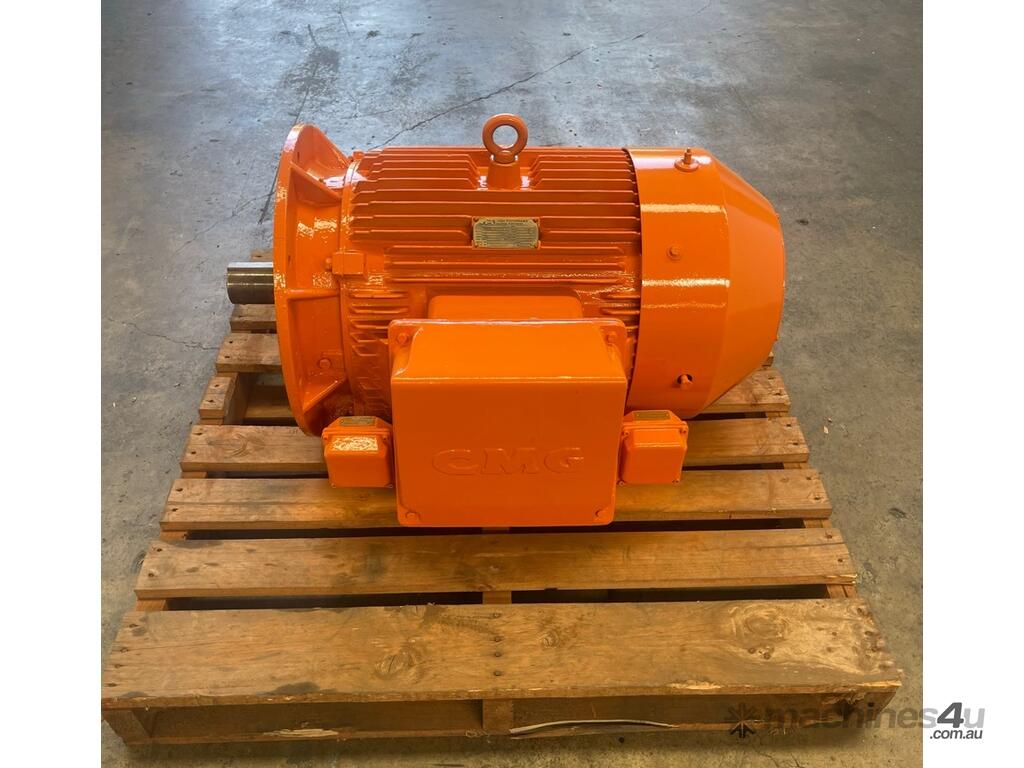

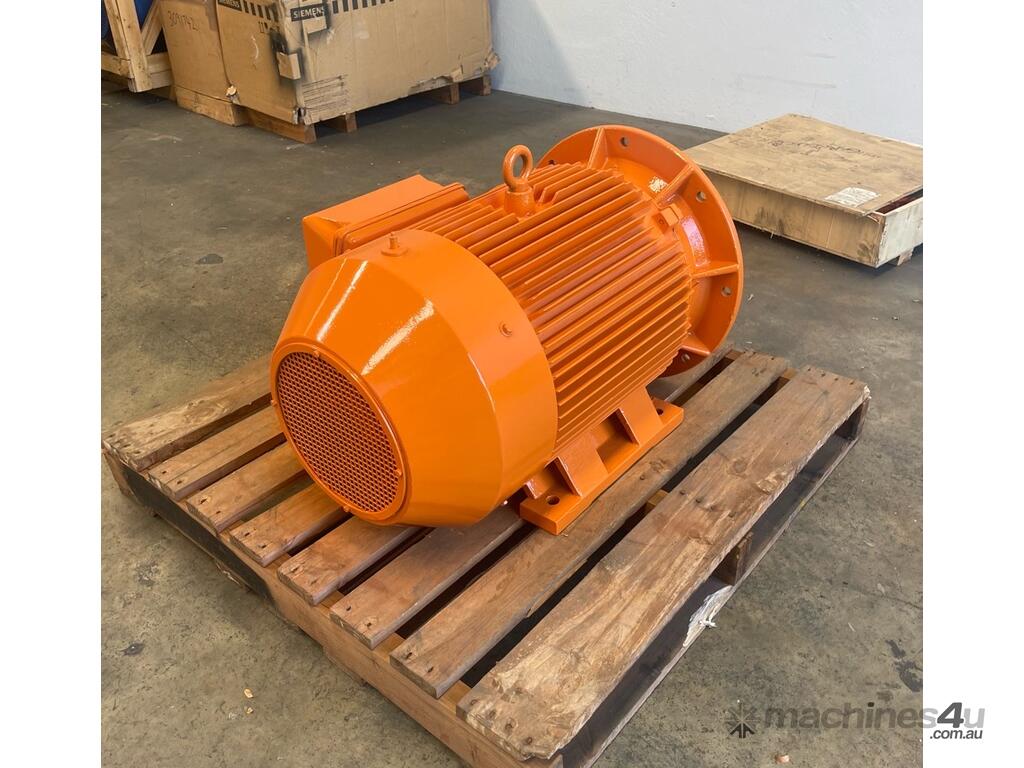

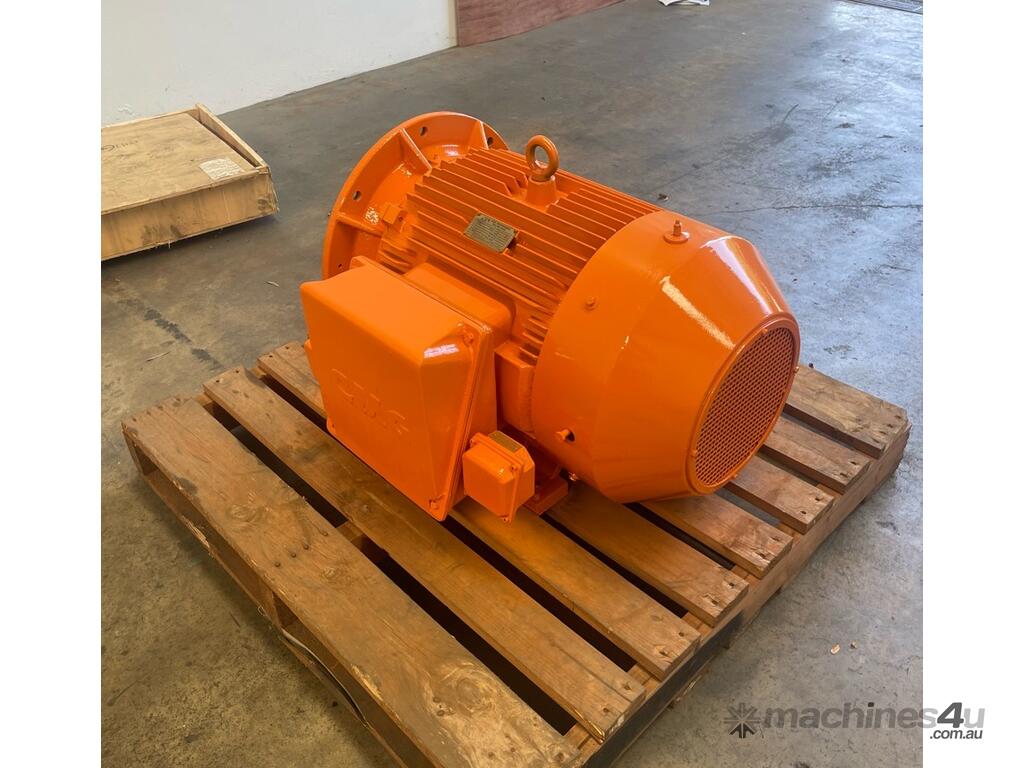

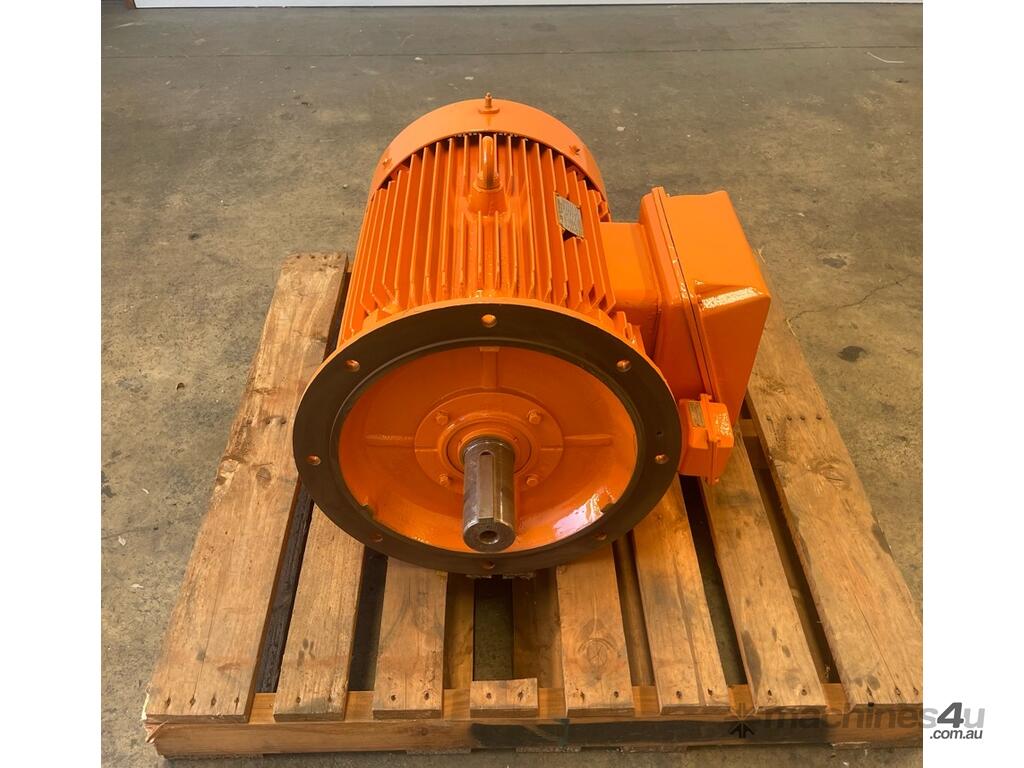

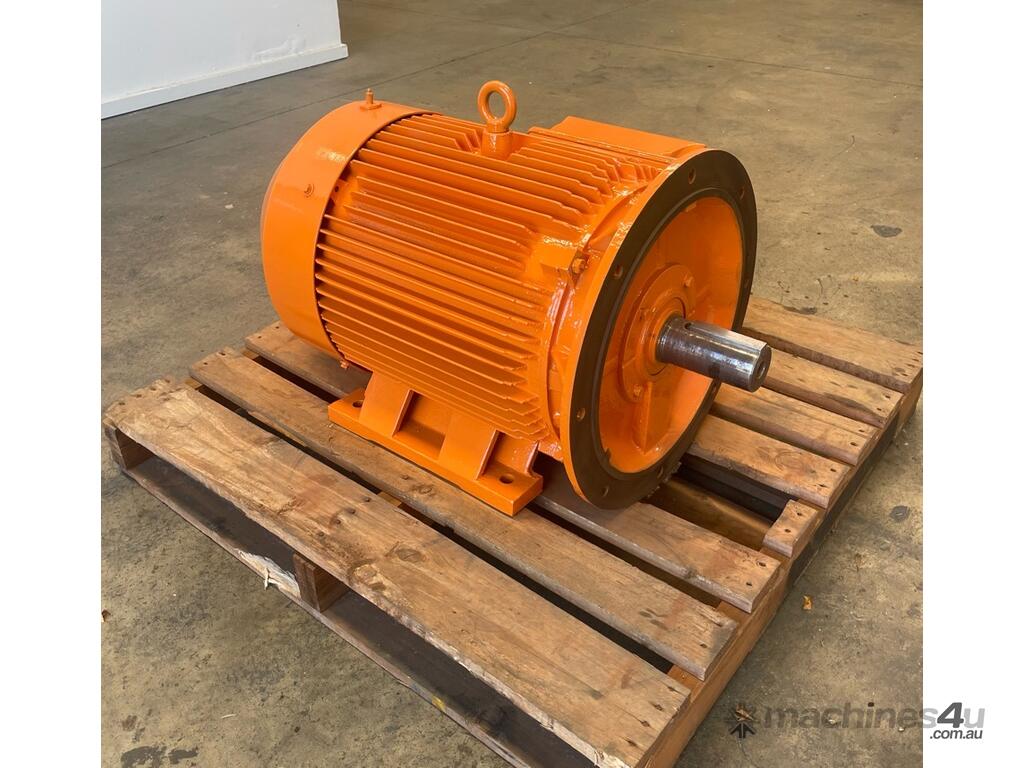

75 kw 100 hp 4-pole 1480 rpm 415 volt B35 Foot Flange 250M frame AC Electric Motor CMG PPA Type PPA250M70-4
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: CMG
Range: PPA
Type: PPA250M70-4
Power: 75 KW (100 HP)
Speed: 4-pole (1480 rpm)
Rated Voltage: 415 v
Rated Frequency: 50 hz
Mounting: B35 Foot & Flange
Frame: 250M
Weight: 550 kg
Protection Rating: IP66
Insulation class: H
Shaft DIA: 70 mm
Centre Shaft Height: 250 mm
Total Length: 965 mm (incl. shaft)
Total Width: 658 mm (incl. RHS to D.E. terminal box)
Total Height: 580 mm
Feet measurements: Across 'A' - 406 mm, Front to back 'B' - 433 mm
Front hole to shaft: 'C' - 168 mm
Available QTY: 1
Condition: Unused & Decommissioned critical spare. N/L test run in motor workshop - Warehouse storage
exStock Seaford VIC 3198 Australia
Freight services available Australia-wide on request
Australian wide distribution of leading Electric Motor brands WEG & TECO.
As well as a large stock of Surplus mining/industrial electric motors, saving our customers cost & downtime.
