750KVA Industrial Diesel Generator 415V

RATING DEFINTION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption. No overload utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator Model CK36000 DK36000 PK36000 SK36000
Engine Brand Cummins Deutz Perkins SDEC
Engine Model KTA38-G2 HC12V132ZL-LAG1A 4006-23TAG2 SC33W990D2
Alternator Model Stamford S354G600E10 3 Phase
Controller Options Comap / Deep sea / Kusing 6132
Main Circuit Breaker CHNT 1250A
Internal protection IP22
Rate current 1045A Per Phase
Fuel Consumption(G/KW.H)100% Load 198 197 209 205
No. of Cylinders V12 V12 Inline 6 V12
RPM 1500
Bore (mm) 159
Stroke(mm) 159 145 190 215
Speed Governor Electronic
Start system(VDC) 24V
Engine Oil Specification 15W/40
Displacement(Ltrs) 37.8 23.8 22.9 32.8
Lub Oil Sump Capacity(Ltrs) 135 54
Coolant Capacity(Ltrs) 118(only engine) 30(only engine) 105(only engine) 56
Air inspiration Turbocharged
3 Phase Voltage 415V
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 7070
Silent(KG) N/A
Size Open (L*W*H)mm 4400*2010*2450 4020*1710*2250 4020*1710*2250 4 362*1570*2135

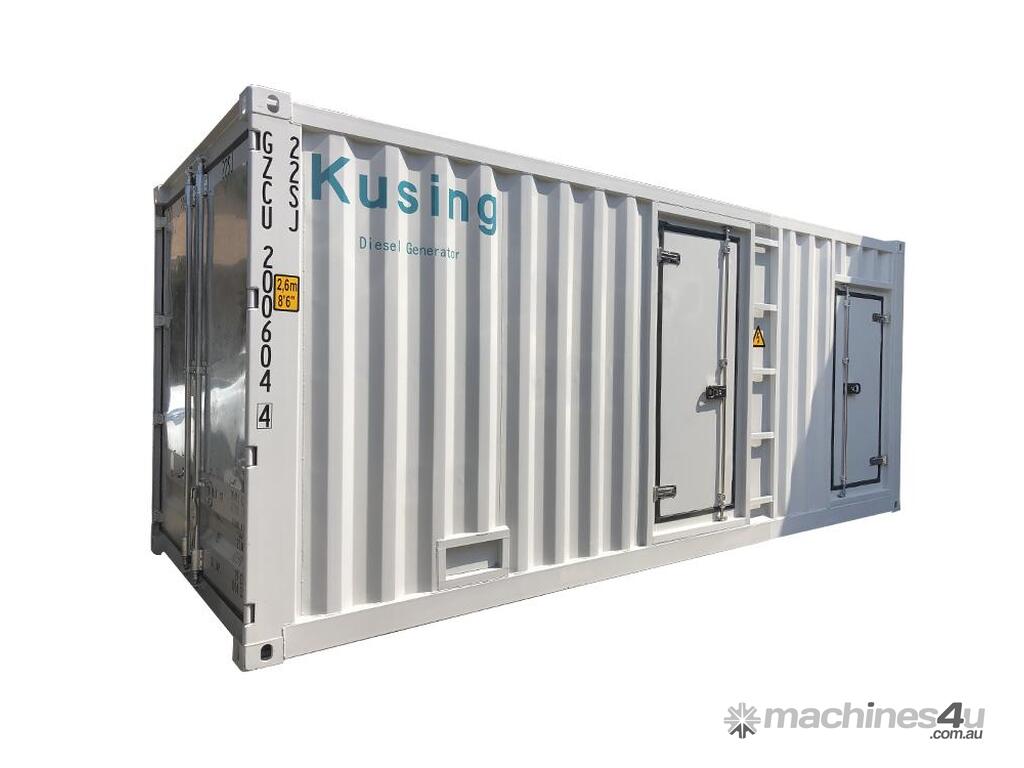

Size Silent 20 FT CONTAINER
Silent Canopy dBA 68-80
