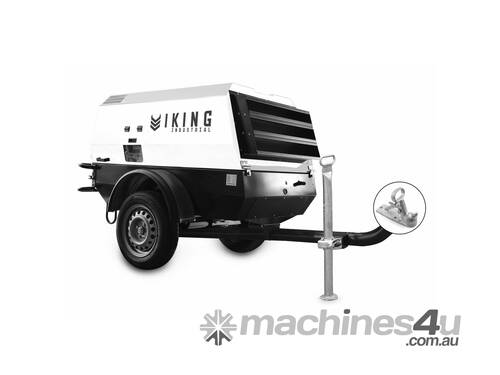

79-127CFM (PERKINS) PORTABLE DIESEL AIR COMPRESSORS

VIKING MODEL: MDVN 37P
OPERATING PRESSURE: 7 bar 102 psi | 10 bar 145 psi | 12 bar 174 psi
FREE AIR DELIVERY: 3600 l/min 127 cfm | 2800 l/min 102 cfm | 2250 l/min 79 cfm
ENGINE: Kubota 403D-15
OUTLET VALVES: 2 x 3/4?
OPERATING HOURS: 8.2 hours

MAX ENGINE POWER: 25 kW – 34.0 HP
MAX ENGINE SPEED: 3000 RPM
MIN ENGINE SPEED: 1900 RPM
COOLING SYSTEM CAPACITY: 5 It – 1.32 gal
LUBRICATION SYSTEM CAPACITY: 5 It – 1.32 gal
FUEL TANK CAPACITY: 40 It – 10.57 gal.


Quiet and efficient Perkins Tier 2 engine
An exclusive pneumatic control system, developed by ROTAIR, to adjust automatically engine revs, depending on the air to be delivered
INTELLIGENT Start/Stop, exclusive from ROTAIR, to prevent the risk of incorrect procedures during specific functioning
Compact trailerised design
