7T - 10T SK75SR-7 OFFSET

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Engine output is increased by 27.9% and digging force is increased by 11%.
The short radius design allows operators to work in tight spaces.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

The SK75SR-7 offers superior performance, greater efficiency and productivity with increased power and speed.

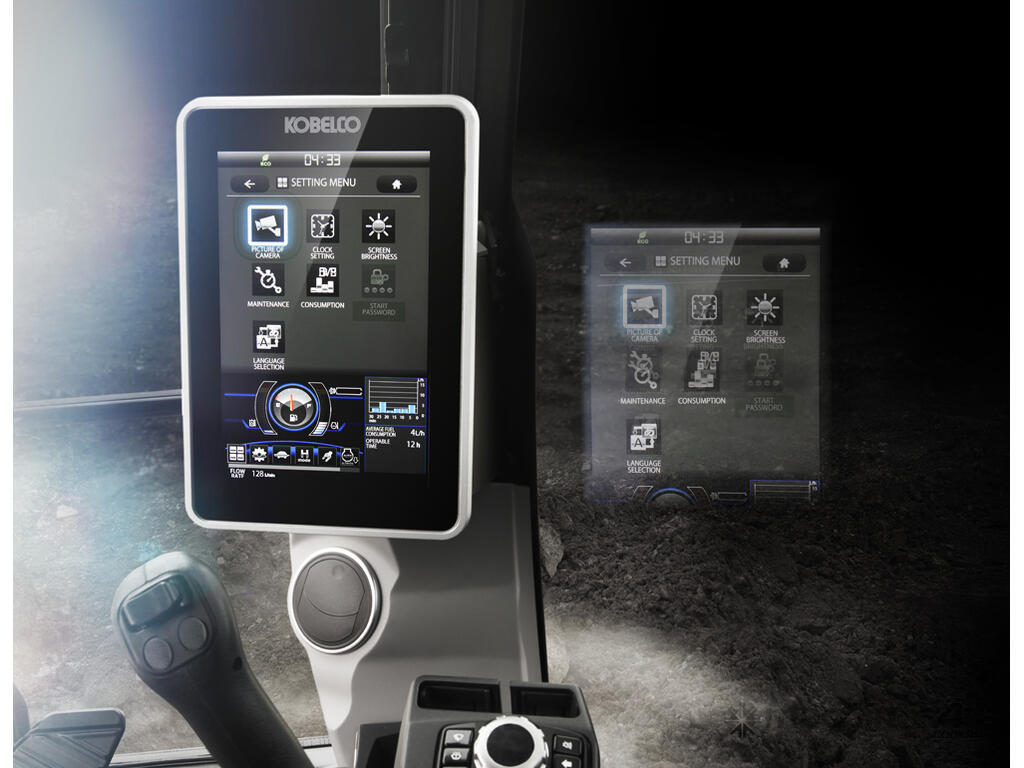

This new model features a 10? colour monitor with jog-dial operation and an eagle-eye camera for 270-degree vision. Includes Kobelco Geoscan Excavator Remote Monitoring System and Kobelco’s iNDr Cooling System for optimum low noise and dust reduction.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

6.17 x 2.3 x 2.57 m

Operating Weight

9,000 kg

Refilling Capacities
Fuel Tank

120 L

Hydraulic Oil Tank

44 (88) L

Working Range
Max. Digging Depth

4.30 m

Max. Digging Reach

6.48 m

Engine
Rated Power Output

53.7 kW

Rated Torque

296 Nm

Breakout Force
Bucket Digging Force

60.1 kN

Arm Crowding Force

39.9 kN

Hydraulic System
Max. Pump Flow

2 x 72.5 + 19 L/min

Standard Auxiliary

N&B + Tilt Piping
