Engine output is increased by 27.9% and digging force is increased by 11%.
The short radius design allows operators to work in tight spaces.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

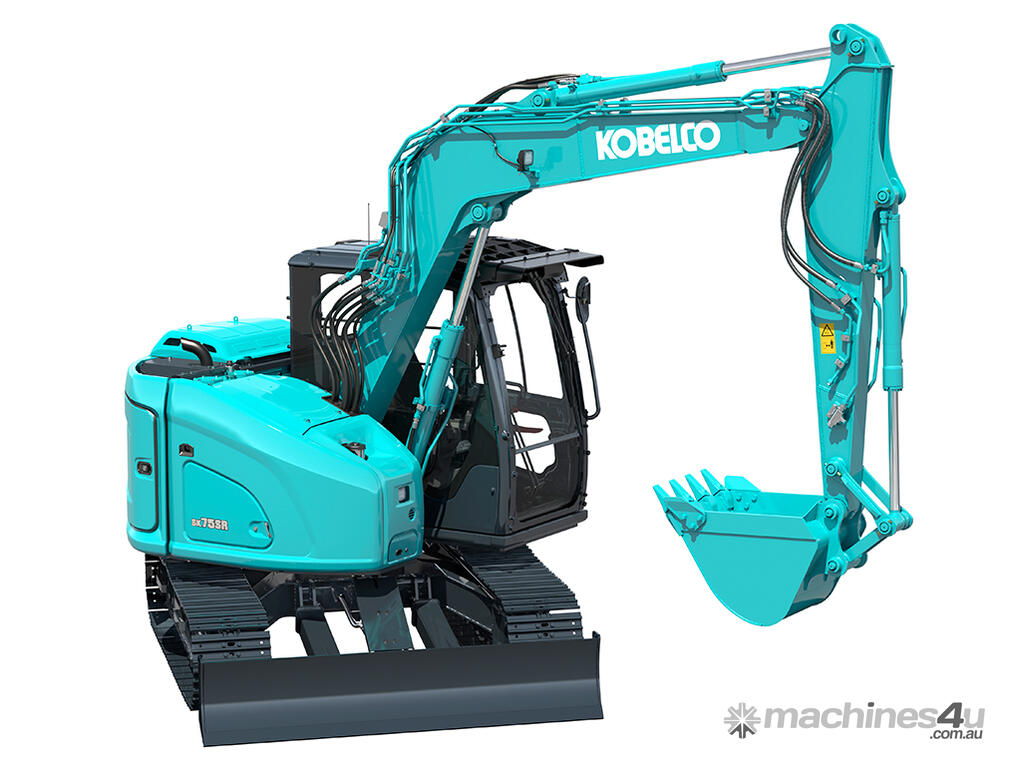

The SK75SR-7 offers superior performance, greater efficiency and productivity with increased power and speed.

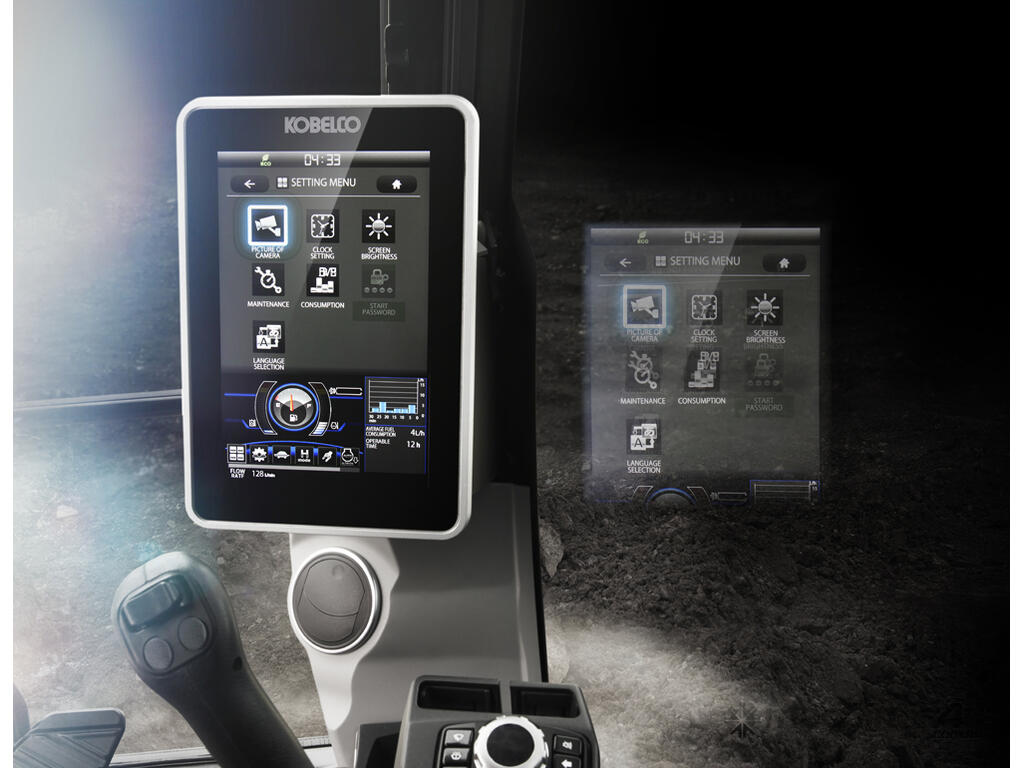

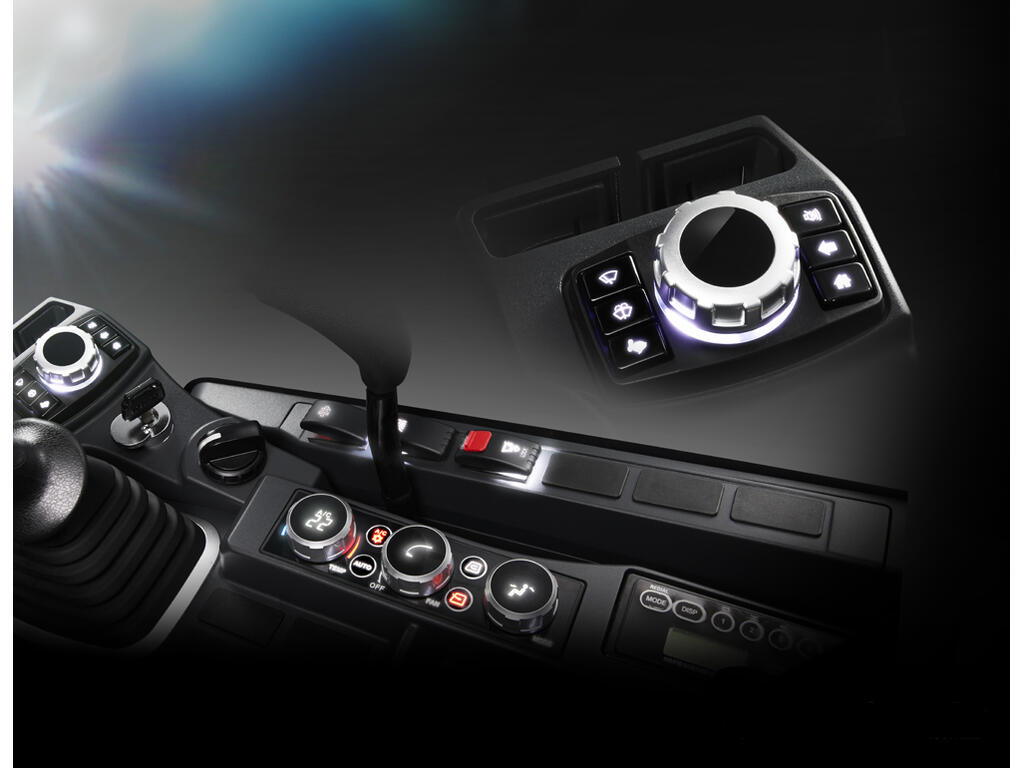

This new model features a 10? colour monitor with jog-dial operation and an eagle-eye camera for 270-degree vision. Includes Kobelco Geoscan Excavator Remote Monitoring System and Kobelco’s iNDr Cooling System for optimum low noise and dust reduction.
SPECIFICATIONS
Transport Dimensions
Length, Width & Height
5.84 x 2.3 x 2.57 m
Operating Weight
8,160 kg
Refilling Capacities
Fuel Tank
120 L
Hydraulic Oil Tank
44 (84) L
Working Range
Max. Digging Depth
4.16 m
Max. Digging Reach
6.48 m
Engine
Rated Power Output
53.7 kW
Rated Torque
296 Nm
Breakout Force
Bucket Digging Force
60.3 kN
Arm Crowding Force
39.3 kN
Hydraulic System
Max. Pump Flow
2 x 72.5 + 19 L/min
Standard Auxiliary
N&B + Tilt Piping
