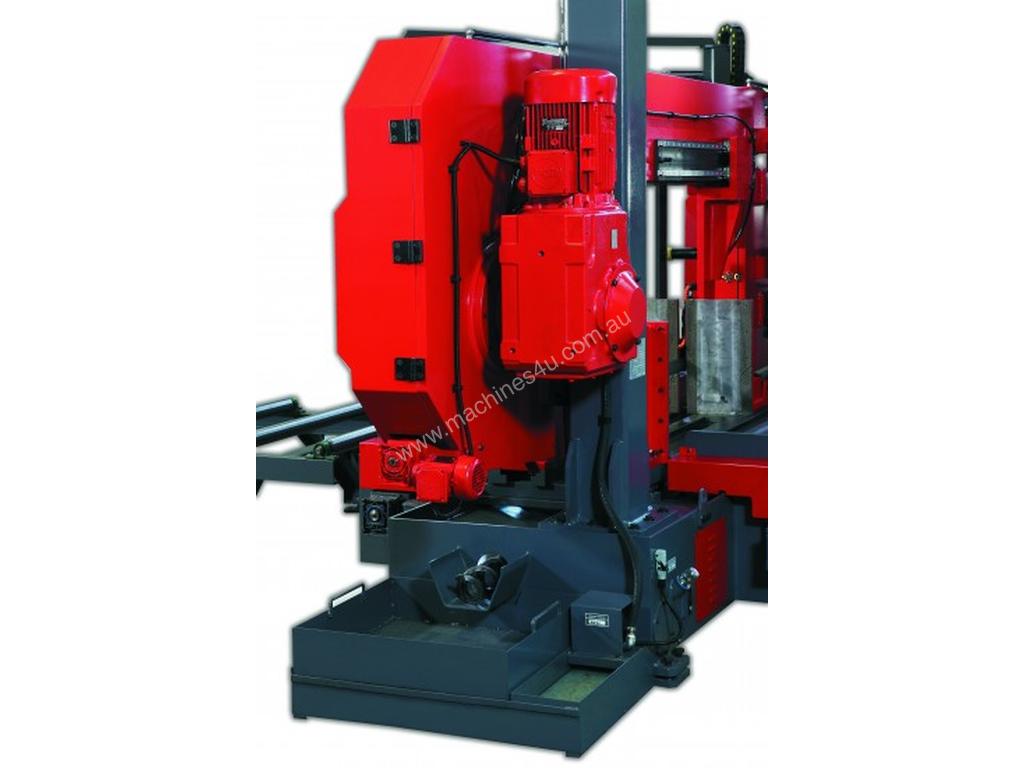

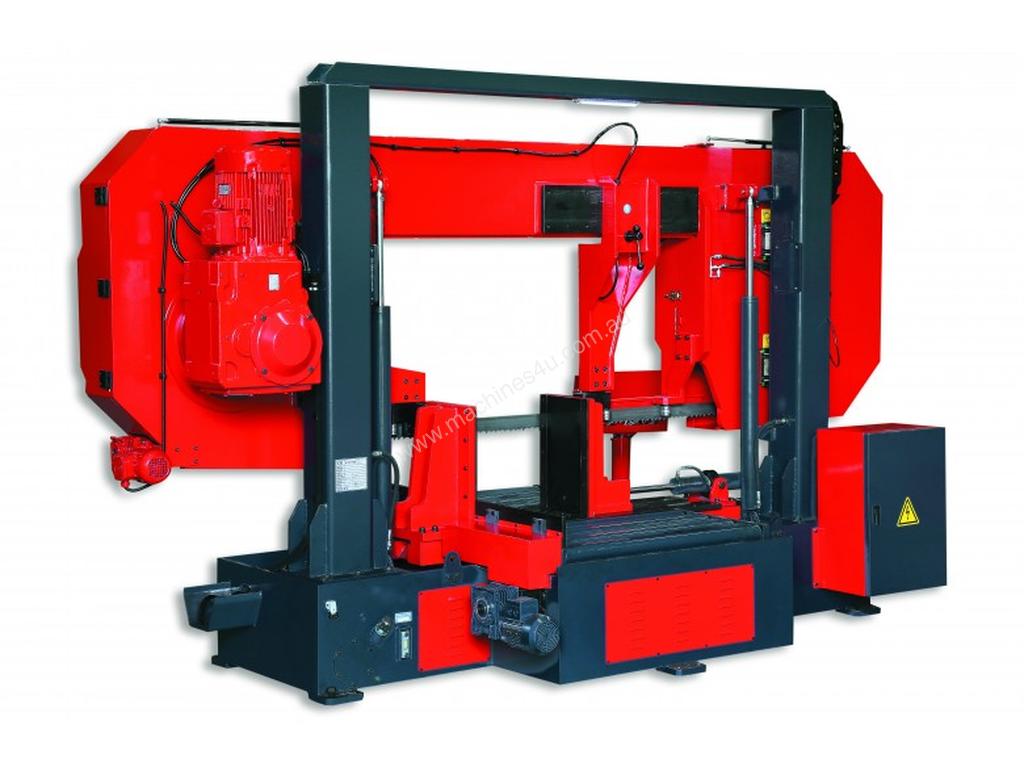

Ø 800mm Capacity Semi Automatic Bandsaw, 800x1000mm

Introducing the new range of high quality European Semi-Automatic Bandsaws with mm Capacity.

MACHINE FEATURES:
• Large double columns precision ground for additional support
• Powerful 7.5kW blade drive motor
• Bow descends on hardened linear bearing rails
• Infinitely variable feed rate for optimal cutting performance in any material
• Inclined blade for optimum cutting
• Hydraulic blade tensioning system
• Variable vice pressure regulation for clamping of thin wall material
• Synchronized power driven blade cleaning brush removes swarf from blade
• Motorized swarf conveyor
• Idle wheel motion proximity switches shuts off machine if blade breaks or slips
• Coolant system incorporating a wash down hose with trigger gun
• Inverter controlled infinitely variable blade speed 18-75mpm with digital display
• Carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life
• Full stroke hydraulic cylinder vice provides quicker set-up of jobs
• Hydraulic top clamp for bundle cutting

SPECIFICATION:
Cutting capacity:
(Round Material) ...Ø 800mm
(Square Material) …800x800mm
(Rectangular Material) ...800x1000mm
Blade size: …67x8930mm
Blade speed: …18-75m/min
Main motor: …5.5kW
Table height: 700mm
Machine weight: …5200kg
