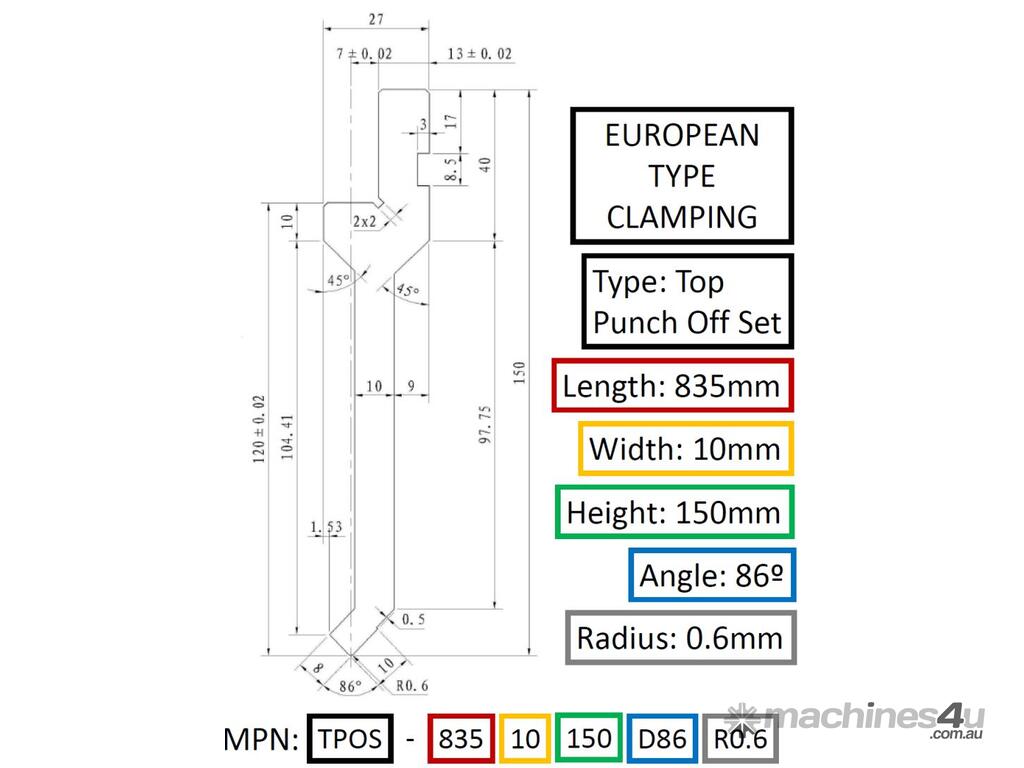

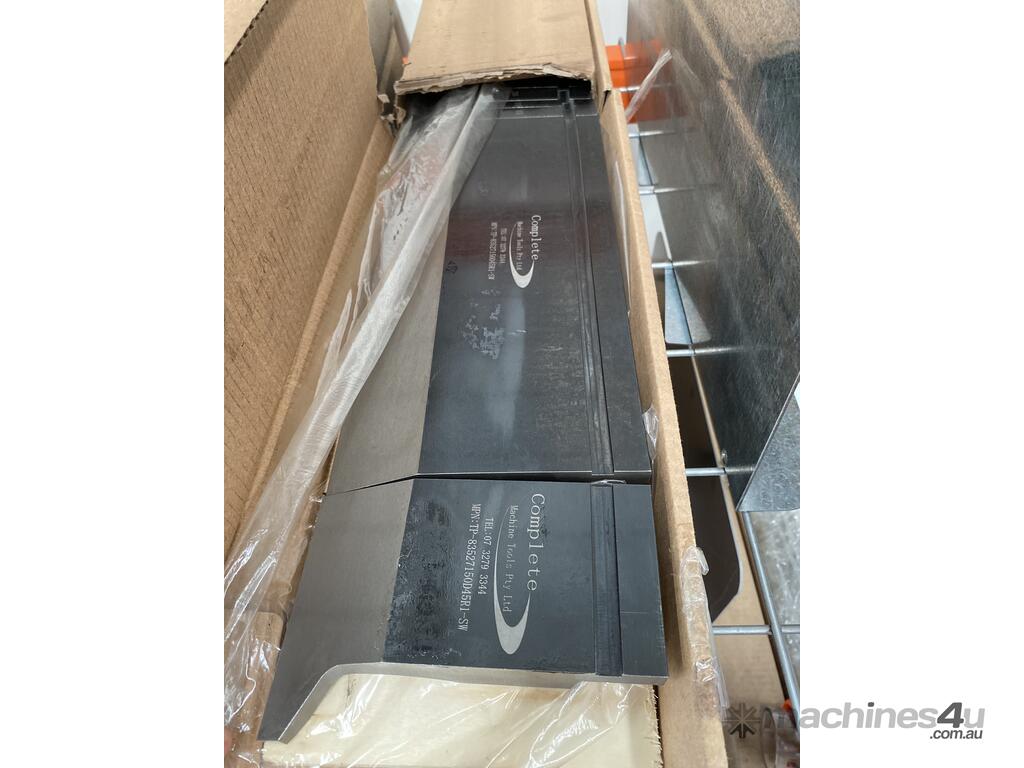

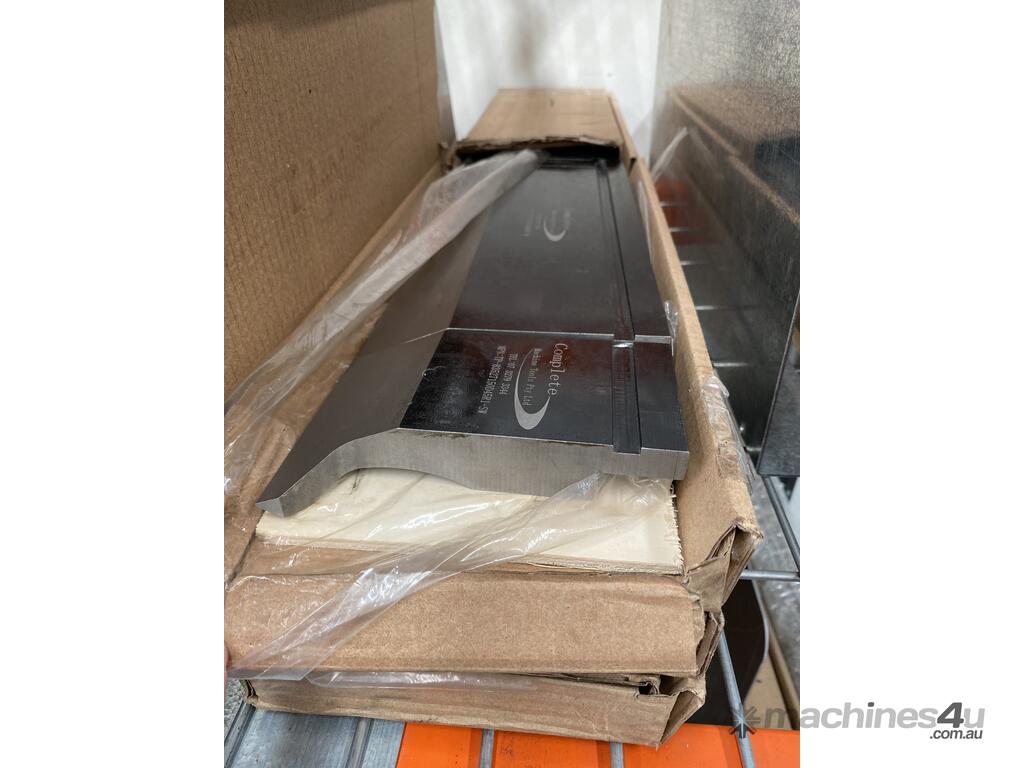

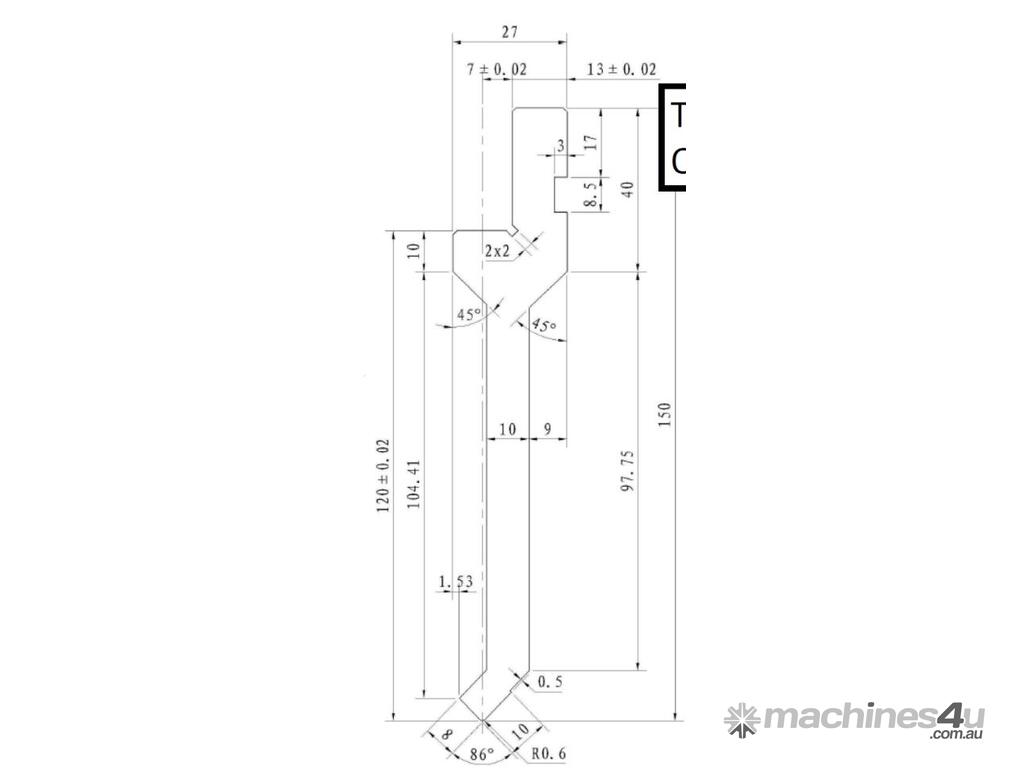

OFFSET PUNCH
MADE FROM: 42Cr Mo Alloy Steel
Finish: Ground
Length: 835mm
Width: 10mm
Height: 150mm
Nose Angle: 86 degrees
Nose Radius: 0.6mm
Segments: 10, 15, 20, 40, 50, 200, 300 Wing Ends 100mm each left & right
Clamping: European style

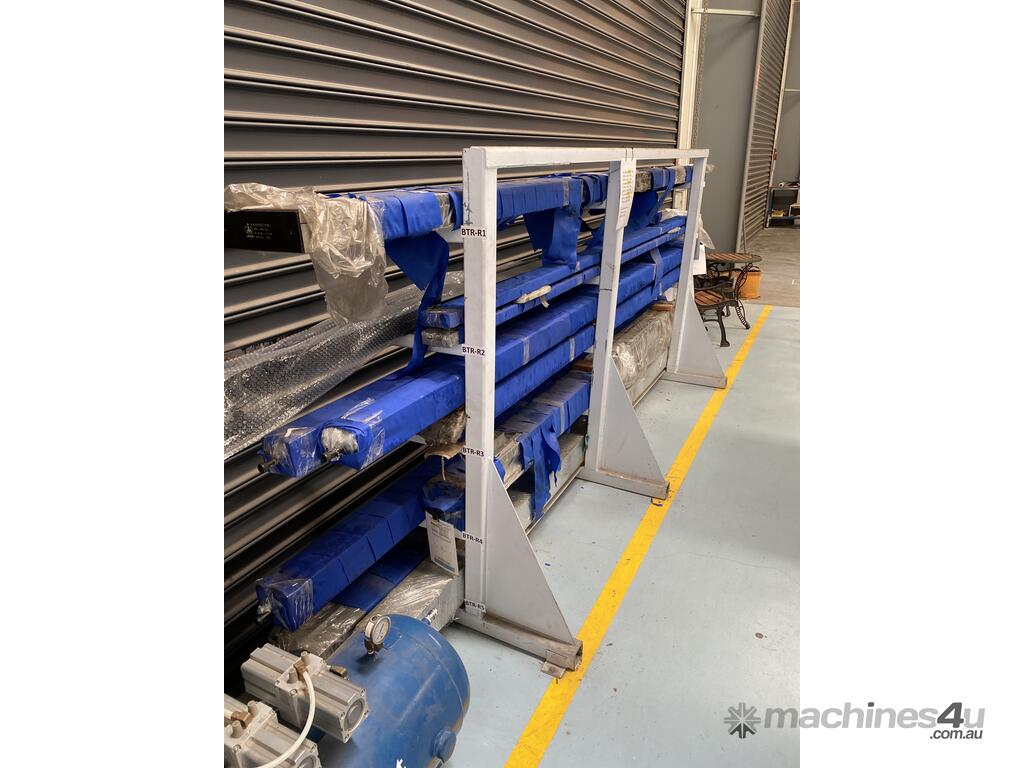

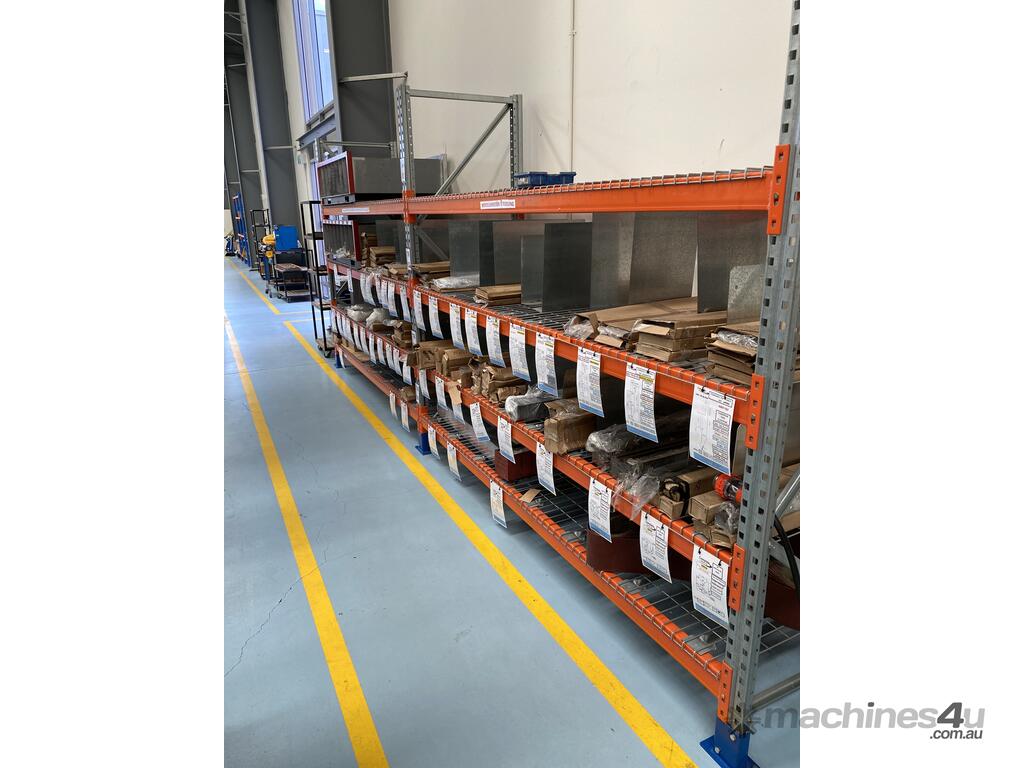

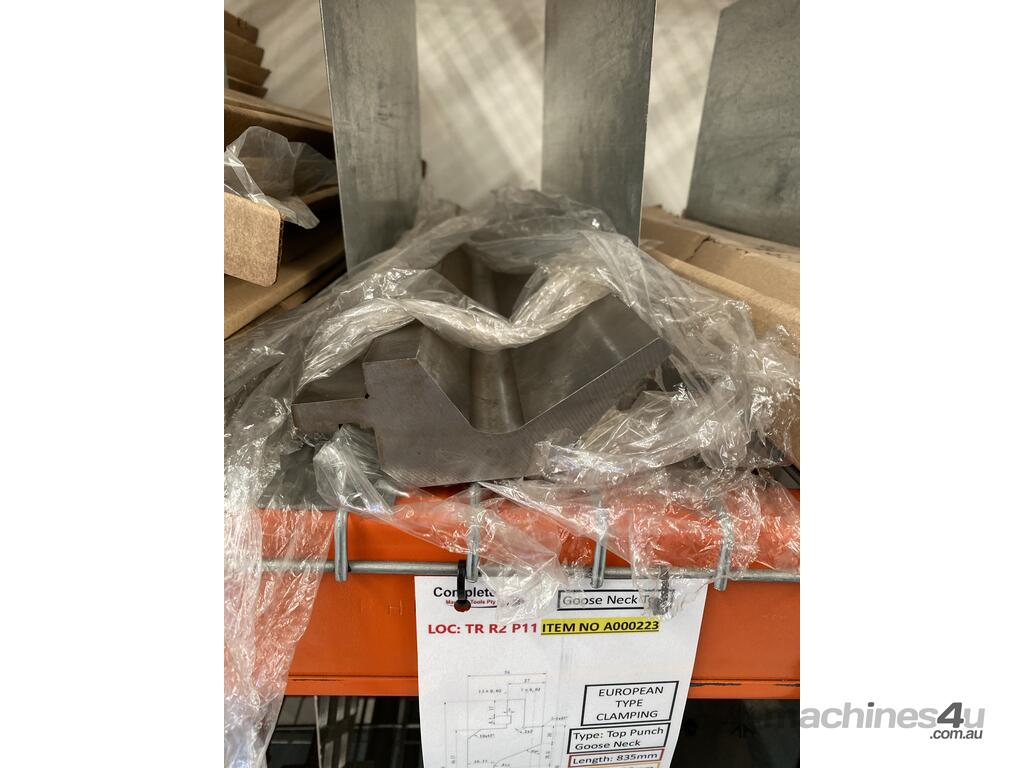

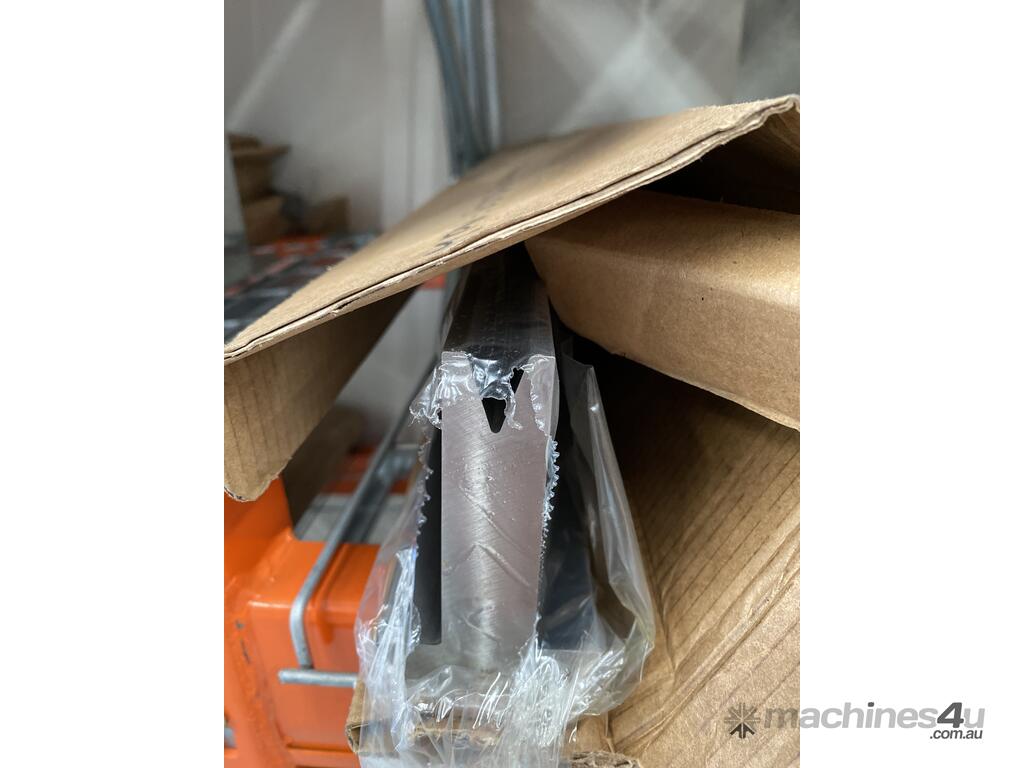

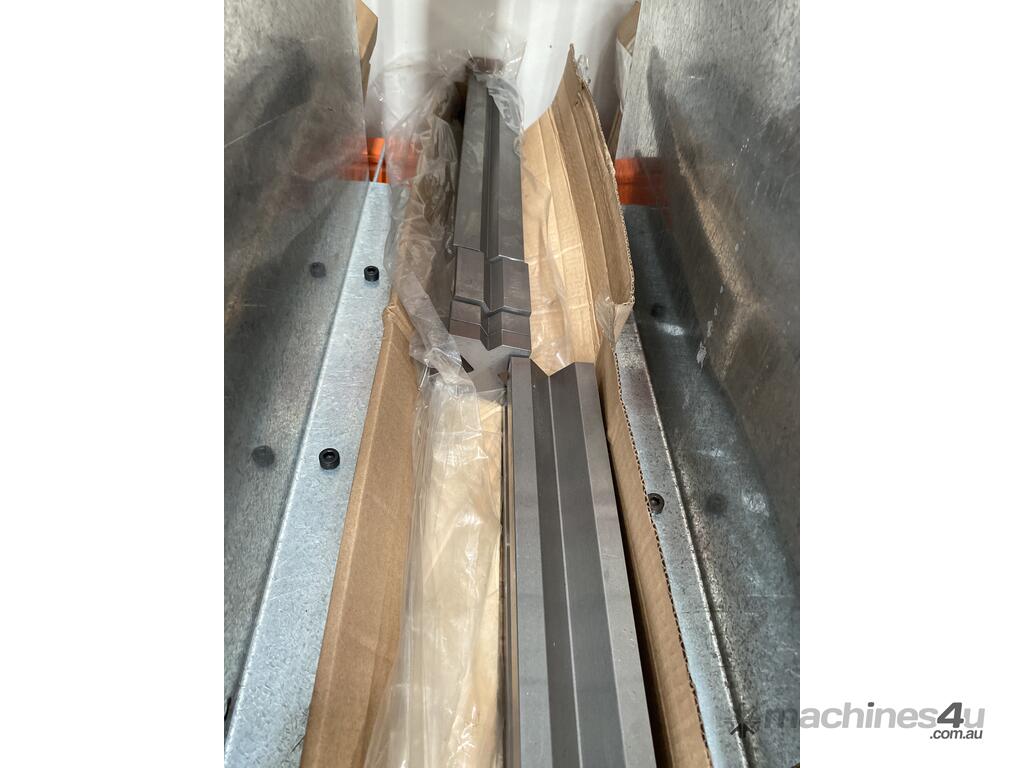

Complete Machine Tools carries a very large stock holding of press brake tooling to suit numerous types of clamping configurations
Top tooling kept accommodates Euro Style Clamping

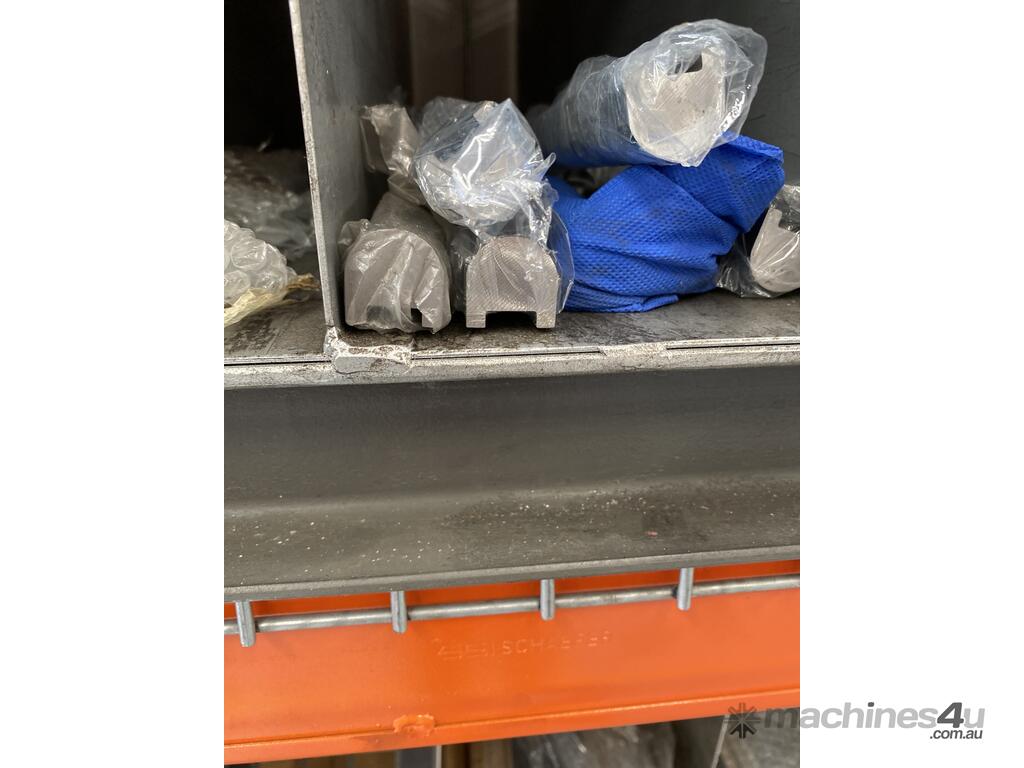

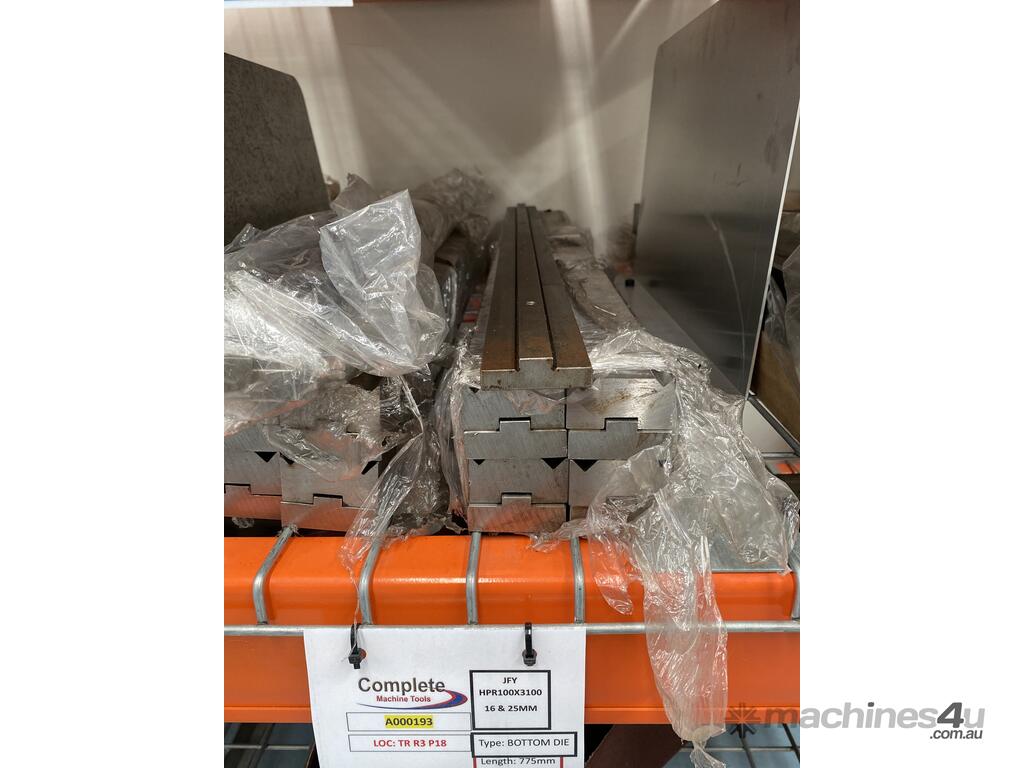

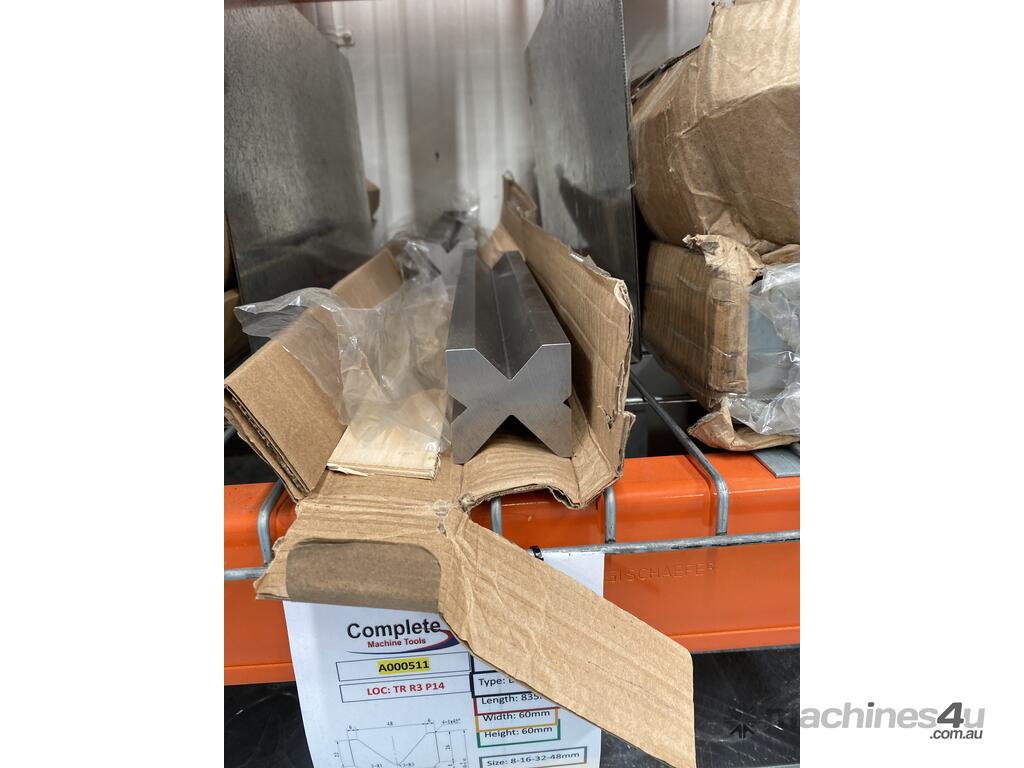

Bottom dies vary from multi vee for wide work tables generally 100, 120 & 150mm squared , 60mm wide dies to suit 60mm table bases, Wila style slotted tooling and dual vee dies.
Have a look at our video to get an idea of how much tooling we stock and the different types but if in doubt we a phone call away or send us an enquiry to find out what we currently have in stock.
We also have custom tooling made for customers where off the shelf just doesn't suit the application.
