8x5 Builders Trailer White 3500KG ATM Tradie Trailer Pack BIGMAN TRAILER

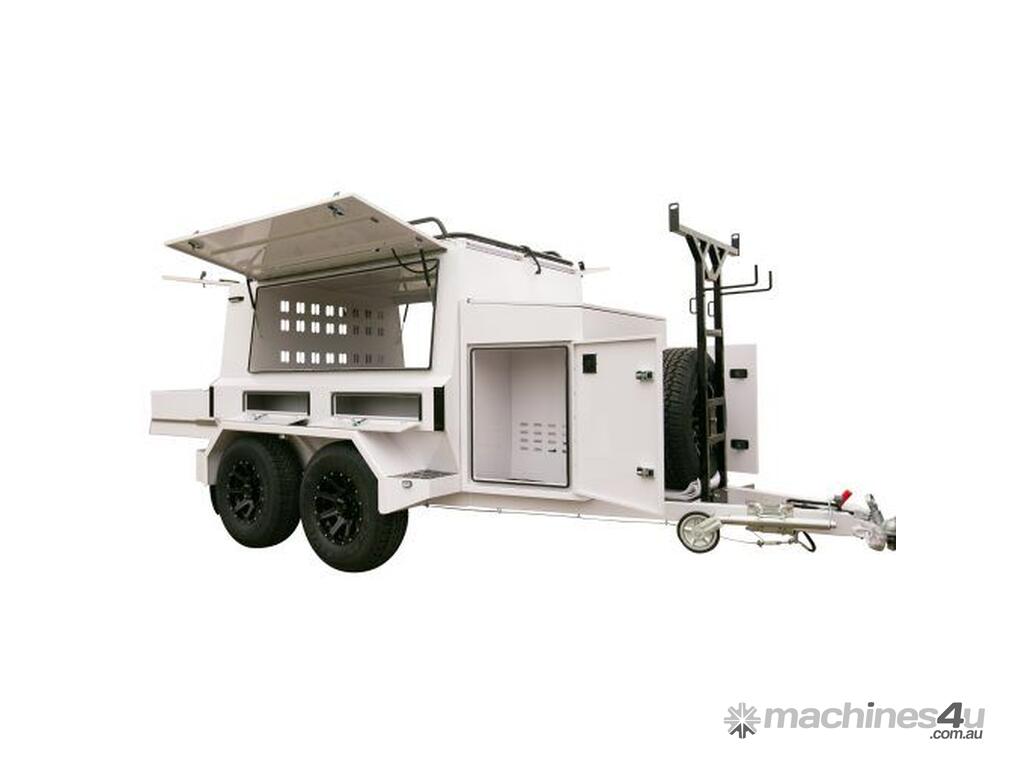

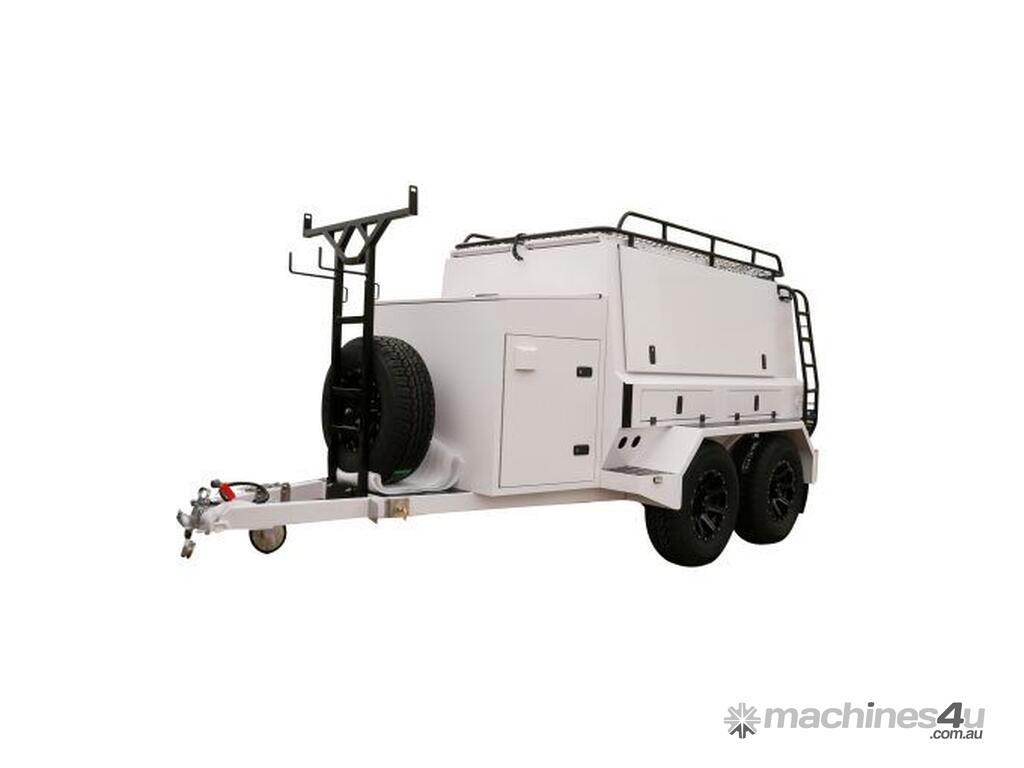

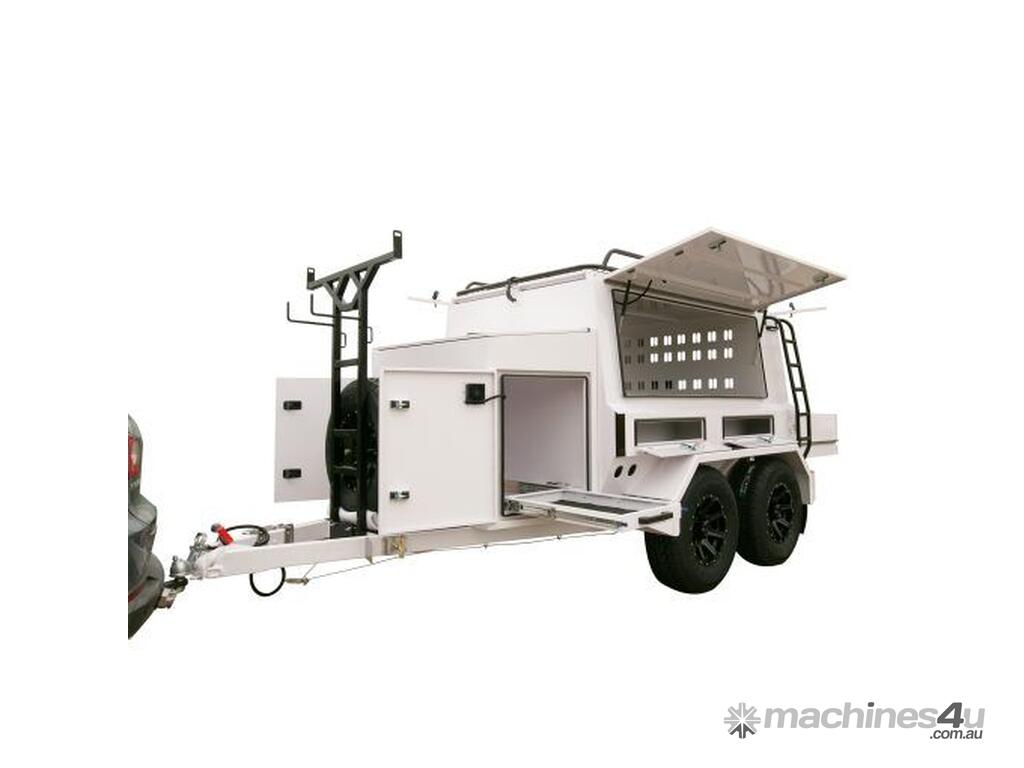

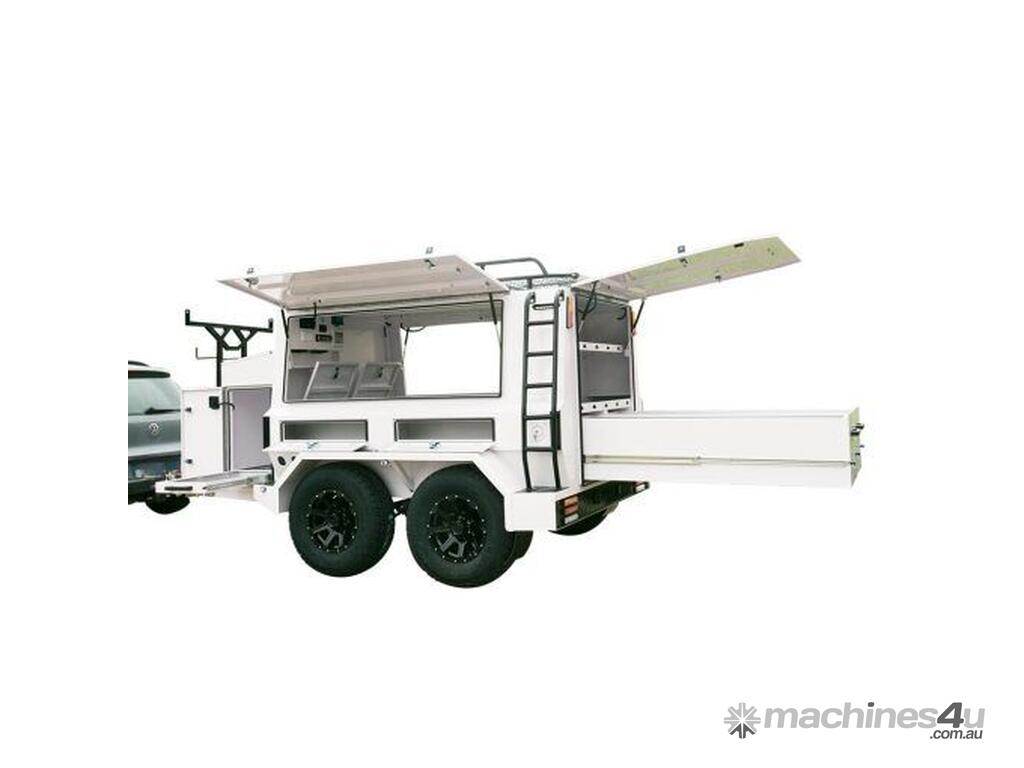

The 8×5 Builders Trailer in White is a versatile and robust builders trailer for builders and tradespeople of all stripes. It features a comprehensive storage system with multiple compartments, including a main compartment area on each side, smaller compartments underneath, and slide-out drawers at the rear. The trailer is equipped with a 50-liter fridge slide-out with a fan and additional compartments for extra storage. The internal fans near the wheel holder enhance the functionality. This model, TT85, has a tare of 1590, an aggregate trailer mass of 3500. It is fitted with 256 75R16 inch tyres and a drawbar measuring 1800mm. The trailer also boasts dual batteries, Anderson plugs, external sockets, a water gauge, and a 70L water tank. Safety features include a black ladder rack with a spare tyre, solar panel slide-outs, compression press-release locks on all doors, and a rocker roller 9-leaf suspension. The roof luggage carrier and lighting system, along with the black checker plate finish for step-on areas, make this trailer both practical and stylish.

Storage Features

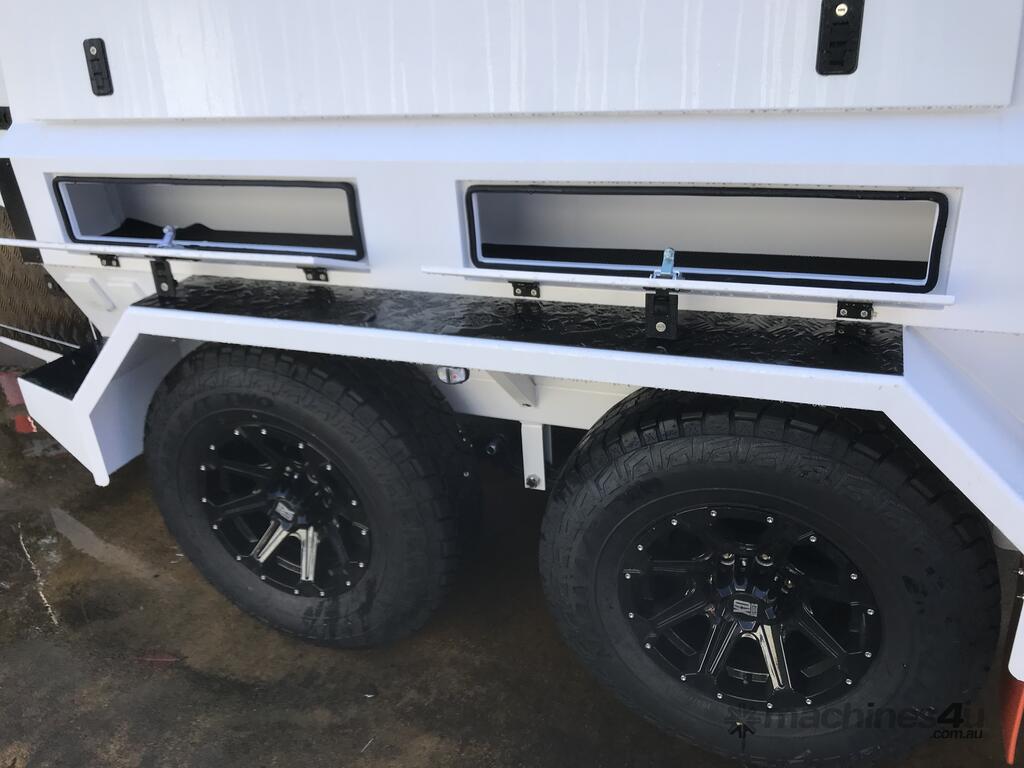

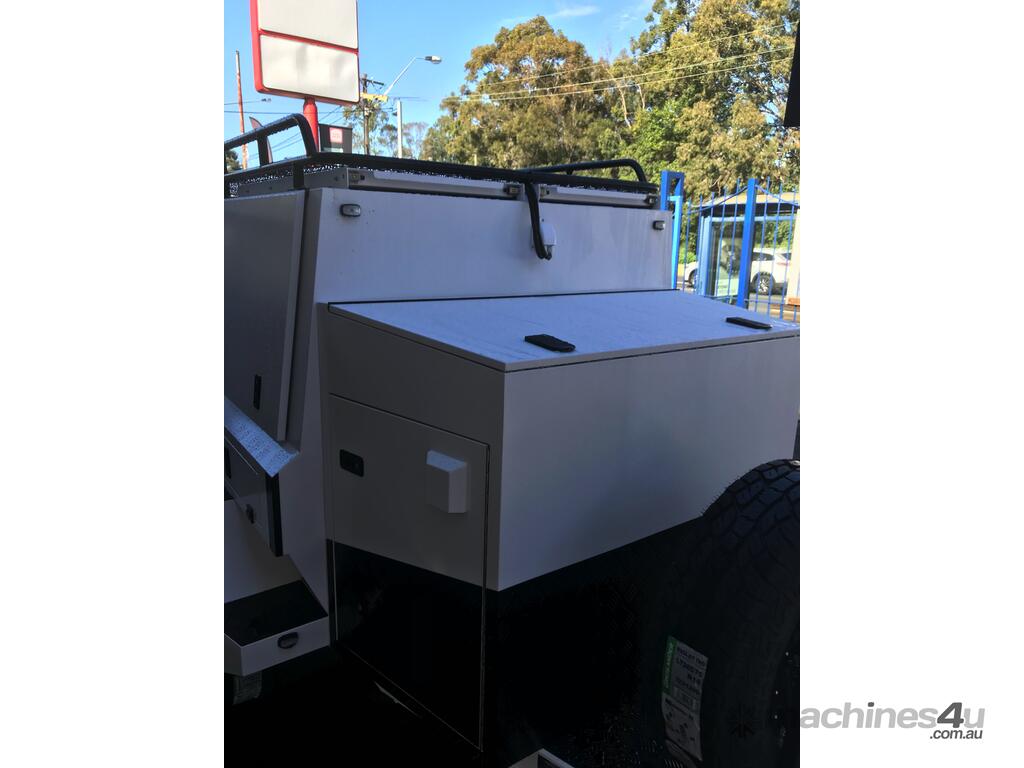

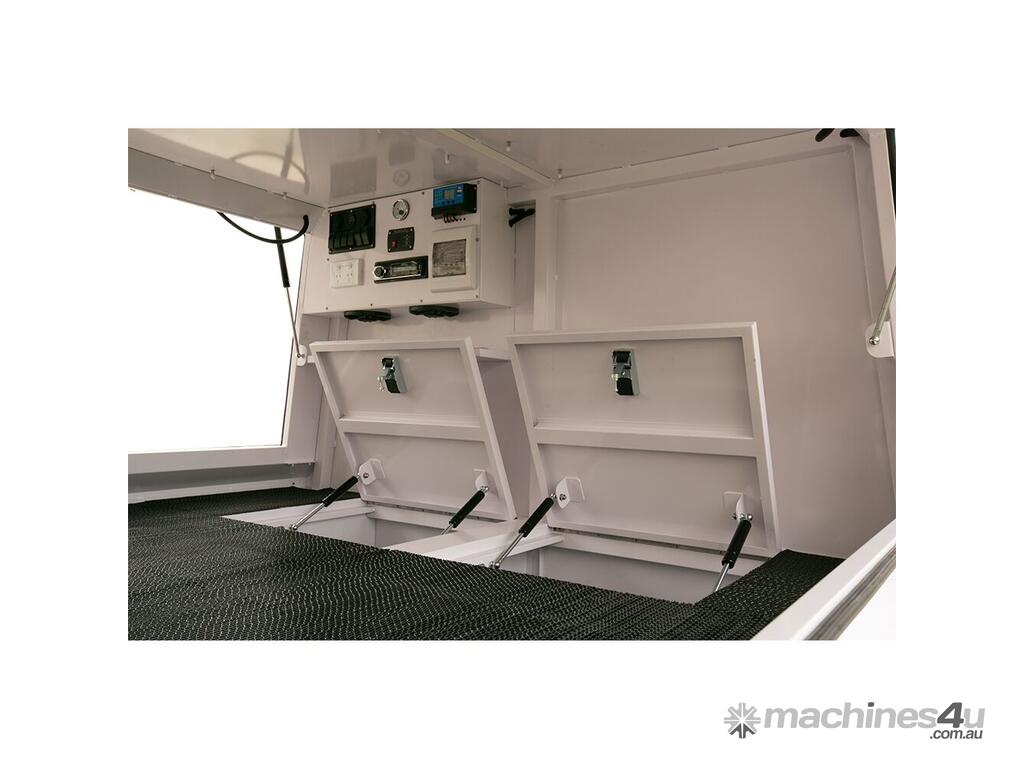

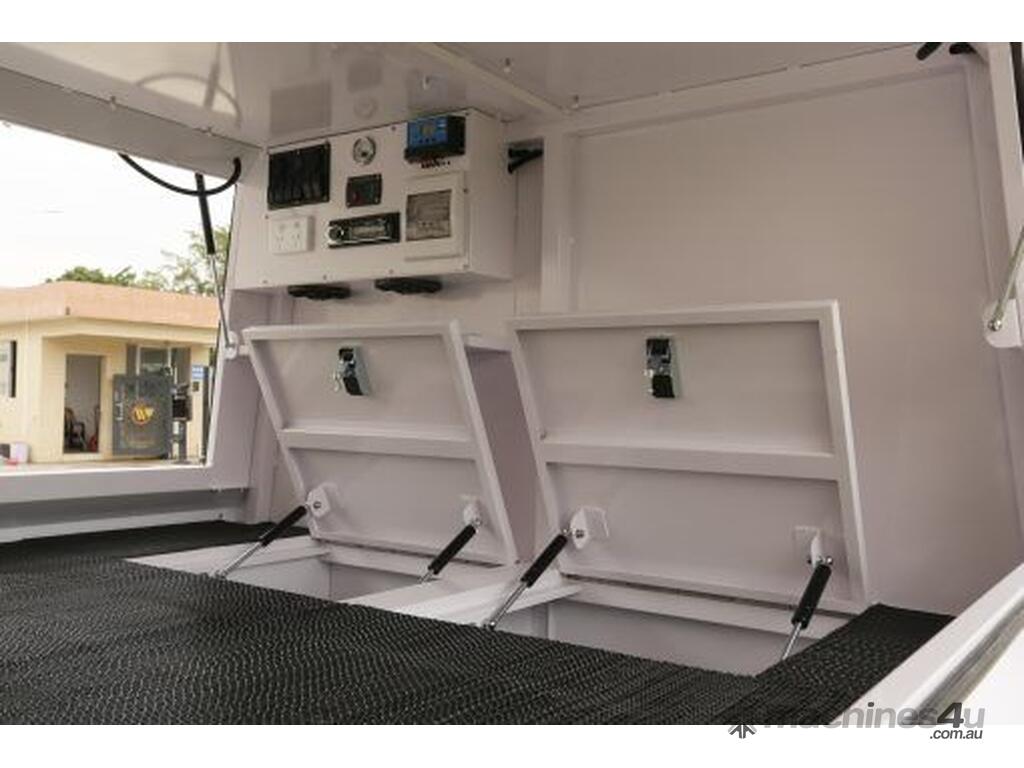

2x smaller compartments underneath the main compartment area (450w x 450L x 450H).

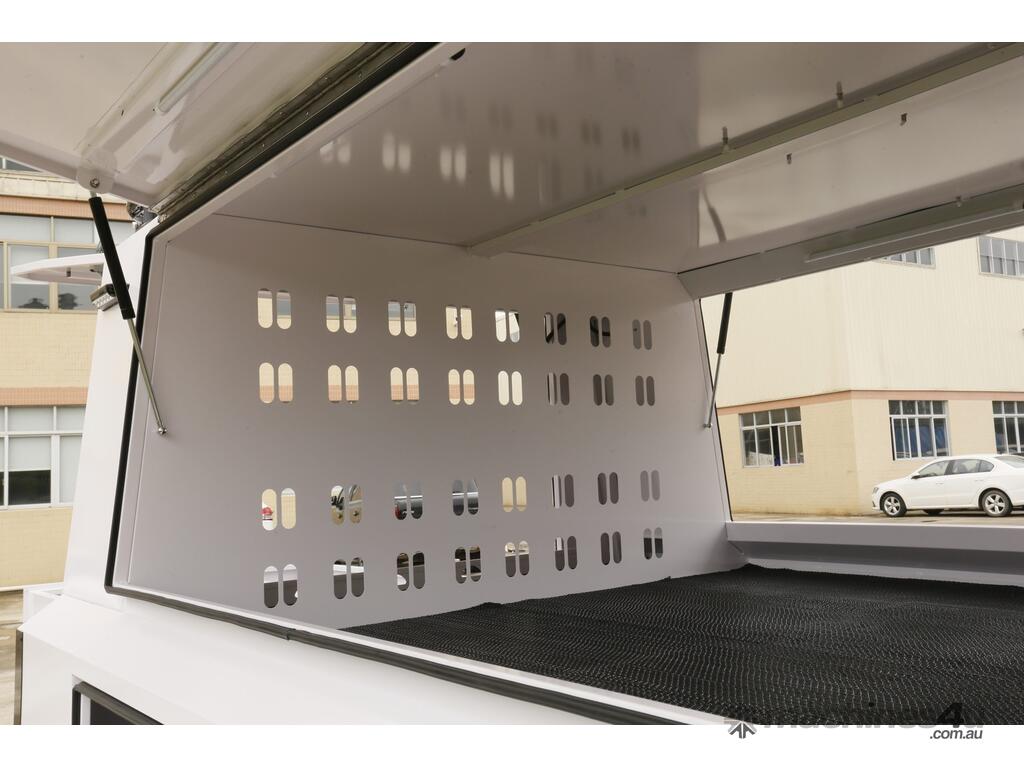

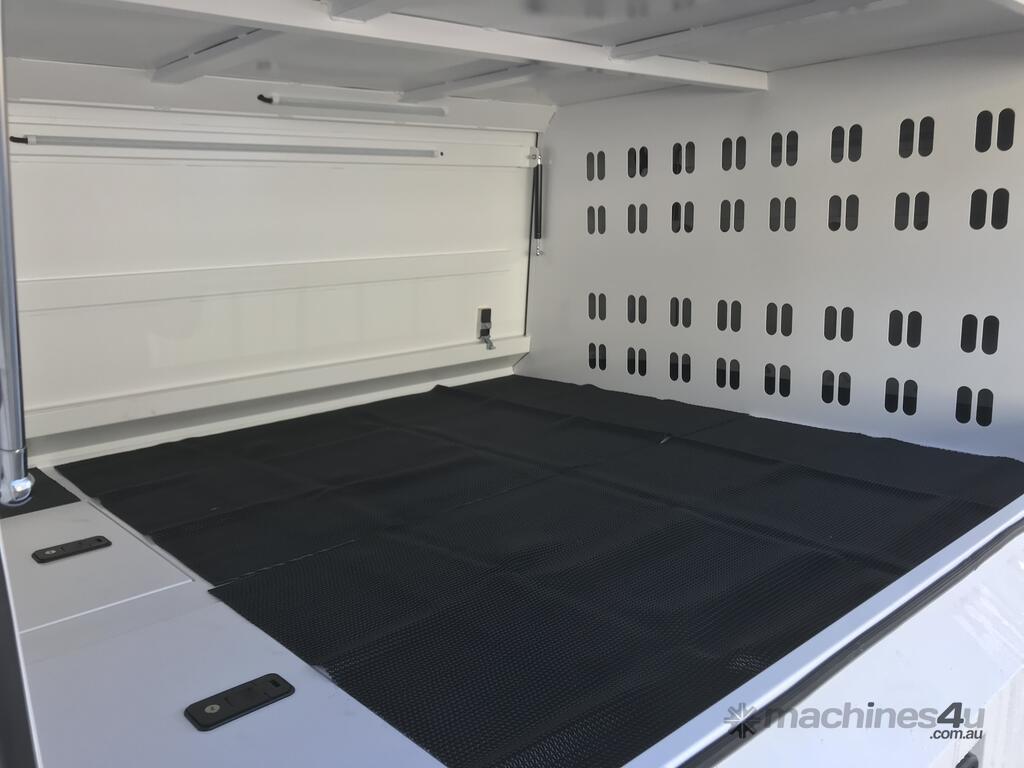

The main compartment area on either side is 1700 in width x 1950 length x 820 in depth.

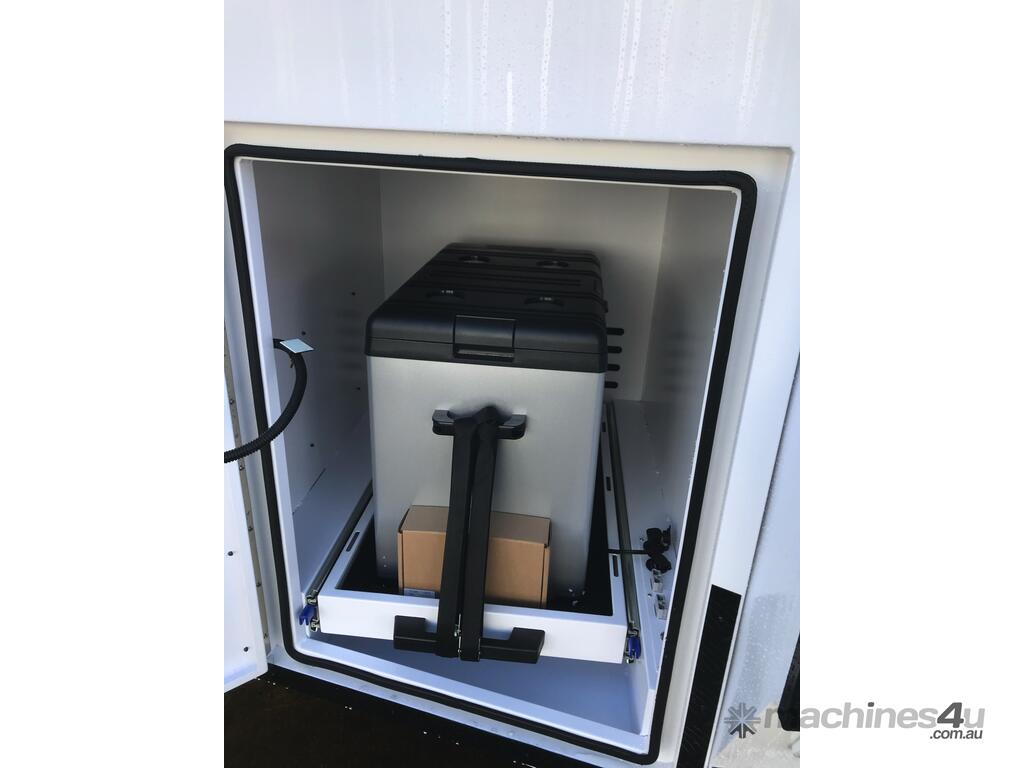

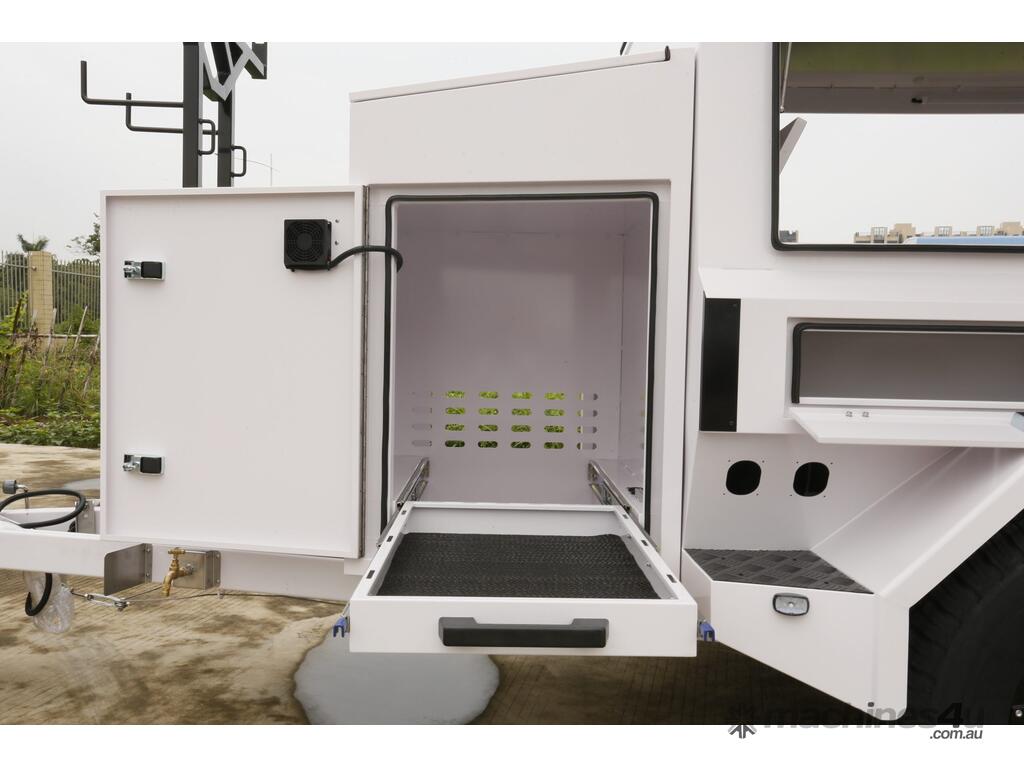

Fridge slide out -50 Litres with Fan.
Additional Compartment above the fridge – 1100 width x 600 length x 200 Depth.
2 x shelves located at the rear:
Bottom shelves – 1800 width x 450 length x 420 height.
Top shelf – 1500 width x390 length x 380 height.

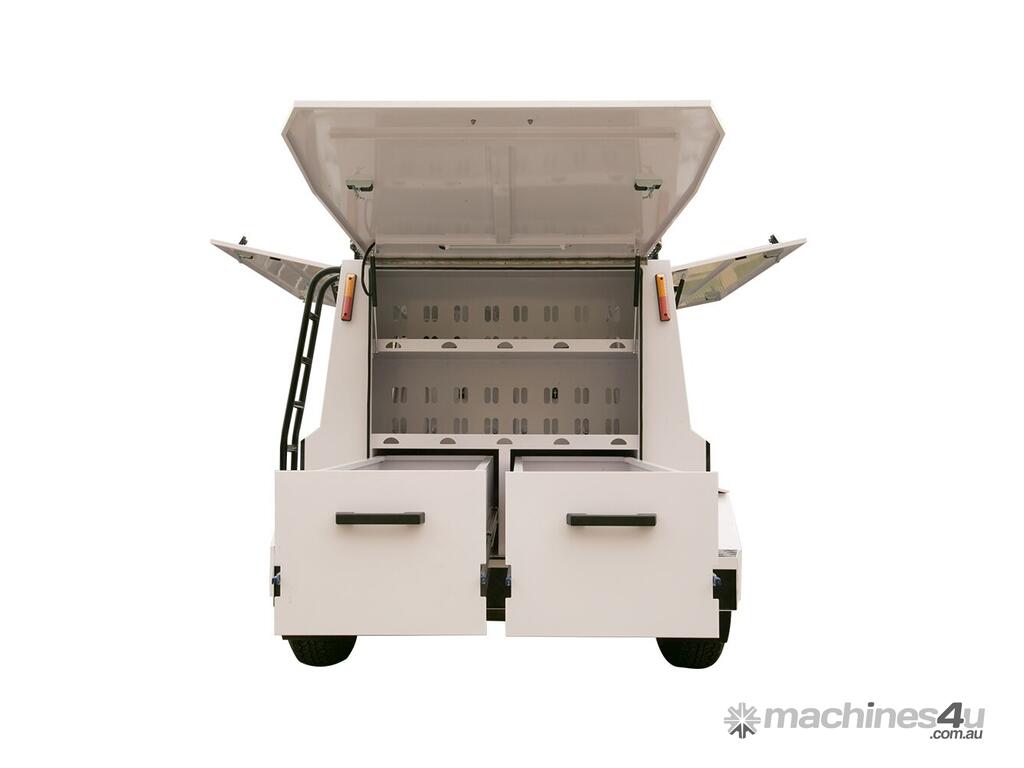

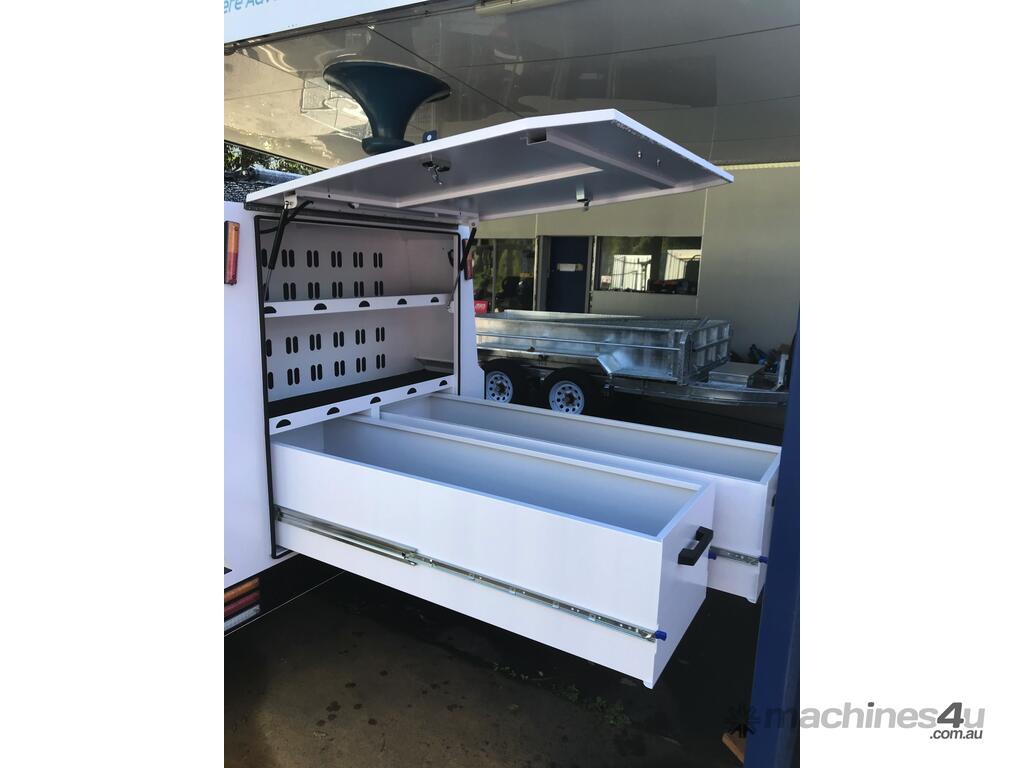

2 x slide-out pull-out drawers located at the rear – 500 width x 1800 length x 400 height.
Draws Have Latches on the side to open and close.

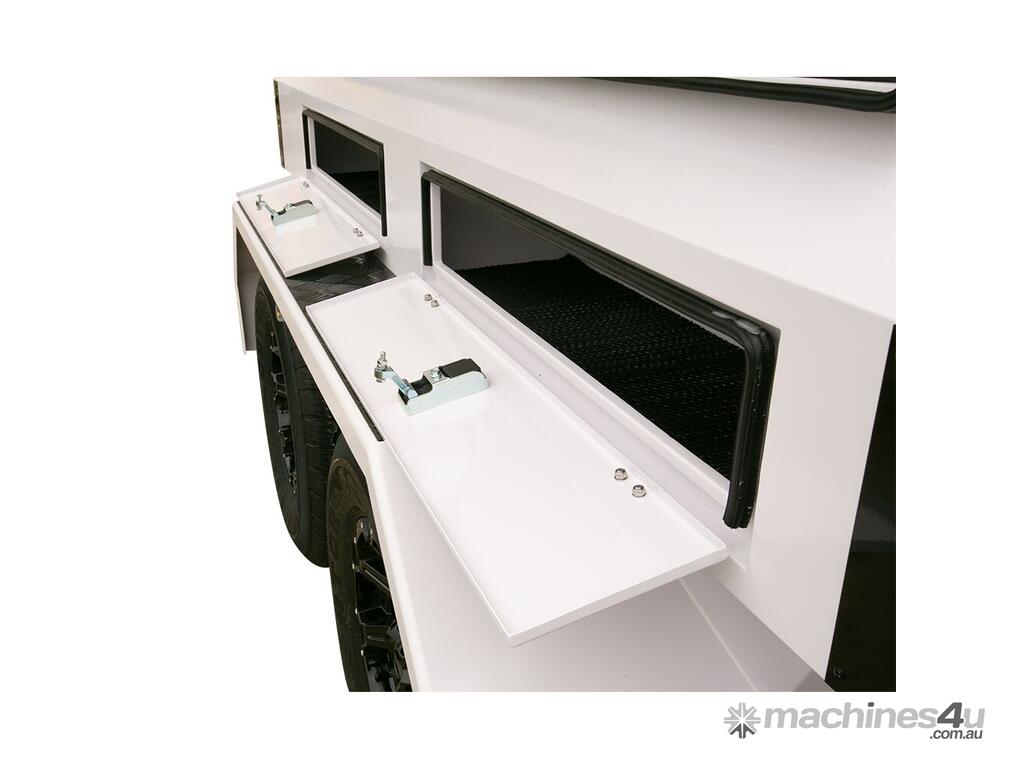

Additional storage compartments (Right side)
Longest point – 450 length x 700 width x 200 height.
Lowest point – 340 length x 700 width x 200height.
Additional storage compartments (Left side)
Longest point – 450 length x 700 width x 200 height.
Lowest point – 340 length x 700 width x 200 height.
Internal fans were found in front of the wheel holder behind the fridge.

Body Specs & Features
Model TT85
Tare 1590
Aggregate Trailer mass 3500
Axle Group Loading 3500
Tyre Size 256 75R16 Inch
Cold Inflation Pressure 275
Gloss White External
Gloss White Internal
Drawbar 1800mm long 50 x 100
Free upgrade ARK500 Jockey wheel

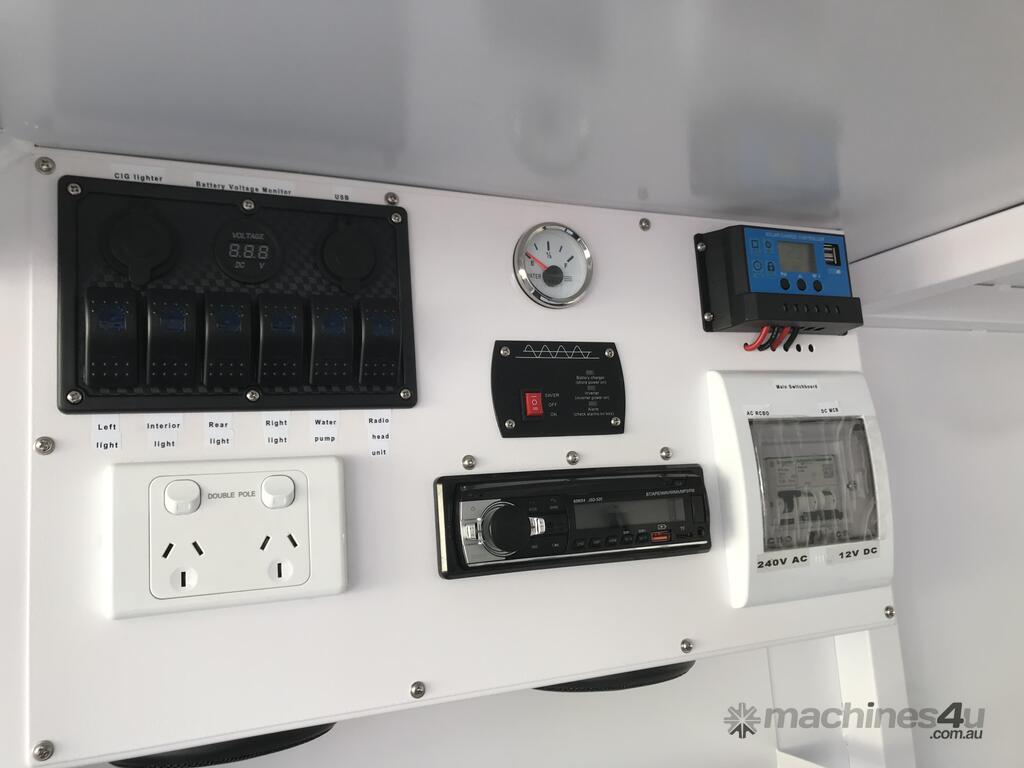

Power outlets, 2 speaker radios
Converter found within the main compartment.
Dual Battery
Anderson plugs, external sockets, power button.
Water gauge indicating levels found within the compartment.
Water tank runs inside the chassis and sits on the left-hand side.
70L Dual water tank found underneath.

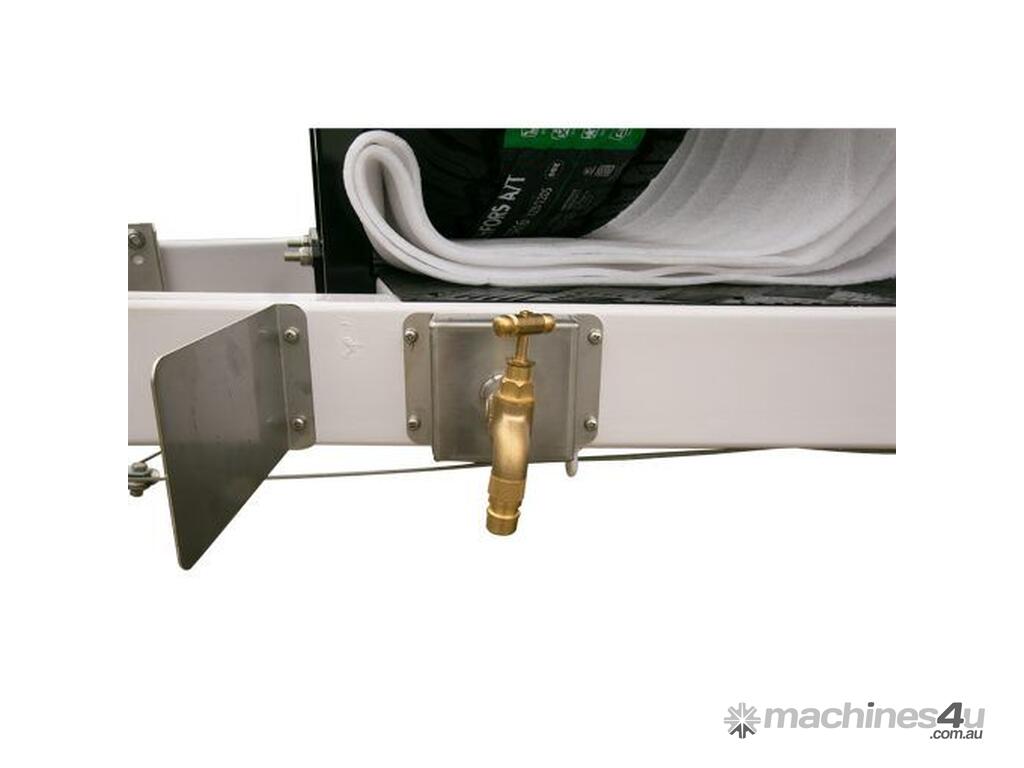

Hose runs inside the chassis where you can open the tap.
Water pump fitted.

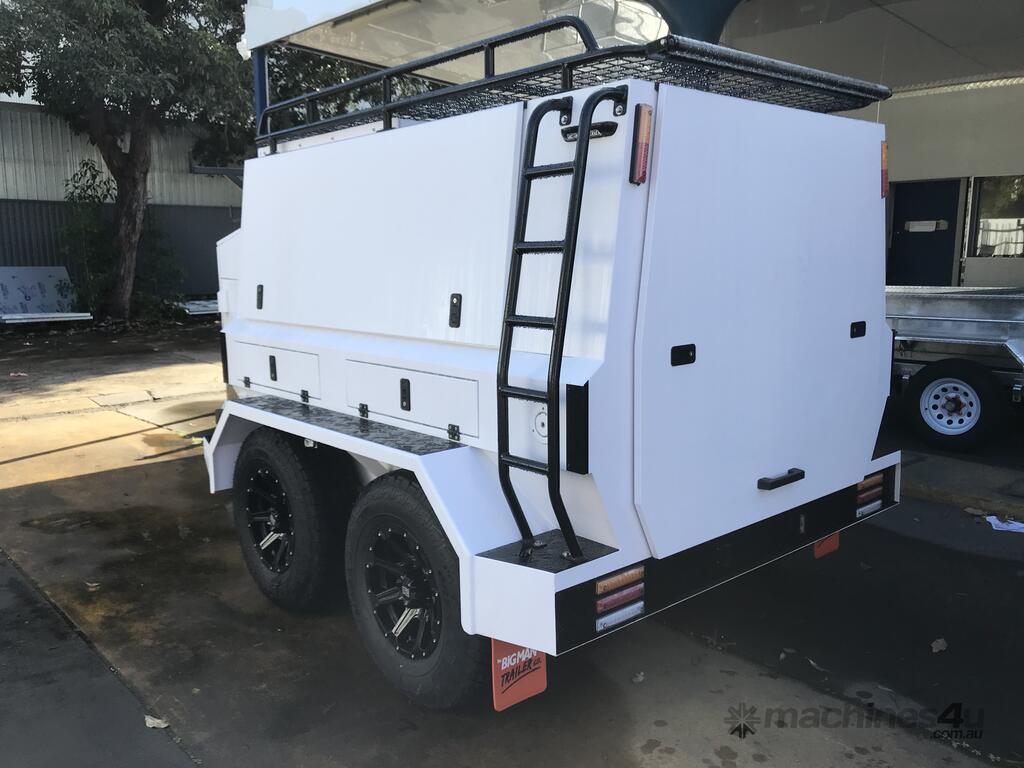

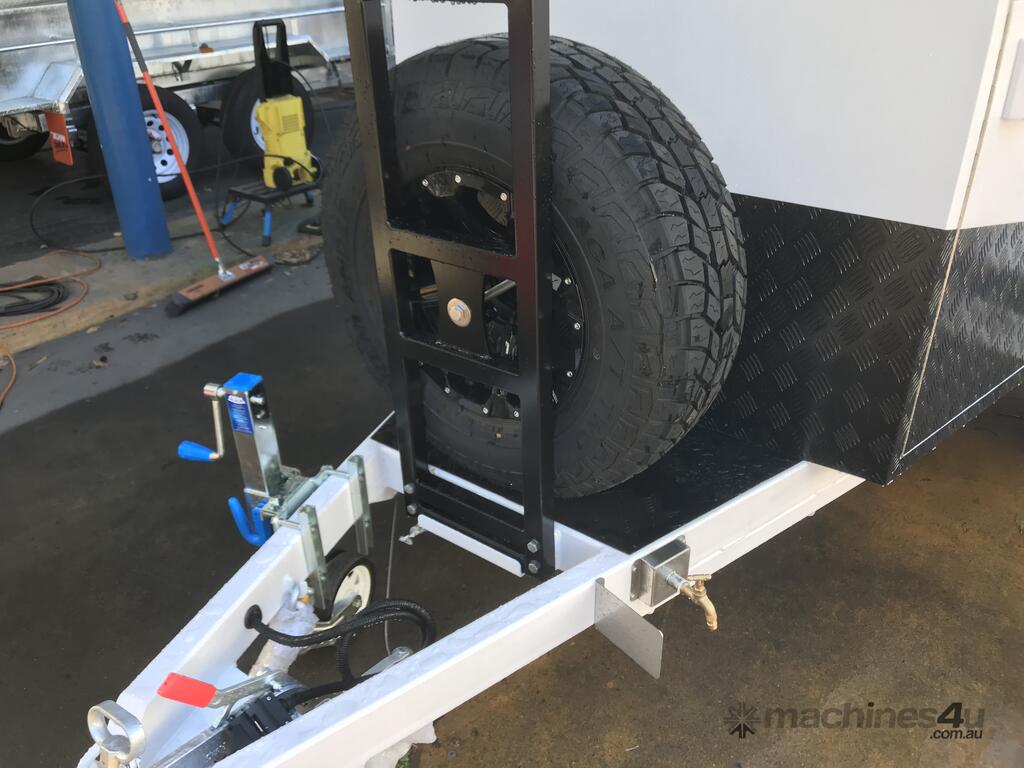

Black ladder rack located at the front with a spare tyre.

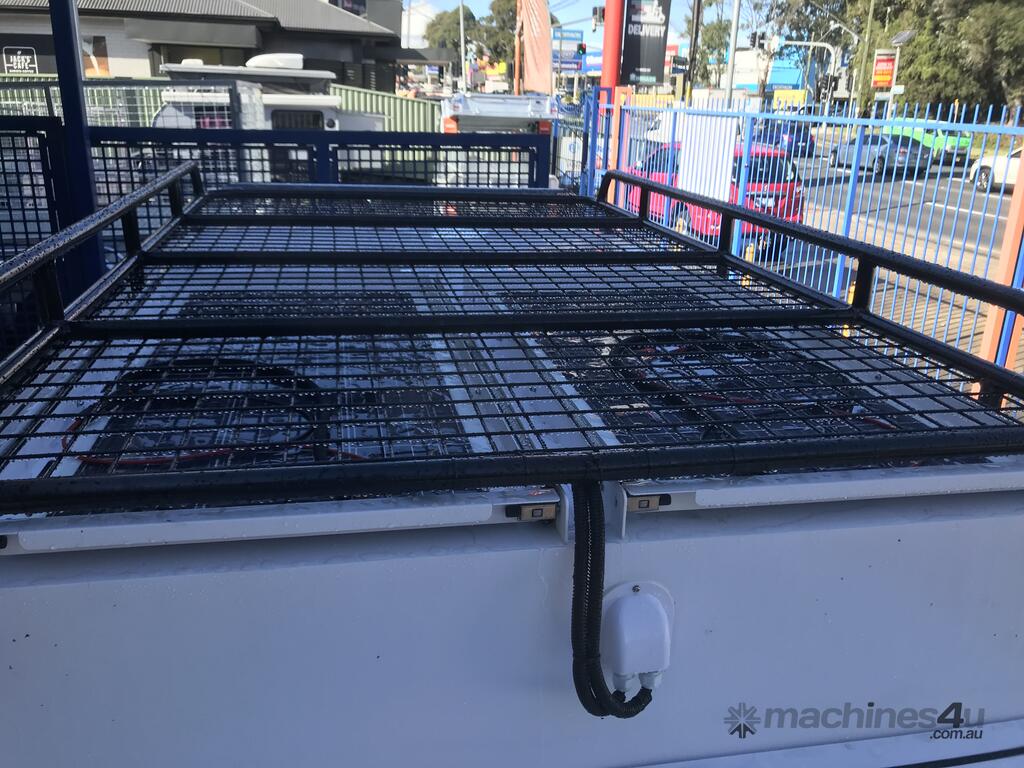

2 x Solar panel slide-outs located underneath the roof cage.
Fridge slide-out with Fan.

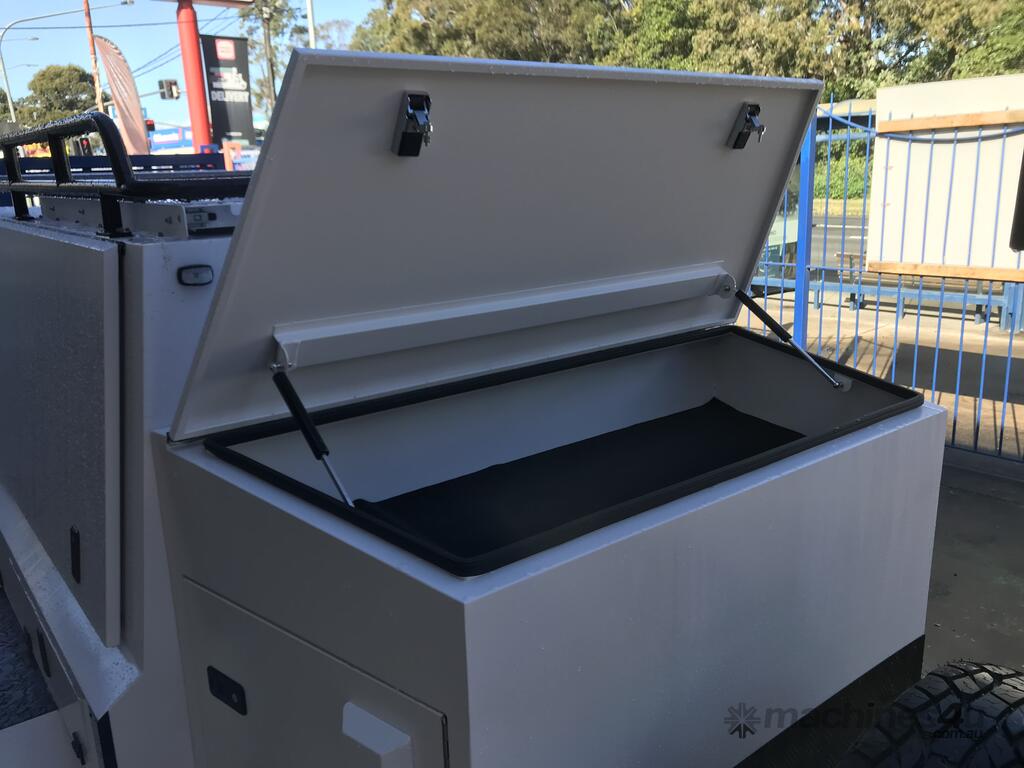

Compression press-release locks on all doors.
Gas struts for all doors.
Black checker plate finish for all step-on areas.

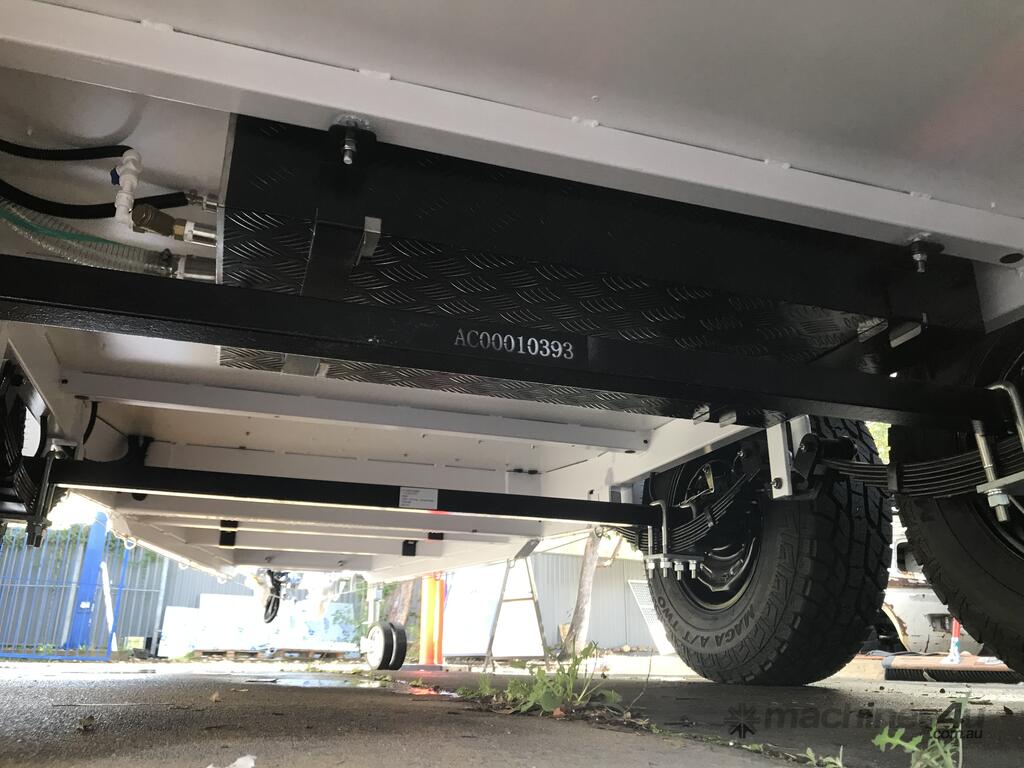

Rocker roller 9 leafs suspension
Ladder rack located at rear, 1300 height.

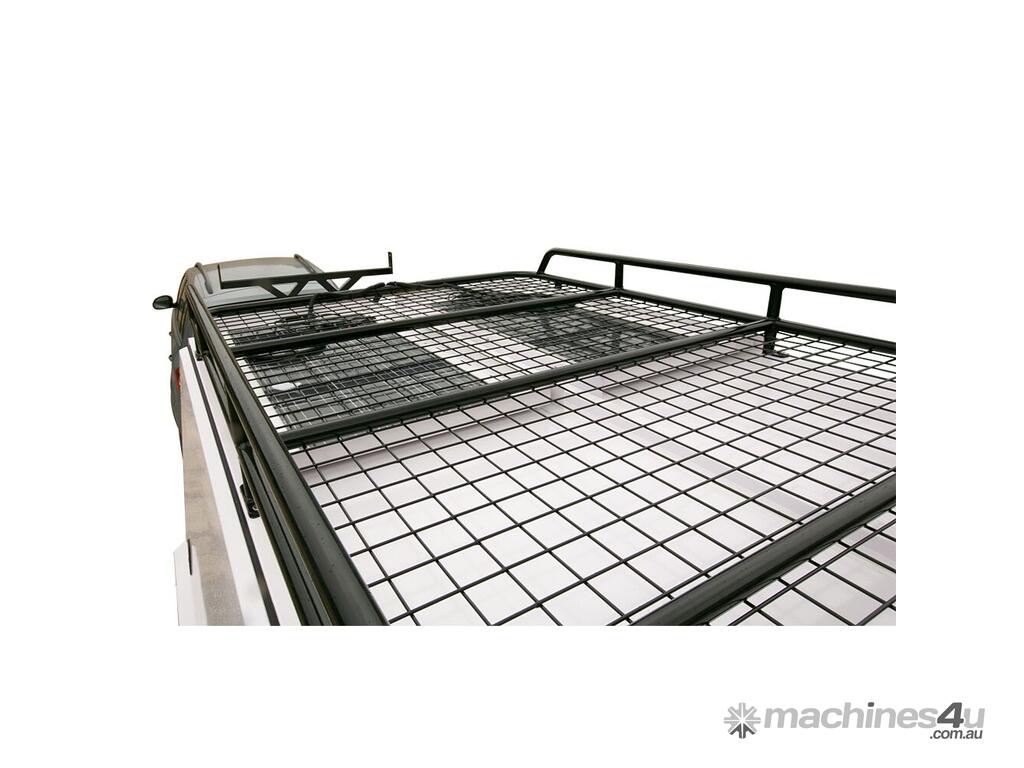

Roof Luggage Carrier Included.
Brake, parker, reverse, and number plate lights with a black checker plate finish.

Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories

Pick up in our local stores are free, but please always contact us for availability.

We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.

Finance is Available on all of our trailers however please contact us via phone or for further information.
