8x5 Carpentry Builders Trailer 240v Black 3500KG ATM Tradie Trailer BIGMAN TRAILER

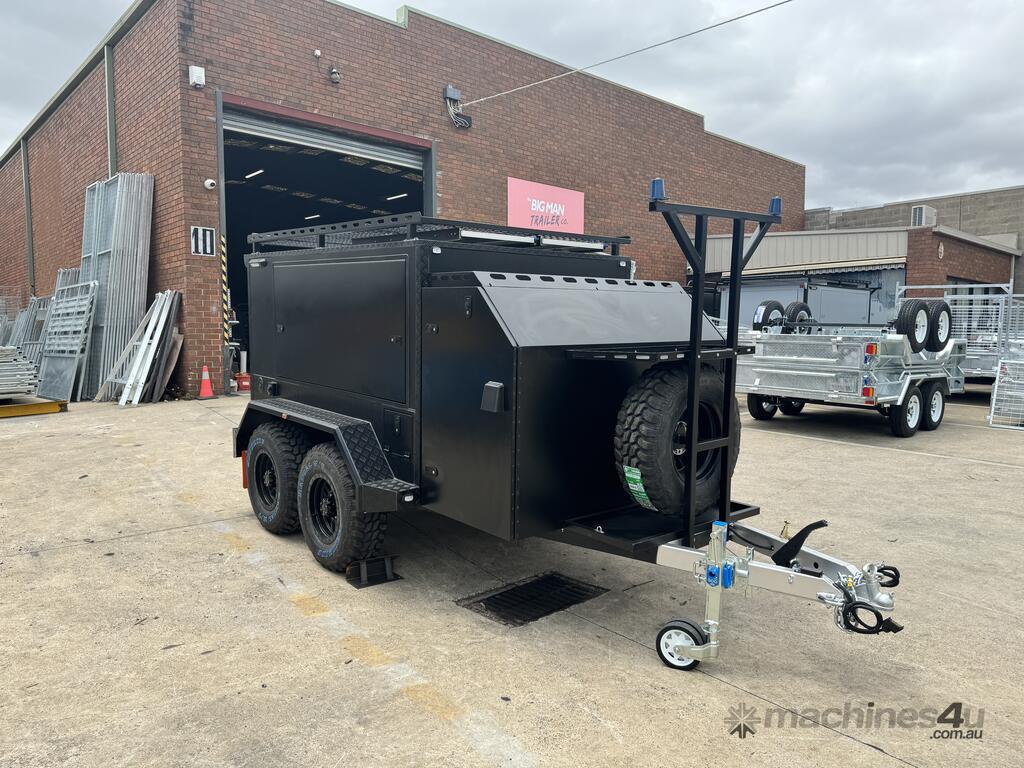

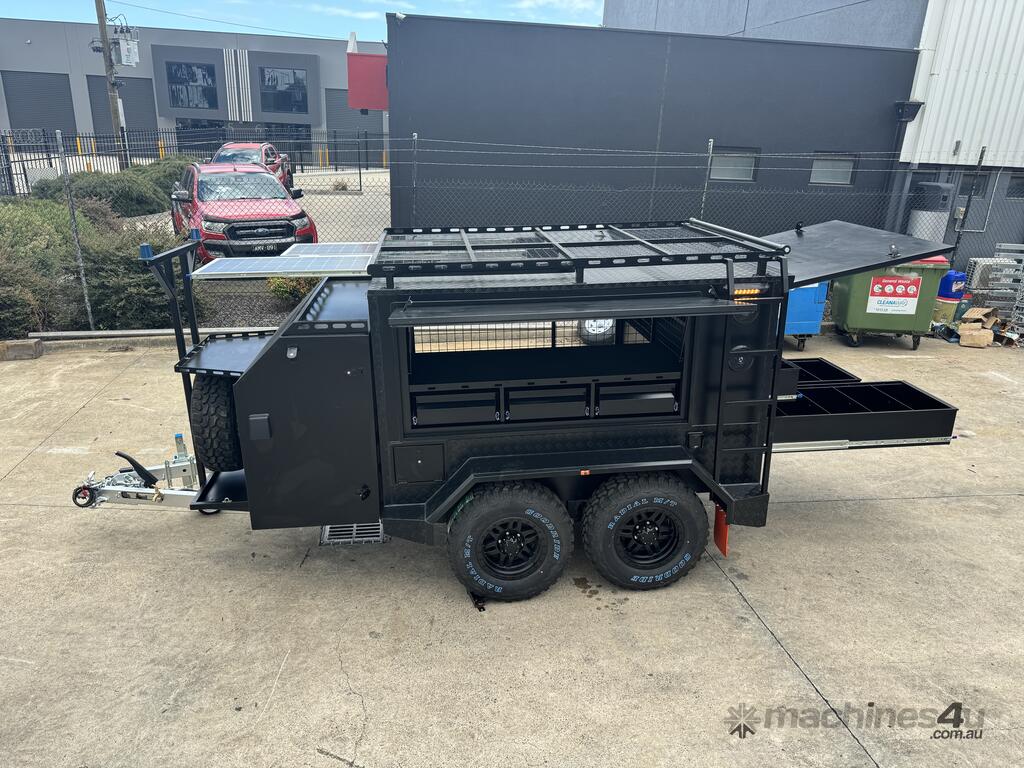

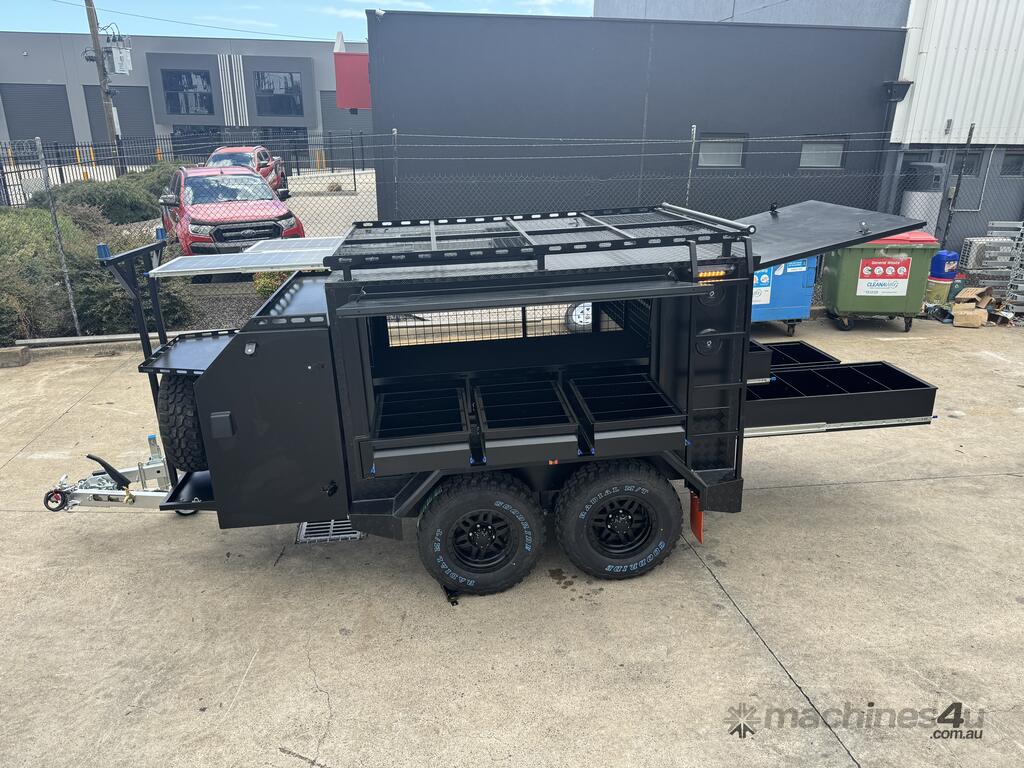

About the 8×5 Tradesman Tool Trailer – Matte Black
The 8×5 Tradesman Tool Trailer in Matte Black stands as a testament to versatility and strength, designed to meet the rigorous demands of builders and tradespeople alike. This trailer offers a sophisticated storage solution, featuring side compartments, under-compartment storage, and convenient rear slide-out drawers for optimal organization. Its robust framework supports a tare of 1610 and an aggregate trailer mass of 3500, rolling on durable 256 75R16 inch tyres anchored by a solid 1800mm drawbar. Equipped with dual batteries, Anderson plugs, and external sockets, plus a water gauge and an 70L water tank, it ensures maximum productivity on any project. Safety and convenience are enhanced by a black ladder rack, solar panel slide-outs, and secure compression press-release locks. Completed with a rocker roller 8-leaf suspension and a practical yet stylish black checker plate finish, this trailer is the ultimate ally for tradesmen seeking reliability and style.
Storage Features

Storage Features
The main compartment area on left side is 1850 W x 810 L x 610 H

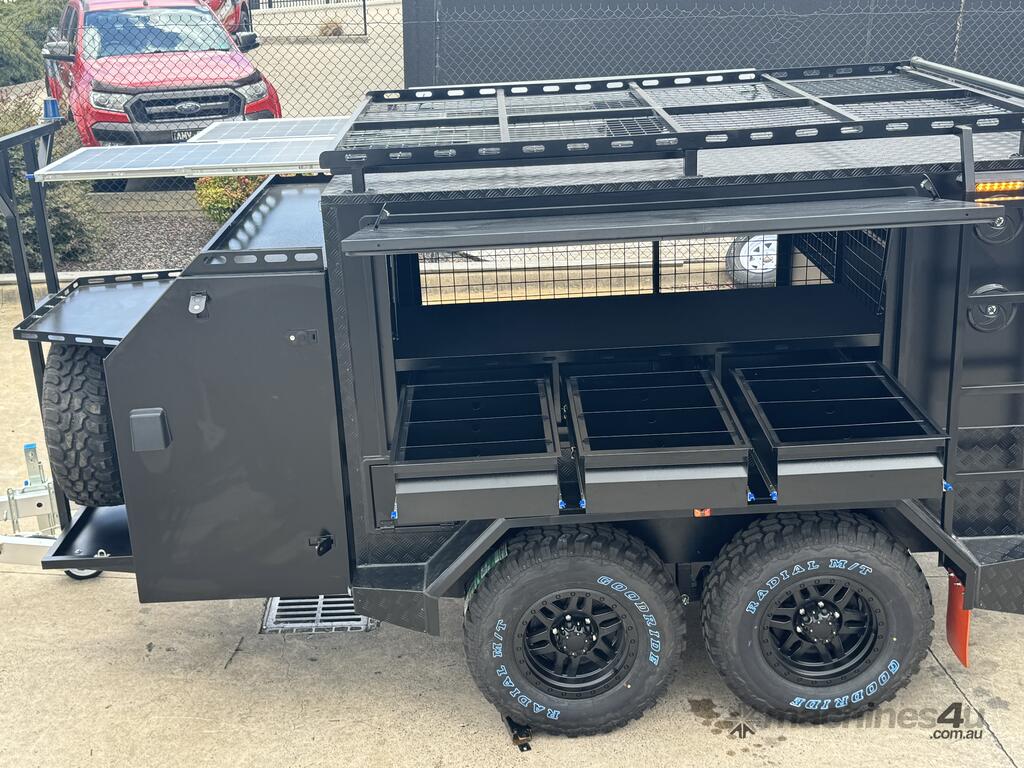

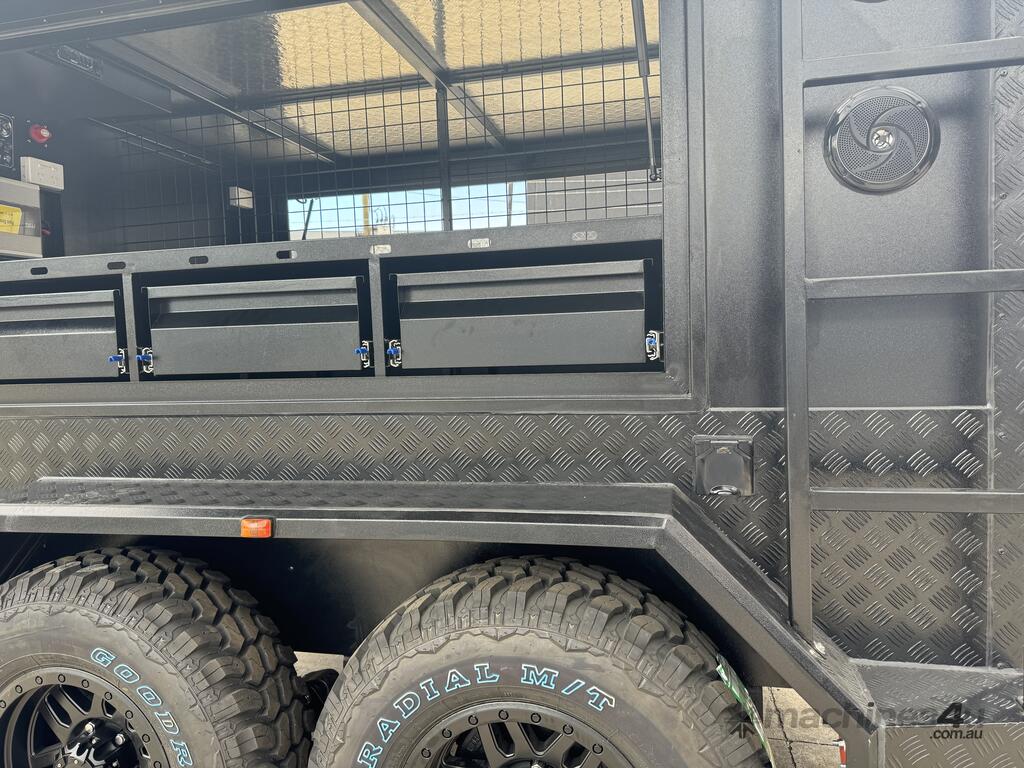

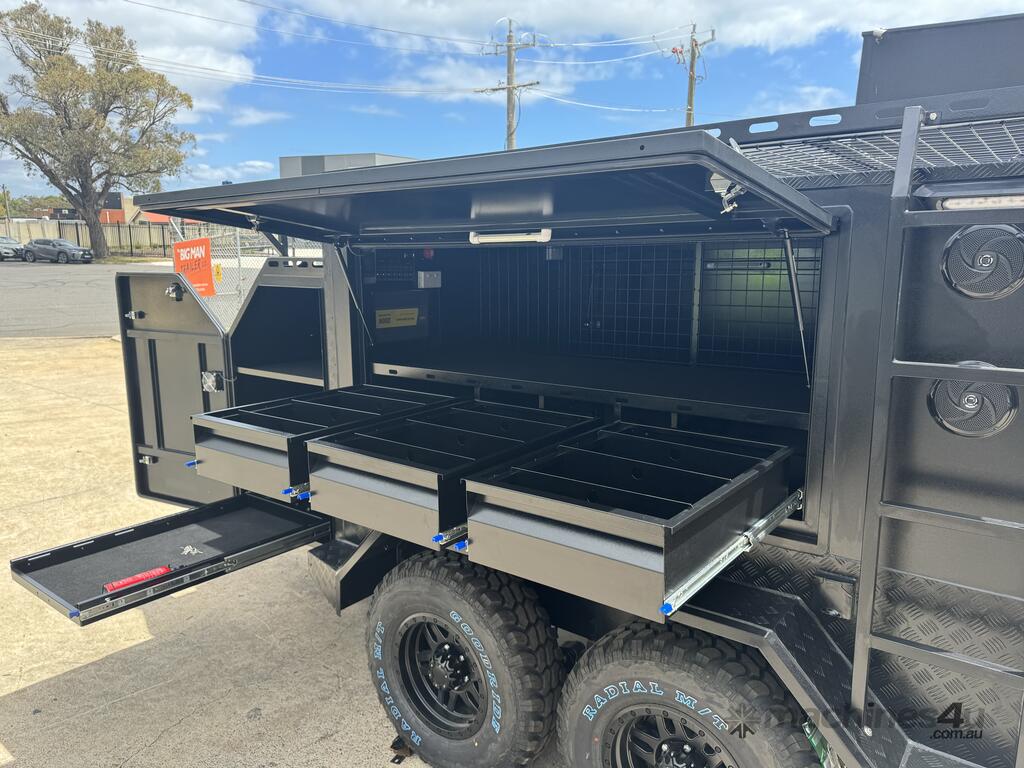

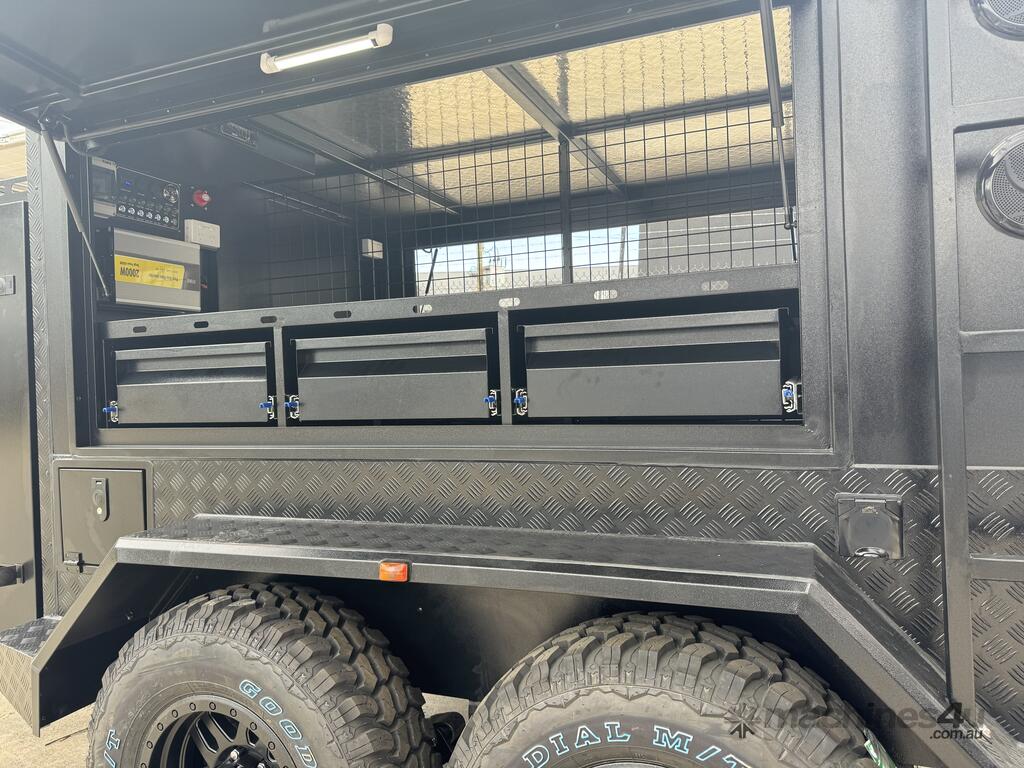

3x drawers at the main compartment area 480w x 740L x 200H each.

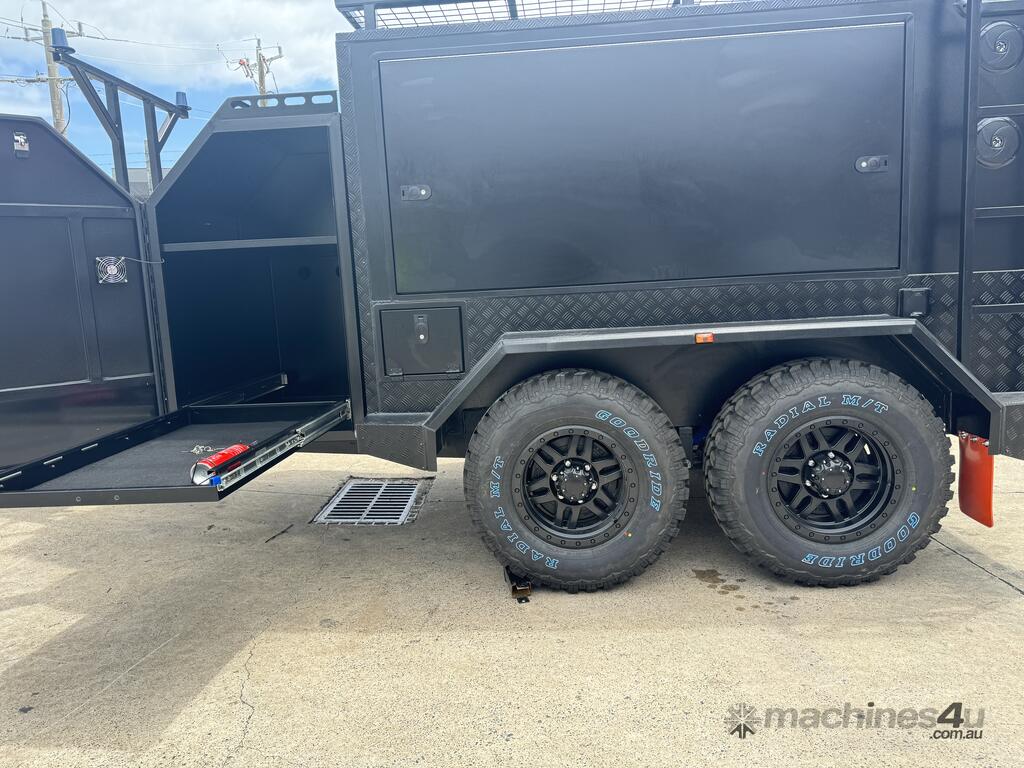

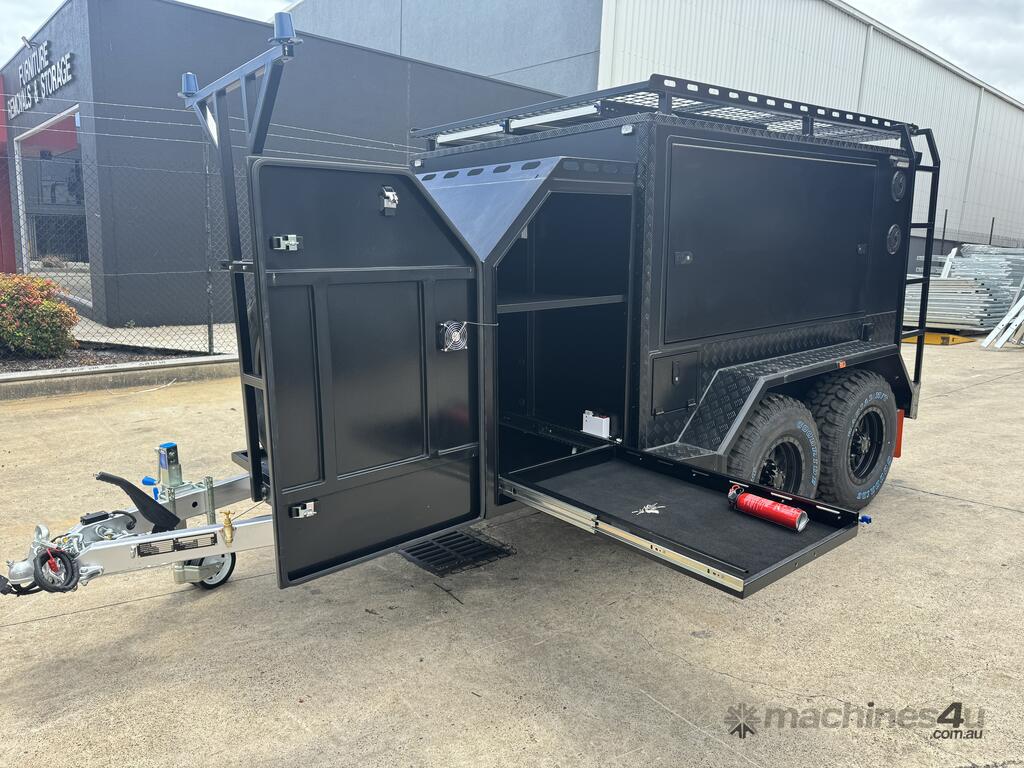

Slide out fridge storage (670w x 980L x660H)
Additional Compartment above the fridge ( 670W x 870L x 380H)

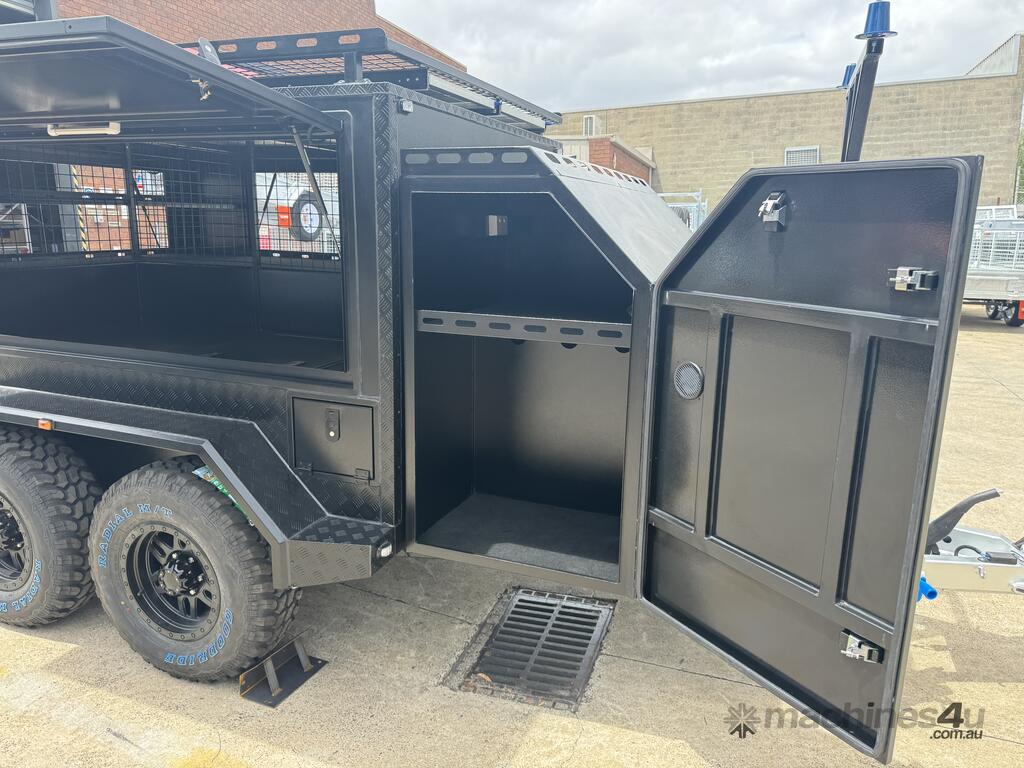

The main compartment area on right side is 1930 W x 810 L x 850 H
Right side storage bottom shelves 670w x 500L x 700H, Top shelve 670w x760L x350H
2 x shelves located at the rear: 1680w x 400L x 220H

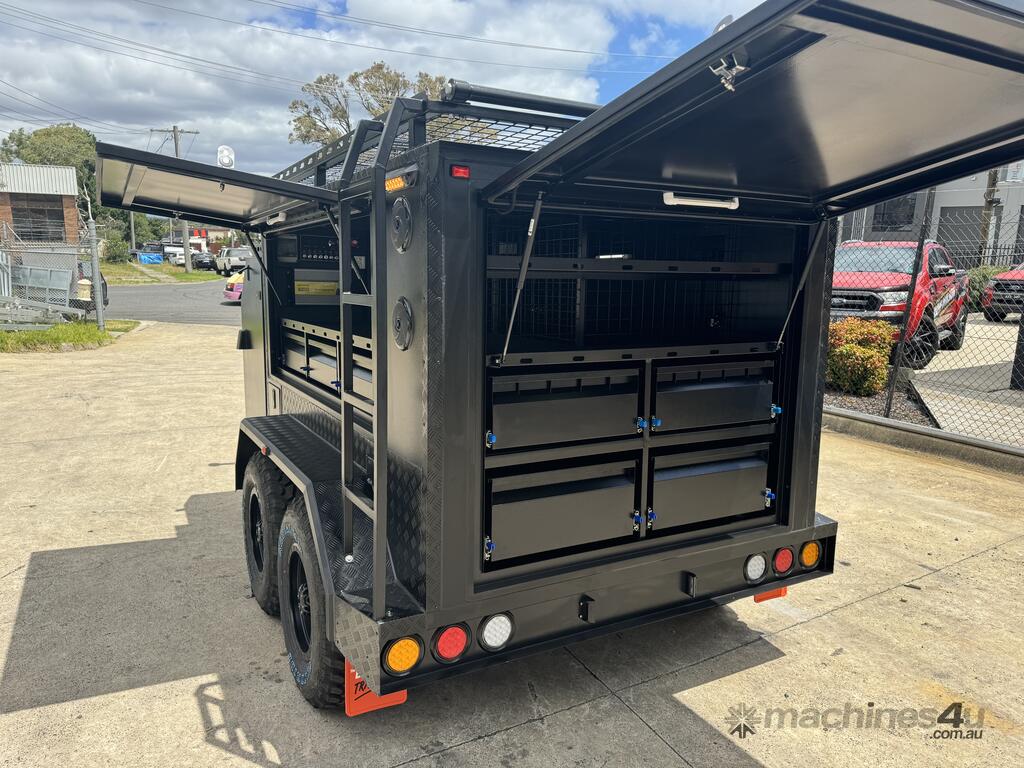

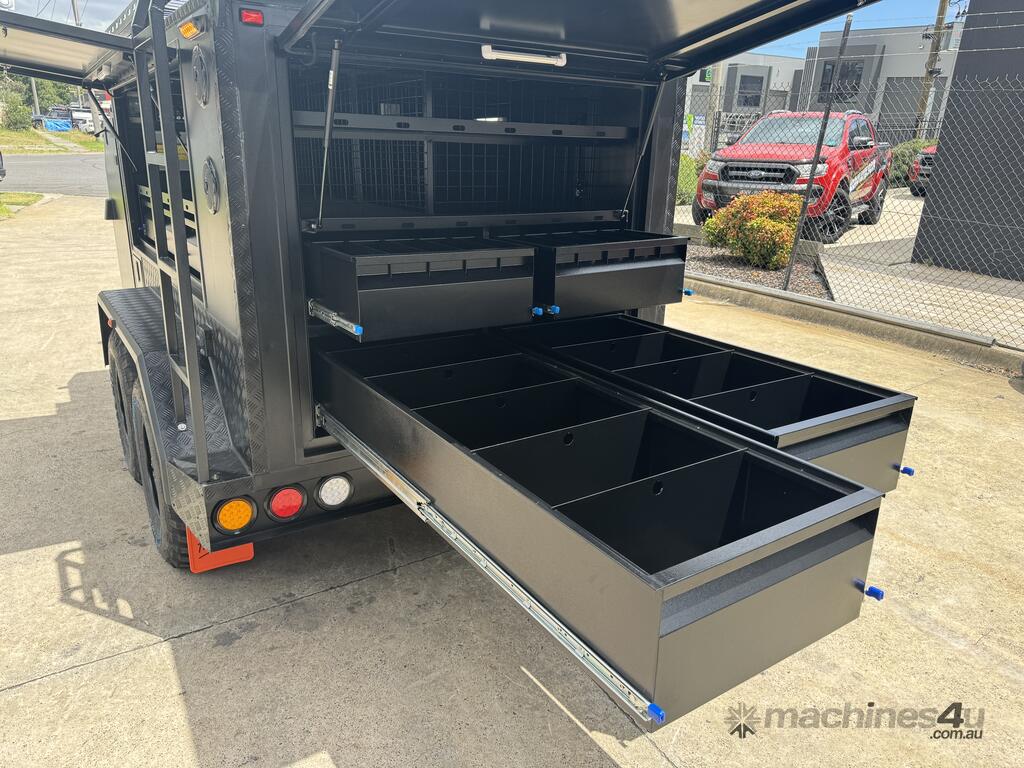

2 x pull-out drawers located at the rear middle: 570W x 330L x 210H

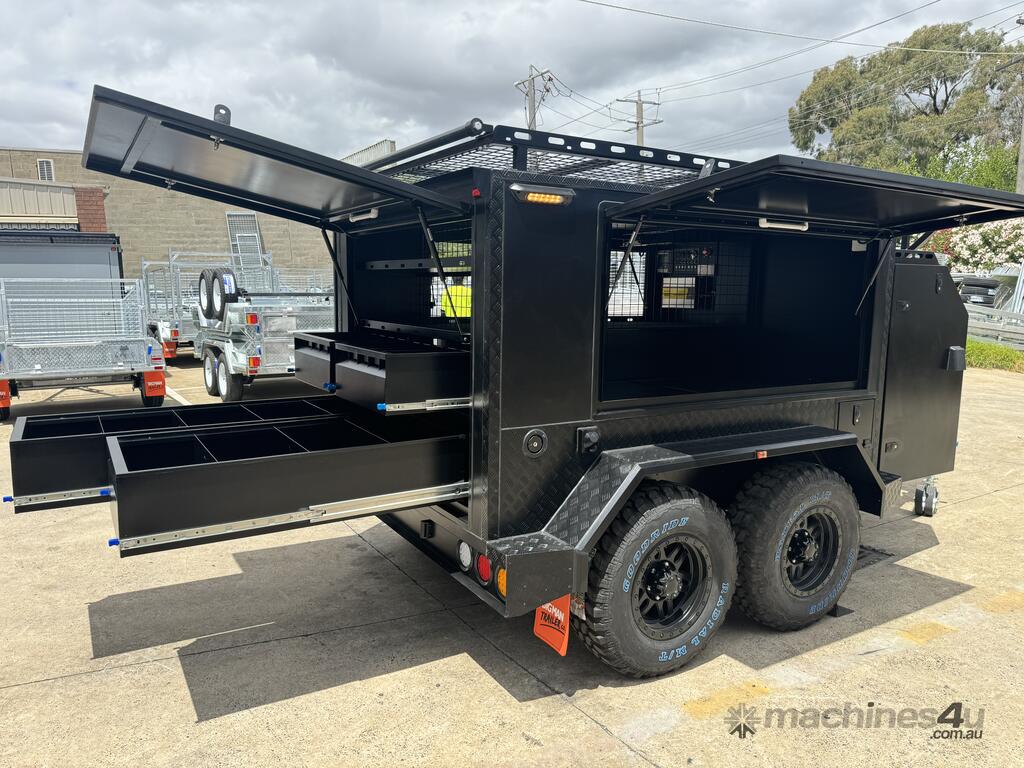

2 x pull-out drawers located at the rear bottom:
Left 570w x 1900L x360H, Right 570w x 1240L x 360H
Power outlets, 2 speaker radios

Body Specs & Features
TT85RB

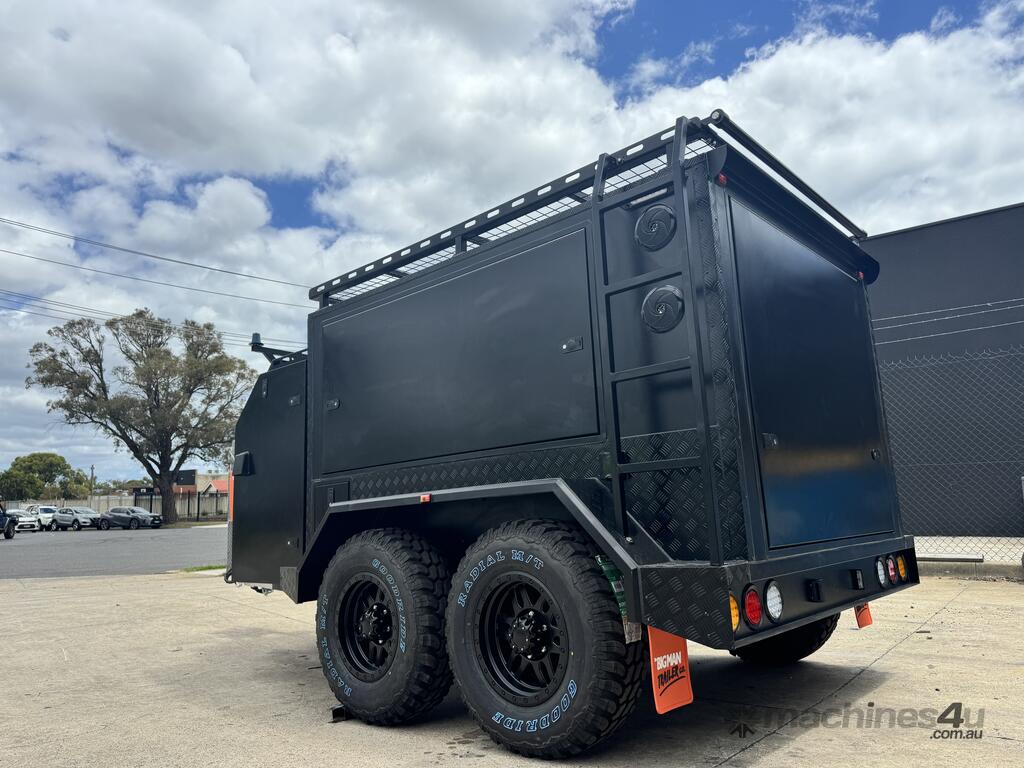

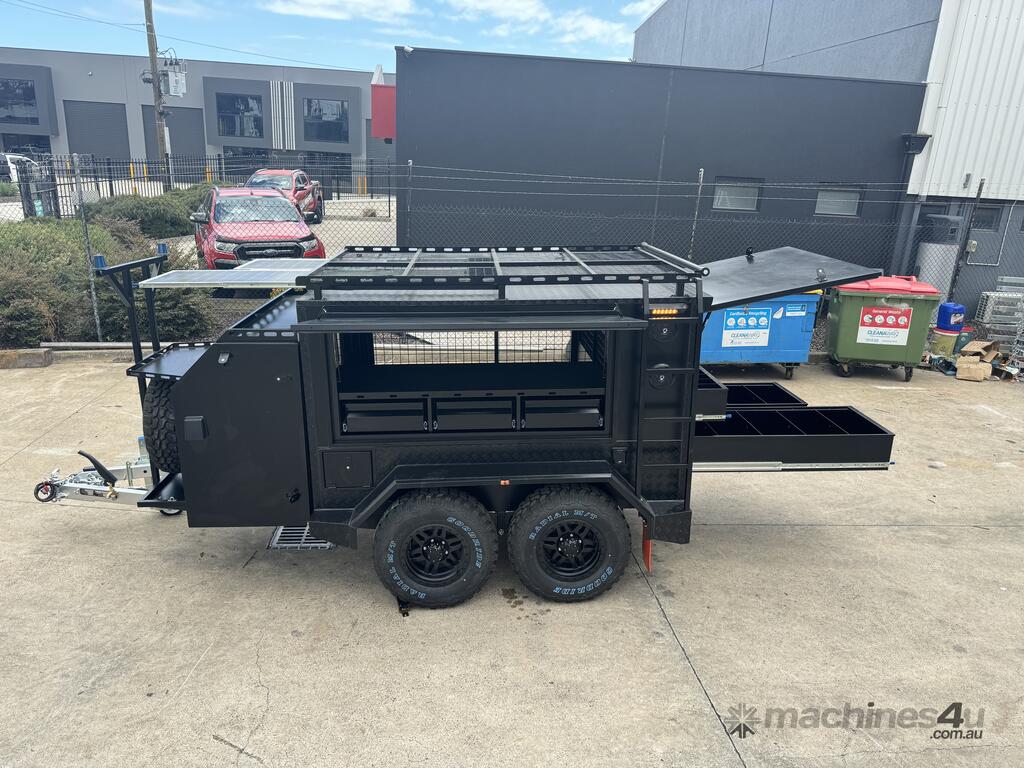

Overall length 4800 x 2100(W) x 2170( H)
Tare Mass 1610kg
Aggregate Trailer Mass (ATM) 3500kg
Trailer Dimensions 8 x 5 Dual Solid Axle Model
Colours Matte White, Matte Black, Grey
One-piece chassis design is made from galvanized steel

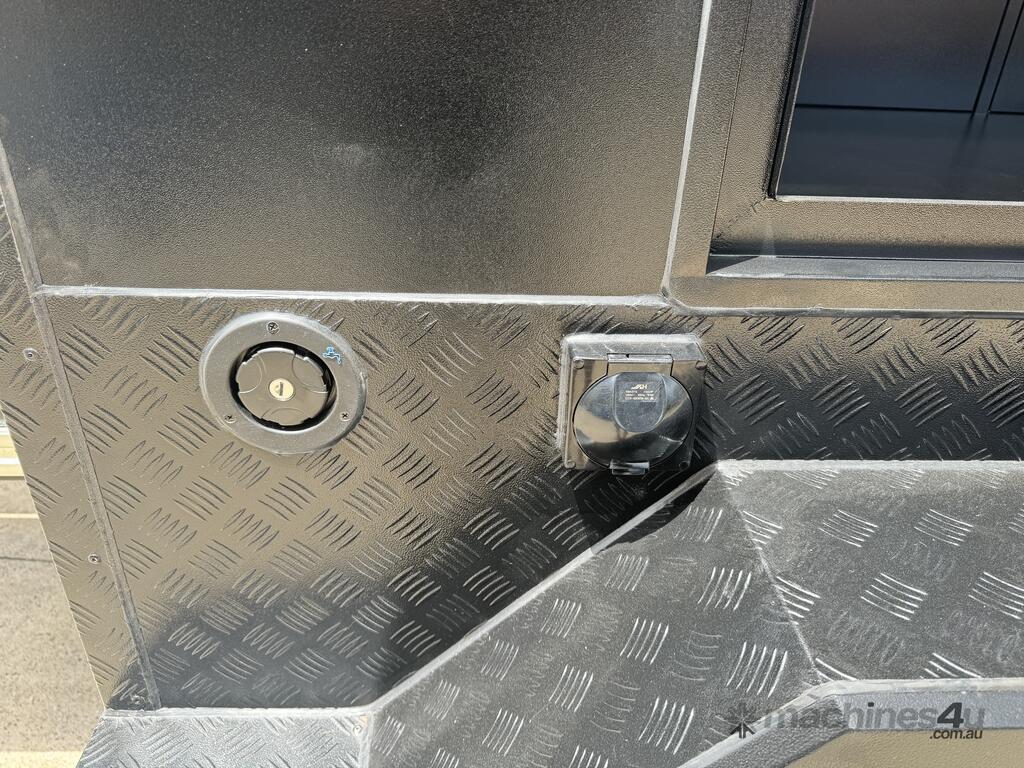

Water gauge indicating levels found within the compartment.

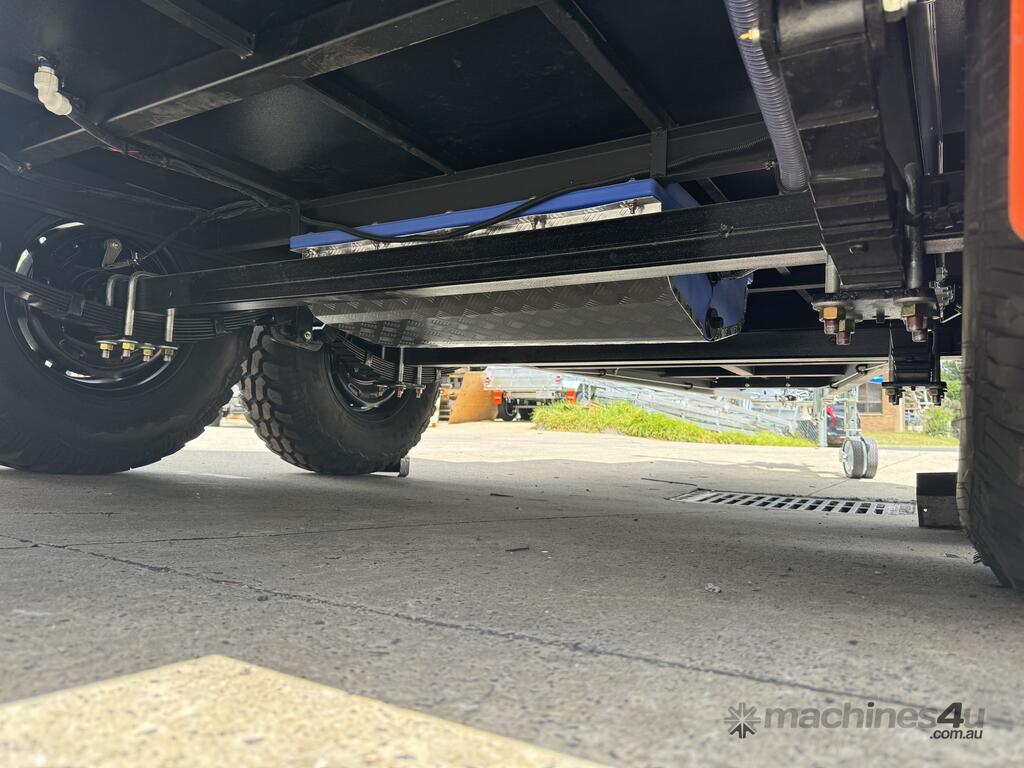

Water tank runs inside the chassis and sits on the left-hand side.
70L water tank on a 12v pump with tap
A high-pressure tap mounted to the drawbar
Gas struts for all doors
1900mm long rear trundle drawers
Rear load ball bearing ladder roller

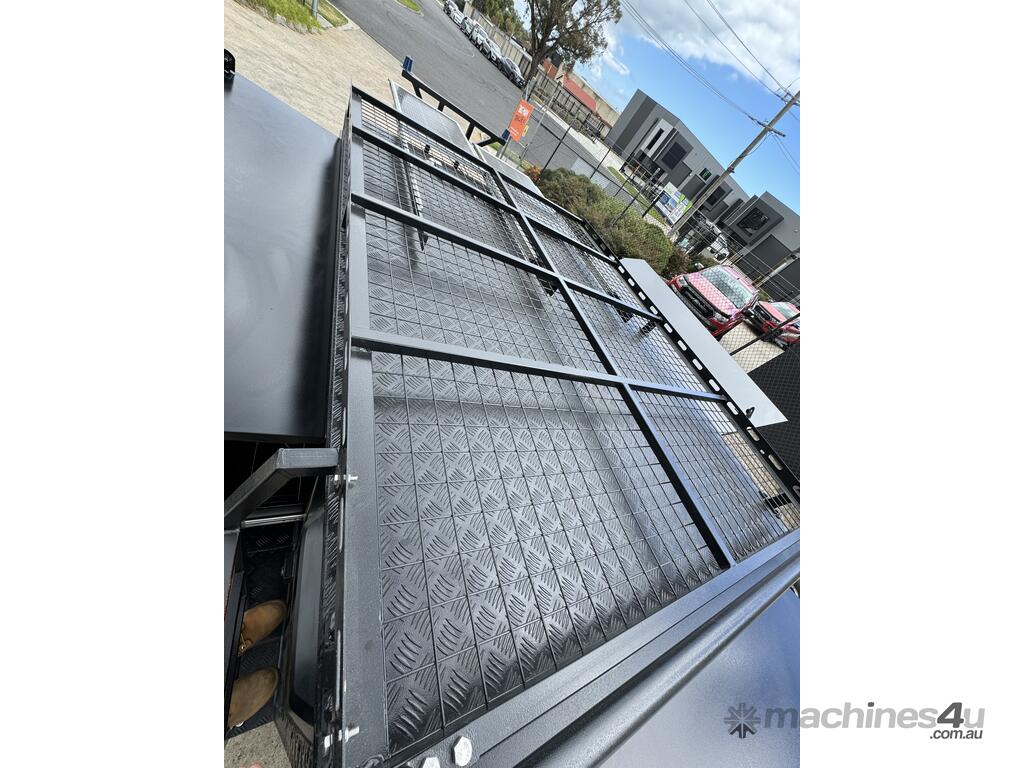

Roof access via a heavy-duty built-in ladder
Power wherever you go with 2 x 100 aH batteries
2x 110 kW solar panels mounted on slides to get more sun on-site

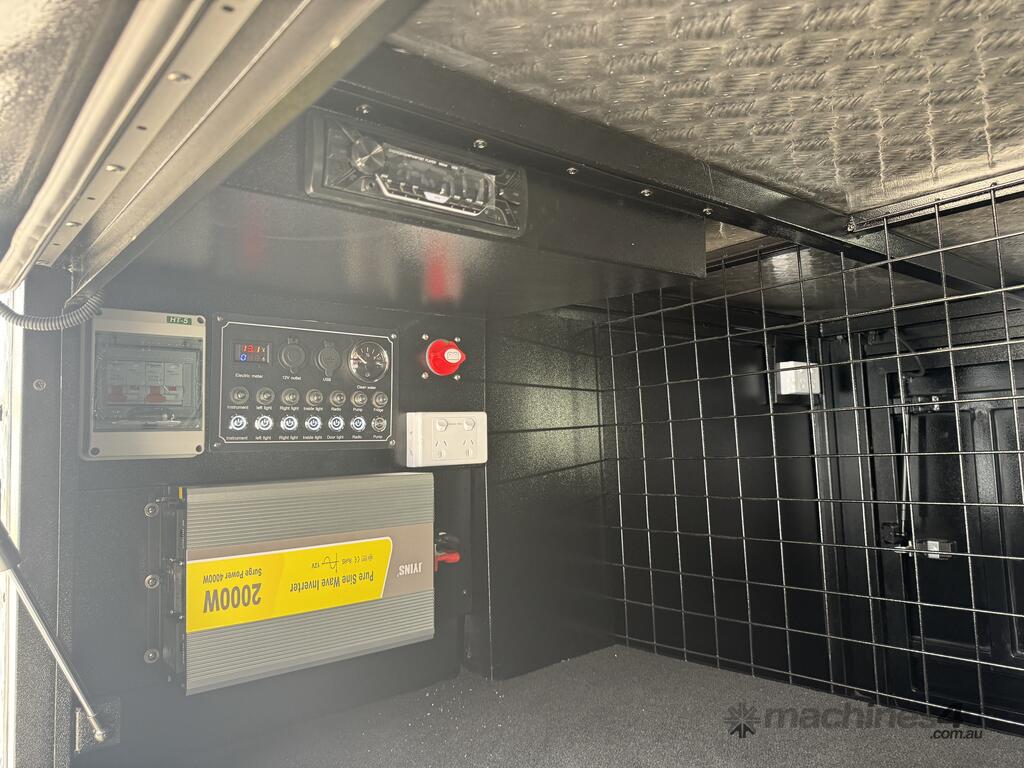

2000-watt pure sine wave smart inverter
LED lighting inside & outside
Double GPOs, USB phone charger, 12v charger, and Anderson plug are all included!
12-inch electric drum brakes all around
265/75R16 LT tires on black alloy wheels fitted to Landcruiser 6 bolt hubs
70mm solid axles
Tow Ball 50mm

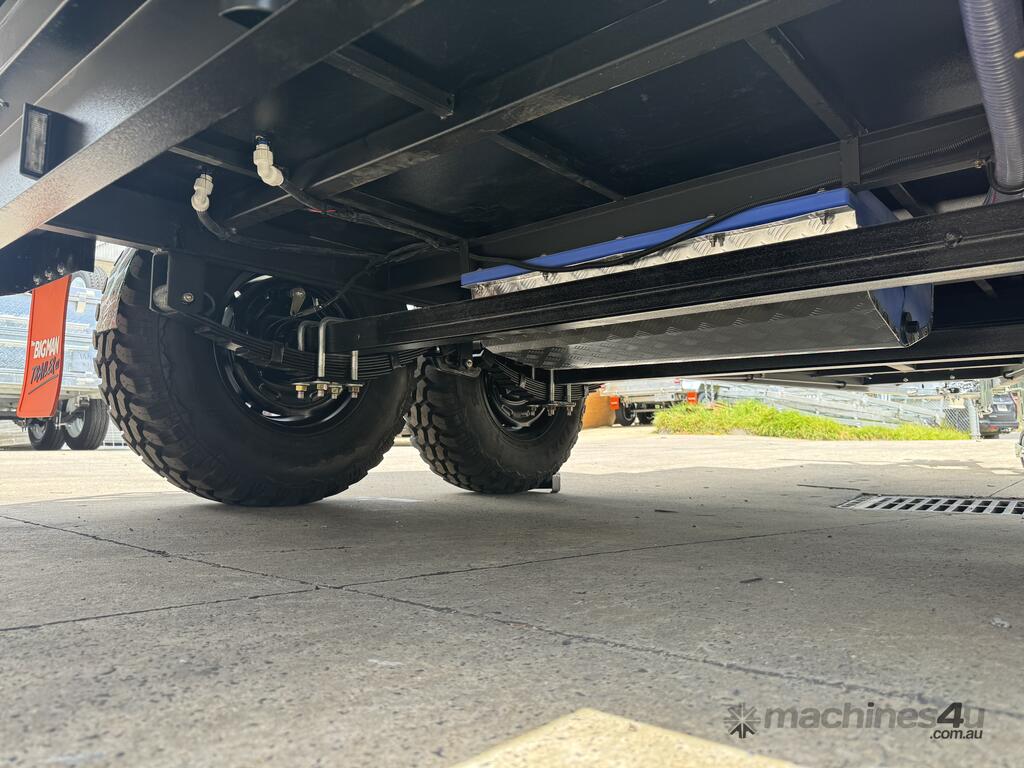

Suspension: 8-leaf Rocker Roller Suspension

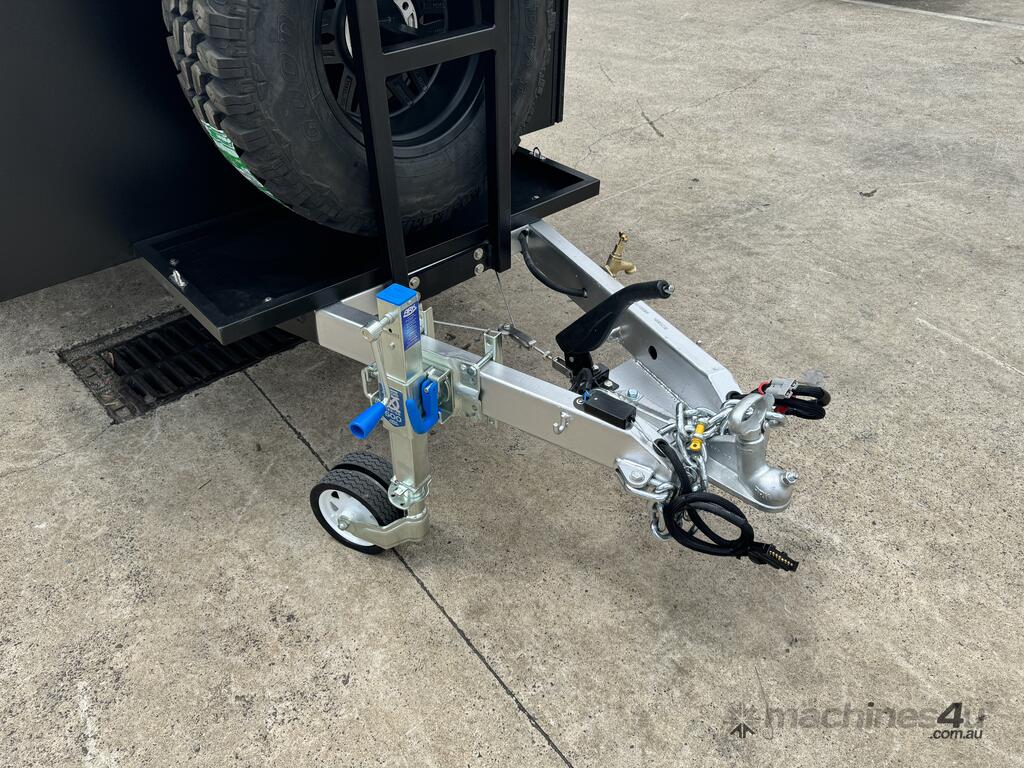

Free upgrade ARK500 Jockey wheel
Power outlets, 2 speaker radios

Pictures shown are only for demonstration only.

Pick up in our local stores are free, but please always contact us for availability.

We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.

Finance is Available on all of our trailers however please contact us via phone or for further information.

The Big Man Trailer Co. specializes in designing and manufacturing high-quality trailers tailored to the specific needs of professionals and home users alike. Founded in 2014 in Dandenong, Victoria, the company has built a reputation for innovation, durability, and compliance with Australian Design Rules and Standards. Initially producing trailer parts, The Big Man Trailer Co. expanded in 2016 to deliver complete trailer solutions that cater to industries ranging from construction and farming to landscaping and furniture moving, with a strong focus on customer service and after-sales support.

Go to The Big Man Trailer Co showroom on Machines4u to see the full range of trailers that is available for immediate national delivery, send The Big Man Trailer Co a message about the item you are interested in, or give The Big Man Trailer Co a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet or contact us for more detailed information *
