8x5 Tandem Tradie Trailer - Black 3500KG ATM Tradie Trailer BIGMAN TRAILER 2025 Model

The 8×5 Tradie Trailer in black is a cutting-edge, versatile, and robust solution for builders and tradespeople of all professions. Designed for 2025, the new TT85BV2 model enhances functionality, storage, and safety, making it the ultimate tool for any job site. The trailer features a comprehensive storage system, including spacious main compartments on each side, newly designed slide-out drawers underneath, and slide-out drawers at the rear, with an added internal drawer in the latest model to maximize storage capacity. A 50-liter fridge slide-out with a fan and additional compartments ensures convenience, while internal fans near the wheel holder further enhance its practicality. The new rear fog lights improve visibility and safety during nighttime work. This model is equipped with dual batteries, anderson plugs, external sockets, a water gauge, and a 70L water tank, making it a reliable companion on the job. Other features include a black ladder rack with a spare tire, solar panel slide-outs and a rocker roller 9-leaf suspension for superior handling. With upgraded lighting, a roof luggage carrier, and a sleek black checker plate finish on step-on areas, the trailer balances style and utility. Built with 256 75R16 inch tires and a sturdy 1800mm drawbar, the TT85BV2 now has a tare weight of 1750 kg while maintaining a 3500kg aggregate trailer mass. Additionally, the new model includes a central locking system as a standard feature, ensuring optimal security for tools and equipment. Practical, innovative, and built for performance, the 8×5 Tradie Trailer is the perfect choice for professionals who demand reliability and excellence.

Storage Features
2x smaller compartments underneath the main compartment area on left (450w x 450L x 450H).

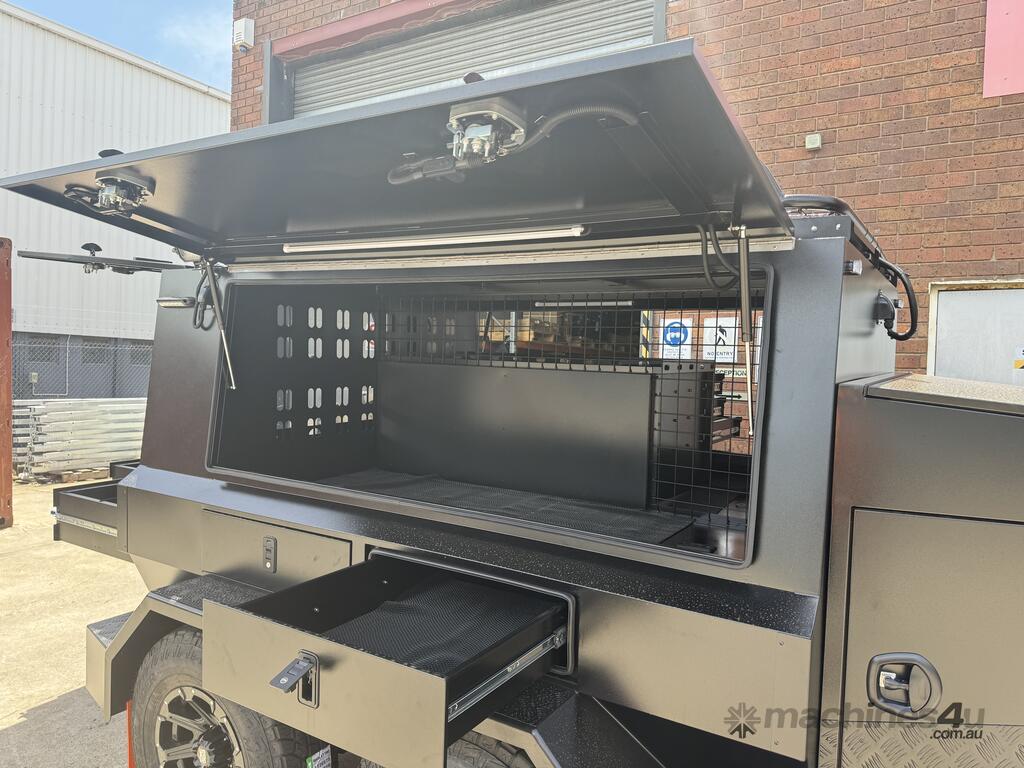

The main compartment area on either side is 1700 in width x 1950 length x 820 in depth.
Fridge slide out – 50 Litres with Fan.
Additional Compartment above the fridge – 1100 width x 600 length x 200 Depth.
2 x shelves located at the rear:
Bottom shelves – 1800 width x 450 length x 420 height.
Top shelf – 1500 width x 390 length x 380 height.

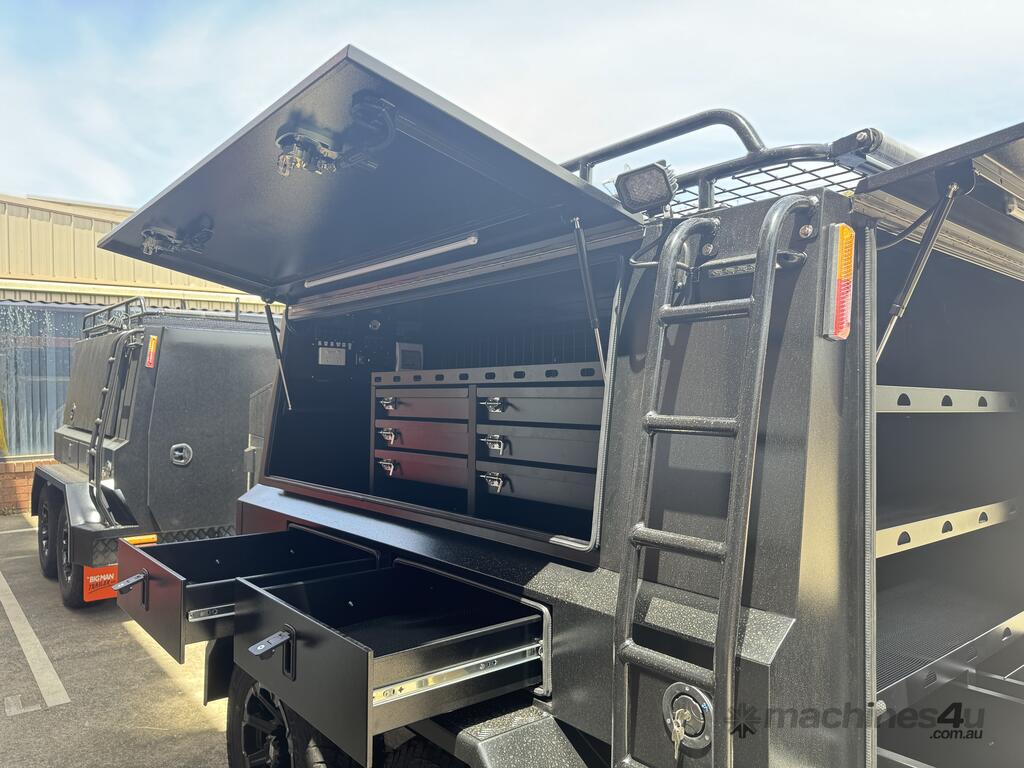

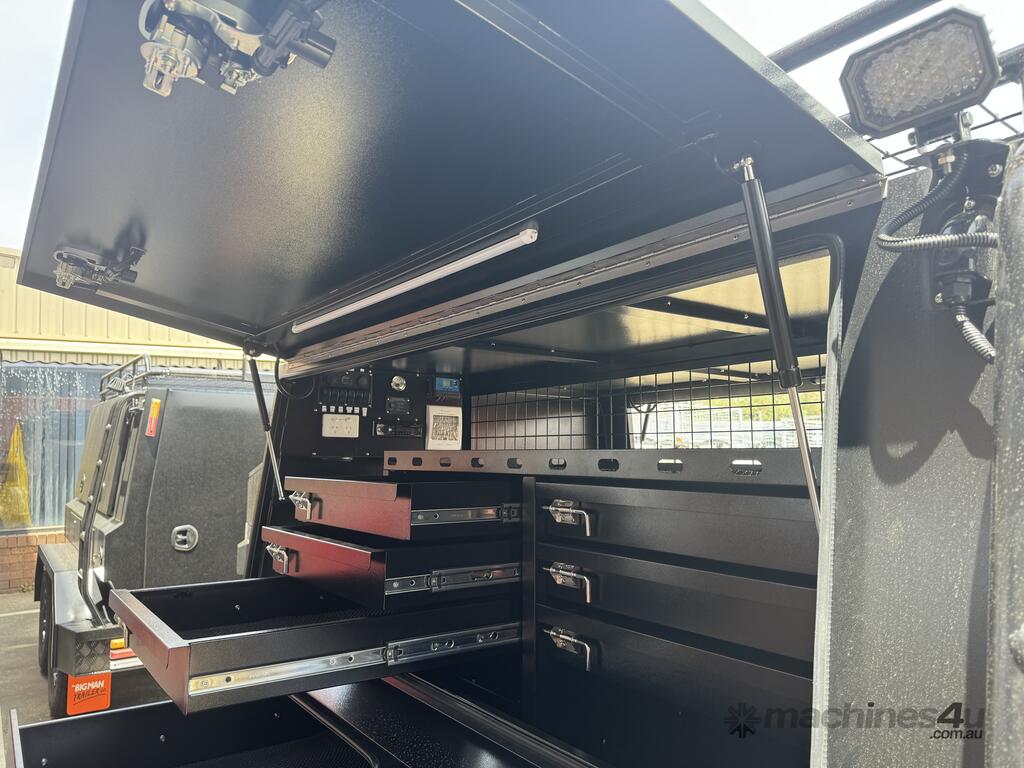

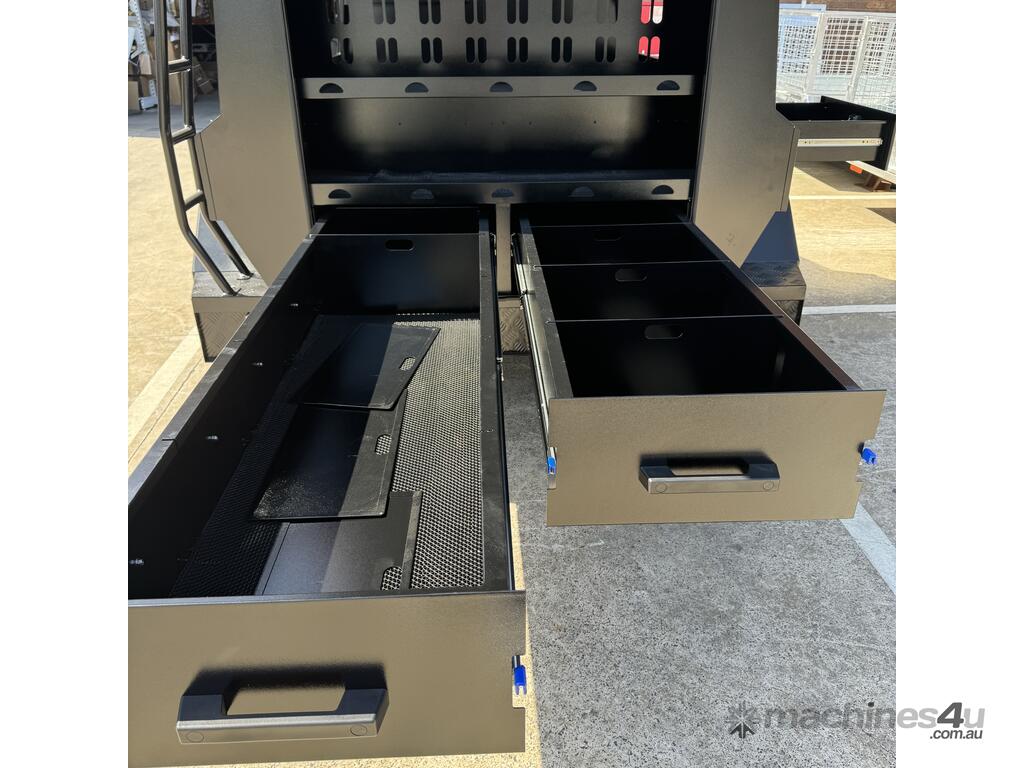

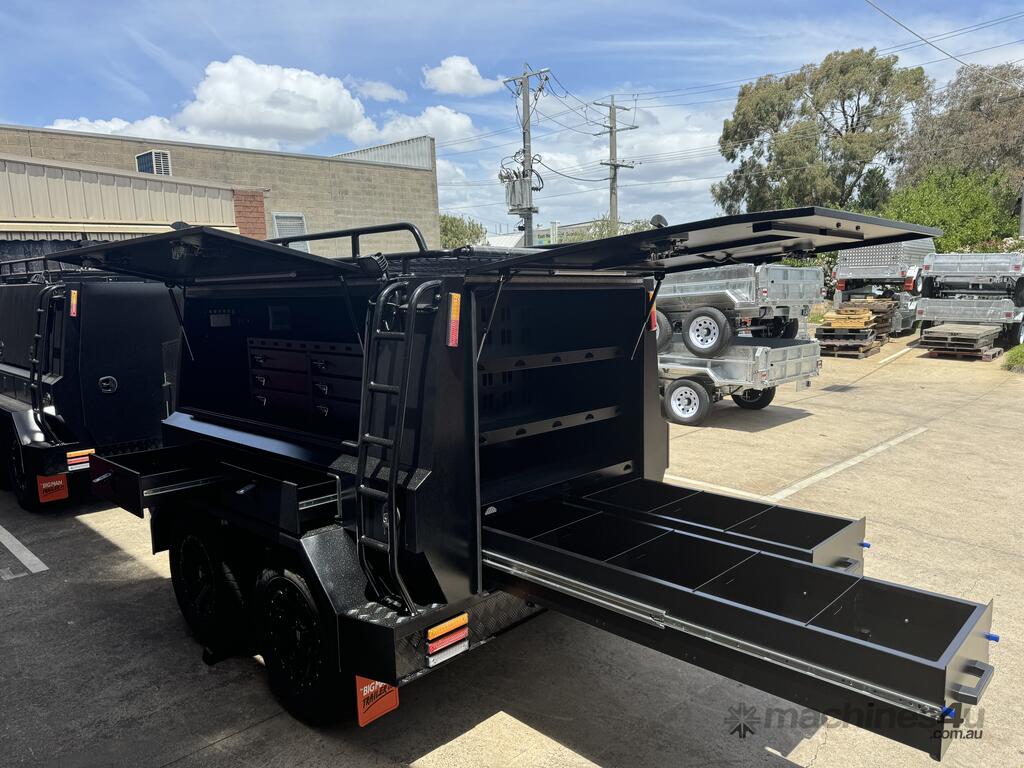

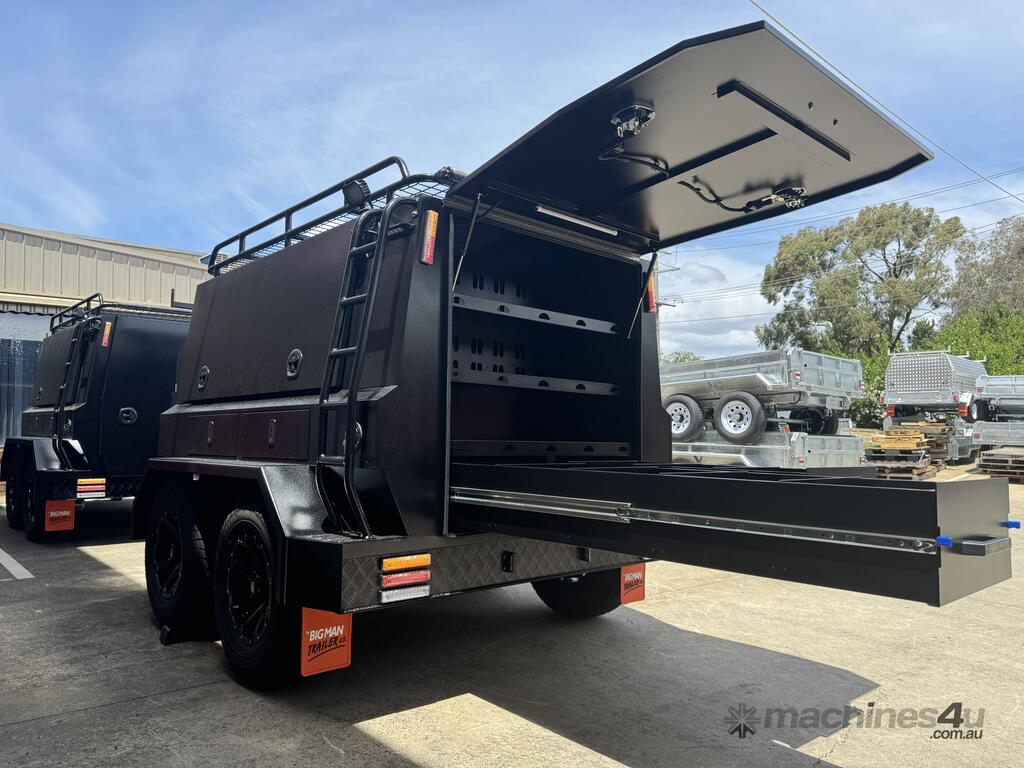

2 x slide-out pull-out drawers located at the rear – 500 width x 1800 length x 400 height.
Draws Have Latches on the side to open and close.
Additional storage compartments (Right side)
Longest point – 450 length x 700 width x 200 height.
Lowest point – 340 length x 700 width x 200 height.
Additional storage compartments (Left side)
Longest point – 450 length x 700 width x 200 height.
Lowest point – 340 length x 700 width x 200 height.
Internal fans were found in front of the wheel holder behind the fridge.

Body Specs & Features
Model TT85
Tare 1590
Aggregate Trailer mass 3500
Tyre Size 256 75R16 Inch
Cold Inflation Pressure 275
Axle Group Loading 3500
Black External
Black Internal
Drawbar 1800mm long 50 x 100
Free upgrade ARK500 Jockey wheel
Power outlets, 2 speaker radios

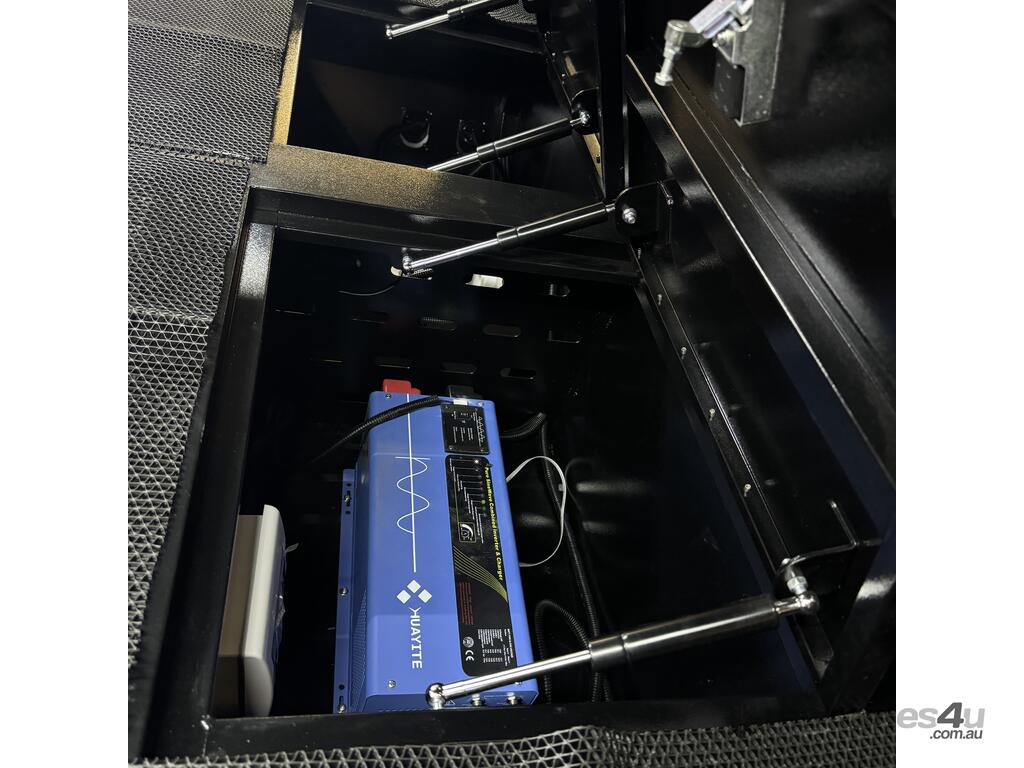

Converter found within the main compartment.
Dual Battery

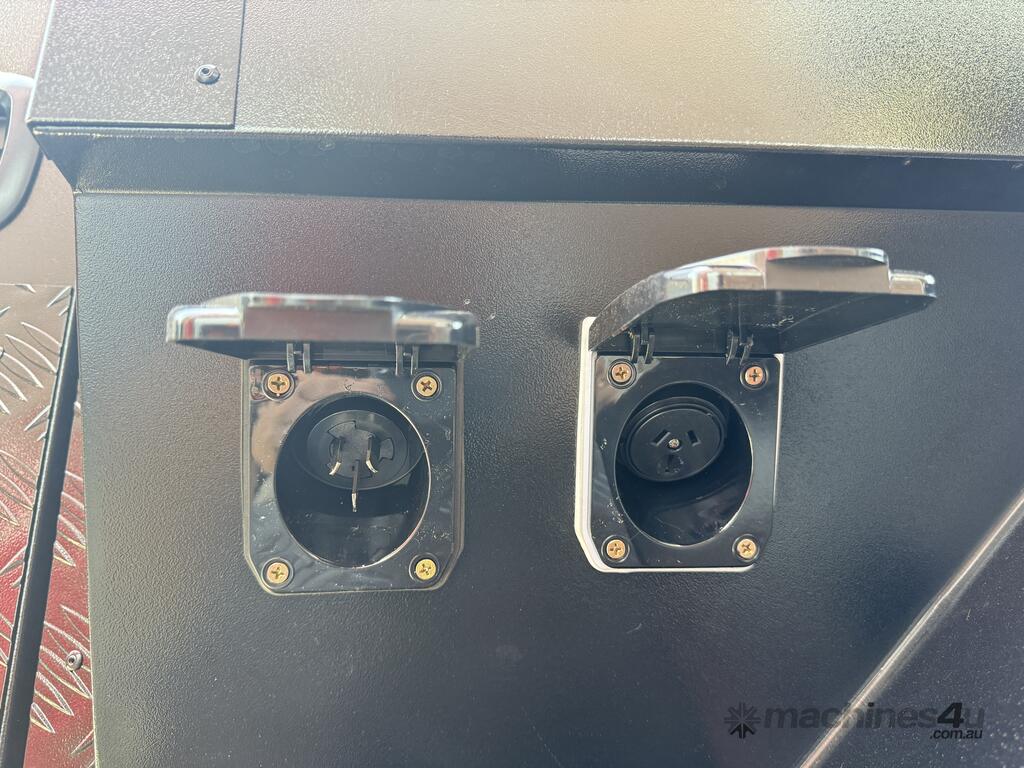

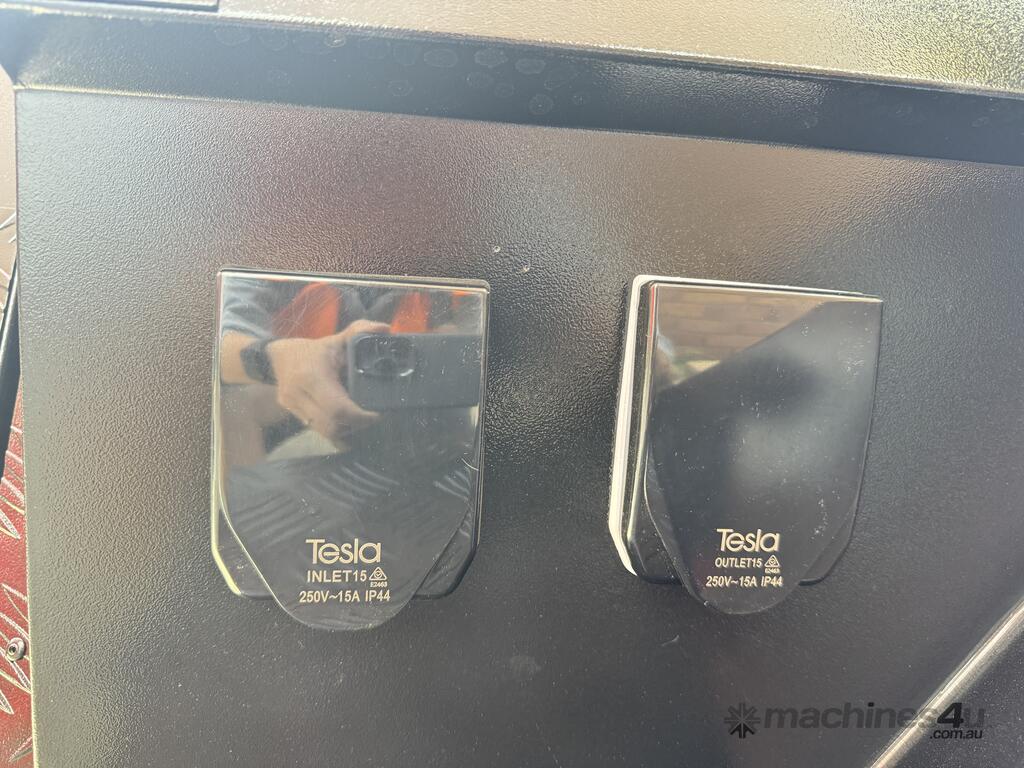

Anderson plugs, external sockets, power button.
Water gauge indicating levels found within the compartment.
Water tank runs inside the chassis and sits on the left-hand side.
70L Dual water tank found underneath.
Hose runs inside the chassis where you can open the tap.
Water pump fitted.

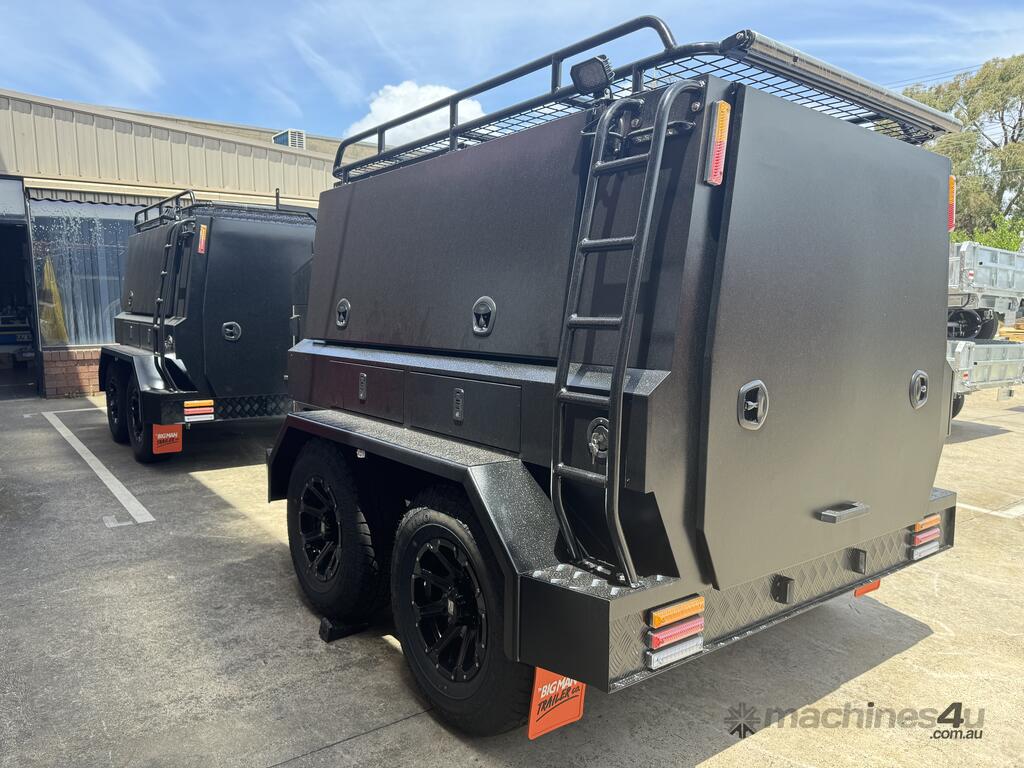

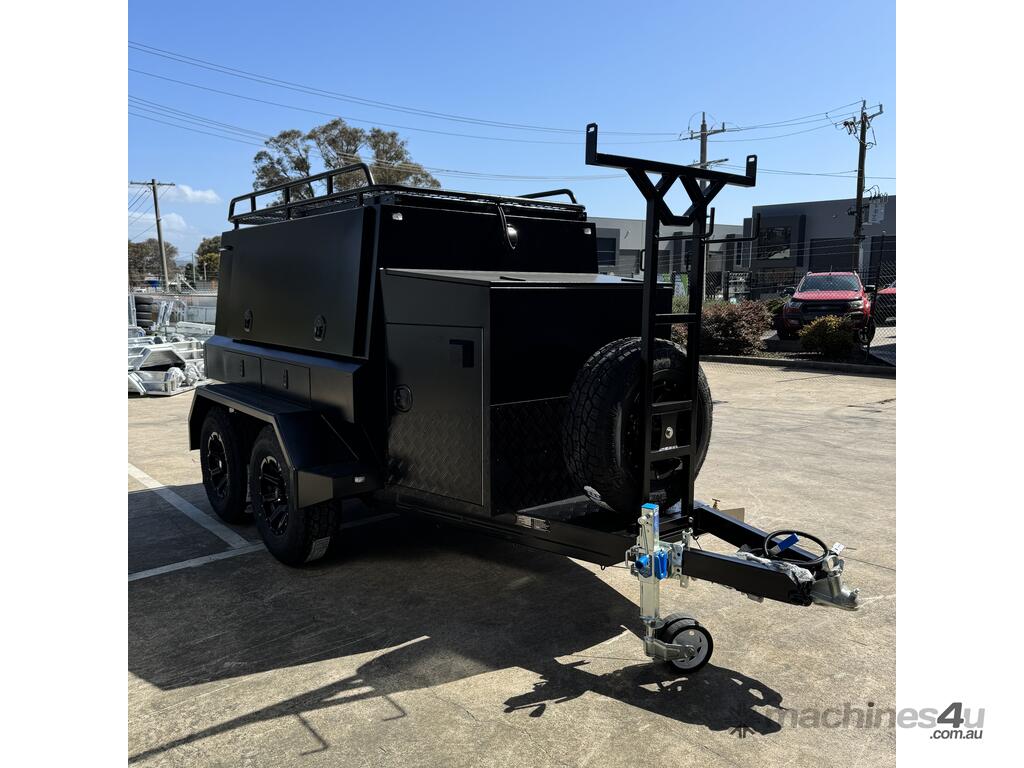

Black ladder rack located at the front with a spare tyre.
2 x Solar panel slide-outs located underneath the roof cage.
Fridge slide-out with Fan.

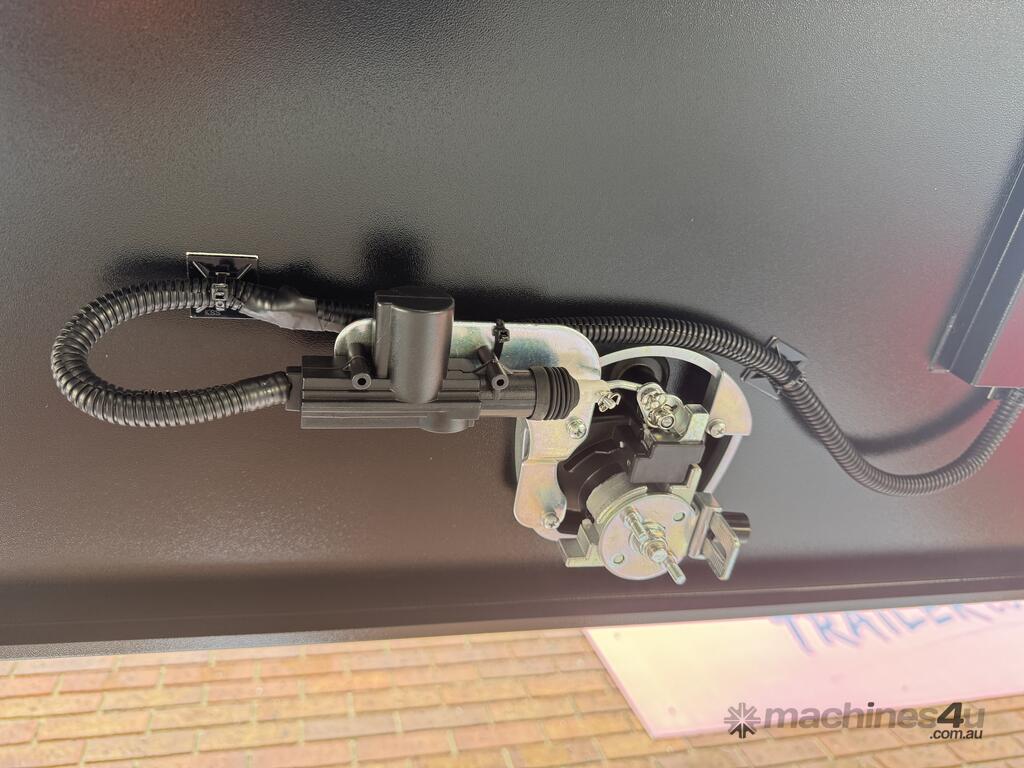

Compression press-release locks on all doors.
Gas struts for all doors.
Black checker plate finish for all step-on areas.
Double king tyres and Off-rise series GR wheels.

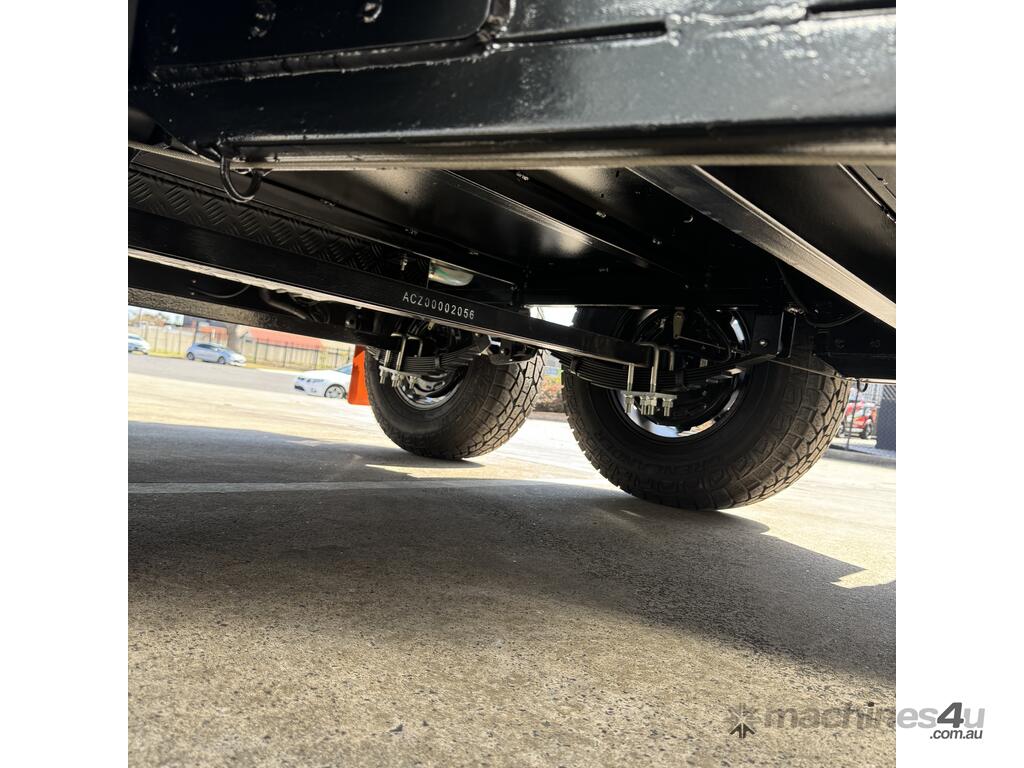

Rocker roller 9 leafs suspension
Ladder rack located at rear, 1300 height.

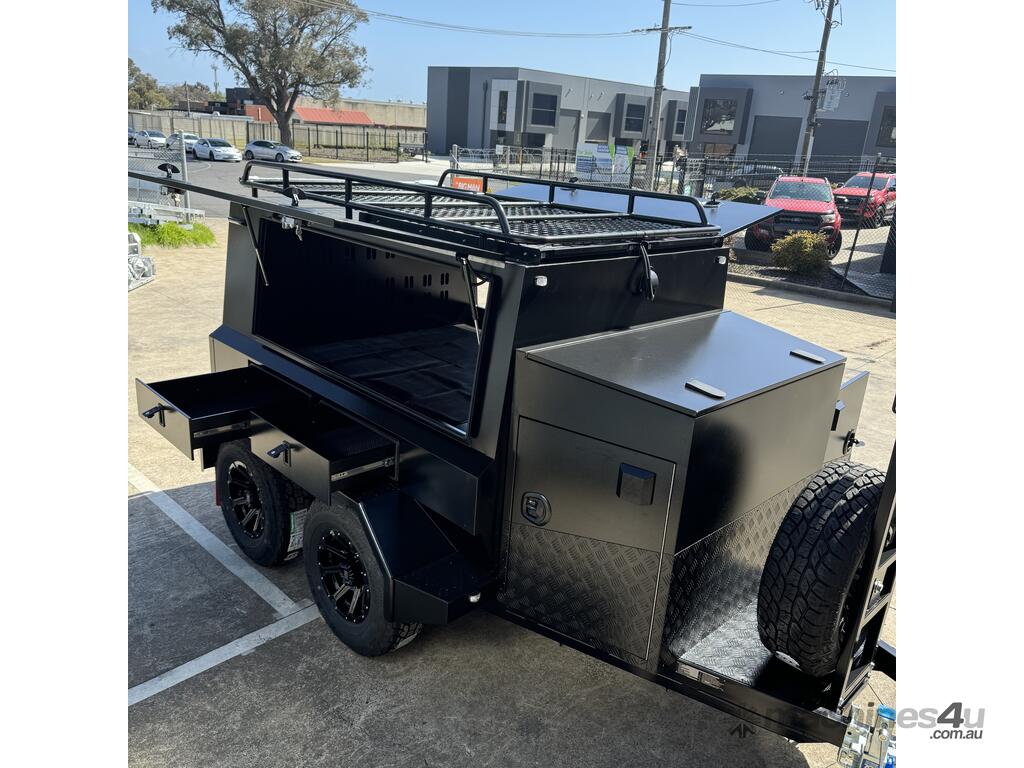

Roof Luggage Carrier powder coated Black Included.
Brake, parker, reverse, and number plate lights with a black checker plate finish.

Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories

Pick up in our local stores are free, but please always contact us for availability.

We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.

Finance is Available on all of our trailers however please contact us via phone or for further information.

The Big Man Trailer Co. specializes in designing and manufacturing high-quality trailers tailored to the specific needs of professionals and home users alike. Founded in 2014 in Dandenong, Victoria, the company has built a reputation for innovation, durability, and compliance with Australian Design Rules and Standards. Initially producing trailer parts, The Big Man Trailer Co. expanded in 2016 to deliver complete trailer solutions that cater to industries ranging from construction and farming to landscaping and furniture moving, with a strong focus on customer service and after-sales support.

Go to The Big Man Trailer Co showroom on Machines4u to see the full range of trailers that is available for immediate national delivery, send The Big Man Trailer Co a message about the item you are interested in, or give The Big Man Trailer Co a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet or contact us for more detailed information *
