8x5 Tradie Trailer - Gloss Gray 3500KG ATM Builders Trailer Pack BIGMAN TRAILER

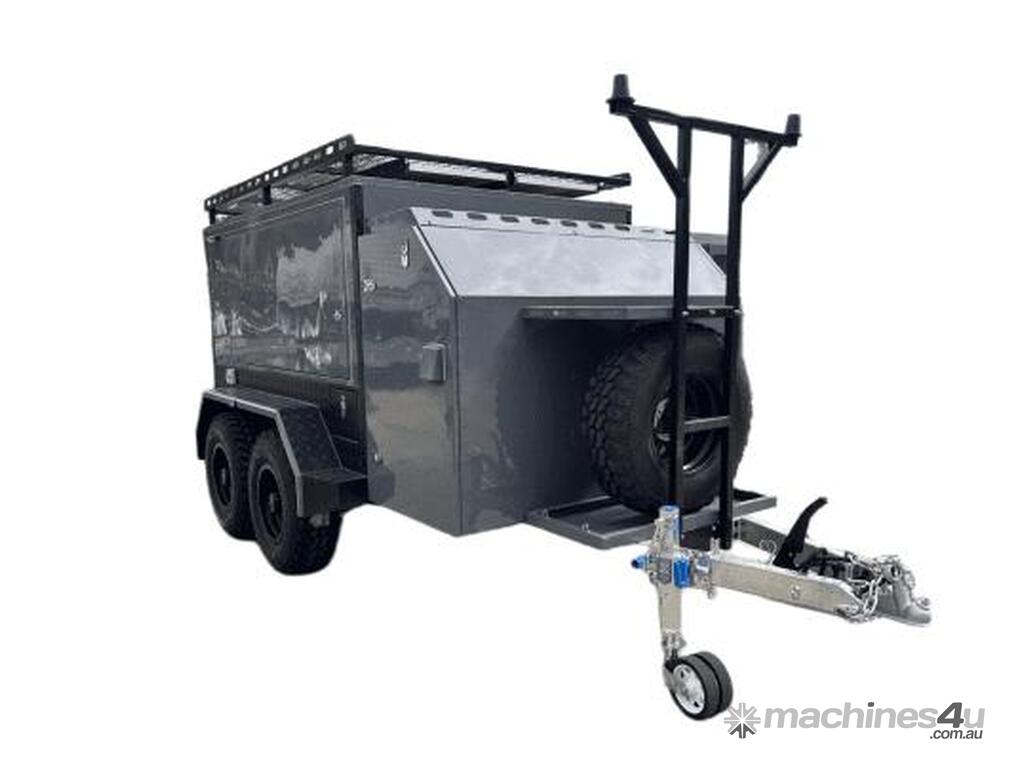

The 8×5 Builders Trailer in Gray is a versatile and robust builders trailer for builders and tradespeople of all stripes. It features a comprehensive storage system with multiple compartments, including a main compartment area on each side, smaller compartments underneath, and slide-out drawers at the rear. This model, TT85RG, has a tare of 1610, an aggregate trailer mass of 3500. It is fitted with 256 75R16 inch tyres and a drawbar measuring 1800mm. The trailer also boasts dual batteries, Anderson plugs, external sockets, a water gauge, and a 80L water tank. Safety features include a black ladder rack with a spare tyre, solar panel slide-outs, compression press-release locks on all doors, and a rocker roller 8-leaf suspension. The roof luggage carrier and lighting system, along with the black checker plate finish for step-on areas, make this trailer both practical and stylish.

Storage Features

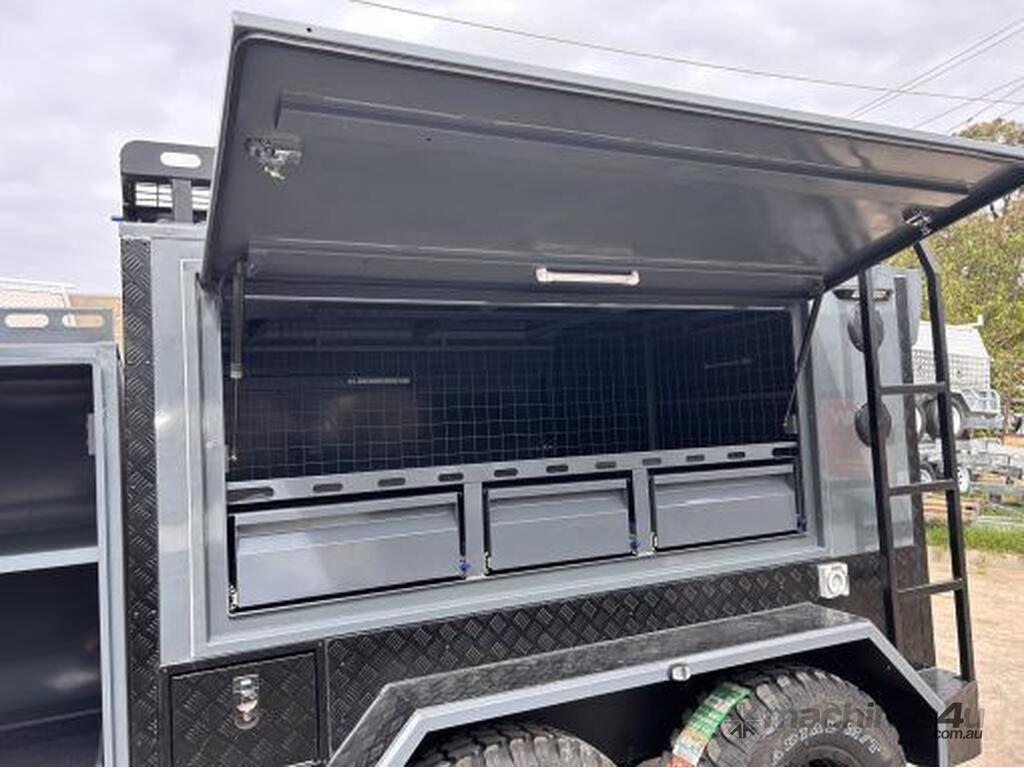

The main compartment area on left side is 1850 W x 810 L x 610 H

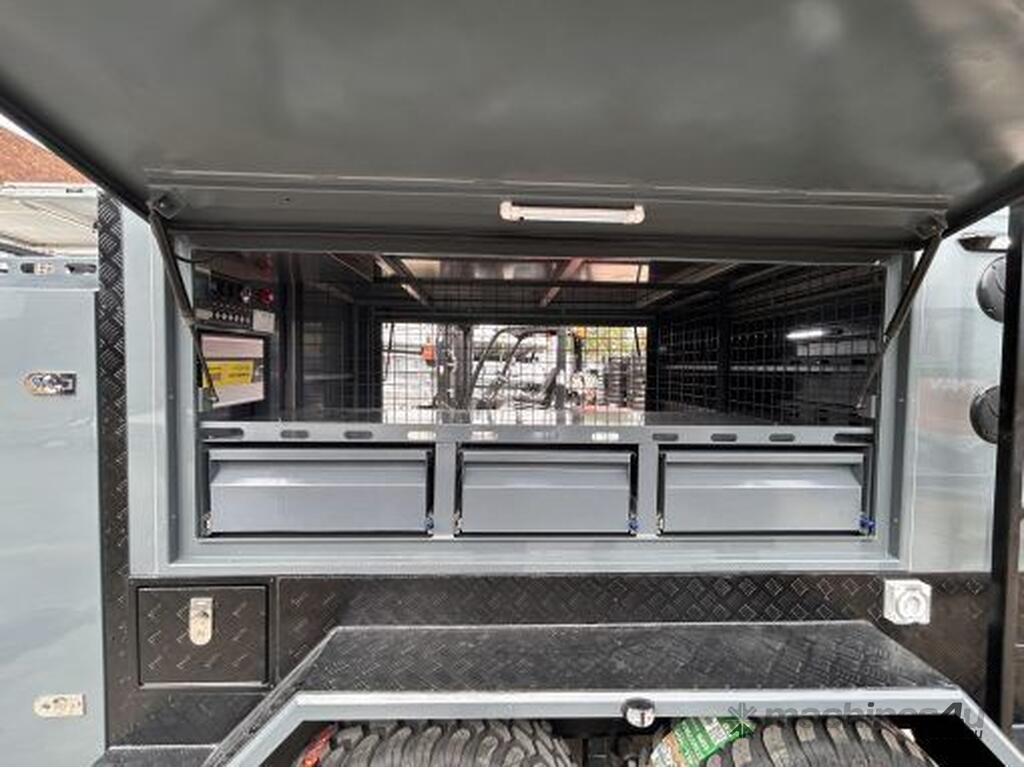

3x drawers at the main compartment area 480w x 740L x 200H each.

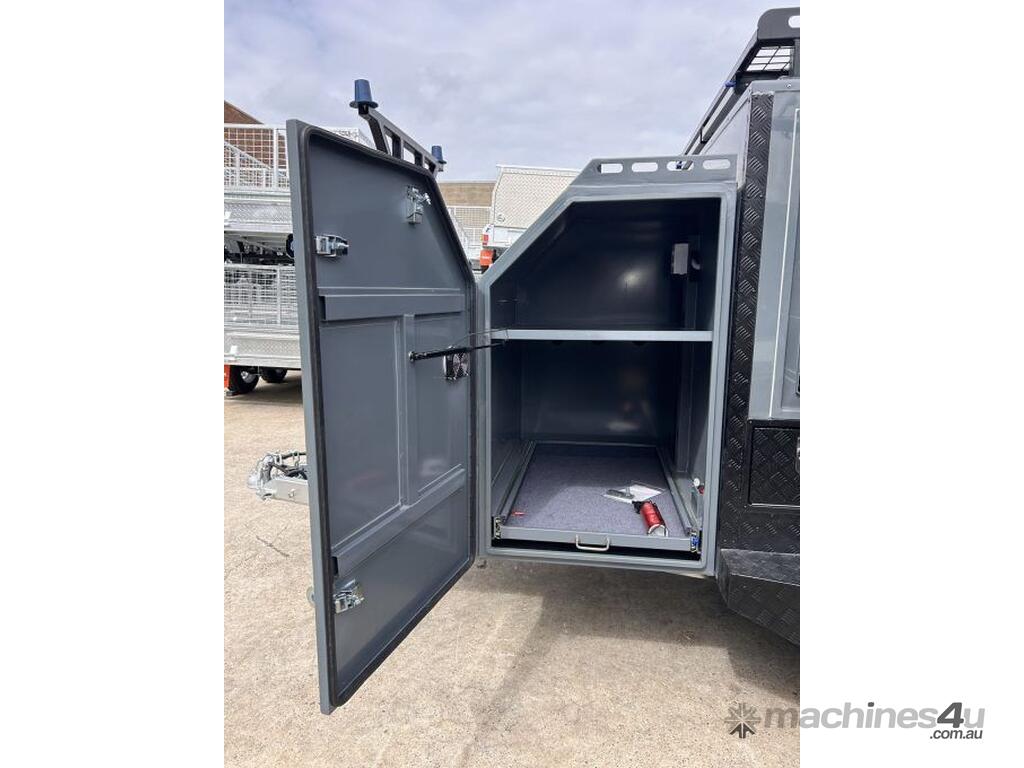

Slide out fridge storage (670w x 980L x660H)
Additional Compartment above the fridge ( 670W x 870L x 380H)
The main compartment area on right side is 1930 W x 810 L x 850 H
Right side storage bottom shelves 670w x 500L x 700H, Top shelve 670w x760L x350H
2 x shelves located at the rear: 1680w x 400L x 220H

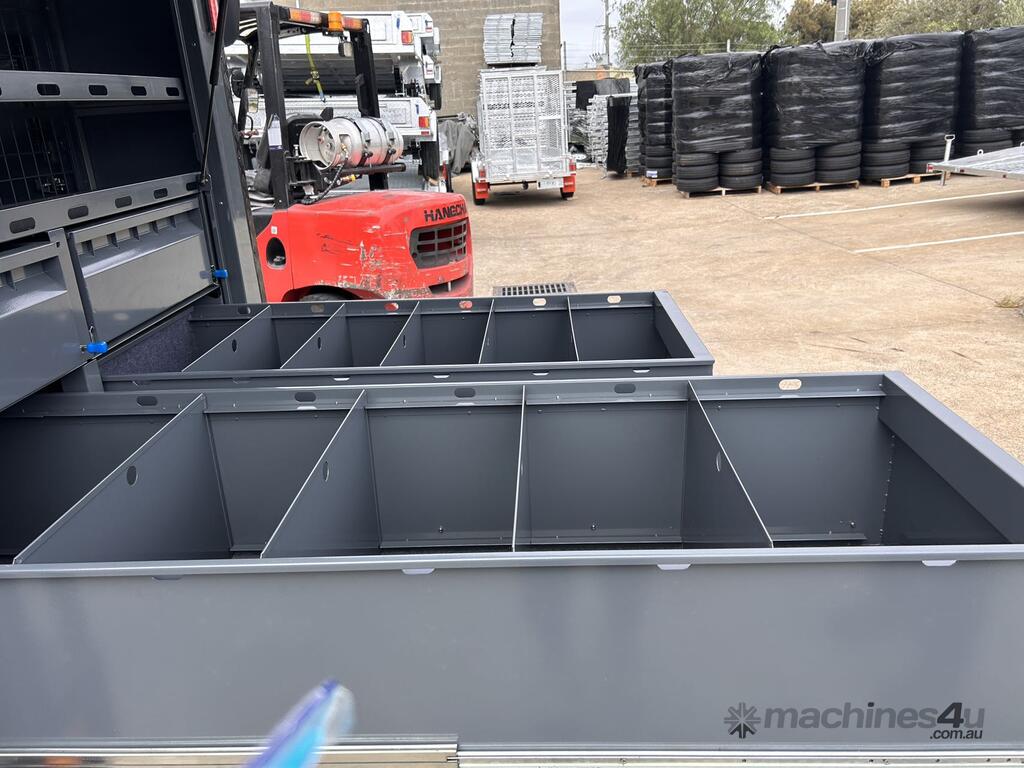

2 x pull-out drawers located at the rear middle: 570W x 330L x 210H
2 x pull-out drawers located at the rear bottom:
Left 570w x 1900L x360H, Right 570w x 1240L x 360H
Power outlets, 2 speaker radios

Body Specs & Features
TT85RG
Tare Mass 1610kg
Aggregate Trailer Mass (ATM) 3500kg
Trailer Dimensions 8 x 5 Dual Solid Axle Model
Colours Gloss White, Gloss Black, , Gloss Grey
One-piece chassis design is made from galvanized steel
Water gauge indicating levels found within the compartment.
Water tank runs inside the chassis and sits on the left-hand side.
80L water tank on a 12v pump with tap

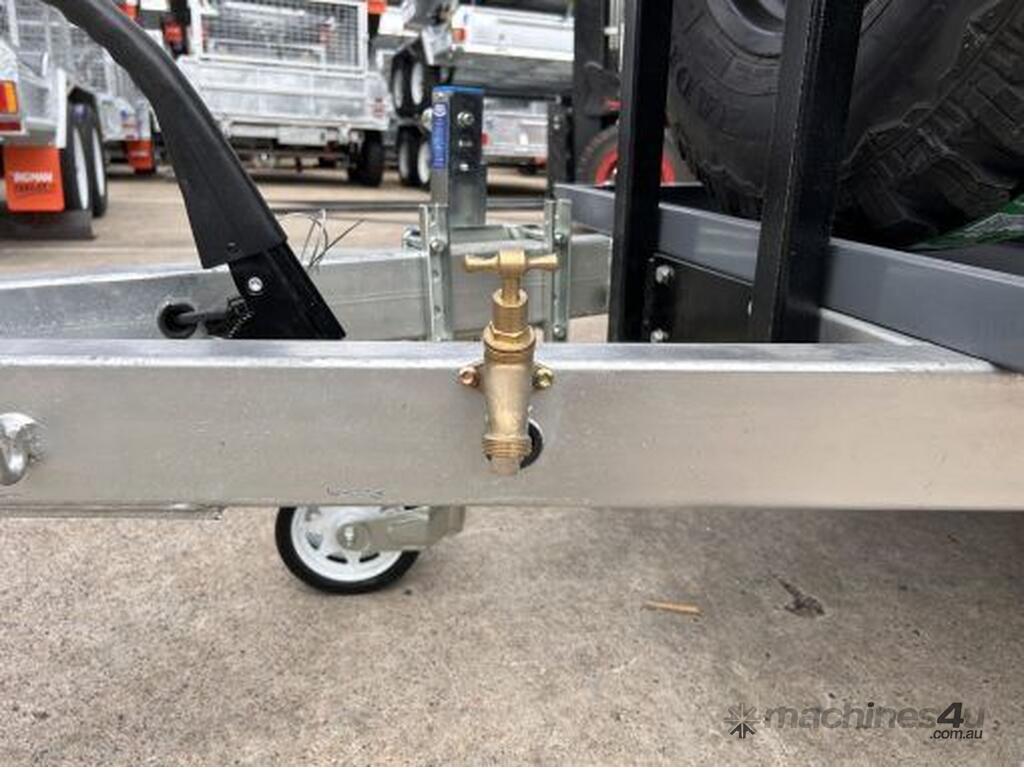

A high-pressure tap mounted to the drawbar
Gas struts for all doors
1900mm long rear trundle drawers
Rear load ball bearing ladder roller

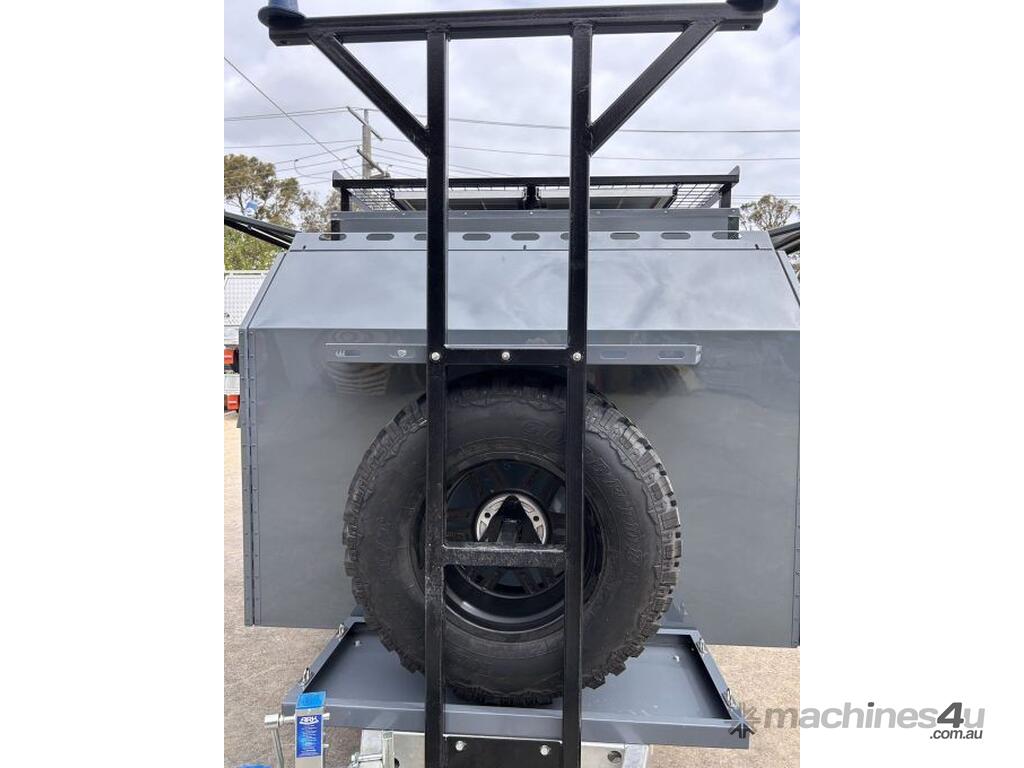

Roof access via a heavy-duty built-in ladder

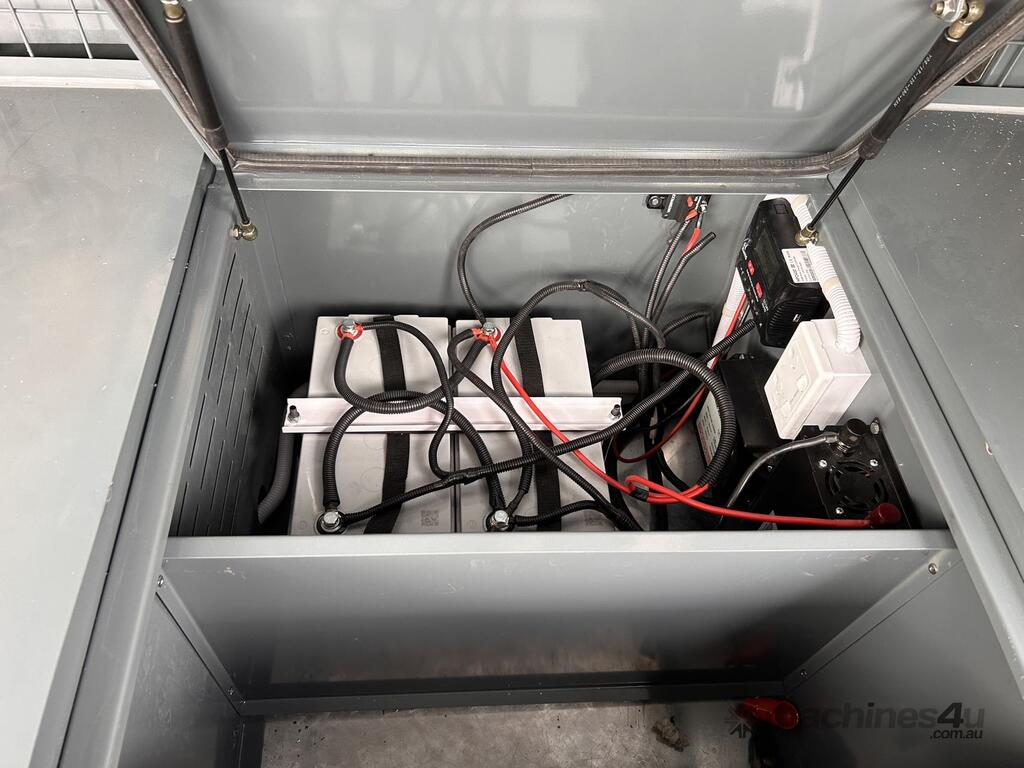

Power wherever you go with 2 x 100 aH batteries
2x 75 kW solar panels mounted on slides to get more sun on-site

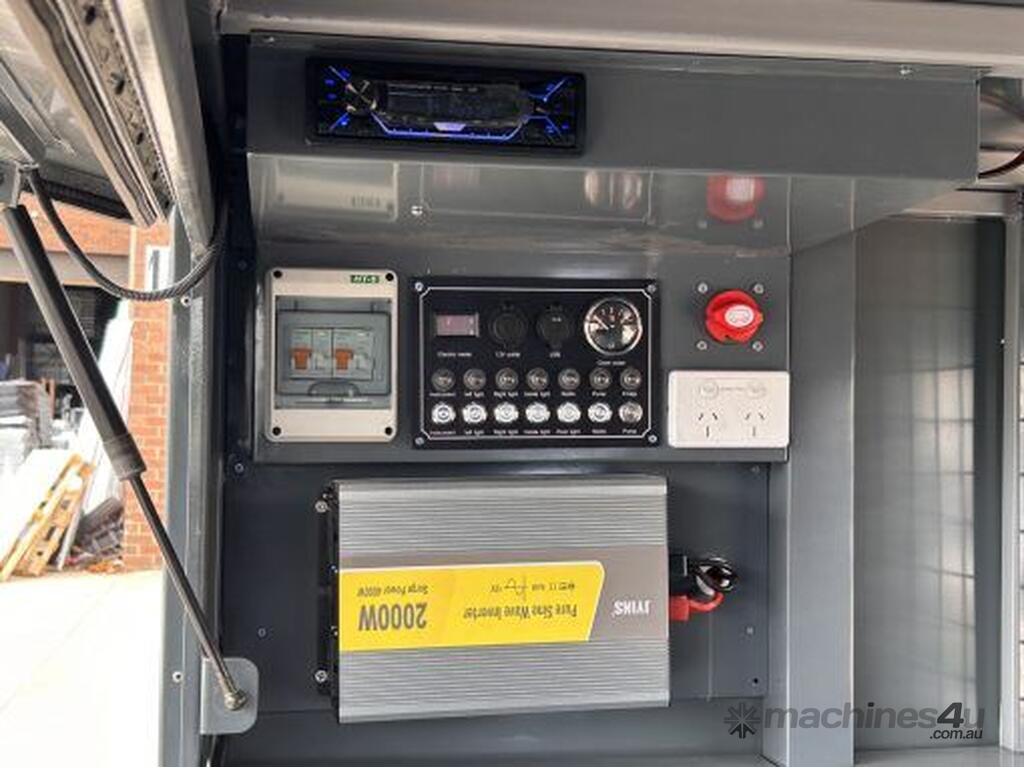

2000-watt pure sine wave smart inverter

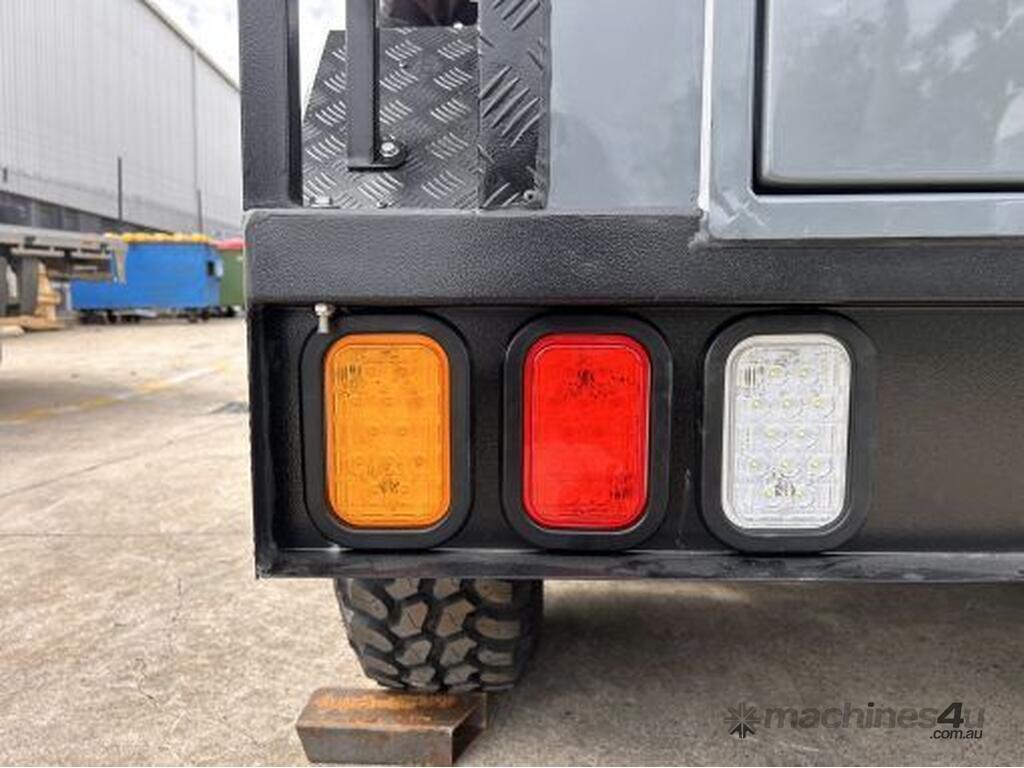

LED lighting inside & outside
Double GPOs, USB phone charger, 12v charger, and Anderson plug are all included!
12-inch electric drum brakes all around
265/75R16 LT tires on black alloy wheels fitted to Landcruiser 6 bolt hubs
70mm solid axles
Tow Ball 50mm

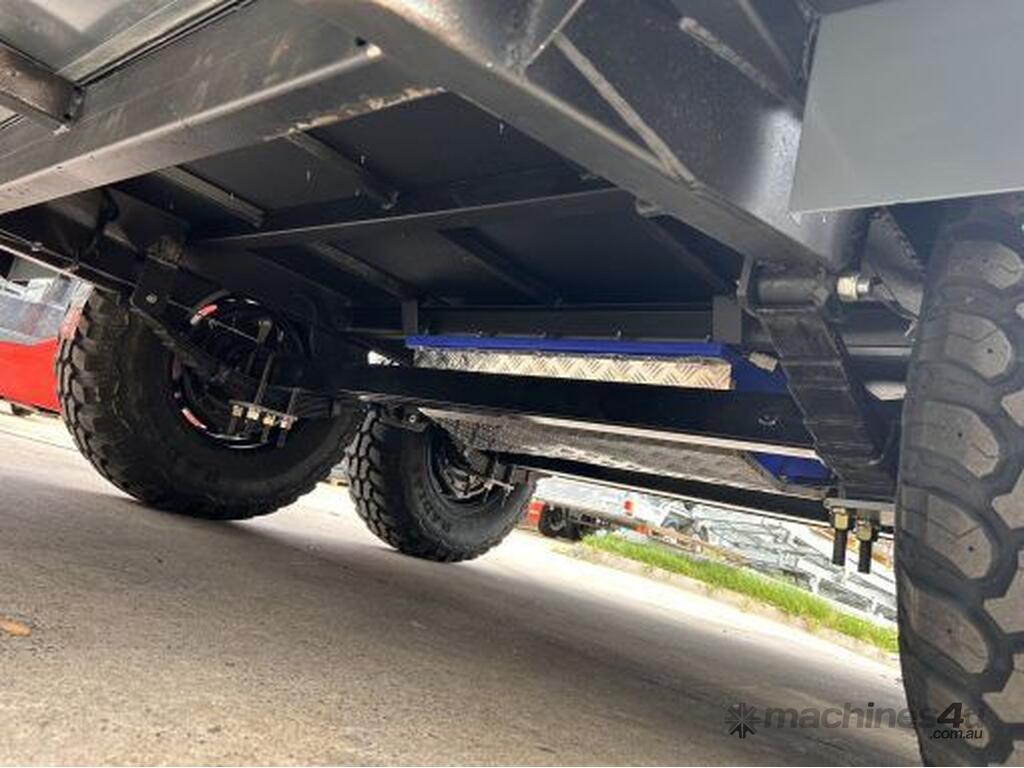

Suspension: 8-leaf Rocker Roller Suspension

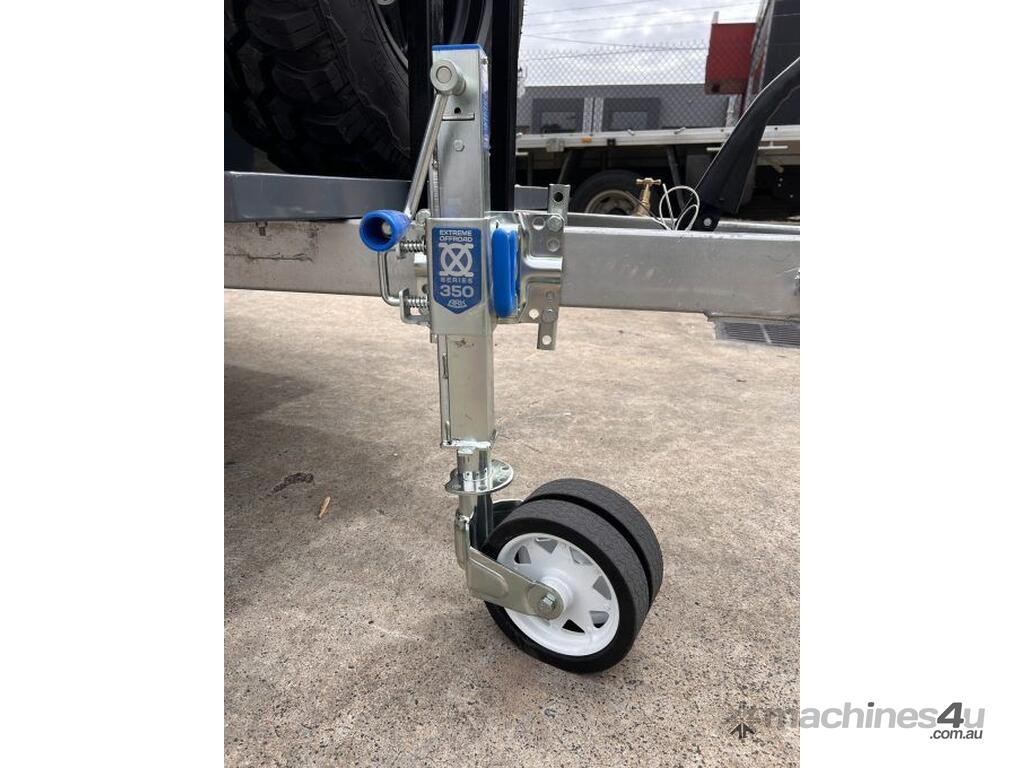

Free upgrade ARK500 Jockey wheel
Power outlets, 2 speaker radios

Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories

Pick up in our local stores are free, but please always contact us for availability.

We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.

Finance is Available on all of our trailers however please contact us via phone or for further information.
