9-20 ton (60mm pin) Fixed/Pivoting Headstock Hitch Mounting Plate Excavator

PULLENVALE, QLD

$673 AUD($740 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

Used

Category:

Excavator Attachments

Year:

Not specified

Member Since: Oct 2023

Bronze Member

Listings: 177

Hitch/3PL Pin size(mm):

Description

60mm pin Excavator / Backhoe Headstock to suit 9-20 ton machines. There is some light surface rust and a few small dings but is otherwise in great condition.

Designed for Kobelco SK100 / SK100LC / SK115SR, Komatsu PC100-3 / PC100-5 / PC100-6 / PC120 / PC120 Mighty / PC120-3 / PC120-5 / PC120-6 / PC128UU-2 / PC150HD / PW100-1 / PW100-3, New Holland EC160LC / EW160 / EW200 / FX140 / FX200 etc. but will fit other machines (see below list of machines we have found so far).

Can be used for a mounting headstock for a Rock Breaker Hammer or Auger, or mount as a regular headstock for buckets and other attachments etc.

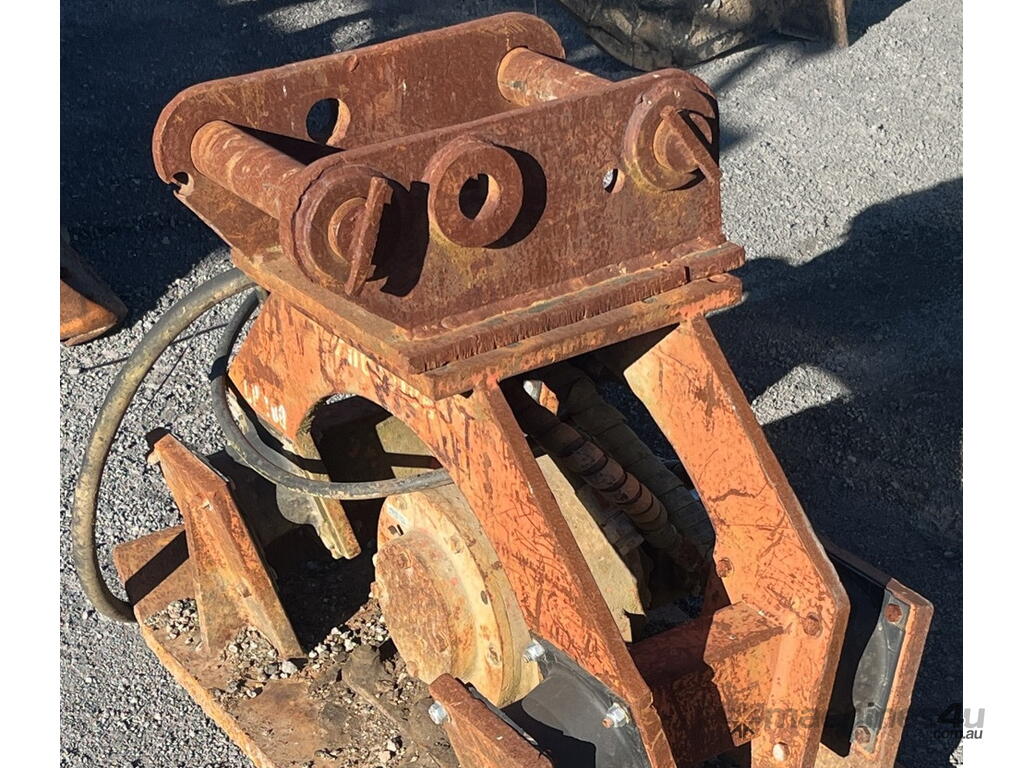

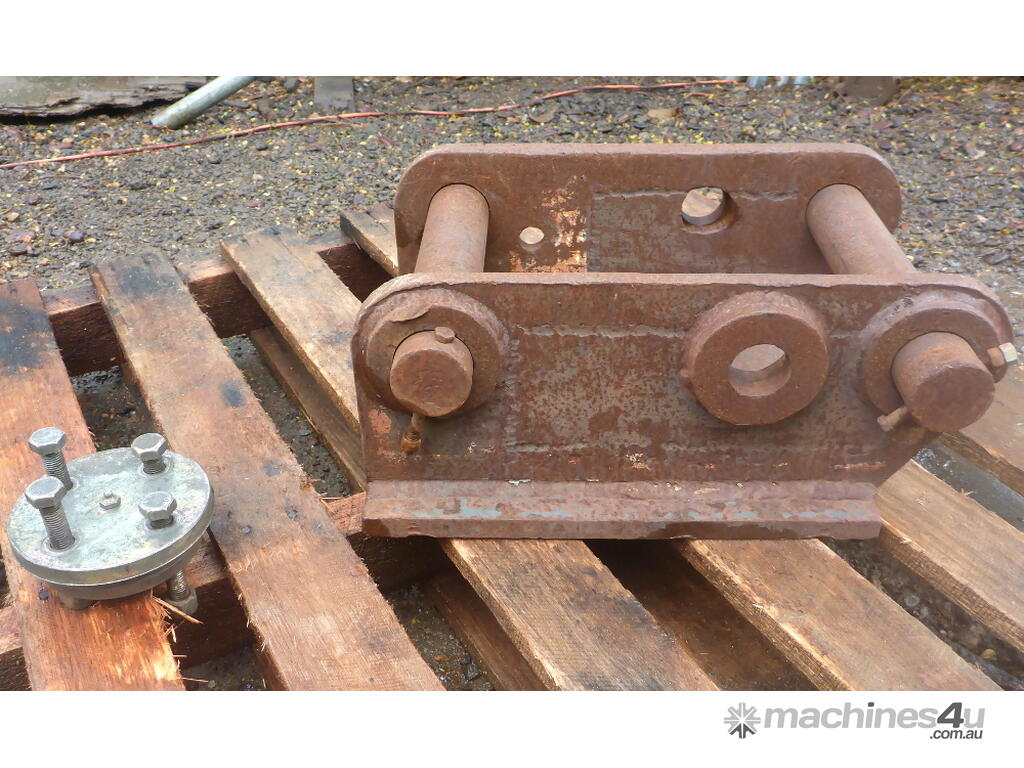

This Headstock came off a Vibrating Plate Compactor (see pic# 4). The extra round bracket in the middle with the 4 bolts allowed the headstock to rotate around the compactor. This could be useful if you have an attachment you would like to pivot / rotate. Otherwise you can unbolt the extra round bracket and just use the headstock as a standard fixed headstock.

Square Mounting Plate Dimensions: 420mm Long, 380mm Wide, 20mm Thick.

Headstock setup:
60mm Pin Diameter, 375mm Pin Center to Pin Center (CtoC), 266mm Between the Ear Plates.

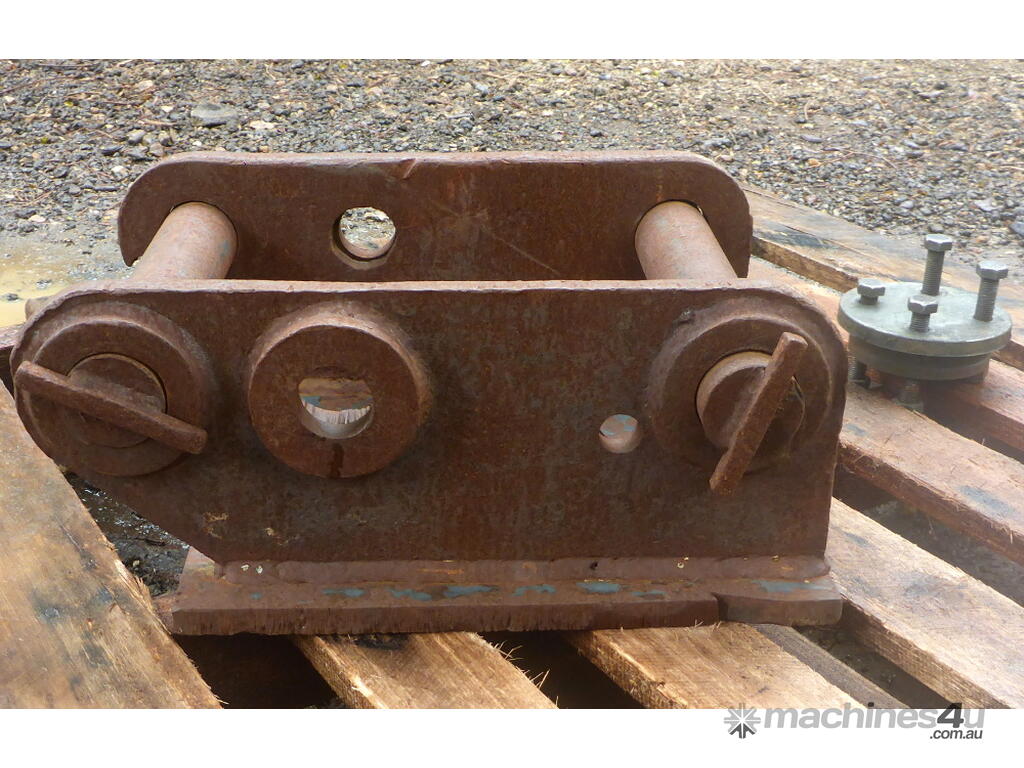

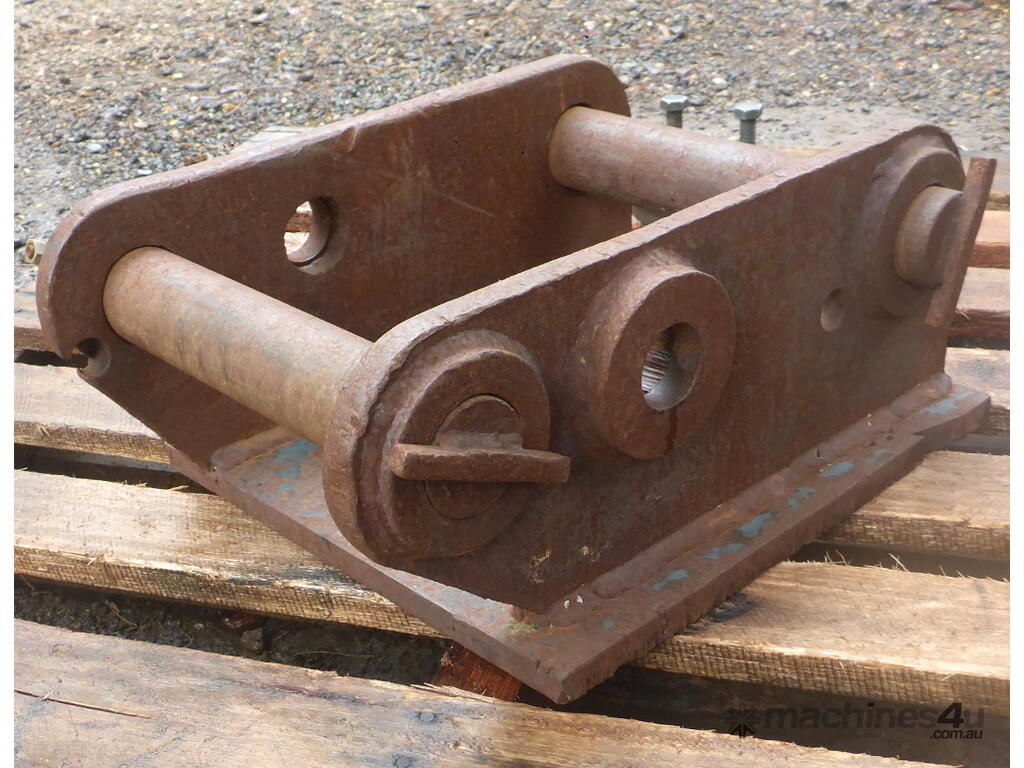

The hole diameter of the additional Pin hole on the sides is 45mm (see pic# 2 & 6).

Should fit: Kobelco SK100 / SK100LC / SK115SR, Komatsu PC100-3 / PC100-5 / PC100-6 / PC120 / PC120 Mighty / PC120-3 / PC120-5 / PC120-6 / PC128UU-2 / PC150HD / PW100-1 / PW100-3, New Holland EC160LC / EW160 / EW200 / FX140 / FX200.

Maybe fit: New Holland EC130LC, O & K MH & RH 4CS / MH 2-12, Wacker Neuson 12002 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Overall Dimensions: 510mm Long, 390mm Wide, 215mm High. Weight: 76kg (including extra Pivoting Bracket).

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
