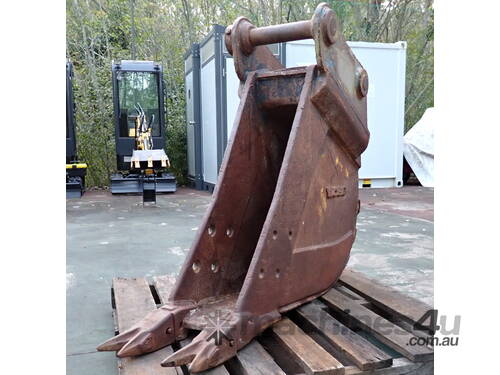

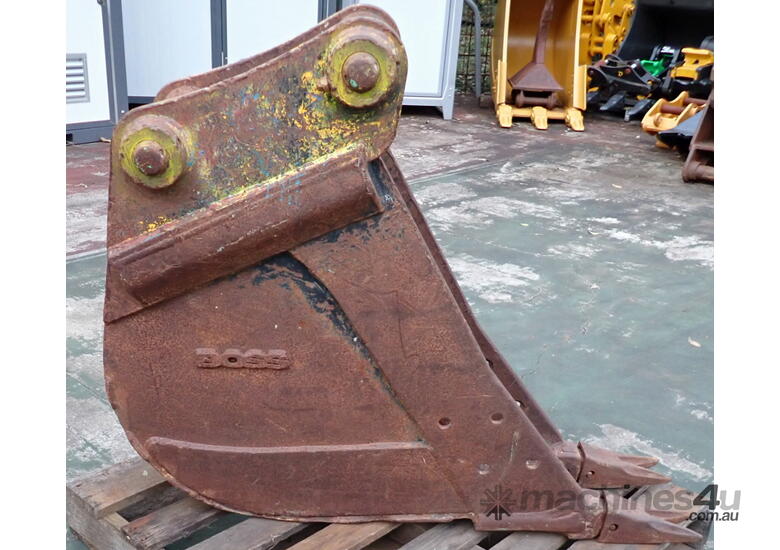

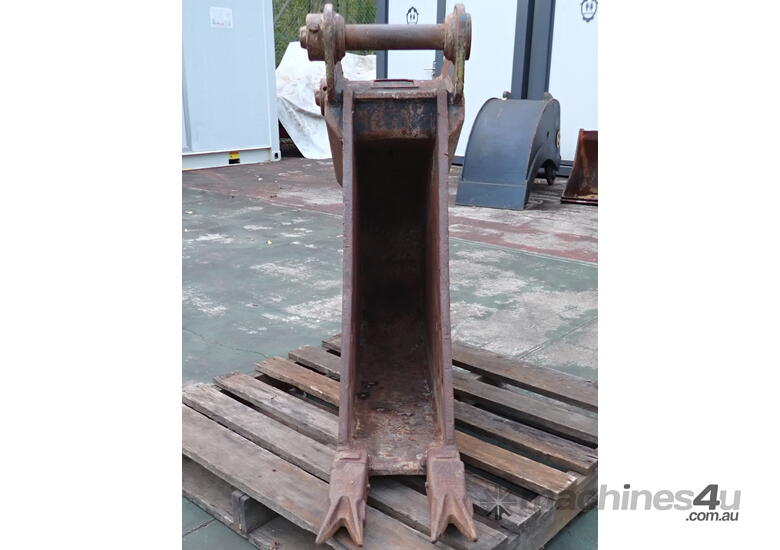

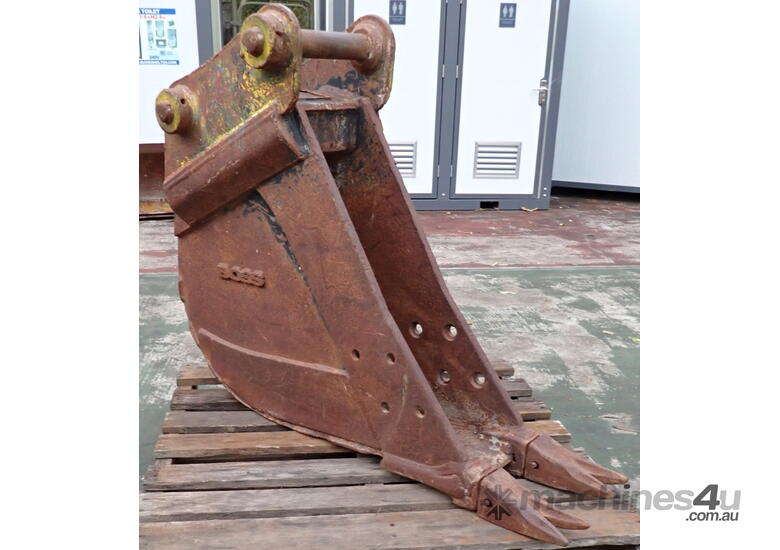

280mm Boss Excavator Trenching Bucket suit 9-22 Ton machine.
Condition is used but it is a well engineered, thick sturdy bucket (400kg!) with plenty of life left.
It has a very deep profile.
It has holes ready for removable bolt-on Side Cutters.
There is extra wear plating on the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).
Current Headstock configuration:
65mm Pin Diameter, 404mm Pin Center to Pin Center (CtoC), 261mm Between the inside Ear Bosses (which can be shaved back up to 315mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
Should fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130W, Hyundai R130LC, JCB 805B / 814S, Kato HD 512, Kobelco SK120 / SK130 / SK130LC / SK135 / SK135SR.
Maybe fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130-2 / 130-3 / 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Halla HE130, Hitachi EX100 / EX120 / EX120-1 / EX130 / FH120 / FH130 / UHO62 / UHO63, Hyundai R120 / R130W / R130LC / R130LC-3 / R140LC-7, JCB JS110 / JS130 / JZ140, Kobelco 115SRDZ / 135SRLC / K905, Link-Belt 130LX / 135SA / 2650 QUANTUM, New Holland EH130LC, Samsung SE130-3 / SE130LC-3 / SE130W / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Takeuchi TB 1140, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC240C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).
Dimensions: 455mm Wide (at the headstock), 1365mm Deep, 1110mm High.
Weight: 402kg.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
