9-22 ton (65mm pin) Oz Buckets Excavator/Backhoe Ripper suit Cat

Name: 9-22 ton 65mm pin Oz Buckets Excavator Backhoe Ripper suit Cat
Brand: Oz Buckets
SKU: 995091
Price: 2227 AUD
Availability: InStock

PULLENVALE, QLD

$2,227 AUD($2,450 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

Used

Category:

Excavator Ripper

Make:

OZ BUCKETS

Year:

Not specified

Member Since: Oct 2023

Bronze Member

Listings: 177

Hitch/3PL Pin size(mm):

Description

Used Oz Buckets built 65mm pin Excavator Ripper, suit 9-22 Ton machine.
Great for ripping up tree roots, demolition, breaking up rock and loosening rocky ground, tarmac, paved areas etc.

Designed for Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D etc. but will fit other machines (see below list of machines we have found so far).

This is a strong, well engineered Ripper with a solid 78mm thick shank.
A quality product Made in Australia by Oz Buckets.

Current Headstock configuration:
65mm Pin Diameter, 405mm Pin Center to Pin Center (CtoC), 227mm Between the inside Ear Bosses (which can be shaved back up to 271mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130W, JCB 805B / 814S / JS110 / JS130 / JZ140, Kato HD 512.

Maybe fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130-2 / 130-3 / 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Halla HE130, Hitachi EX100 / EX120 / EX120-1 / EX130 / FH120 / FH130 / UHO62 / UHO63, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, Kobelco 115SRDZ / 135SRLC / K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, New Holland EH130LC, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

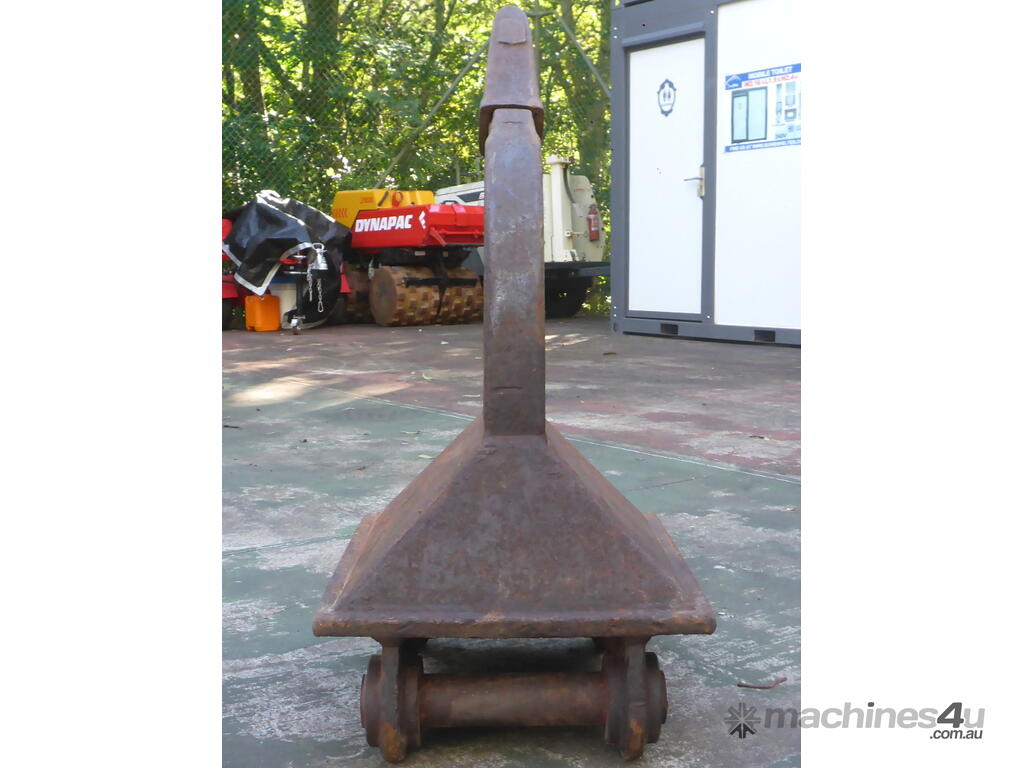

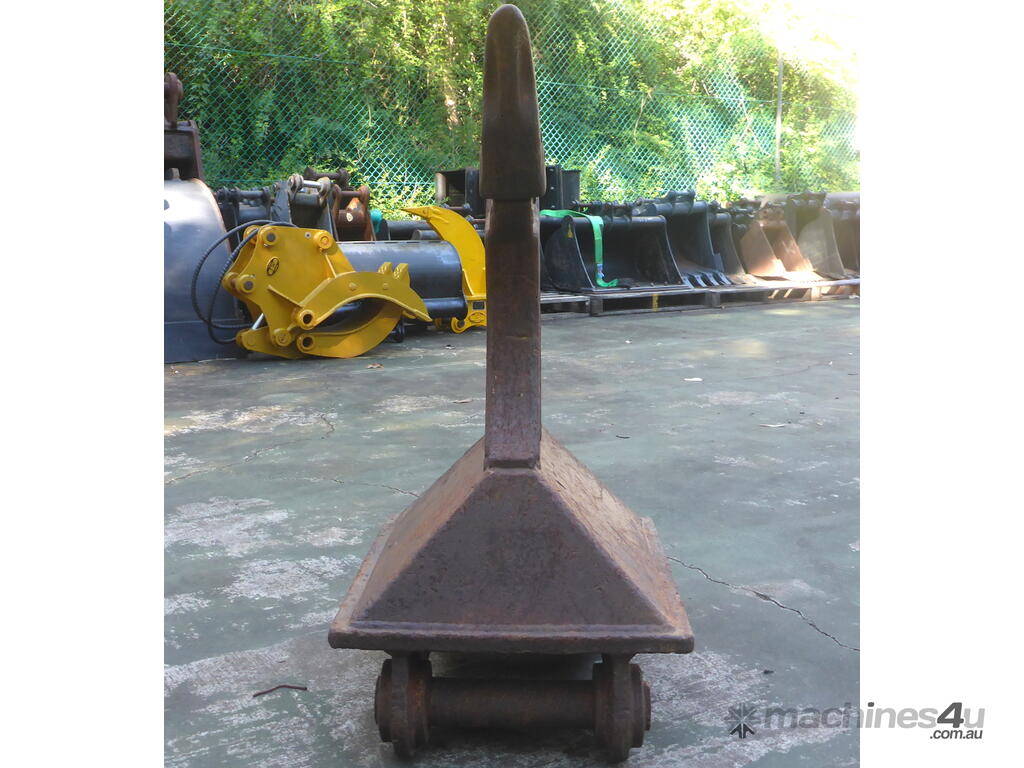

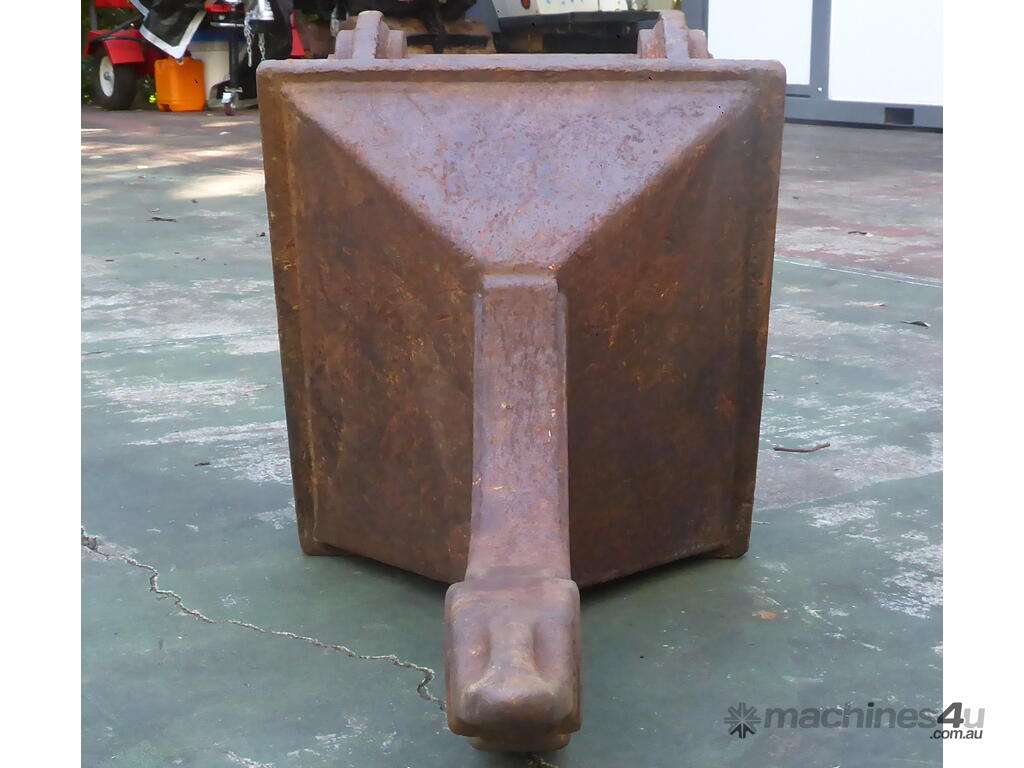

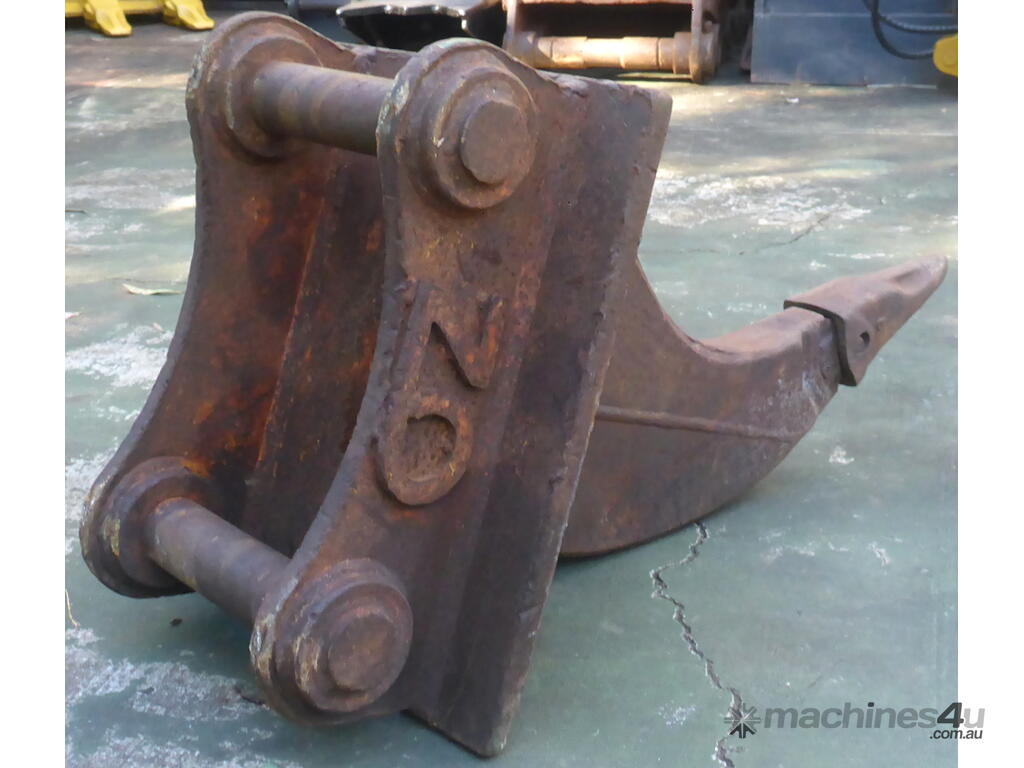

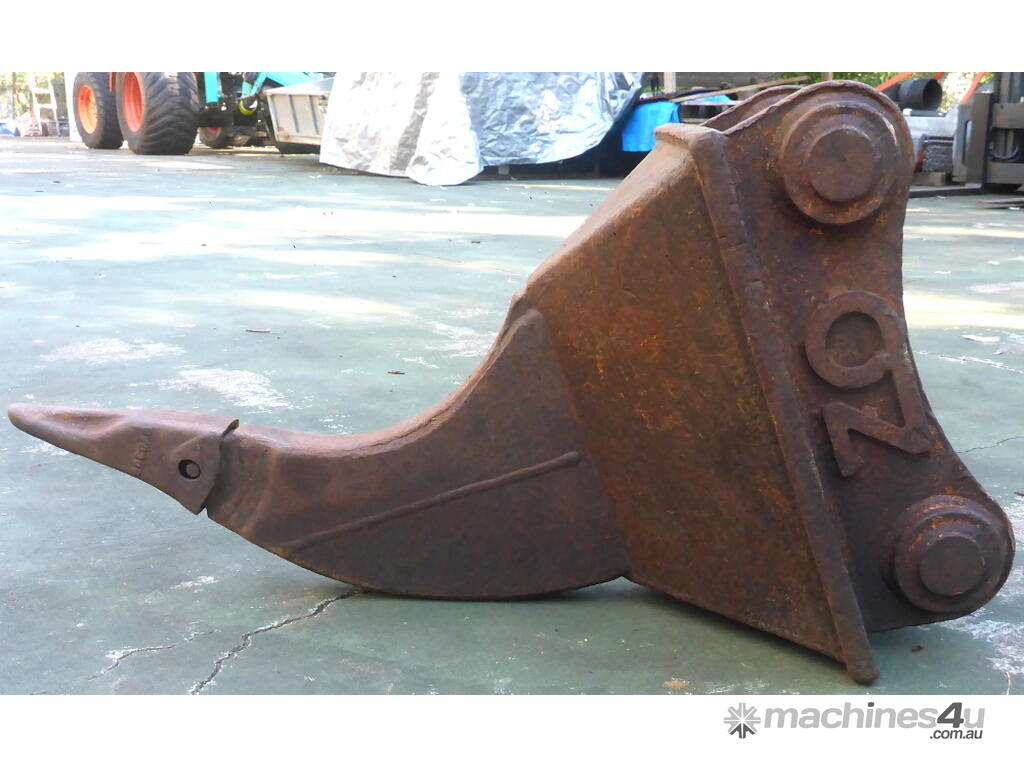

Dimensions (standing up as in pics #1-5): 478mm Wide, 550mm Deep, 1000mm High. Weight: 220kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
