90 kw 120 hp 4-pole 1485 rpm 415v 280M frame IP66 IE3 TEFC AC Electric Motor Techtop Type TDP280M-4

Name: 90 kw 120 hp 4-pole 1485 rpm 415v 280M frame IP66 IE3 TEFC AC Electric Motor Techtop Type TDP280M-4
Brand: Techtop
SKU: 890683
Availability: InStock

SEAFORD, VIC - Delivers Nationally

Contact this seller for accurate pricing

Finance Repayment Calculator

Get a quote from our independent finance provider

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

AC Motors

Make:

TECHTOP

Model:

TDP280M-4

No. in Stock

Year:

2022

Member Since: Mar 2017

Gold Member

Listings: 249

Amps:

120 Amp

Electrical Phase:

Three Phase

Kw:

90 kW

Voltage (V):

415 V

Description

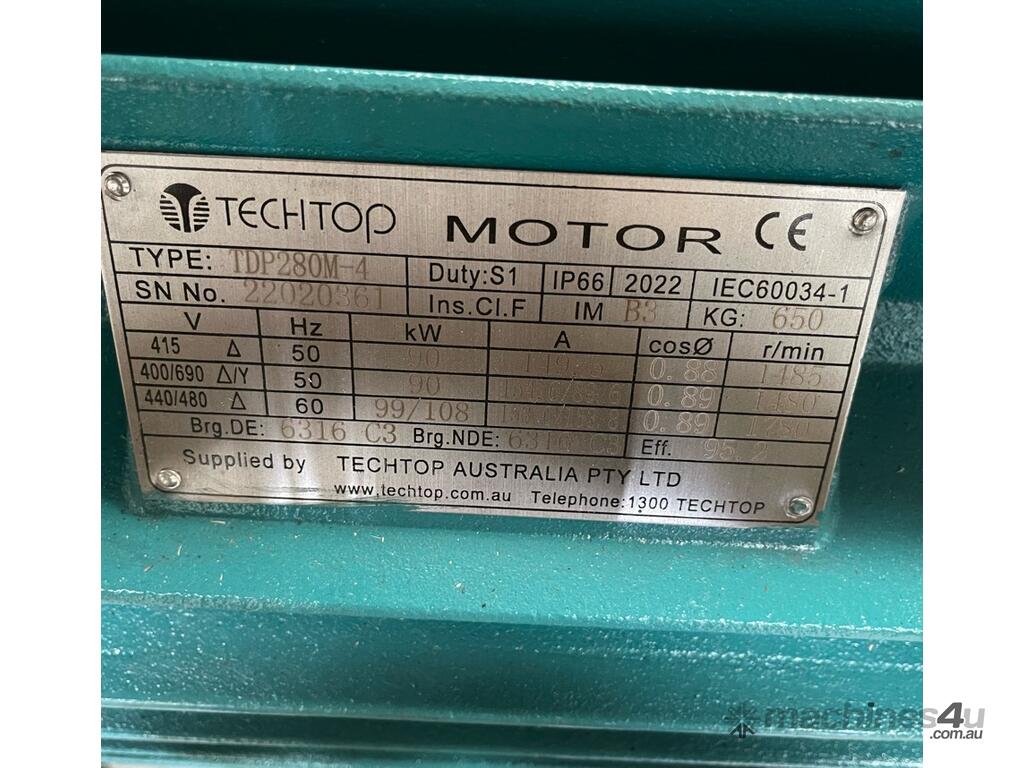

90 kw 120 hp 4-pole 1485 rpm 415v Foot Mount 280M frame IP66 IE3 TEFC AC Electric Motor Techtop type TDP280M-4 New

Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: Techtop
Type: TDP280M-4
YOM: 2022
Power: 90 kw (120 hp)
Speed: 4-pole (1485 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 119.5 A
Mount: B3 Foot (Can be B35 Foot & Flange, or B5 Flange)
Frame: 280M
Protection rating: IP66
Efficiency: IE3
Duty: S1
Insulation class: F
Weight: 650 kg

Critical Measurements:
Shaft DIA: 75 mm (by 140 mm long)
Centre shaft height: 280 mm
Total Length: 1035 mm (incl. shaft)
Total Width: 557 mm
Total Height: 690 mm (incl. top mount box)
Feet Measurements: Across 'A' - 457 mm, Front to Back 'B' - 419 mm
Front hole to shaft 'C': 190 mm

Available QTY: 1

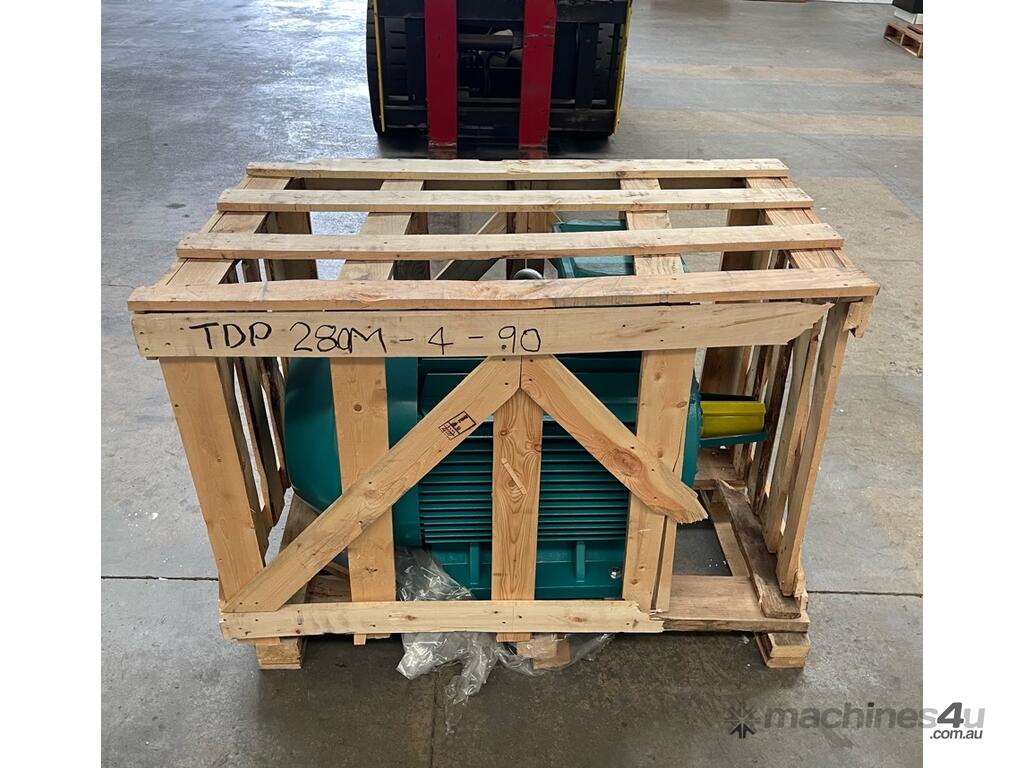

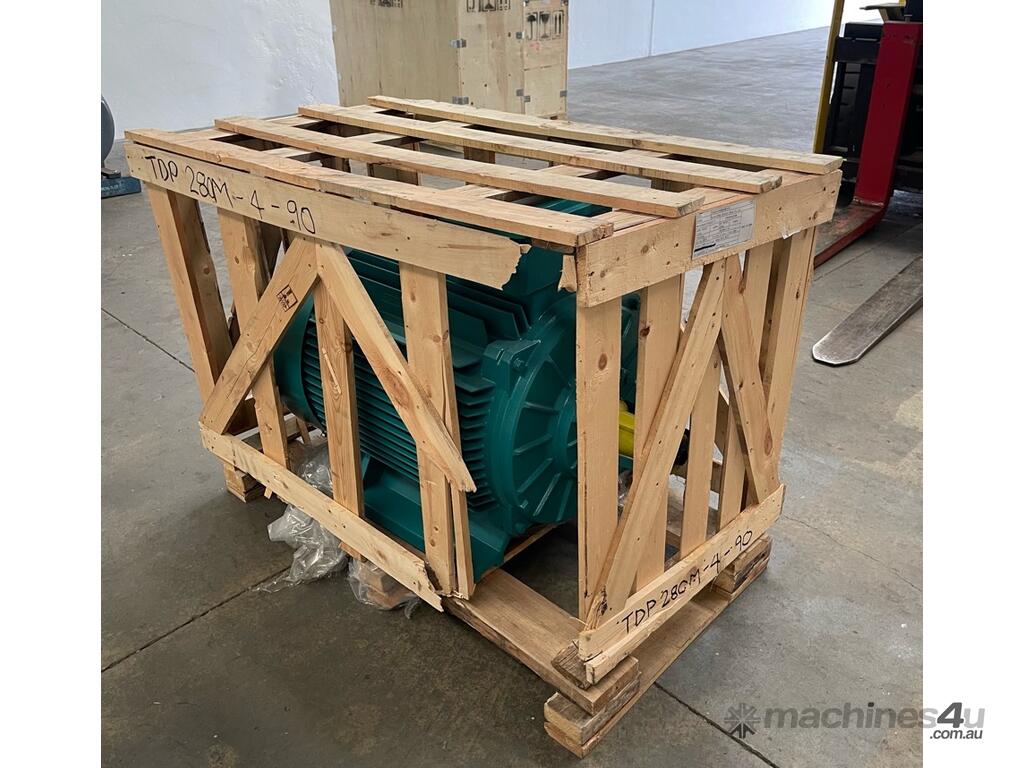

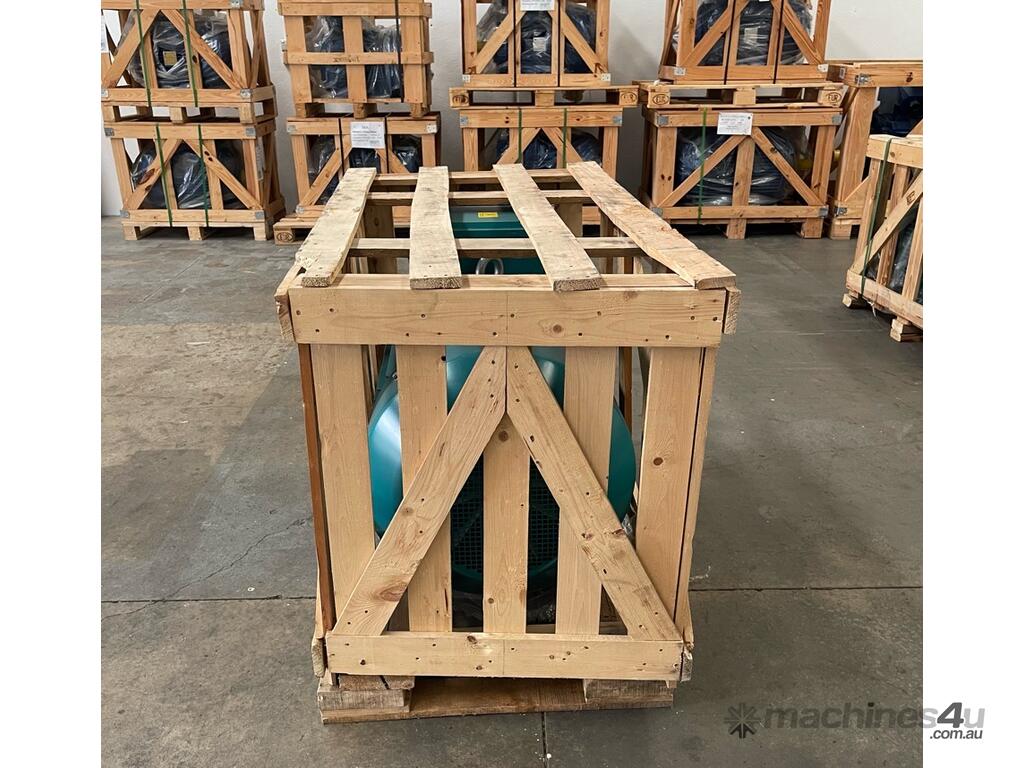

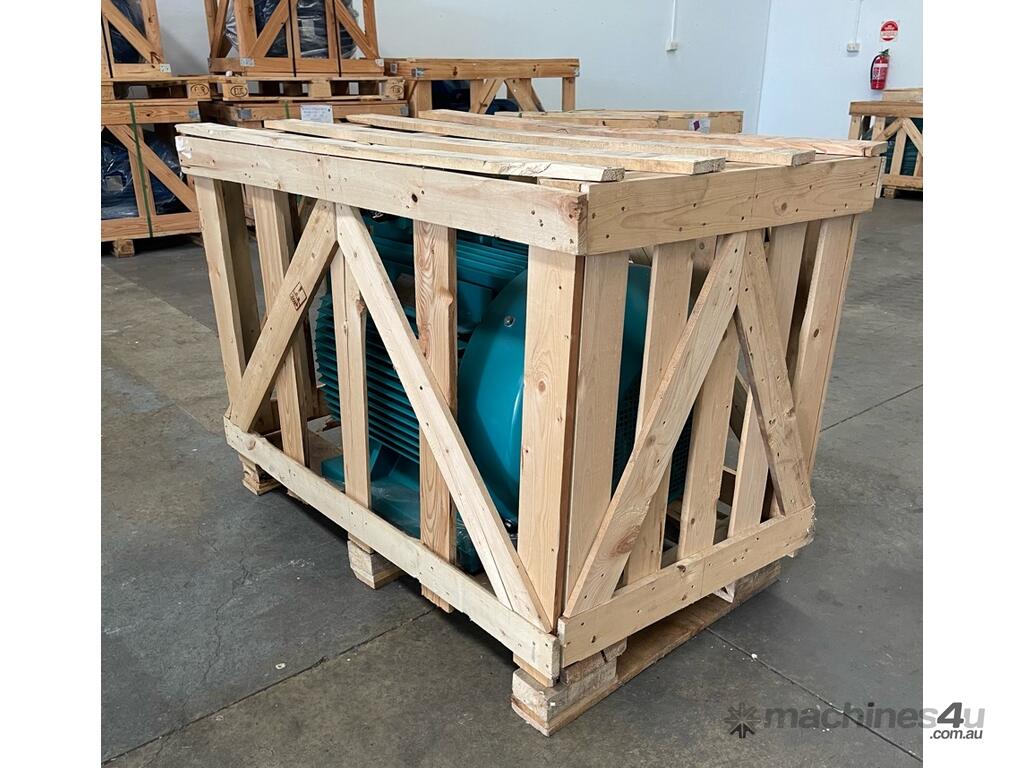

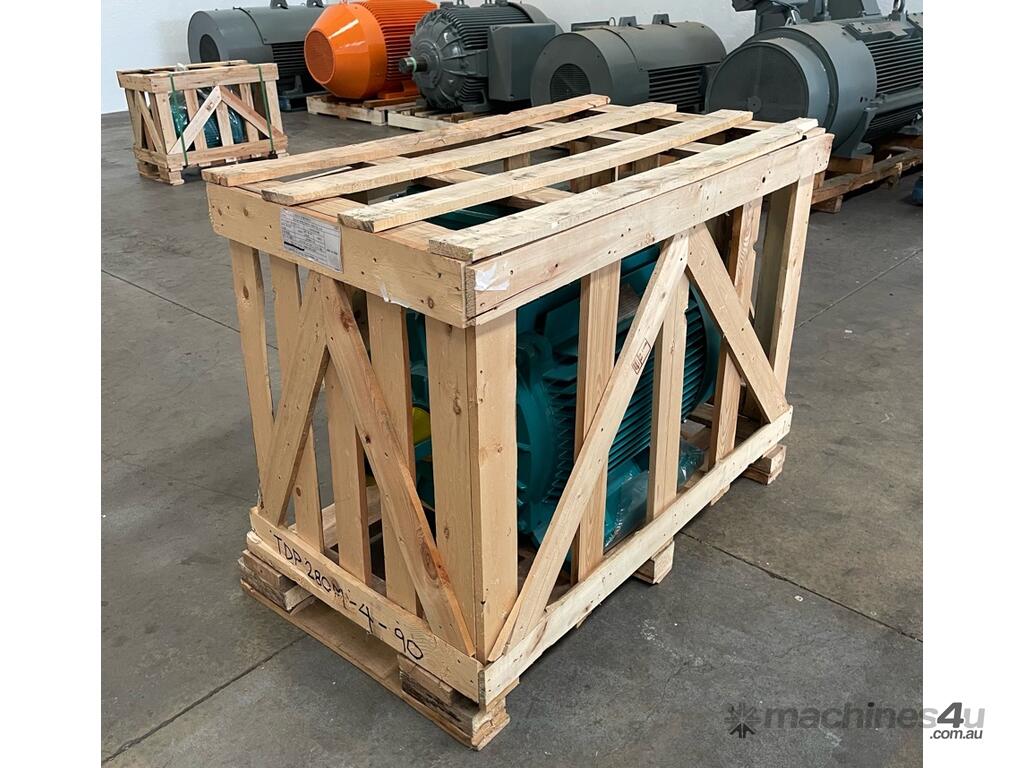

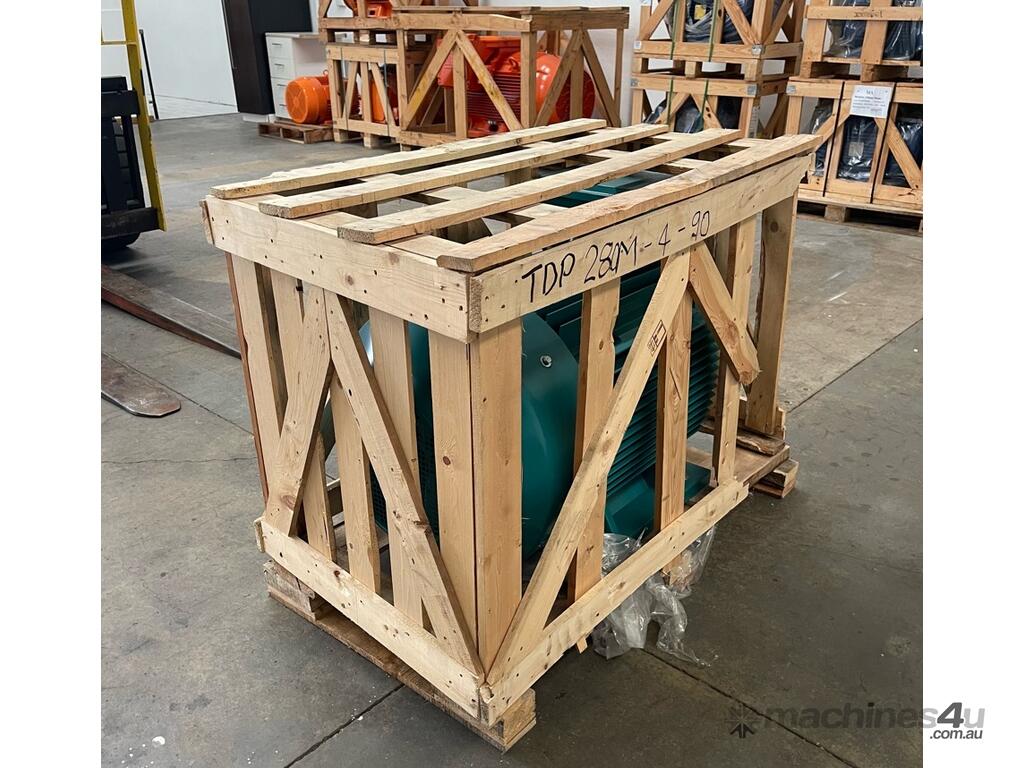

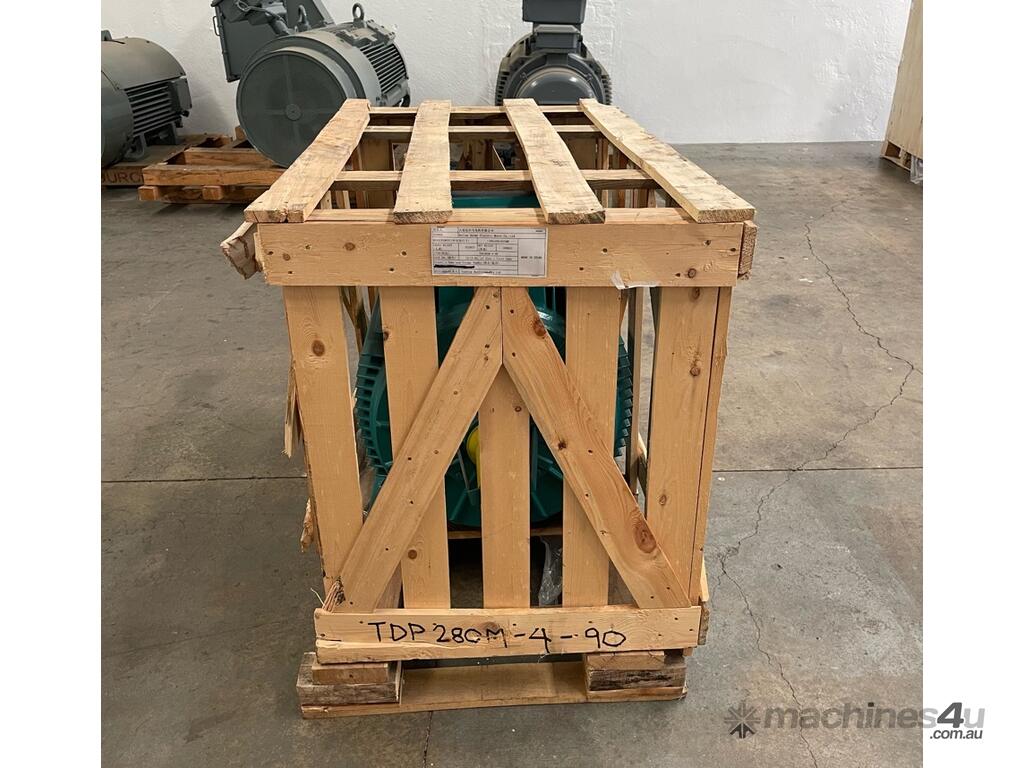

Condition: Brand New in Crate
exStock Seaford VIC 3198 Australia
Freight services available Australia wide, immediate despatch
