900KVA Containerized Silenced Cummins Diesel Generator 415V 3Ph.

Model CK37200 Technical Data

Generator
Prime Power: 900KVA
Standby Power: 990KVA
Rated Current: 1296 amps per phase
Canopy: Silenced
ATS: N/A
Fuel Tank Capacity: 8-10 hours run time
Noise Level: 80Db at 7 metres

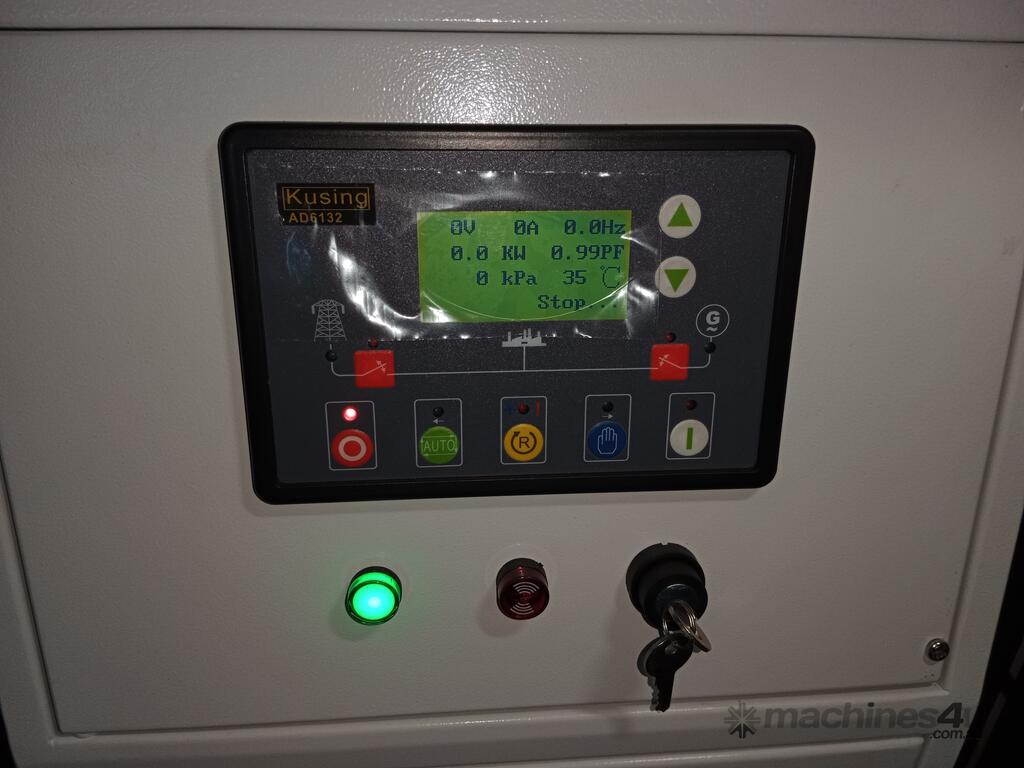

Controller: Kusing 6132
Main Contactor Switch: Chint 1600A
Internal Protection: IP22

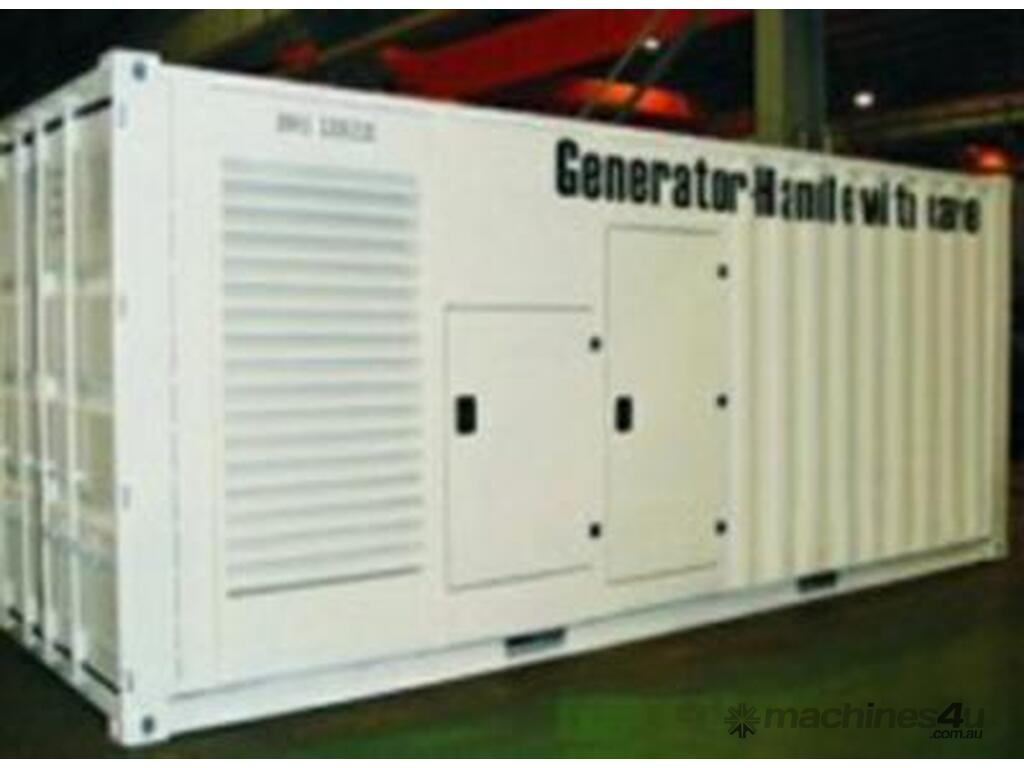

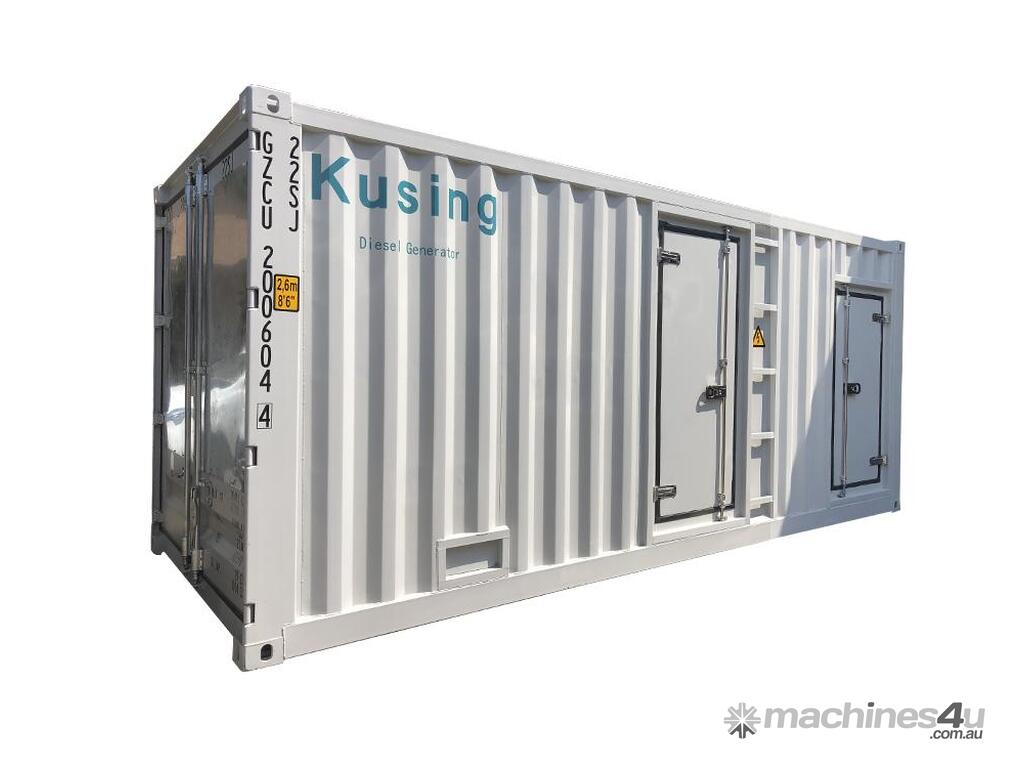

Dimensions: 20FT Container
Weight: 6900kg

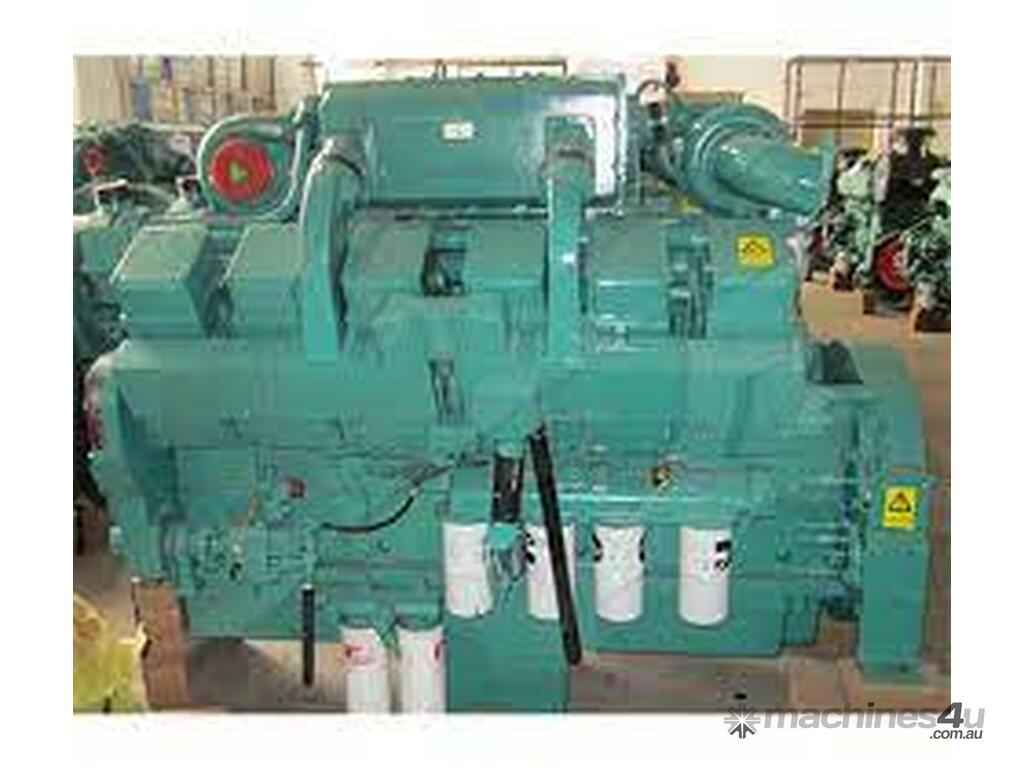

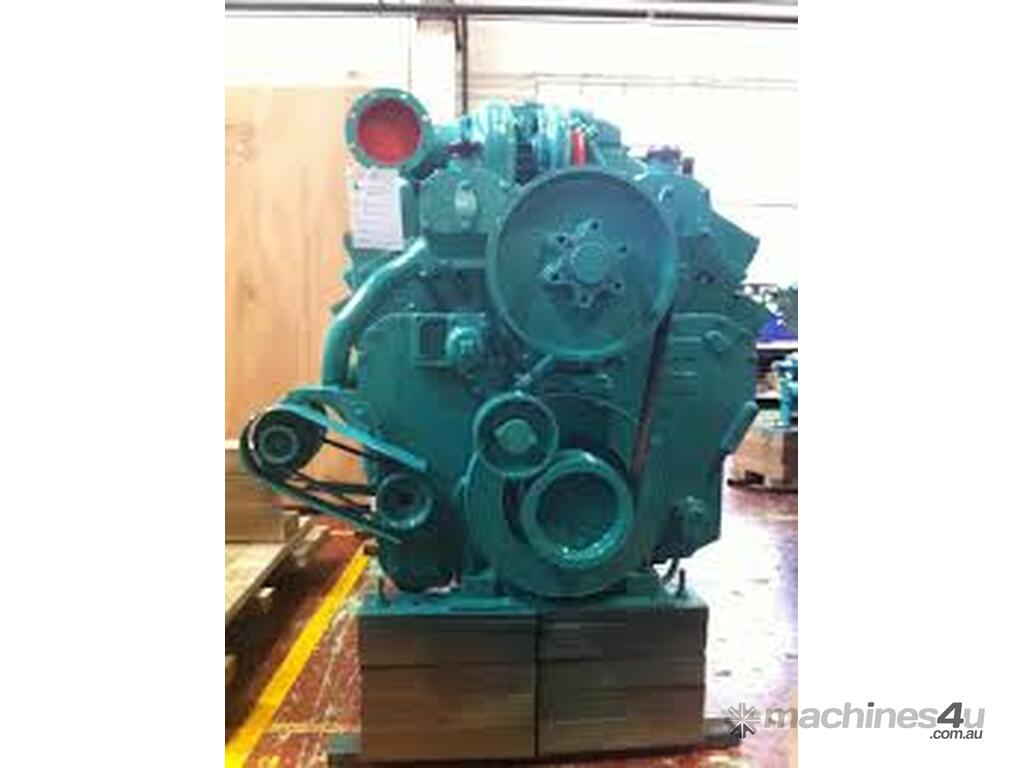

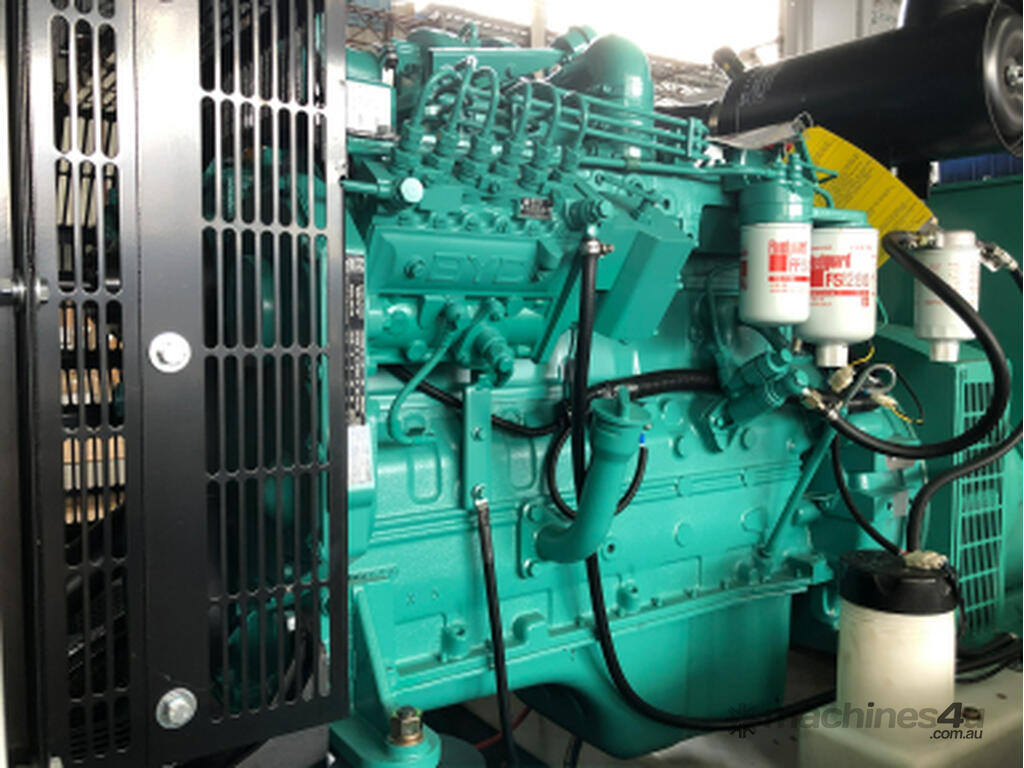

Engine

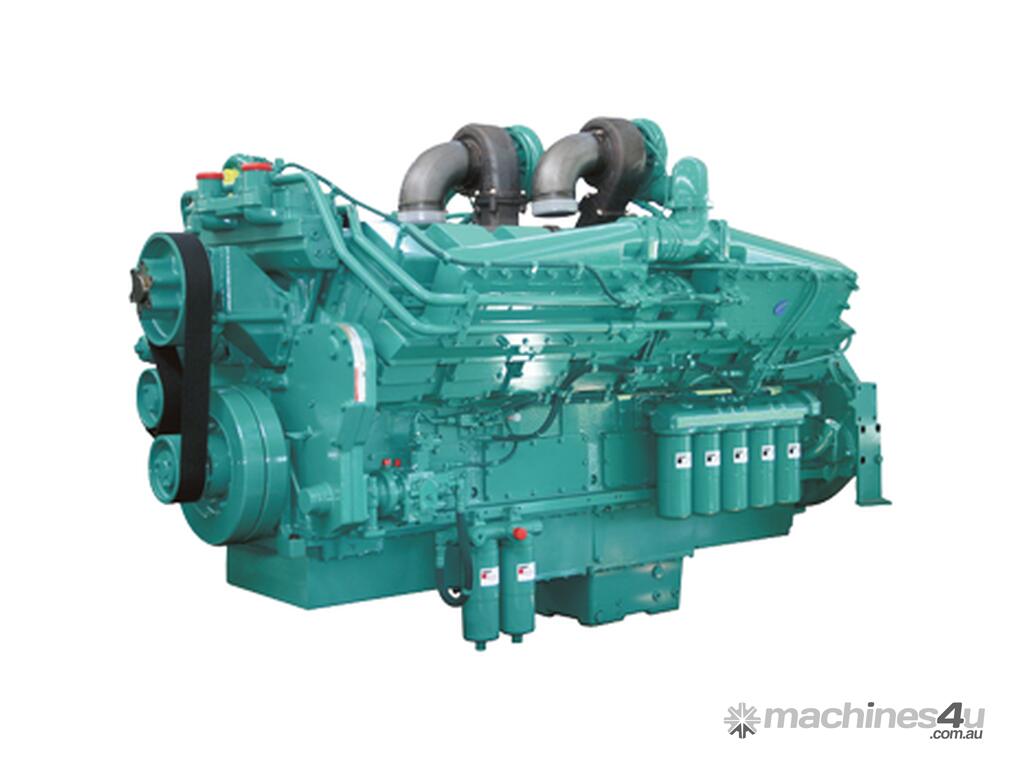

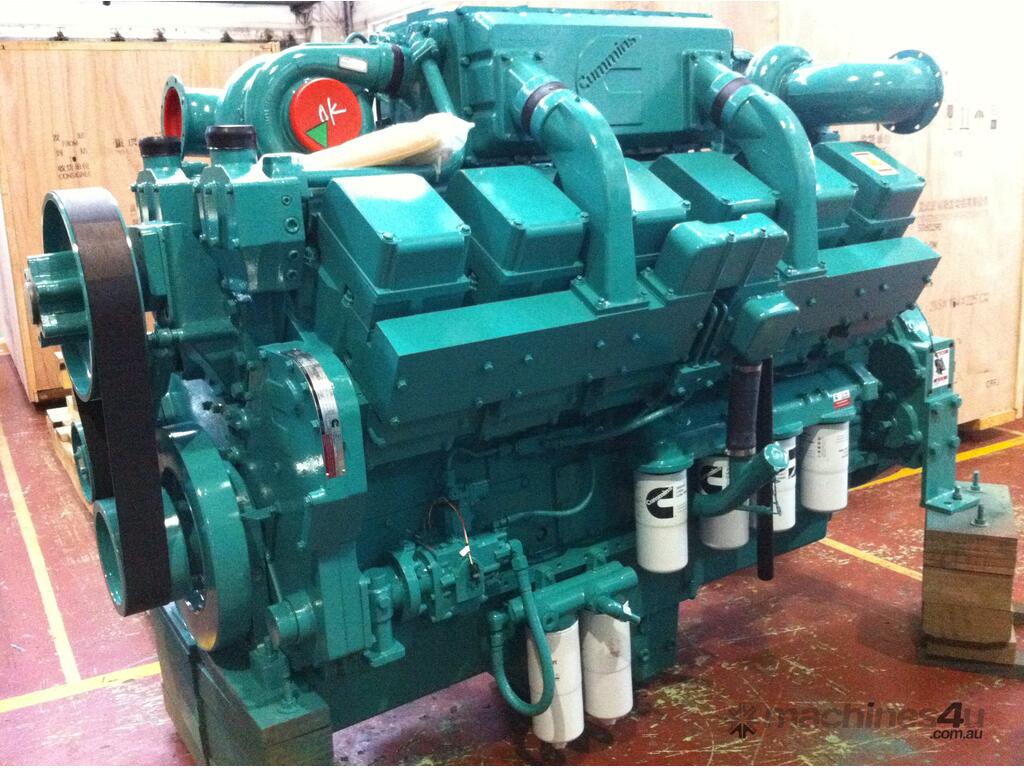

Cummins KTA38-G2A
Bore: 159mm
Stroke: 159mm
Air Aspiration: Turbo Charged
RPM: 1500
Speed governor: Electronic
Start system: 24V
Fuel consumption: 143L/hr 100% Load
Oil specification: 15W/40
Oil sump capacity: 114 Litres
Coolant capacity: 118 litres (engine only)

Alternator
Kusing S404G728D3
Voltage: 3 phase 380-415V / single phase 220-240V
Frequency: 50Hz at 1500 RPM
Power Factor: 0.8 (lagging)
Voltage Tolerance: + / - 1%
Insulation Class: H

Warranty
12 Months / 1000 hours

All generator sets have gone through rigorous testing before being released to the market place. Including 50% load, 75% load, 100% load, 110% load and all protection functions tested eg, overspeed stop, high water temperature, low oil pressure, battery charging fail & emergency stop.

*** Wellku Power Pty Ltd offer wholesale pricing for bulk orders. If you wish to purchase multiple generators for your own company needs or to on-sell, please call us and we will discuss a pricing category. Special orders welcome – 10-12 weeks turnaround time. ***

Optional – Inquire for pricing on optional items.

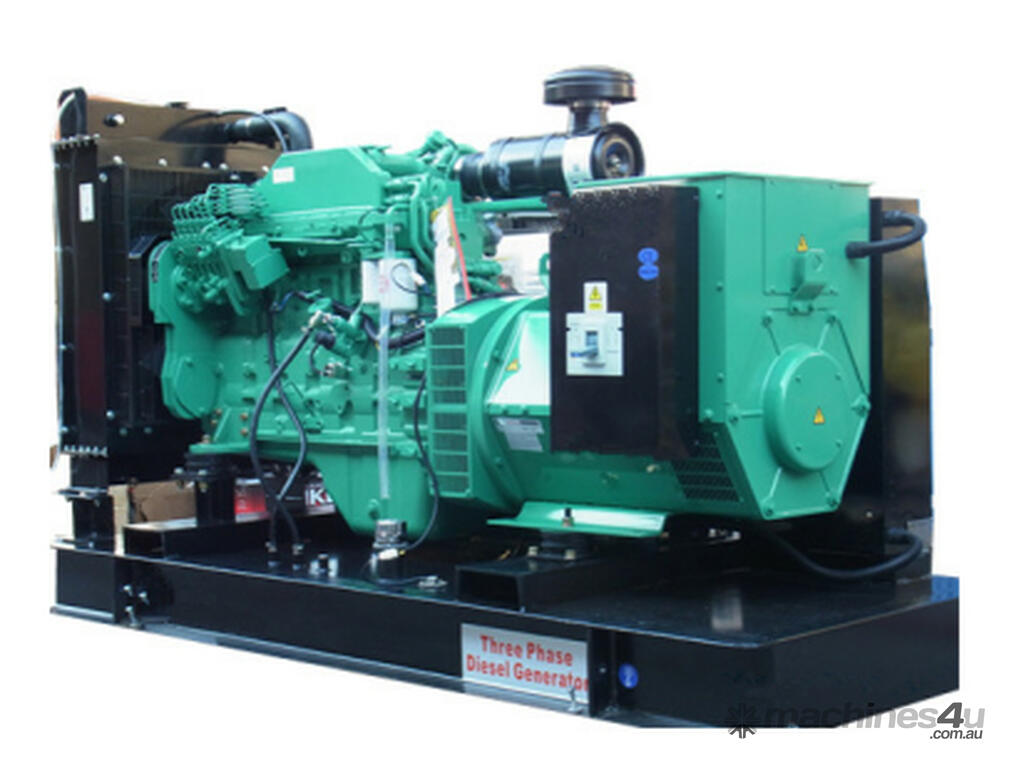

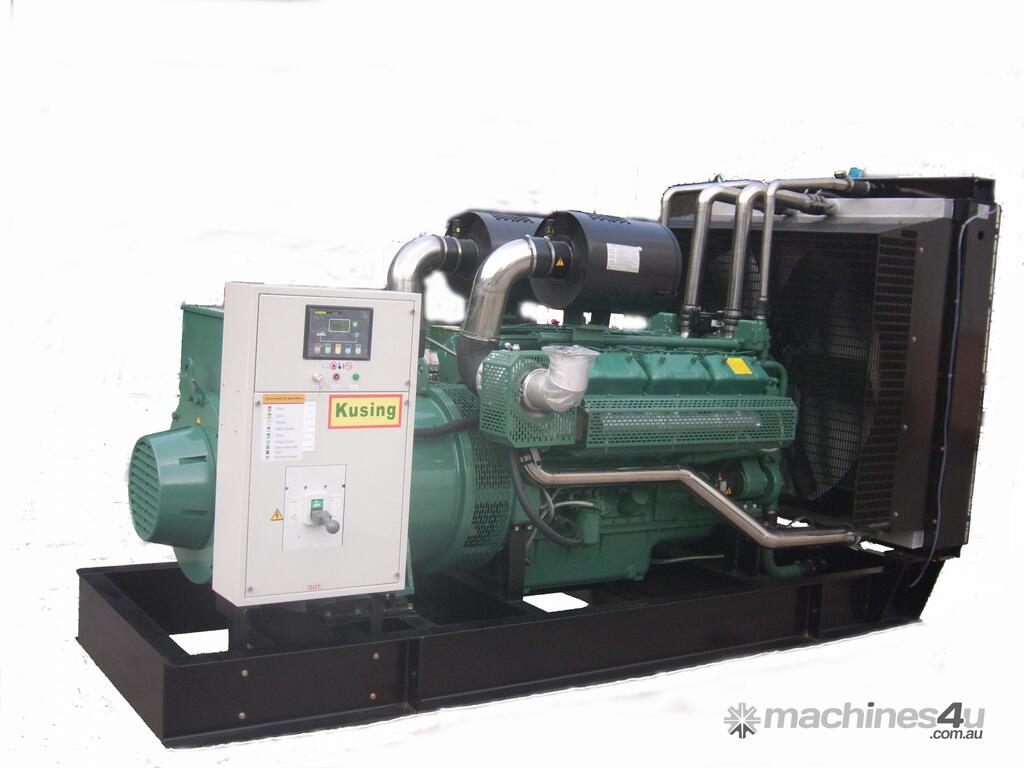

Open frame
Engine: Cummins, Perkins, Yang Dong
Controller: Comap, Smartgen, Deepsea, Kusing
Alternator: Stamford, Leroy Somer, Kusing
Inbuilt ATS add $5500
3 Phase 32A – 50A outlets
Single phase 240V 15A outlets
Padlockable battery isolator
Mine Spec

Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).
• Compatible for stationary and transportable use.

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)


Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.

Why you should buy from Wellku Power

Wellku Power Pty Ltd have been manufacturing diesel generators worldwide for over 15 years. Our factory currently produces industrial diesel water-cooled machines from as small as 8KVA up to 3000KVA or more.

Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

All generator sets have gone through rigorous testing before being released to the marketplace, including 50% load, 75% load, 100% load, 110% load.

If you require a custom build to meet specific requirements, we are your supplier who can provide exactly what you want.

Wellku Power offer attractive wholesale pricing discounts for bulk orders & and discounted prices for repeat customers.

Shipping

For a shipping price to deliver to your location, please contact us on or sales1wellku
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.
