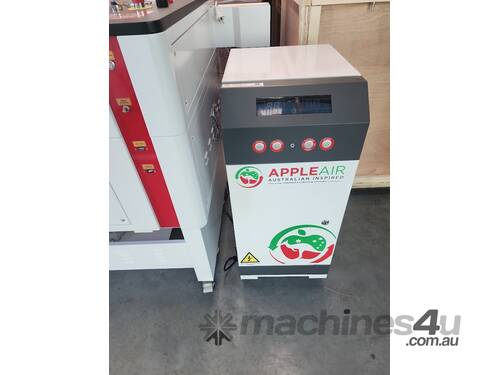

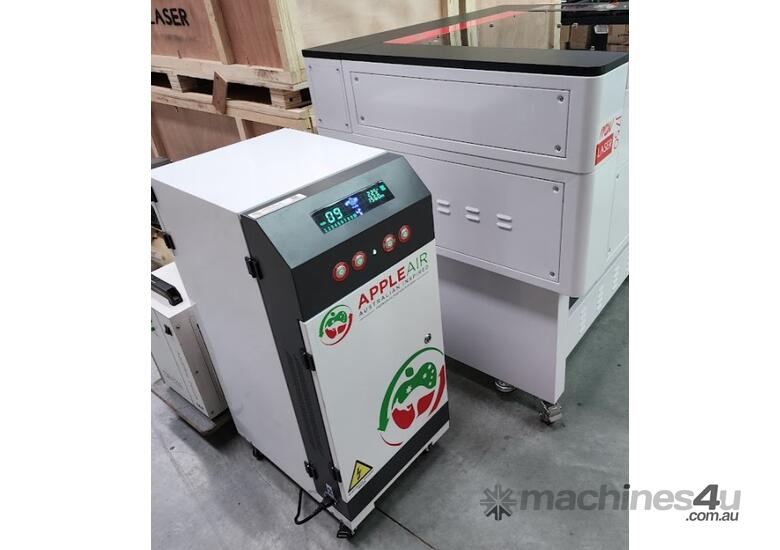

AA604-E Electrostatic Fume Filtration - Laser Air Purifier Filter

Our AA604-E laser cutting & engraving purifier is designed to effectively filter laser engraving & cutting dust, fumes & Odor. This machine utilizes 5 unique 8 individual filtering technologies for maximum efficiency.

The filtration system is suitable for cutting and engraving various non-metal materials such as (acrylic, ABS, plywood, wood, MDF, leather, tumblers, Metal Paste compounds, laser inks, fabric etc.) to name just a few.

Our low replacement cost filters make this the most affordable filtration system on the market to date. The unique electrostatic filter simply needs washing when dirty not replacing saving you thousands in consumable costs.

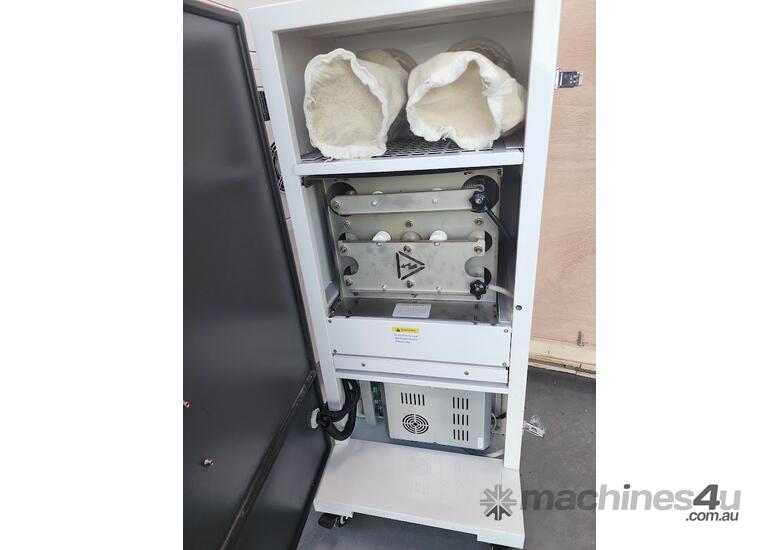

Filters included and available to purchase:
First Layer – Dual Dust collection Filters – Expected life is 1 year

Second Layer – Secondary Fine Particle Filter – Expected life is 1 year

Third Layer – Electrostatic Electronic Filter – No need to replace just wash

Fourth Layer – 3 x UV Light Electronic Filters – Expected life 3 years

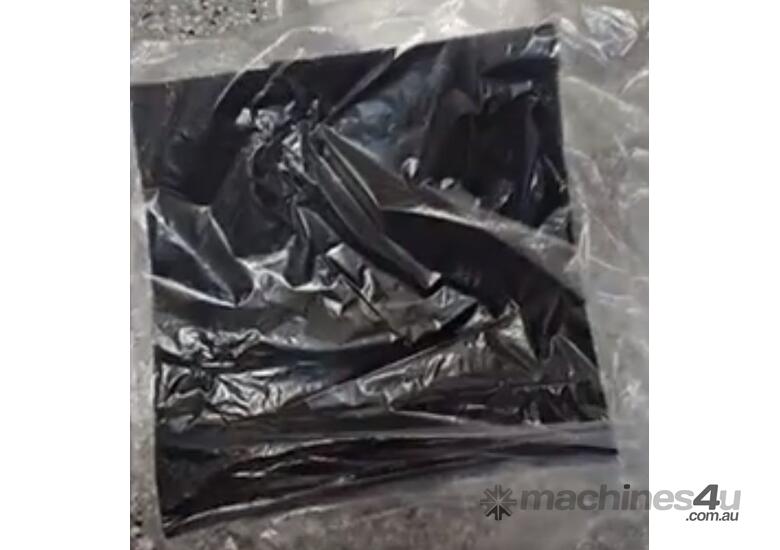

Fifth Layer – Active Carbon Filter – Expected Life 1 year

How it works:
High energy and high ozone ultraviolet beam is used to decompose oxygen molecules in the air to produce free oxygen, i.e. active oxygen. Due to the imbalance of positive and negative electrons carried by free oxygen, it is necessary to combine with oxygen molecules to produce ozone. It is well known that ozone has a strong oxidation effect on organic matter and has an immediate effect on the removal of organic gases and other pungent Odors.

After the organic gas has passed through the filters, the organic (Odor) gas is decomposed and oxidized by high-energy ultraviolet beam and ozone, so that the organic gas material can be degraded into low molecular compounds, water and carbon dioxide, and then discharged outdoor through the extraction outlet.

Recommended for:
CO2 laser cutting machines with a bed size up to 900mm x 600mm.
