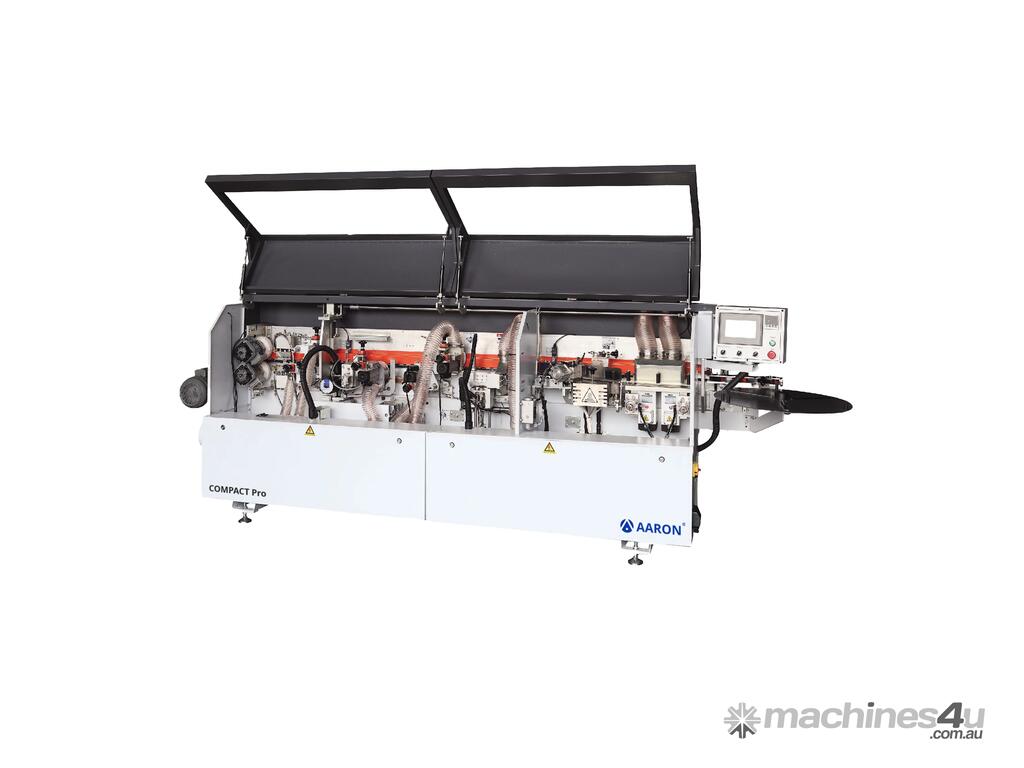

With a length of only 3.55 metres, this solid, compact pre-milling and corner rounding edge banding machine is perfect for Aussie workshops where space is a premium.
COMPACT Pro Functions

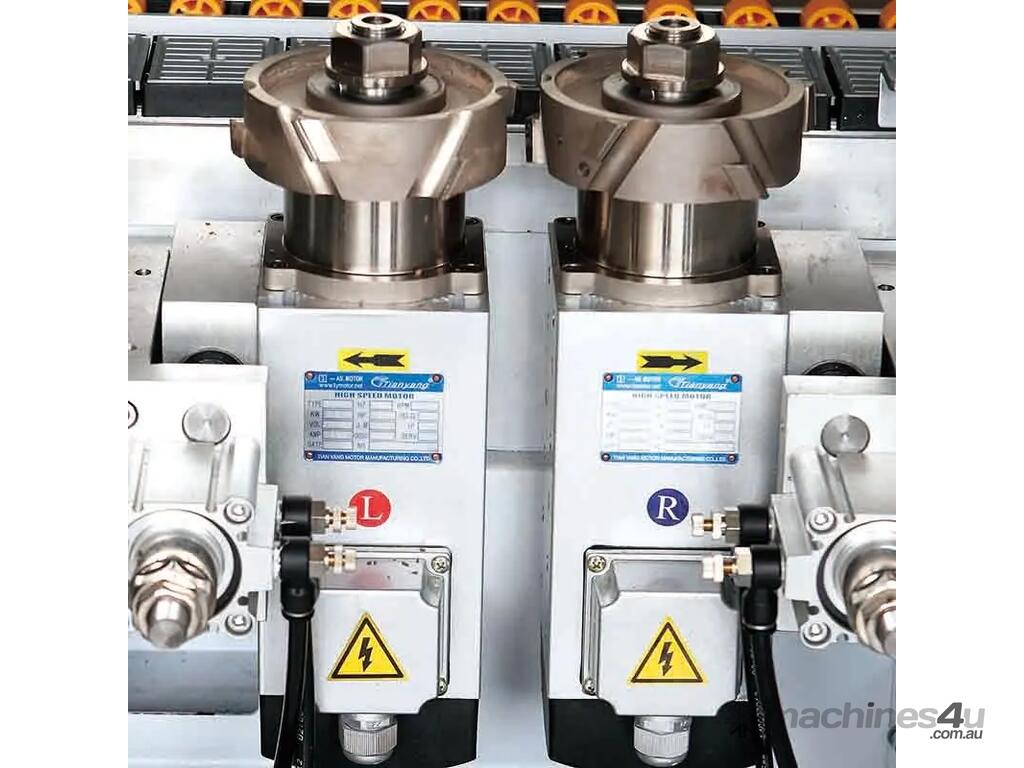

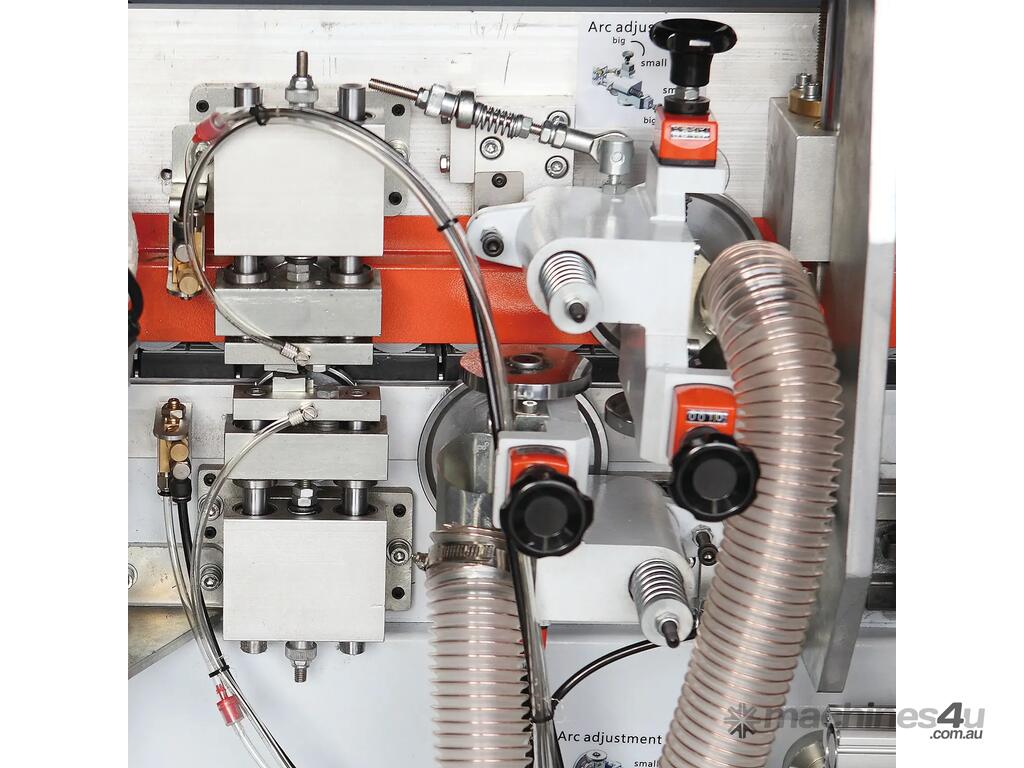

Pre-milling - Gluing - End cutting - Fine trimming - Corner Rounding - Flat Scraping - Scraping - Cleaning - Buffing
Technical Data
Edge thickness: 0.4–3.0 mm
Min panel width: 120 mm
Min panel length: 150 mm
Panel thickness: 10–50 mm
Working voltage: 3-Phase 415V
Air pressure: >0.6 MPa
Feeding speed: 9 m/min
Total power: 12 kW
Overall dimensions: 3550(L)×640(W)×1316(H) mm
Net weight: 830 kg
We strive to provide high-quality and affordable solutions for customers of all requirements, from backyard carpentry enthusiasts to CNC-automated production across Australia. We invent and design many compact practical woodworking machines, and source some of the world's leading large-scale machines such as edgebanders, panel saws and CNC machines. No matter the scale of your needs, we've got you covered. If you've got a need, we'll aim to fulfil it with quality and affordab
