Working height
11.62m
Platform Capacity
230kg
Gradeability
35%

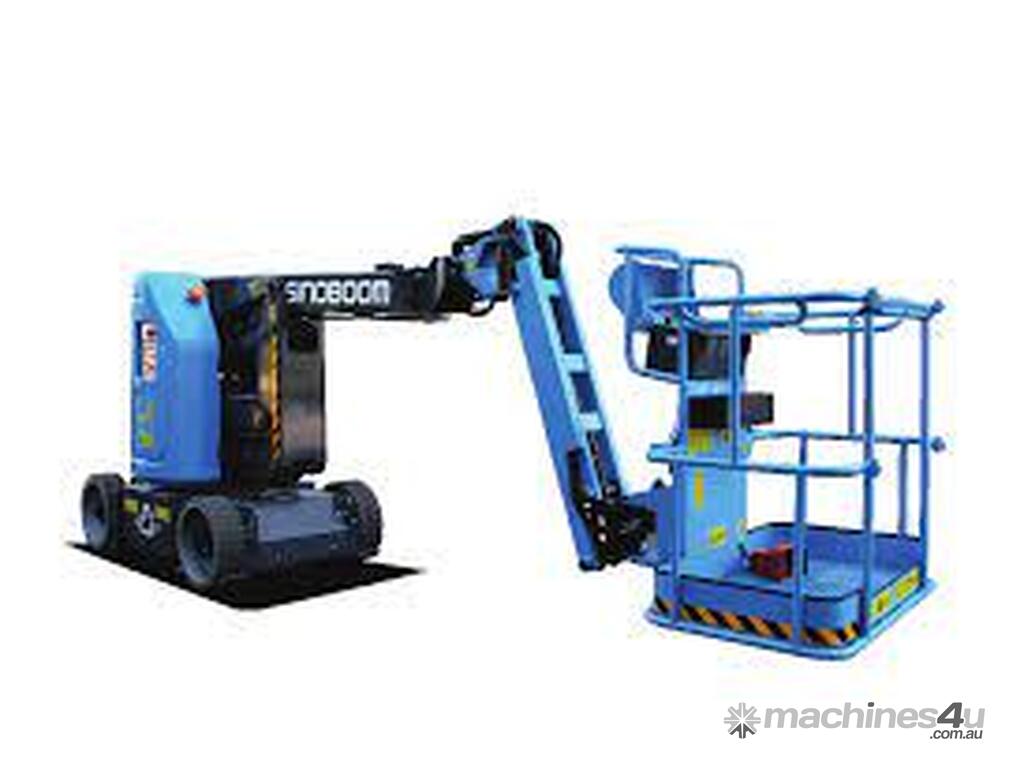

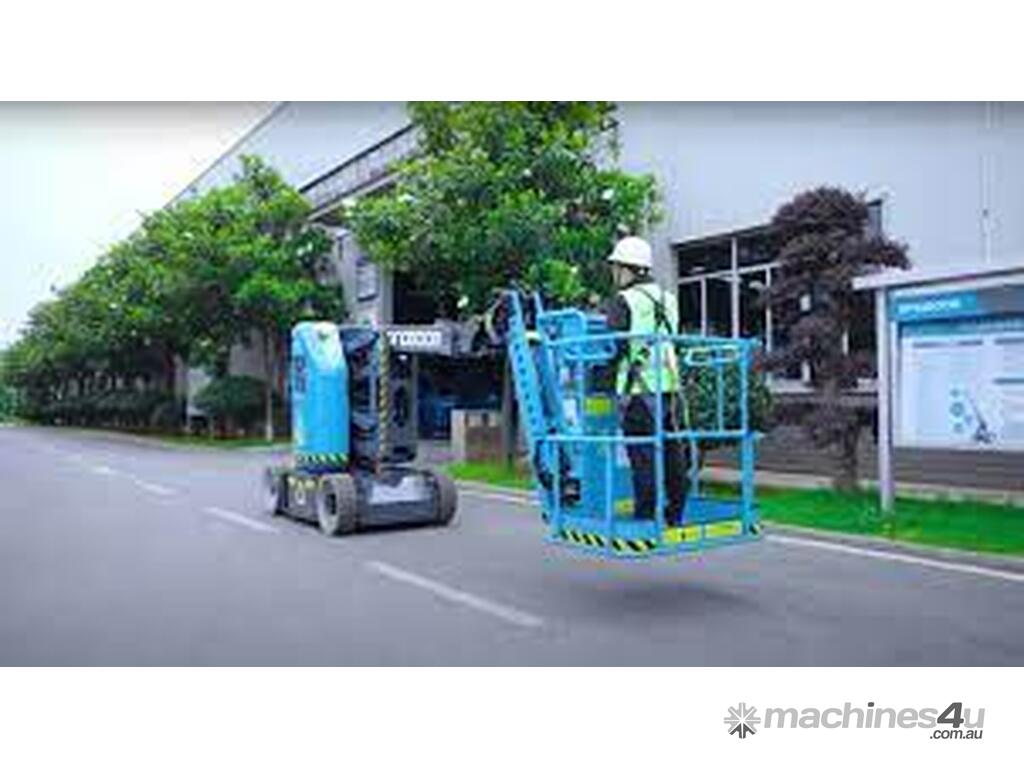

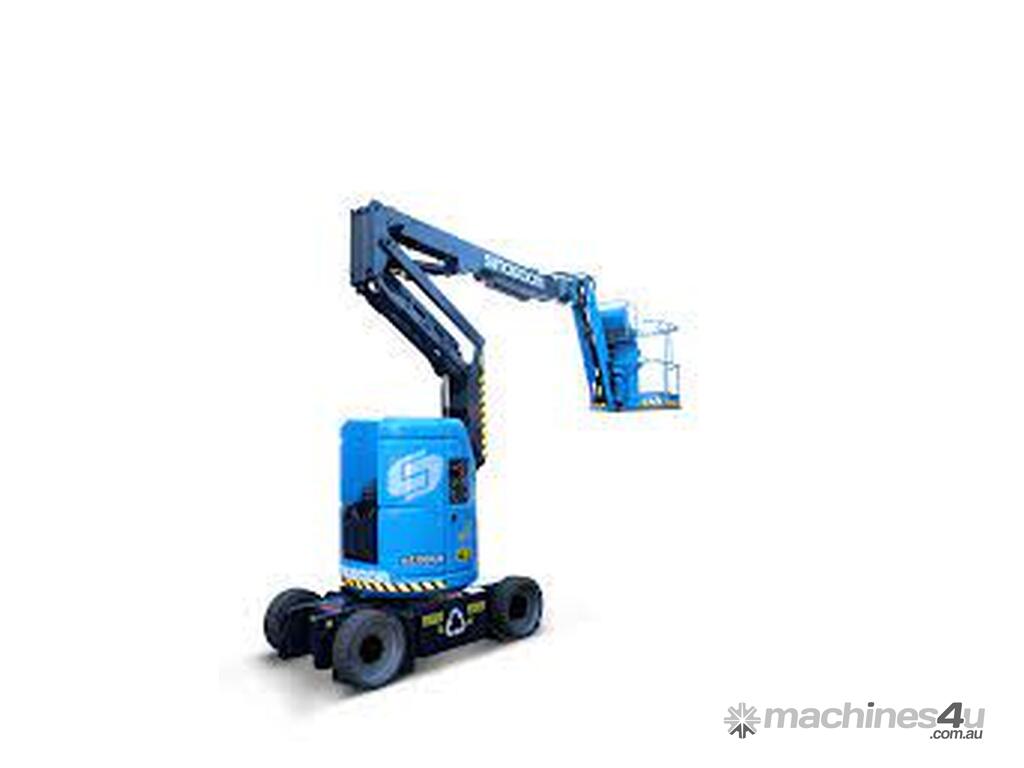

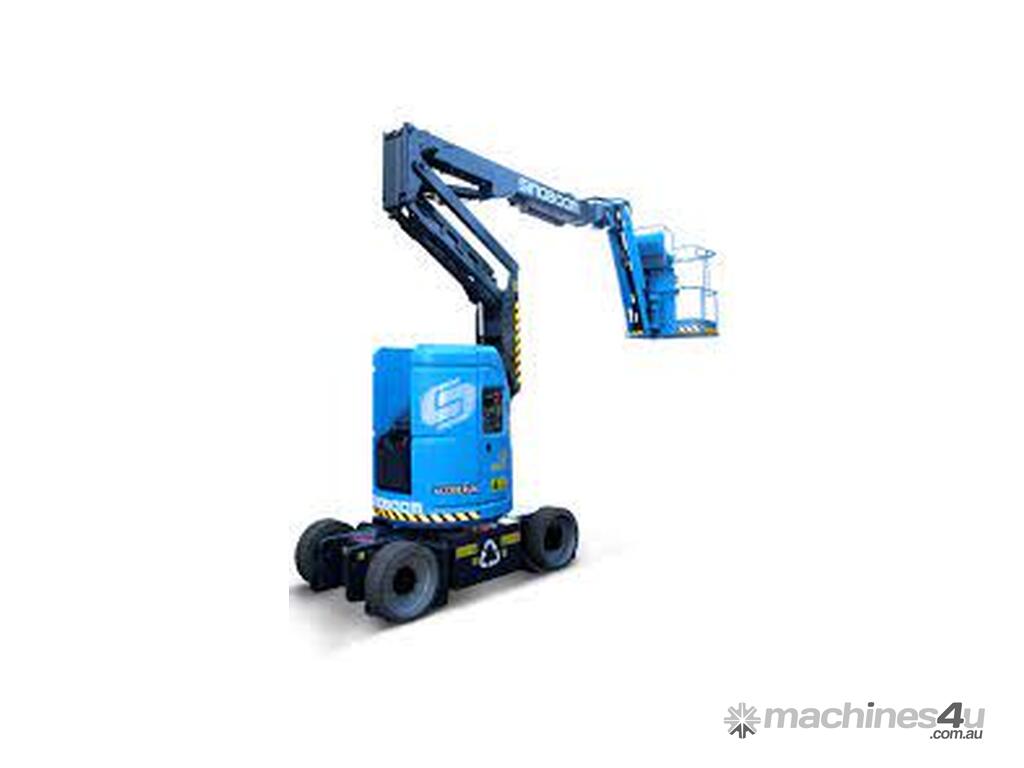

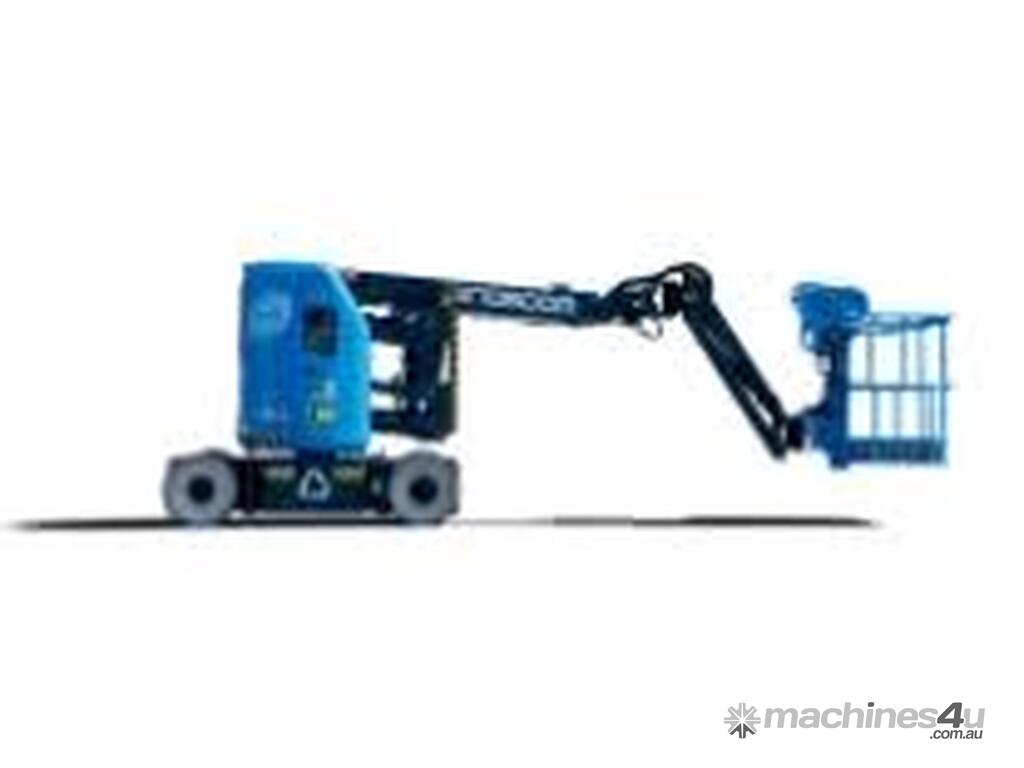

Electric Boomlift.
DIMENSIONS
Max Platform Height
9.62m (31'7")

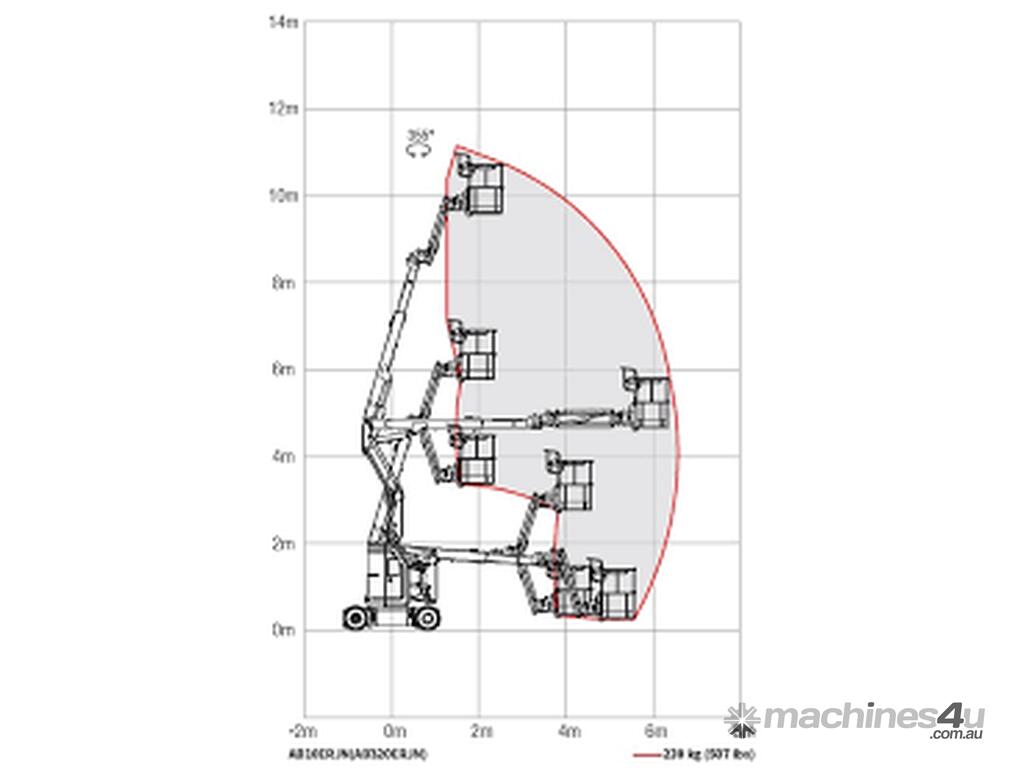

Max Working Height
11.62m (38'1")
Max Horizontal Extension
6.3m (20'8")

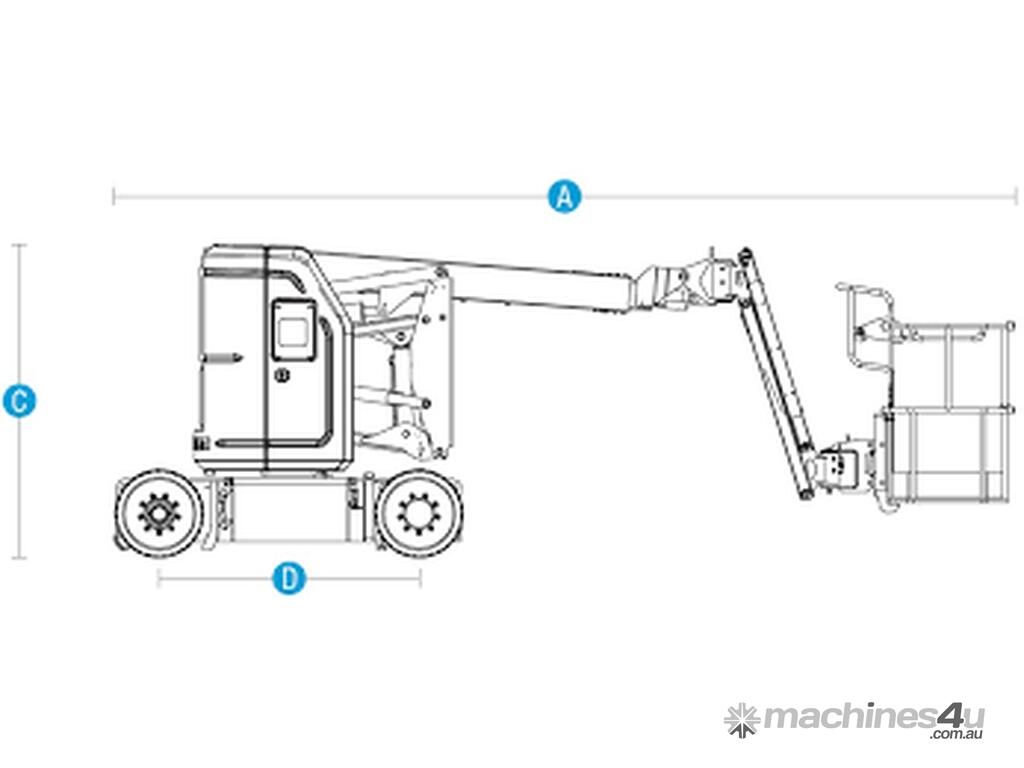

[A] Length-Stowed
5.84m (19'2")

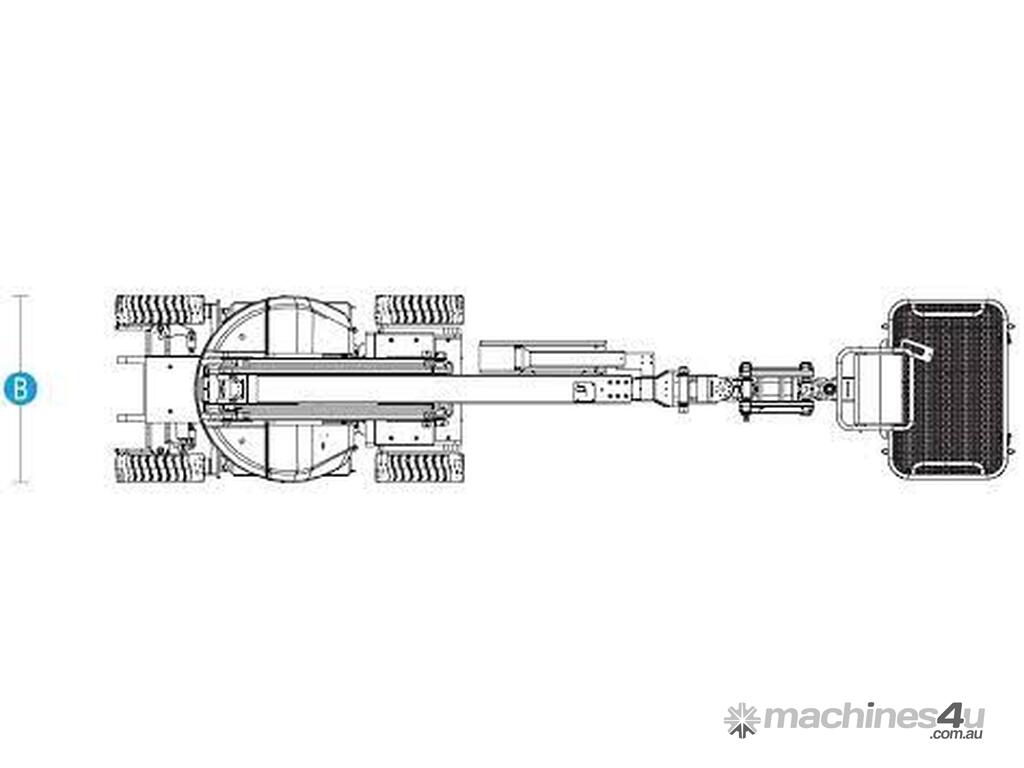

[B] Width-Stowed
1.19m (3'11")
[C] Height-Stowed
1.99m (6'6")
[D] Wheelbase
1.65m (5'5")
Ground Clearance
0.09m/0.03m (3"/1.1") (pothole guard stowed / deployed)
Platform Dimensions
(L×W×H)
1.15m×0.76m×1.1m (45.3"×30"×43.3")
PERFORMANCE
Platform Capacity
(Unrestricted/2 Persons)
230kg (507lbs)
Turntable Rotation
355° non-continuous
Platform Rotation
180°
Drive Speed-Stowed
5km/h (3.1mph)
Drive Speed-Raised
0.8km/h (0.5mph)
Gradeability
35?
Turning Radius-Inside
1.7m (5'7")
Turning Radius-Outside
3.25m (10'8")
Turntable Tailswing
0m (0')
Tilt Rating
3°
Drive×Steer
2WD × 2WS
Tyres Spec/Type
22×7×17.75'' (Solid non-marking)
POWER
Batteries
48V, 330Ah (AGM battery)
Auxiliary Power Unit
12V DC
Hydraulic Tank Capacity
20L (4.4gal (UK) / 5.3gal (US))
Weight
6,760kg(14,903lbs)
Standards Compliance
CE/ANSI/CSA
