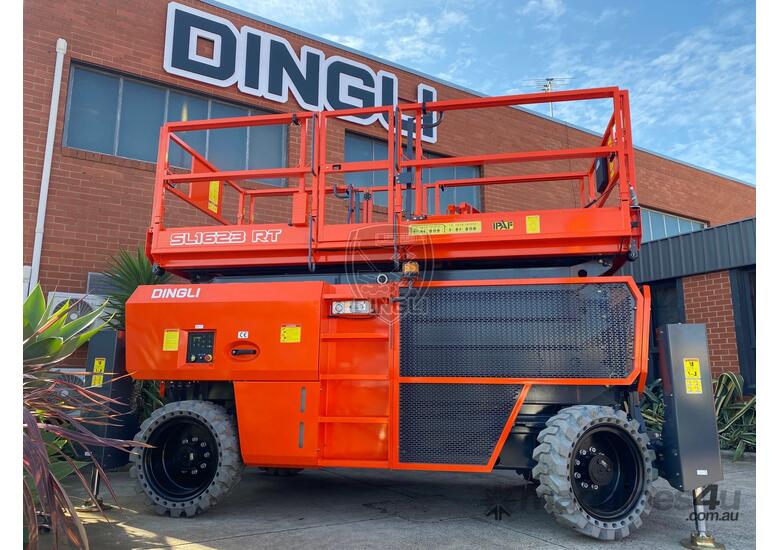

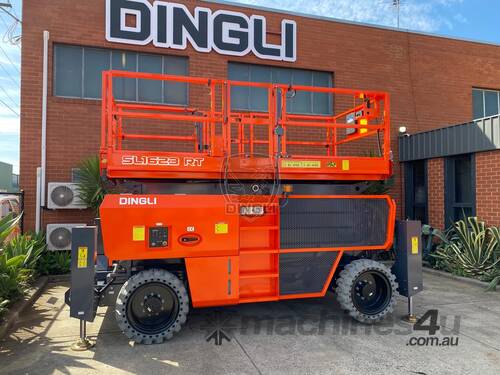

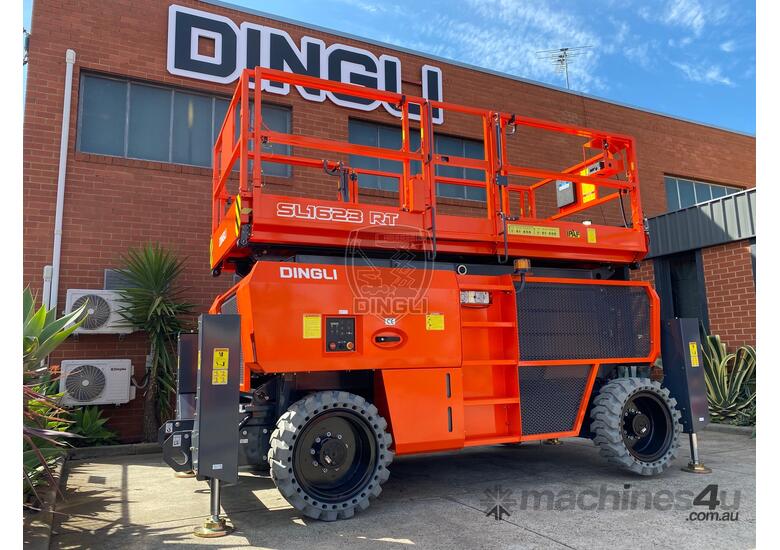

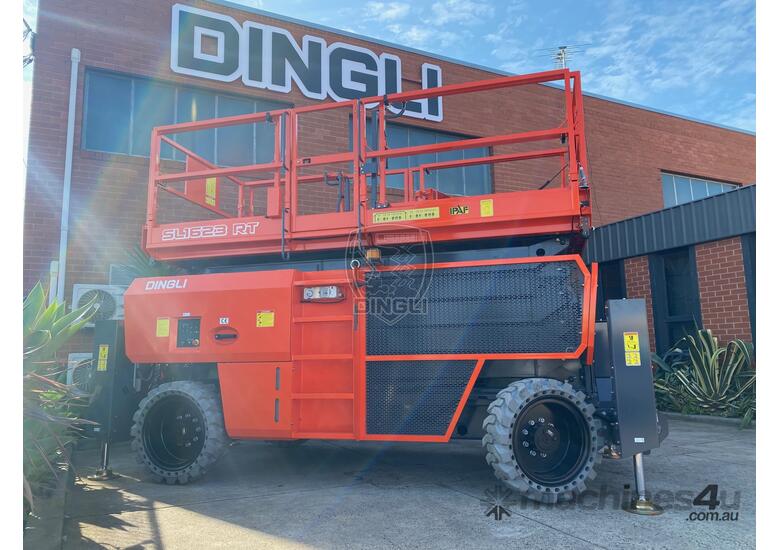

The Dingli SL1623RT offers a maximum working height of 18m with platform height of up to 16m, and a maximum load is 680kg. With advantages of great height, heavy load, large platform and strong power, it can be qualified for more severe working conditions and meet various indoor and outdoor work requirements.
AUSTRALIAN MODEL OPTIONED SPEC:
- KUBOTA DIESEL
- 240V RCD POWER TO PLATFORM
- AUTO LEVEL
- NON-MARKING TYRES
- ONBOARD DIAGNOSTICS
- OVERLOAD SENSOR
SIZE:
- Max. Working Height - 18m
- Max. Platform Height - 16m
- Overall Height (Rails Up) - 3.19m
- Overall Height (Rails Down) - 2.49m
- Overall Length (With Outriggers) - 4.88m
- Overall Width - 2.27m
- Platform Size (Length x Width) – 3.98x1.83m
- Platform Extension Size (Front/Back) – 1.43m/1.16m
- Ground Clearance (Raised/Stowed) - 0.30m
- Wheelbase – 2.86m
- Turning Radius (Inside/Outside) – 2.35m/5.20m
- Tyres - 33x12-20
*Video for example
Since 2008, Access Sales & Spares has established a robust presence in the access industry, partnering closely with major manufacturers through Access Worx. Renowned for our commitment to service excellence, we offer comprehensive solutions. Our fleet of fully equipped service vehicles, coupled with skilled technicians, ensures prompt onsite repairs, maintenance, and emergency breakdown services. With coverage spanning VIC, NSW, QLD, SA, and service providers in Perth, Karratha, Darwin, Mackay, and Tasmania, we guarantee reliable support nationwide.
Go to the Access Sales and Spares showroom on Machines4u to see the range of stock, send Access Sales and Spares a message about the item you are interested in, or give us a call - we are happy to answer any of your questions.
* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
* FINANCE AND INSURANCE AVAILABLE *
