The Accurl tube lasers are a step ahead of their competitors being a machine that's been produced and constantly improved upon by Accurl for a number of year, Accurl sheet metal machinery offer high level technology machinery within its market segment and is a progressive forward thinking company constantly improving their products and product range. Its because of this Complete Machine Tools has taken on the agency for Accurl machines in Australia. Why limit yourself to a company that only can supply a laser cutting machine, go with a company who can grow with your business and offer a complete solution for all your sheet metal and fabrication machinery needs under the 1 roof.
TUBELINE SERIES
TUBE LASER CUTTING MACHINE

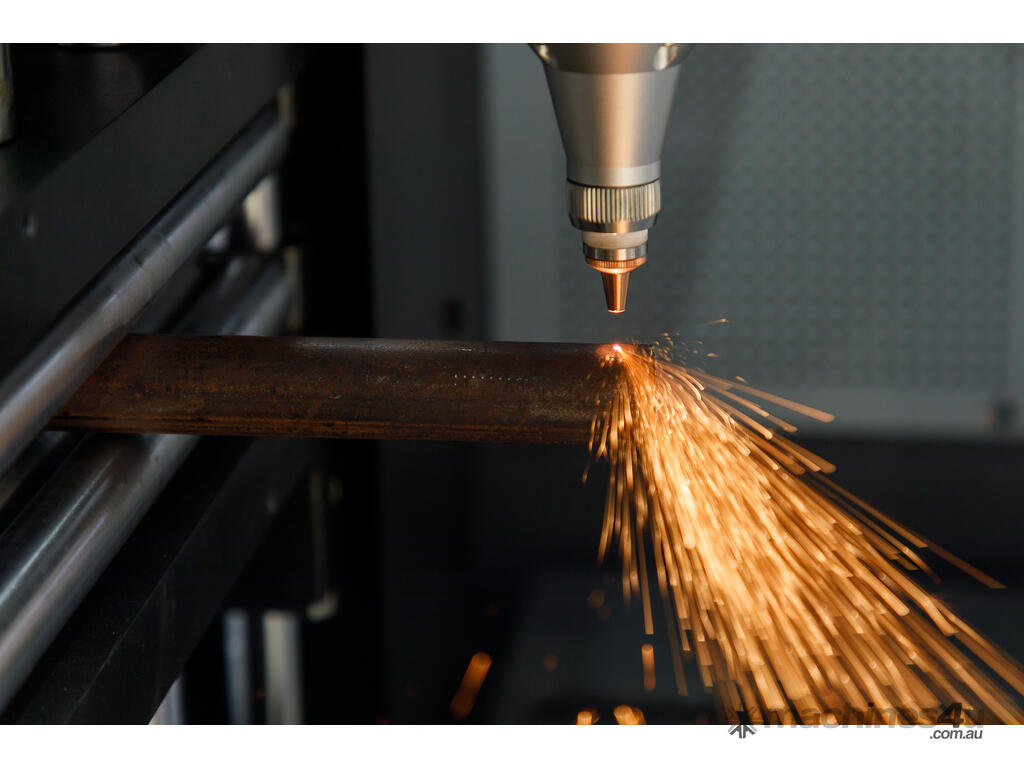

ACCURL makes tube manufacturing more efficient
and cost-effective with laser cutting technology. Using a
single, flexible tool, a variety of tube shapes can be
processed – with high cut quality and accuracy that
simplifies or eliminates secondary processes.
With class leading features in its segment Accurl offers a great quality machine at a competitive price.

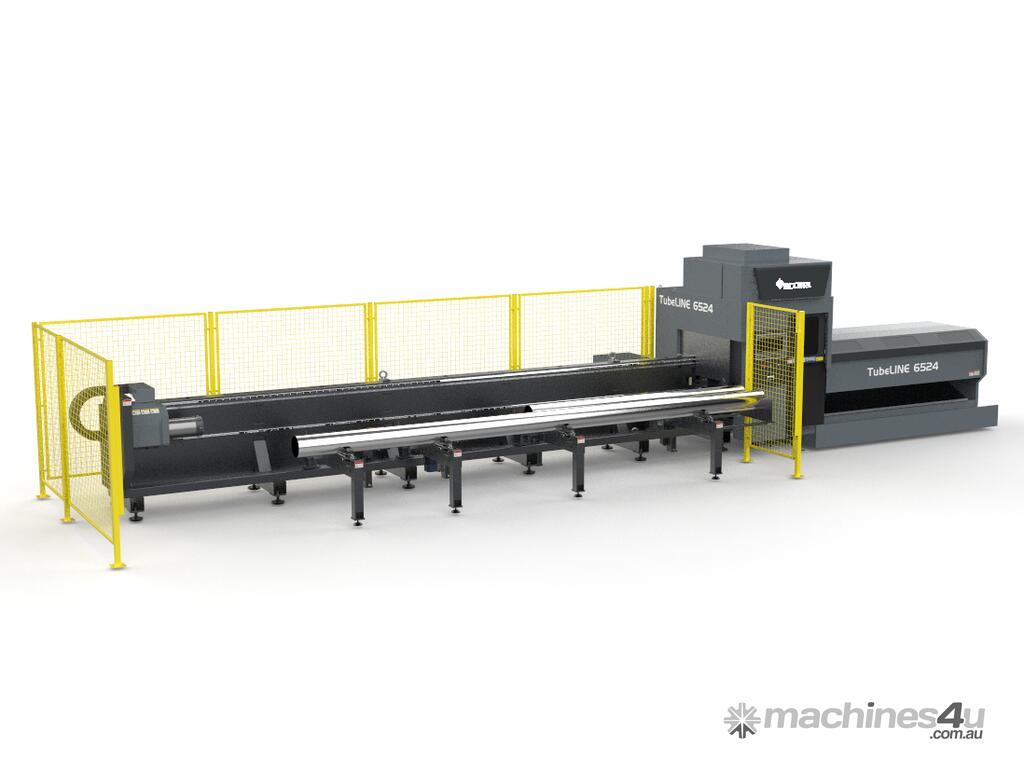

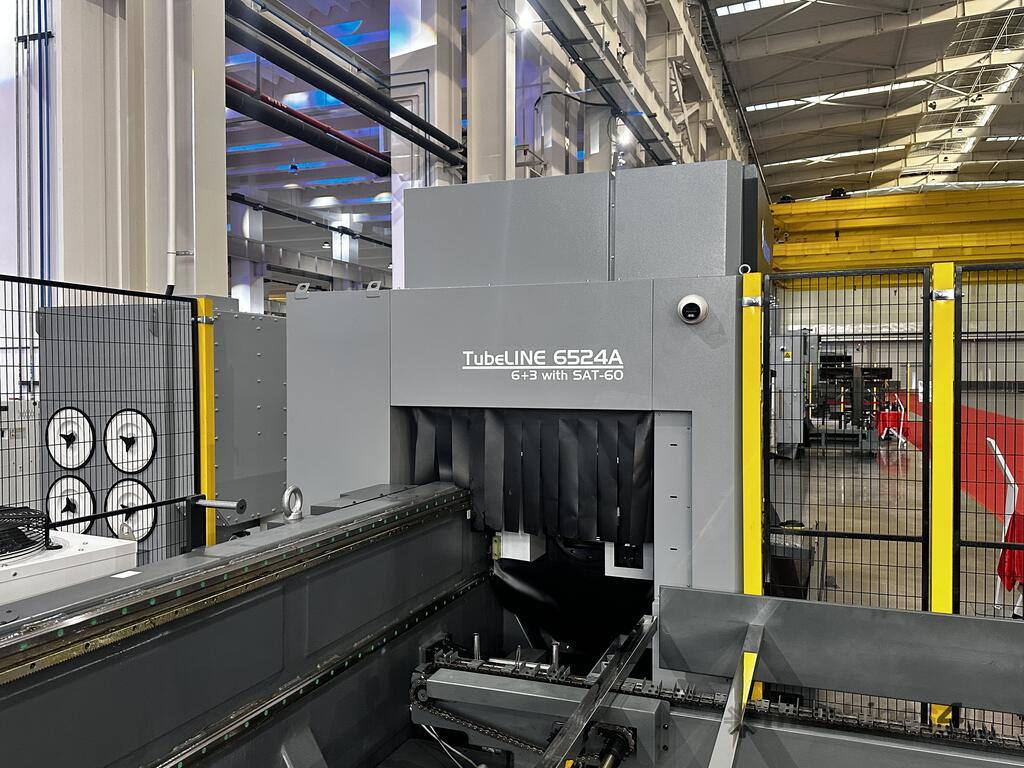

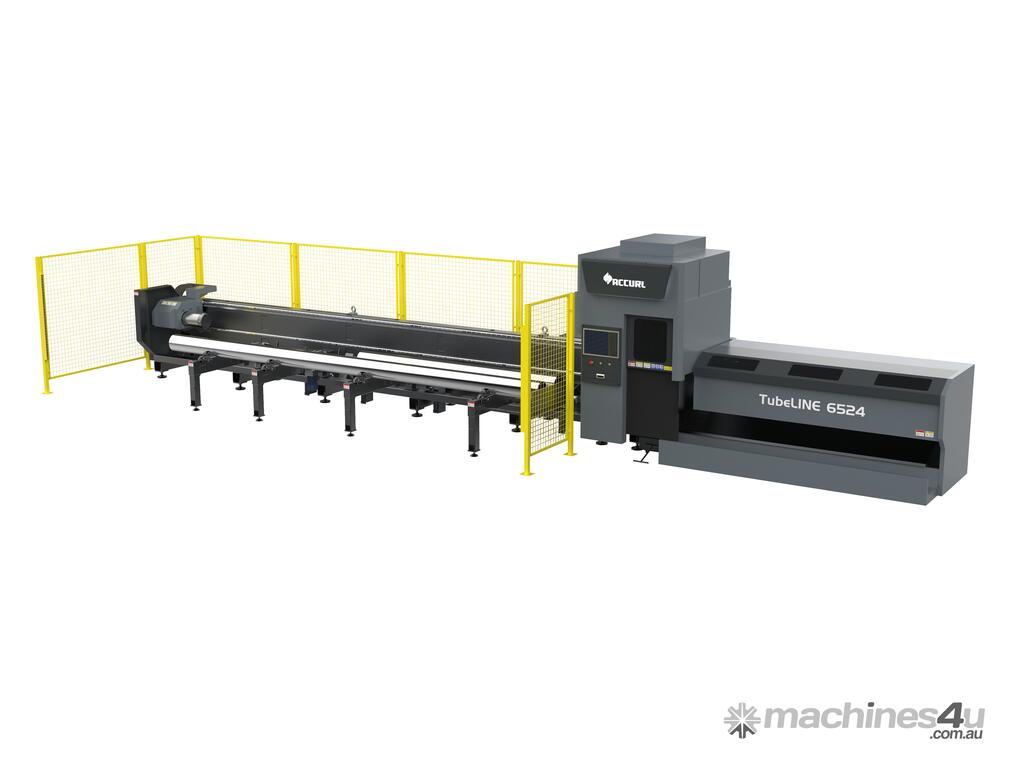

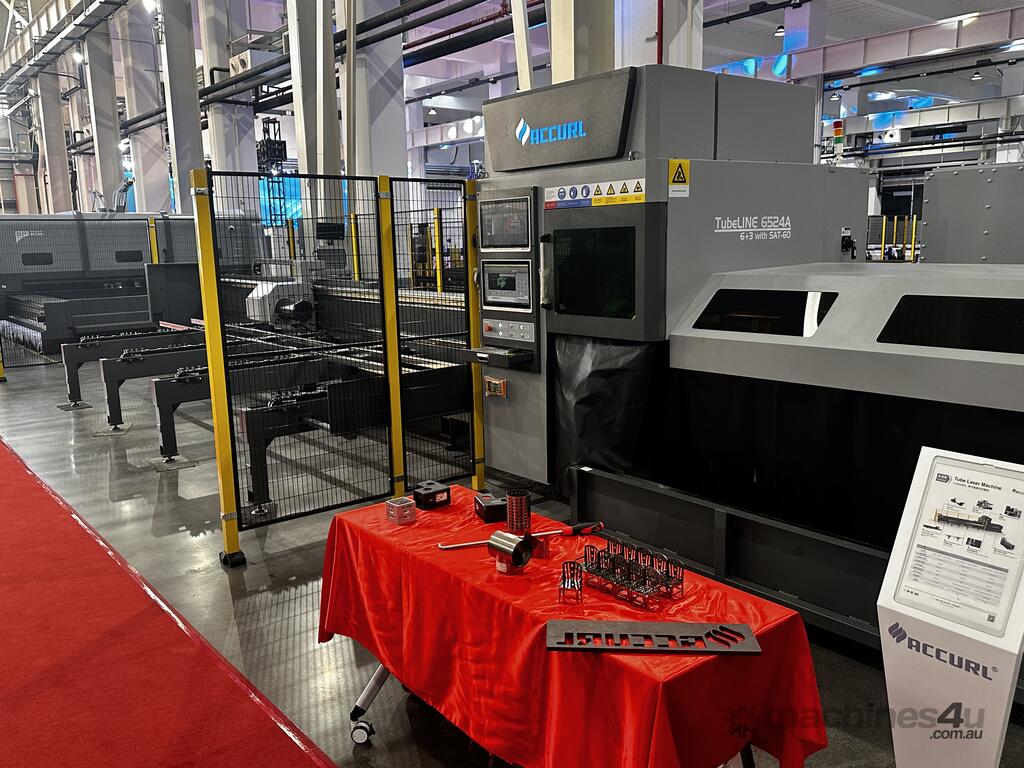

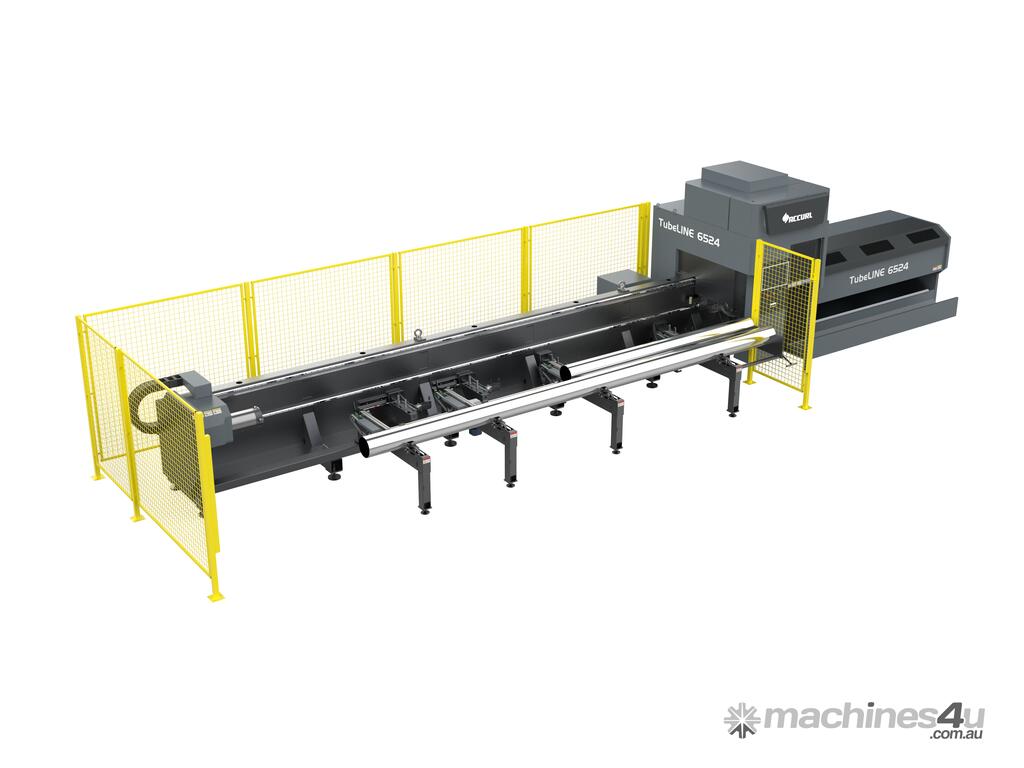

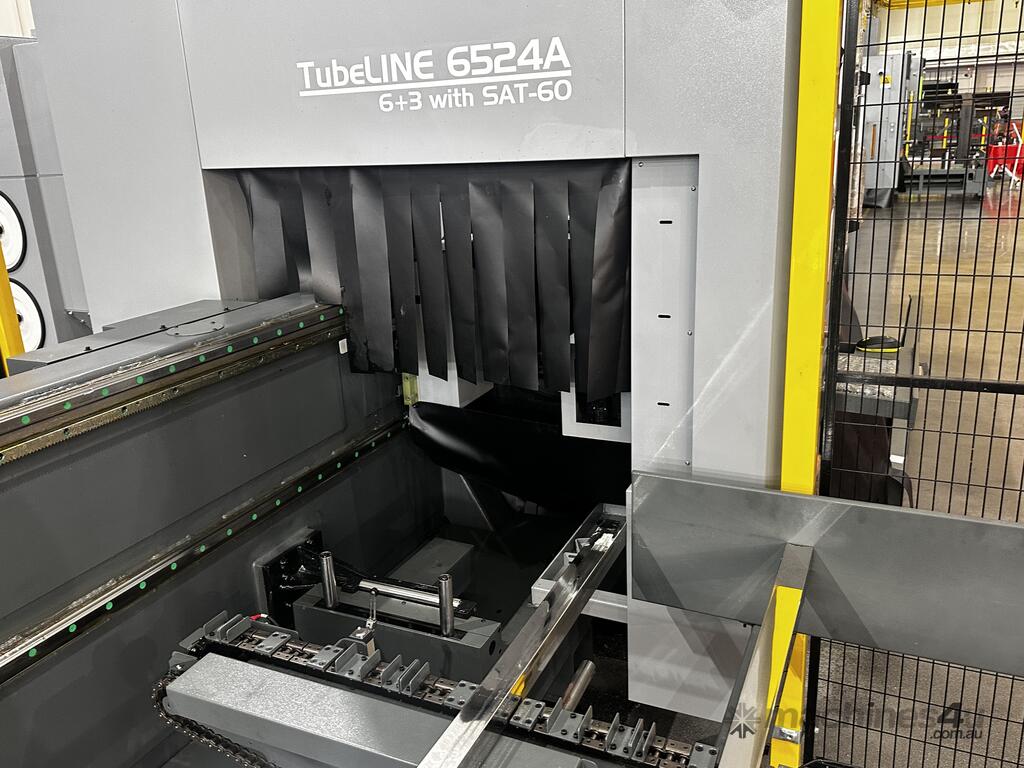

The TubeLINE A Series is the simplest way to enter the tube laser cutting world
STANDARD & OPTIONAL FEATURES AND SPECS -

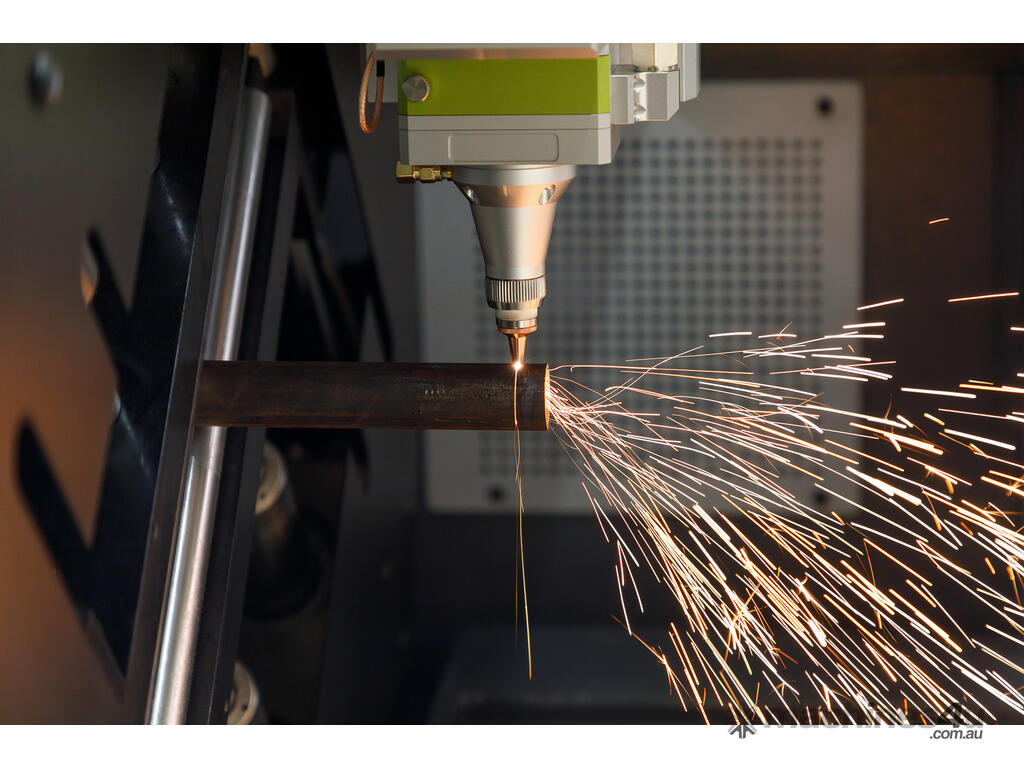

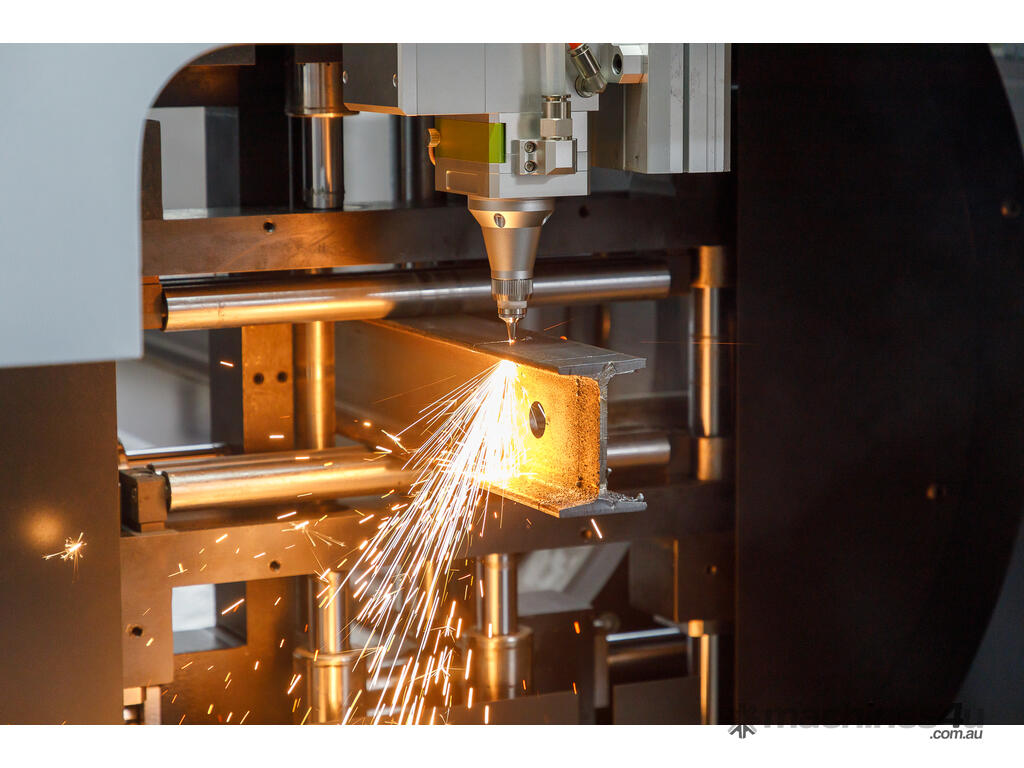

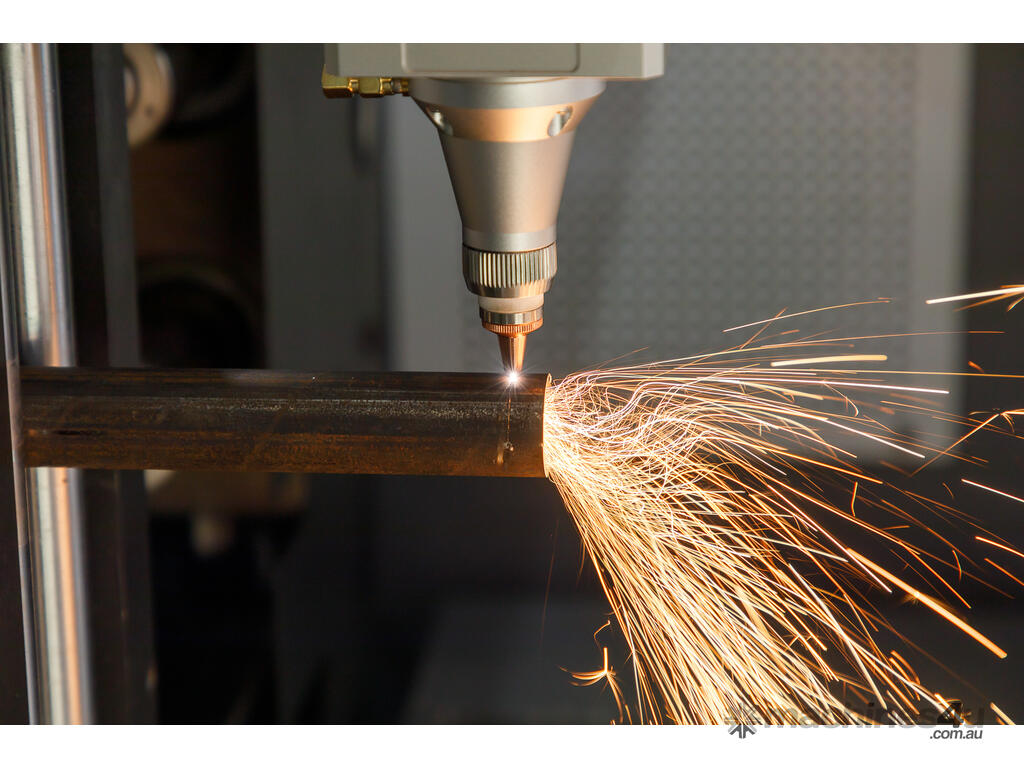

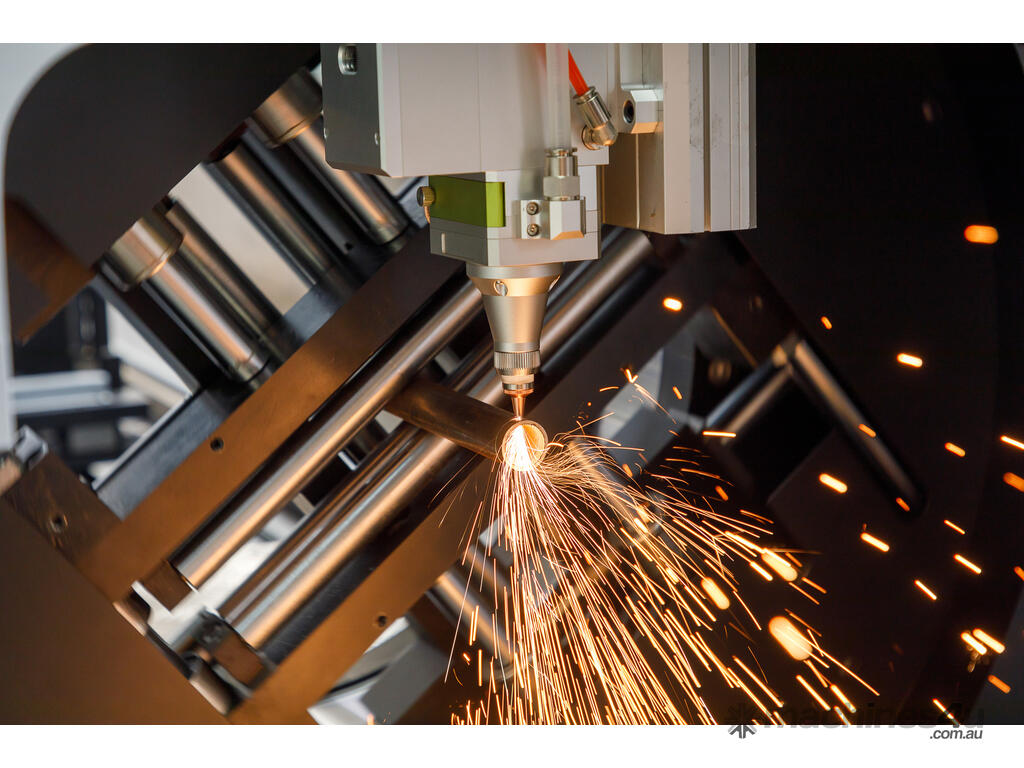

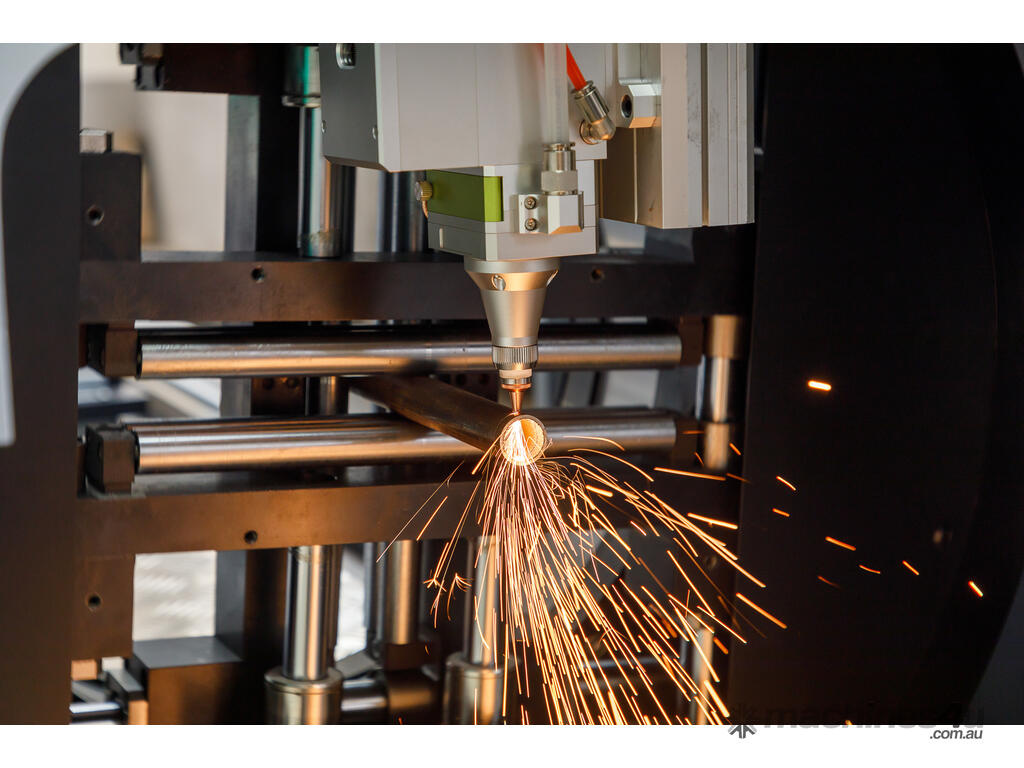

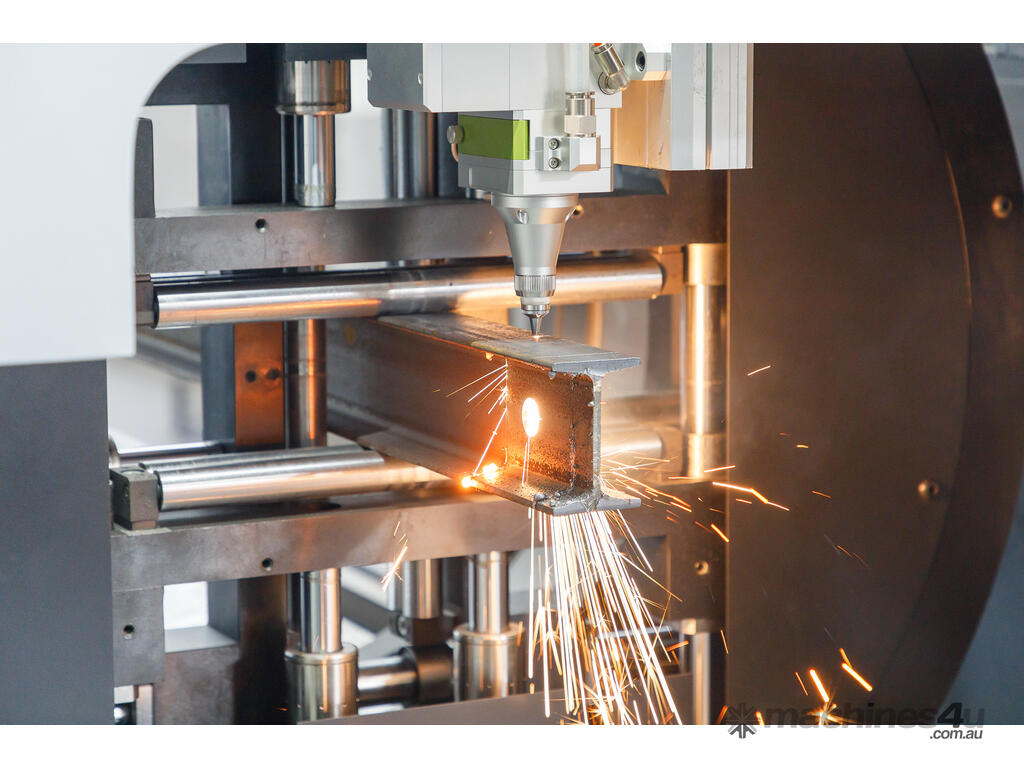

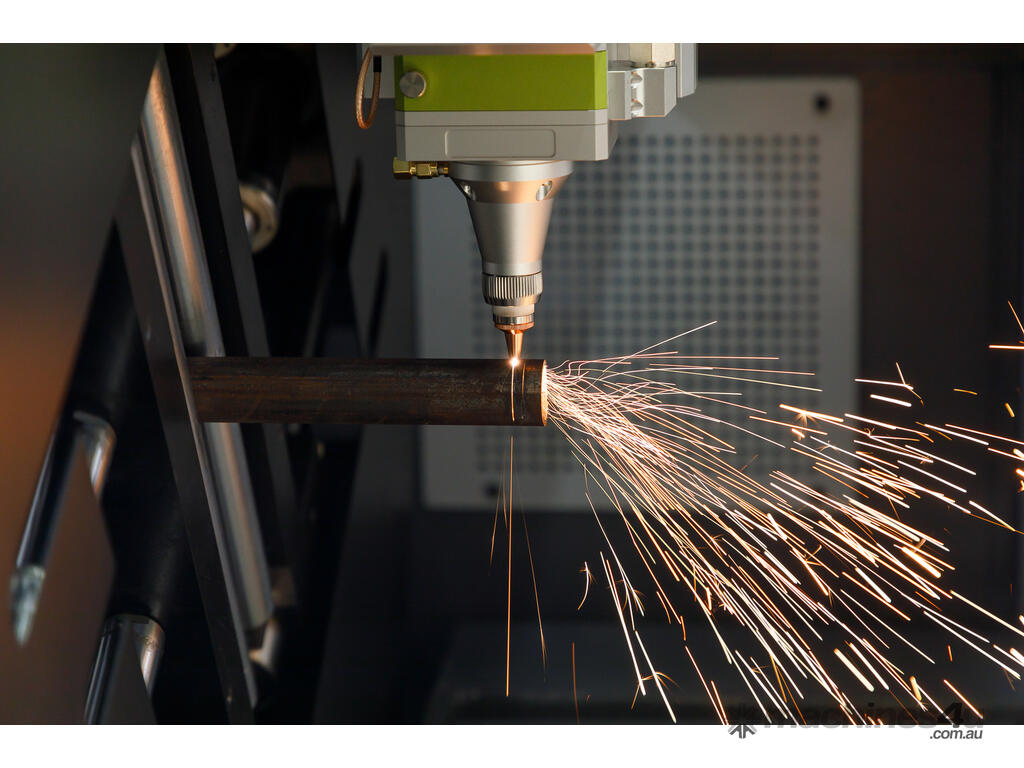

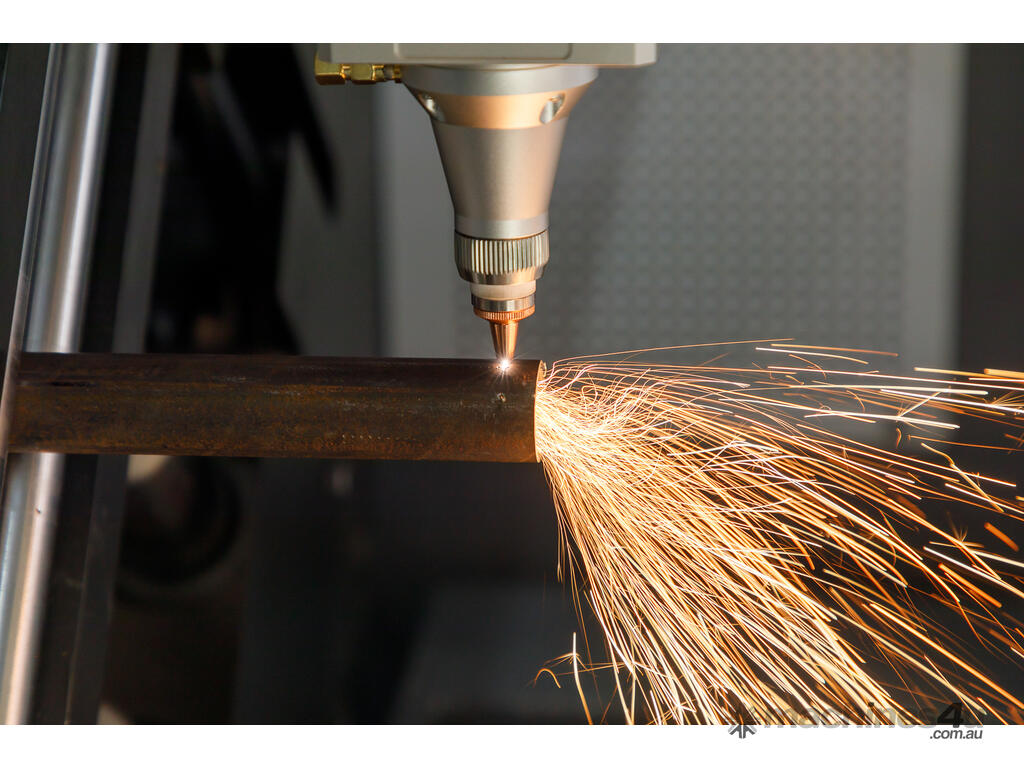

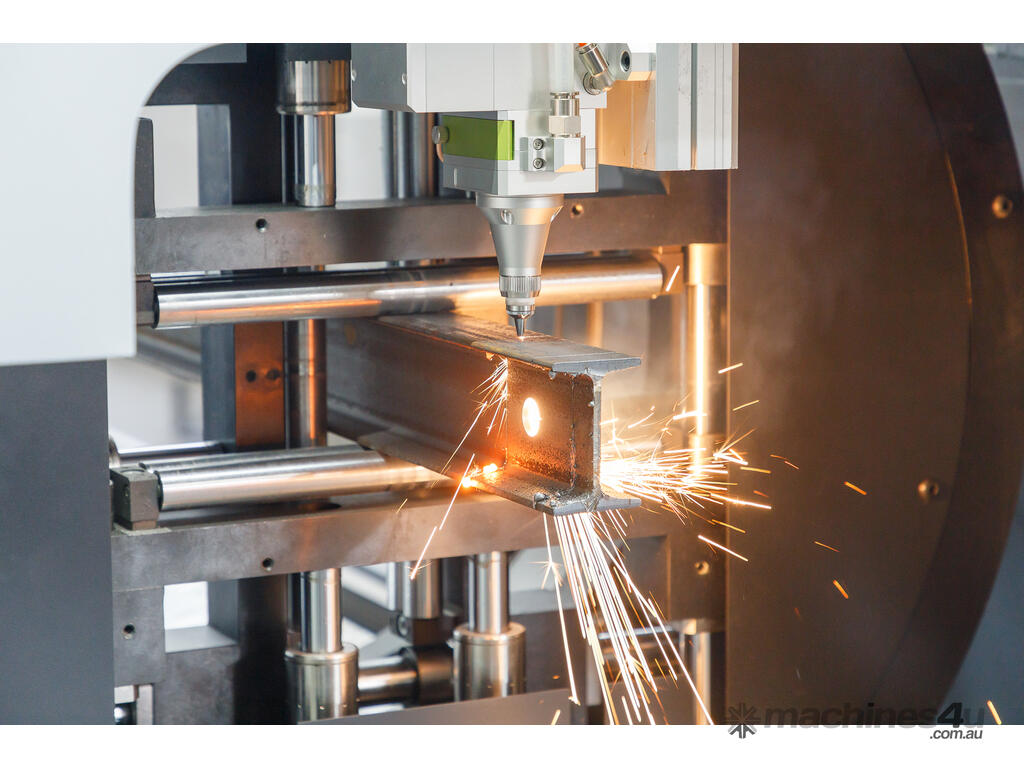

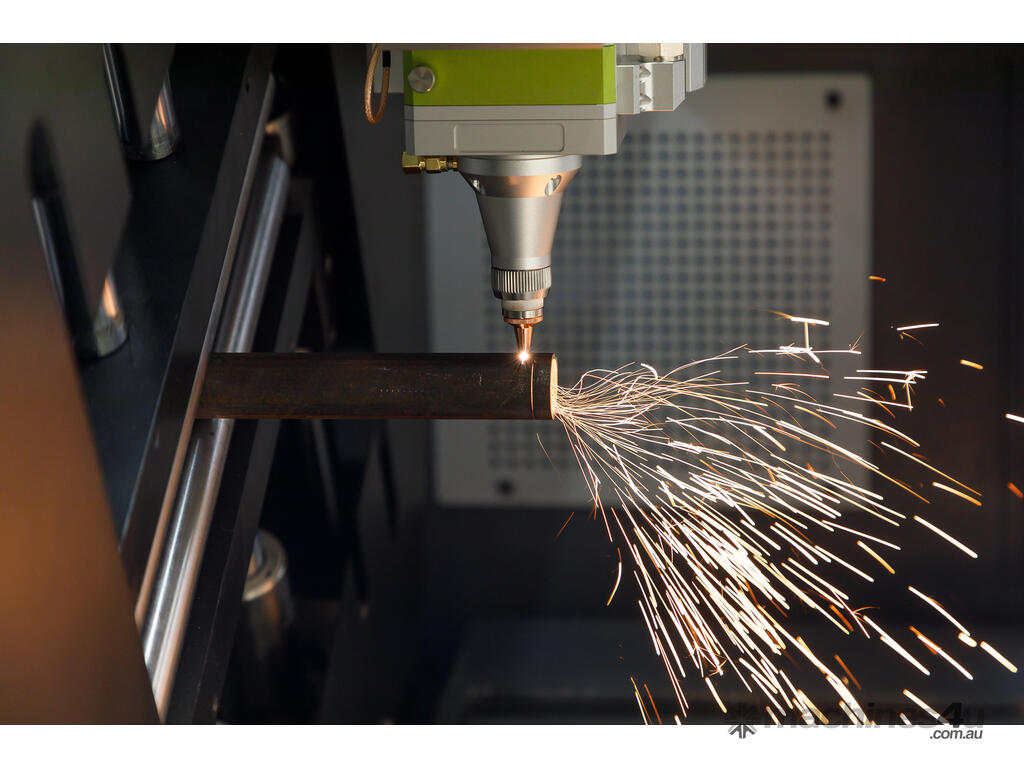

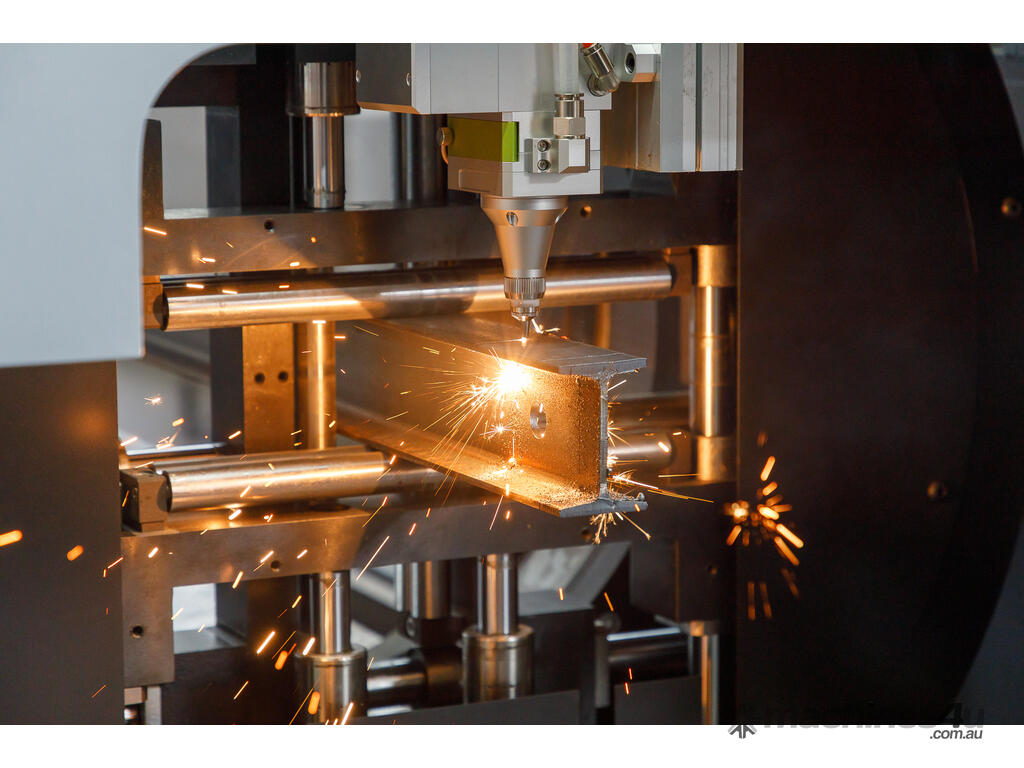

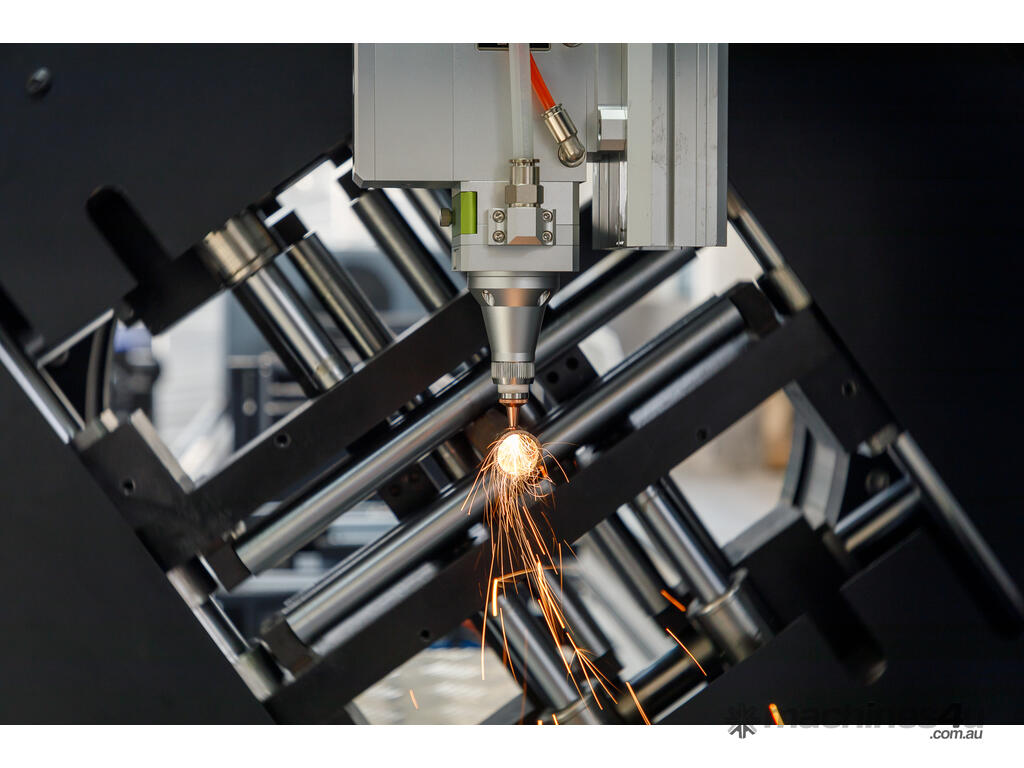

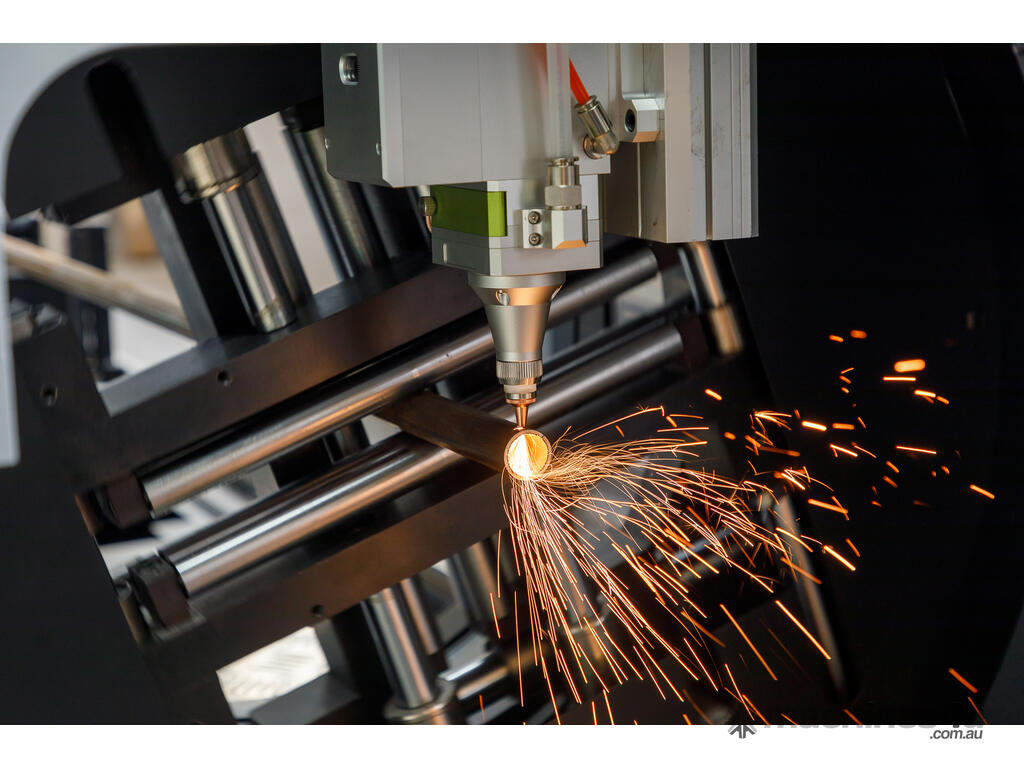

Laser Cutting Head: ACCURL BLT Series (Auto Focus)
Laser Sources: IPG & MAX Photonics
For LoadMaster Tube: 6M / 7m / 9m / 12m (Optional)
Maximum Tube Length & Weight: 12000mm, 1200kg
(Sizes - 6 | 7 | 9 & 12m tables lengths available)
Motion System: Yaskawa Servos & Drivers - X,Y,Z Axis
X.Y.Z axis position accuracy: ±0.02mm

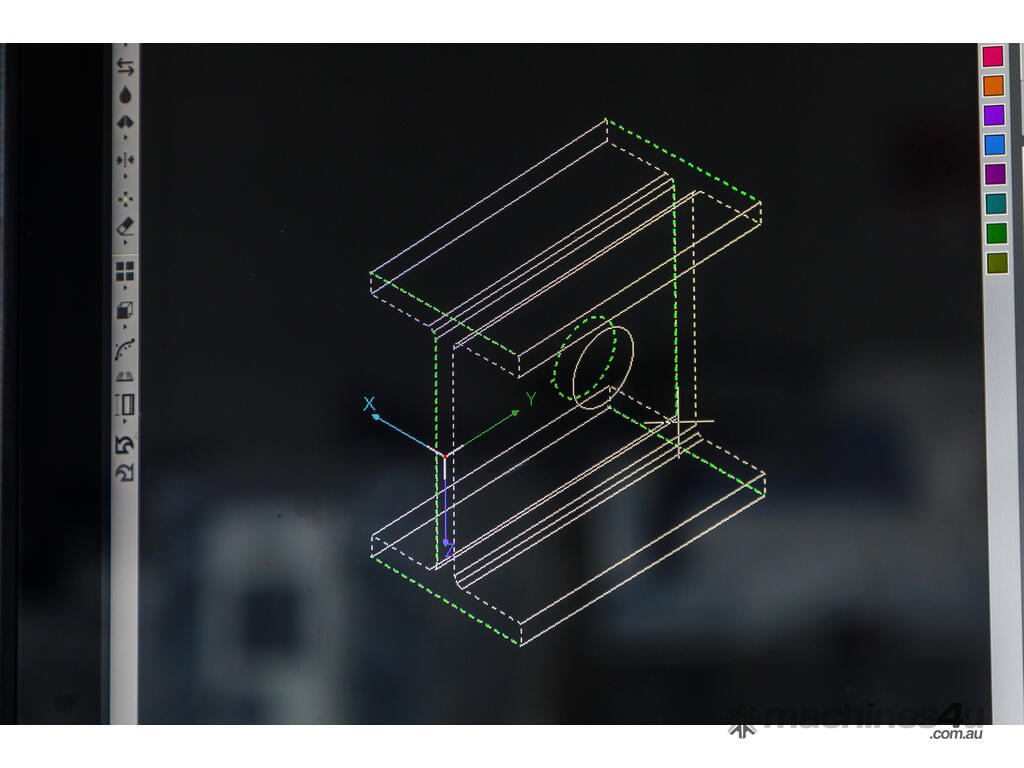

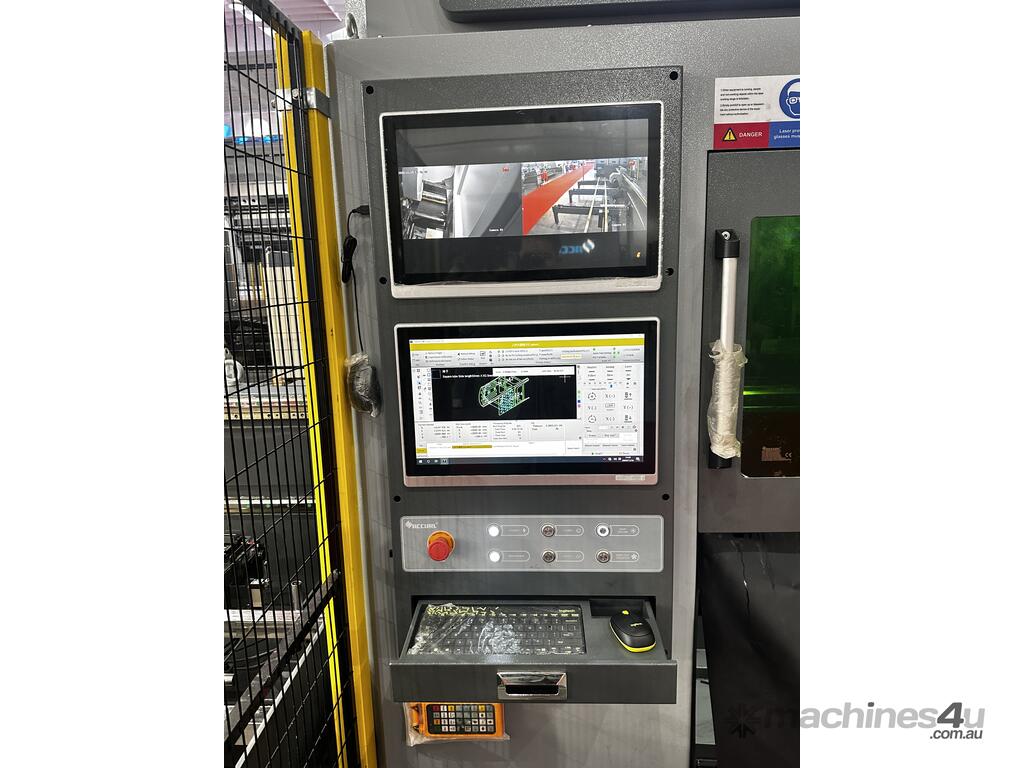

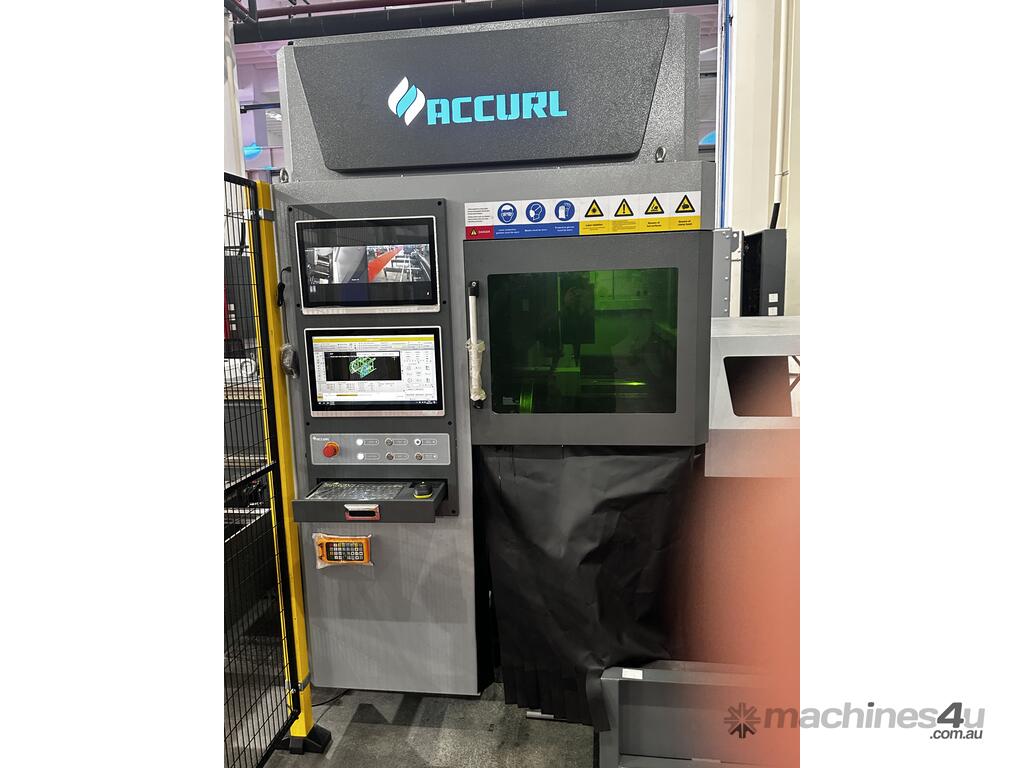

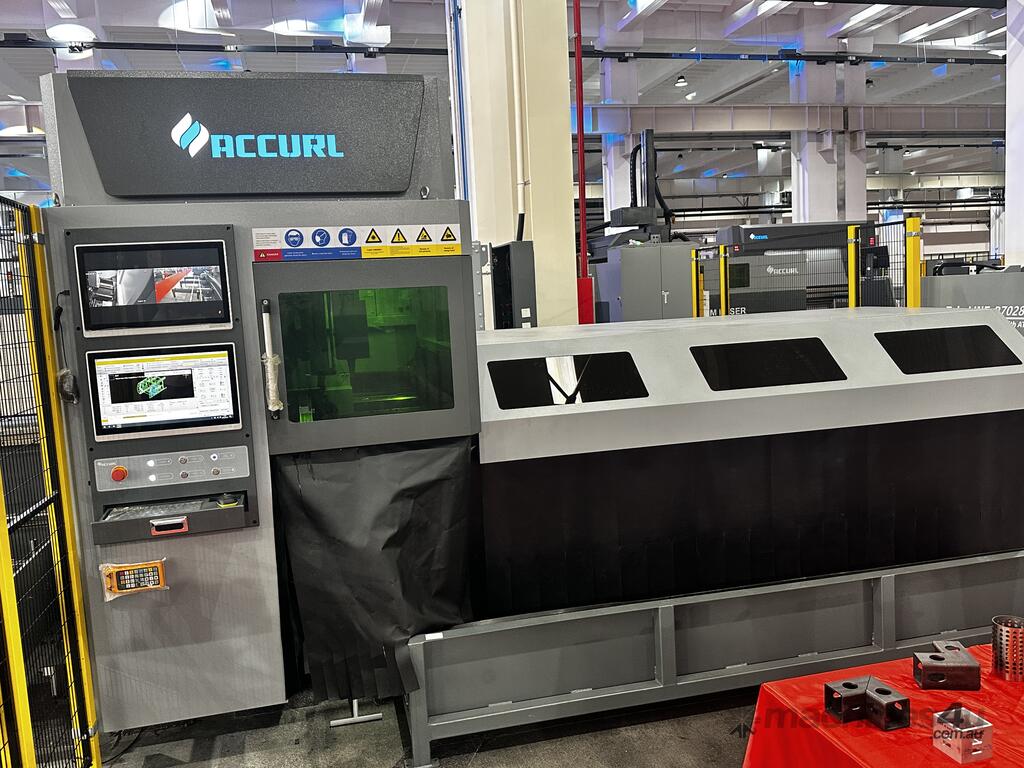

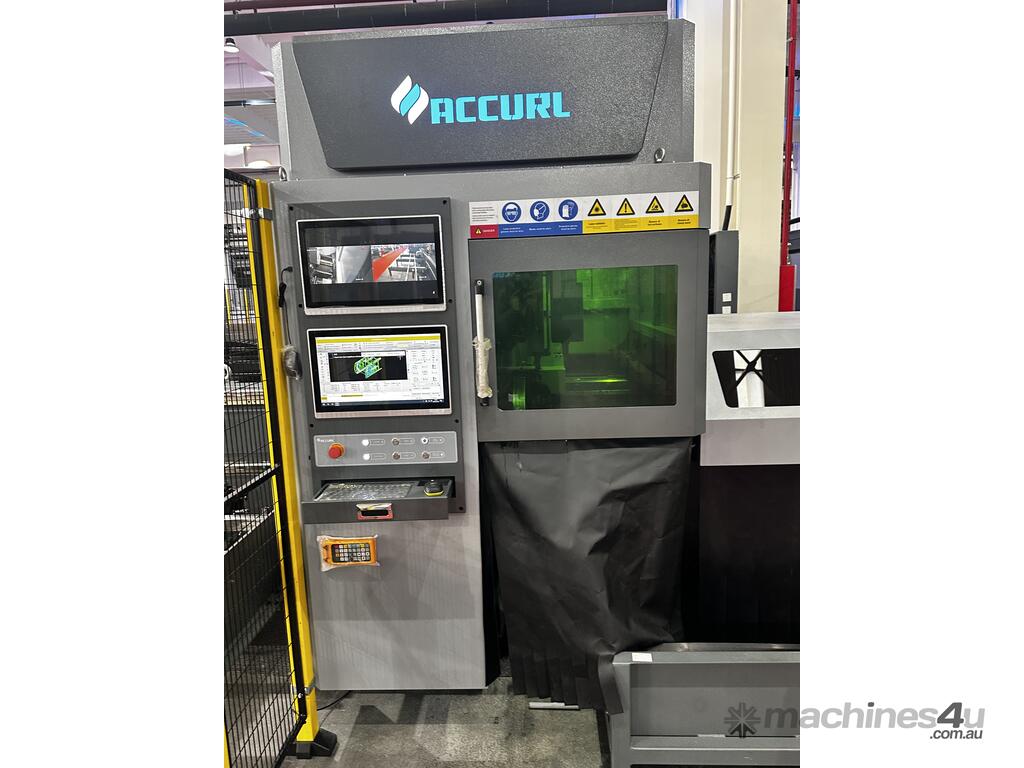

User Interface (HMl)?ACCURL 21.5”Touch Screen with Camera Display
Fume Extraction - Dust Collector (Optional)
Class IV safety system and CE marking
- 1kw to 12kw power sources available

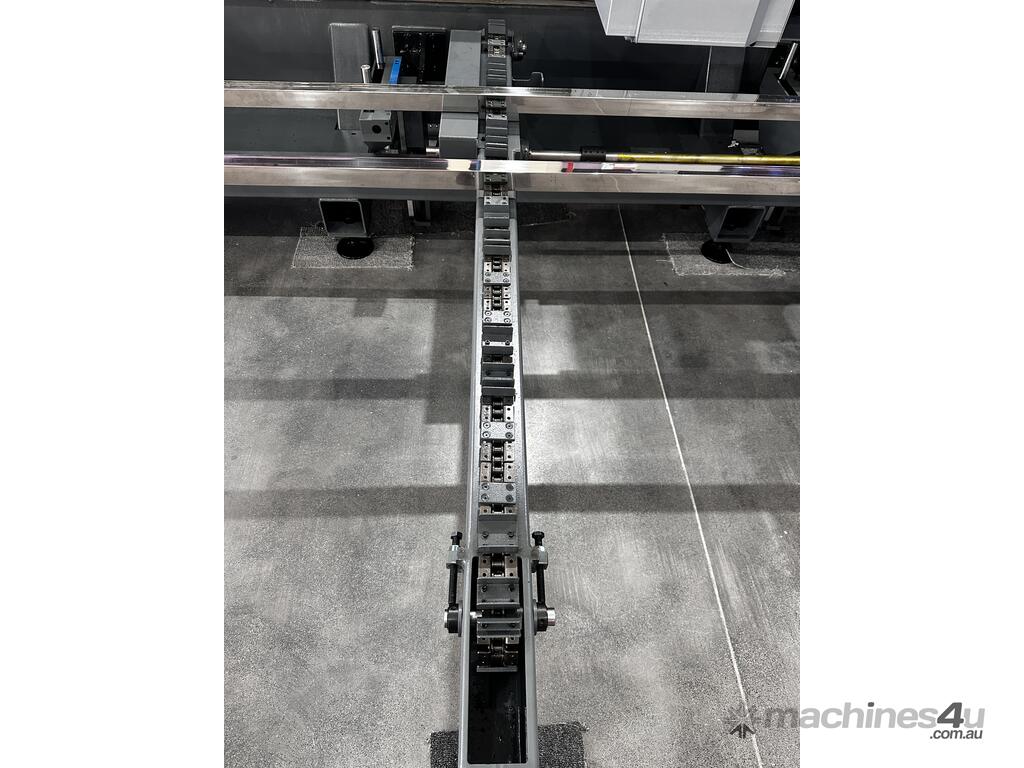

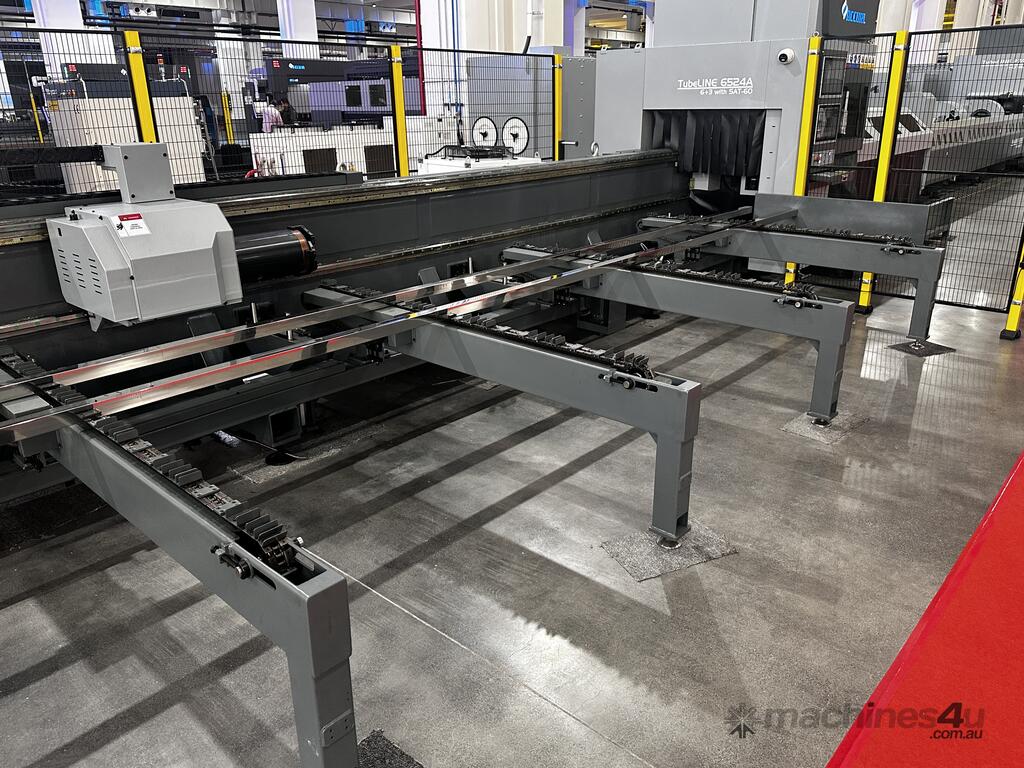

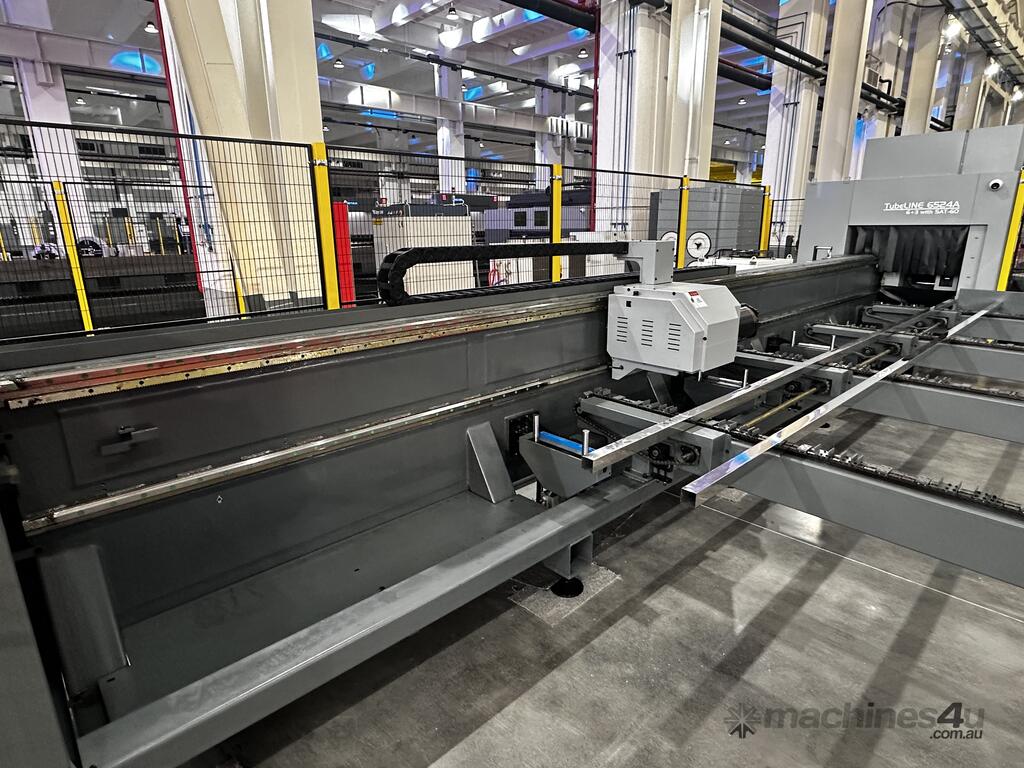

- Available with an auto loading system
- 220 | 280 | 310 | 360 mm capacities available
- Available in left hand or right hand configurations

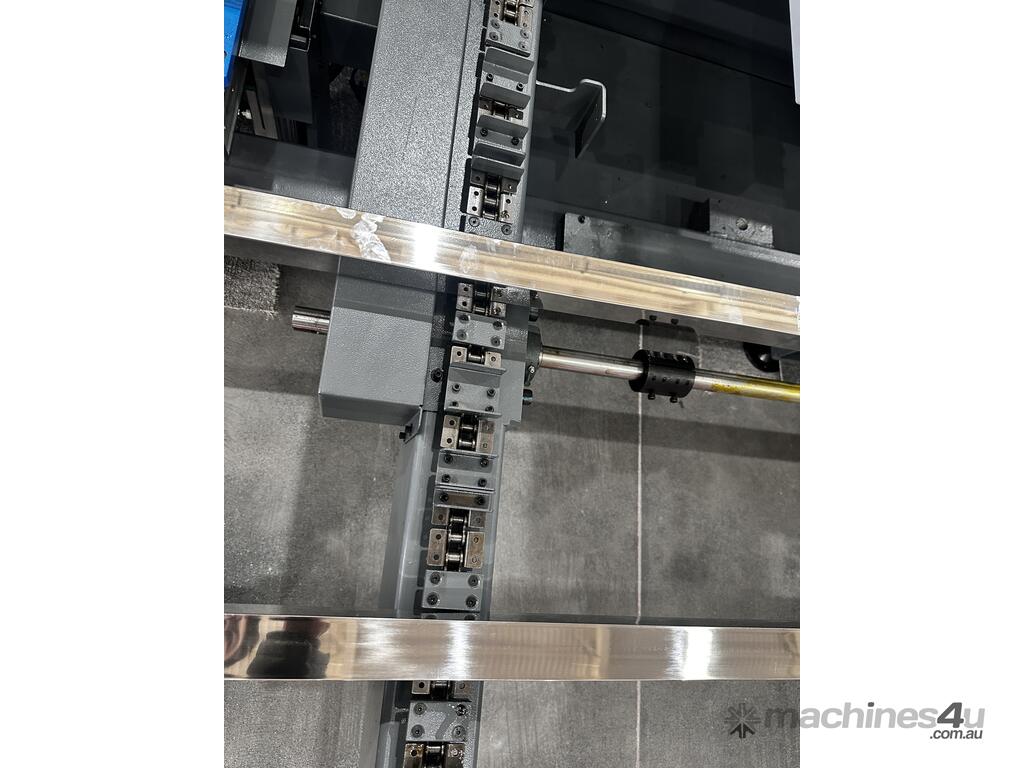

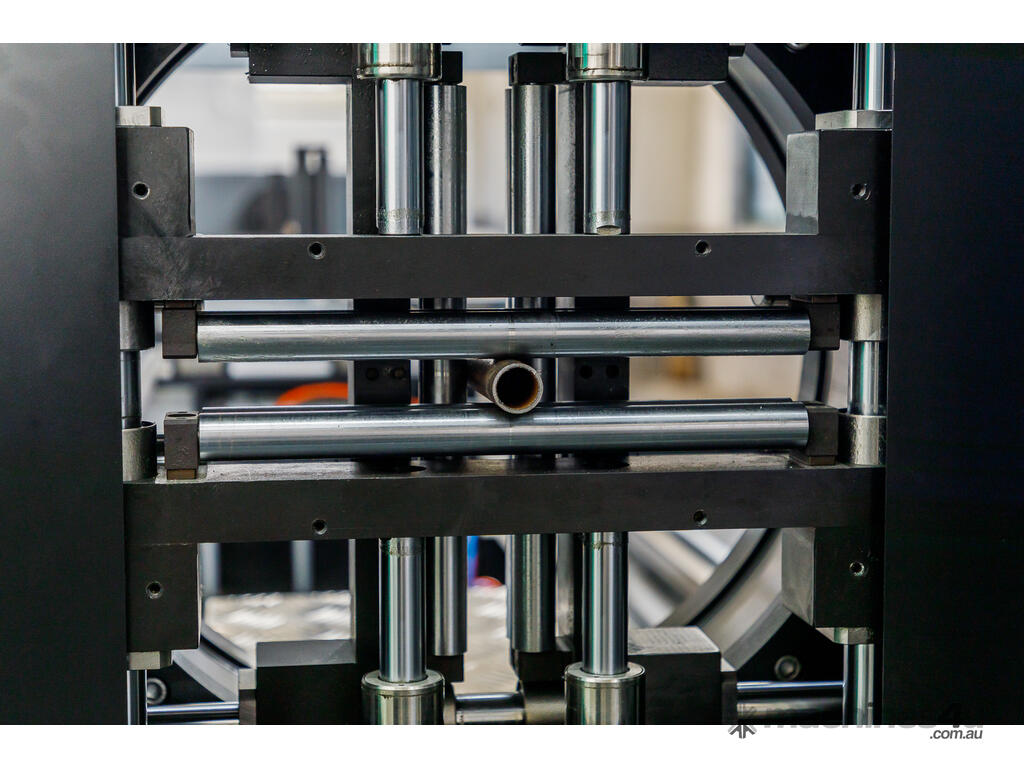

- Extended check claws for minimal remnant pieces
-- Outfeed support table
- Automatic detection of the material centre and edge

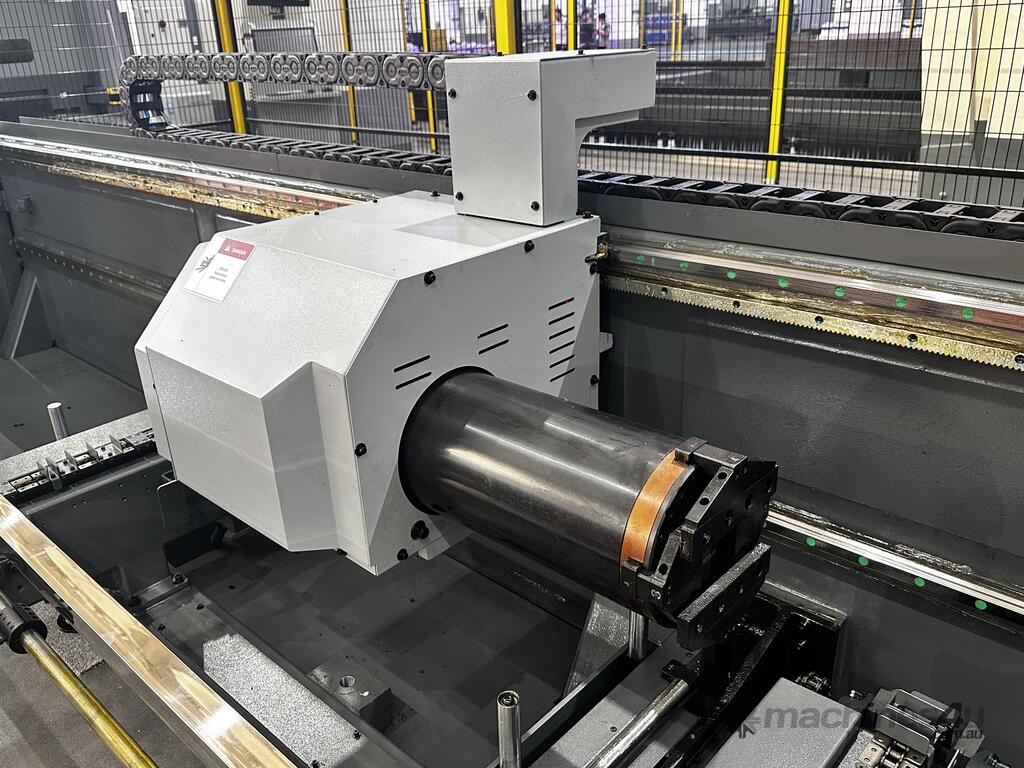

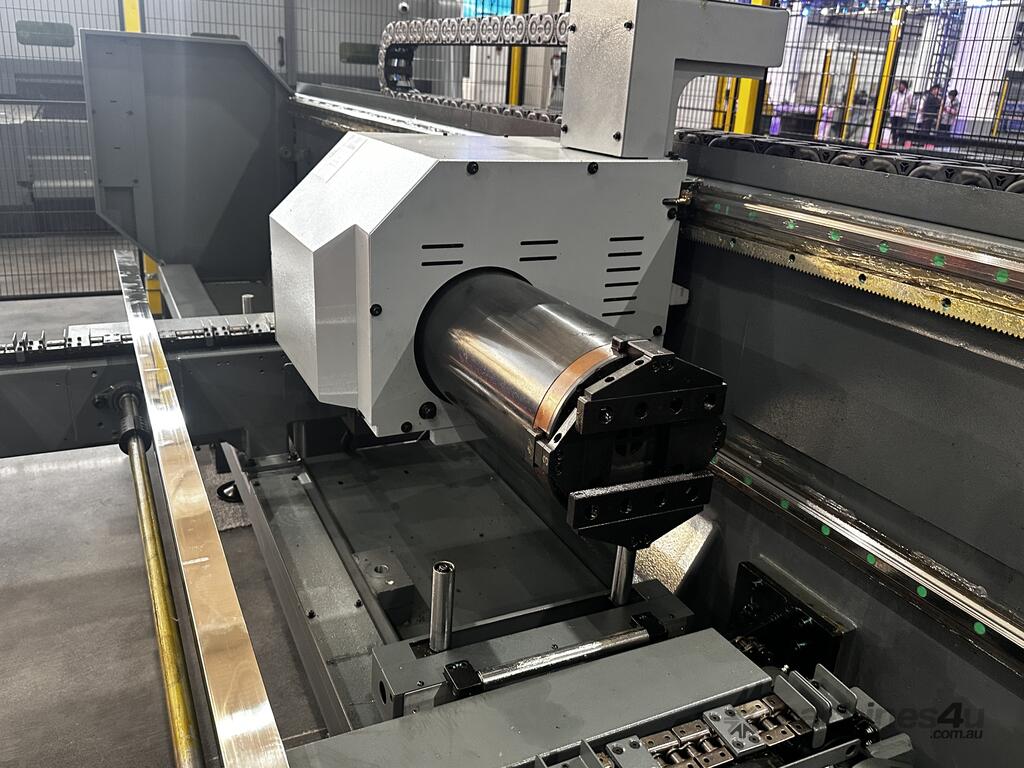

- Integrated chuck in the machine body for extra rigidity and long term accuracy
- Optional seam weld detection
Max no load running speed - 100m/min
Max no load turning speed - 100r/min
**BEVEL HEAD AVAILABLE**
Custom machines are available so if there is a specific requirement please contact us to discuss
NB - Some pics shown are shown with optional items fitted
