ACCURL TubeLINE D SERIES 6KW | 12M LENGTH | 510MM OD TUBE LASER | BOCI HEAD | CYPCUT CONTROLLER

The Accurl tube lasers are a step ahead of their competitors being a machine that's been produced and constantly improved upon by Accurl for a number of year, Accurl sheet metal machinery offer high level technology machinery within its market segment and is a progressive forward thinking company constantly improving their products and product range. Its because of this Complete Machine Tools has taken on the agency for Accurl machines in Australia. Why limit yourself to a company that only can supply a laser cutting machine, go with a company who can grow with your business and offer a complete solution for all your sheet metal and fabrication machinery needs under the 1 roof.

TUBELINE SERIES
TUBE LASER CUTTING MACHINE

ACCURL makes tube manufacturing more efficient
and cost-effective with laser cutting technology. Using a
single, flexible tool, a variety of tube shapes can be
processed – with high cut quality and accuracy that
simplifies or eliminates secondary processes.

With class leading features in its segment Accurl offers a great quality machine at a competitive price.

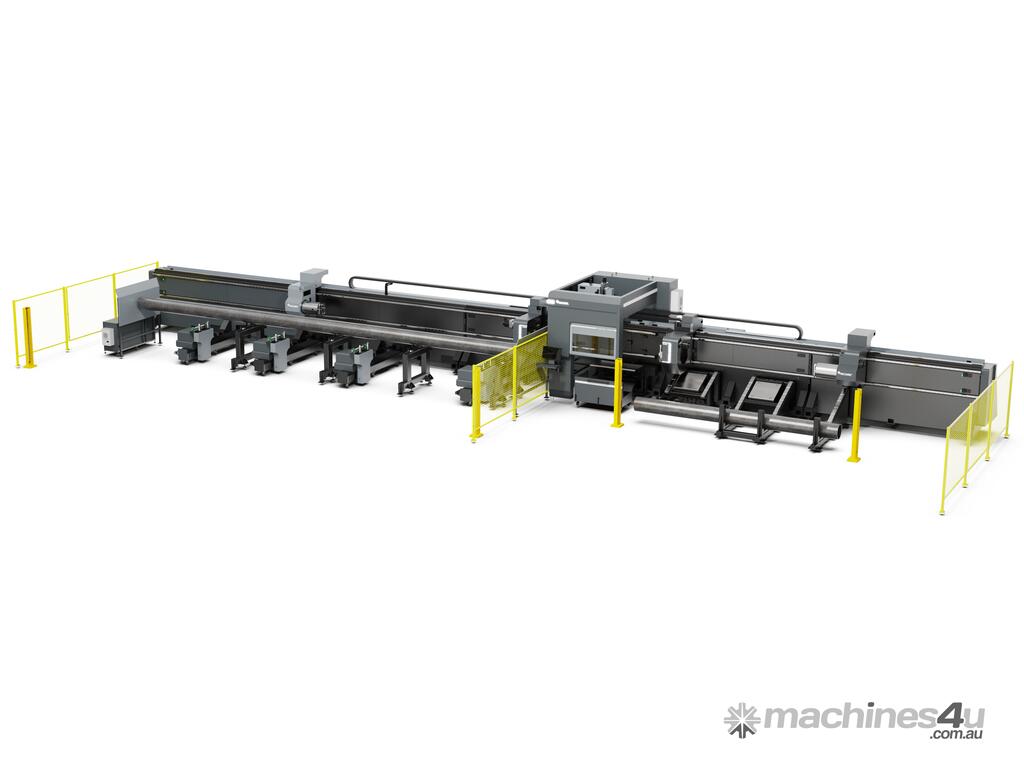

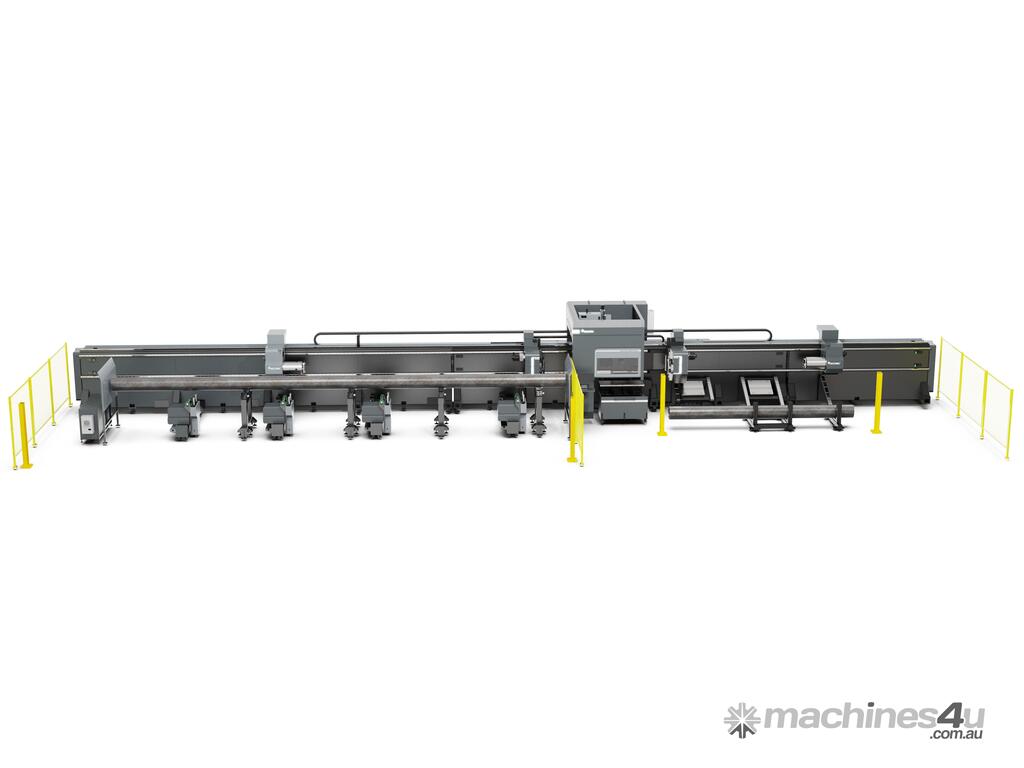

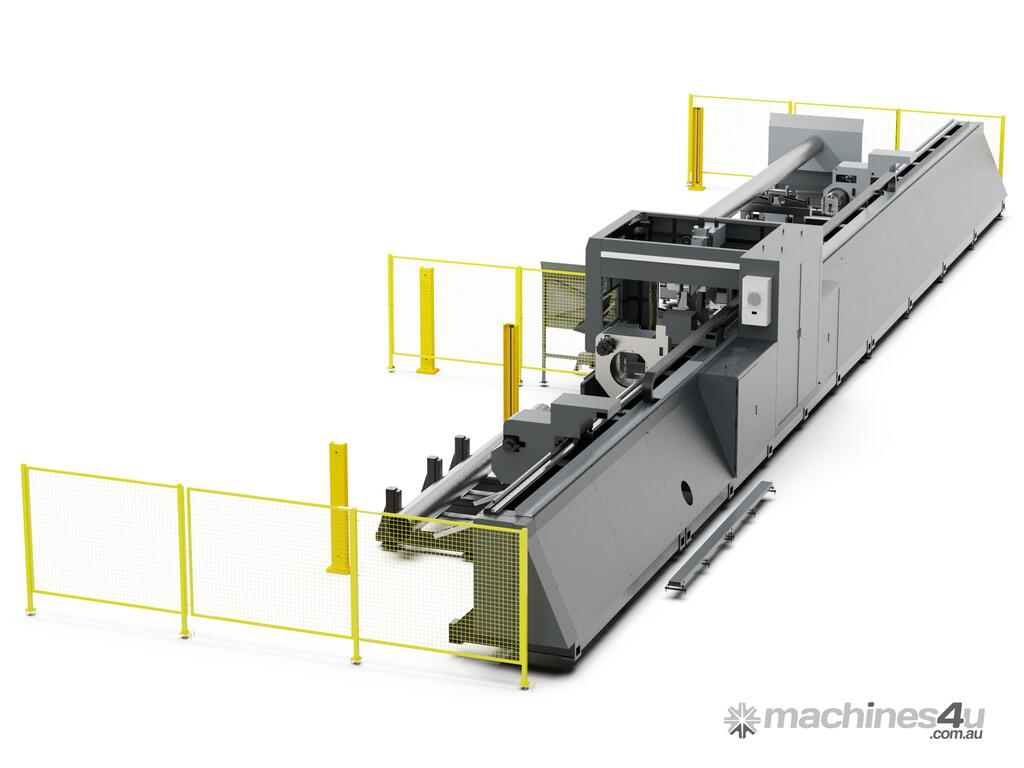

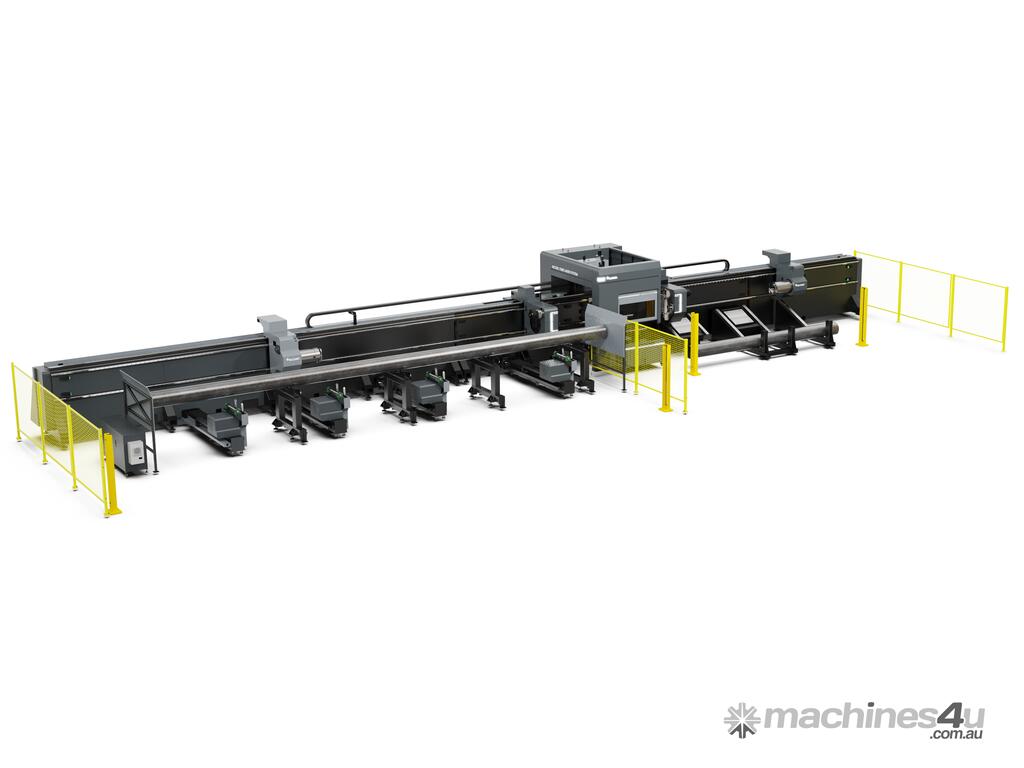

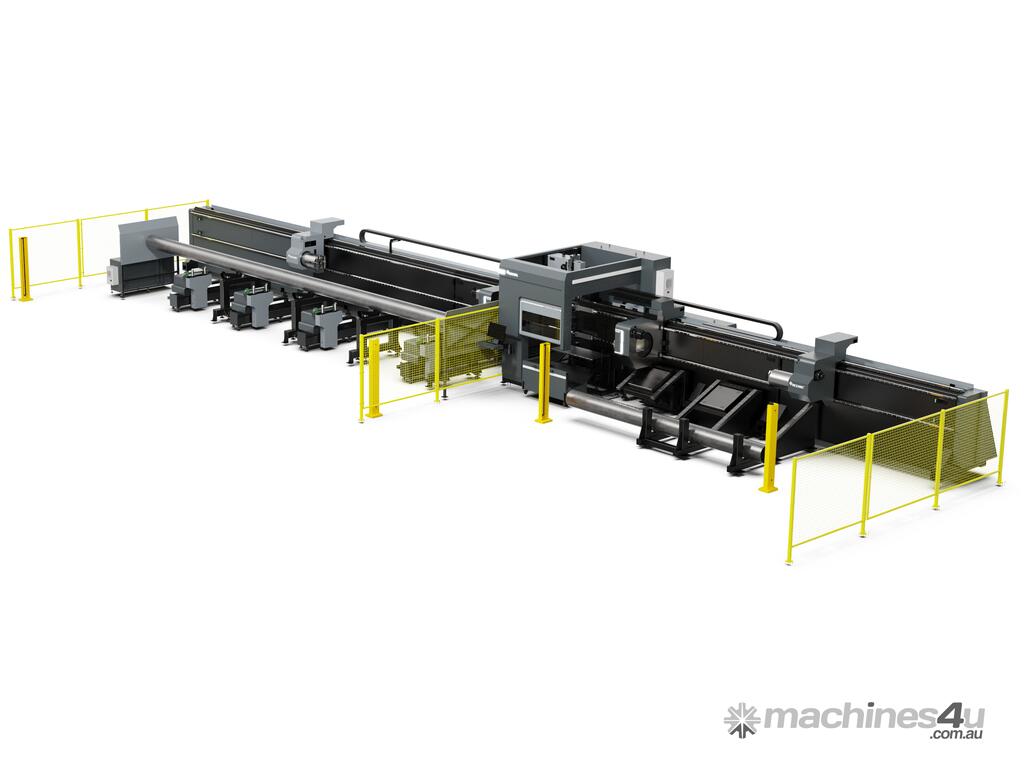

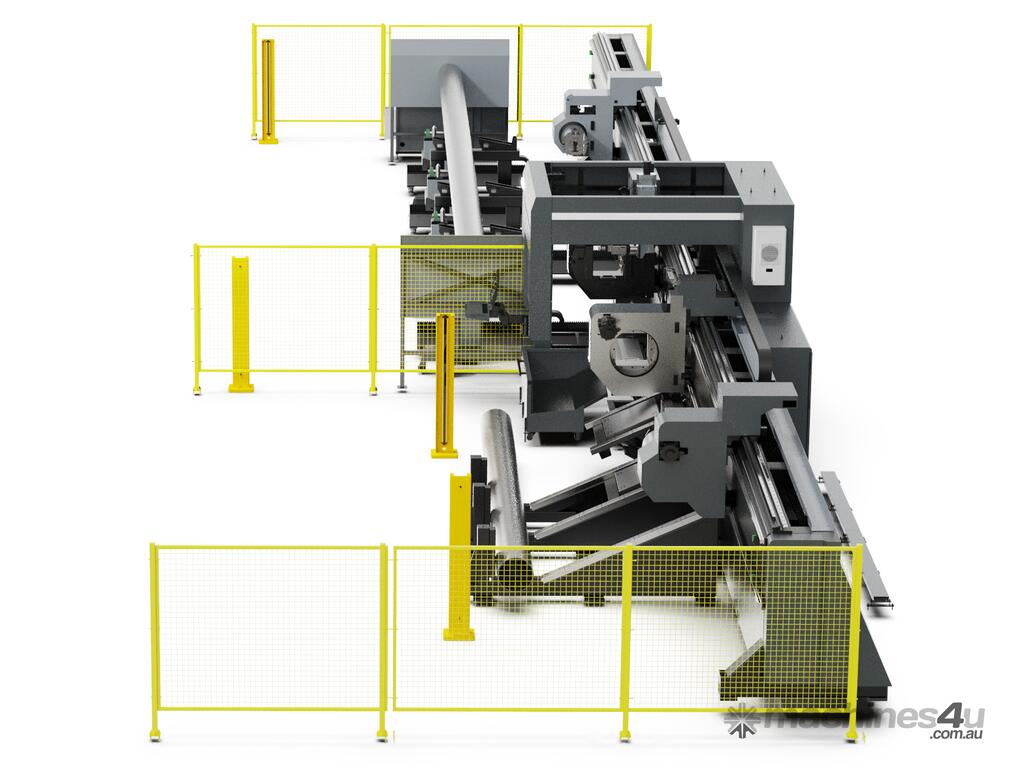

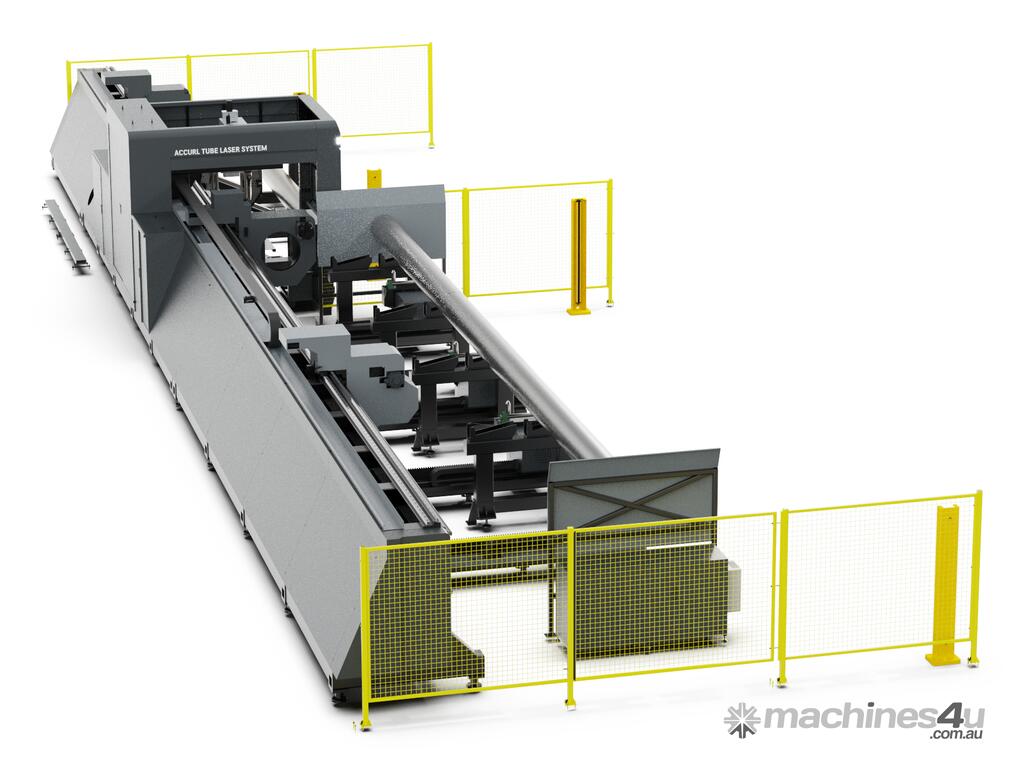

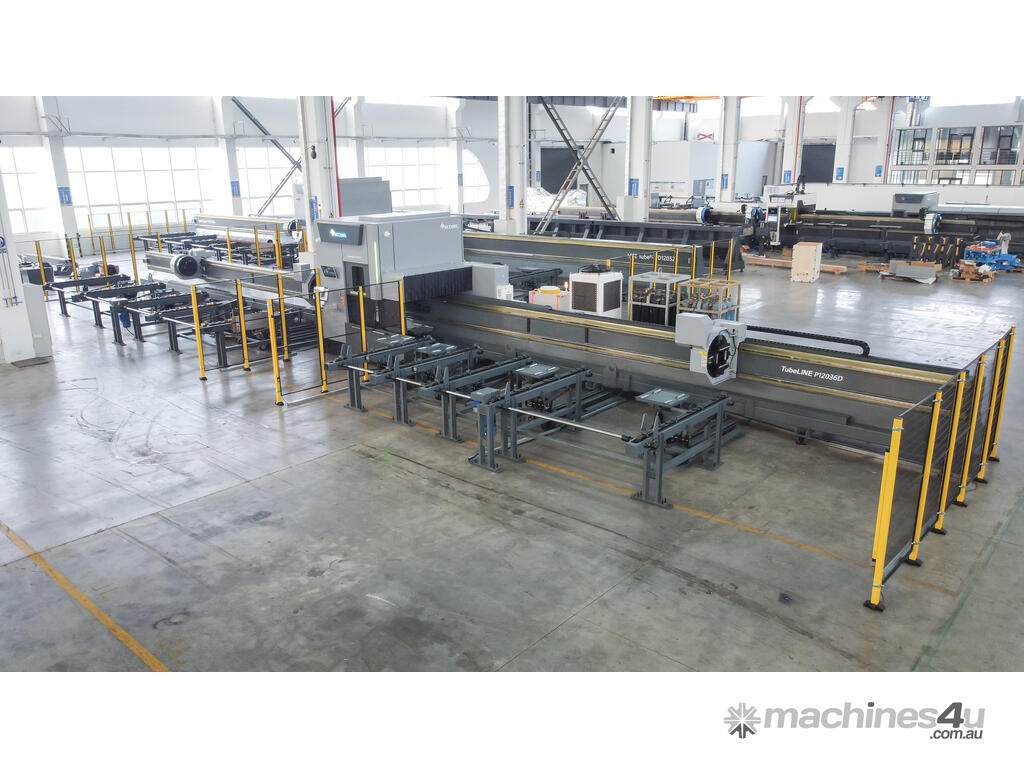

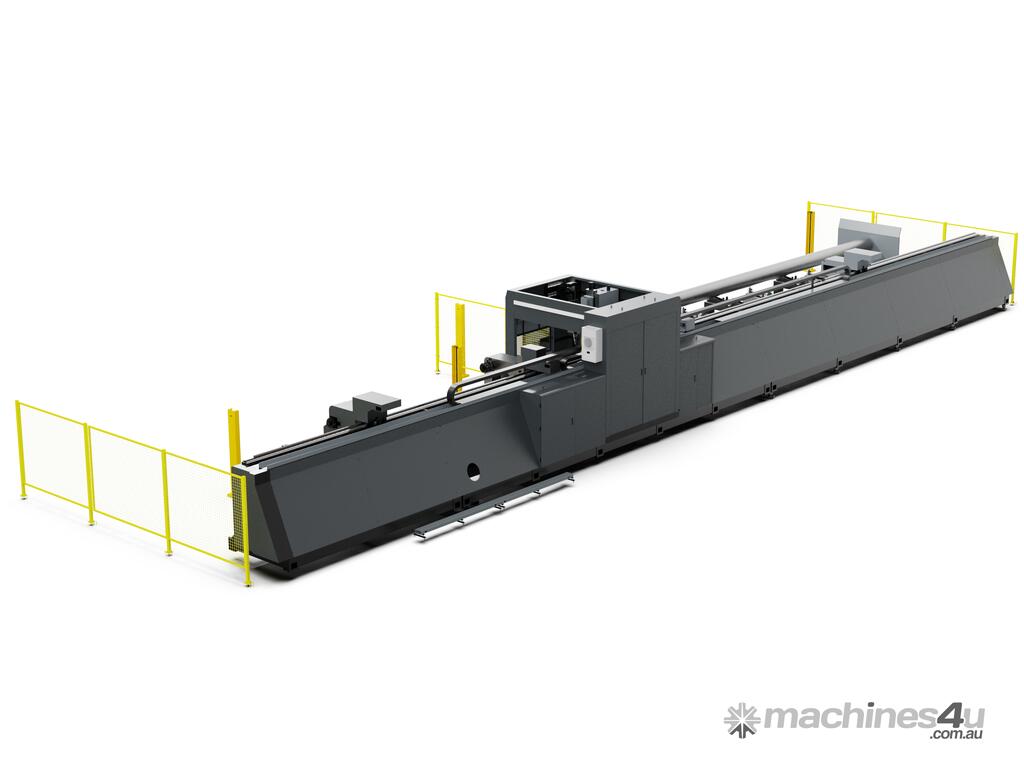

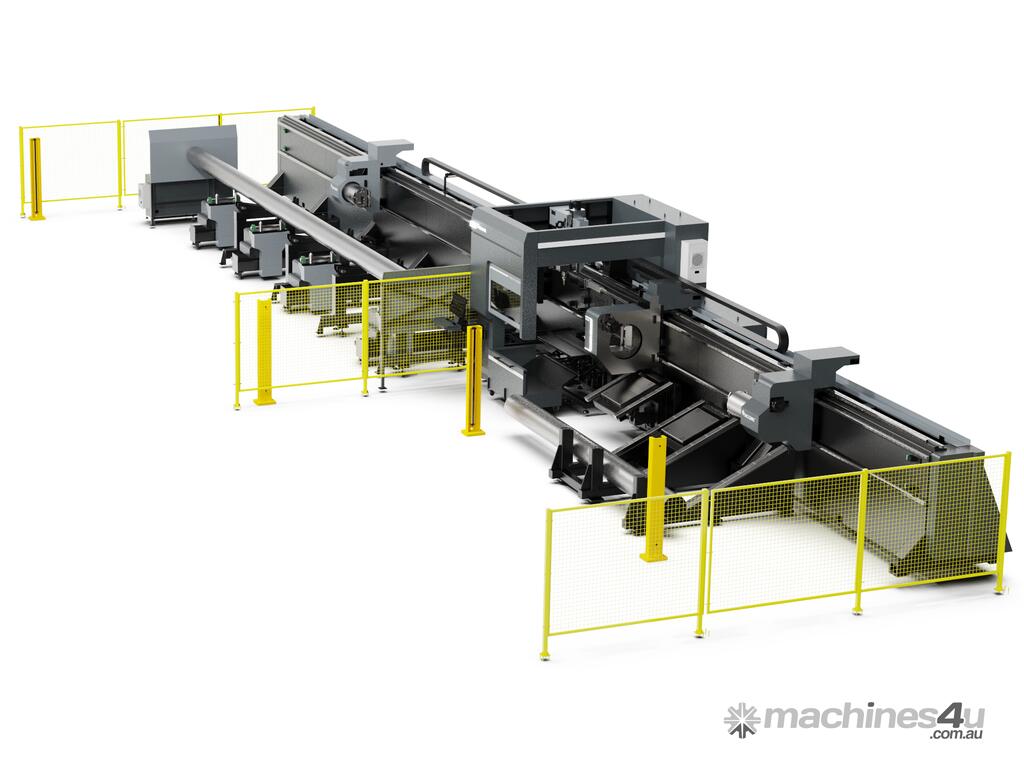

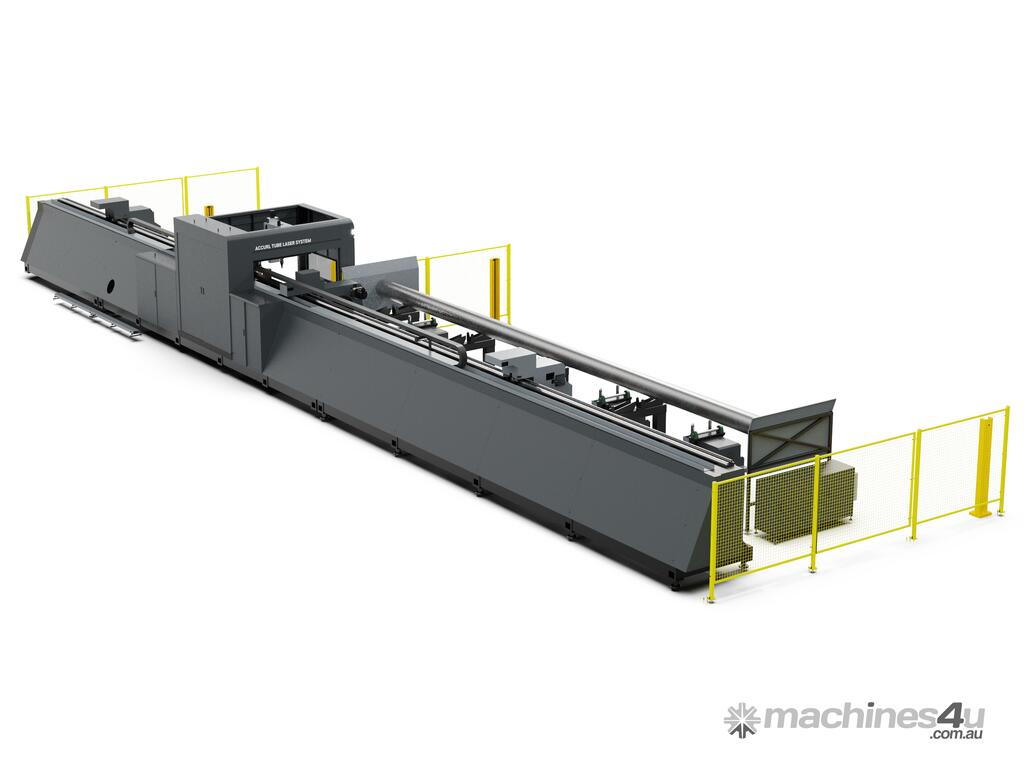

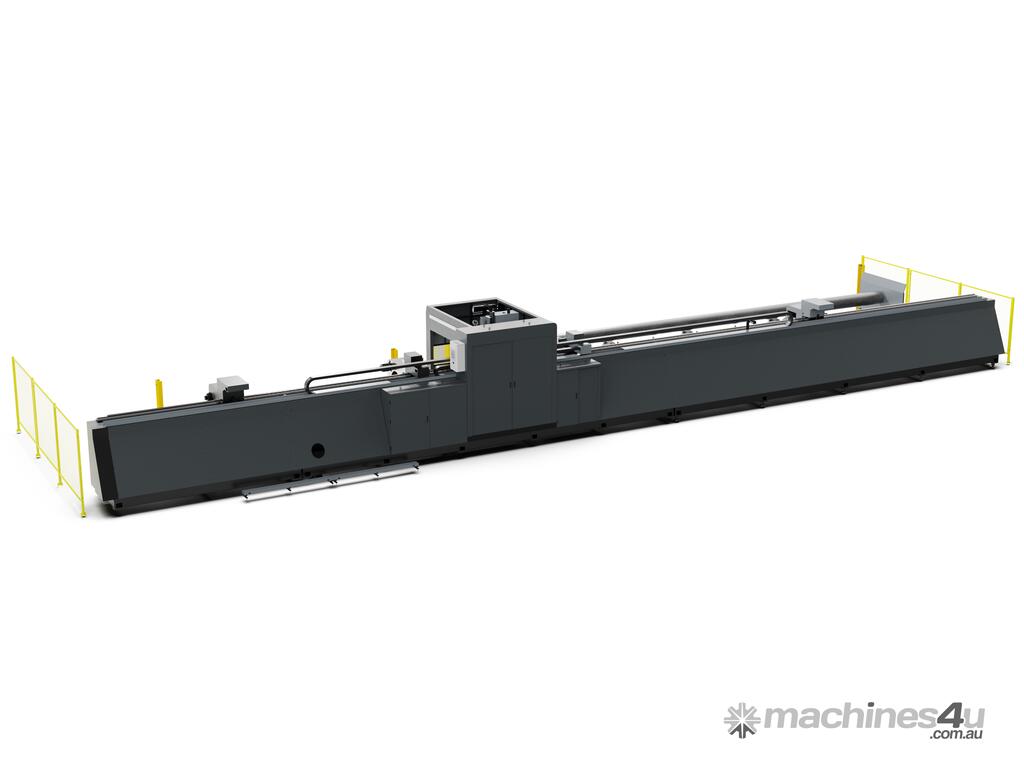

The TubeLINE D Series, the fiber solution for large diameter tubes and profiles.

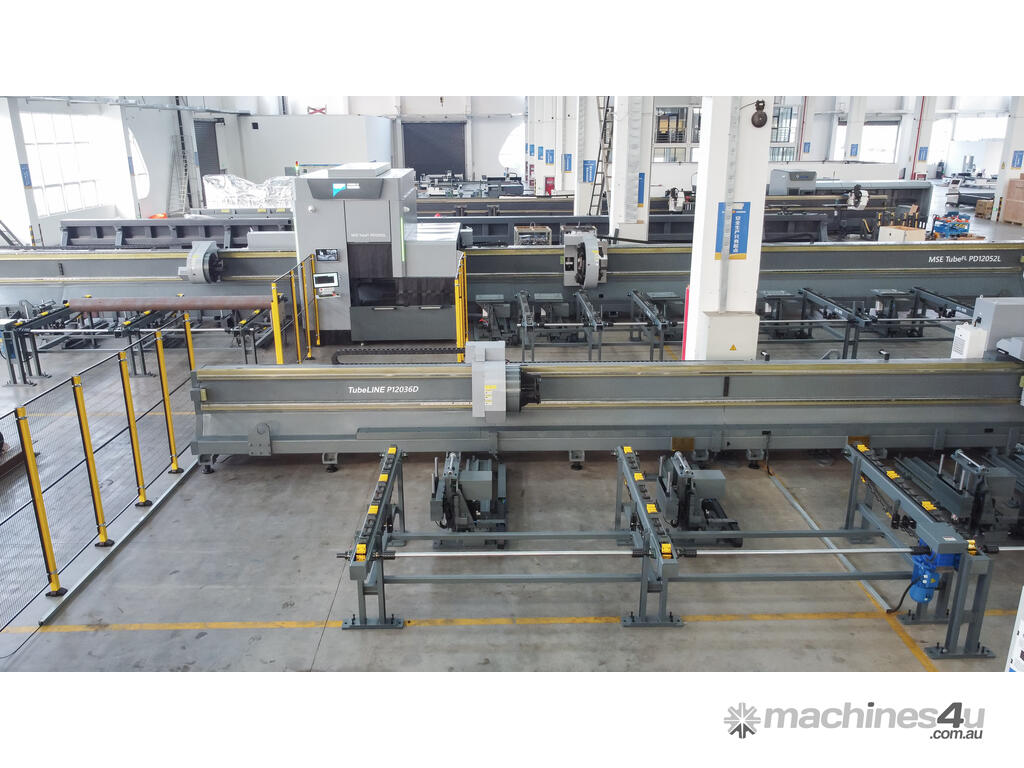

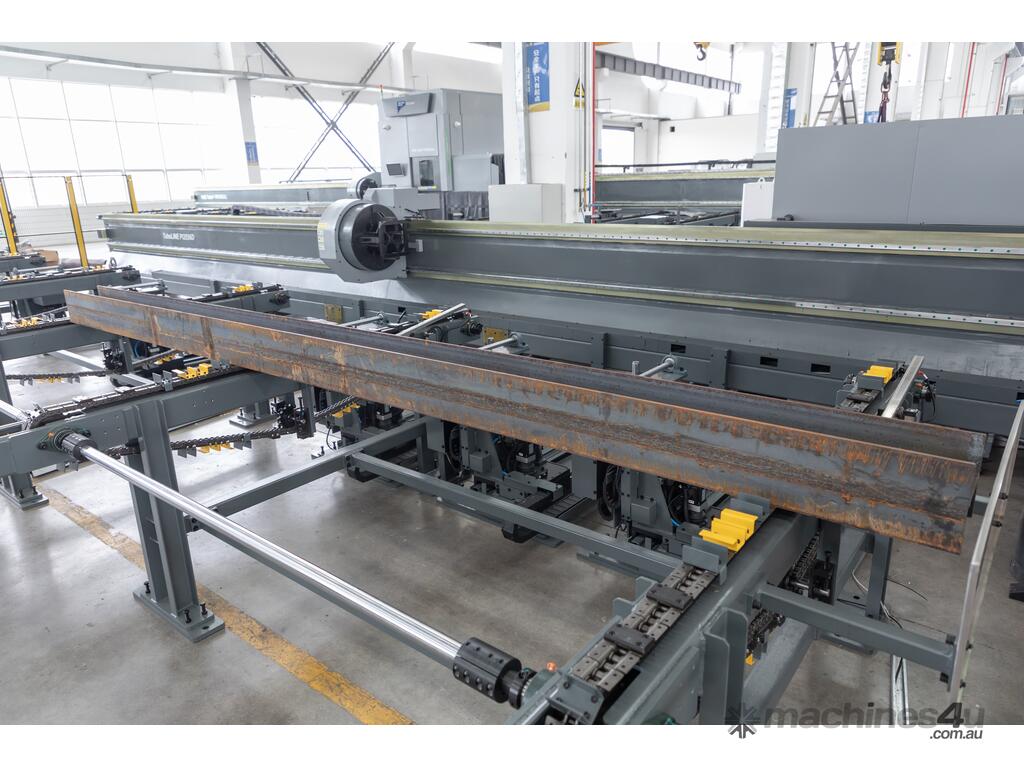

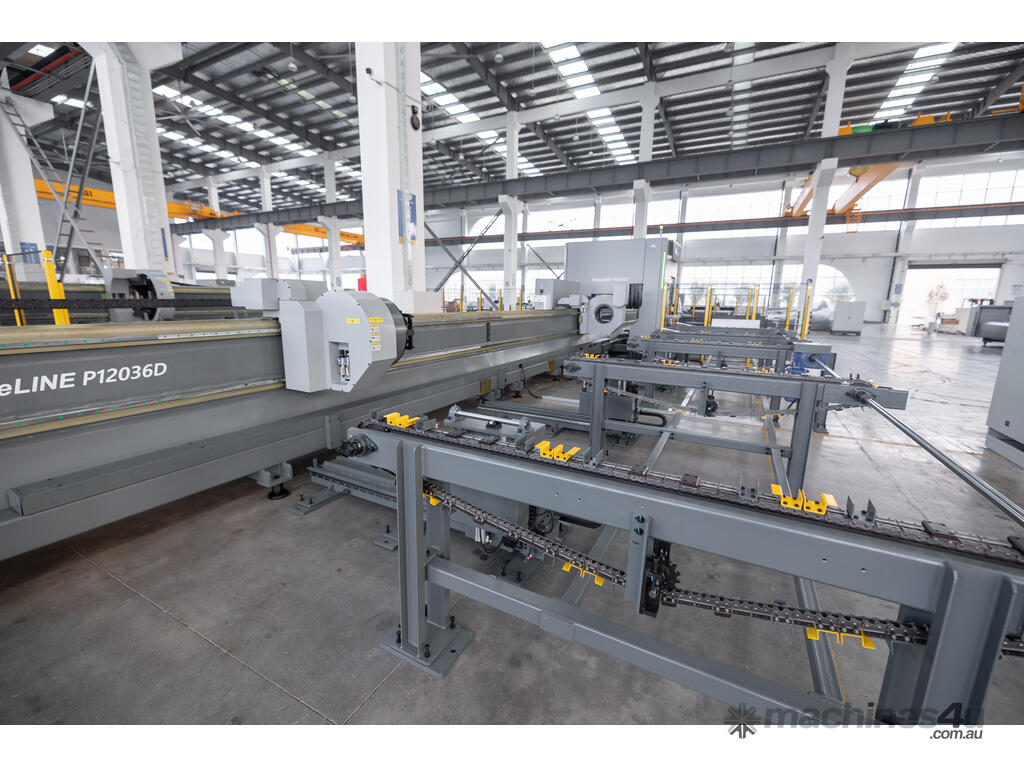

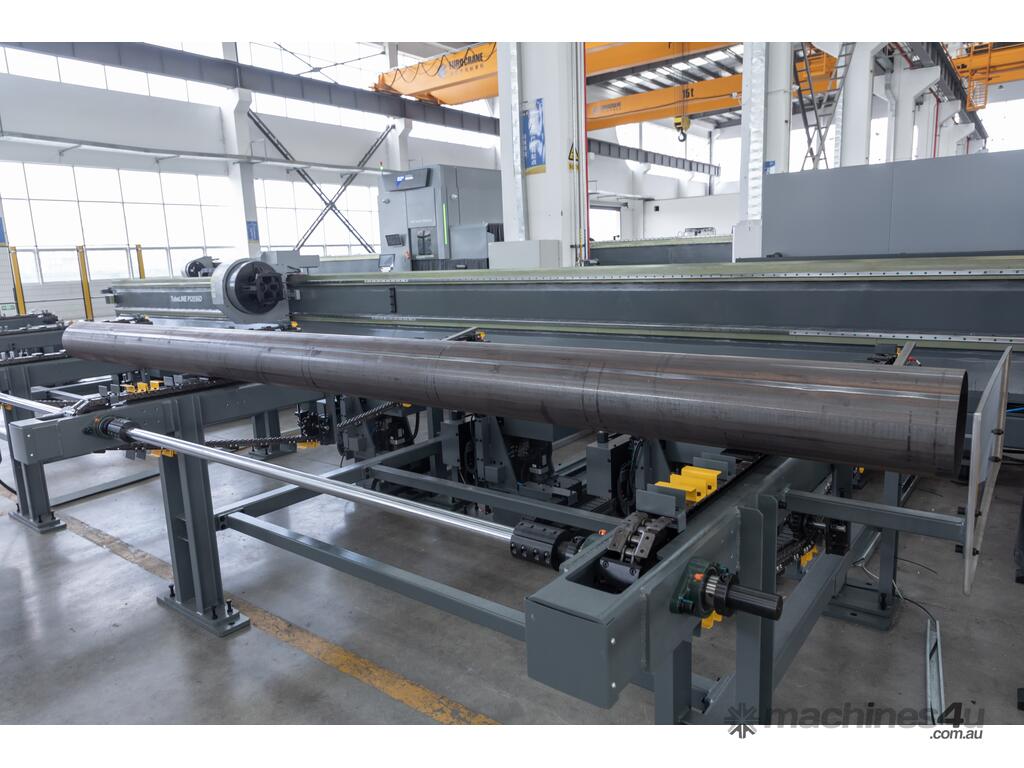

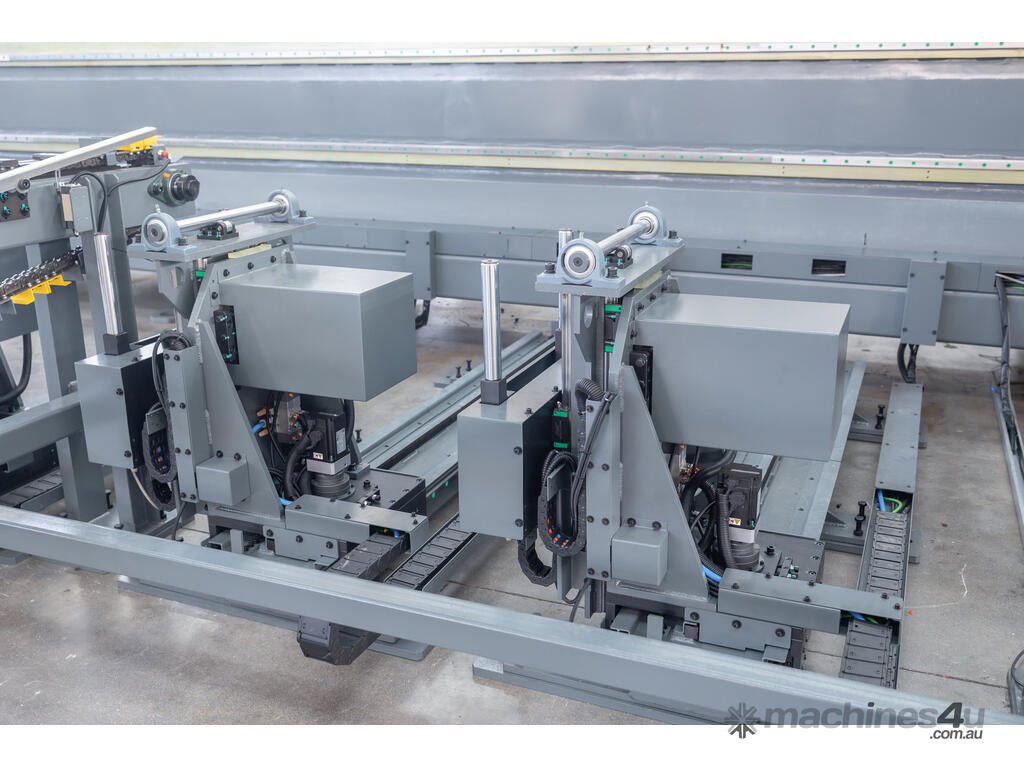

From front-end material loader and unloader, to servo-controlled and
synchronized material supports, this semi-automated tube and profile laser is ready
for your one-off structural parts or production demand. The TubeLINE D series

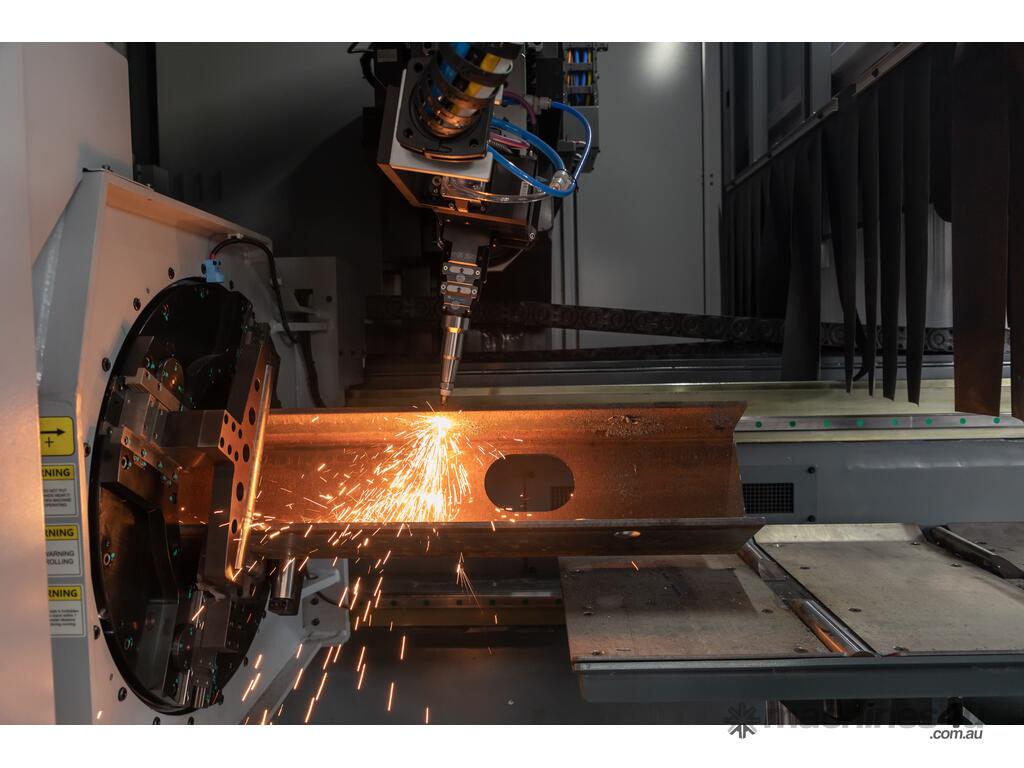

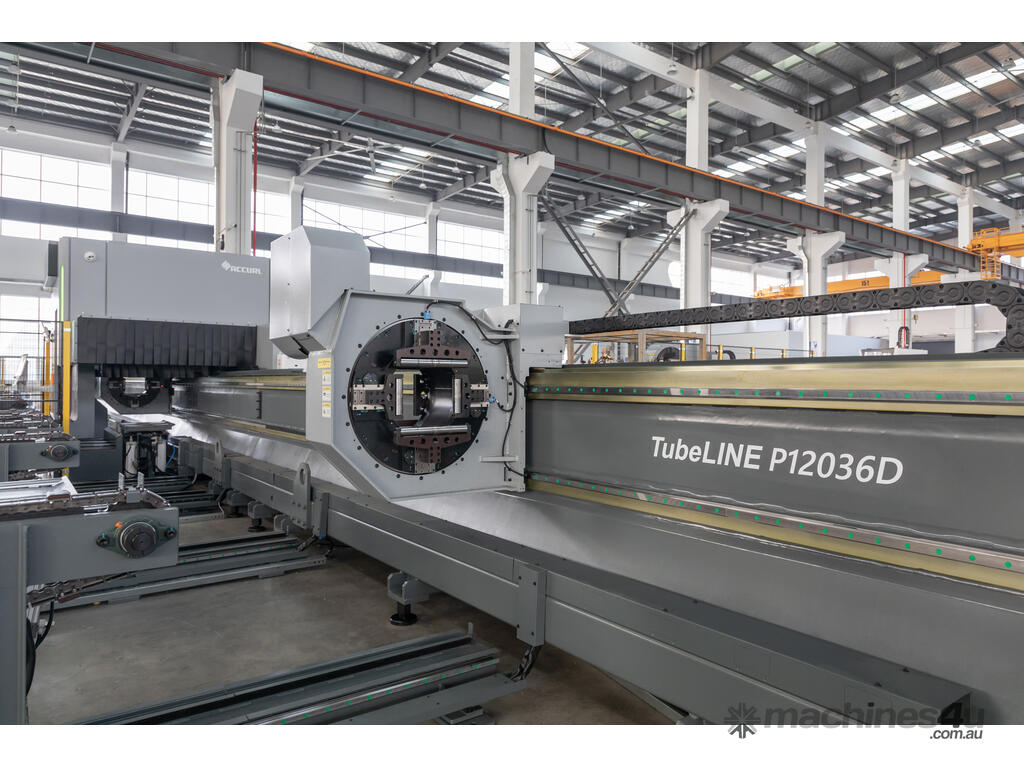

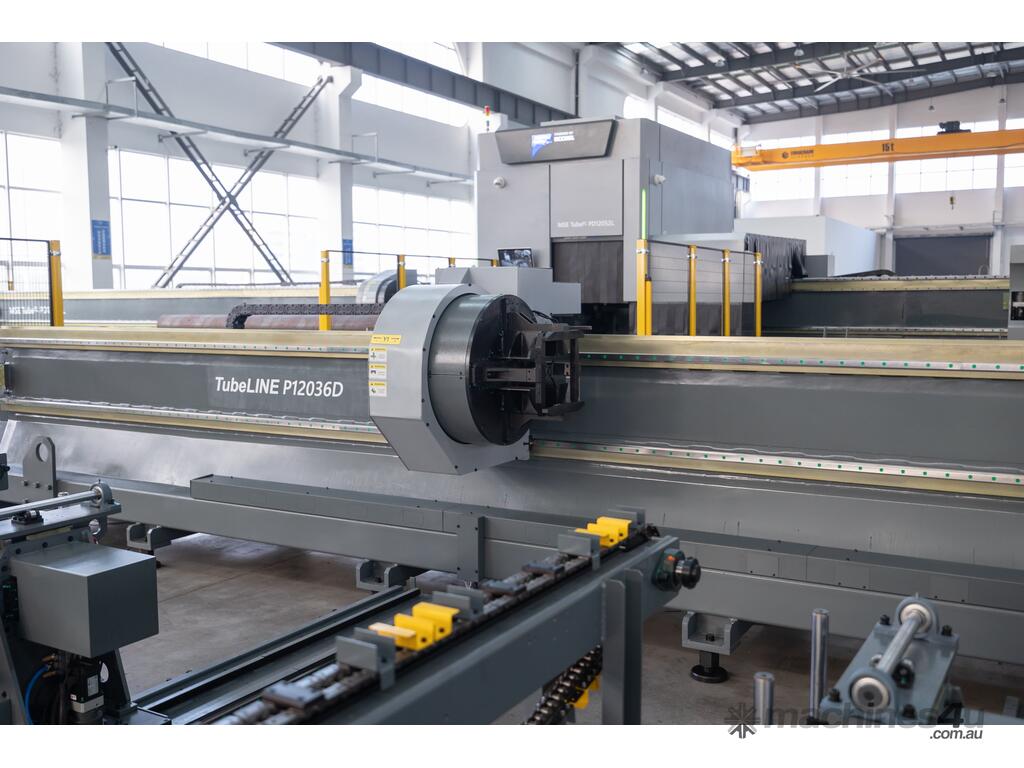

Machine’s 3 chuck design allows for ZERO tailing with optimal finished part support,

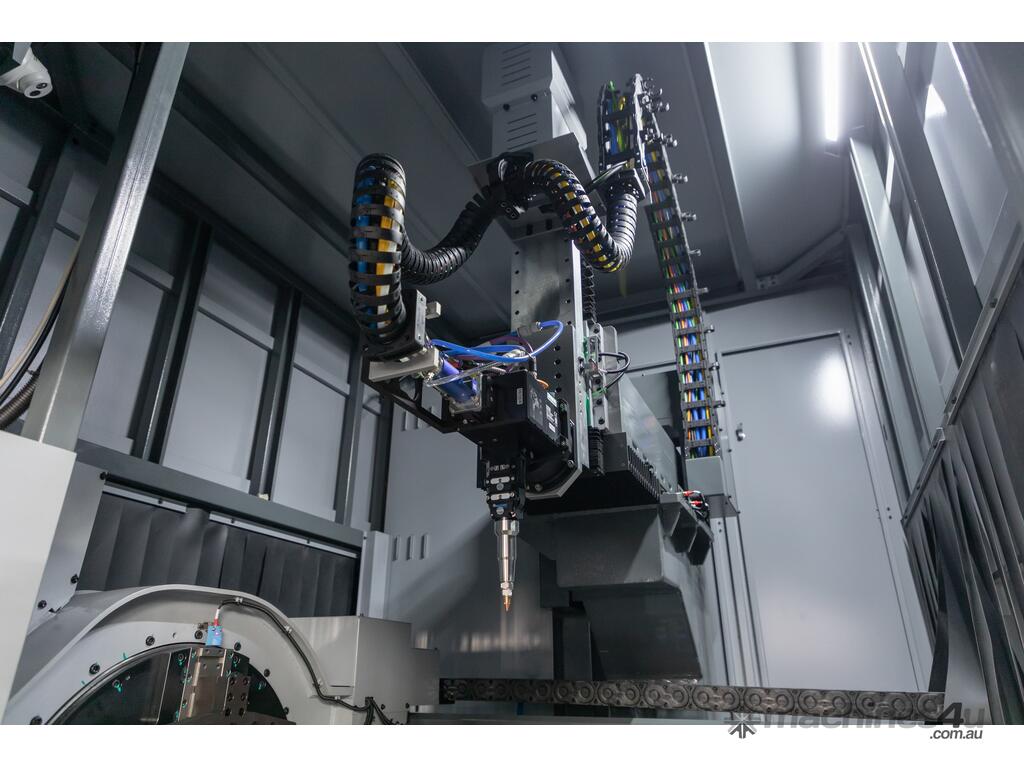

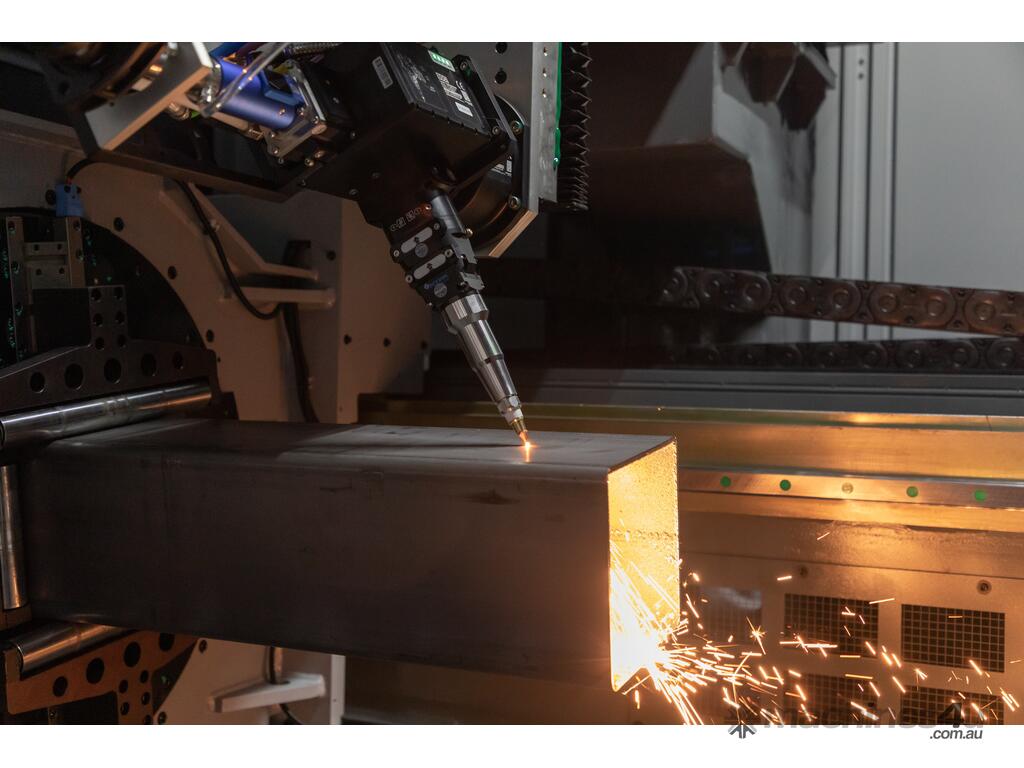

and long finished part handling. With a 3D Cutting Head, this machine-tool comes
ready for a wide range of structural tube and profile laser cutting applications
both on square, round, channel, beam and other profiles.

STANDARD & OPTIONAL FEATURES AND SPECS -

3 chuck design

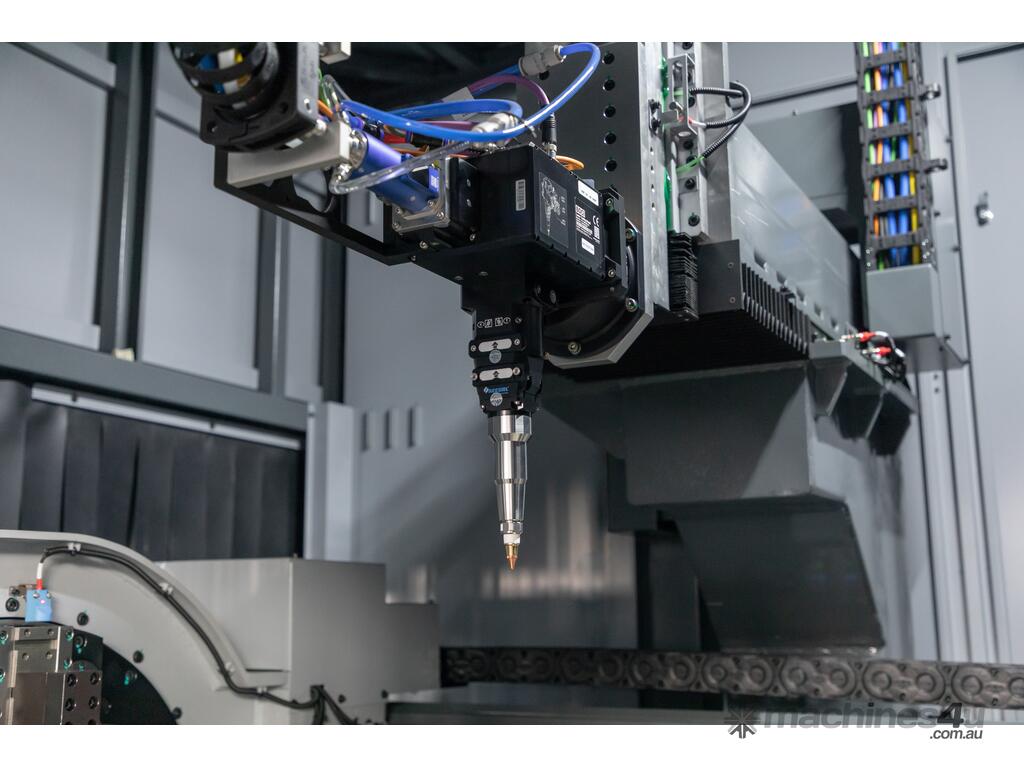

Laser Cutting Head: ACCURL BLT Series (Auto Focus)
**BEVEL HEAD AVAILABLE**

Laser Sources: IPG & MAX Photonics
Maximum Tube Length & Weight: 12000mm, 1200kg
(Sizes - 6 | 7 | 9 & 12m tables lengths available)
Motion System: Yaskawa Servos & Drivers - X,Y,Z Axis
X.Y.Z axis position accuracy: ±0.02mm

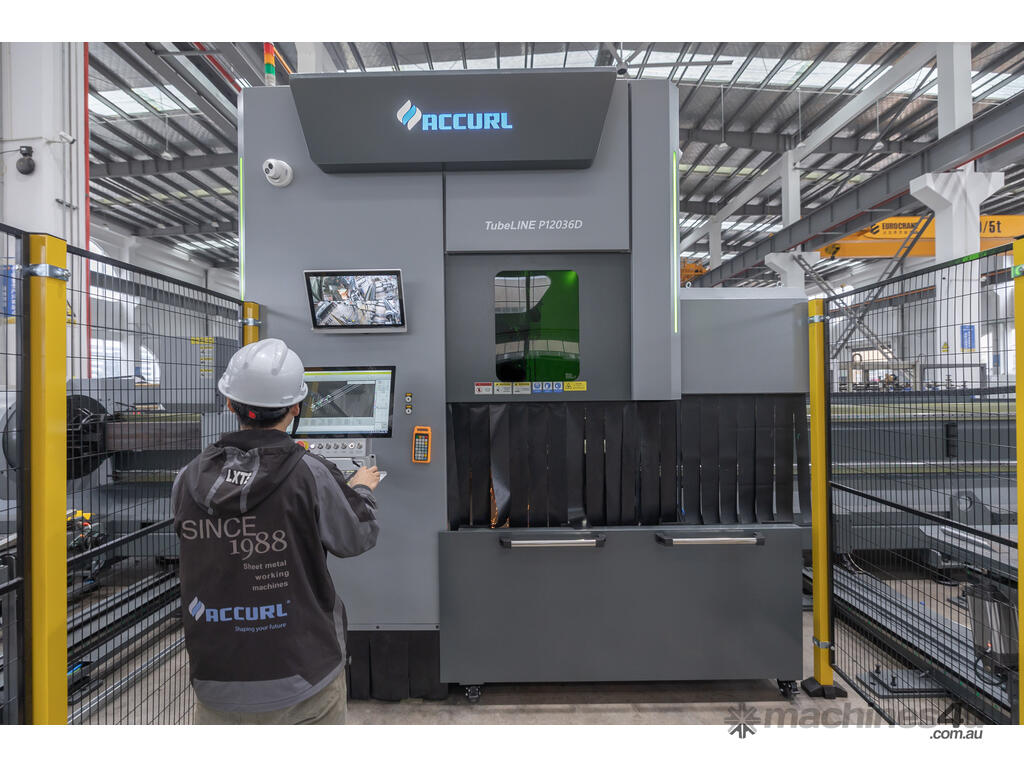

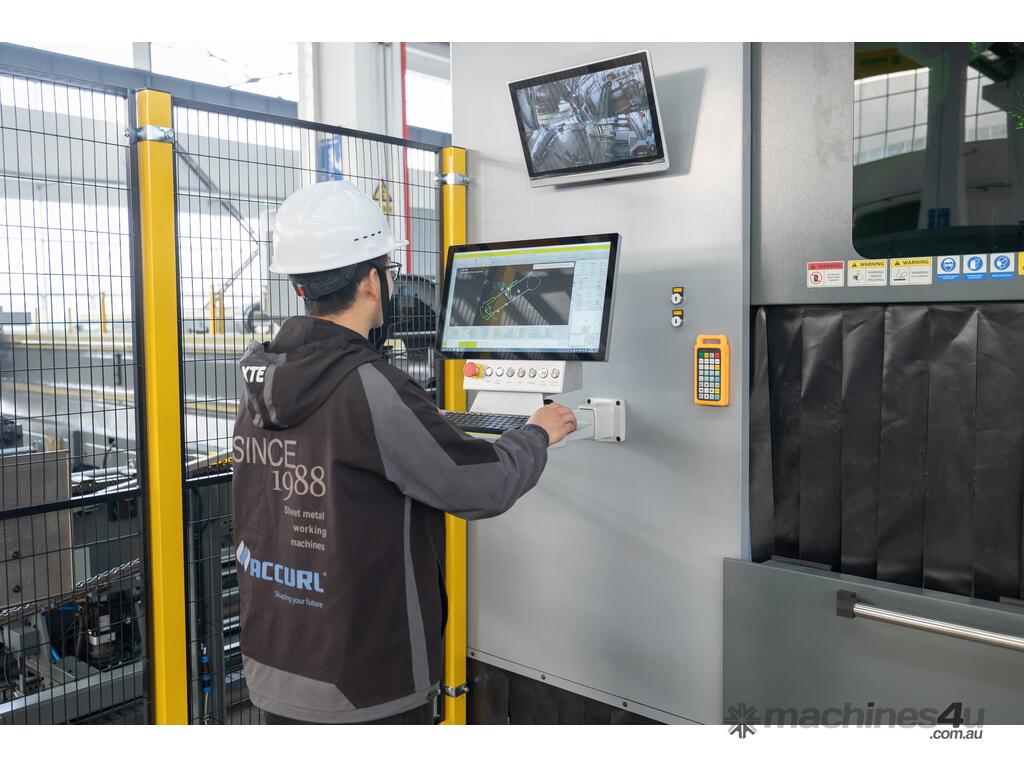

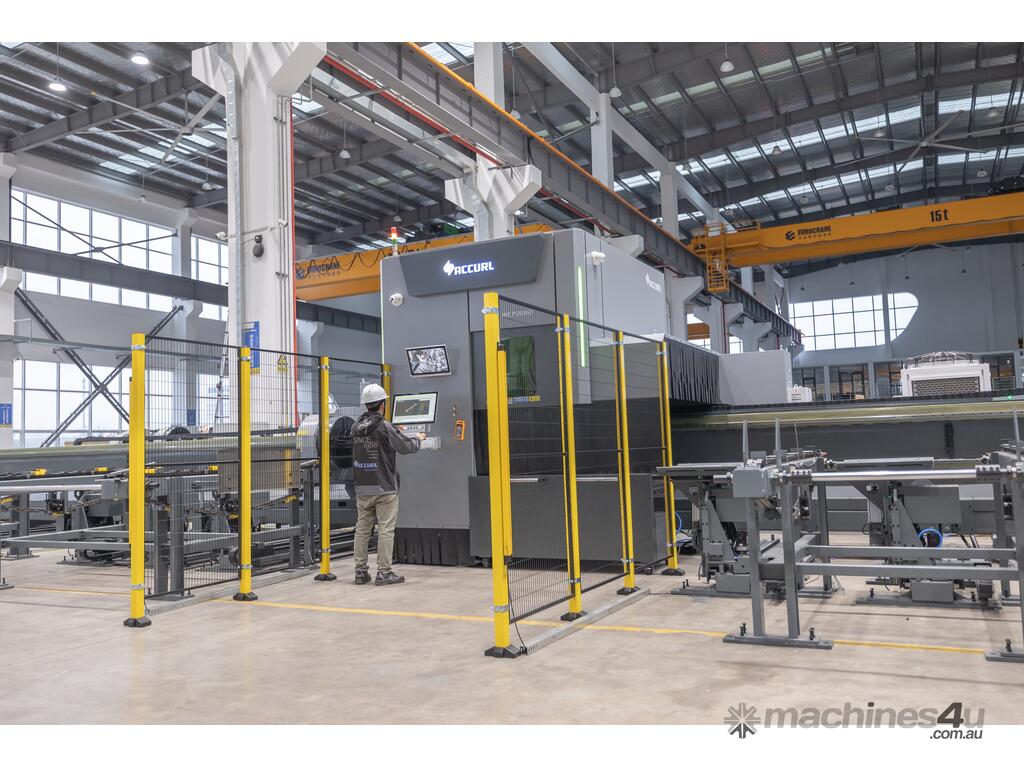

User Interface (HMl)?ACCURL 21.5”Touch Screen with Camera Display
Fume Extraction - Dust Collector (Optional)
Class IV safety system and CE marking

- 6kw to 12kw power sources available

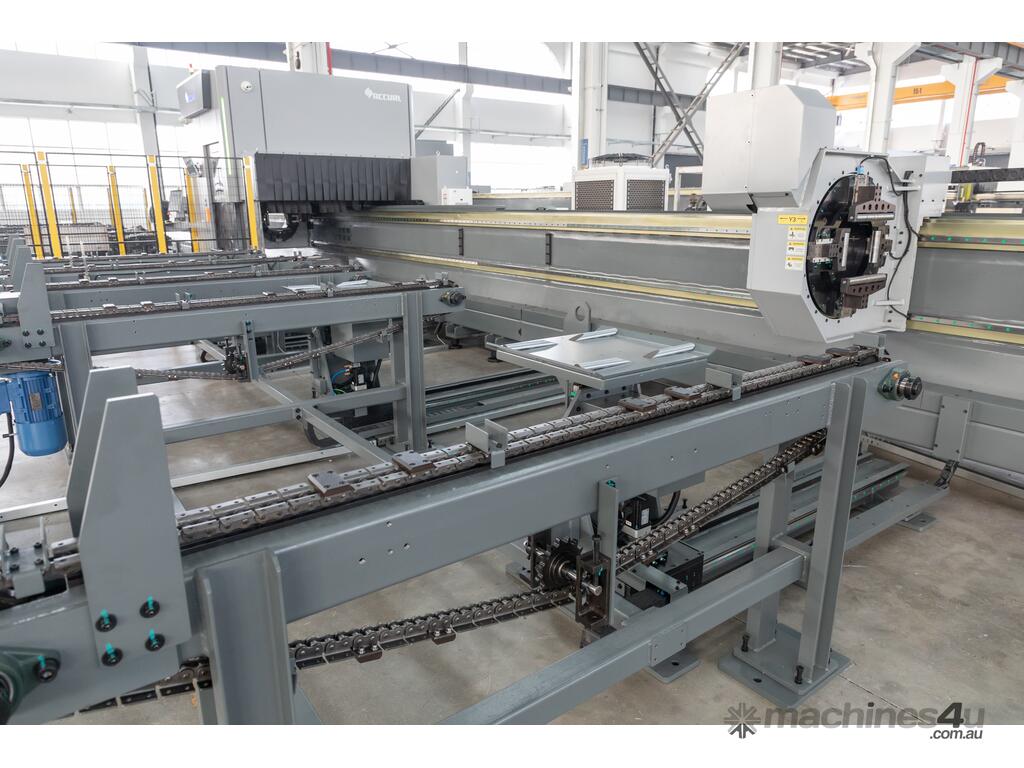

- Available with an auto loading system

- 360 & 510 mm capacities available
- Available in left hand or right hand configurations
- Extended check claws for minimal remnant pieces

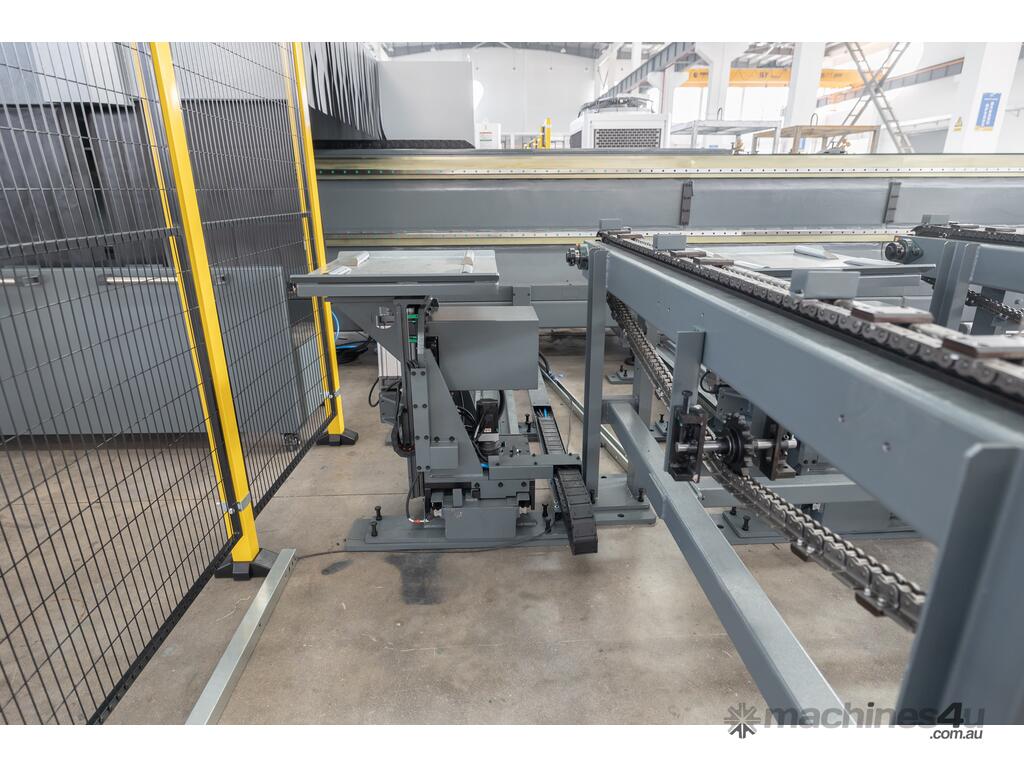

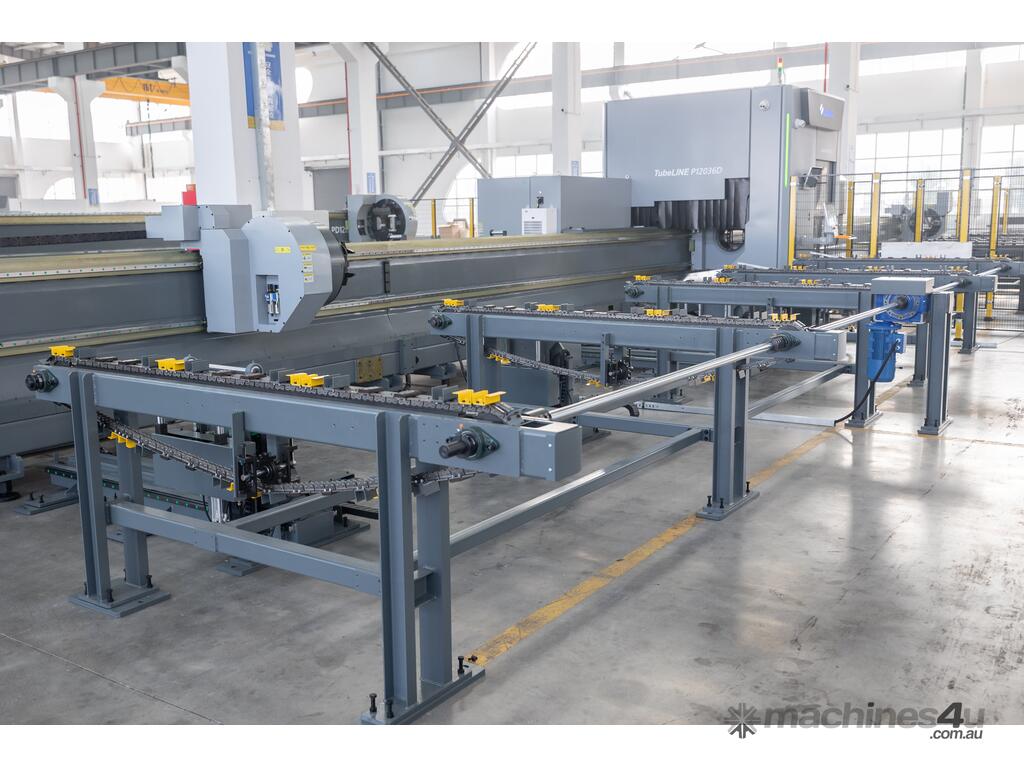

-- Outfeed support table
- Automatic detection of the material centre and edge

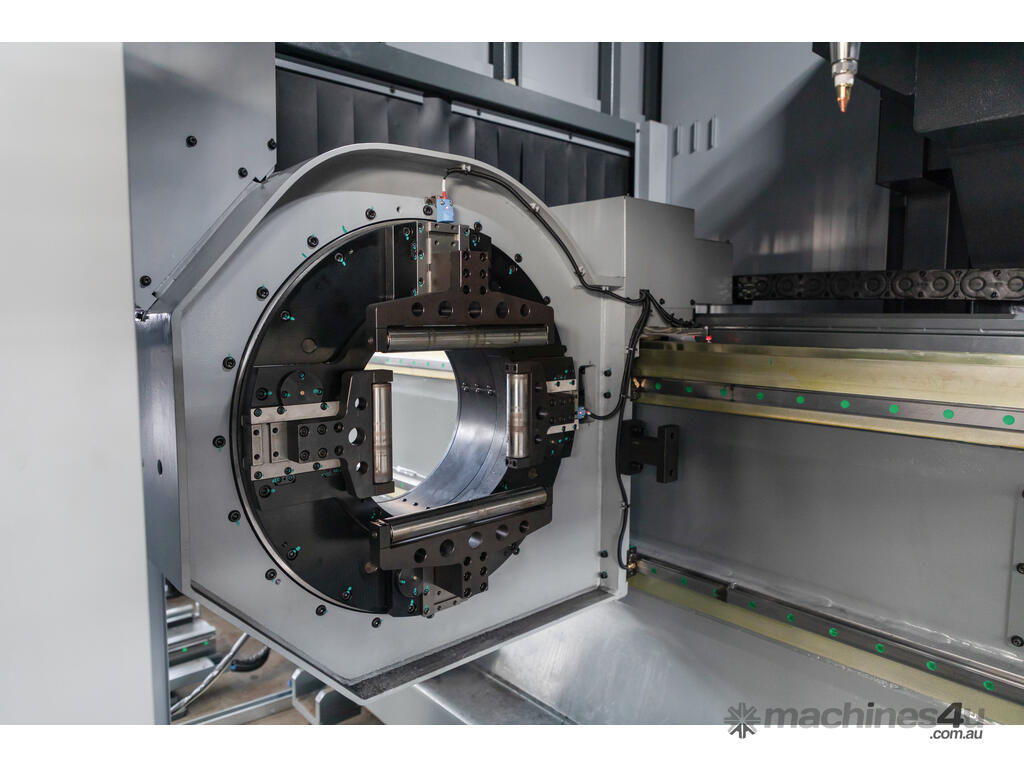

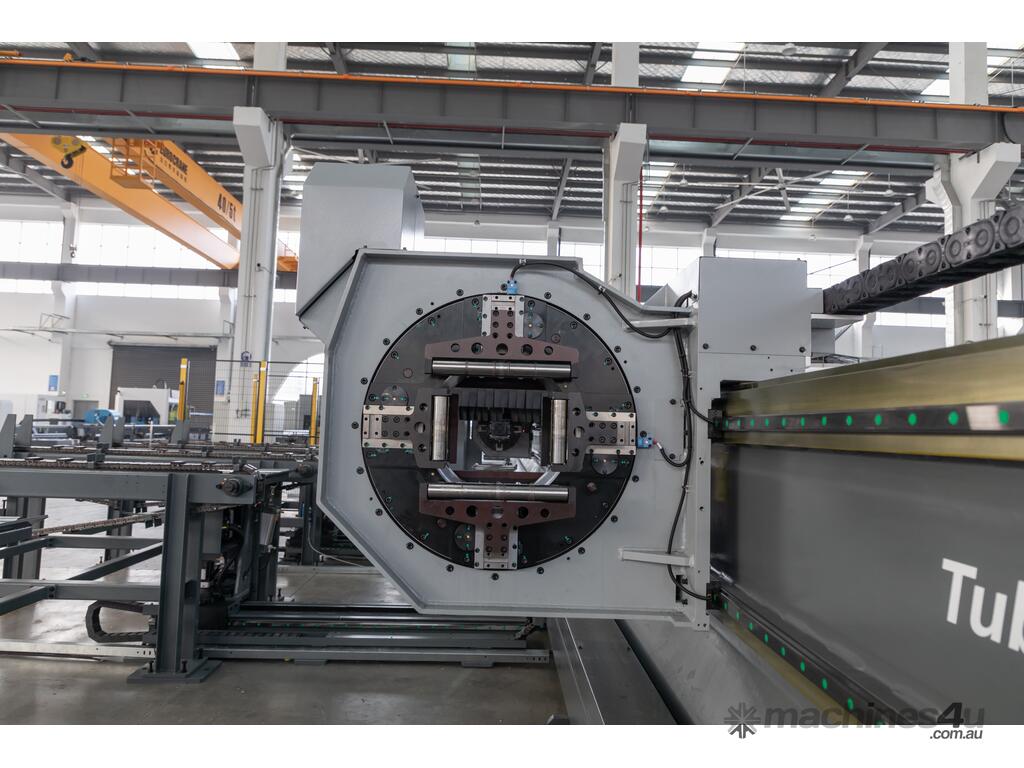

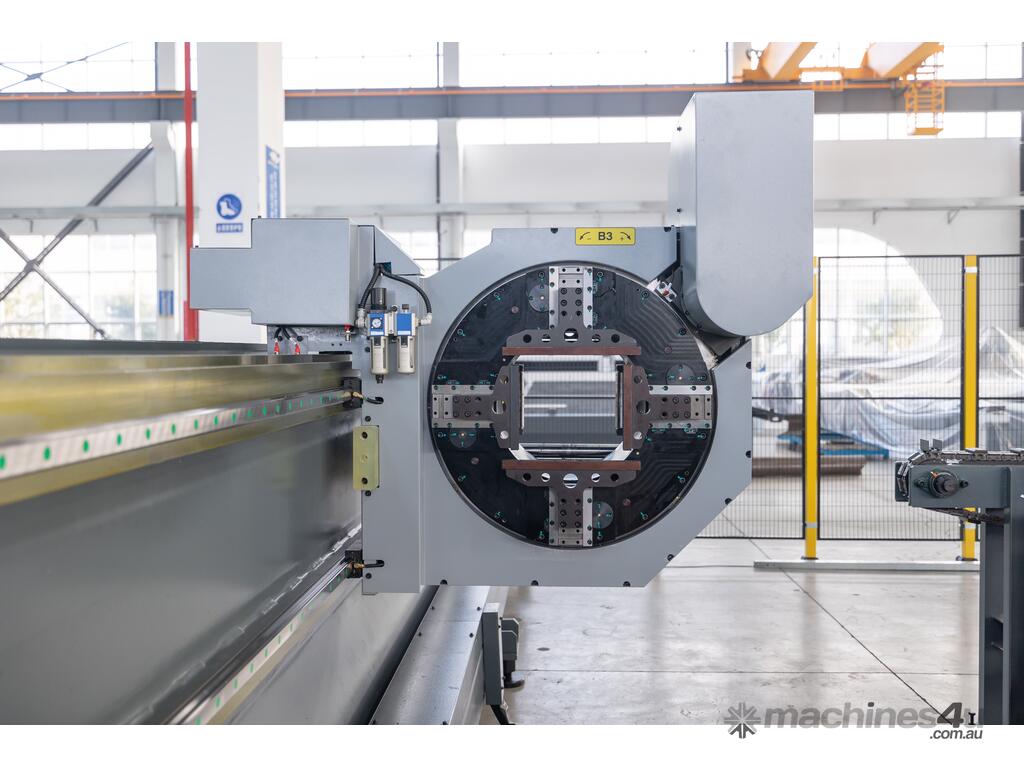

- Integrated chuck in the machine body for extra rigidity and long term accuracy
- Optional seam weld detection

Max no load running speed - 60m/min
Max no load turning speed - 80r/min


Custom machines are available so if there is a specific requirement please contact us to discuss
NB - Some pics shown are shown with optional items fitted
