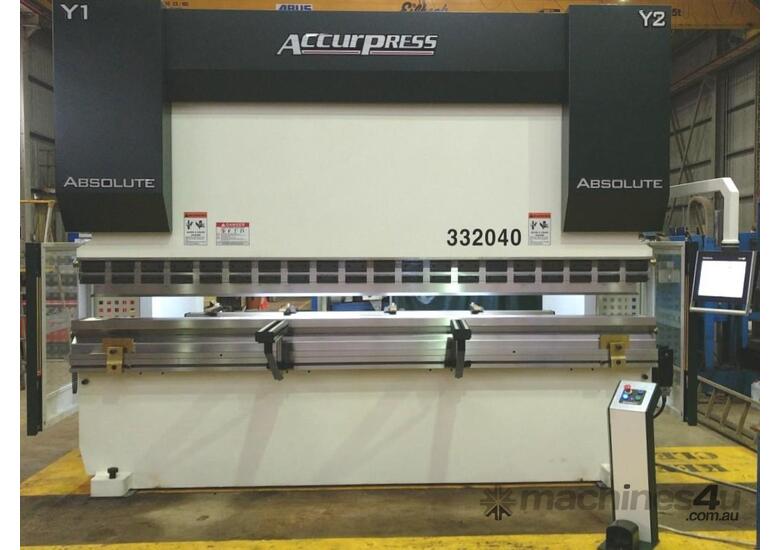

ACCURPRESS Absolute 2000 Tonne 12 Metre Press Brake

Your Absolute Press Brake Solution.

The ABSOLUTE hydraulic system is specifically designed for high speed, synchronized Y1/Y2 press brakes. The system achieves position and parallelism accuracies of +/- 0.01mm via advanced, closed-loop hydraulics technology.
The Absolute electrical system is designed specifically for the Australian market utilising the highest quality, high performance and cost-effective parts available in the Australian market. Unlike other manufacturers, most of our components are available in Australia, meaning no long downtime waiting for parts to be shipped from other countries.
Accurpress Australia creates its own software for the control systems which allows us to change functionality according to customer requirements.

Absolute High Tonnage Press Brakes.

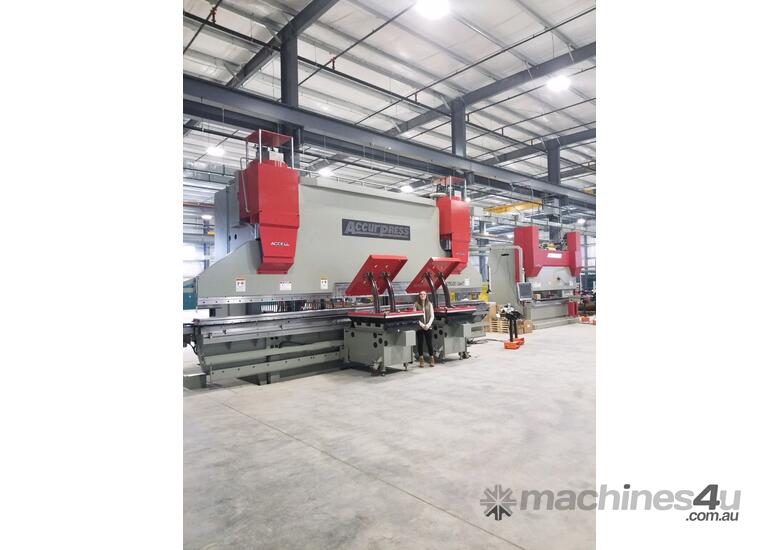

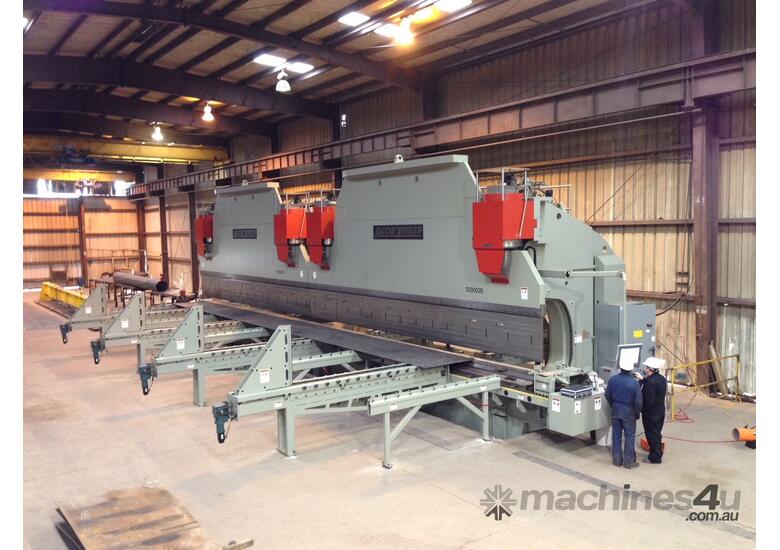

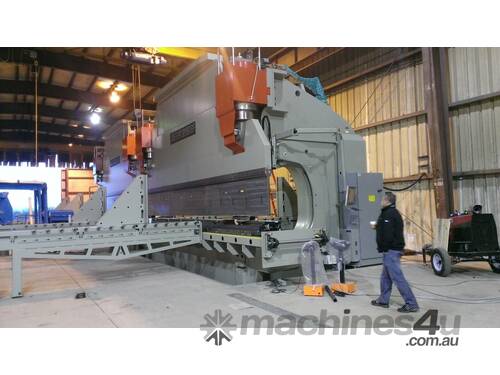

Accurpress High Tonnage Press Brakes have capacities of 1000 tonnes and above. Over the course of four decades, Accurpress has manufactured many thousands of press brakes including high tonnage and very specialized machines.
Jobs that require massive tonnages to form heavy steel plate are dependent upon press brake builders who understand the processes that are needed to engineer and manufacture machinery which has the integral qualities to withstand many years of operation in challenging and sophisticated forming applications. Accurpress is proud to offer a wide range of large tonnage machines built as single units or in tandem, and offered with an assortment of optional gauging and tooling accessories that are also manufactured to handle extreme conditions. We engineer and build press brakes to suit your very specific requirements.

Green Energy Technology.

All Accurpress Absolute Press Brakes are fitted with our Green Energy Technology. With this system in place the pump speed is continuously monitored to match the required oil flow. This dramatically reduces power consumption, noise levels, heat generation and oil quantity whilst significantly increasing operating speeds, service intervals and oil life. On our medium to large capacity machines, the power consumption can be as low as 15% of the power consumption of a standard press brake of equivalent specifications. On machines above 200 tonnes, our Green Energy Technology includes two pumps, which in the event of a pump failure at any point in the machine's lifetime, the machine can still run on one pump until repairs are undertaken, significantly reducing downtime.

Absolute Standard Features.

• Delem DA-58T 15” Touchscreen Control
• Delem DA-66T on all machines 1000 tonnes and above
• Quick Release Tools Clamps up to 320 tonnes
• Heavy Duty Tool Clamps on 400 tonnes and above
• X and R Axis Servo Back Gauge
• SICK Front Light Curtains with Teach Function or Laser Safe Laser Guards
• SICK Rear Light Curtains
• Accurcrown (automatic crowning)
• Two Swing type Support Arms with Stops
• Rear LED Lighting
• Metal Side Doors
• Lifetime lubricated Hardened and Chromed Slides
• Rexroth Low Noise Hydraulic Pumps
• Fast Approach and Return Speeds

Accessories and Upgrades.

• Delem DA-66T and Delem DA-69T
• Z1, Z2 Back Gauge Axes (Requires DA-66T Upgrade)
• 6 Axis Supreme Back Gauge (Requires DA-66T Upgrade)
• CNC Sheet Followers – Single or Dual (Requires DA-66T Upgrade)
• Side parking Station for Sheet Followers
• Extra Stroke
• Extra Open Height
• Extra Throat Depth
• Dual Beam Safety - Laser Safe and SICK Light Curtains.
• Tandem Machine Options (Two machines side by side)
• Additional Operator Pedestal
• Hydraulic Top Tool Clamping

Accurpress Fully Automatic Power Lock Dies.

Accurpress manufactures the largest and most versatile fully automatic die tooling worldwide to satisfy the enormous challenges and demands in the heaviest of bending applications. Fully automatic Power Lock Dies are available in the
following configurations:

• Non-Crownable Adjustable Channel-lock
• Crownable Adjustable Channel-lock
• Standard Power-lock
• Heavy Duty Power-lock

Power Lock Dies allow quick fully automatic adjustment of die openings down to 12mm in just seconds, potentially saving hours per day in heavy tooling changes and reducing the associated risks Power Lock dies are controlled by the Delem control system and also replace the need for large quantities of tooling and their storage, reducing valuable workshop floor space.

High Tonnage Back Gauging.

High Tonnage Press Brakes, 1000 tonne and higher, deserve a back gauge with equivalent specifications. The Accurpress Super Heavy Duty Back Gauge is built specifically for large tonnage machines to handle the heaviest of structural plate applications. Every component has been engineered and sized to withstand huge shock loads. The Super Heavy Duty Back gauge is only available in 6-axis configuration.
