ACM 470 | 47M EWP Mounted on a IVECO 6X6 Off Road Truck | 600kg capacity | 28m Outreach

KEY FEATURES:

• Maximum Aerial Height: 47 Meters
• Maximum Outreach: 28 Meters
• Basket Capacity: 600KGs
• Extendable and rotating Aluminium working basket
• Auto-Leveling Outriggers
• 180kg Basket Lifting Jib
• Starlink Satellite for remote servicing and connectivity access
• ACM Basket Crush Prevention for safety and enhanced operator protection

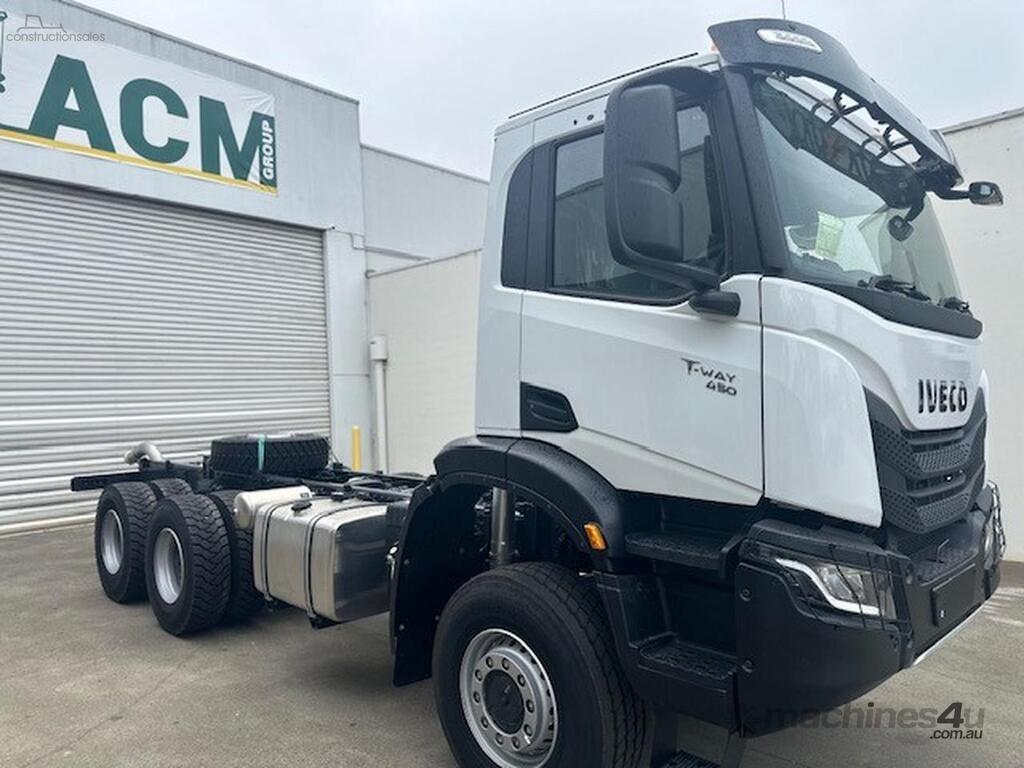

• Truck Model: IVECO T-WAY 6X6

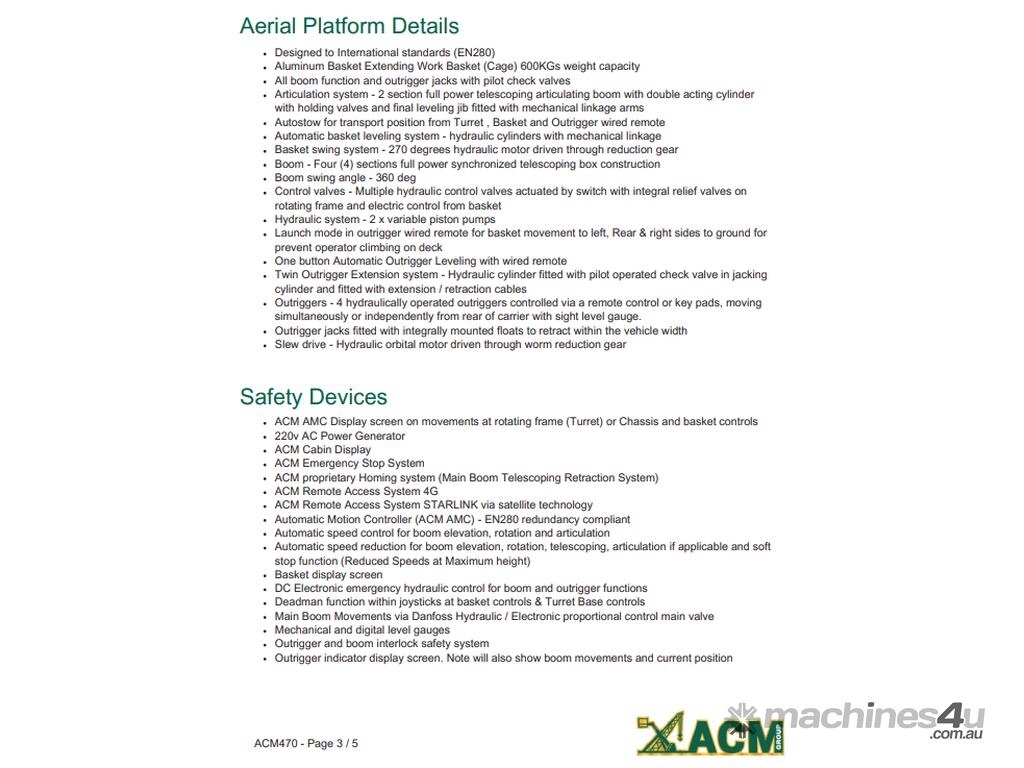

AERIAL PLATFORM DETAILS:

• Designed to International standards (EN280)
• Aluminium Basket Extending Work Basket (Cage) 600KGs weight capacity
• All boom function and outrigger jacks with pilot check valves
• Articulation system – 2 section full power telescoping articulating boom with double acting cylinder with holding valves
and final leveling jib fitted with mechanical linkage arms
• Autostow for transport position from Turret, Basket and Outrigger wired remote
• Automatic basket leveling system – hydraulic cylinders with mechanical linkage
• Basket swing system – 270 degrees hydraulic motor driven through reduction gear
• Boom – Four (4) sections full power synchronized telescoping box construction
• Boom swing angle – 360 deg
• Control valves – Multiple hydraulic control valves actuated by switch with integral relief valves on rotating frame and
electric control from basket
• Hydraulic system – 2 x variable piston pumps
• Launch mode in outrigger wired remote for basket movement to left, Rear & right sides to ground for prevent operator
climbing on deck
• One button Automatic Outrigger Leveling with wired remote
• Twin Outrigger Extension system – Hydraulic cylinder fitted with pilot operated check valve in jacking cylinder and fitted
with extension / retraction cables
• Outriggers – 4 hydraulically operated outriggers controlled via a remote control or key pads, moving simultaneously or
independently from rear of carrier with sight level gauge.
• Outrigger jacks fitted with integrally mounted floats to retract within the vehicle width
• Slew drive – Hydraulic orbital motor driven through worm reduction

SAFETY DEVICES:

• ACM AMC Display screen on movements at rotating frame (Turret) or Chassis and basket controls
• 220v AC Power Generator
• ACM Cabin Display
• ACM Emergency Stop System
• ACM proprietary Homing system (Main Boom Telescoping Retraction System)
• ACM Remote Access System 4G
• ACM Remote Access System STARLINK via satellite technology
• Automatic Motion Controller (ACM AMC) – EN280 redundancy compliant
• Automatic speed control for boom elevation, rotation and articulation
• Automatic speed reduction for boom elevation, rotation, telescoping, articulation if applicable and soft stop function
(Reduced Speeds at Maximum height)
• Basket display screen
• DC Electronic emergency hydraulic control for boom and outrigger functions
• Deadman function within joysticks at basket controls & Turret Base controls
• Main Boom Movements via Danfoss Hydraulic / Electronic proportional control main valve
• Mechanical and digital level gauges
• Outrigger and boom interlock safety system
• Outrigger indicator display screen. Note will also show boom movements and current position

ADDITIONAL INFORMATION:

• Vehicle registration included in advertised price
• EWP Operator and Remote Access training provided
• 2 years Remote Access Response System included
• 12 months warranty for EWP with
• 2 Years Standard Truck Warranty
• EWP Operator and Remote Access training provided

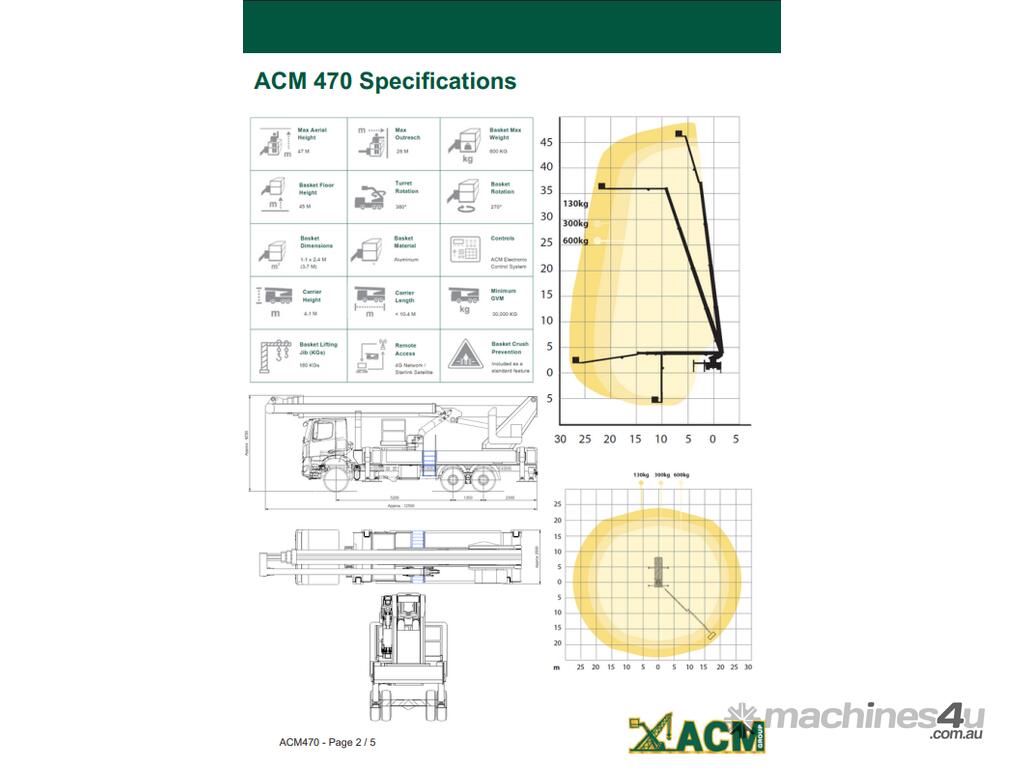

• Full specifications listed in ACM470 Brochure

VEHICLE DETAILS:

•Network ID: OAG-AD-23800055

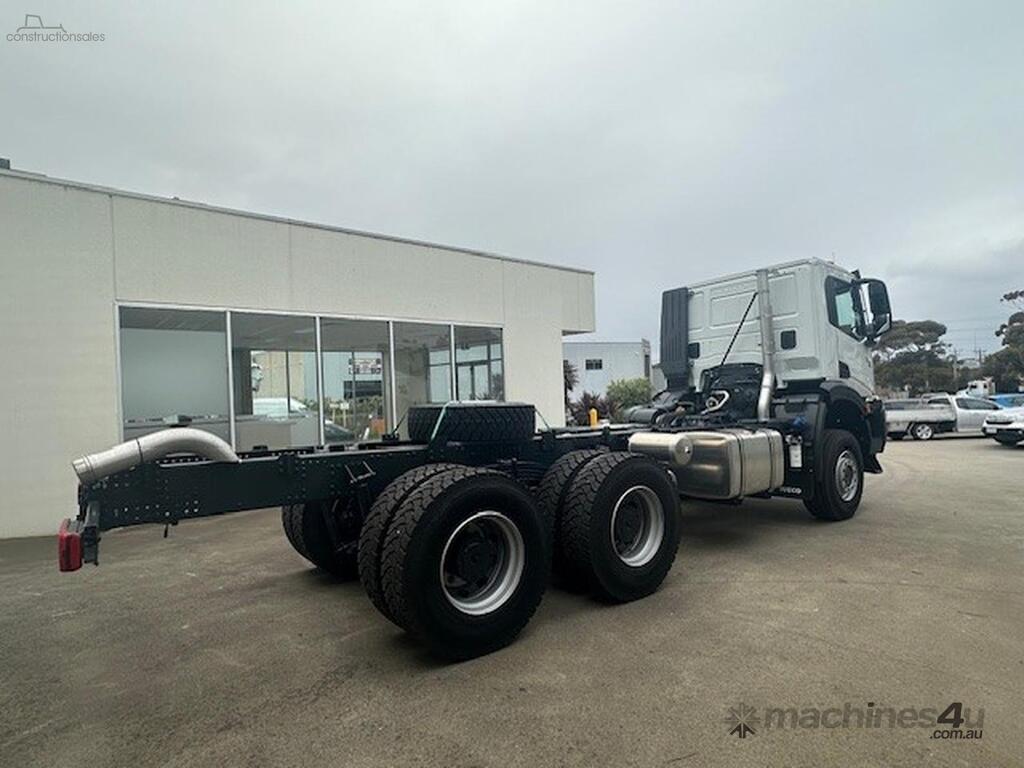

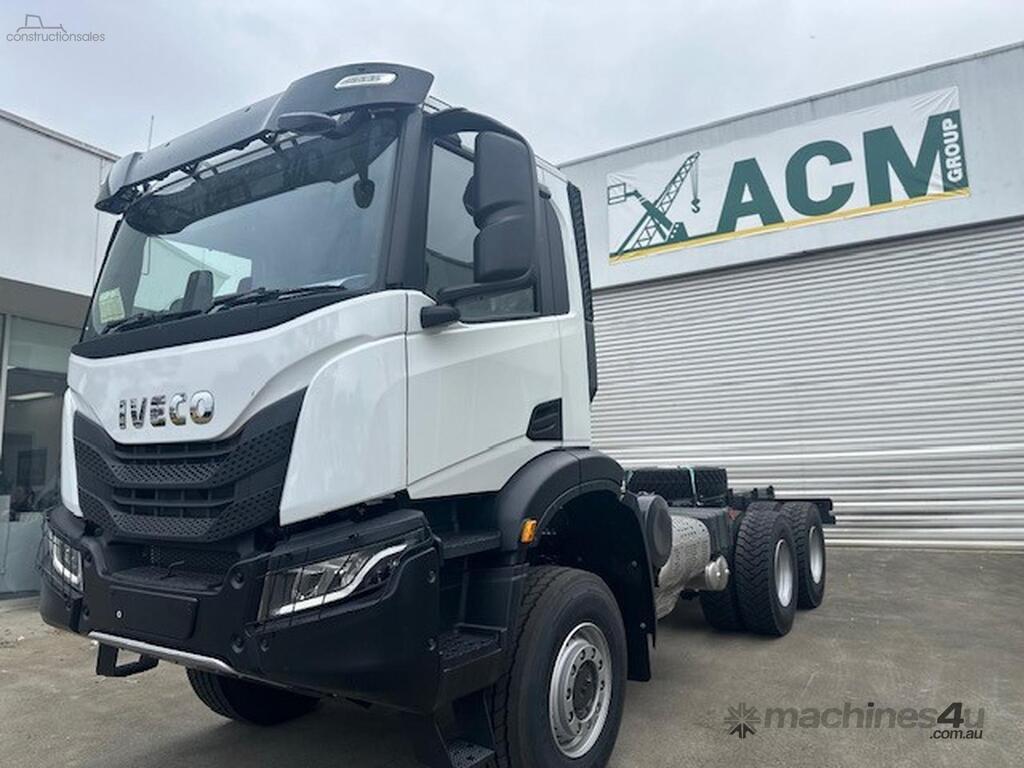

•Item: 2023 Iveco T-Way AD380T45W 6X6
•Item Condition: Excellent
•Price: $1,091,200 Drive away, $992,000* Excl. Govt. Charges
•Sub-Category: Cherry Picker

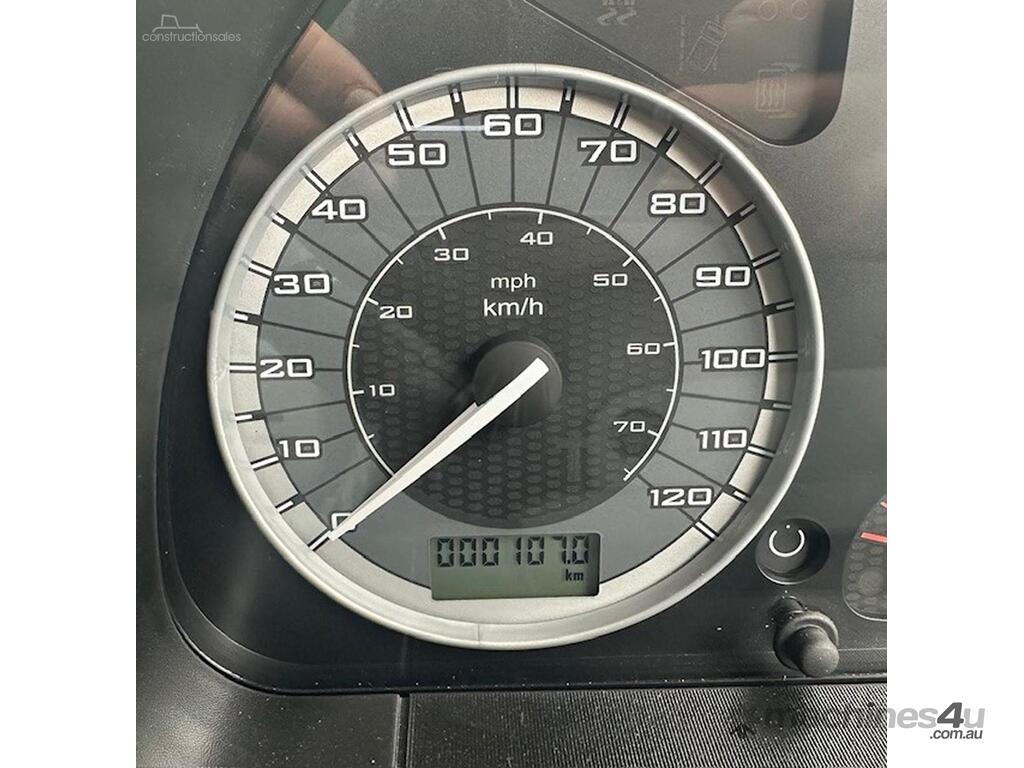

•Odometer: 107 km
•Colour: White
•Engine Make: Iveco

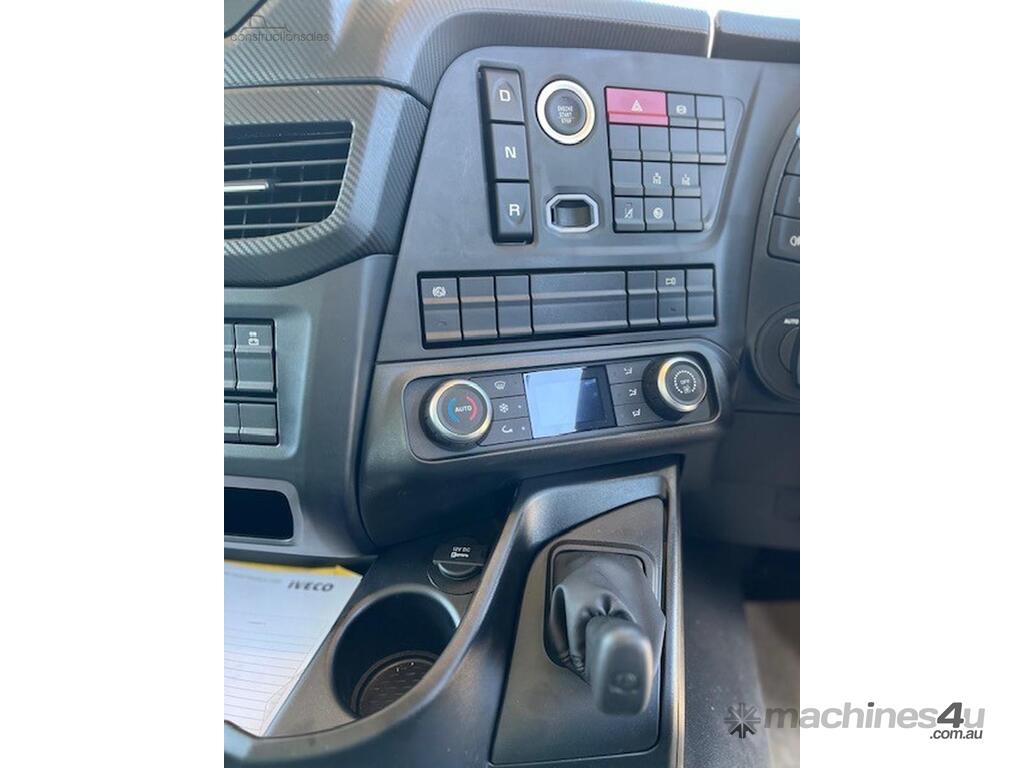

•Transmission: Automated Manual Transmission
•Suspension: Front Suspension - Parabolic with dampers. Rear Suspension - 4 Leaf Parabolic
•Brakes: ABS - Disc

The ACM470 is built for efficiency, safety, and reliability. With its advanced connectivity, high reach, and robust safety features, it’s the ideal solution for telecommunications professionals. Get in touch today!
