ACM700 | 70M EWP Mounted on a Astra 8x8 Off-Road Truck | 600kg cap | 36m Outreach

KEY FEATURES:

• Maximum Aerial Height: 70 Meters
• Maximum Outreach: 36 Meters
• Basket Capacity: 600kg capacity with 270-degree rotation for secure
• Extendable and rotating aluminum working basket
• Hydraulic Tooling Outlet
• 180kg Lifting Jib
• Starlink Satellite for remote servicing and connectivity access
• 4-load cell weight scale in the basket for accurate weight measurement and an ultrasonic sensor to prevent the working cage from making ground contact, enhancing operational safety.
• ACM Basket Crush Prevention for safety and enhanced operator protection
• Truck Model: Astra 8 X 8

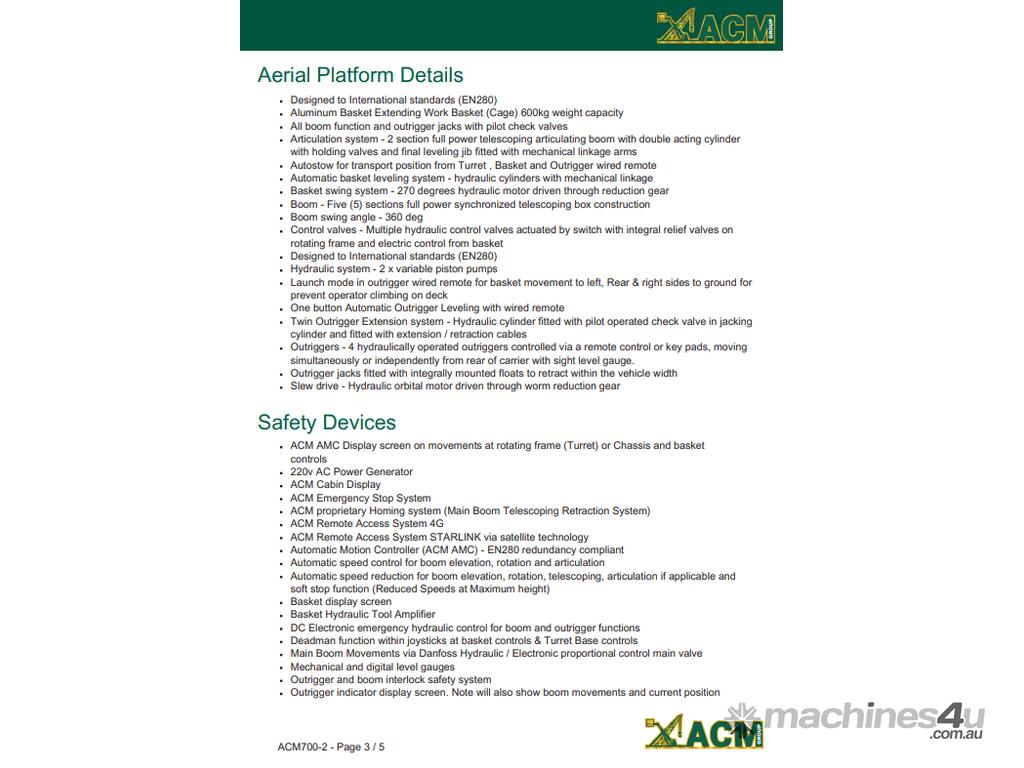

AERIAL PLATFORM DETAILS:

•Designed to International standards (EN280)
•Aluminium Basket Extending Work Basket (Cage) 600kg weight capacity
•All boom function and outrigger jacks with pilot check valves
•Articulation system – 2 section full power telescoping articulating boom with double acting cylinder with holding valves and •final leveling jib fitted with mechanical linkage arms
•Autostow for transport position from Turret, Basket and Outrigger wired remote
•Automatic basket leveling system – hydraulic cylinders with mechanical linkage
•Basket swing system – 270 degrees hydraulic motor driven through reduction gear
•Boom – Five (5) sections full power synchronized telescoping box construction
•Boom swing angle – 360 deg
•Control valves – Multiple hydraulic control valves actuated by switch with integral relief valves on rotating frame and electric control from basket
•Designed to International standards (EN280)
•Hydraulic system – 2 x variable piston pumps
•Launch mode in outrigger wired remote for basket movement to left, Rear & right sides to ground for prevent operator climbing on deck

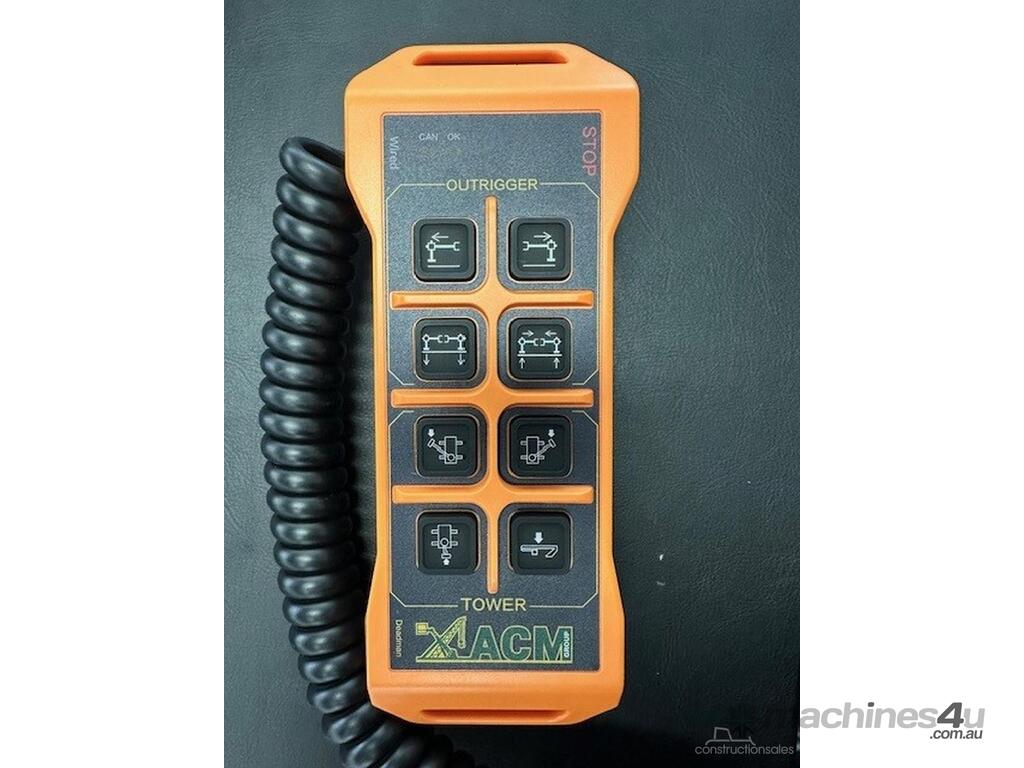

•One button Automatic Outrigger Leveling with wired remote
•Twin Outrigger Extension system – Hydraulic cylinder fitted with pilot operated check valve in jacking cylinder and fitted with extension / retraction cables
•Outriggers – 4 hydraulically operated outriggers controlled via a remote control or key pads, moving simultaneously or independently from rear of carrier with sight level gauge.
•Outrigger jacks fitted with integrally mounted floats to retract within the vehicle width
•Slew drive – Hydraulic orbital motor driven through worm reduction gear

SAFETY DEVICES:

•ACM AMC Display screen on movements at rotating frame (Turret) or Chassis and basket controls
•220v AC Power Generator
•ACM Cabin Display
•ACM Emergency Stop System
•ACM proprietary Homing system (Main Boom Telescoping Retraction System)
•ACM Remote Access System 4G
•ACM Remote Access System STARLINK via satellite technology
•Automatic Motion Controller (ACM AMC) – EN280 redundancy compliant
•Automatic speed control for boom elevation, rotation and articulation
•Automatic speed reduction for boom elevation, rotation, telescoping, articulation if applicable and soft stop function (Reduced •Speeds at Maximum height)
•Basket display screen
•Basket Hydraulic Tool Amplifier
•DC Electronic emergency hydraulic control for boom and outrigger functions
•Deadman function within joysticks at basket controls & Turret Base controls
•Main Boom Movements via Danfoss Hydraulic / Electronic proportional control main valve
•Mechanical and digital level gauges
•Outrigger and boom interlock safety system
•Outrigger indicator display screen. Note will also show boom movements and current position

The ACM700-2 is built for the high voltage power transmission and wind farming industries, offering rugged off-road capabilities, 4G and Starlink connectivity, and advanced safety features. Contact us now to secure yours and boost your operational efficiency!
