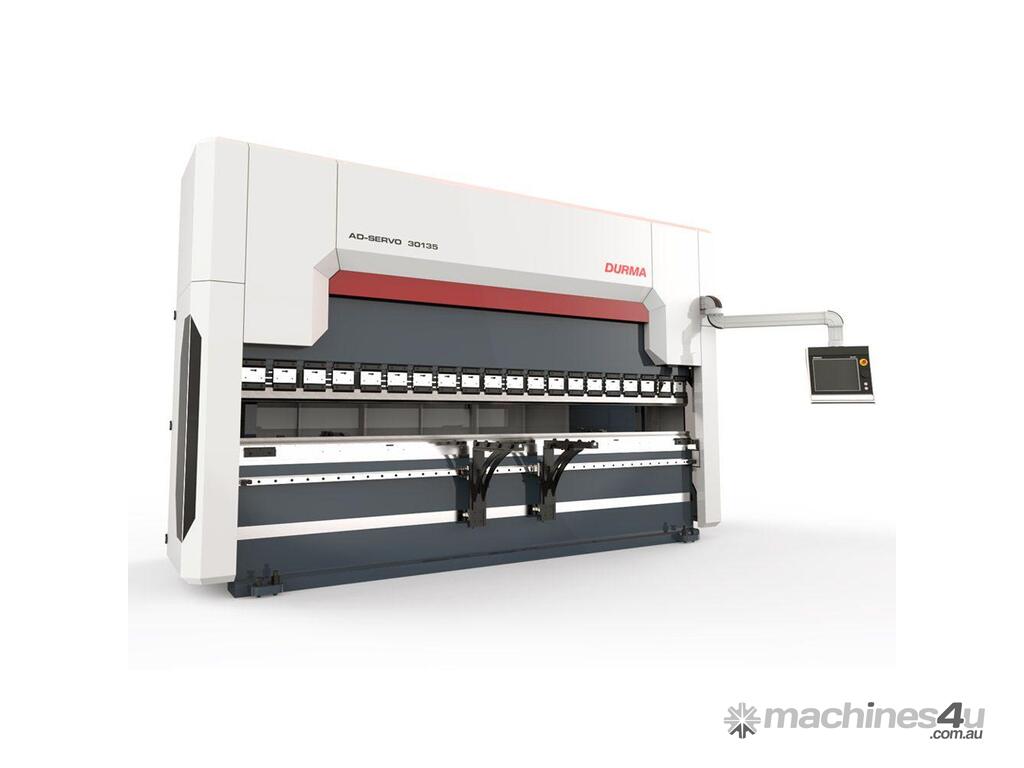

ACRA MACHINERY -Durma AD-Servo Pressbrake

Durma AD-Servo series Pressbrakes open up economic options by substituting fixed displacement power units with variable-speed pump drives.

Energy consumption has a significant effect on the total cost of operation in a business; even with standard machines, energy consumption can often represent 30% of total costs for a business. This share can often be remarkably higher with particular energy-intensive applications. The AD-Servo pressbrake is designed to achieve energy savings whilst maintaining the long life precision & efficiency familiar to the Durma range. Contact an Acra Machinery representative to find out more about how the AD-Servo can assist your business today!

5-axis (Y1, Y2, X, R & CNC Controlled Motorized Crowning)
Cybelec CNC ModEva 19T Colour Graphic Control Unit
DBEND CAD/CAM Importing & Simulation Program
CE Safety
Height Adjustable Finger Blocks
Servo Driven Motorized Ballscrew Backgauge w/ Linear Guides
European Clamping System
European Style Bottom Tool Holder
Sliding Sheet Support Arms w/ T-Channel & Tilting Stop
Bosch Rexroth Hydraulics
Siemens Electrics
Euram Top & Bottom Tooling (835mm lengths & 1 sectioned 835mm length)

Cybelec CNC ModEva Premium Colour Graphic Control Unit
Delem CNC DA 66T or 69T Colour Graphic Control Unit
Z1 & Z2 Axis
X1 & X2 Axis
R1 & R2 Axis
Delta X-axis (125mm stroke)
Automatic Sheet Follower System w/ Motorized Elevation Adjustment
Parking Area for Sheet Followers
Front Feeding System w/ Pnuematic Pushers

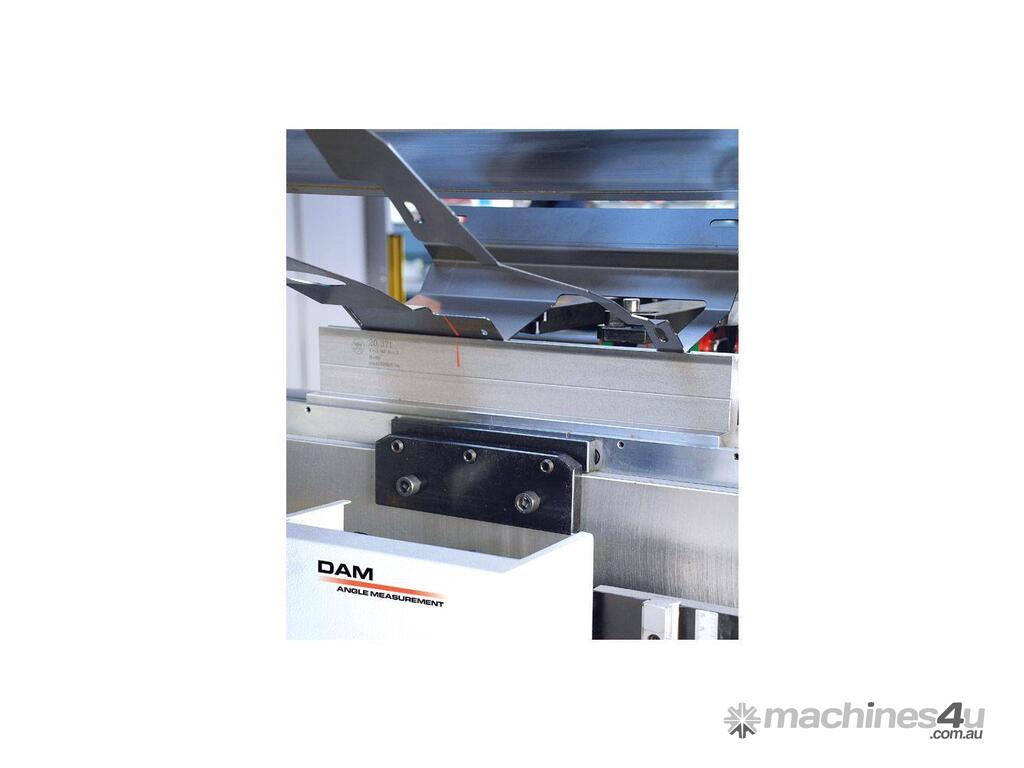

Laser Angle Measurement
Quick Release Clamping
Wila Hydraulic/Pnuematic Tool Clamping System
Bottom Tool Seperation System
Central Lubrication System
Oil Heating/Cooling
Electrical Cabinet Air Conditioning
Additional Backgauge Fingers
Additional Sliding Front Support Arms
Additional Stroke
Additional Throat Depth
Backgauge Support Table (for Lighting Poles)
Tandem Operation & Additional Foot Pedal
