ACRA MACHINERY -Durma HD-F Fibre Laser

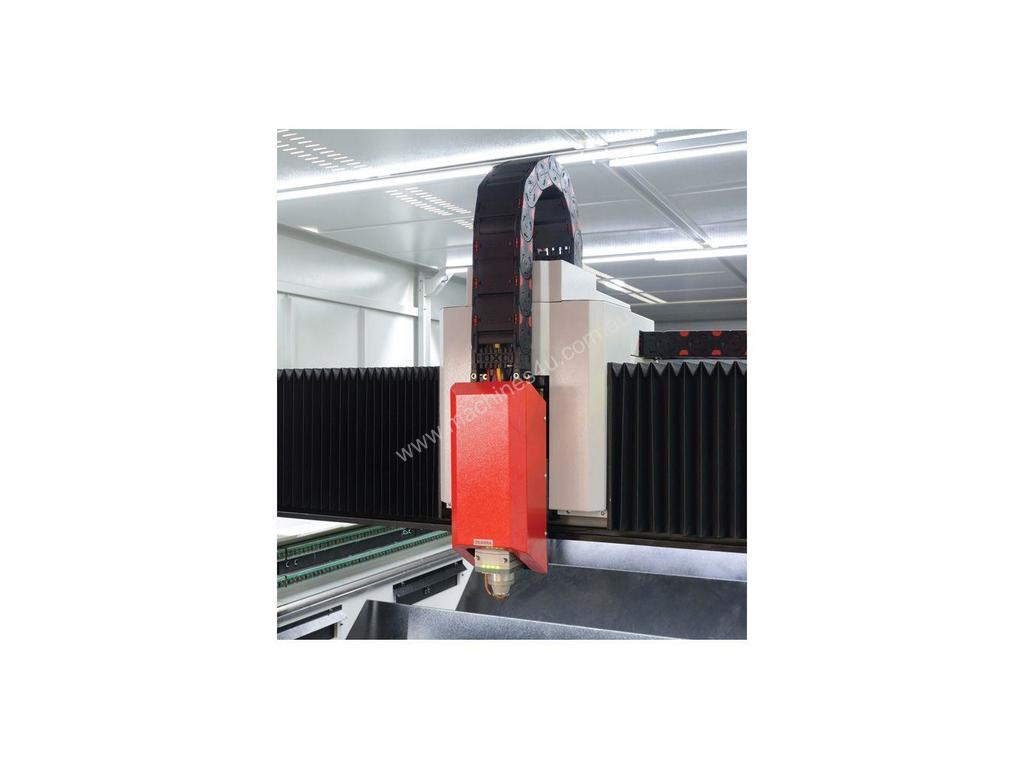

The Durma HD-F Series Fibre Laser contains a rigid body structure, compact design & high levels of efficiency & user-friendliness. Axis motion is achieved by either rack & pinion or linear guided system (HD-FL) depending on the users requirements; HD-F machines are manufactured with high precision two-day, helical racks w/ low clearance make it possible to achieve high acceleration (synchronized 28m/sý), speed (synchronized 170m/min) & accuracy (0.05mm). Whereas, HD-FL machines are driven by high velocity & acceleration linear motors; acceleration (synchronzied 35m/sý), speed (synchronized 226m/min) & accuracy (0.03mm). Acra Machinery can supply Fibre Lasers w/ IPG power ranging from 0.5kW – 10kW, contact one of our representatives to find out more today!

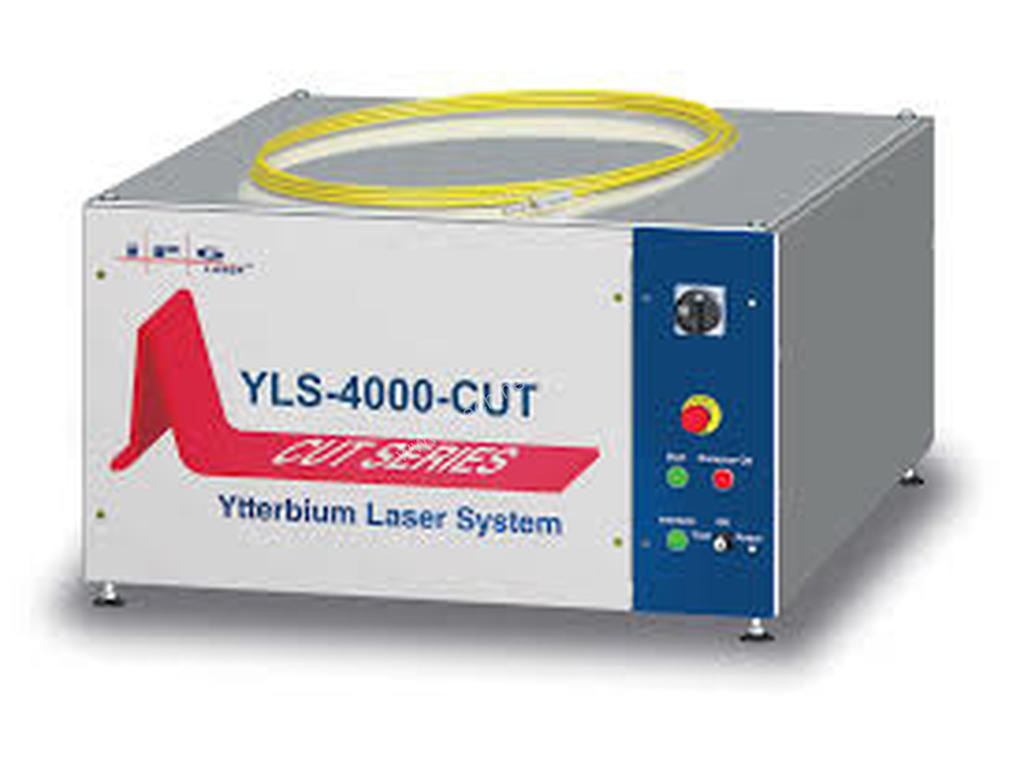

IPG Fibre Laser Source
Chiller
Compact Dust Extraction (Filter)
CE Automatic Shuttle Table

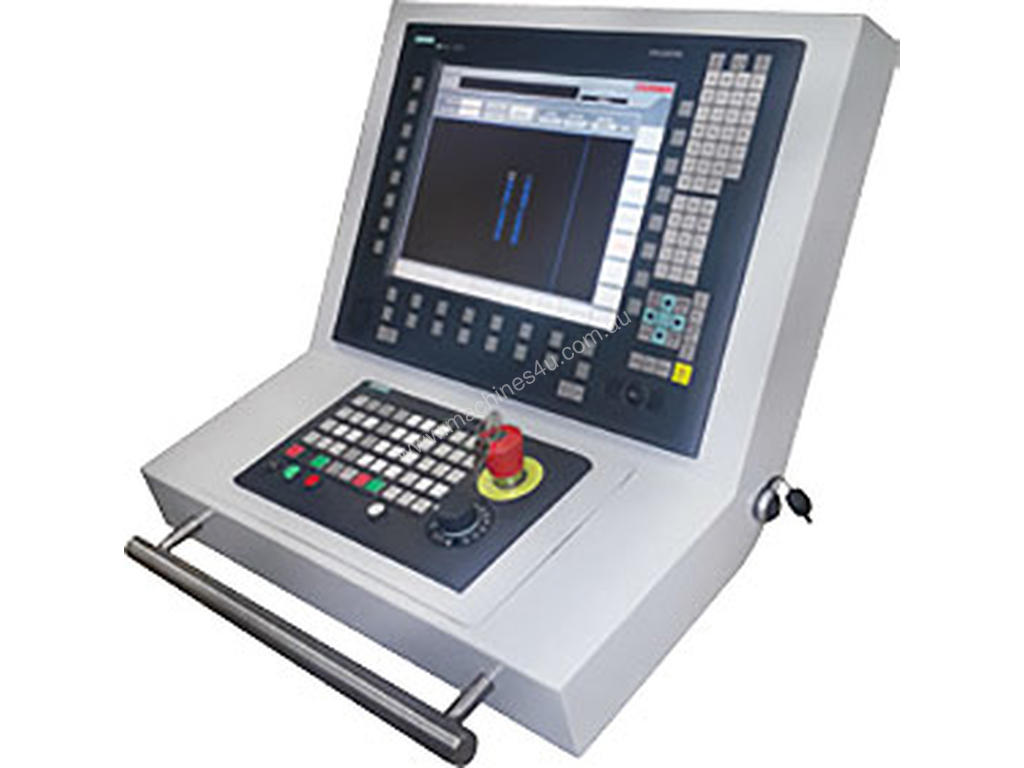

Siemens Sinumerik 840D SL Control Unit

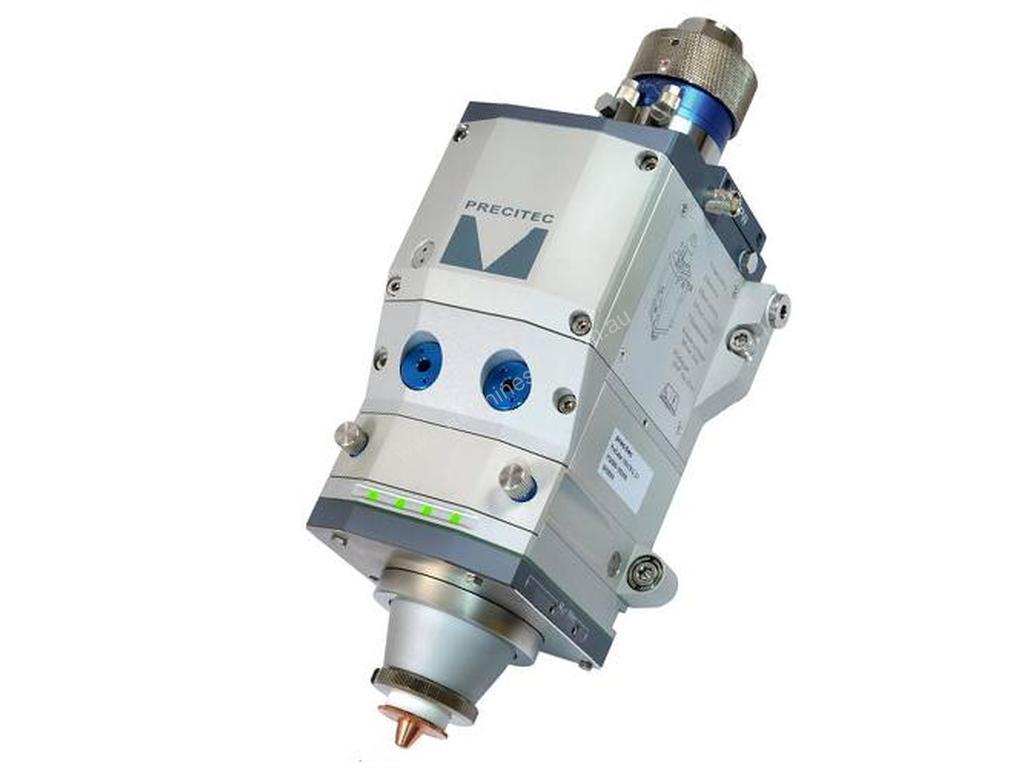

Automatic Focus Precitec Procutter Laser Cutting Head
Automatic Sheet Position & Dimension Sensing System
Laser Diode Positioning
Automatic Nozzle Cleaning
Central Lubrication

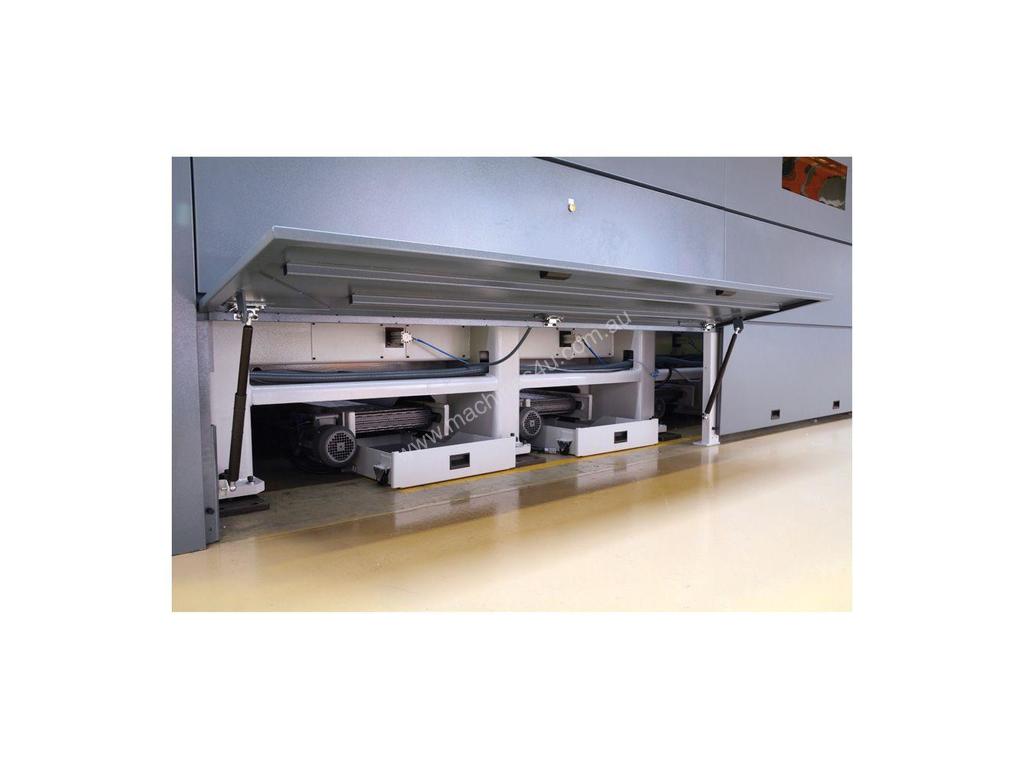

Slug Cars
Simple User Interface Parameter Page (Power, Speed, Pressure)
External Metalix or Lantek CADCAM Software w/ Autonesting
Working Area Illumination
Multi-Chamber Exhaust System
Warning Lamp
CAD/CAM Programming Support & Training
Operation Training
Remote Service


Motorized Slug Parts Transfer Conveyor
Laser Cutter Monitoring

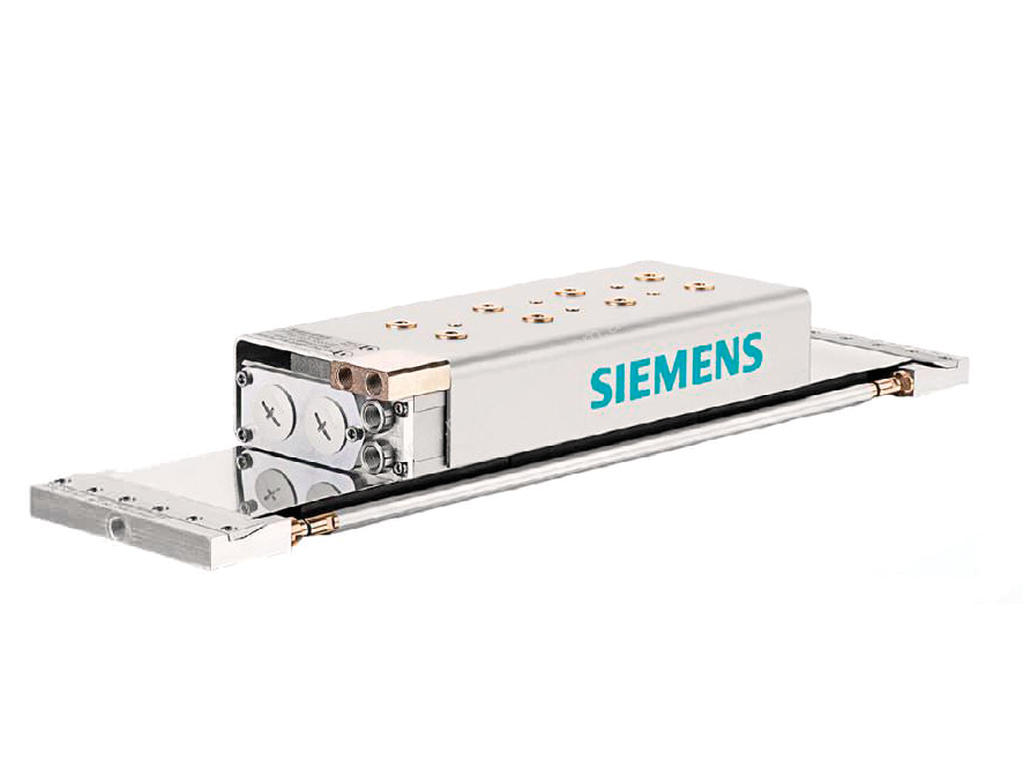

Linear Drives (X1, X2 & Y-axis)
Electrical Panel Air Conditioning
Tube Cuting Device (up to ?400mm)

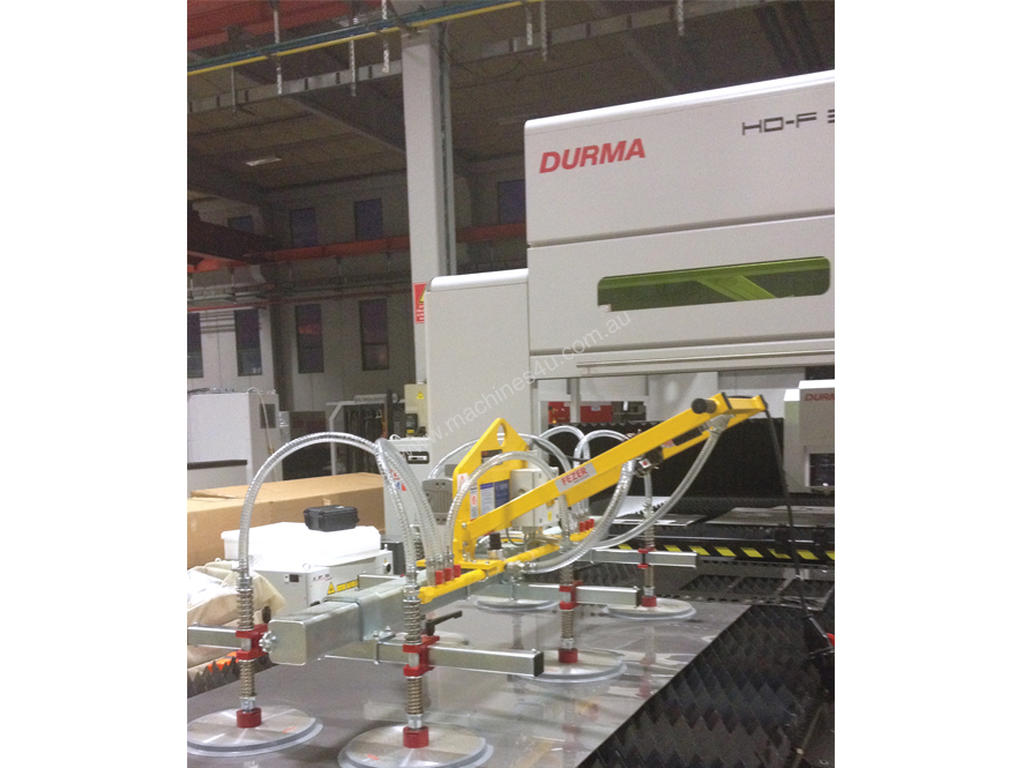

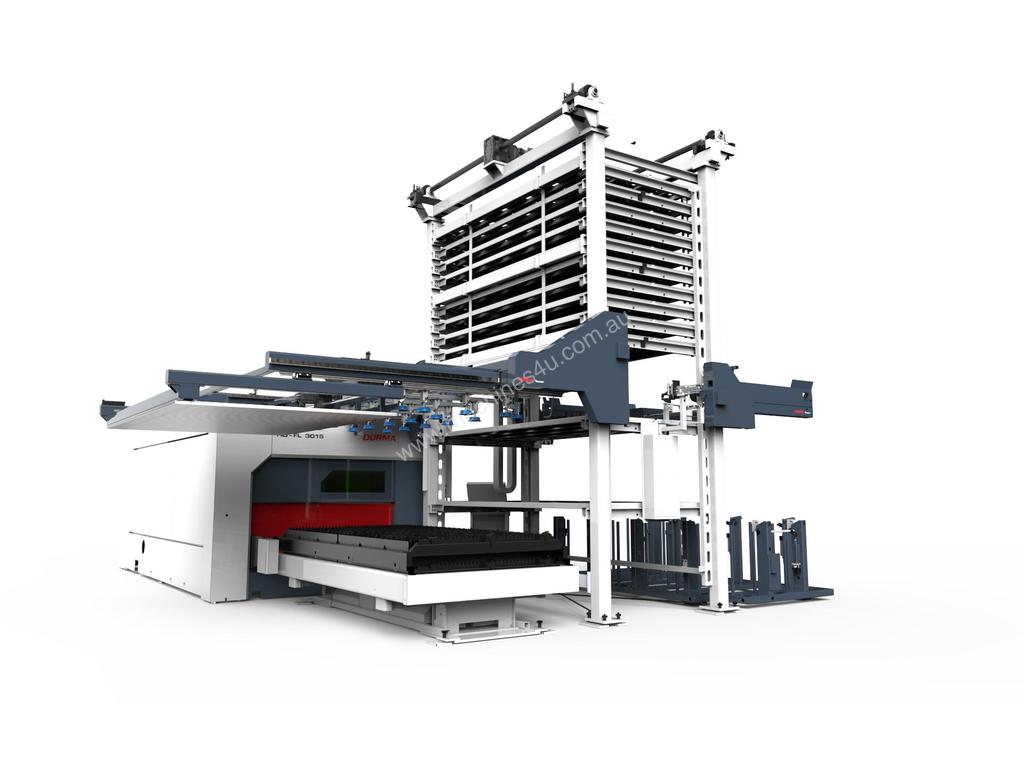

Automatic Loading & Unloading Systems
Automatic Nozzle Change (Best Suited for Machines w/ Linear Drives + Automatic Loading & Unloading Systems)
External Software USB
Lantek or Metalix MT Software Licence w/ Integrated Camera
Cloud License
IP Camera
File Transfer
Clamps
Uninterruptible Power Supply
Air Dryer
Laser Service Set (Nozzles, Cotton Balls, Acetone, Cleaning Tissues & Ceramics)
