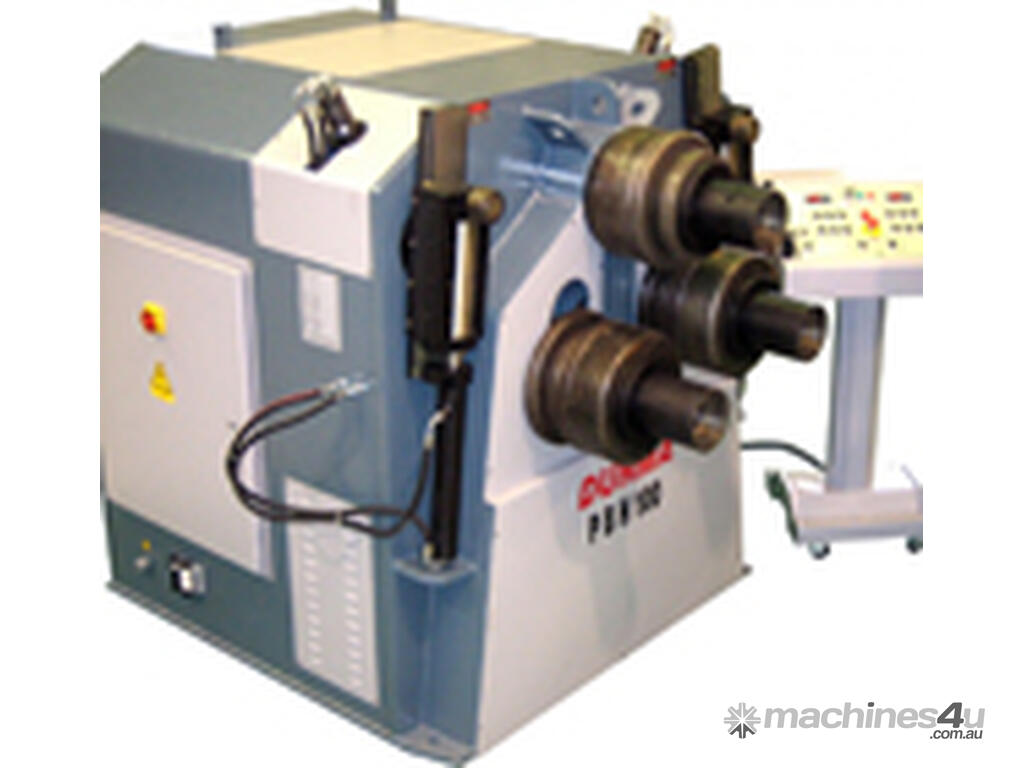

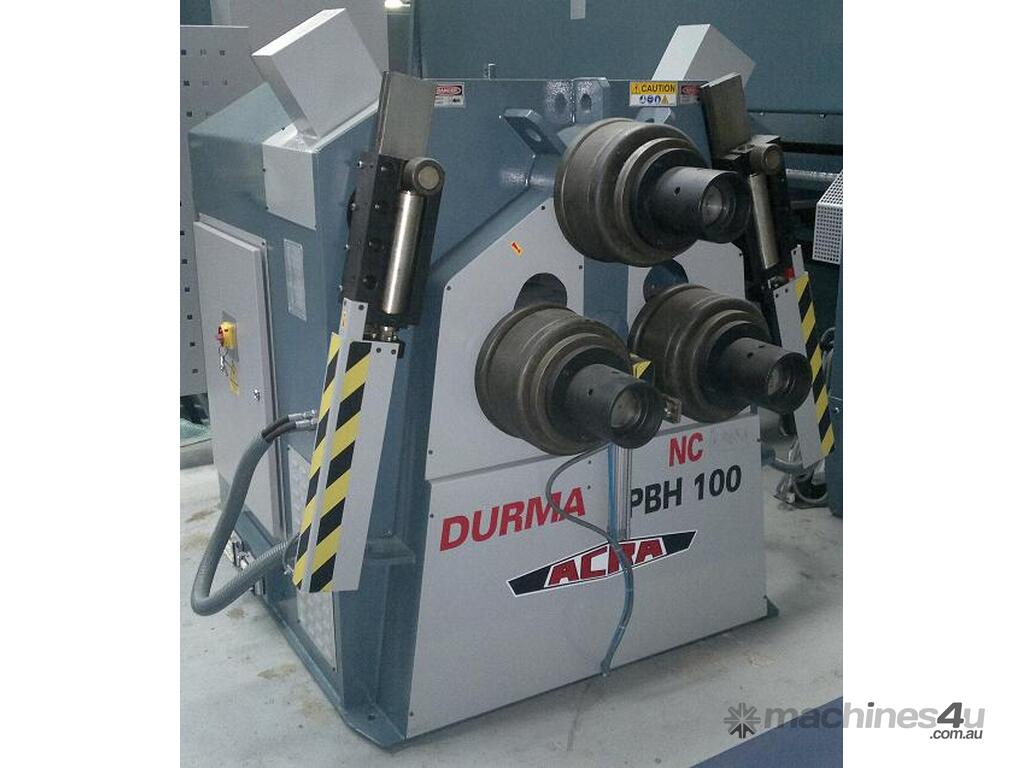

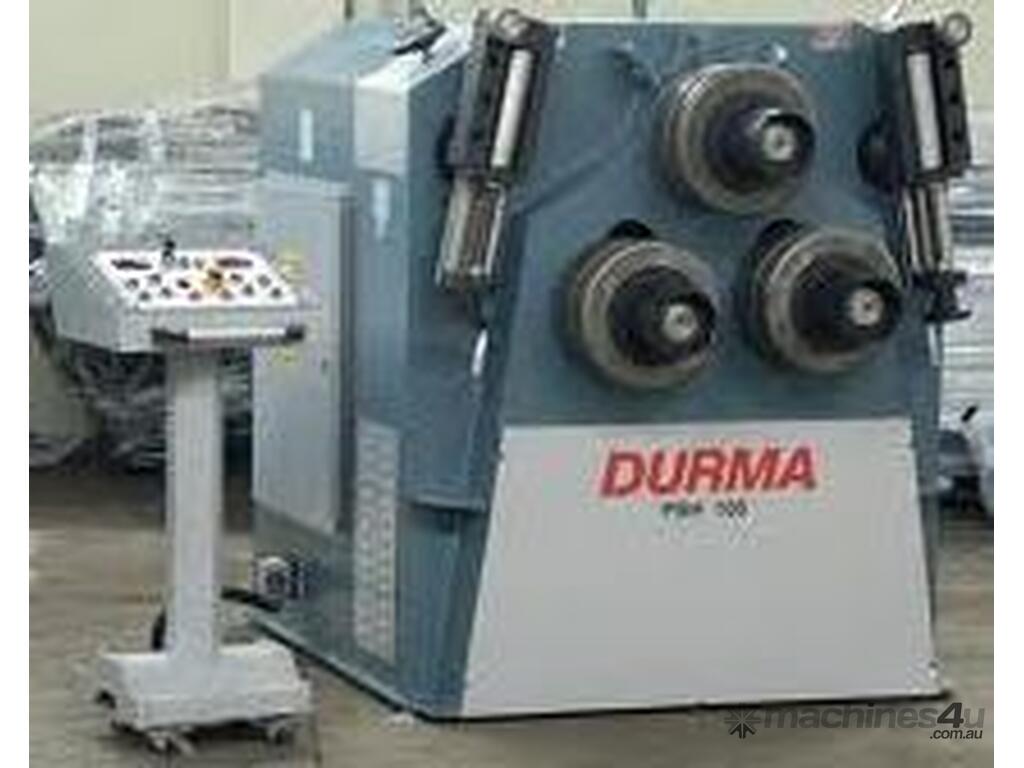

Durma PBH 80 - 100 Section Rolls
Standard Features
* Hydraulic Z axis
* Digital readout (X, Y Axis)
* All rolls driven by a planetary gearbox and hydramotor
* 1 set of standard hardened and ground rolls
* 3 Axis side supports (Z: Front-Back, U: Up and Down, C: Left-Right manual)
* Horizontal and Vertical working feature
* Side supports are suitable for angle iron
* Electrical and hydraulic overload protection
* Roving command panel
* Stress relieved steel construction
Optional Features
* Fully hydraulic 3 Axis side supports
* Digital readout (Z,U,C Axis)
* NC control system
* CNC control system
* Variable turning speed
* Tie bar for rolls
* Special rolls for tubes, profiles and bar/angles

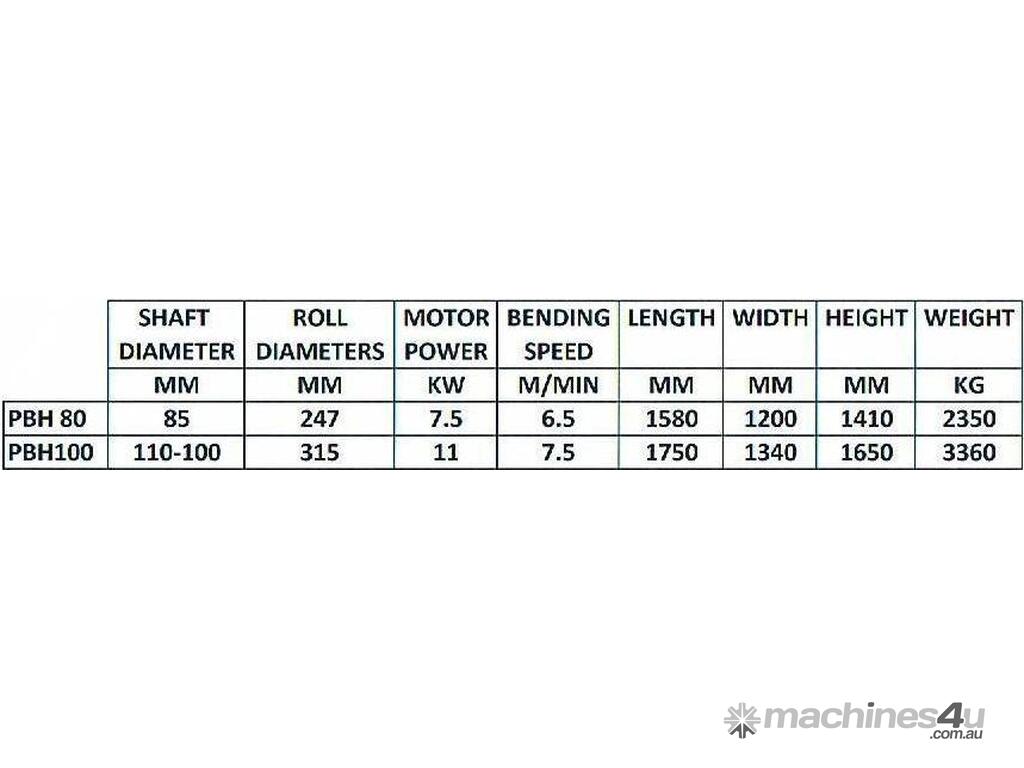

See Photos for model specifications
* Profile Types and Dimensions available on request
