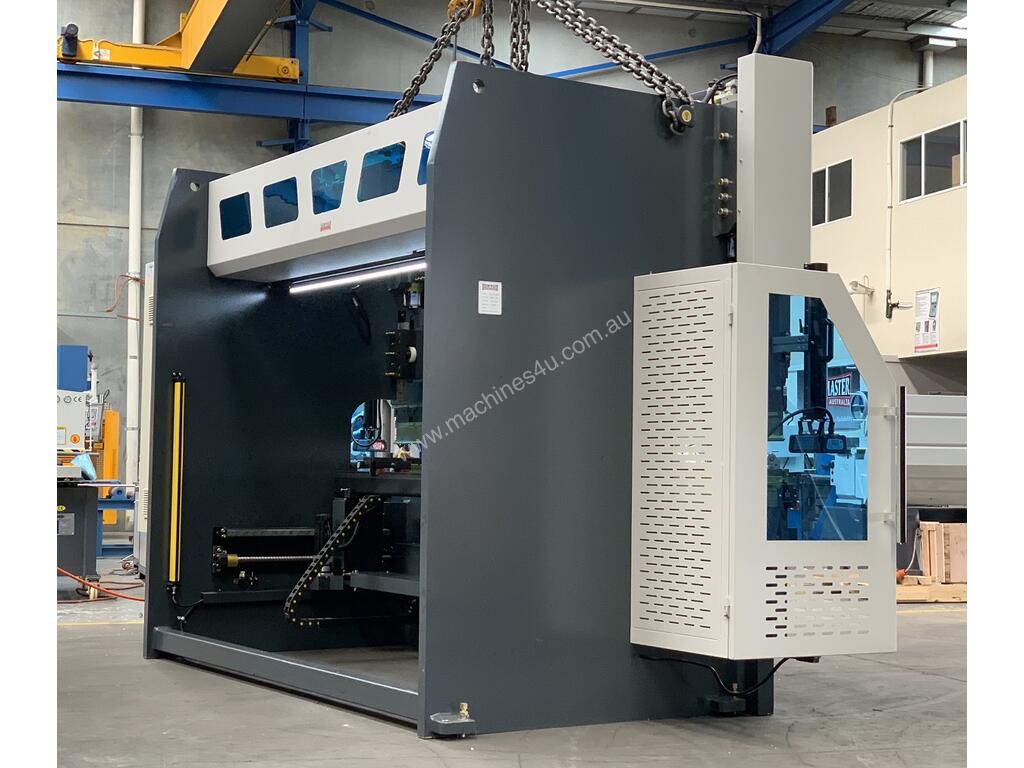

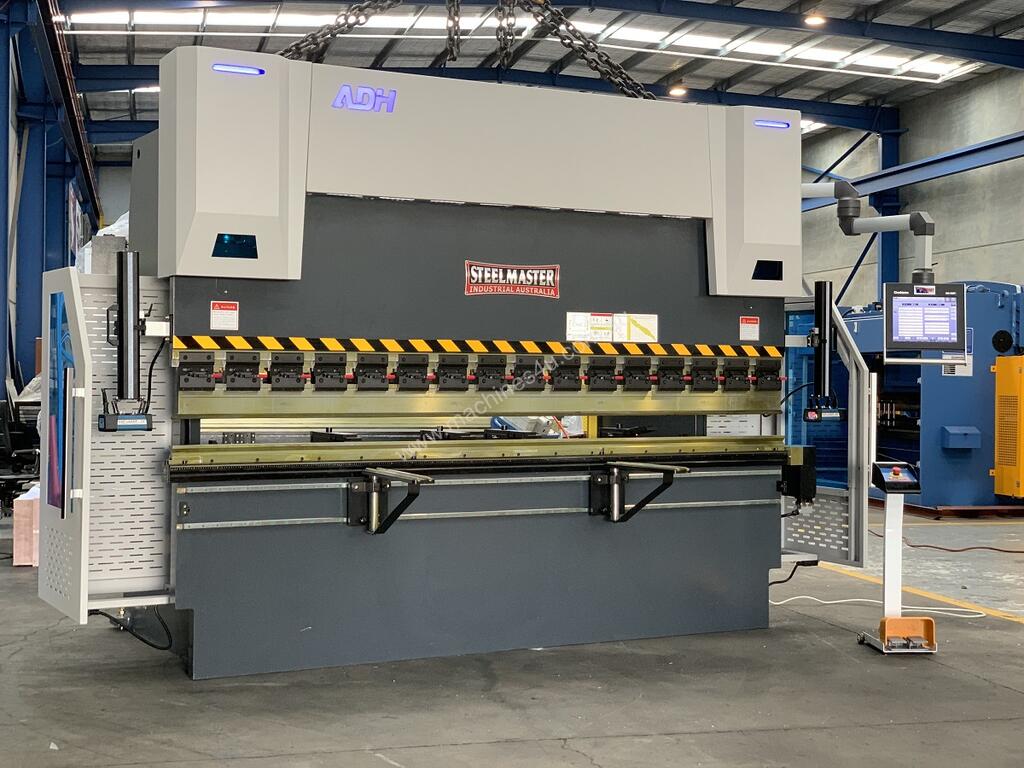

ADH Euro Pro B32175 CNC5 Energy Efficient Pressbrake. 3200mm x 175Ton, 5 Axis Delem DA58T Control

ADH Euro Pro B32175 CNC5 Energy Efficient Pressbrake. 3200mm x 175Ton, 5 Axis Delem DA58T Control Y1,Y2, X, R & CNC Table Crowning Control. Large Open Height & Throat, Italian DSP Laser Guards.

ADH Euro Pro A Series CNC Pressbrakes offer unbeatable quality & competitive pricing!
Our New Efficiency Stand By Inverter Motor – Offers low-cost operation followed up by all but silent machine operation.

Features
?Energy efficient “Stand-By” inverter motor
?precise and accurate 5 axis cnc press brakes.
?ADH machine frames consist of a monolithic structure with hot rolled high quality steel

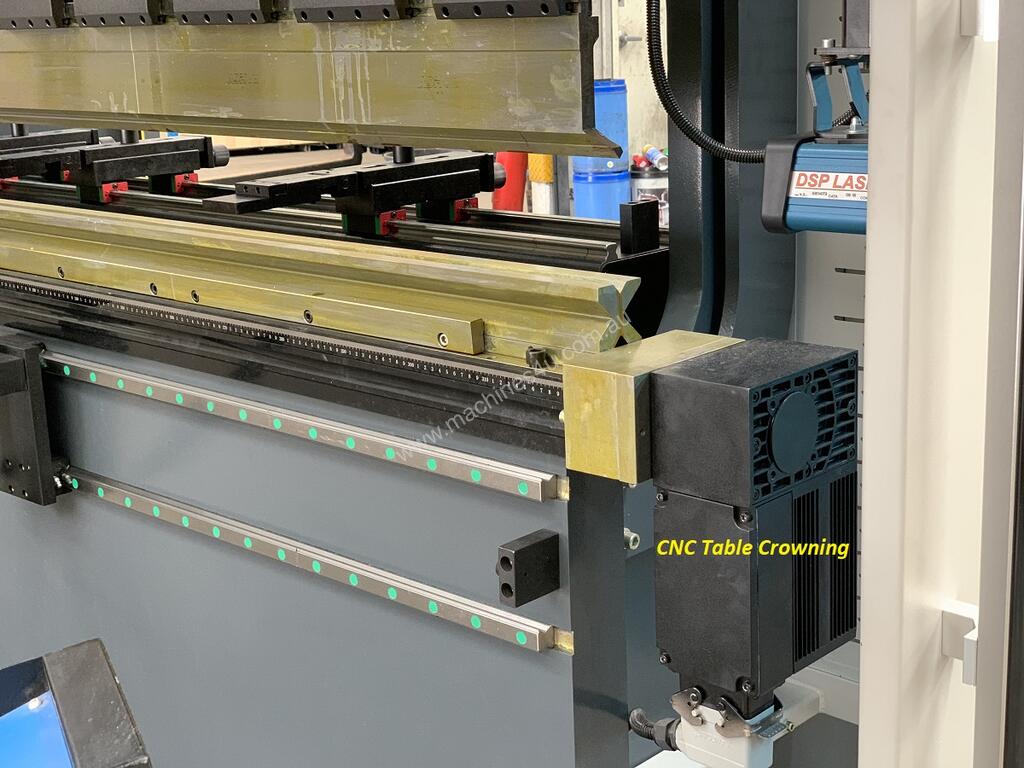

?CNC5 Controlled Axis (Y1, Y2, X, R, & Crowning) as standard.
?full electronic Synchronization with proportional valve technology. Guaranteed beam positioning of +/- 0.01mm (Y1 and Y2 Axis)
?German Hoerbiger hydraulic system
?cylinders made from high quality forged steel, precision honed
?accurate positioning and repeat ability of synchronized cnc press brakes, achieved by synchronizing the hydraulic cylinders with advanced CNC control of proportional valves and use of optic linear scales

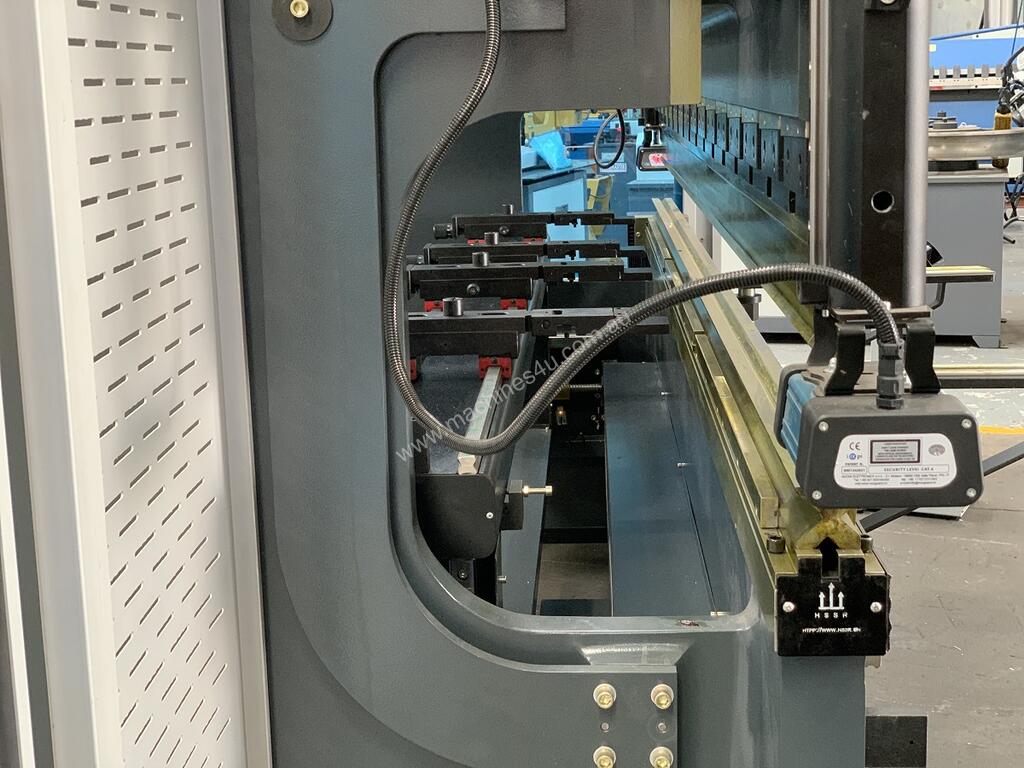

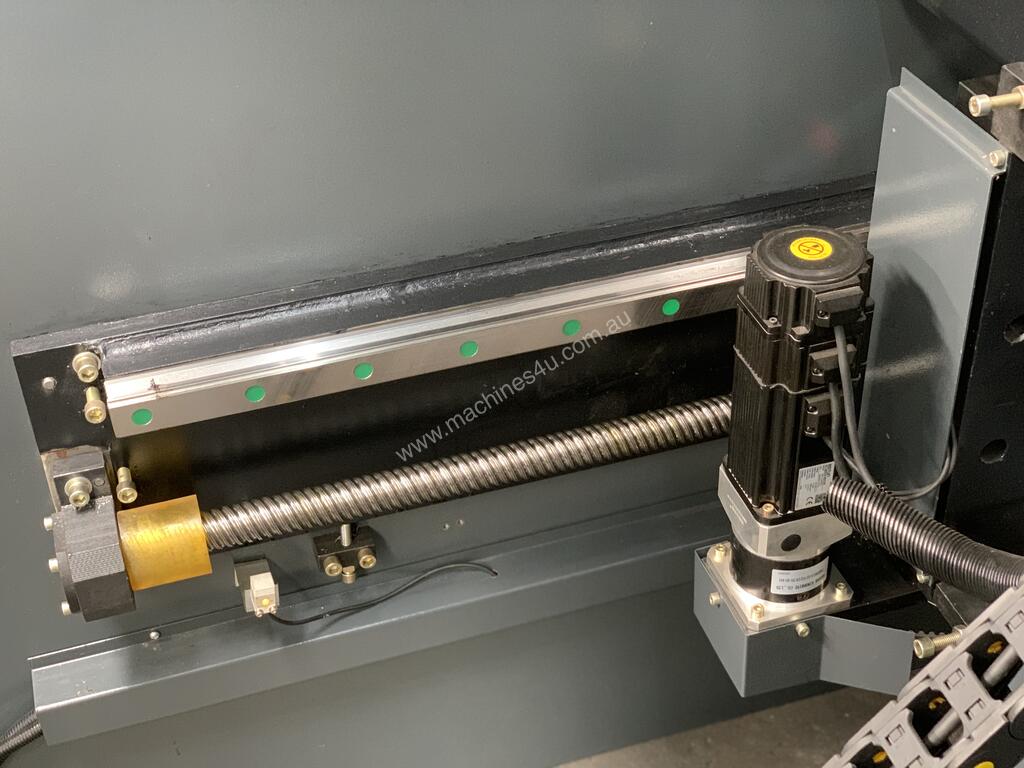

?CNC controlled back gauge with ball screw spindles, ball guides and AC or DC servo motors
?Euro quick action tool holders.

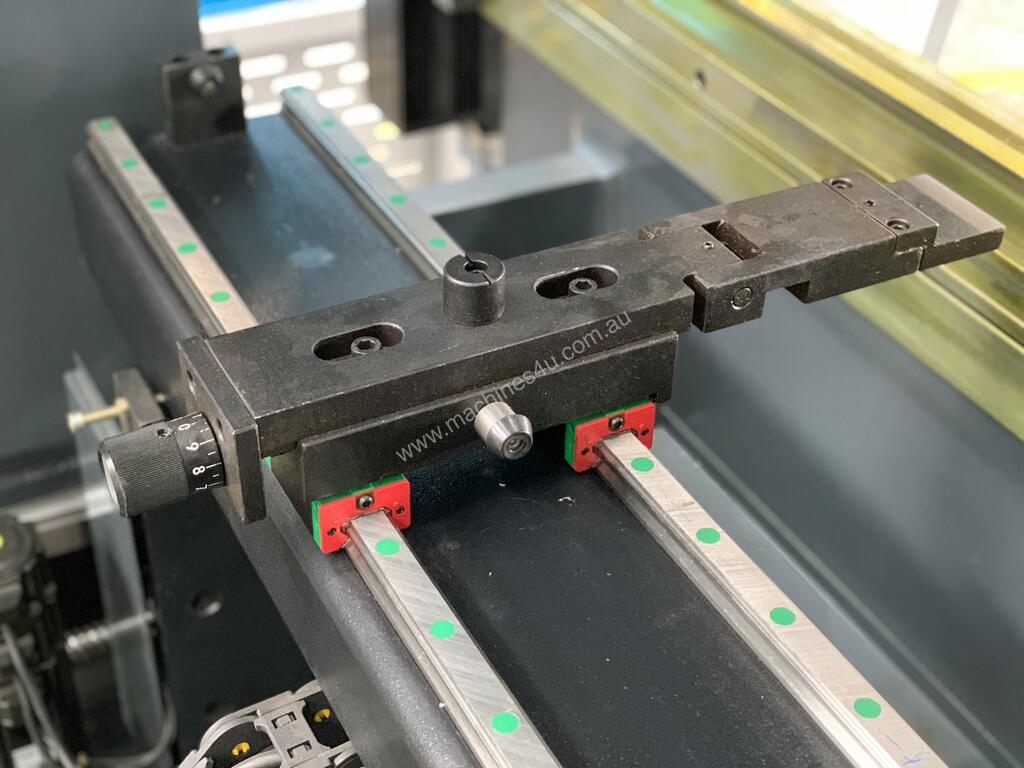

?linear guided sliding front sheet supports.
?ergonomic swing-away control panel
?side and rear safety guards with safety interlocks
Technical Data Snap-Shot
?Quality European Engineered Build Quality
?175 Ton Bending Capacity
?3200mm Bending Length
?5 axis cnc control, Y1, Y2, X, R & Crowning

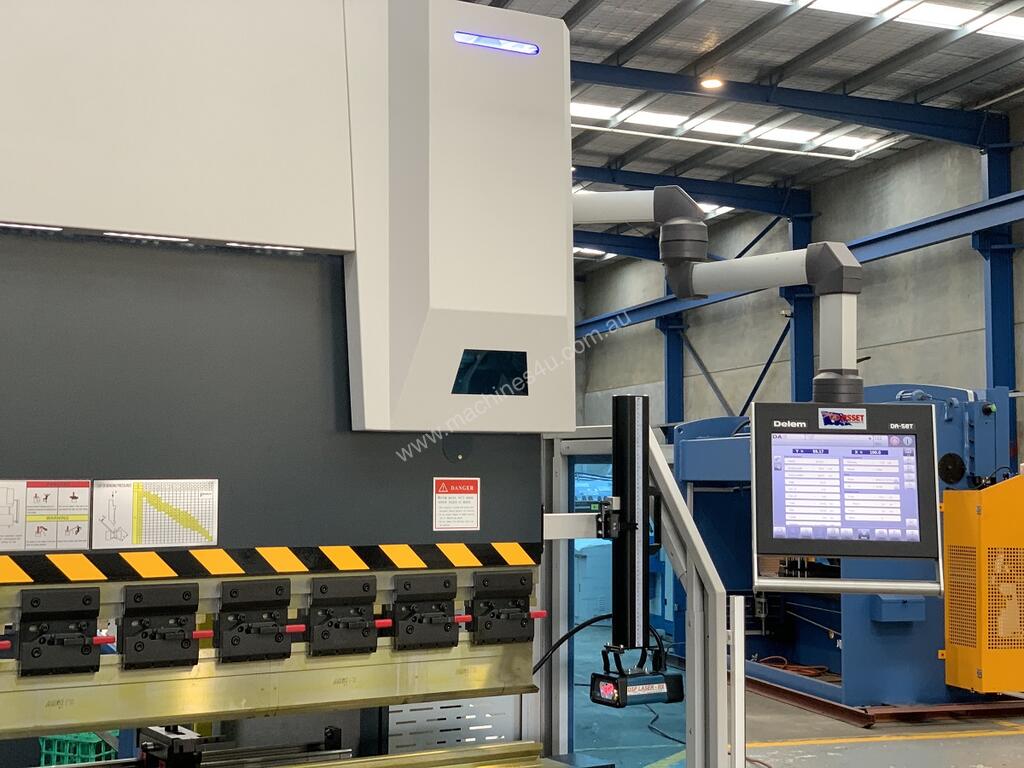

?Delem DA58T Controller
?High Speed Servo Operation
?2600mm Distance Between Frames
?400mm Side Throat Depth
?880mm Table Height
?200mm Ram Stroke
?400mm Open Height
?180mm / sec approach speed
?10mm / sec bending speed
?120mm / sec return speed
?750mm precision back gauge stroke
?Italian DSP laser guards included
?15Kw / V Motor Power
?3600mm x 1650mm x 2580mm Footprint
?13000Kg Weight

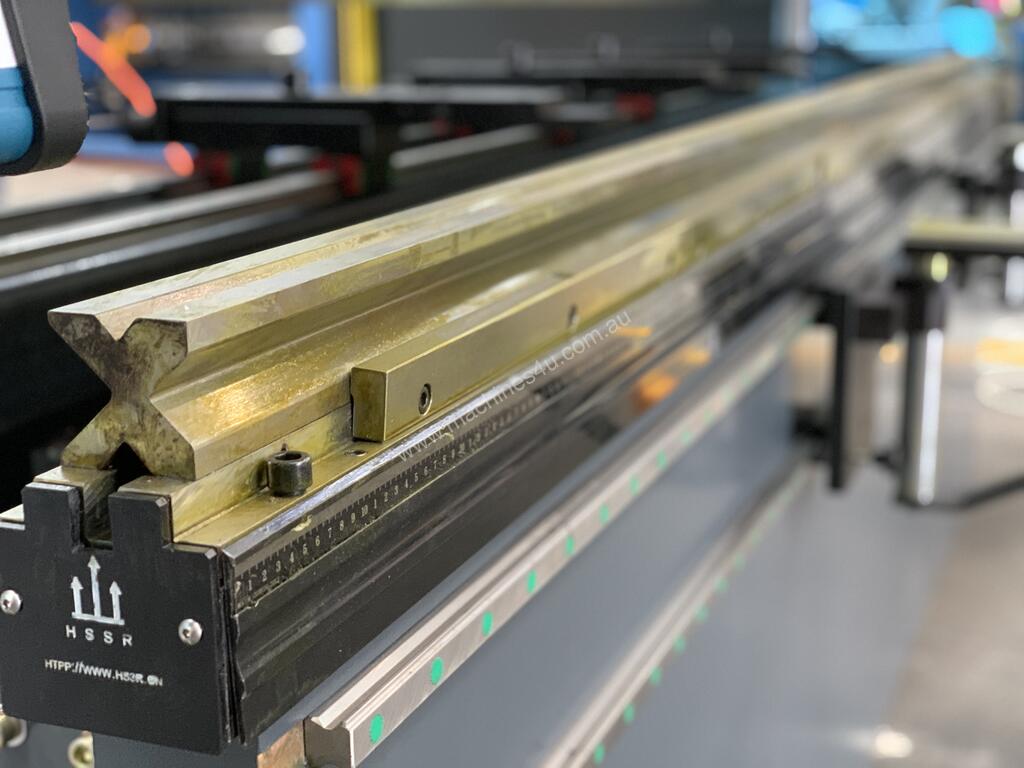

Pressbrake Tooling Supplied
?60mm x 60mm x 4 Vee Bottom Block / Other configurations can be offered
?Segmented Offset (Gooseneck) Tooling

Optional Equipment
?Delem DA66 Touch Controllers Upgrade - $7500+GST
?Delem 69Touch - Please ask
?Profile T2D - Offline Software For DA-58-T - $4850+GST
?Profile T3D - Offline Software For DA-66-T - $7850+GST
?Profile T3D - Offline Software For DA-69-T - Free With Controller Upgrade
?Z1, Z2 Axis Added
?1000mm Back gauge Travel

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.

Asset Plant & Machinery - Steelmaster Machinery
118 Logis Boulevard Dandenong South VIC 3175
